Choosing Batten Spacing for Your Project

Balancing rhythm, privacy, light and constructability in batten design

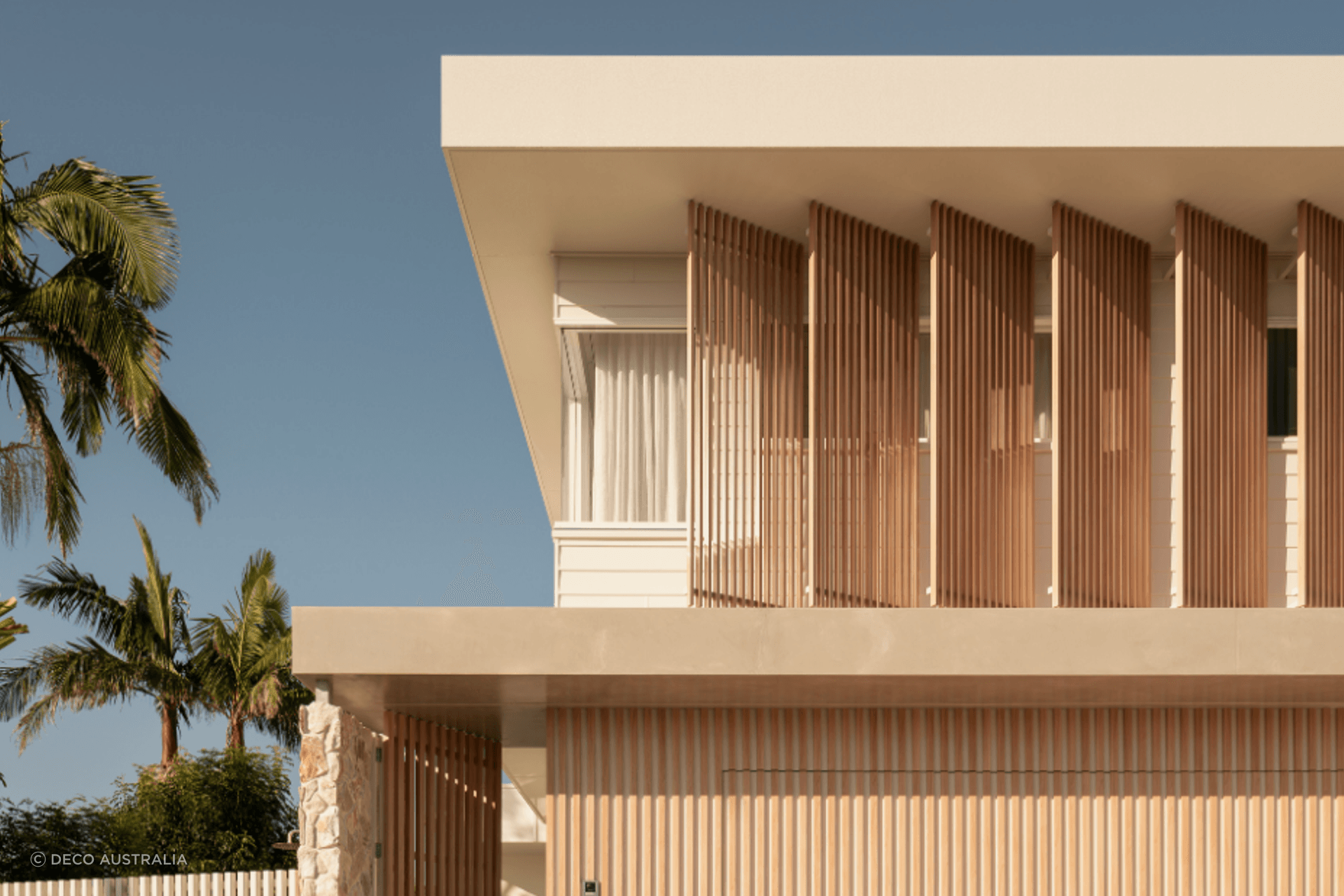

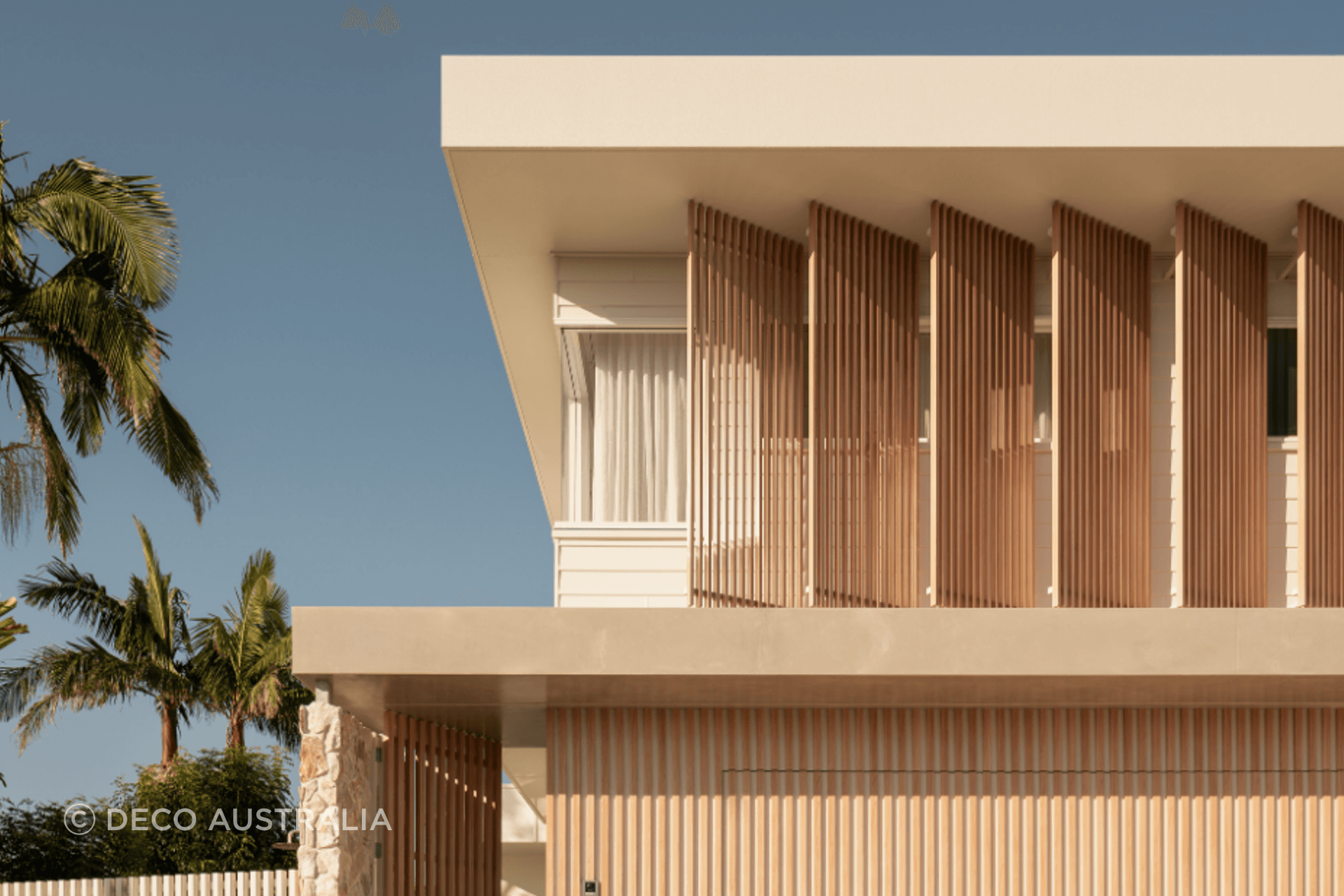

Batten spacing is a small dimension with a significant architectural impact. The relationship between batten width, depth and clear opening establishes the rhythm of a façade or screen while influencing privacy, daylight, visibility of the supporting substrate and material quantities.

As a starting point, spacing that matches the batten width—or a simple fraction of it—can create a disciplined module and simplify set-out. A 50 mm batten, for example, may be paired with a 50 mm, 25 mm or 12.5 mm gap. This proportional approach supports coherent elevations and makes measurement, estimating and installation more straightforward.

Depth is equally important. Deeper battens can restrict oblique views even where the face-on opening appears generous, while close spacing increases privacy and visual density but reduces light transmission. Smaller interiors and finely scaled elements often benefit from narrower gaps; larger façades and commercial applications can accommodate wider spacing to create a more open expression and stronger shadow play.

Regulatory and functional requirements should be resolved early. Screens near boundaries, balustrades and pool enclosures may be subject to specific opening, height or climbability provisions. Coordinating these constraints with the elevation module, fixing system and substrate during design development can prevent late-stage redesign.

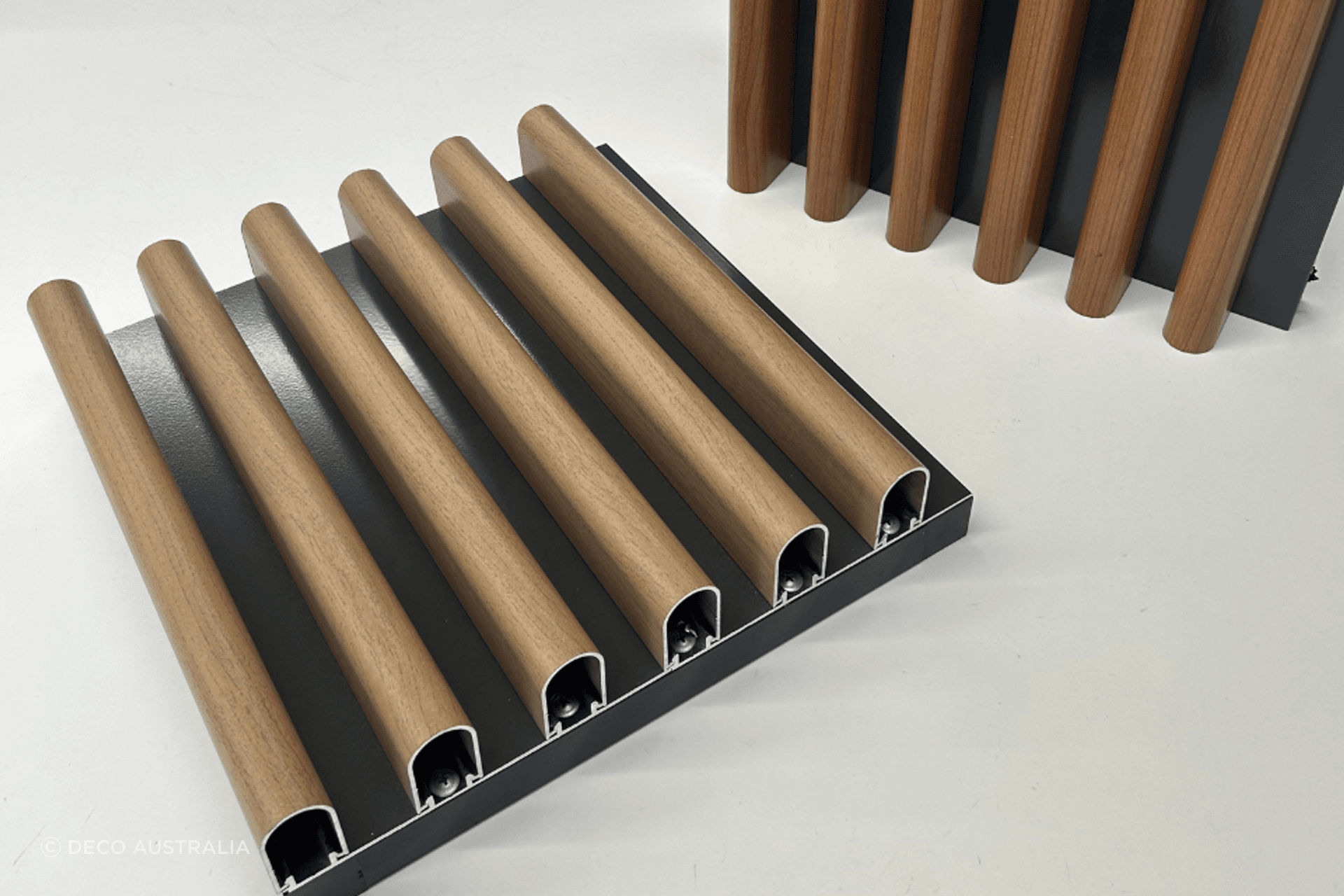

For consistent alignment, DECO’s SpaceBase® backing system can establish repeatable gaps while concealing or reducing the need for separate backing materials. Specifying the backing in a matching finish produces a continuous appearance, while a contrasting finish can emphasise depth and rhythm.
