38AR40 for 38G90 and 38G100

By Stormtech
Visit Website
D40 x W38 mm

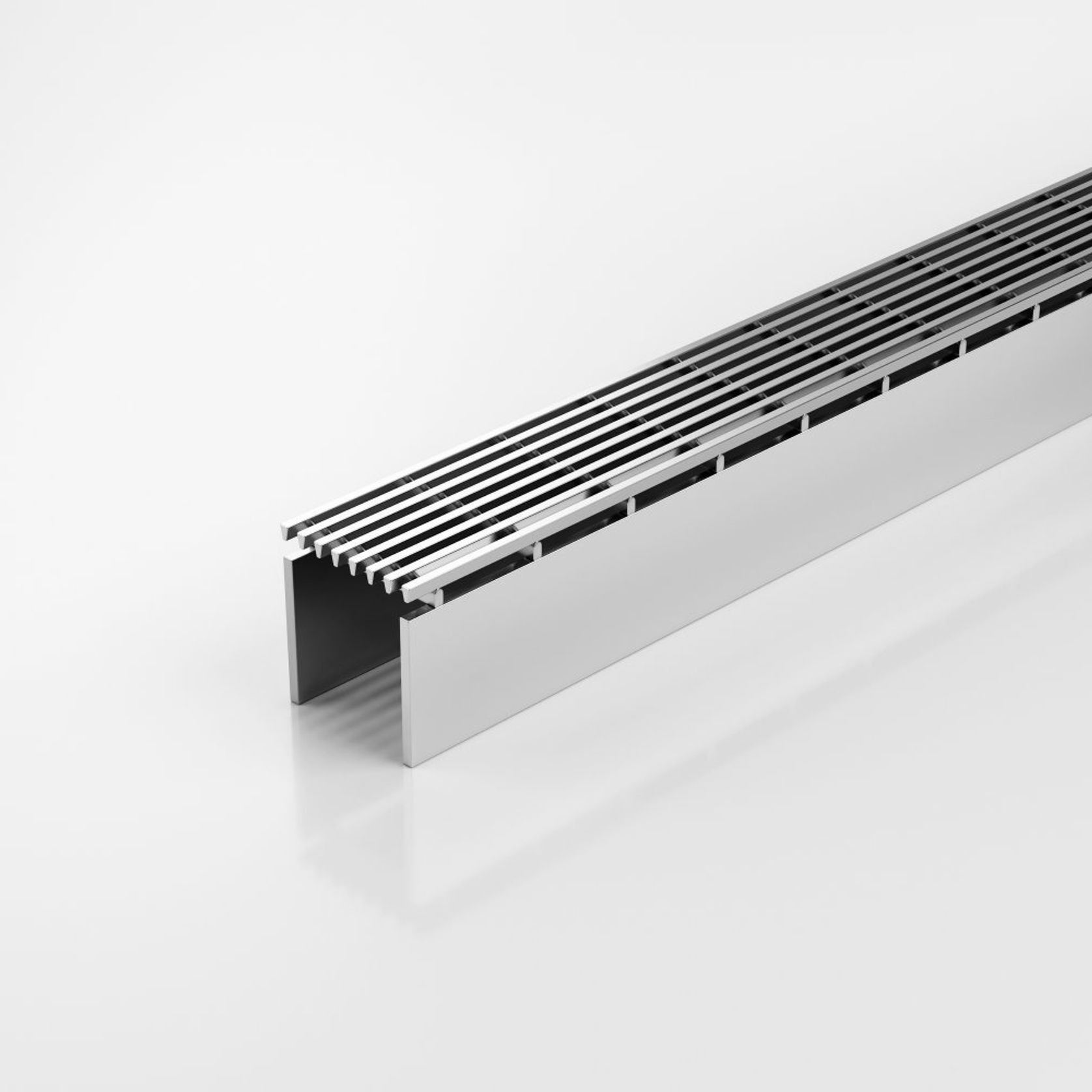

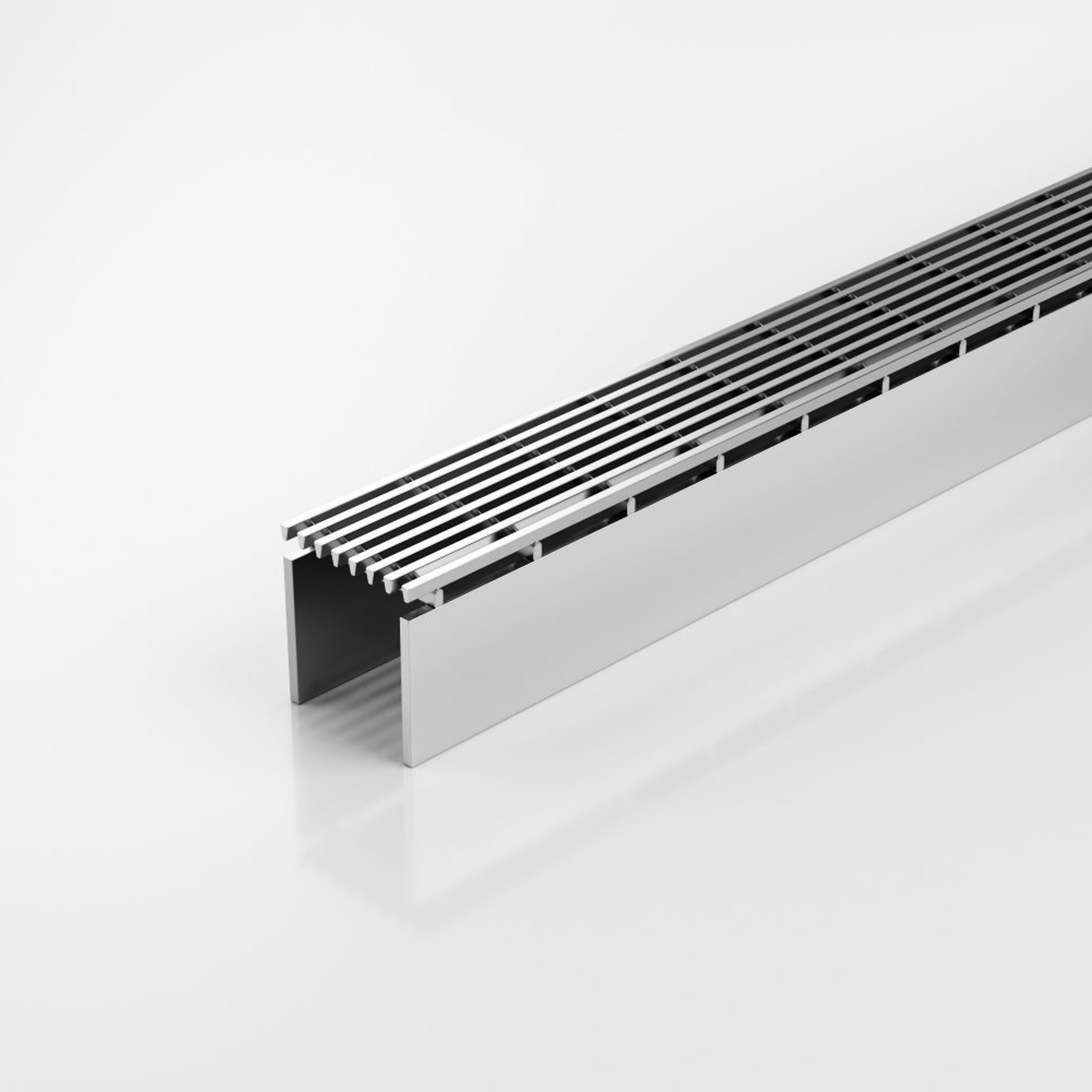

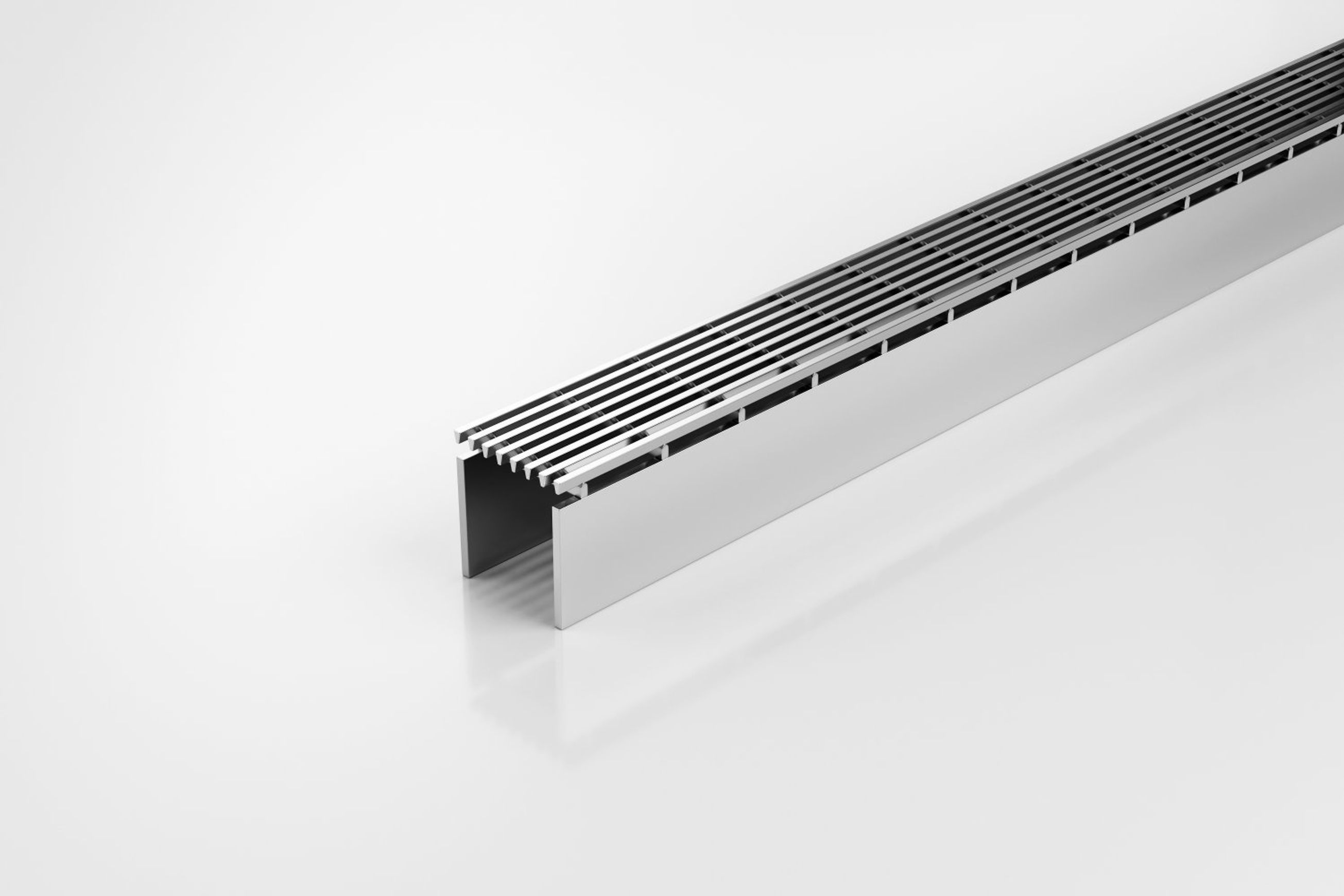

This is our premium architectural grate for use with the 38G90 and 38G100 Special Assembly drain.


A 38mm wide UPVC channel is connected via downpipes at 200mm intervals to sockets in a 90mm or 100mm drain below. This allows the channel to be installed level while the drainpipe is given sufficient fall to be self-cleaning.


Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.


This unique drainage system was recognised for its innovation by a DesignMark at the Australian International Design Awards.

Details
  • Category
    Surface Drainage
  • Range
    Special Assembly
Specifications

Channel Width: 38mm
Channel Depth: 40mm
Length(s): 1200mm, 1500mm
Outlet Size: N/A

SKU: 38AR40
