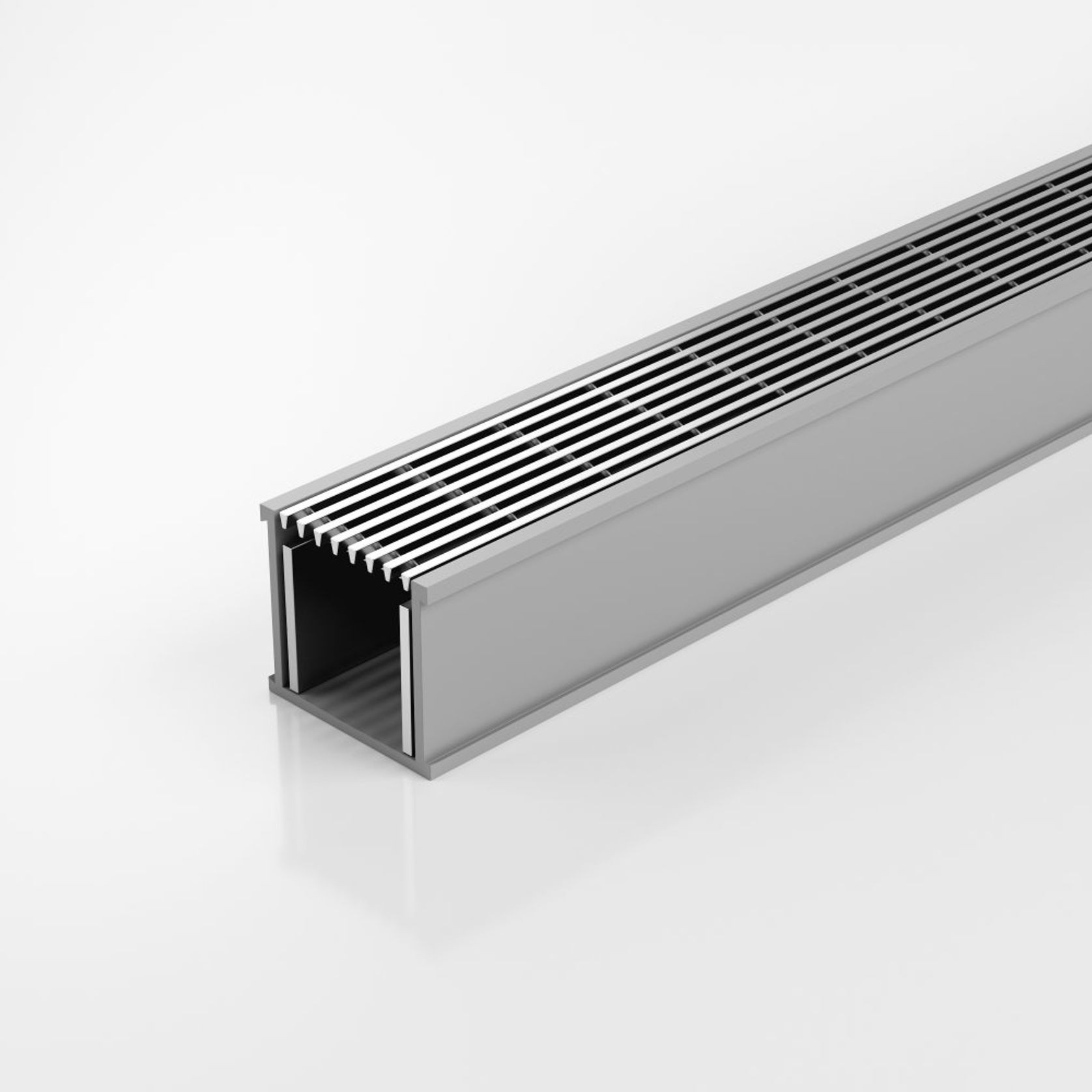

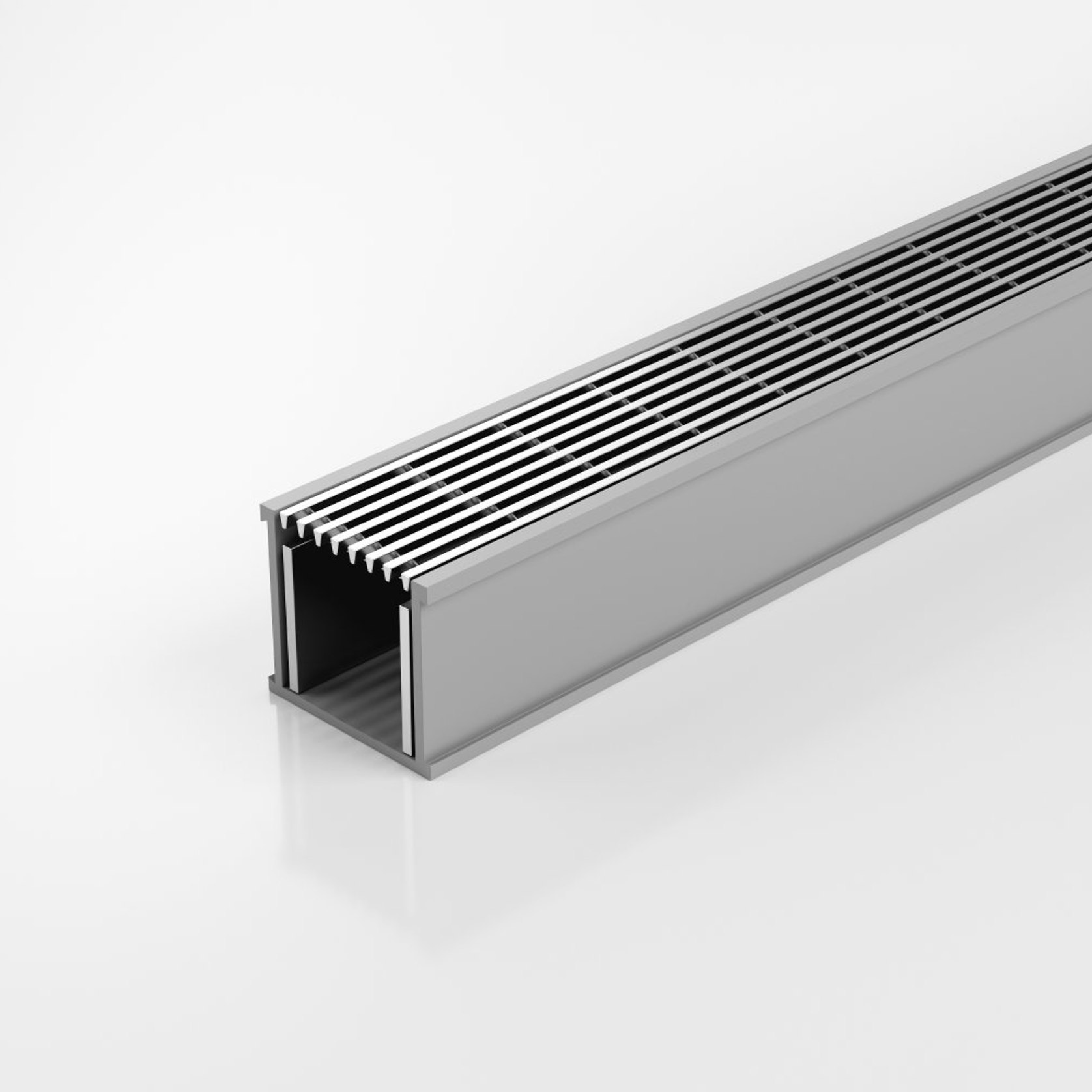

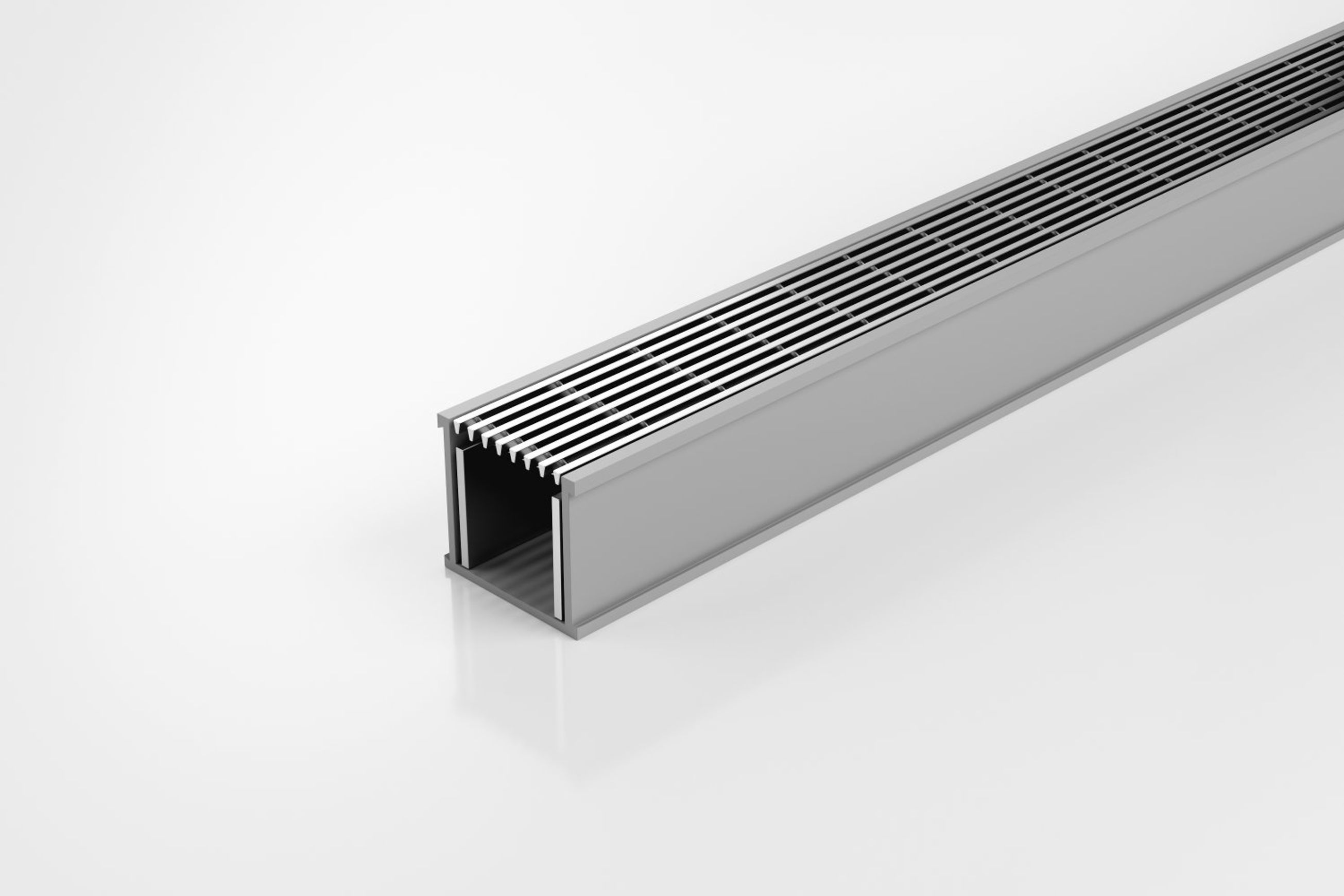

38ARG40 Linear Drainage System
Modular drainage kit with stainless steel grate(s), a uPVC drainage channel and fittings.
The 38AR40 is a premium architectural style grate featuring a 2mm wire/2.5mm gap.
The grate(s) are manufactured from 316 marine grade stainless steel and the channel and fittings from uPVC.
Lengths over 3000mm available on request.
- CategorySurface Drainage, Shower Trays & Drains
- Range38
Channel Width: 46mm
Channel Depth: 42mm
Length(s): 1200mm, 1500mm, 2400mm, 2700mm, 3000mm
Outlet Size: DN40, DN50
Projects featuring
38ARG40 Linear Drainage System
More from
Stormtech
About the
Seller
Stormtech introduced Australia to linear drainage for bathrooms in the early 1990's and has since then provided efficient architectural drainage solutions.
Stormtech specialises in narrow trench drainage solutions for all areas of the house including pool surrounds, paved areas, courtyards and showers. The sleek, versatile design allows for the partition between ‘wet’ and ‘dry’ spaces of the bathroom, as well as creating a perfect integration between internal and external areas of the house.
All Stormtech grates are made of quality stainless steel manufactured in Australia. The system connects directly with all standard plumbing fittings and has a Watermark Standards Australia International certification.
