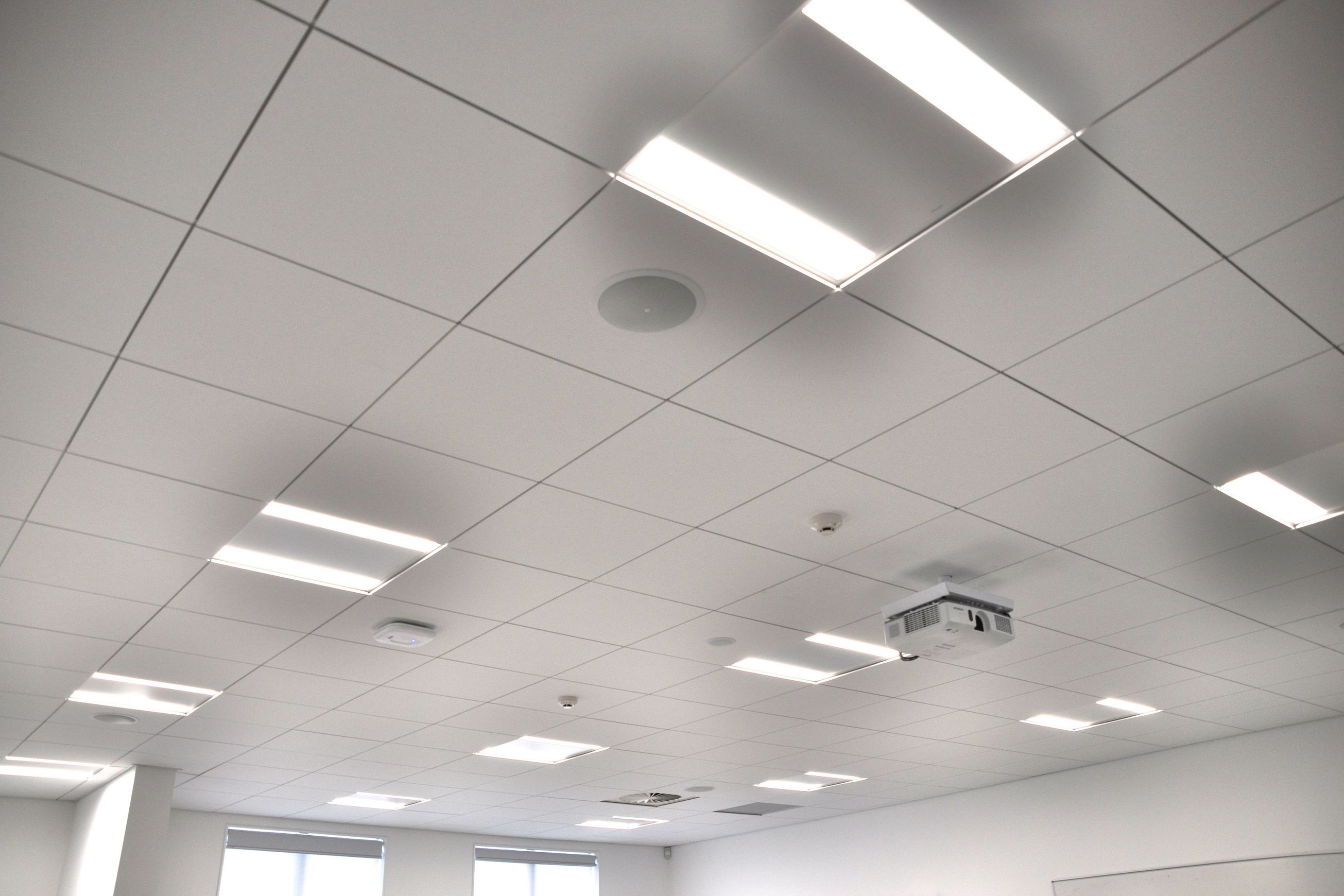

AMF Thermatex SF Acoustic Ceiling Tiles
by CSR Potter Interior Systems
Auckland
- 402.8K profile views
- 52 saves

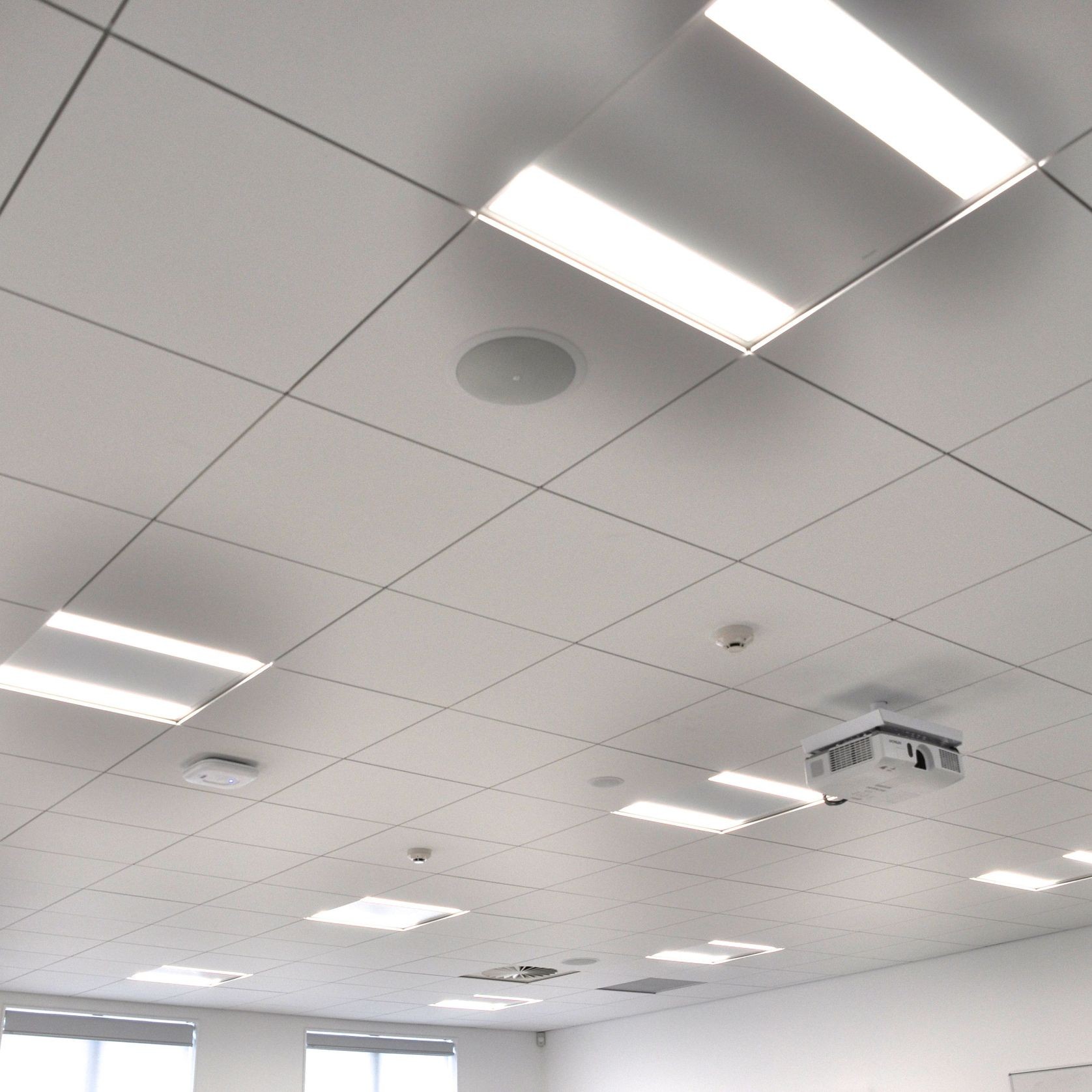

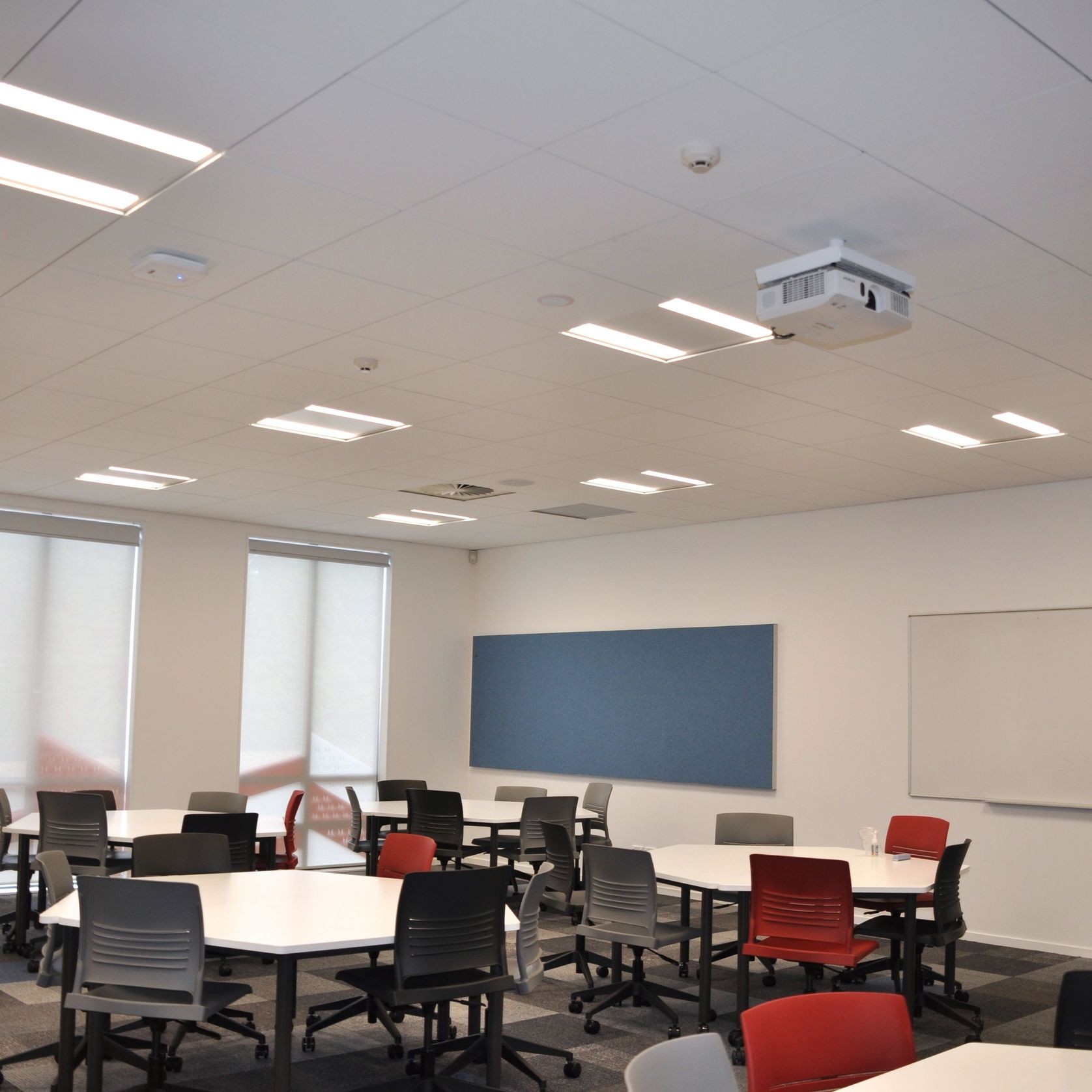

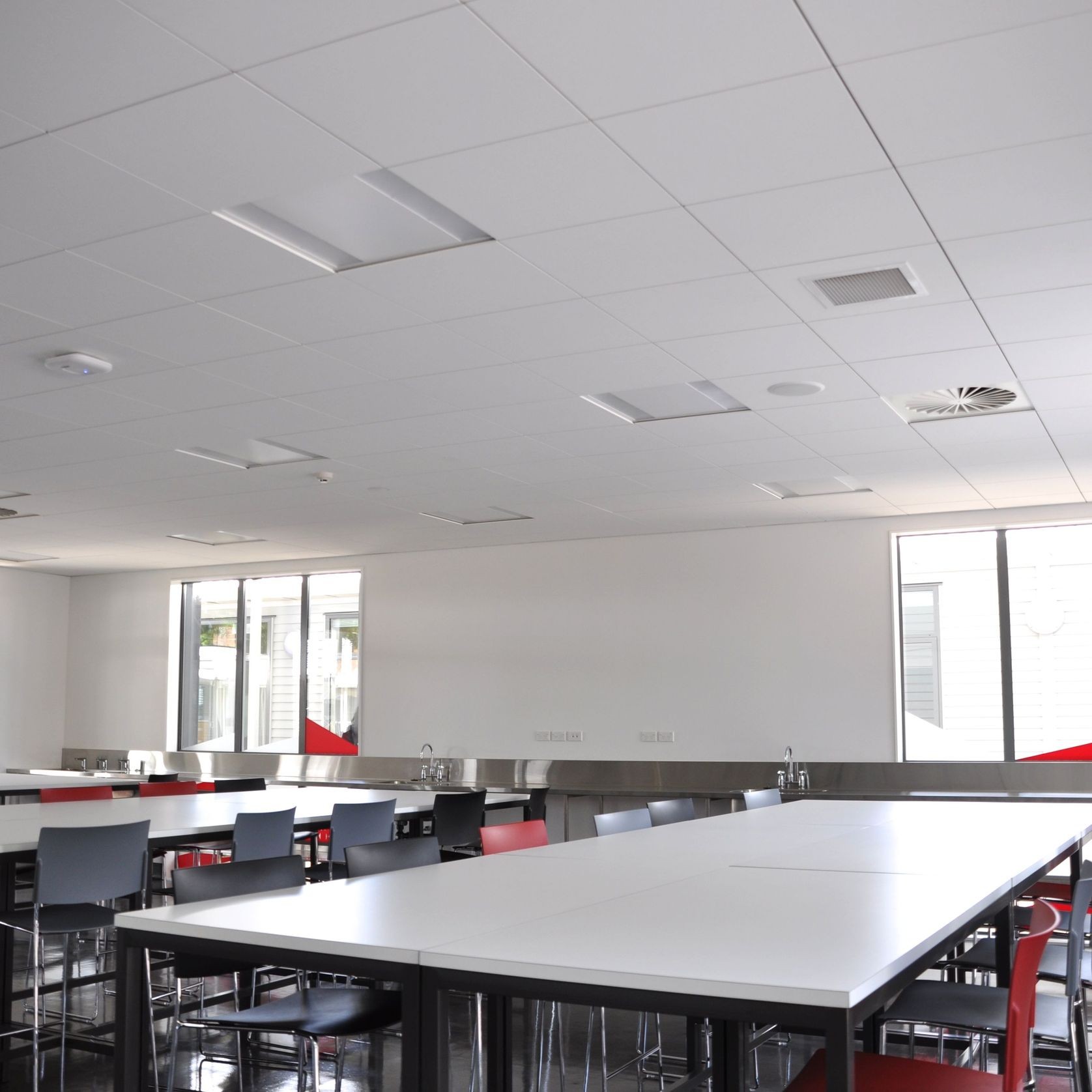

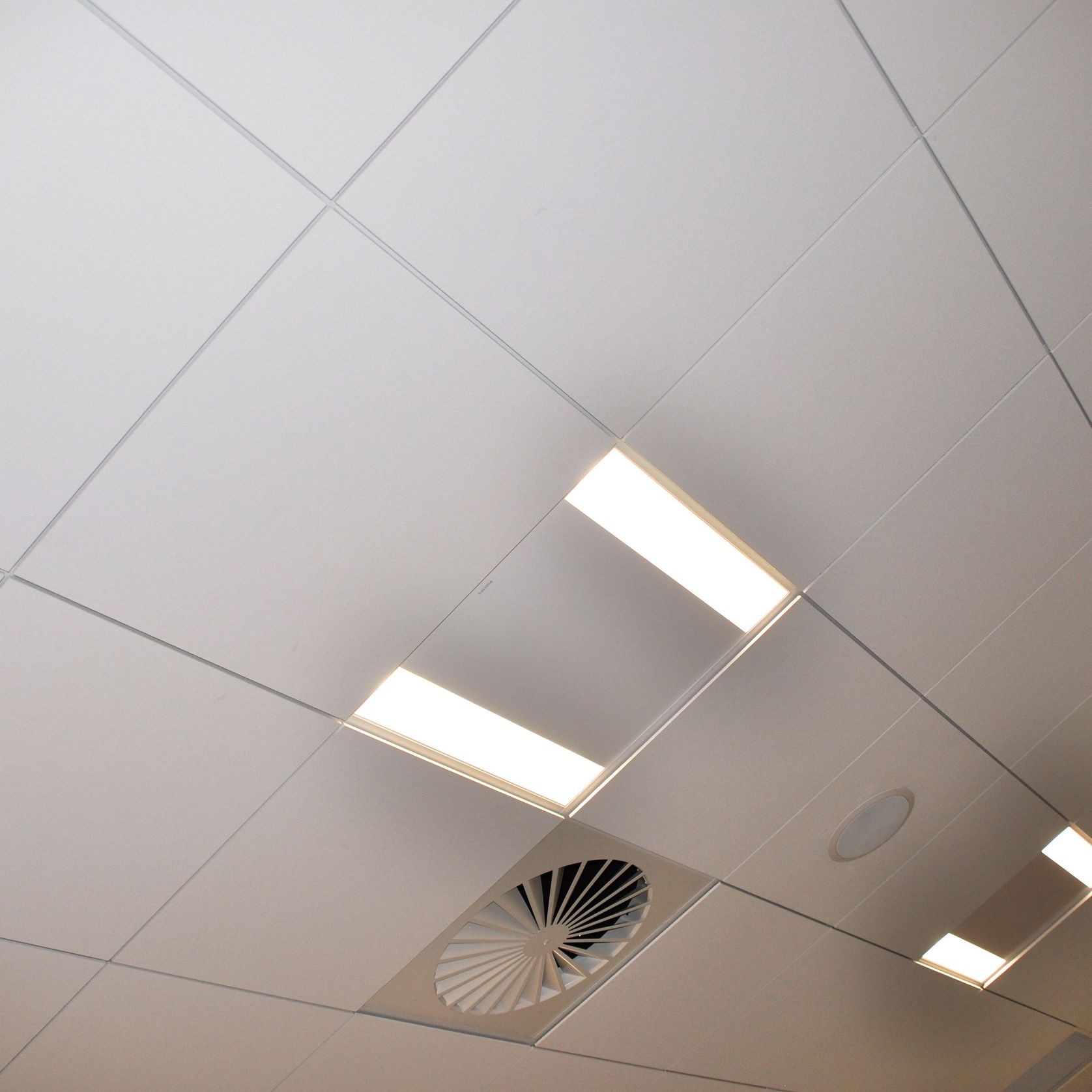

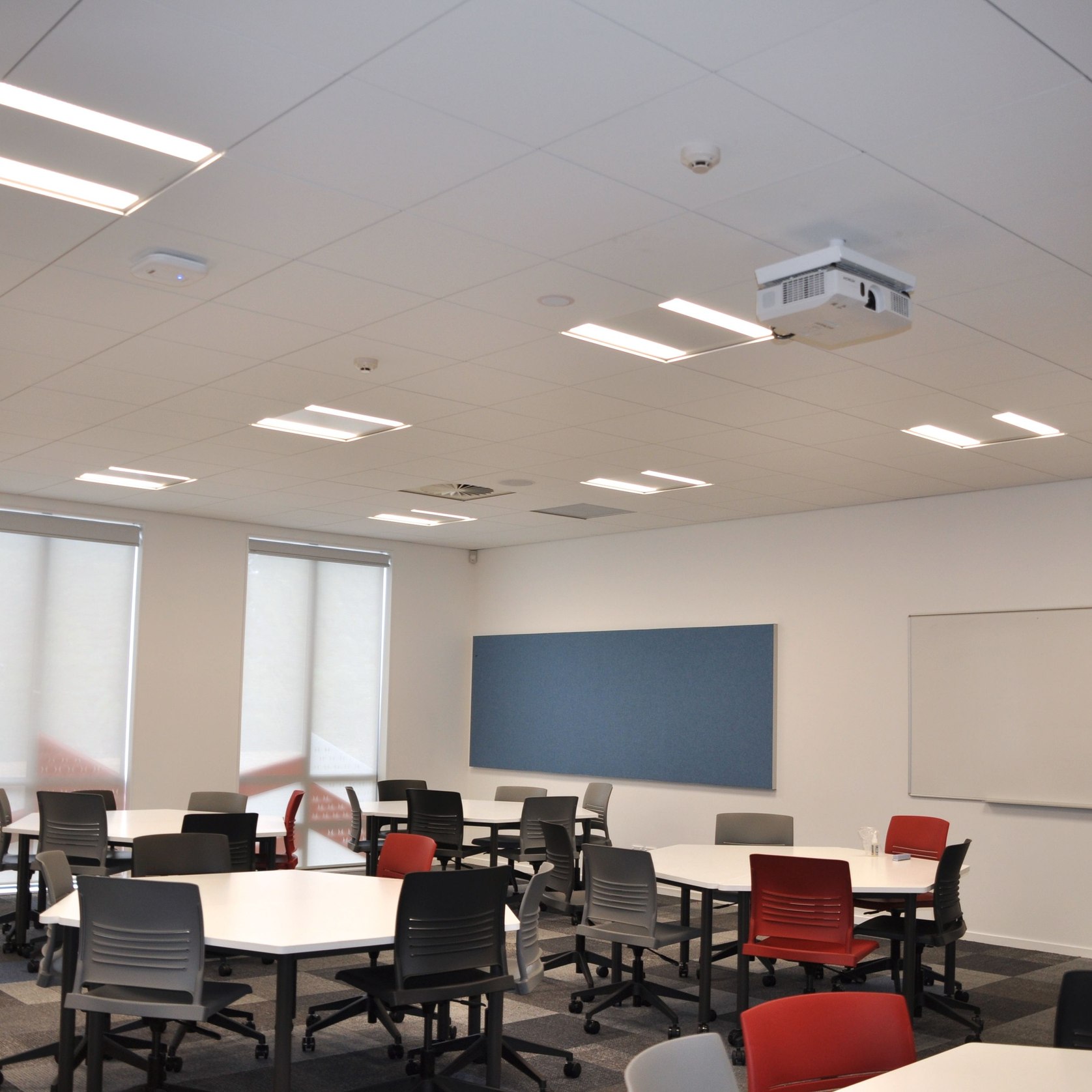

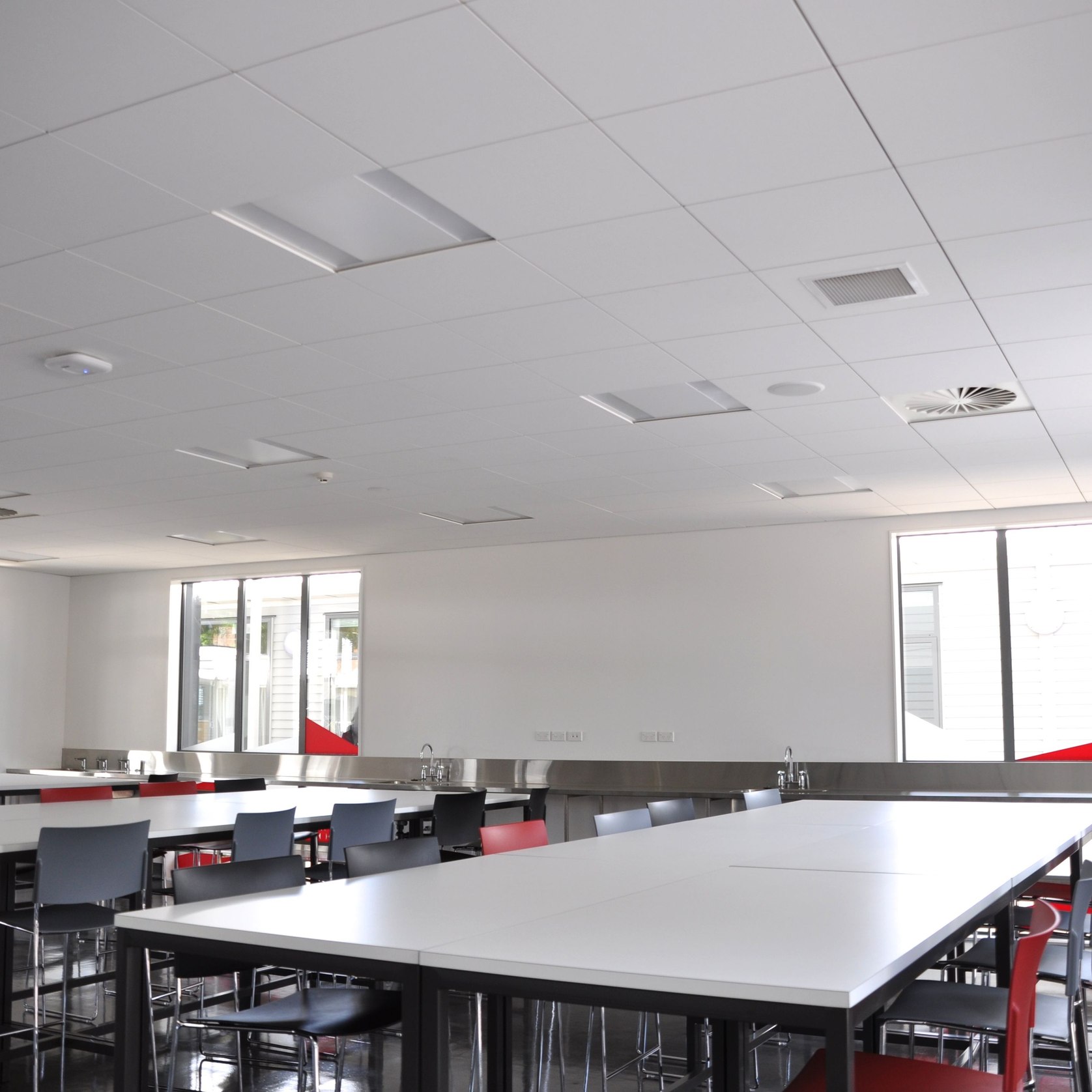

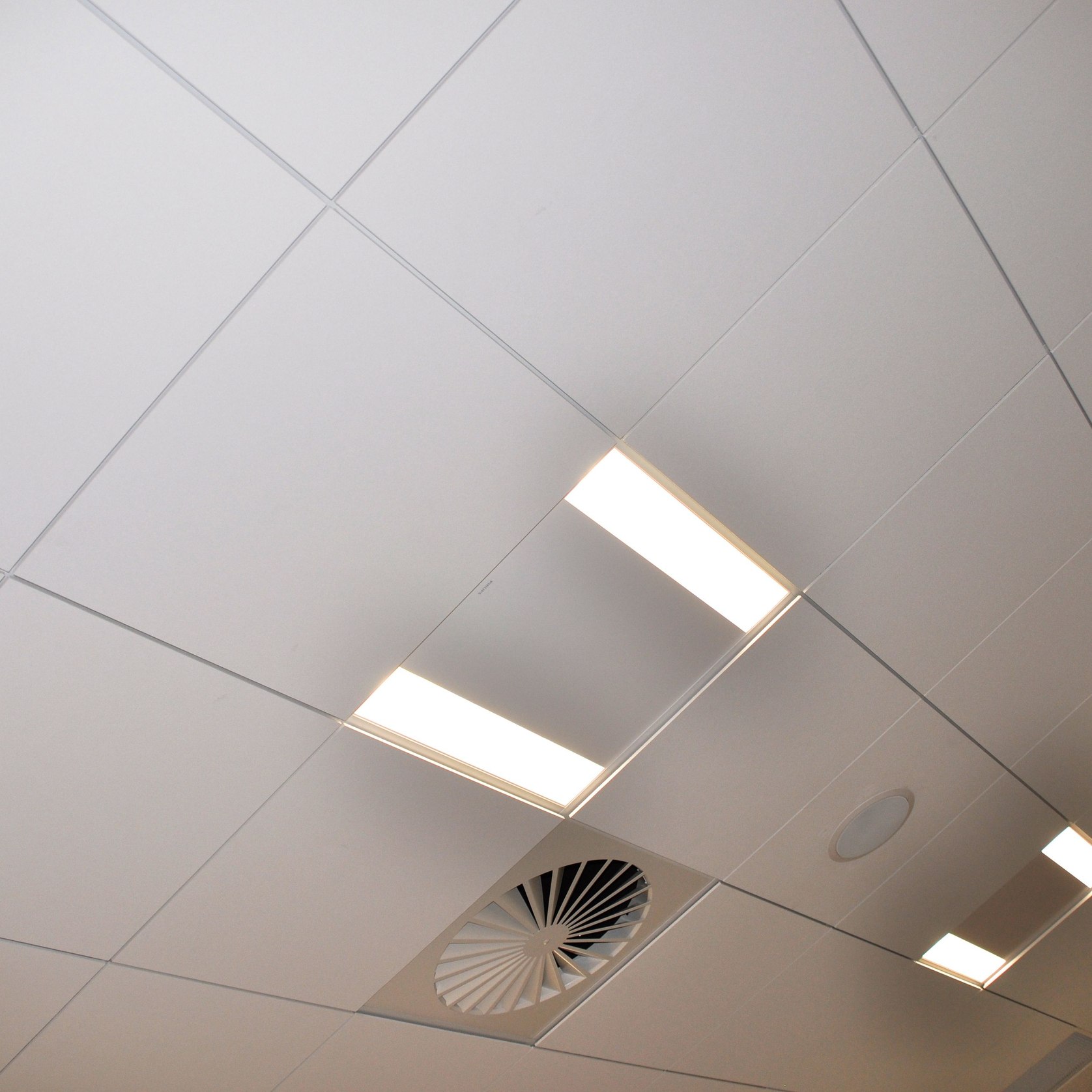

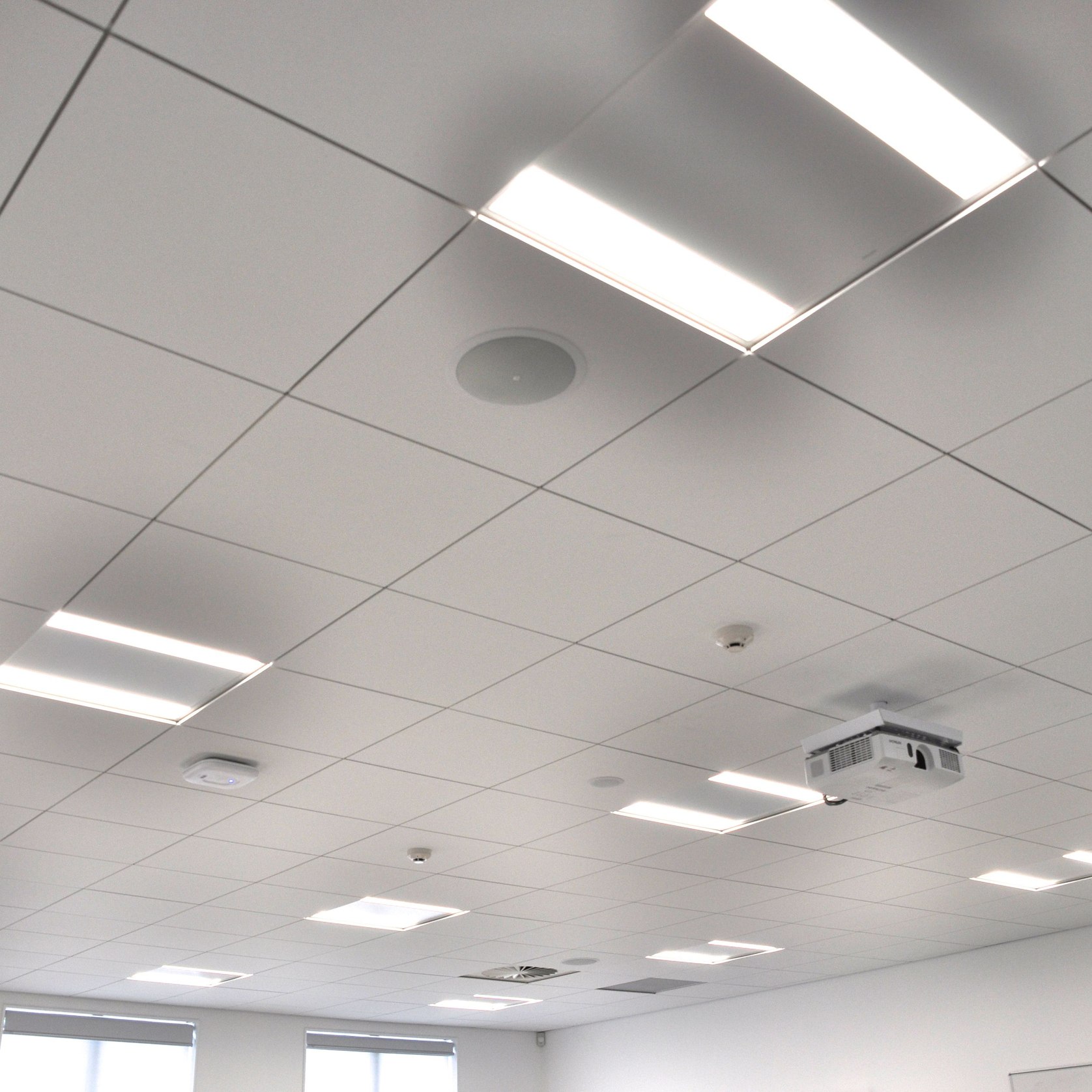

This elegant AMF performance suspended ceiling with the attractive SF shadow edge requires minimal void as the tile is installed purely from below. Installation and removal of the individual tiles is achieved simply by a small shift of the tile along the tee grid. With its invisible perforation, Thermatex SF Acoustic achieves high values in sound absorption and once installed shows a white, homogeneous surface in a discreet module.
Thermatex SF Acoustic also scores well with good technical acoustic properties. Our AMF Acoustic Range carries the Declare label.
Dimensions - 600 x 600mm
Product Details
- Product
- AMF Thermatex SF Acoustic Ceiling Tiles
- Category
- Suspended Ceiling
- Sold by
- CSR Potter Interior Systems
- Range
- Thermatex Ceilings
Product Variants
- Colours
- Material
- Size
CSR Potter Interior Systems is specified by
ArchiProArchitects
Fat Parrot ArchitectureArchitects
T Plus ArchitectsArchitects
architecture+Architects
YokeArchitects
RTA StudioArchitects
Chow:Hill ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Matt Brew ArchitectArchitects
Designgroup Stapleton ElliottArchitects
DLA ArchitectsArchitects
Origin HeritageArchitects
Lightforge PhotographyPhotographers
Resene Construction SystemsManufacturers and Suppliers
FocusplanInterior Designers
QuantumManufacturers and Suppliers
Metro Commercial InteriorsConstruction
Bates SurfacesManufacturers and Suppliers
Premium Golf SimulatorsManufacturers and Suppliers
Prestige Garage DoorsManufacturers and Suppliers
FortéManufacturers and Suppliers
AllegionManufacturers and Suppliers
AD ArchitectureArchitectural Designers
Fisher® Windows and DoorsManufacturers and Suppliers
SA Plumbing SupplyManufacturers and Suppliers
Creative ArchArchitectural Designers
Elevate Architectural TransportablesBuilders
VidaSpace®Manufacturers and Suppliers
Arc AtelierArchitectural Designers
GS Cayless ConstructionBuilders
VADAInterior Designers
MnM DesignArchitectural Designers
Bob Burnett ArchitectureArchitectural Designers
Mark Scowen PhotographyPhotographers
Autex AcousticsManufacturers and Suppliers
New Zealand Green Building CouncilAssociations
CTRL SpaceInterior Designers
This elegant AMF performance suspended ceiling with the attractive SF shadow edge requires minimal void as the tile is installed purely from below.
Installation and removal of the individual tiles is achieved simply by a small shift of the tile along the tee grid. With its invisible perforation, Thermatex SF Acoustic achieves high values in sound absorption and once installed shows a white, homogeneous surface in a discreet module.
Thermatex SF Acoustic also scores well with good technical acoustic properties. Our AMF Acoustic Range carries the Declare label.
Dimensions - 600 x 600mm
- Specs
- Thickness / weight - 24 mm (c. 8.4 kg/m²)
- Colours - White similar to RAL 9010 equivalent
- Sound absorption - NRC = 0.70 as per ASTM C 423
- Sound attenuation - CAC = 39 dB as per ASTM E413-10
- Humidity - Up to 95%
- RHLight reflectance - Up to 88%
- Thermal conductivity - λ = 0.052 – 0.057 W/mK as per DIN 52612NRC = 0.70 as per ASTM C 423
- Fire resistance - Group 1-S (as per ISO 5660 Parts 1 and 2)
