AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile

Potter Interior Systems
Visit Website
AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile gallery detail image
AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile gallery detail image
AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile gallery detail image
AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile gallery detail image
White

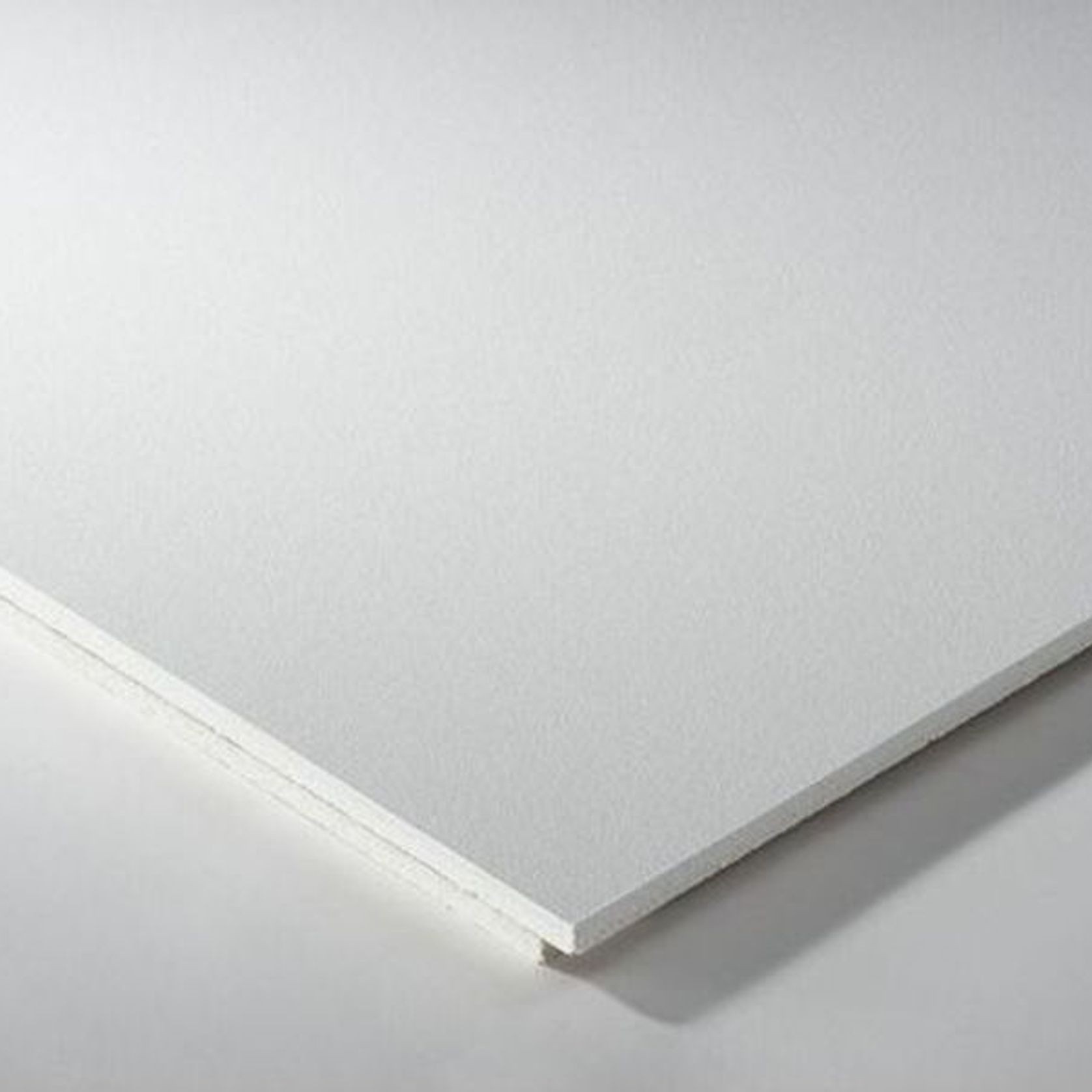

AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile is the extremely absorbing plank ceiling from the AMF Acoustic Range. The range is suited for New Zealand schools, meeting DQLS requirements. The elegant white acoustic fleece provides a high quality surface. Our AMF Acoustic Range carries the Declare label.

Details
  • Category
    Acoustic Panels, Suspended Ceiling
  • Range
    Thermatex Ceilings
Specifications

System: Two way exposed grid system

Dimensions : 1200 x 600mm (other sizes available on request)

Thickness / Weight :
19 mm (c. 5.2 kg/m²)
30 mm (c. 8.2 kg/m²)
35 mm (c. 9.5 kg/m²)

Colour : White similar to RAL 9010

Edge details : SK (other profiles available on request)

Sound absorption :
NRC = 0.90 as per ASTM C 423 (19mm)
NRC = 0.90 as per ASTM C 423 (30mm)
NRC = 0.85 as per ASTM C 423 (35mm)

Sound attenuation :
CAC = 34 dB as per ASTM E413-10 (19mm)
CAC = 40 dB as per ASTM E413-10 (30mm)
CAC = 42 dB as per ASTM E413-10 (35mm)

Fire resistance :
Group 1-S(as per ISO 5660 Parts 1 and 2)

Light reflectance :
Up to 88%

Thermal conductivity :
λ = 0.052 - 0.057 W/mK as per DIN 52612

Humidity :
Up to 95 % RH

Clean room :
Class 4 as per ISO 14644-1
