Aeron® Window Actuator
by ASSA ABLOY
Auckland, New Zealand
- 664.0K profile views
- 60 saves
The Aeron Window Control System can be configured to reflect the unique layout of your home. Groups, such as the kitchen, hall, or bedroom can be set up, providing flexibility when deciding which windows you would like open, half open, closed, or in a venting position.
Ultimate Control is only one touch away with the option to close all windows at once when leaving the house, or locking up for the night.
Product Details
- Product
- Aeron® Window Actuator
- Category
- Digital Door Locks
- Sold by
- ASSA ABLOY
- Range
- Yale - Residential
- Designer
- ASSA ABLOY NZ
- Brand
- Yale
- Year
- 2023
- Type of use
- Residential
- Care and cleaning
- Easy maintenance
- Installation
- Professional installation recommended
- Warranty
- 3 years
ASSA ABLOY is specified by
Bossley ArchitectsArchitects
Jigsaw ArchitectsArchitects
DLA ArchitectsArchitects
Moller ArchitectsArchitects
Chow:Hill ArchitectsArchitects
Smith ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Francis Gp ArchitectsArchitects
South ArchitectsArchitects
Dalman ArchitectsArchitects
+MAP ArchitectsArchitects
Borrmeister ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
GHD DesignArchitects
YokeArchitects
Paul Brown & Associates LimitedArchitects
Fat Parrot ArchitectureArchitects
Landmark Homes Auckland - North Shore & RodneyBuilders
Fixation BuildersBuilders
New Zealand Green Building CouncilAssociations
Fisher® Windows and Doors OtagoGlaziers
Nulook® Windows & Doors WanganuiGlaziers
O'Neil + Shirley ArchitectureArchitectural Designers
Lewis WindowsServices
Nebulite® Windows & DoorsManufacturers and Suppliers
ThermosashManufacturers and Suppliers
Begg Security GroupLocksmiths
Landmark Homes GisborneBuilders
Design BuildersBuilders
Clements Windows & DoorsGlaziers
Fisher® Windows and DoorsManufacturers and Suppliers
Nulook™ Windows & Doors Kumeu
Foley GroupInterior Designers
FocusplanInterior Designers
Nebulite® Windows & Doors MastertonGlaziers
Golden Homes CanterburyDesign & Build
Vistalite® Windows and Doors ManawatuGlaziers
Nebulite® Palmerston NorthManufacturers and Suppliers
The House CompanyBuilders
Nebulite® Windows & Doors TaurangaGlaziers
Altus® Window SystemsJoinery Installers & Repairs
Fairview WarkworthManufacturers and Suppliers
Nebulite® Windows & Doors SouthlandGlaziers
David Reid HomesDesign & Build
Nebulite® TaranakiManufacturers and Suppliers
DuluxManufacturers and Suppliers
Landmark Homes New ZealandBuilders
E13 Performance WindowsGlaziers
Alpha 1 BuildersBuilders
Liddington Electrical SouthernElectricians
PJM Project ManagementProject Managers
Walker ArchitectureArchitectural Designers
VoxellArchitectural Designers
Rylock® Windows & DoorsManufacturers and Suppliers
JD HomesBuilders
Vistalite® Windows and DoorsManufacturers and Suppliers
Nulook® Windows & Doors CanterburyGlaziers
Abron GroupDesign & Build
Fisher® Windows and Doors GisborneGlaziers
The Aeron Window Control System can be configured to reflect the unique layout of your home.
Groups, such as the kitchen, hall, or bedroom can be set up, providing flexibility when deciding which windows you would like open, half open, closed, or in a venting position.
Ultimate Control is only one touch away with the option to close all windows at once when leaving the house, or locking up for the night.
- Specs
Suitability
- Suitable for use on sashes with a maximum width of 2400mm and pushing force of 18kg (with two actuators)
- Suitable for awning or casement windows
- Aeron Actuators are only to be used on windows with hinges or non-friction stays
Fixing Surfaces
- Timber
- Aluminium
Voltage
24V DCMaximum Current Draw
- Actuator = 600mA
- Rain Sensor + Adaptor = 350mA
Operating Force
Opening/Closing Force 9kgStroke Length
Maximum window opening is 250mmStroke Time
Closing time from the maximum opening position is approximately 30 secondsEnvironment
- 0 to 50° Celsius
- 0 to 95% Humidity
Chain
Stainless Steel (Grade 304)Finish Options
Powdercoat colour options (BLK, P, and SPEC)- Features
- Customise to the unique layout of your home

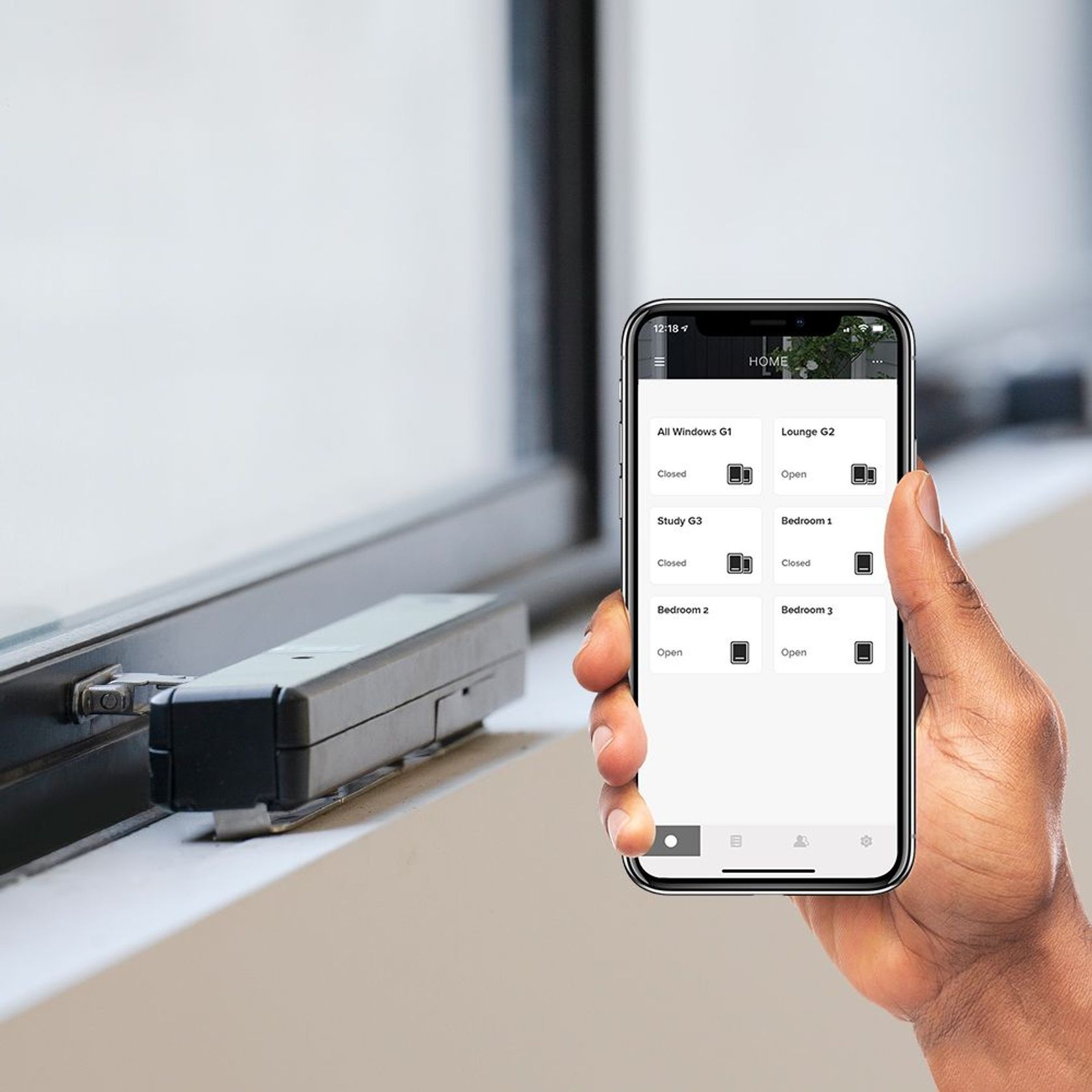

- Full control with the Yale Home app
- Rain sensors
- Scope of use

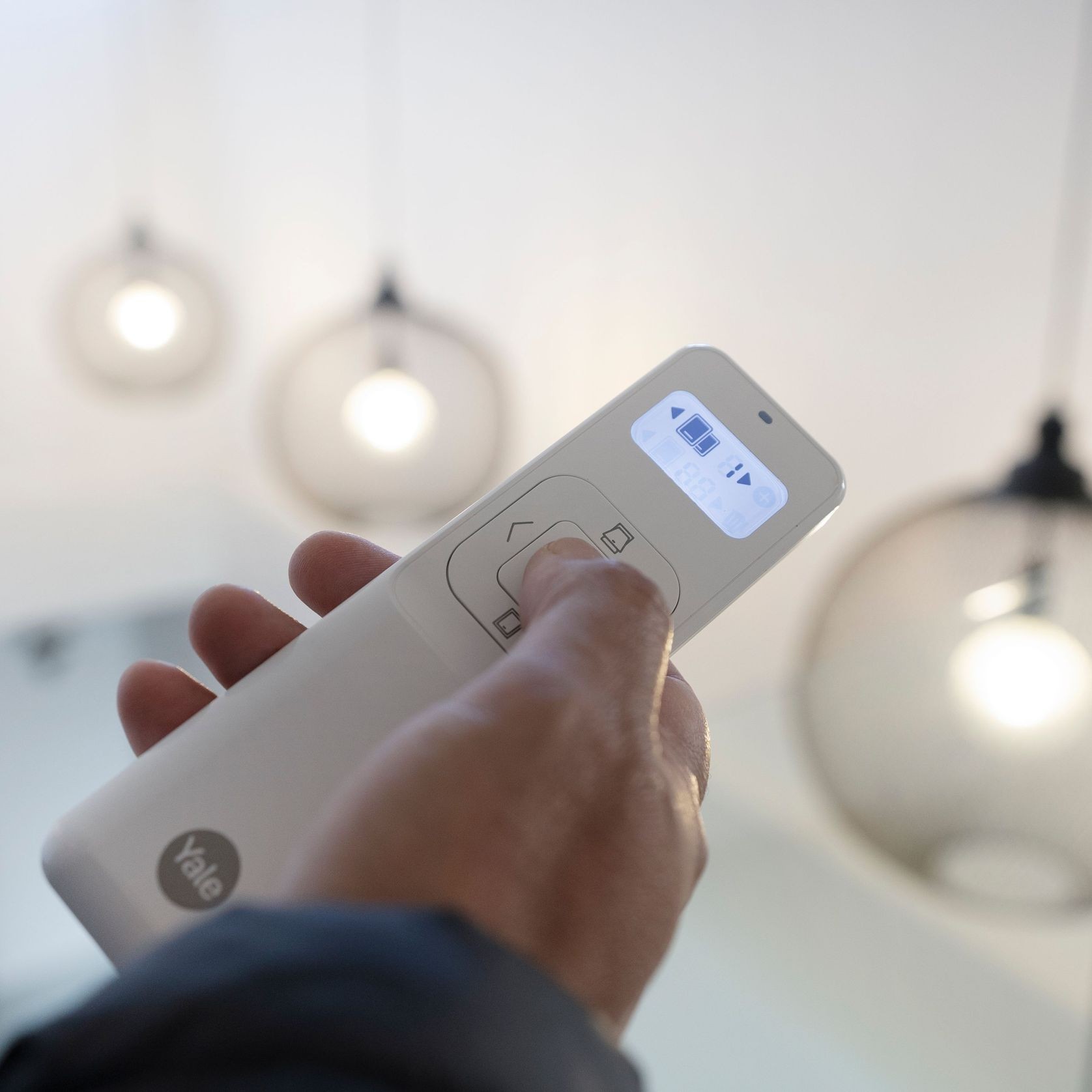

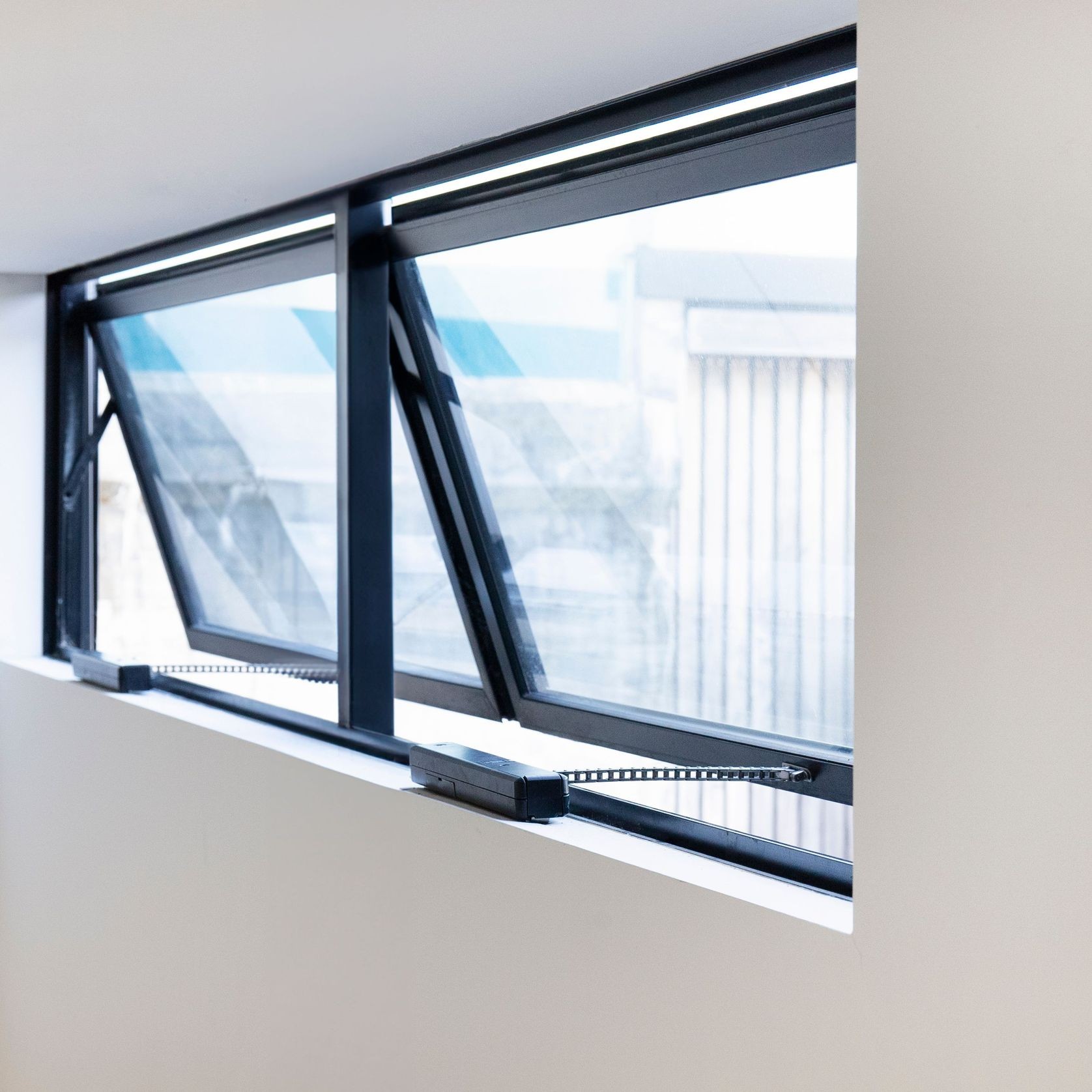

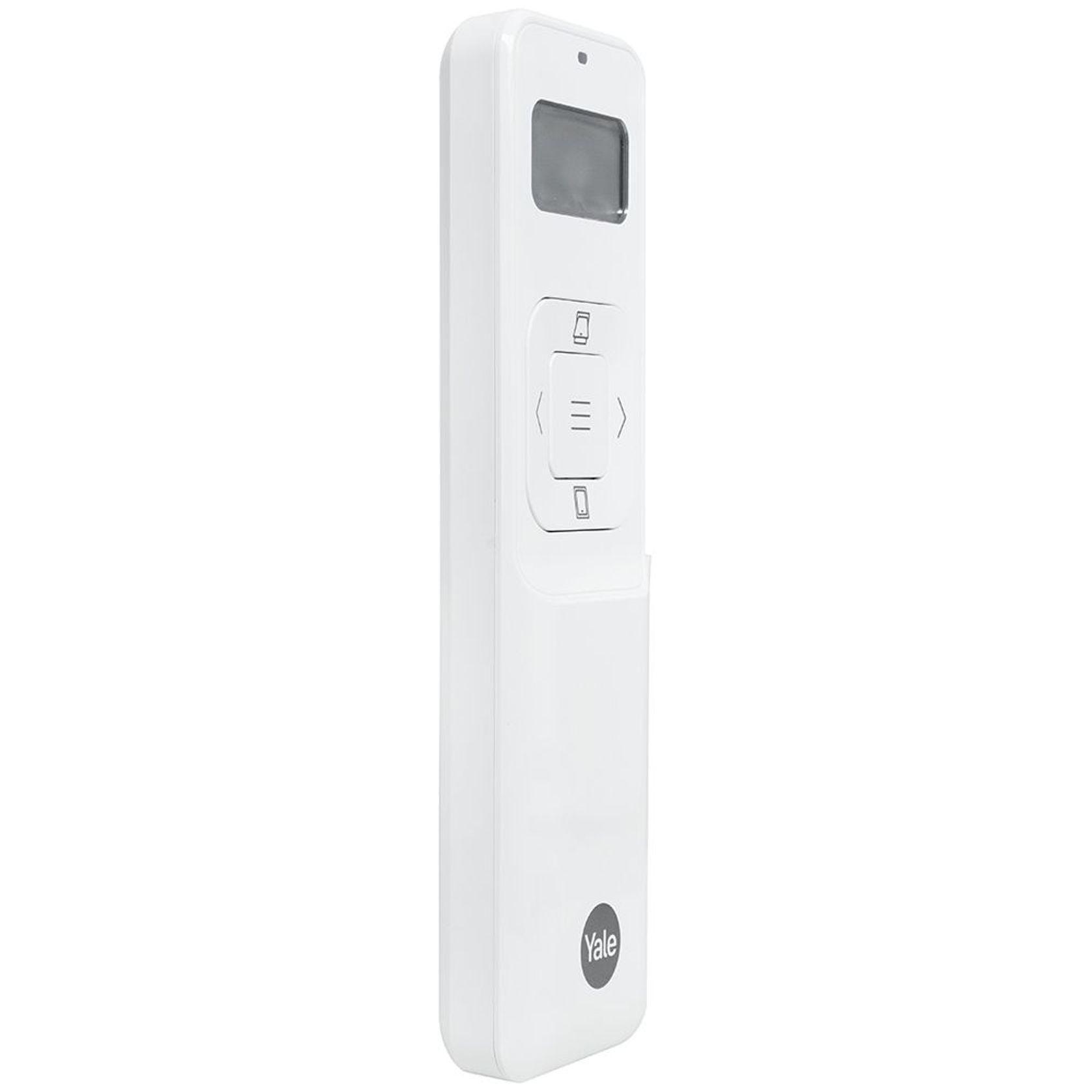

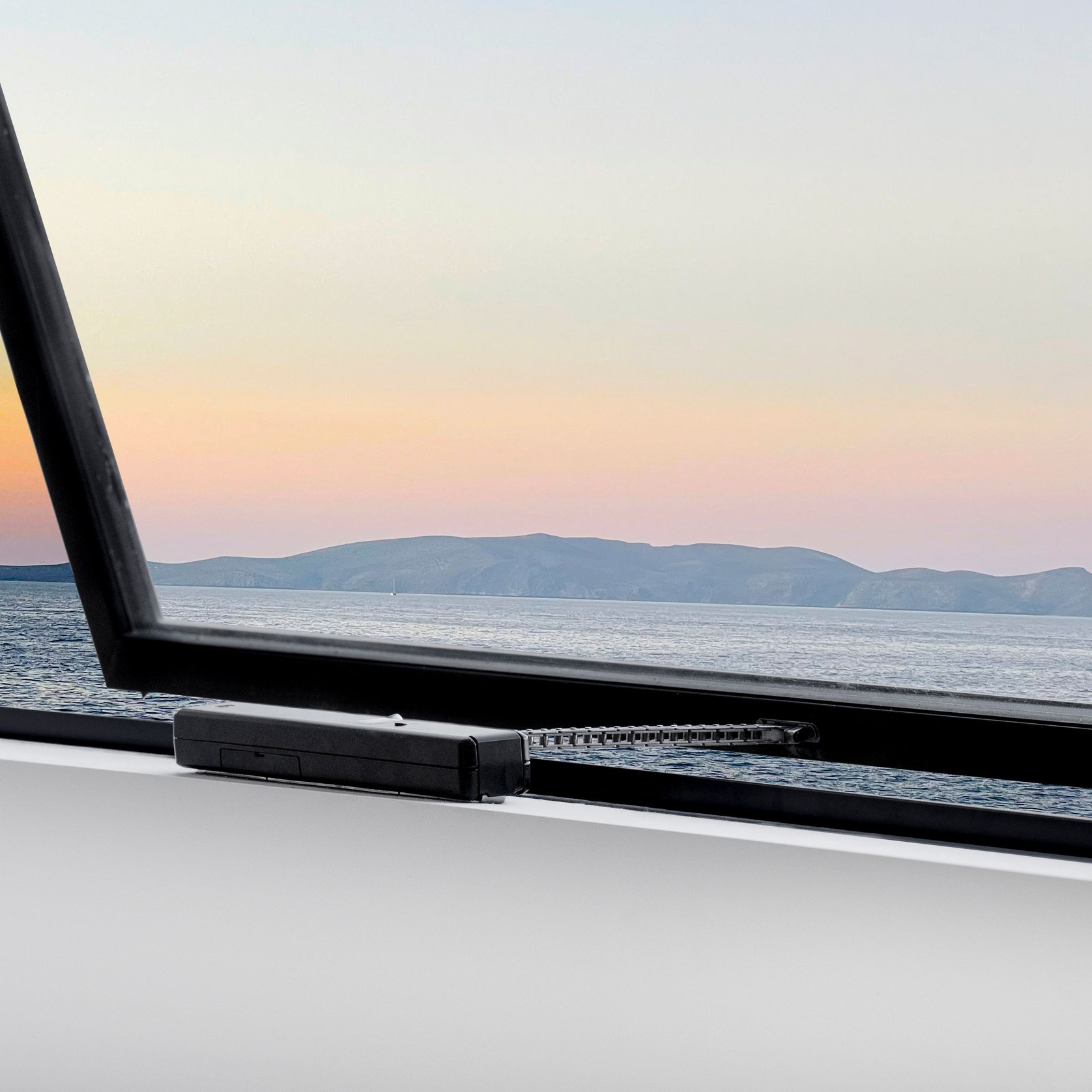

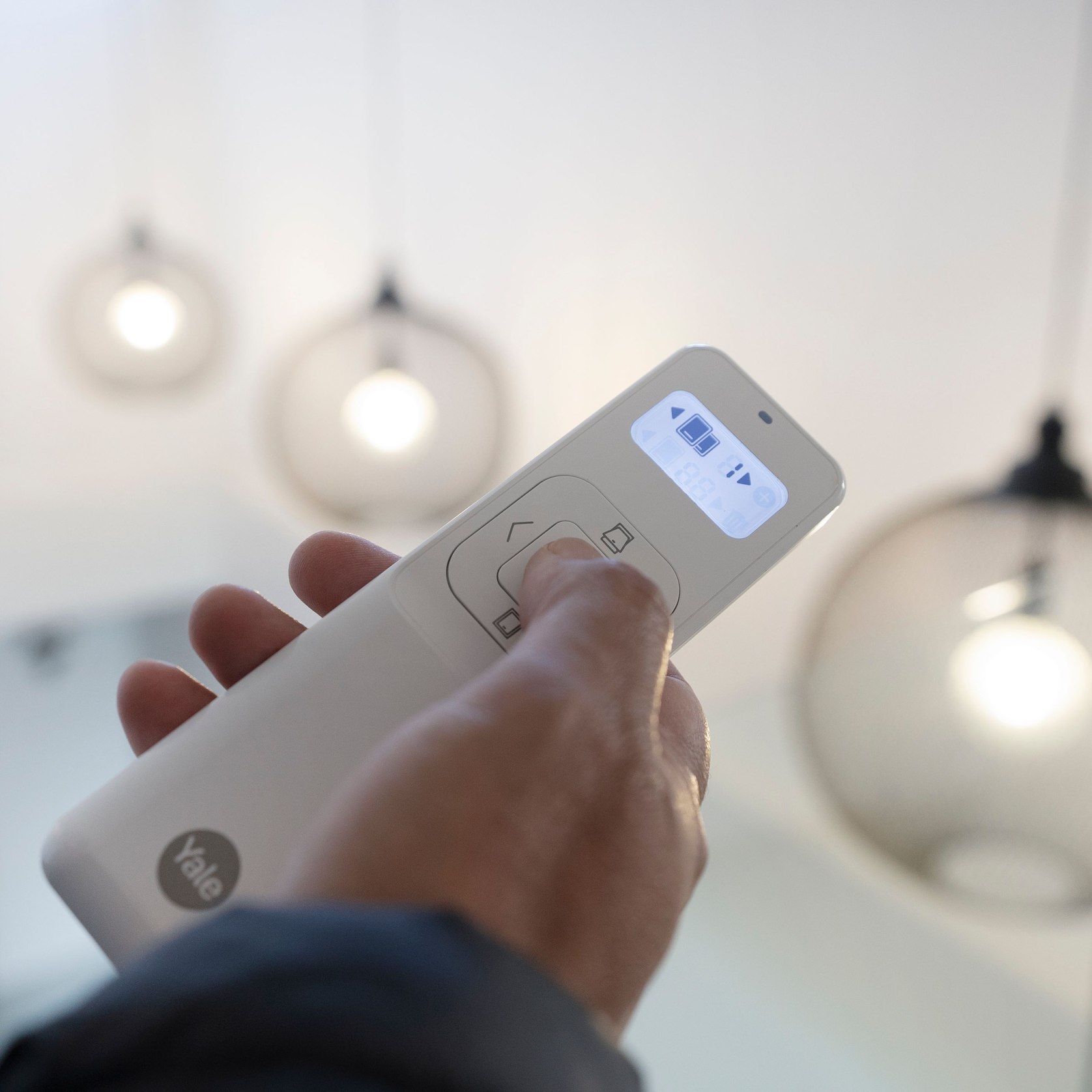

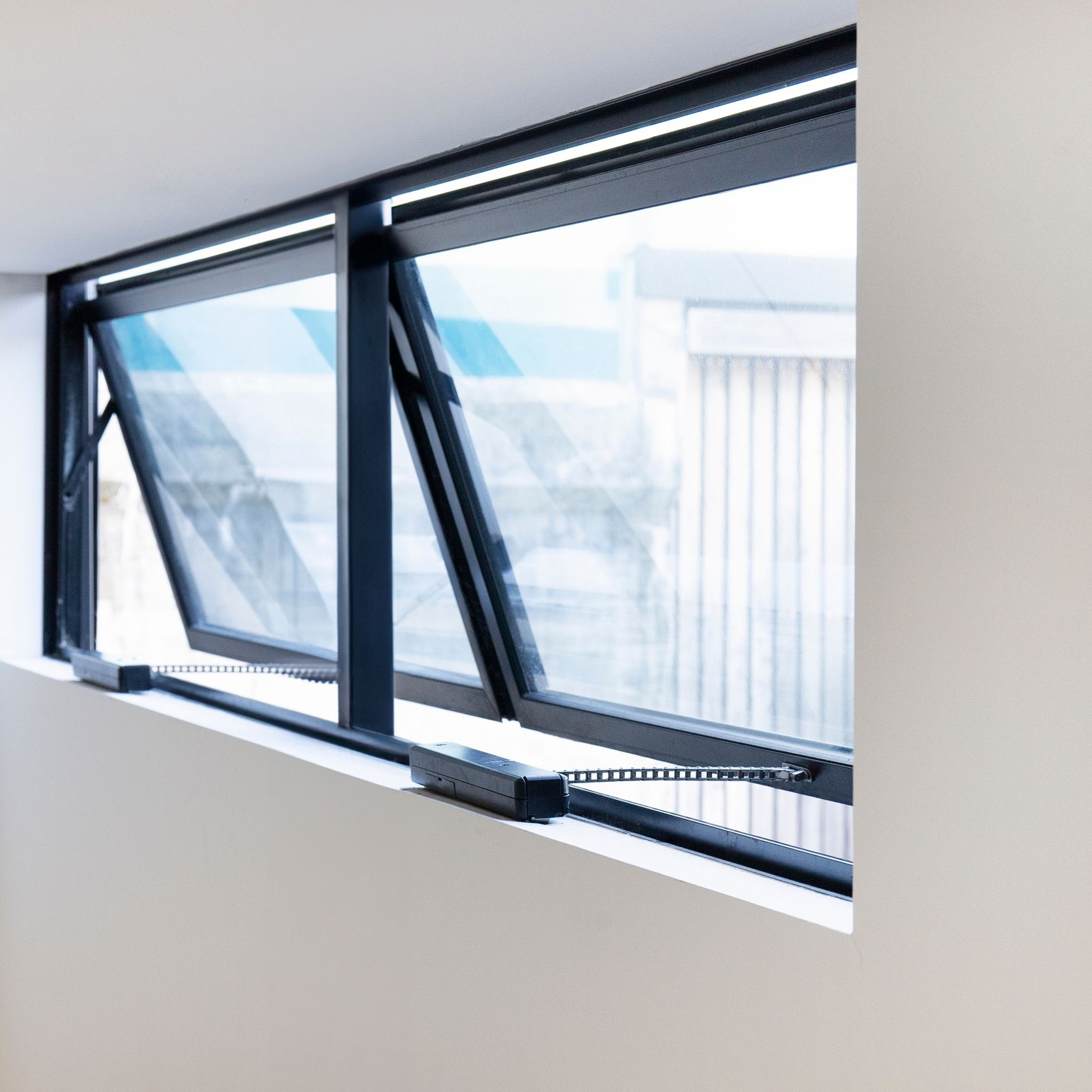

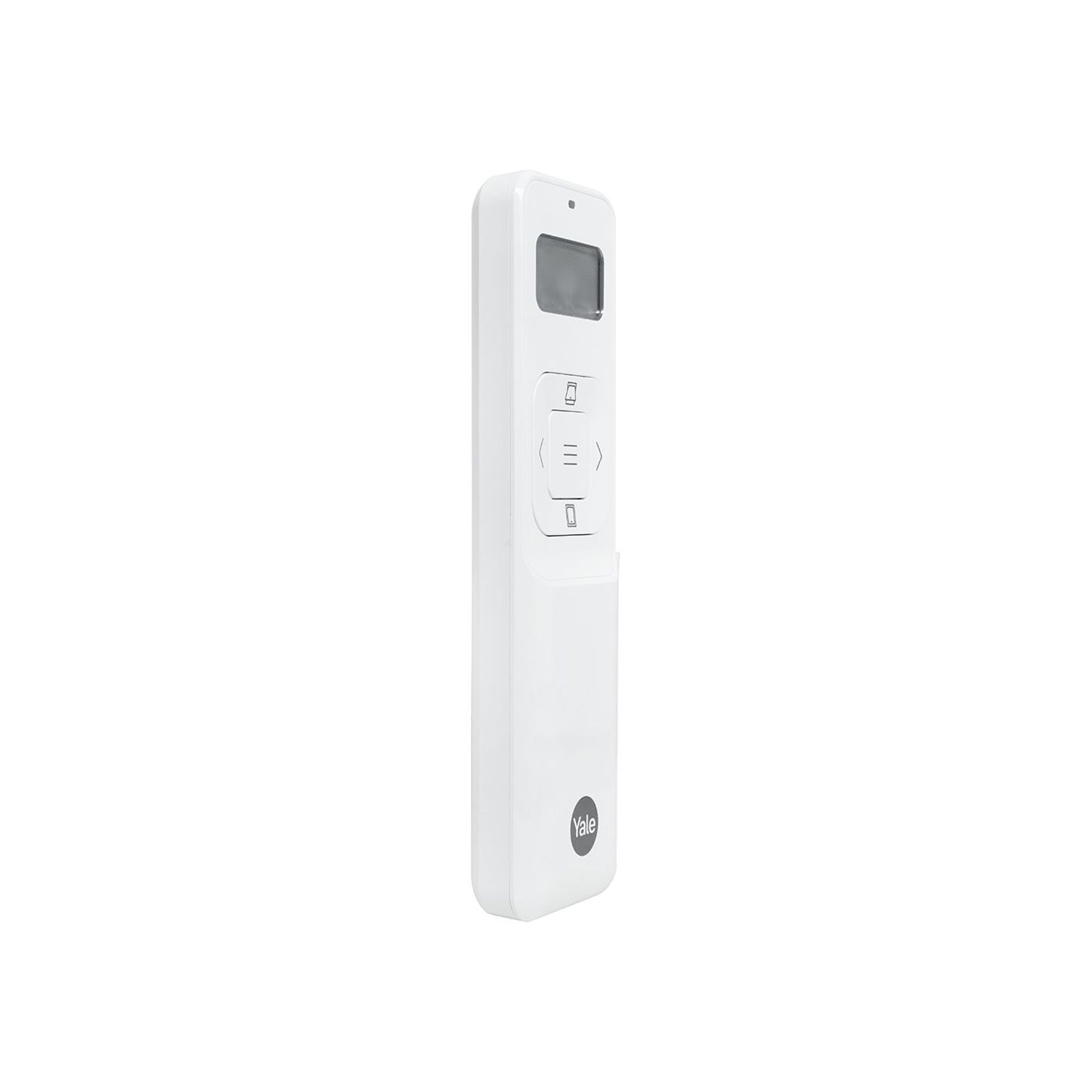

The Aeron is the perfect solution for hard-to-reach windows, offering control via a remote and the Yale Home app. Wide windows are also easily catered for with the installation of a pair of synced actuators that work together to ensure smooth movement and a tight window seal when closed.
The Aeron allows for a generous window opening but can be easily restricted to a range of distances via an easy-to-use side switch, preventing contact with external objects.

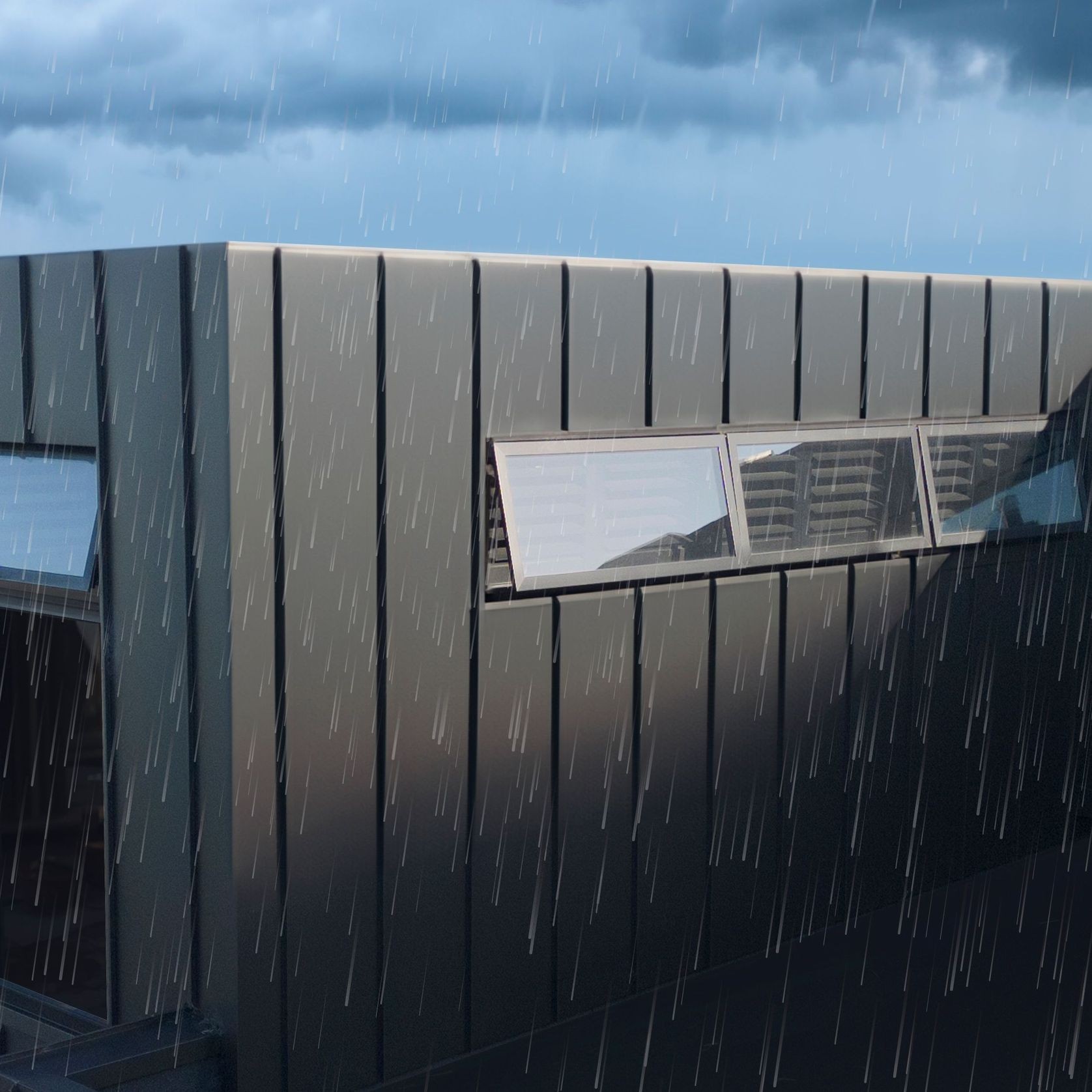

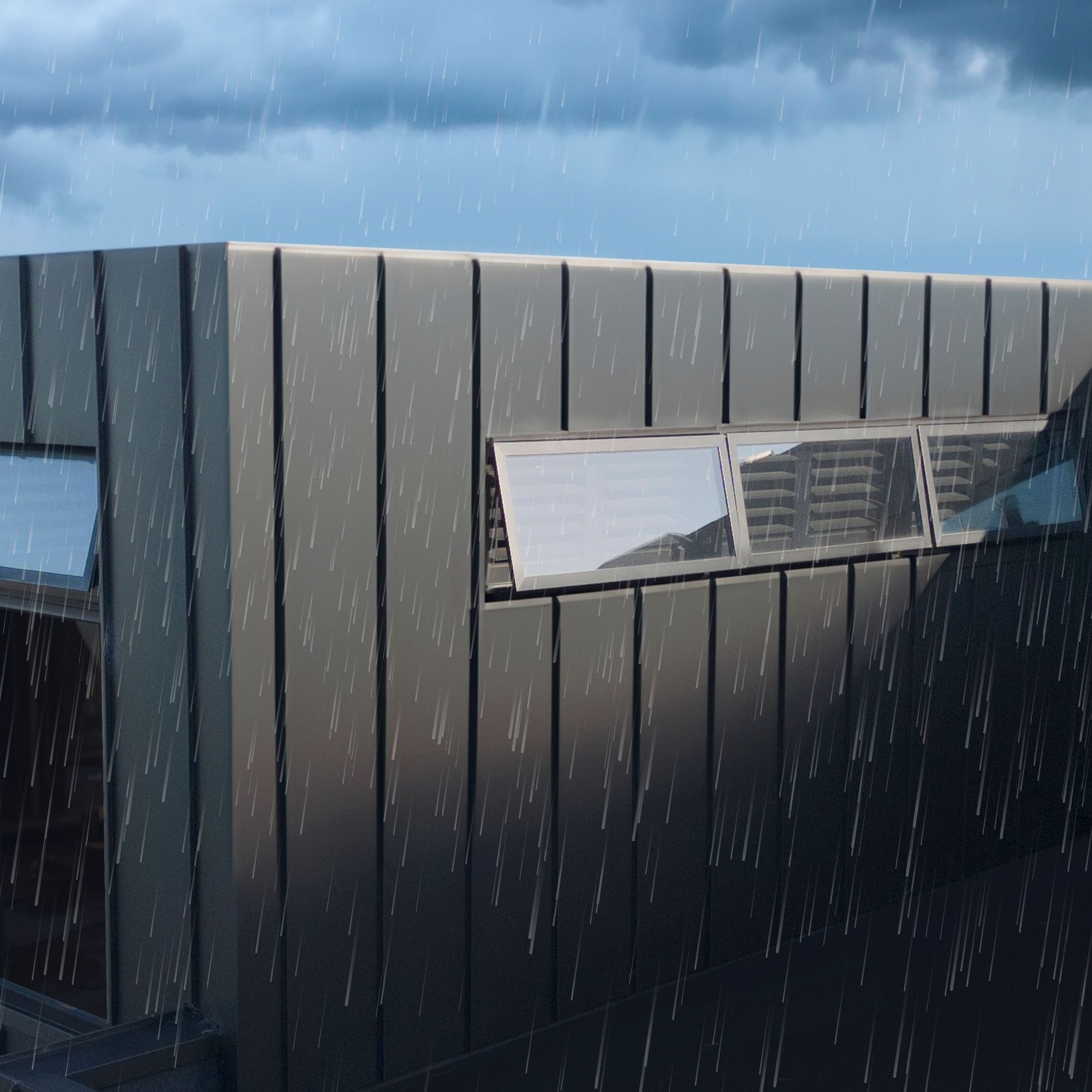

Add a rain sensor to your Aeron system and your windows will automatically close if rain is detected.
Downloads
Downloads (3)3 Direct downloads • 10 Available on request
Frequently asked questions about
Aeron® Window Actuator
The Aeron® Window Actuator is supplied by ASSA ABLOY. It is also on their website, and you can browse every product ASSA ABLOY lists on ArchiPro.
ASSA ABLOY does not publish a price for the Aeron® Window Actuator on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Yale - Residential range from ASSA ABLOY, where you can see every product in the range together.

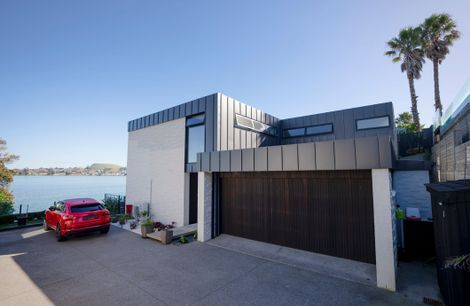

Yes. It has been specified in projects on ArchiPro, including Farm Cove Welcomes Yale's Aeron Window Actuators by ASSA ABLOY. See how it was used in a finished space.
