Archclad Cliptray 25mm™

By Archclad
Visit Website

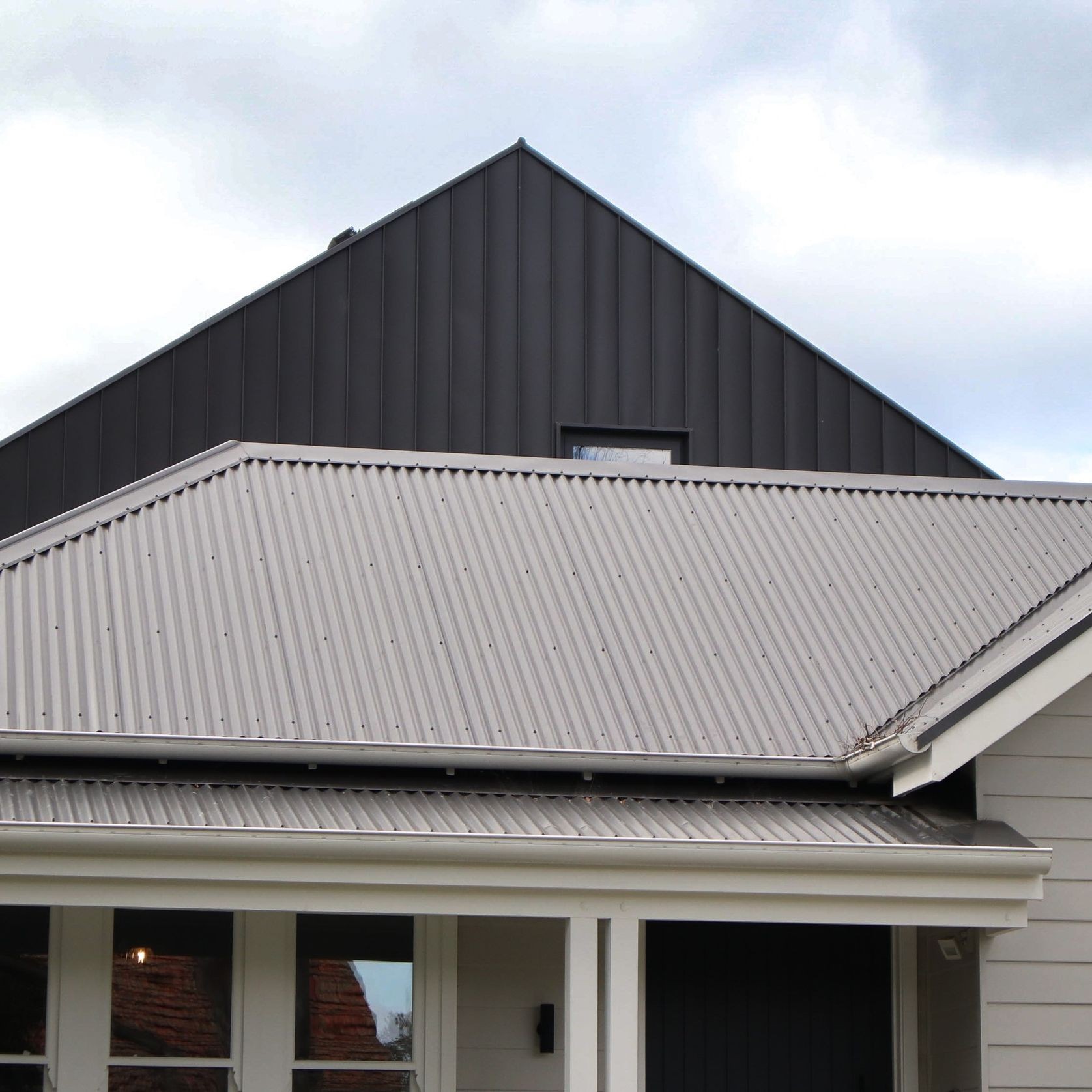

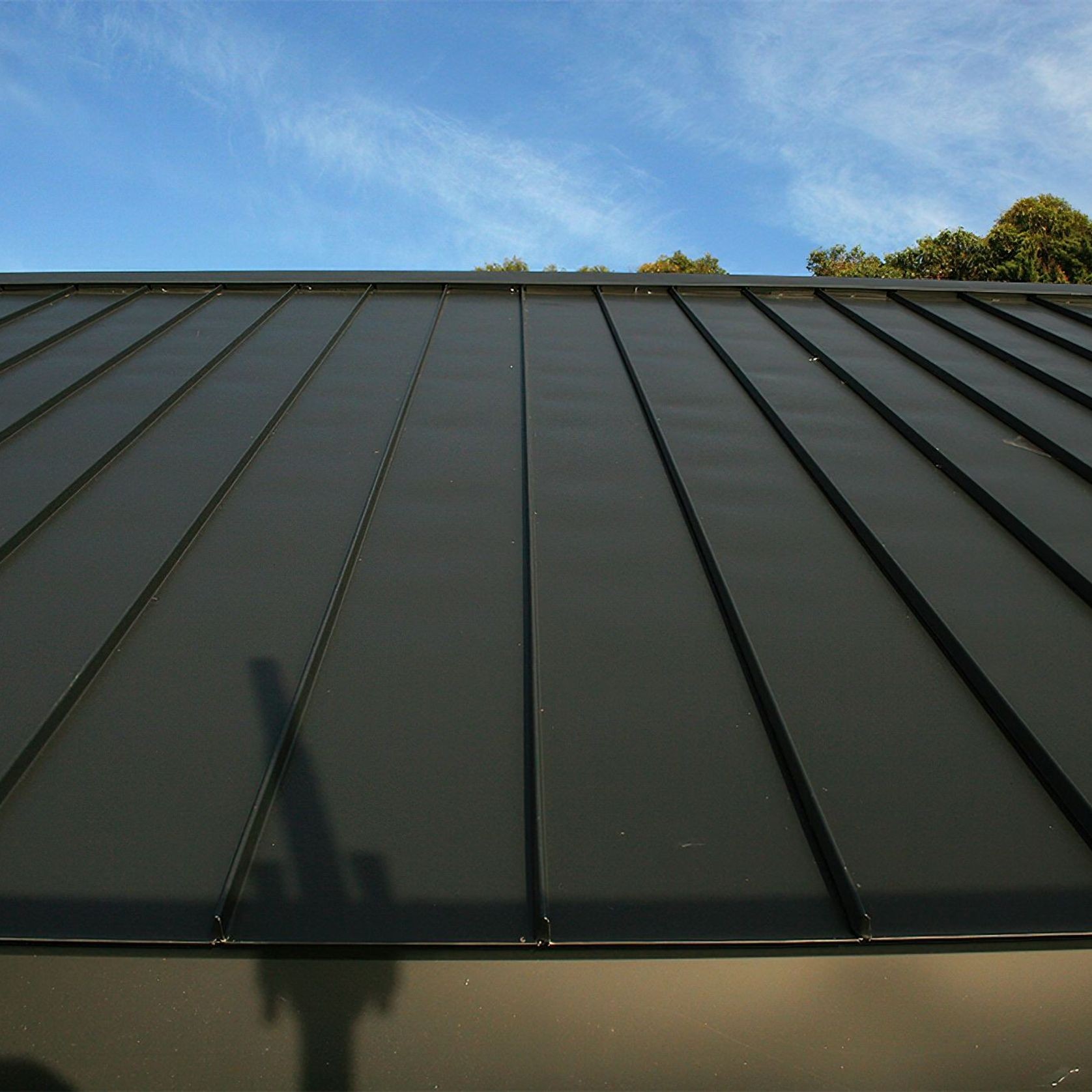

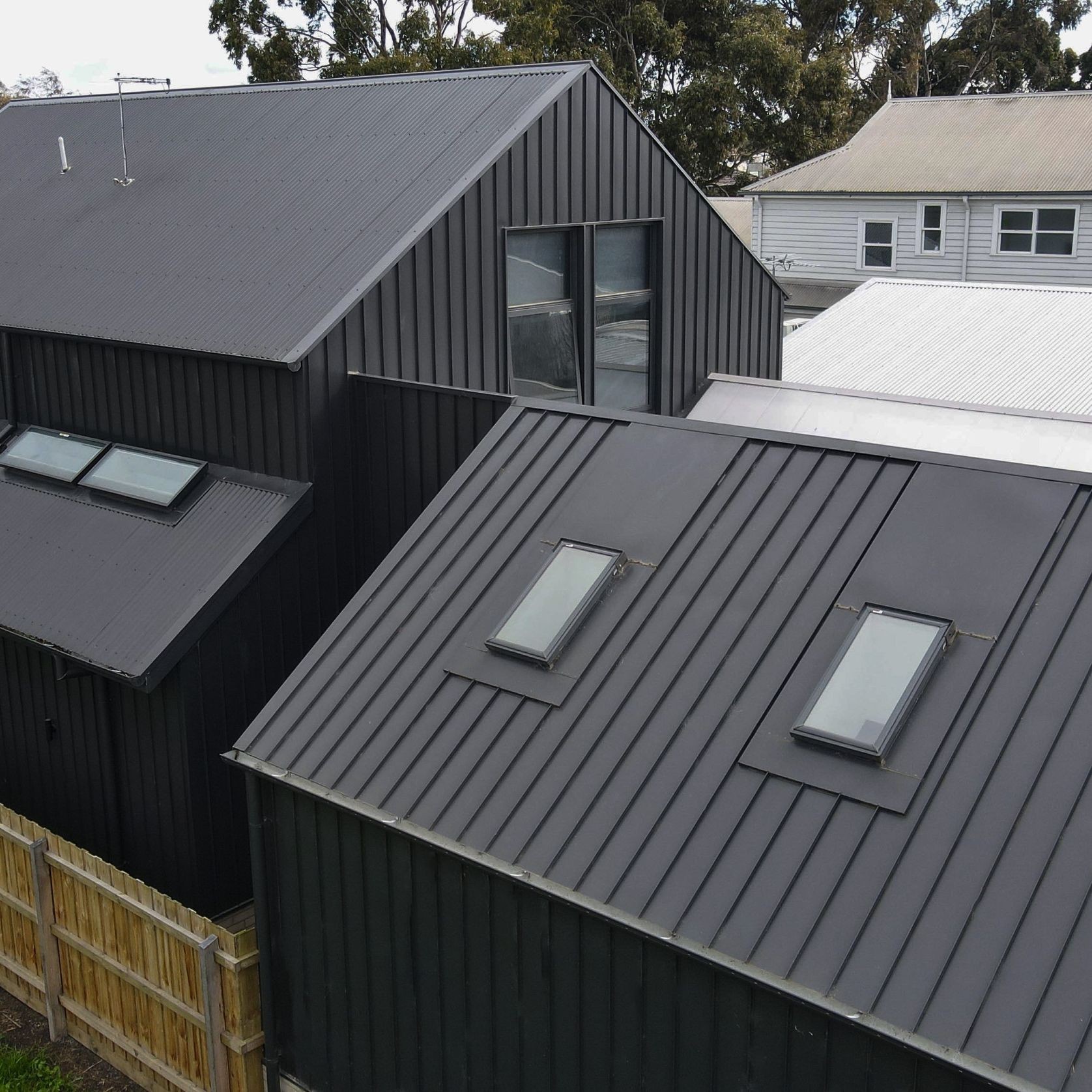

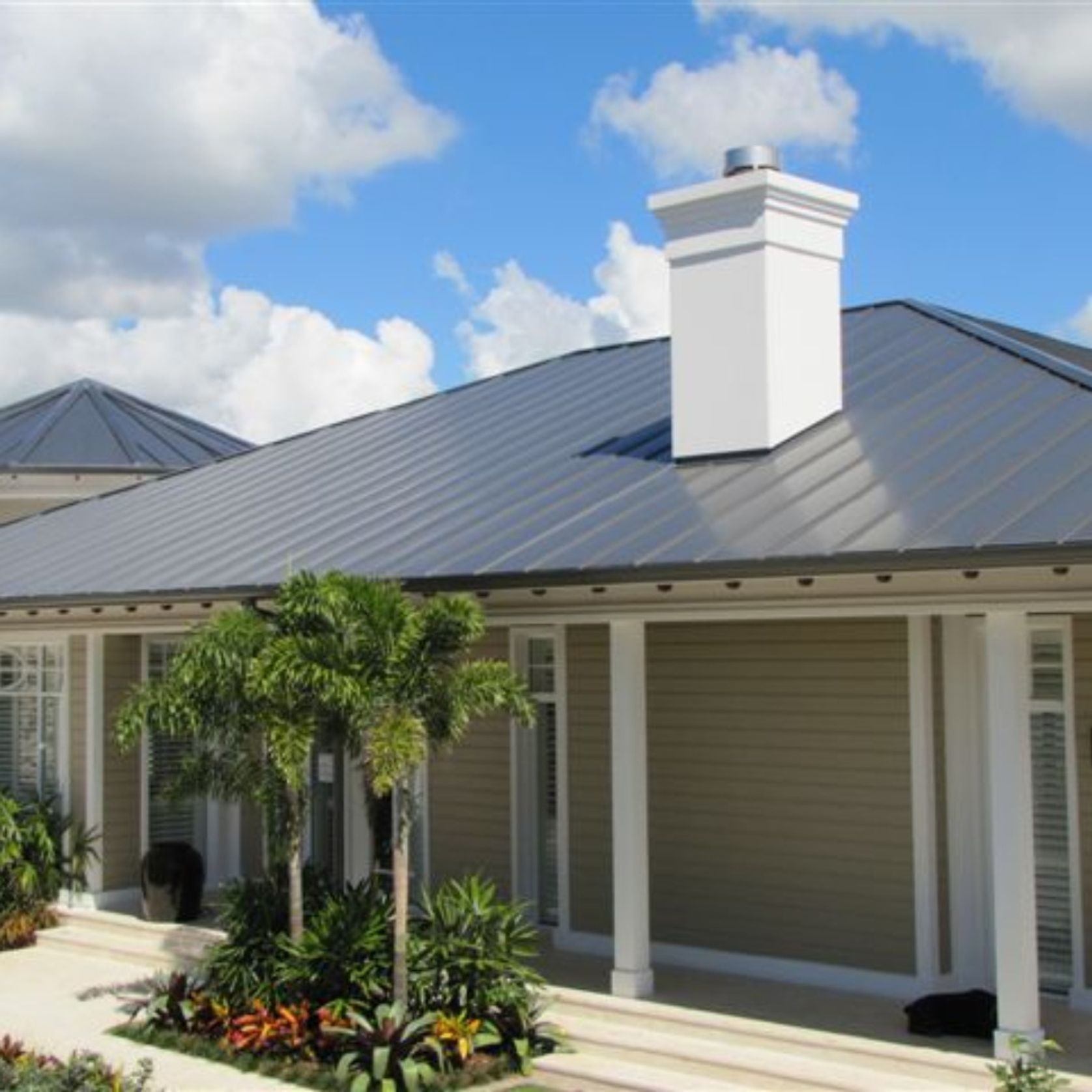

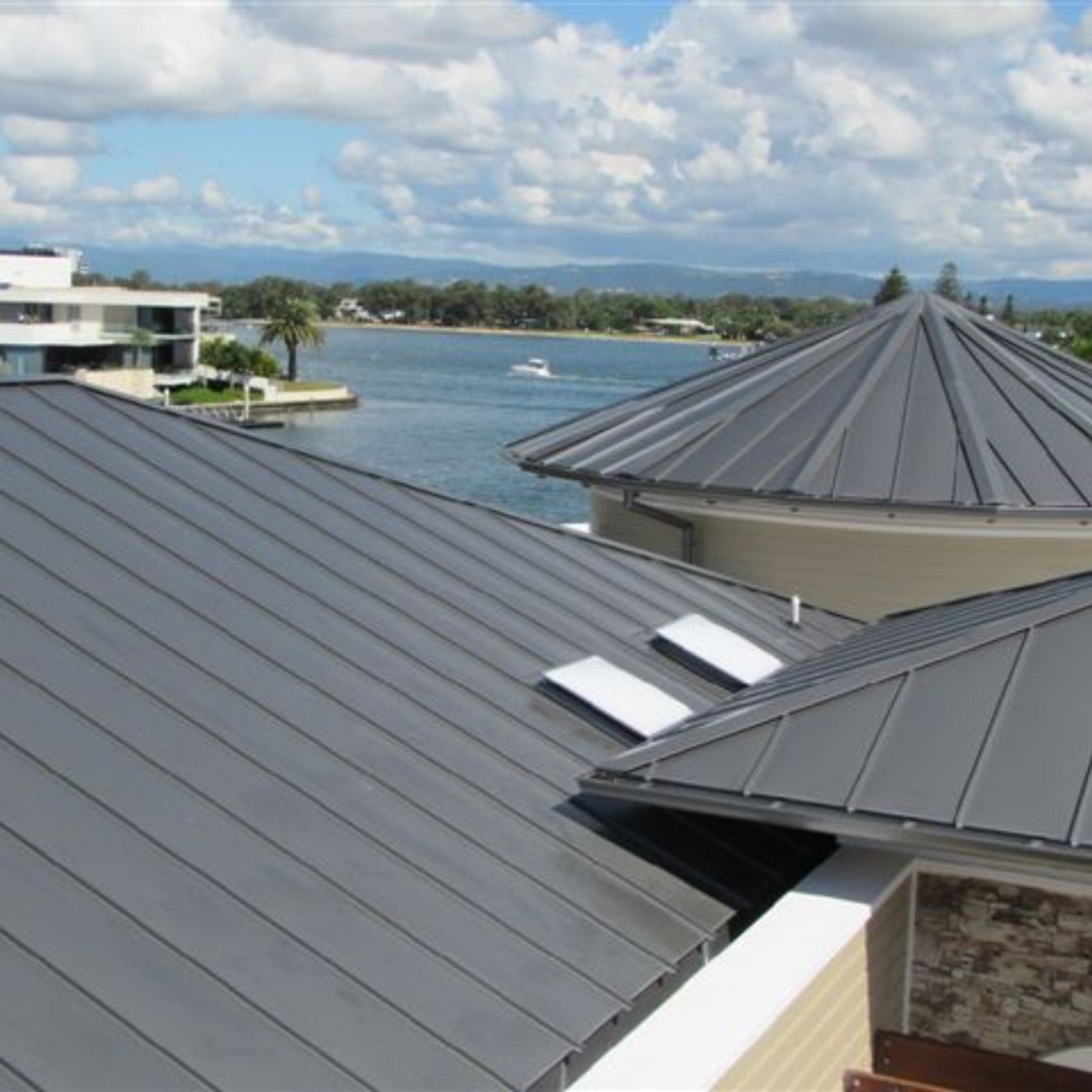

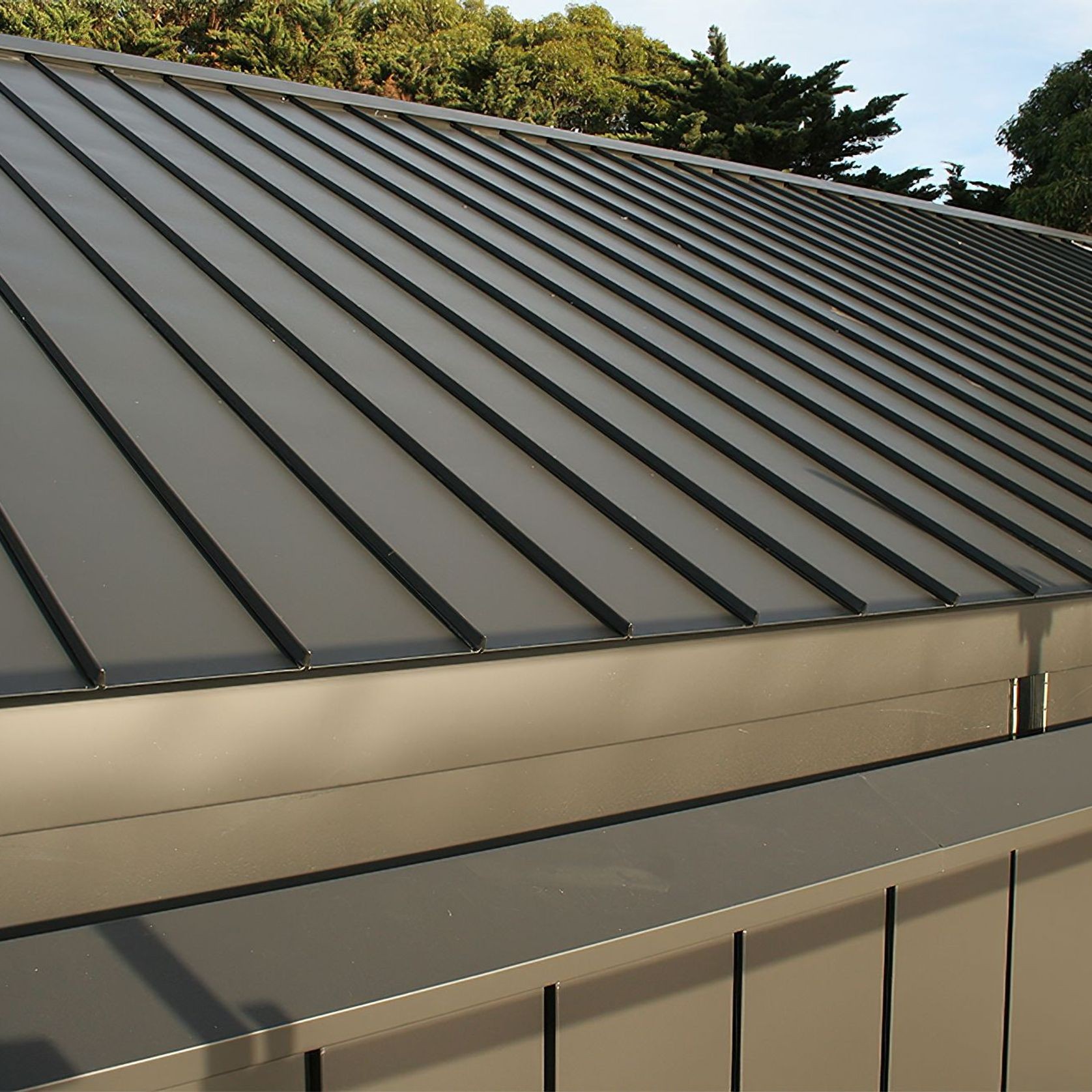

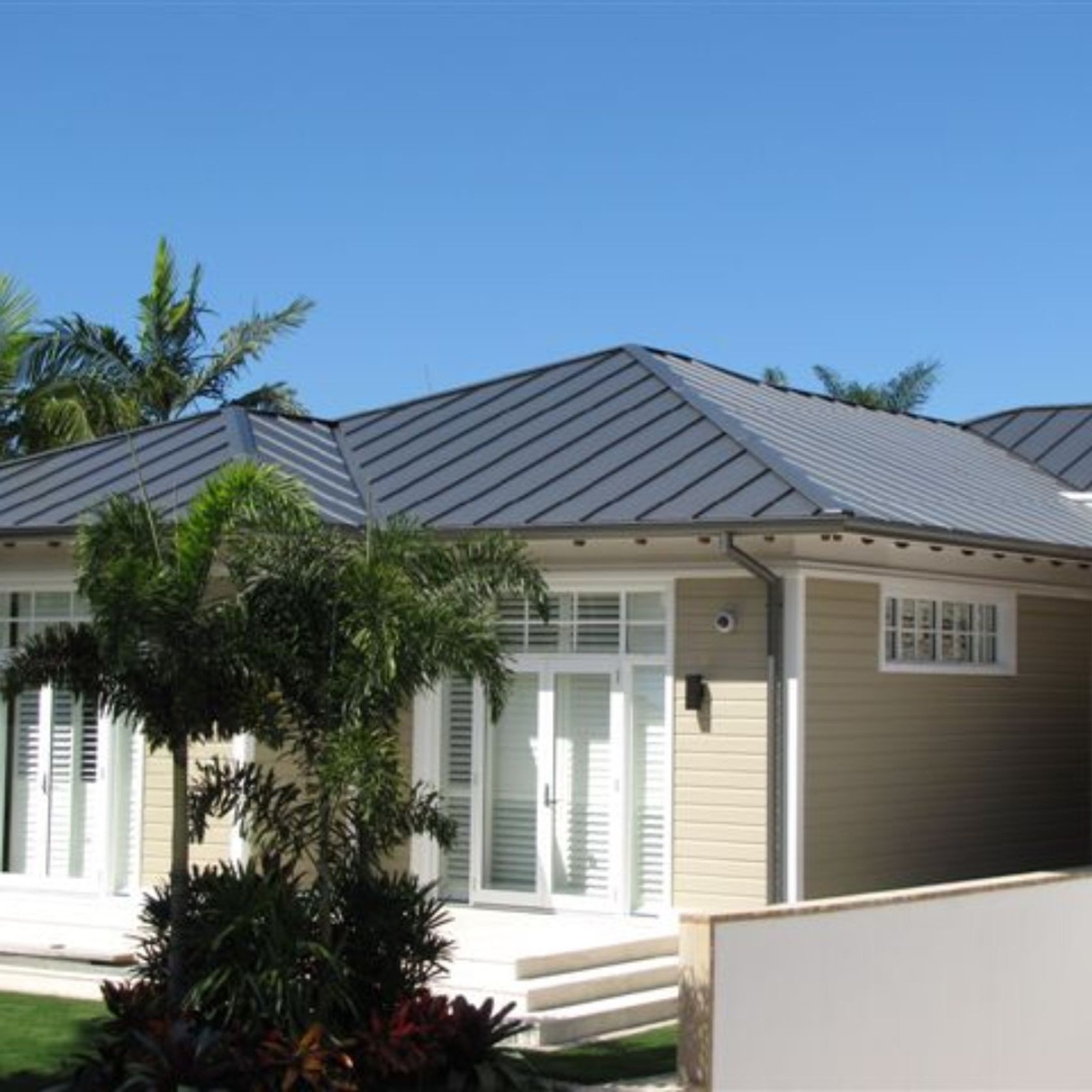

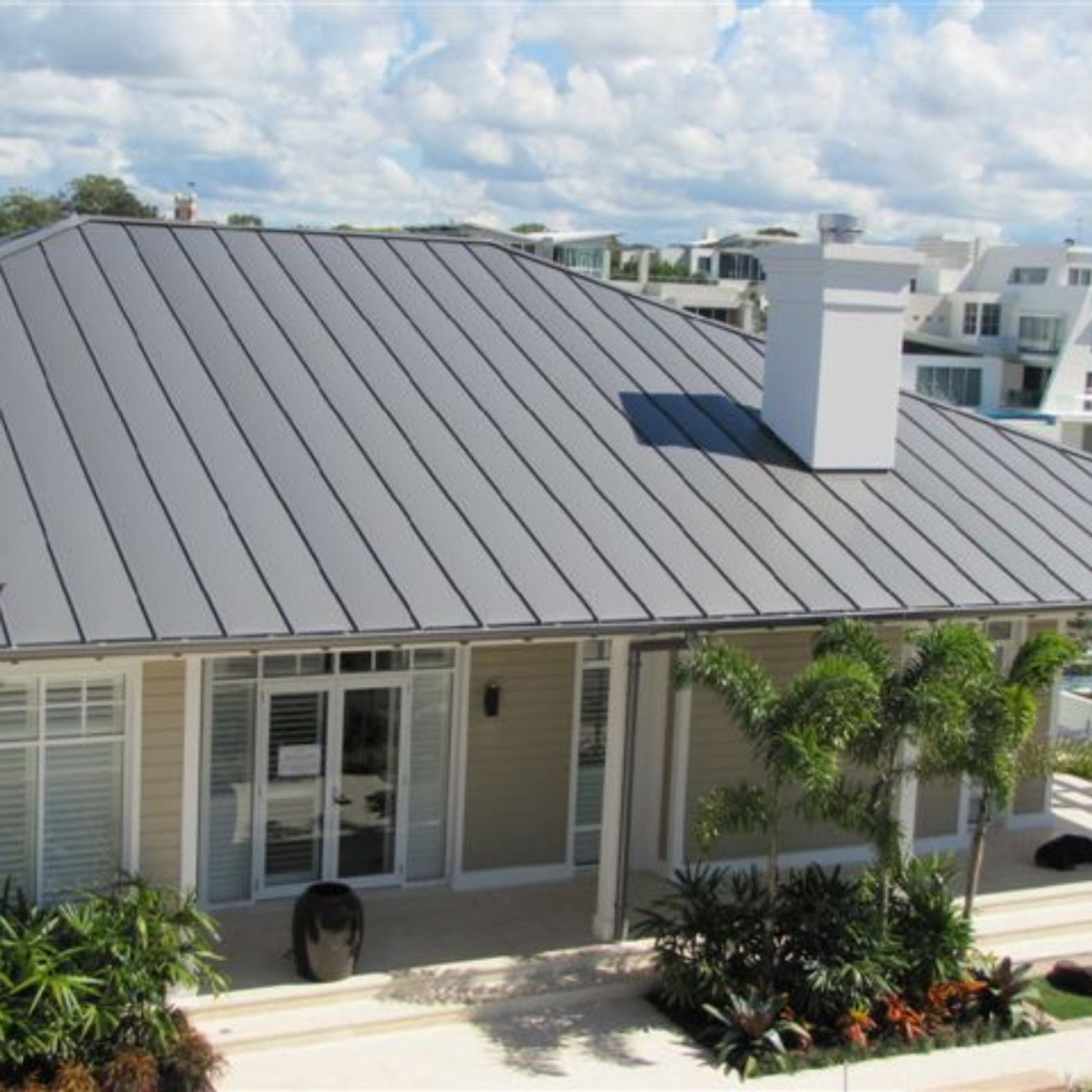

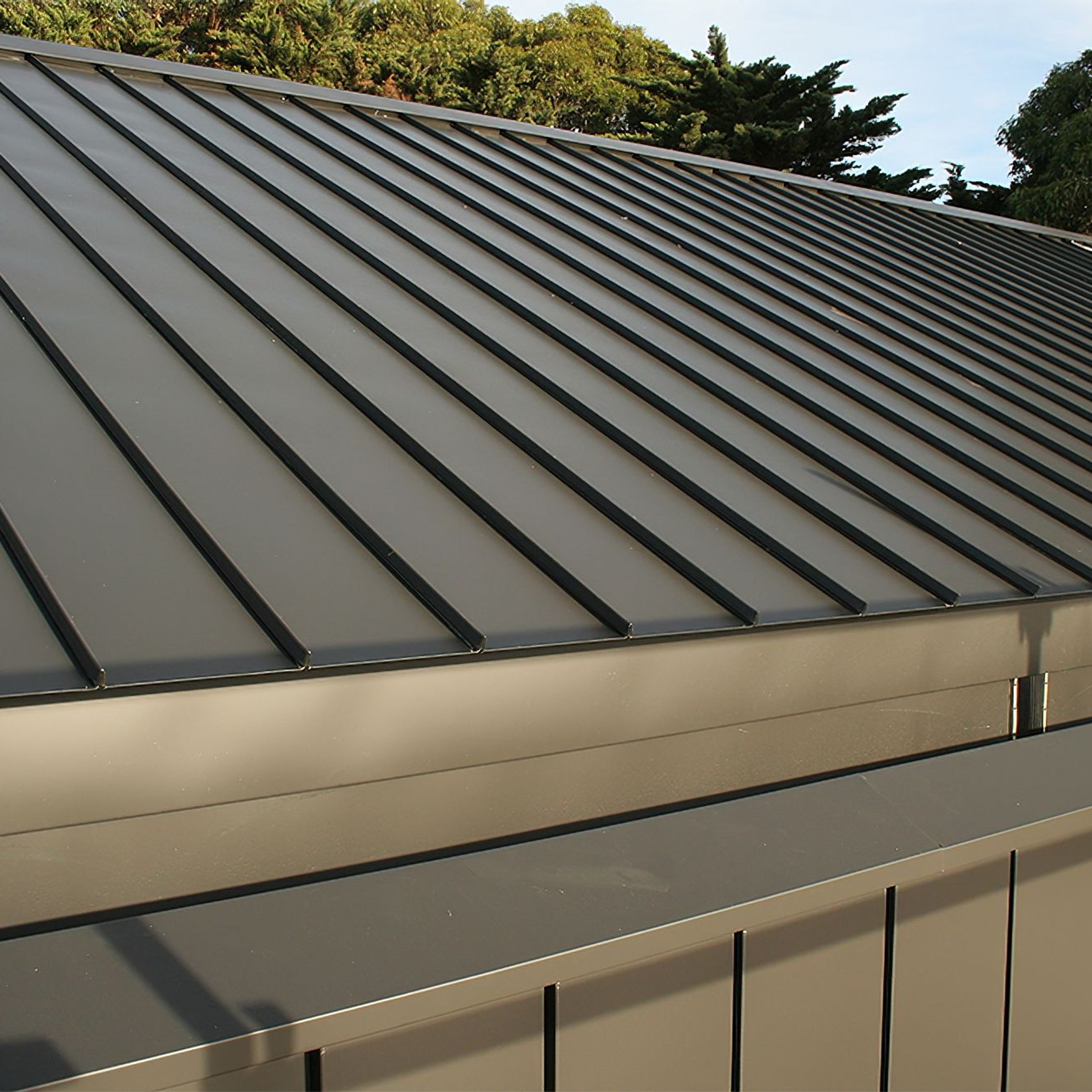

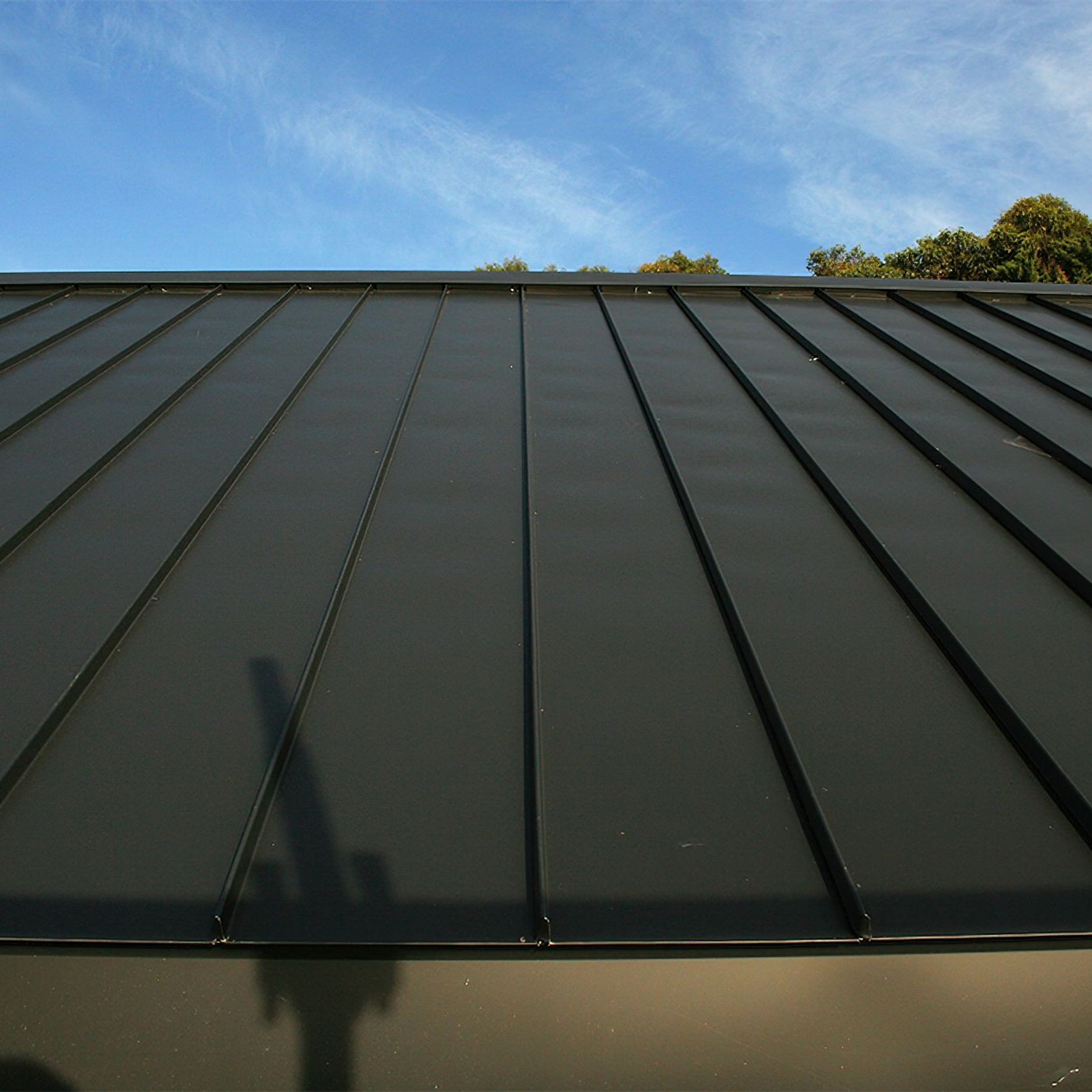

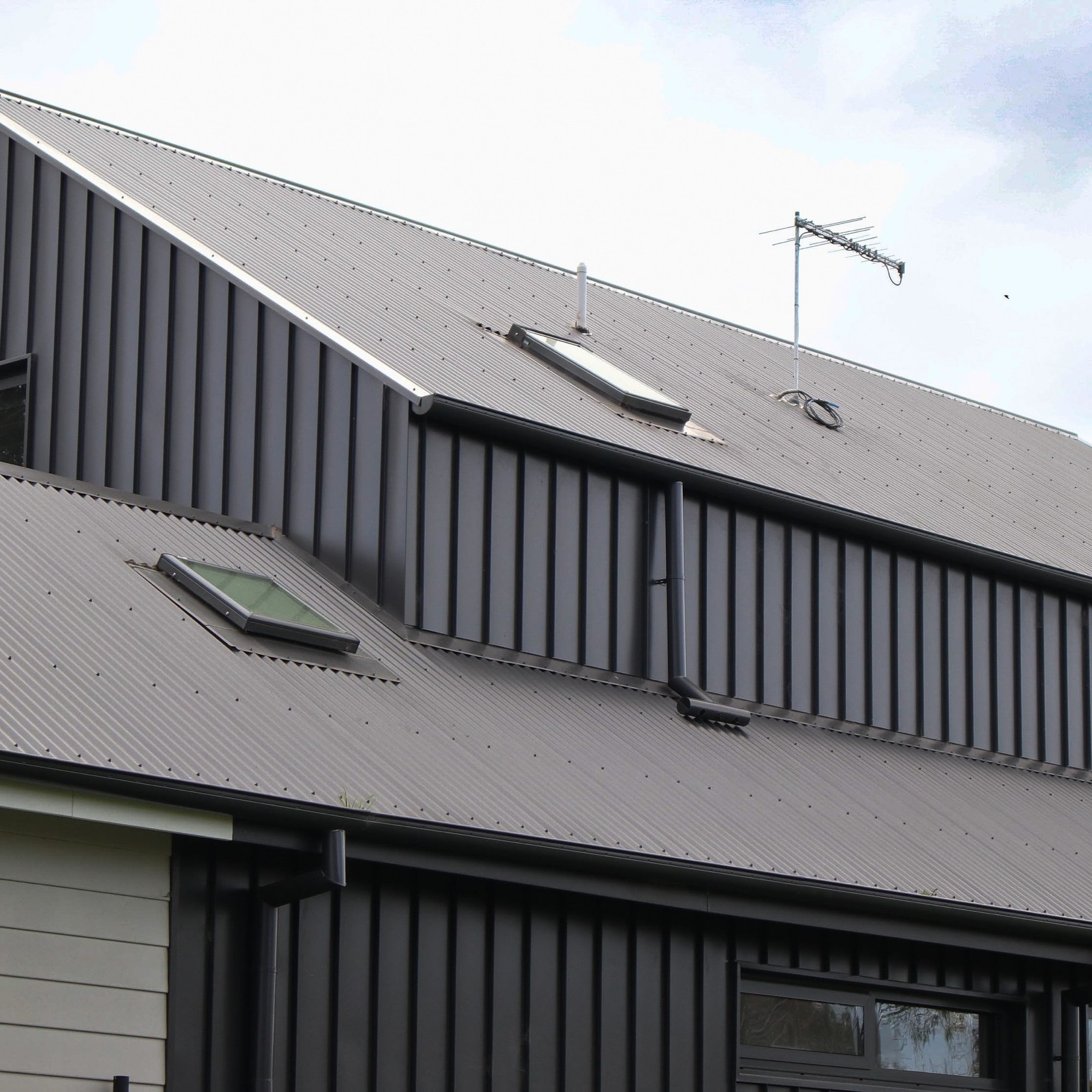

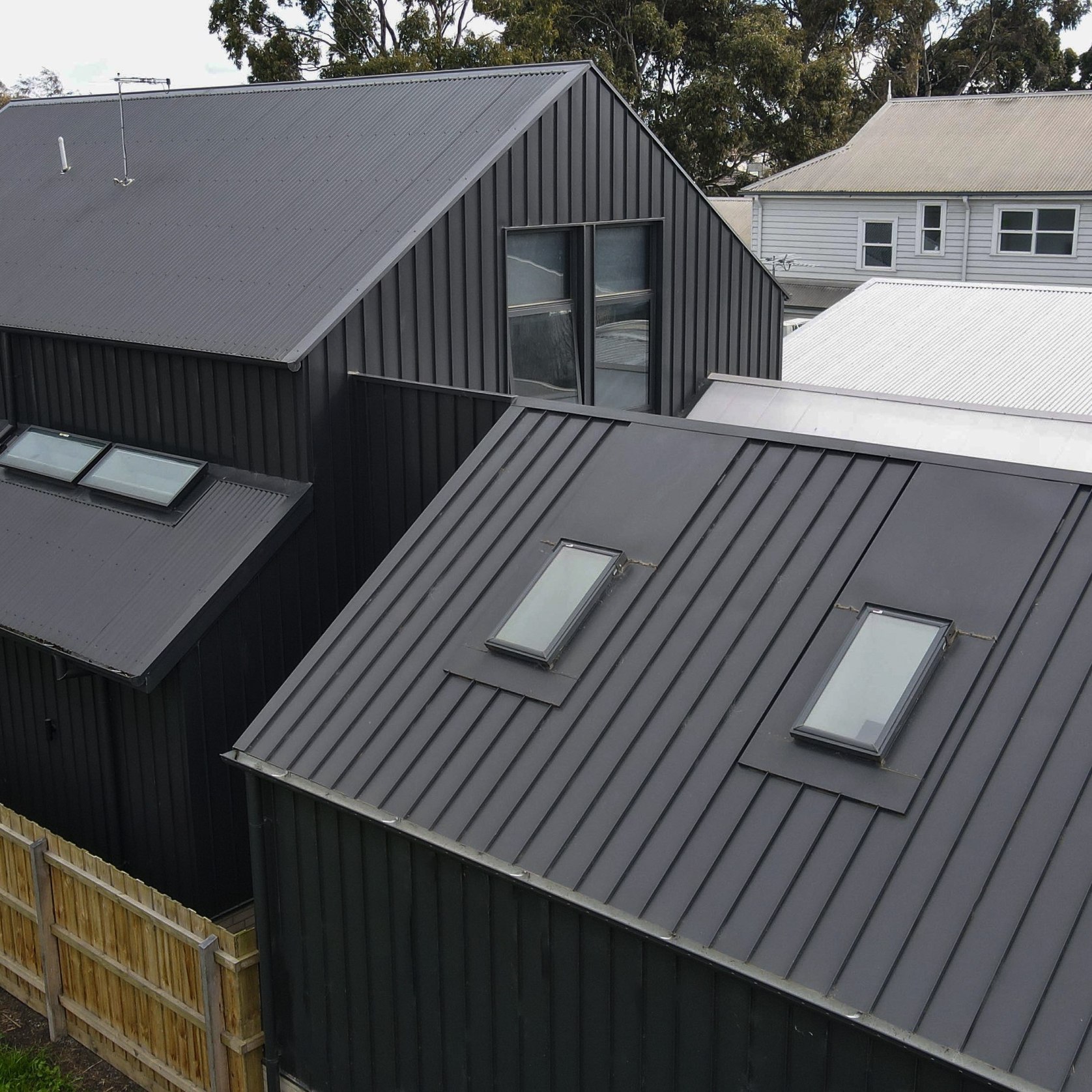

Archclad™ Cliptray 25 mm can be roll formed in Zinc, Copper, Colorbond, Unicote and Aluminium. Similar to traditional mechanical standing seam roofs, Archclad™ Cliptray 25 mm provides a distinctive 25 mm thin structural rib. The aesthetically pleasing design will cover a full range of buildings, from residential properties (new or re roof) to commercial constructions.

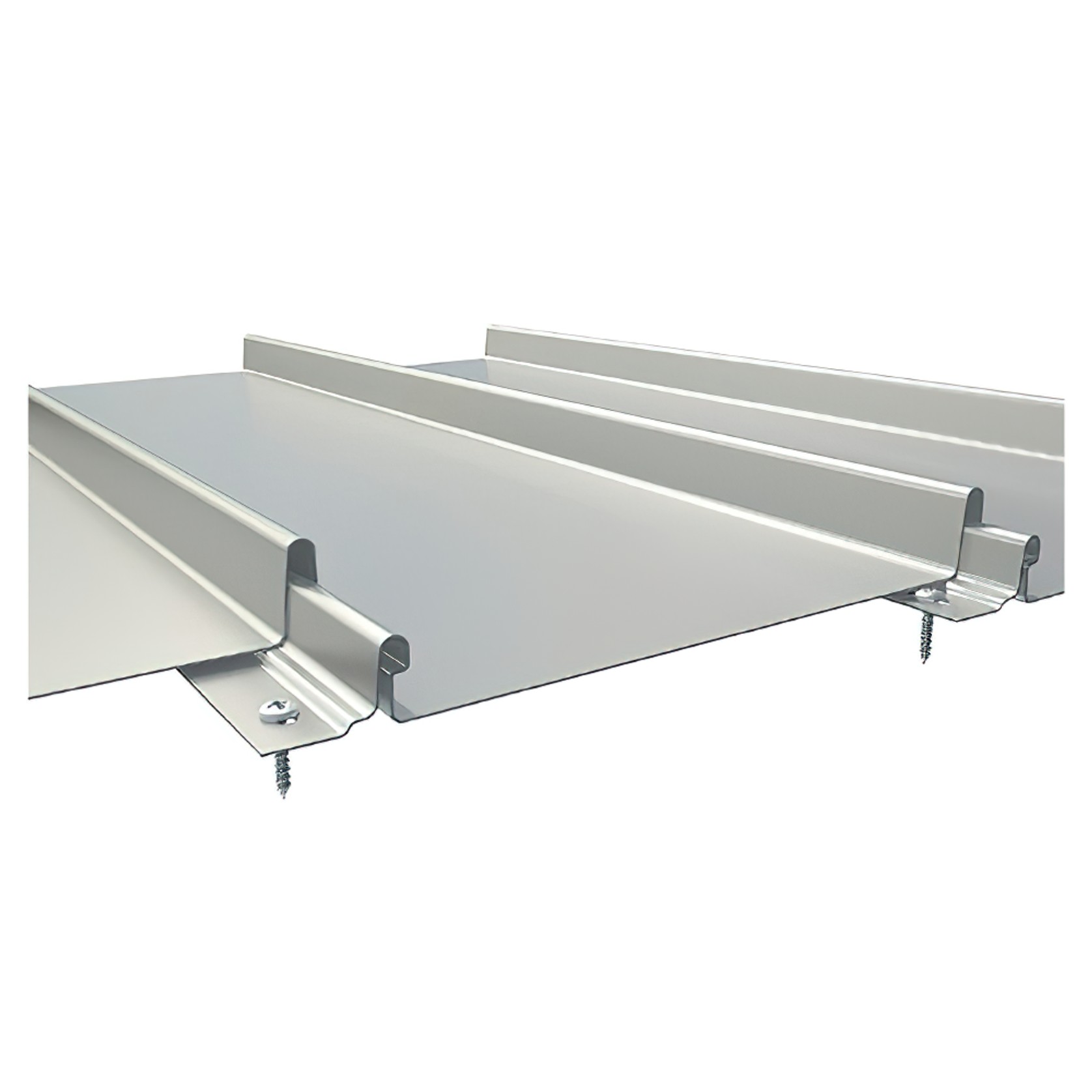

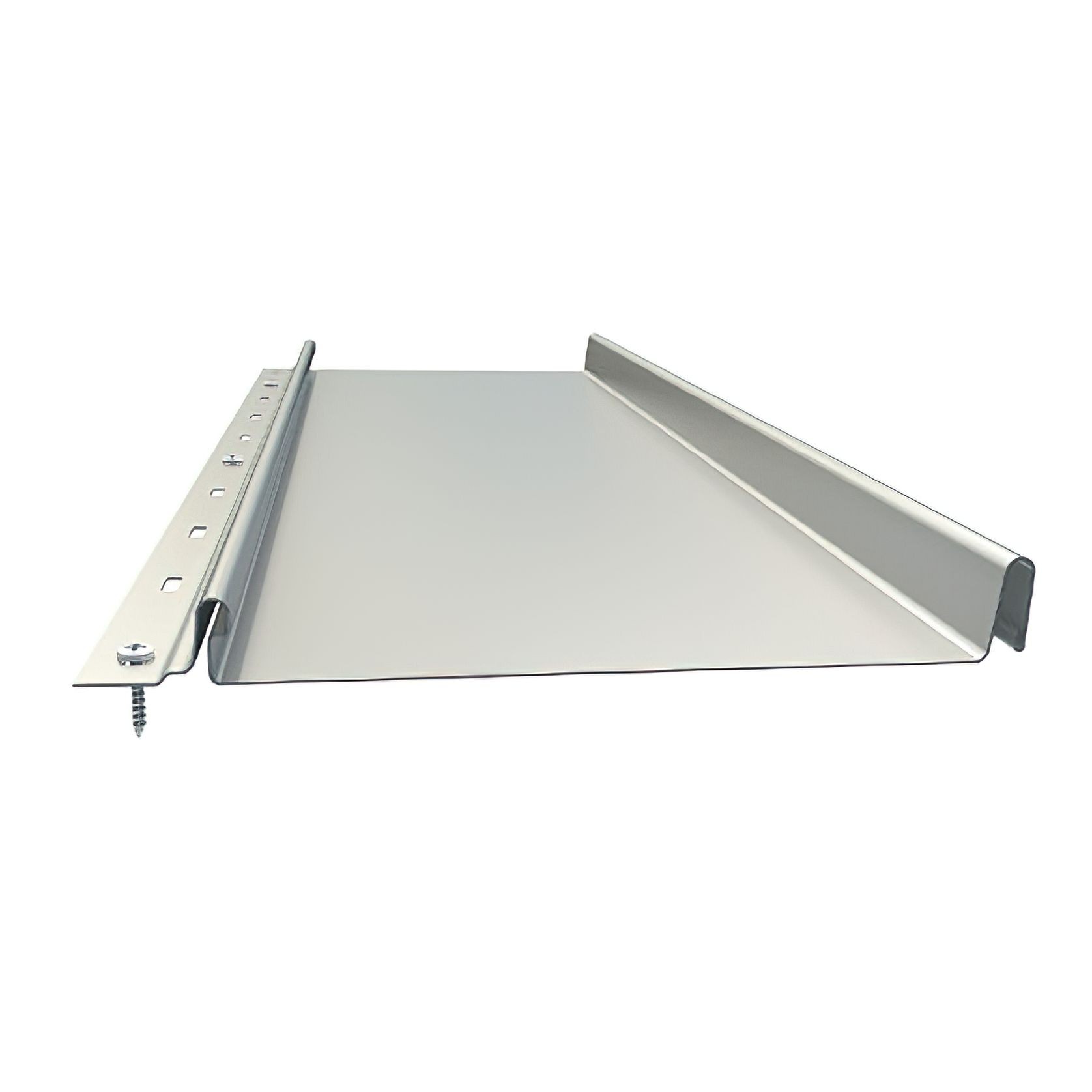

The very sophisticated economical Archclad™ Cliptray 25 mm opens a new dimension in metal roofing and façades. This system provides a quick and straightforward installation of over 19 mm plywood for roofing, or 15 mm plywood for façades. Cliptray 25 mm is installed with screws at 300 mm centres—no clips, no seaming—and less labour means cheaper on the pocket.

Details
  • Category
    Metal Cladding
  • Range
    Roofing
Specifications

Pan Width available:

  • 190 mm, 290mm, 390mm* Pans
Scope of use

Façades

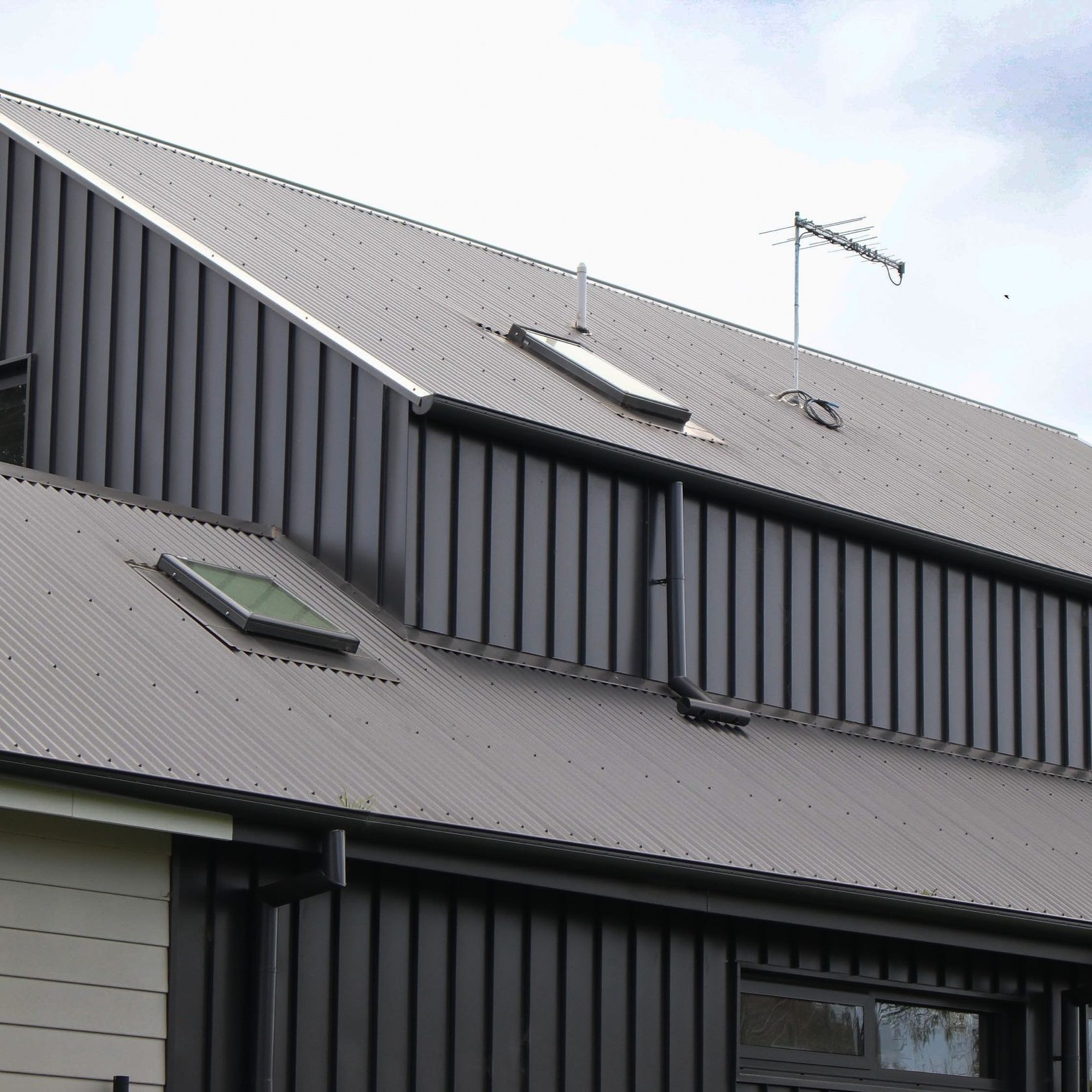

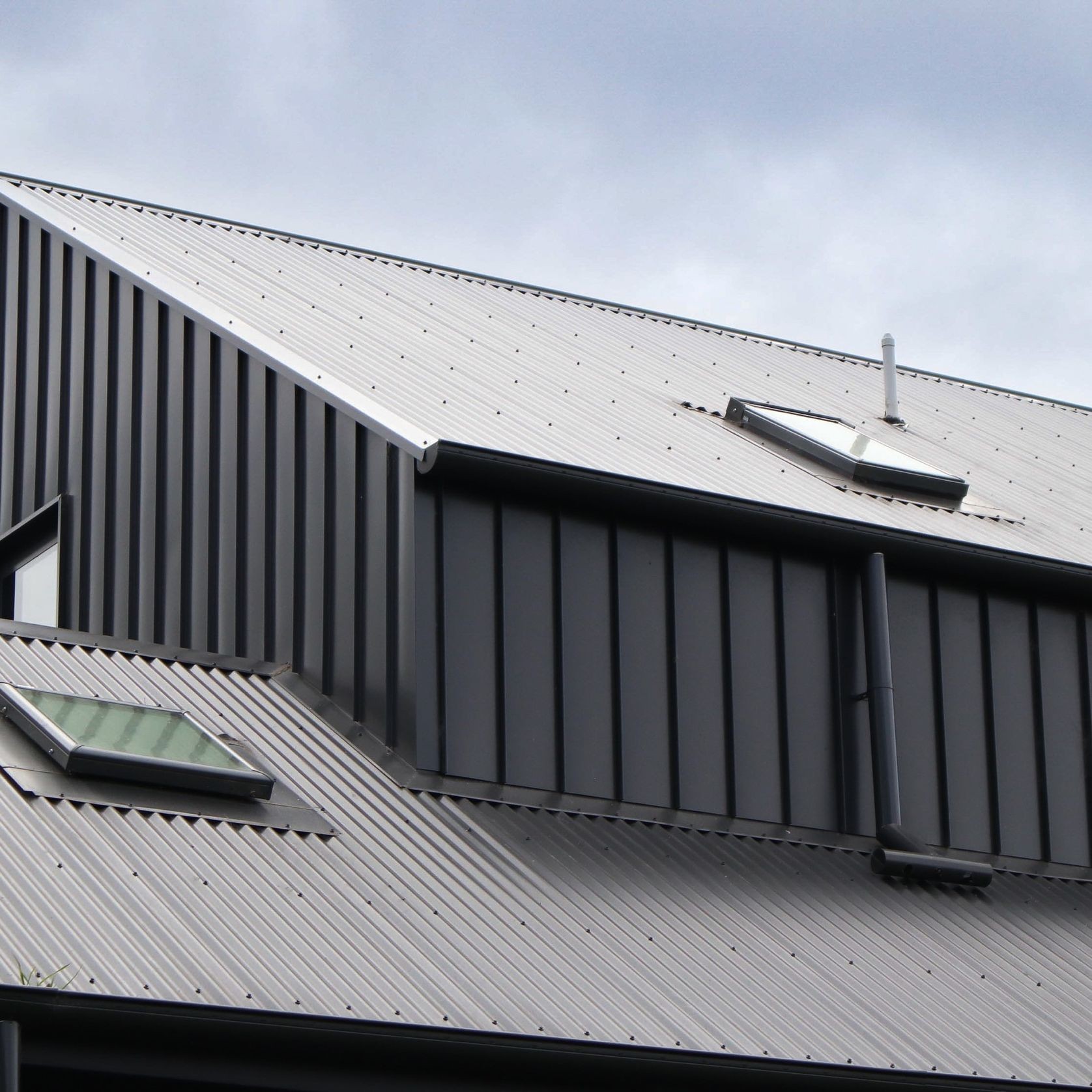

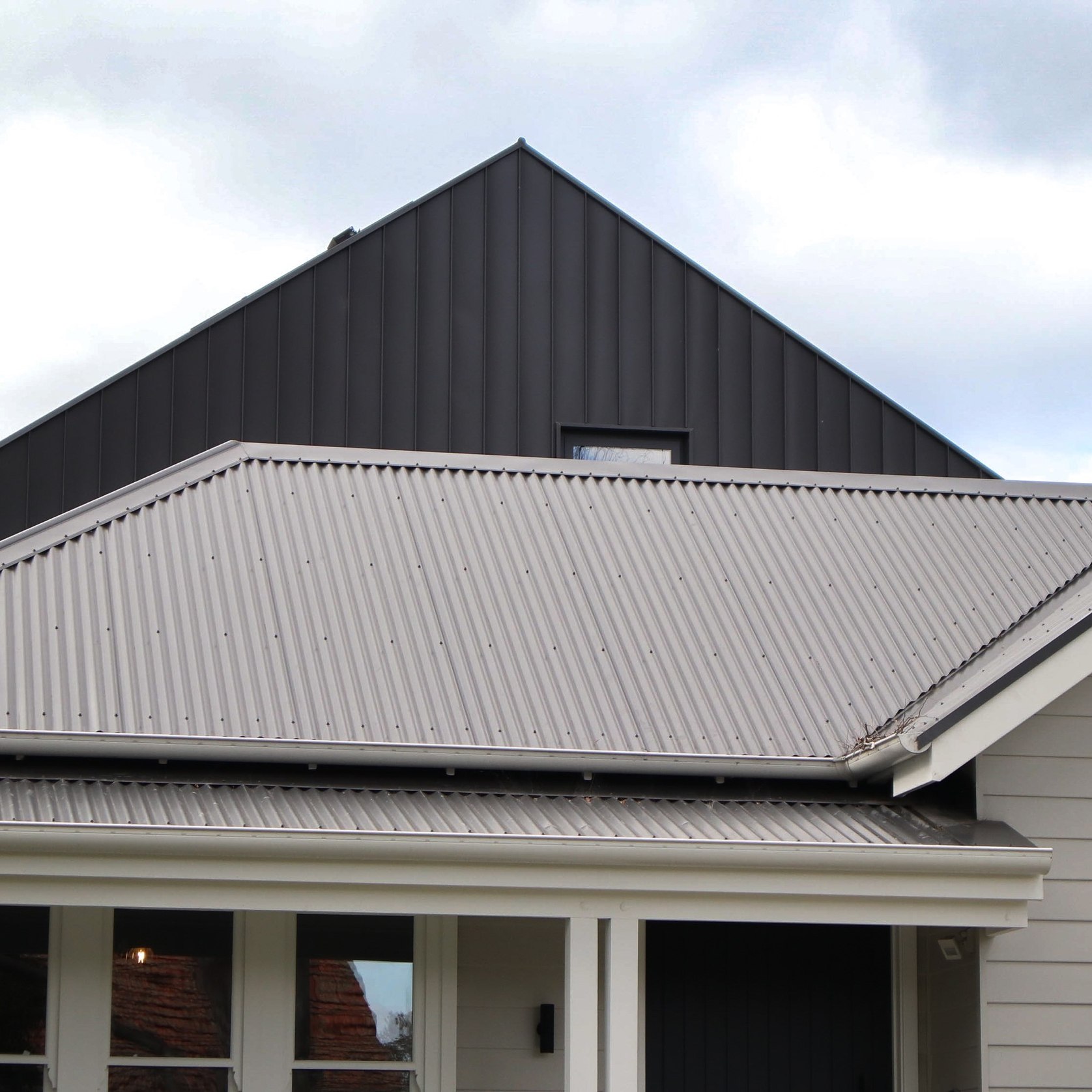

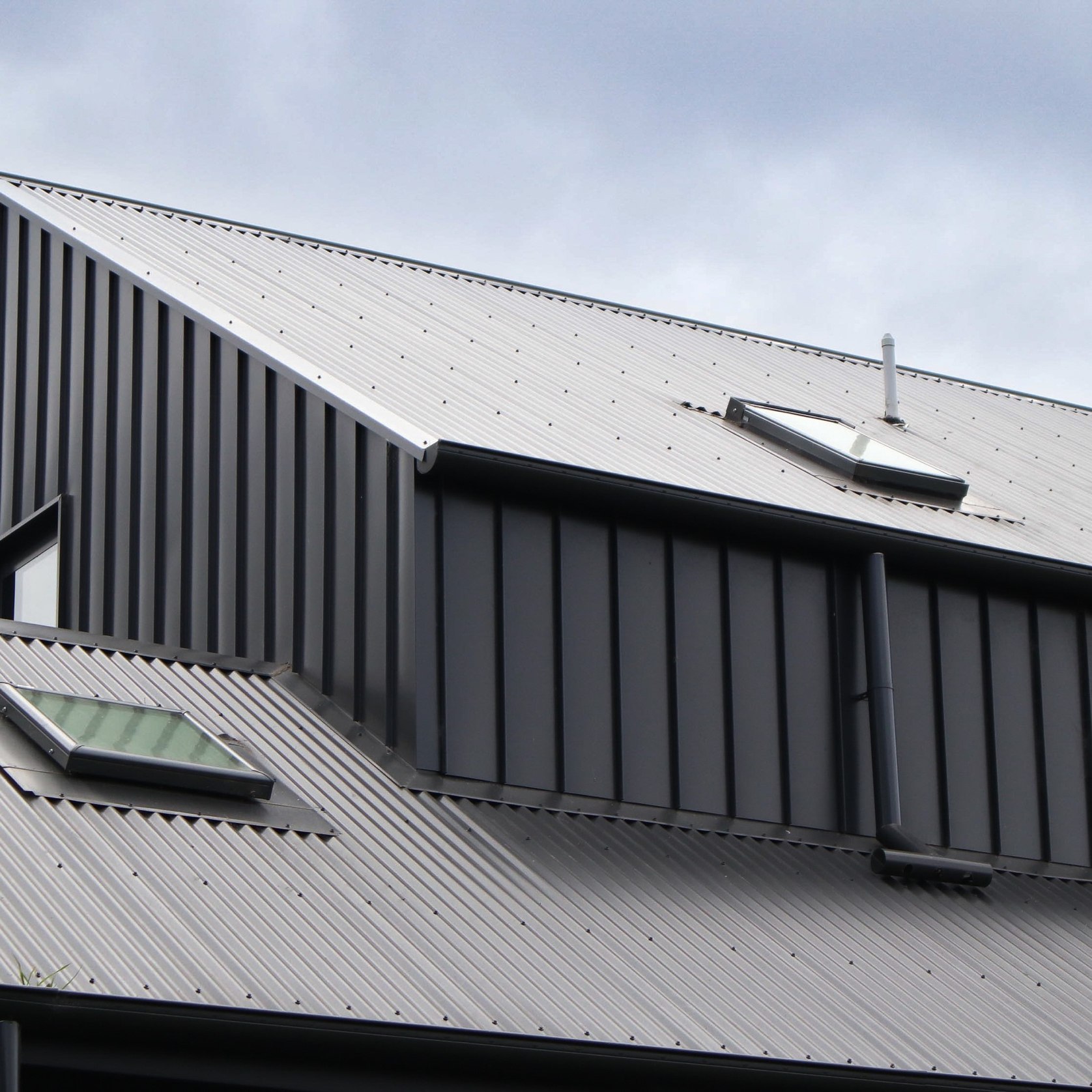

Archclad™ Cliptray 25 mm is suitable for façade applications with similar technical procedures as for roof coverings. It is advisable to limit the section lengths to a maximum of 6 m.

Roofing

Minimum Pitch 3 deg.

Performance

Testing to Australian Standards

Standing Seam and Archclad™ Cliptray 25mm profiles have been tested to Australian standards as 4040.3-1992 "Methods of testing sheet roof and wall cladding method 3: Resistance to wind pressures for cyclone regions".

Architectural Cladding Australia Standing Seam and Cliptray profiles have been tested to Australia Standards AS/NZS 1170.2:2002 Structural Design Actions - Part 2: Wind Actions. Clause 5.3.2. This report details the results of the debris impact testing carried out on a sample of Architectural Cladding Australia's profile only.
