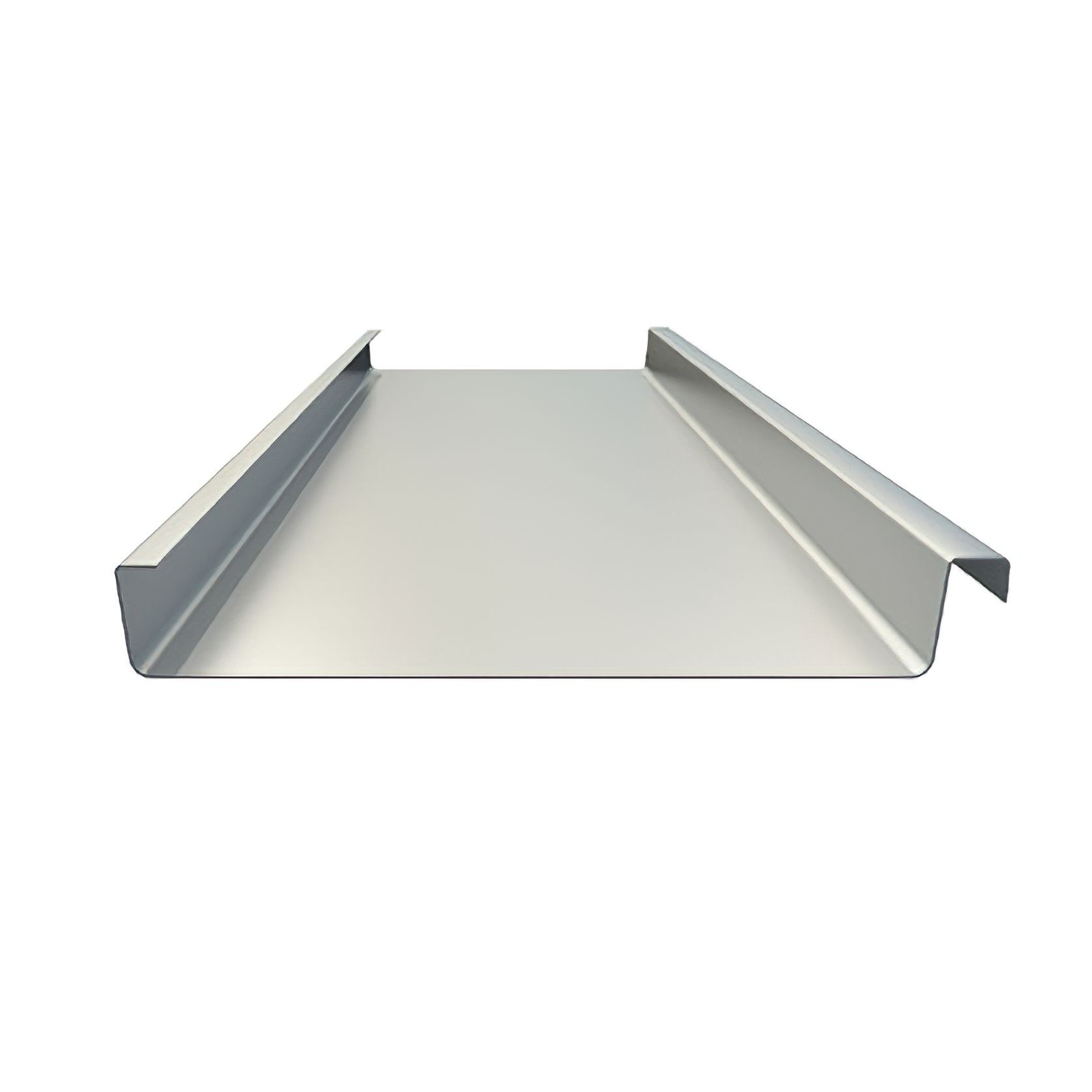

Archclad Standing Seam - Single Lock

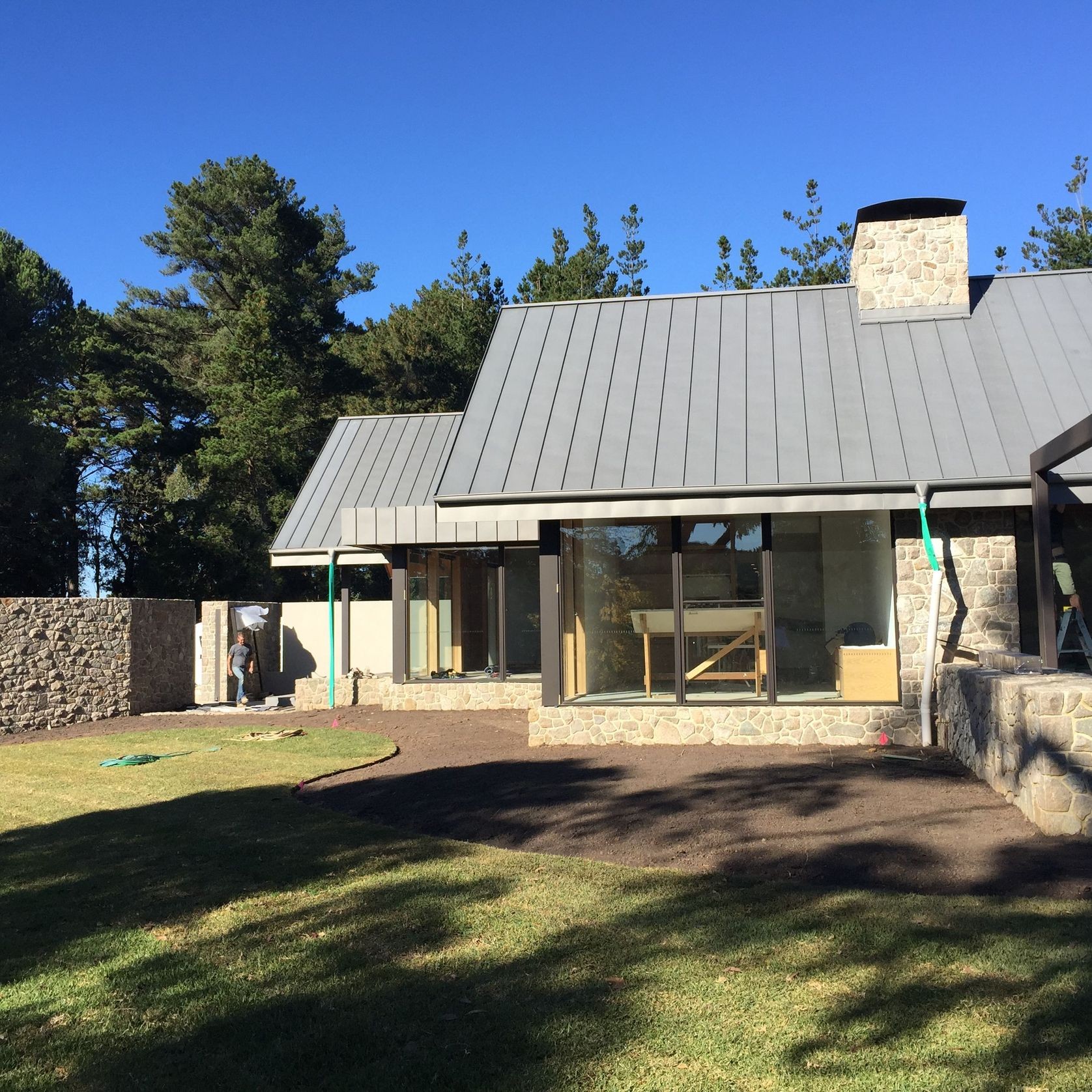

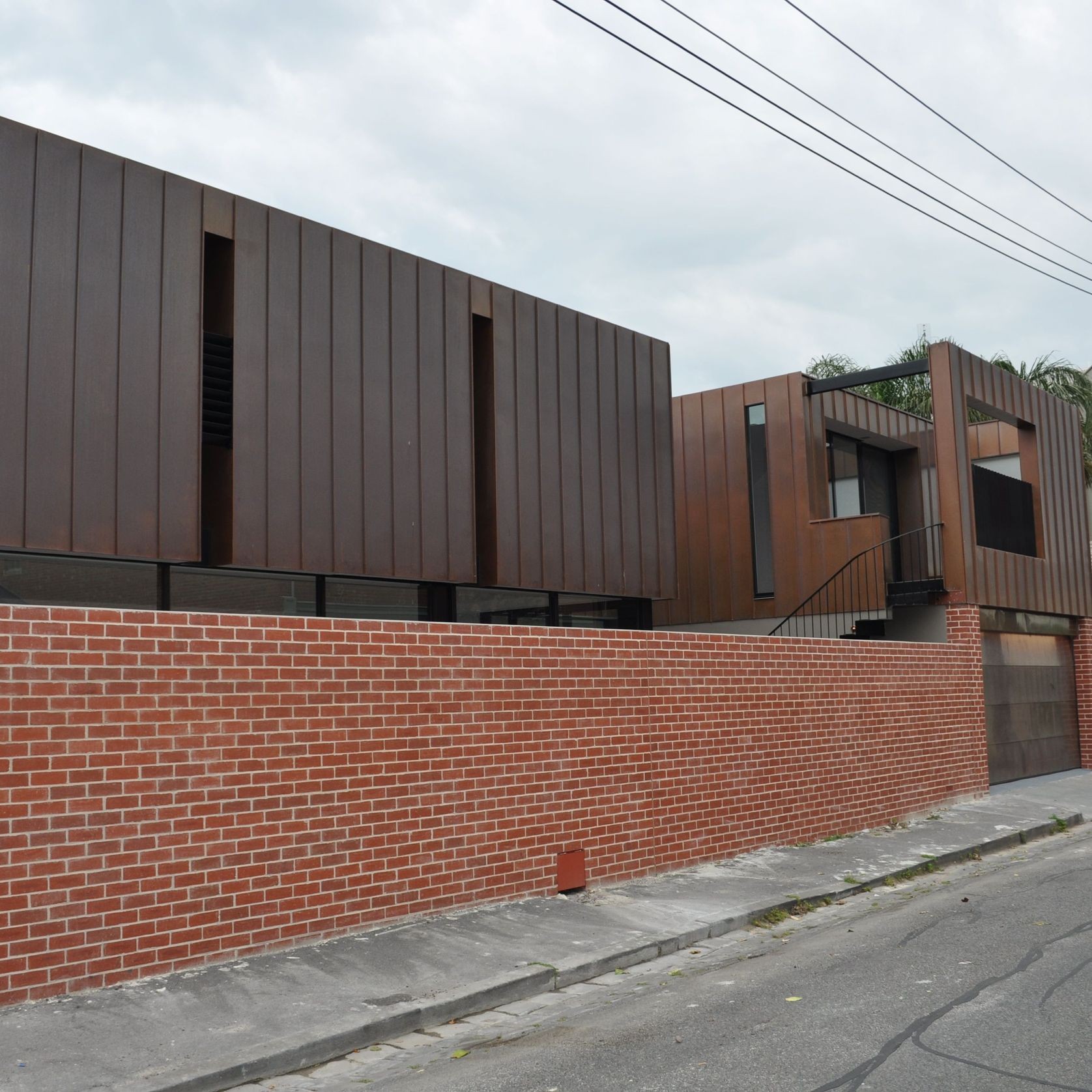

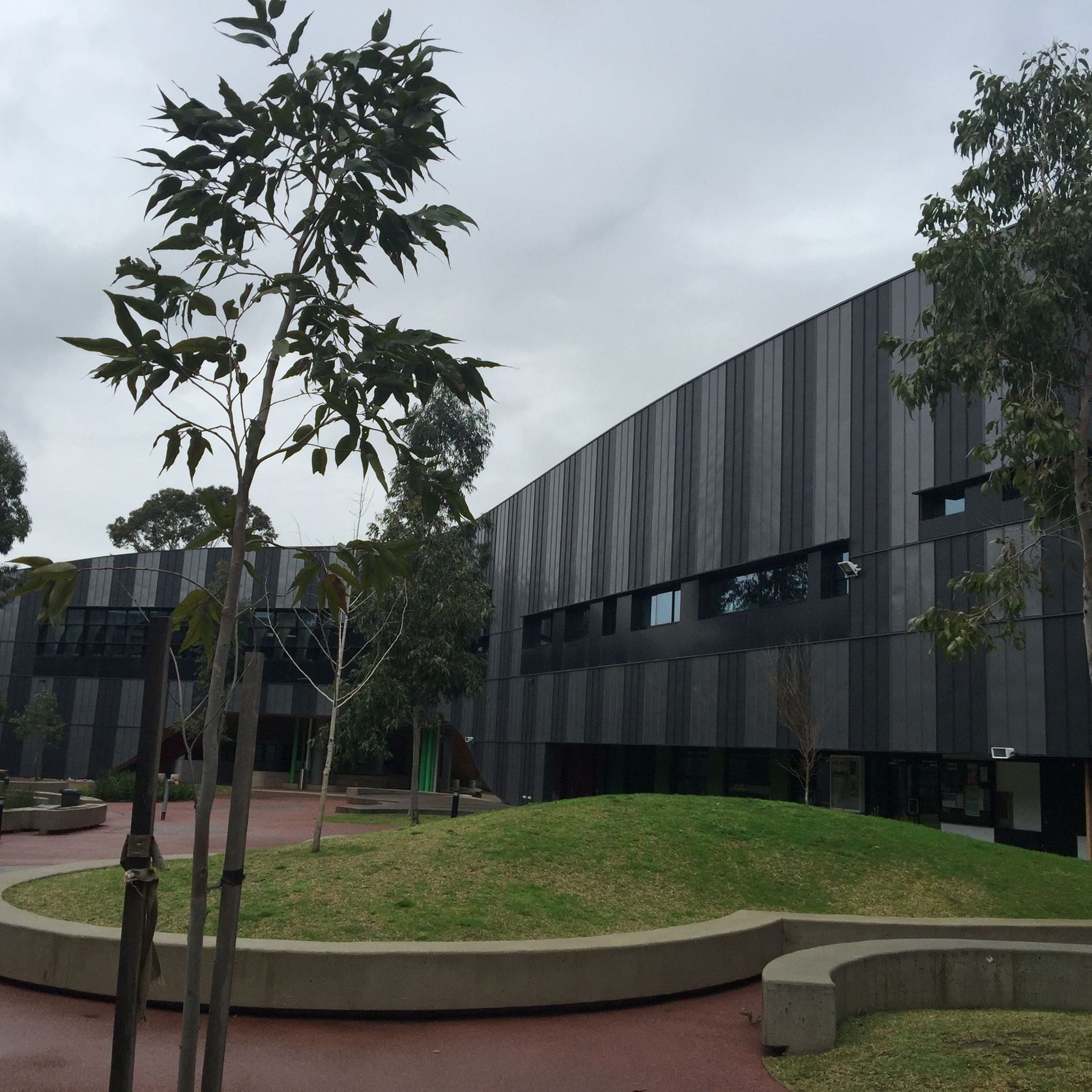

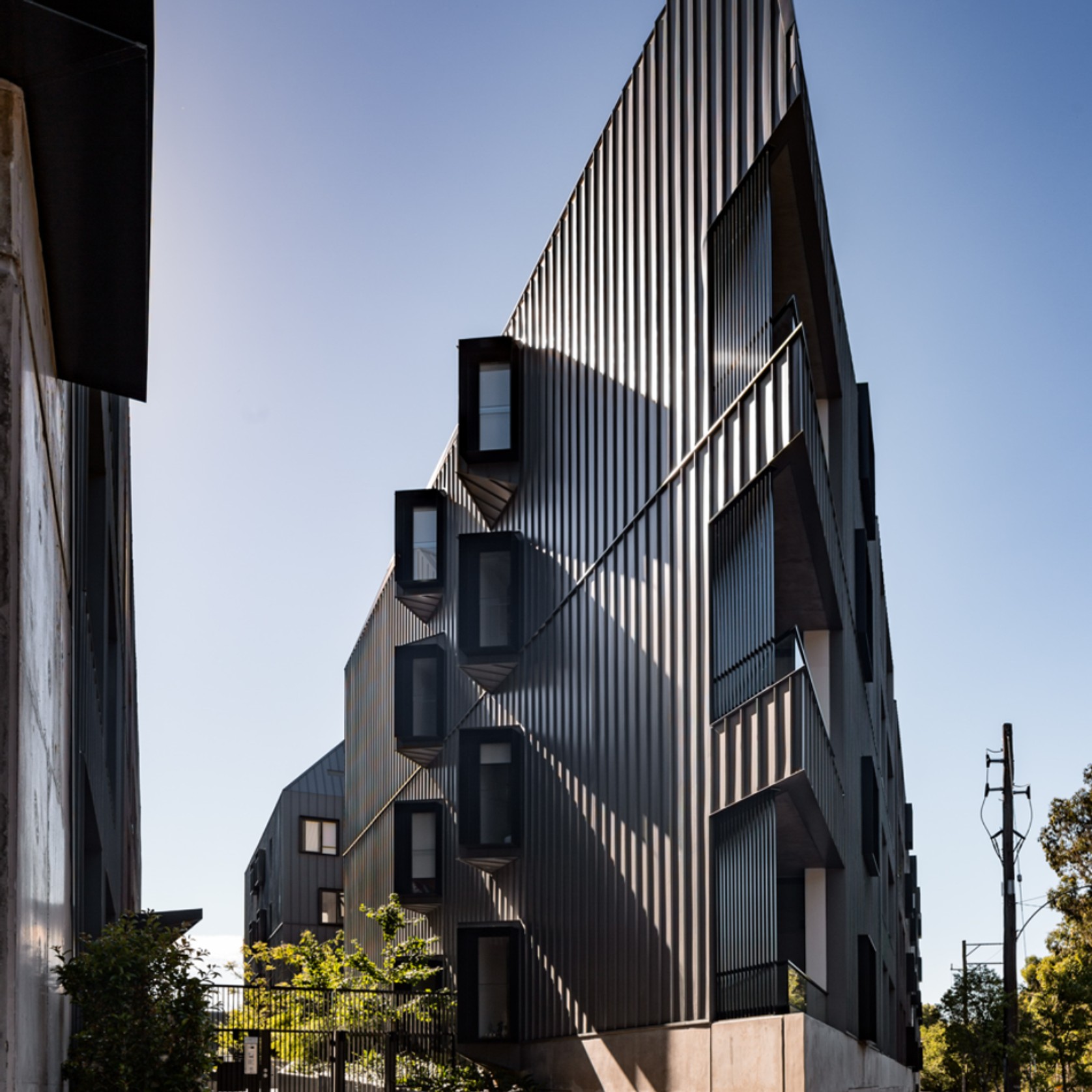

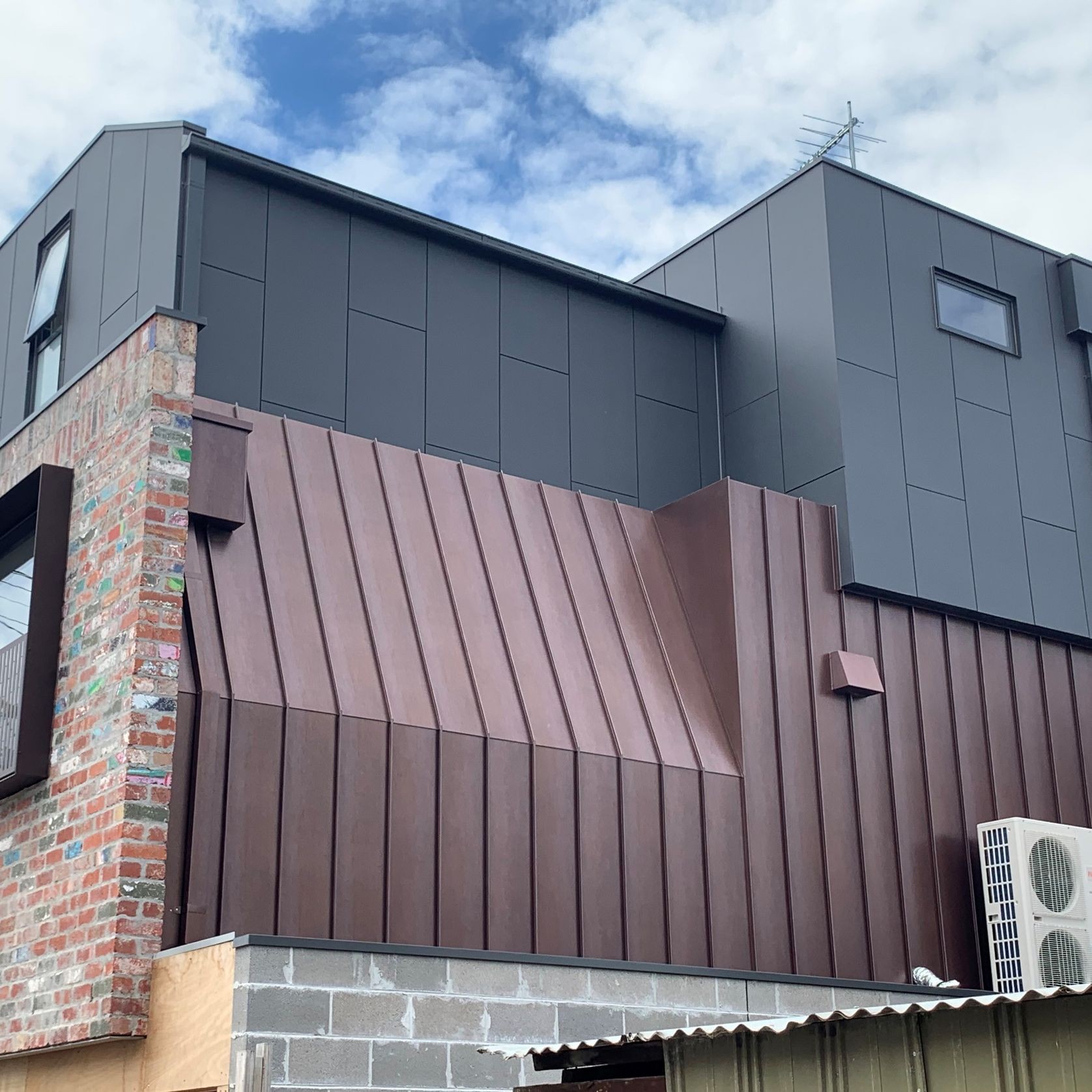

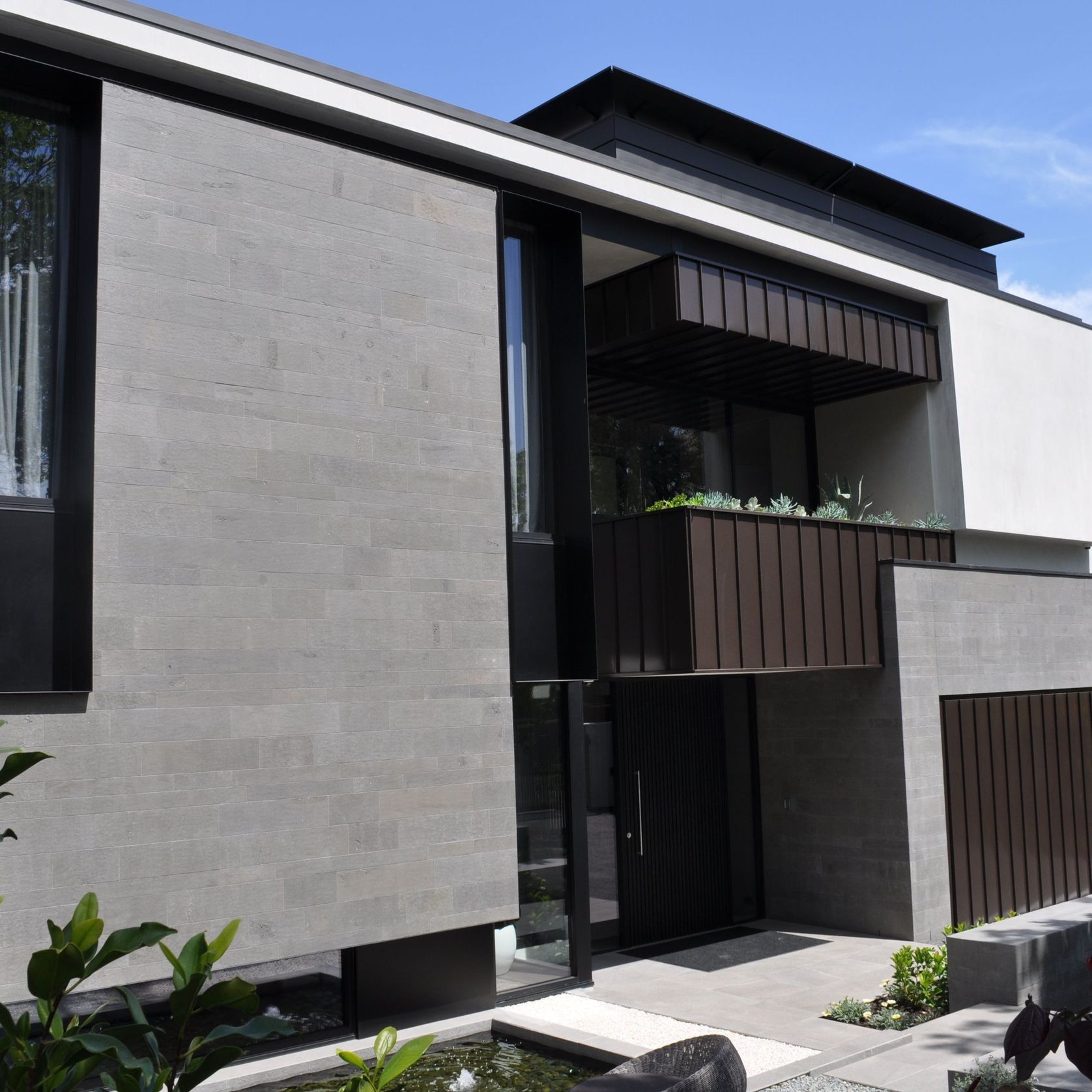

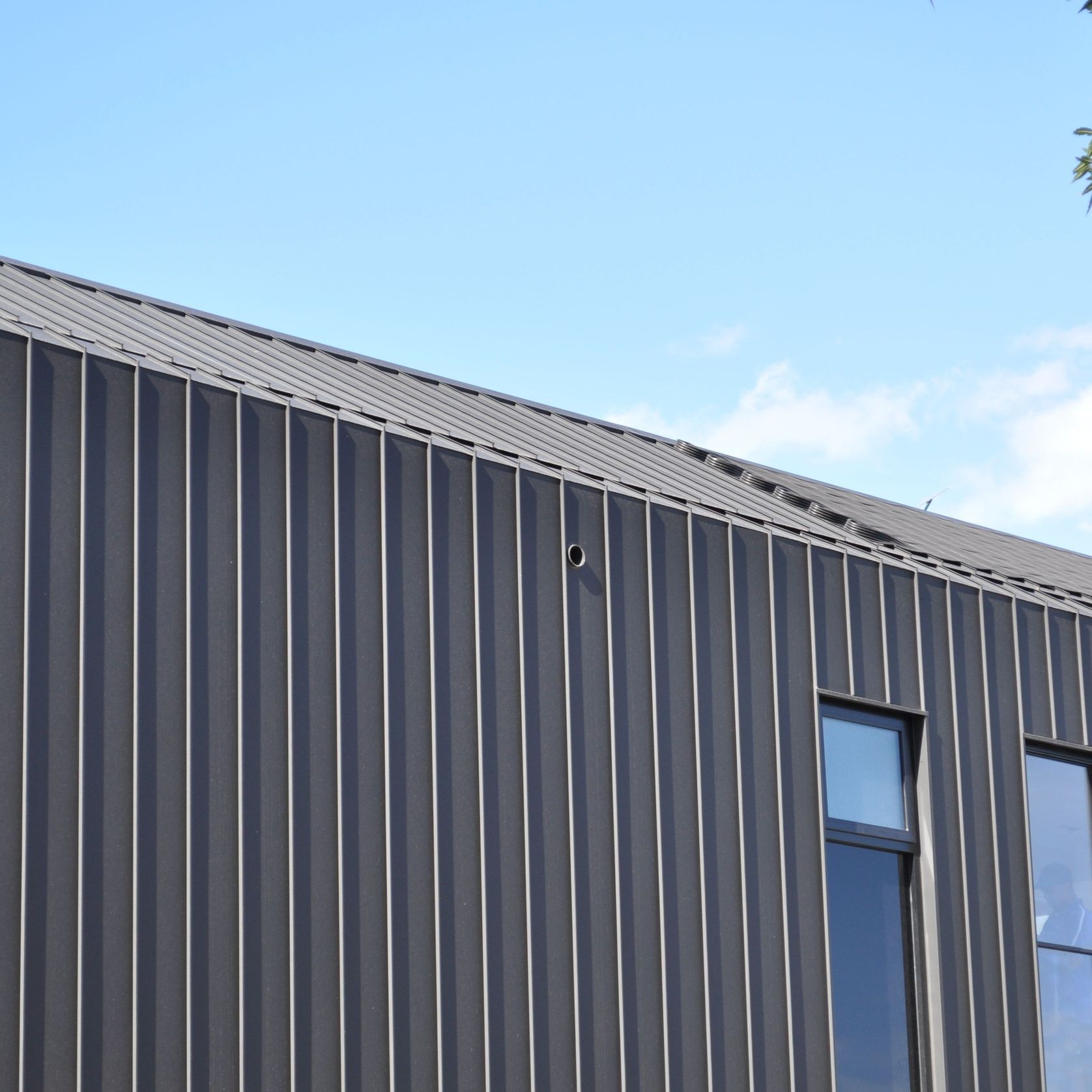

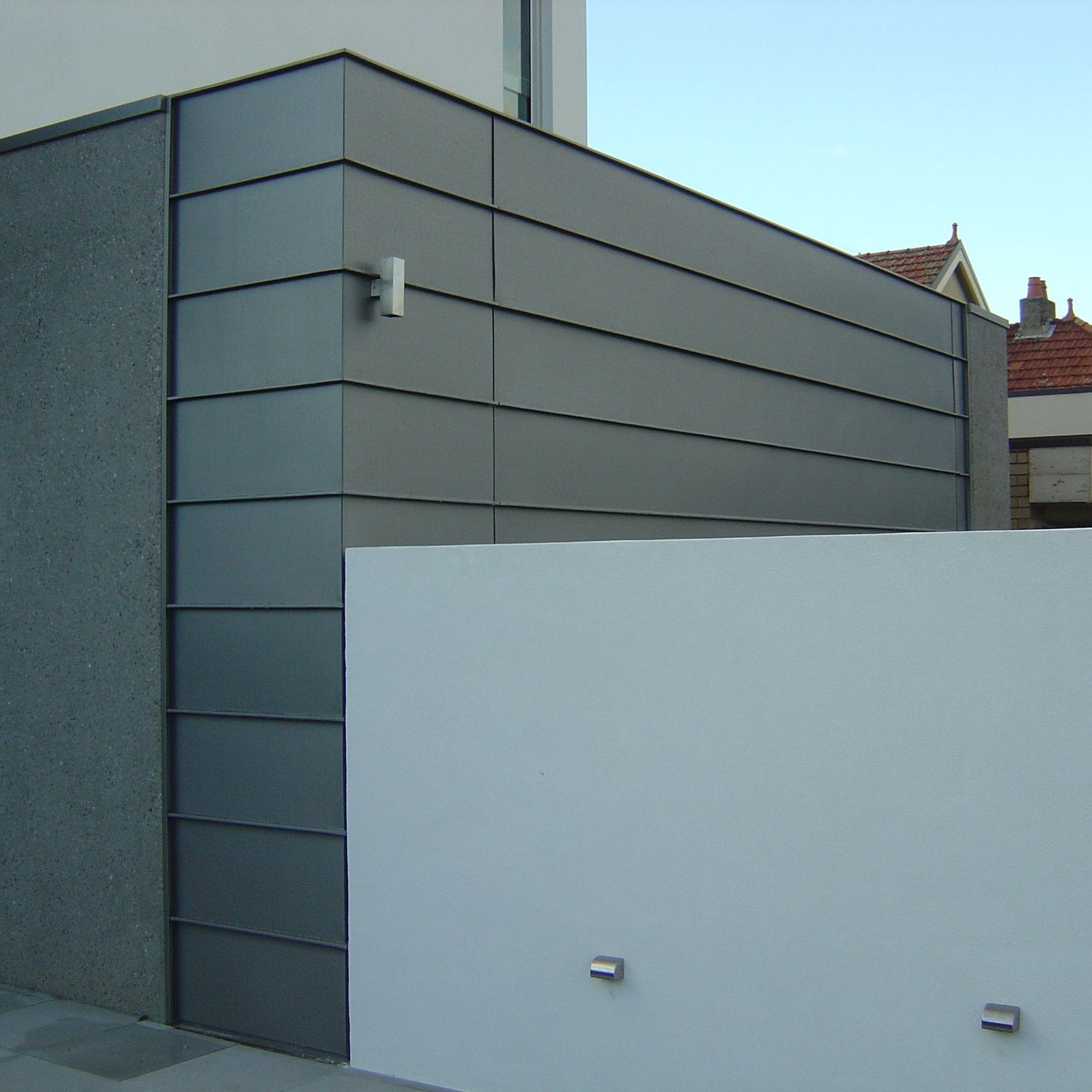

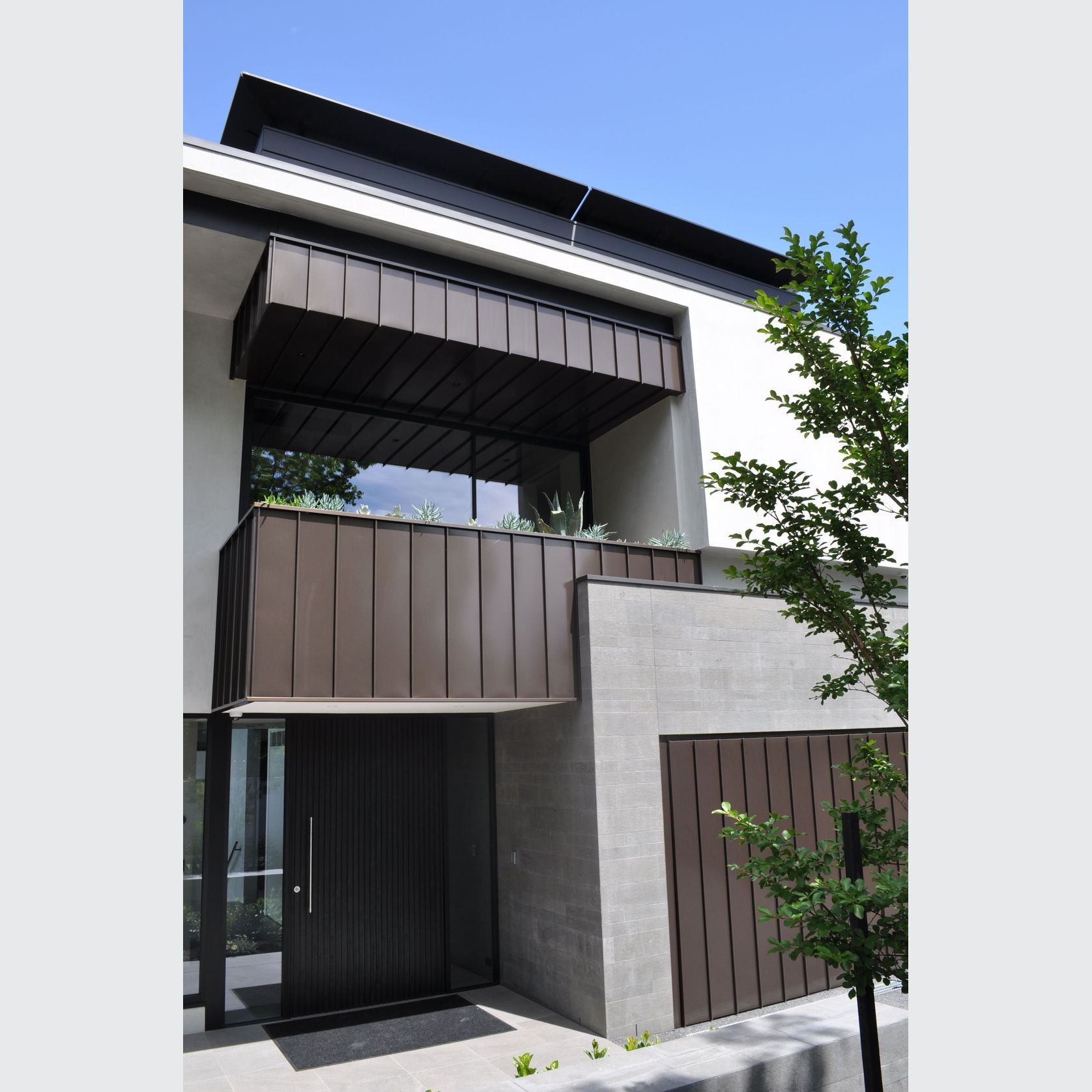

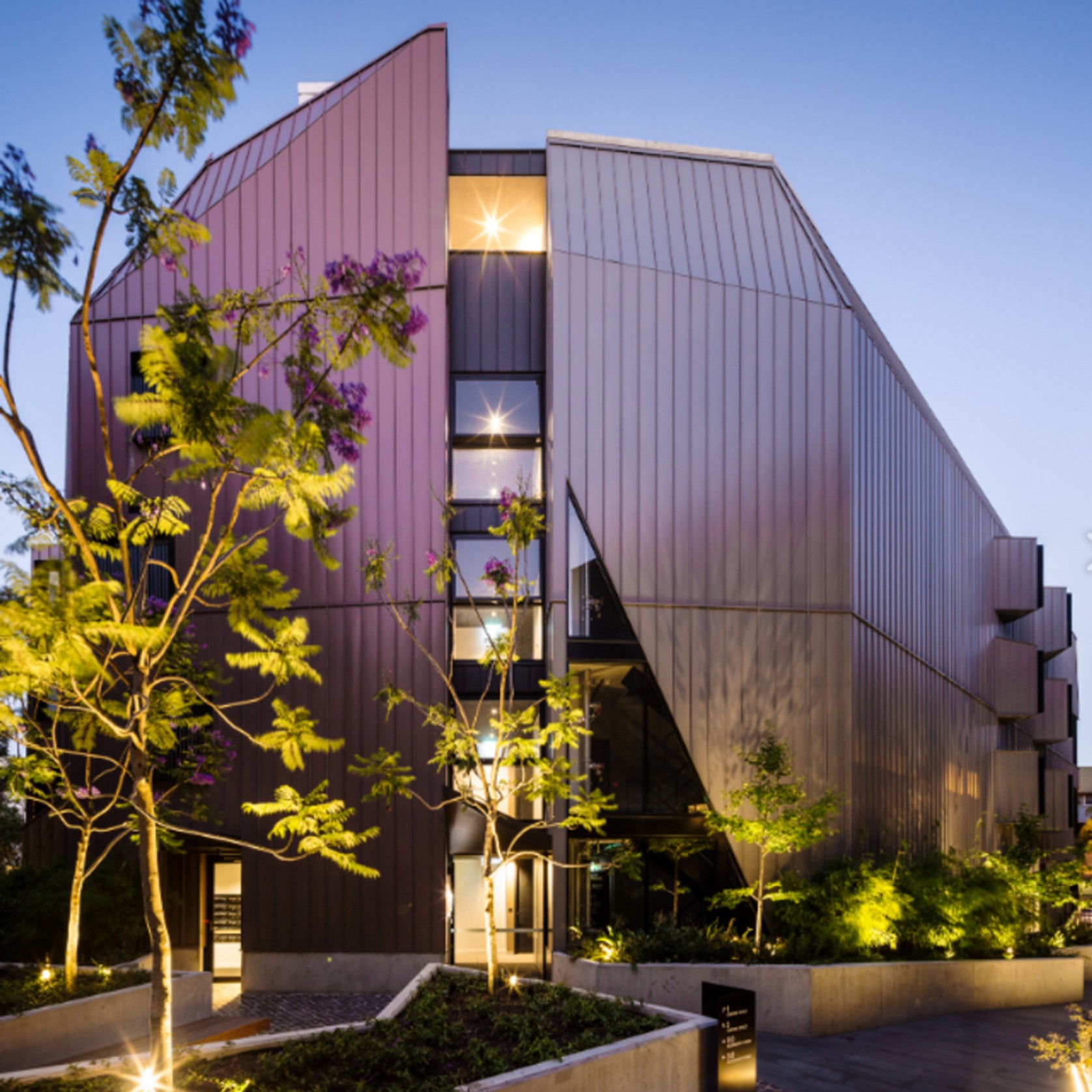

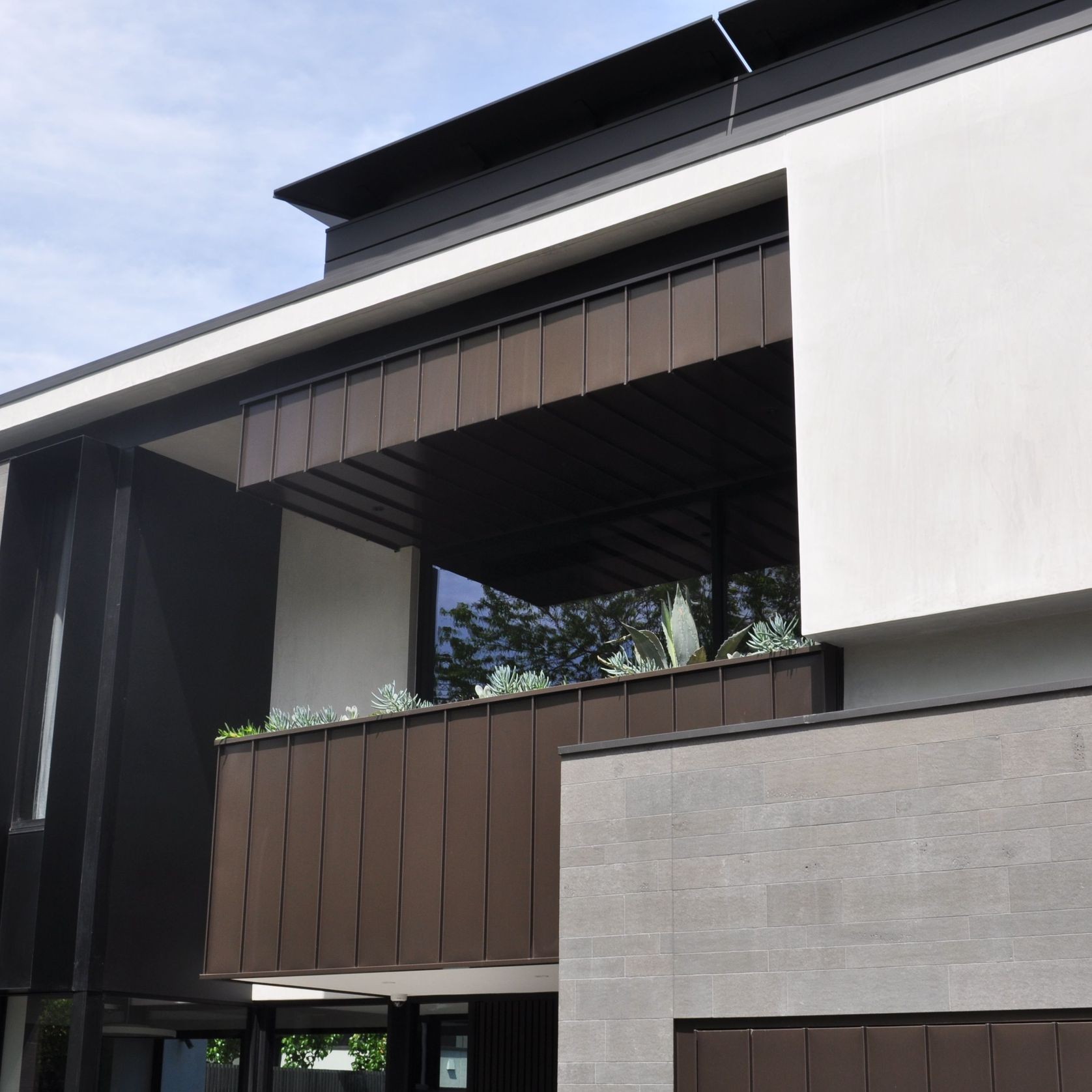

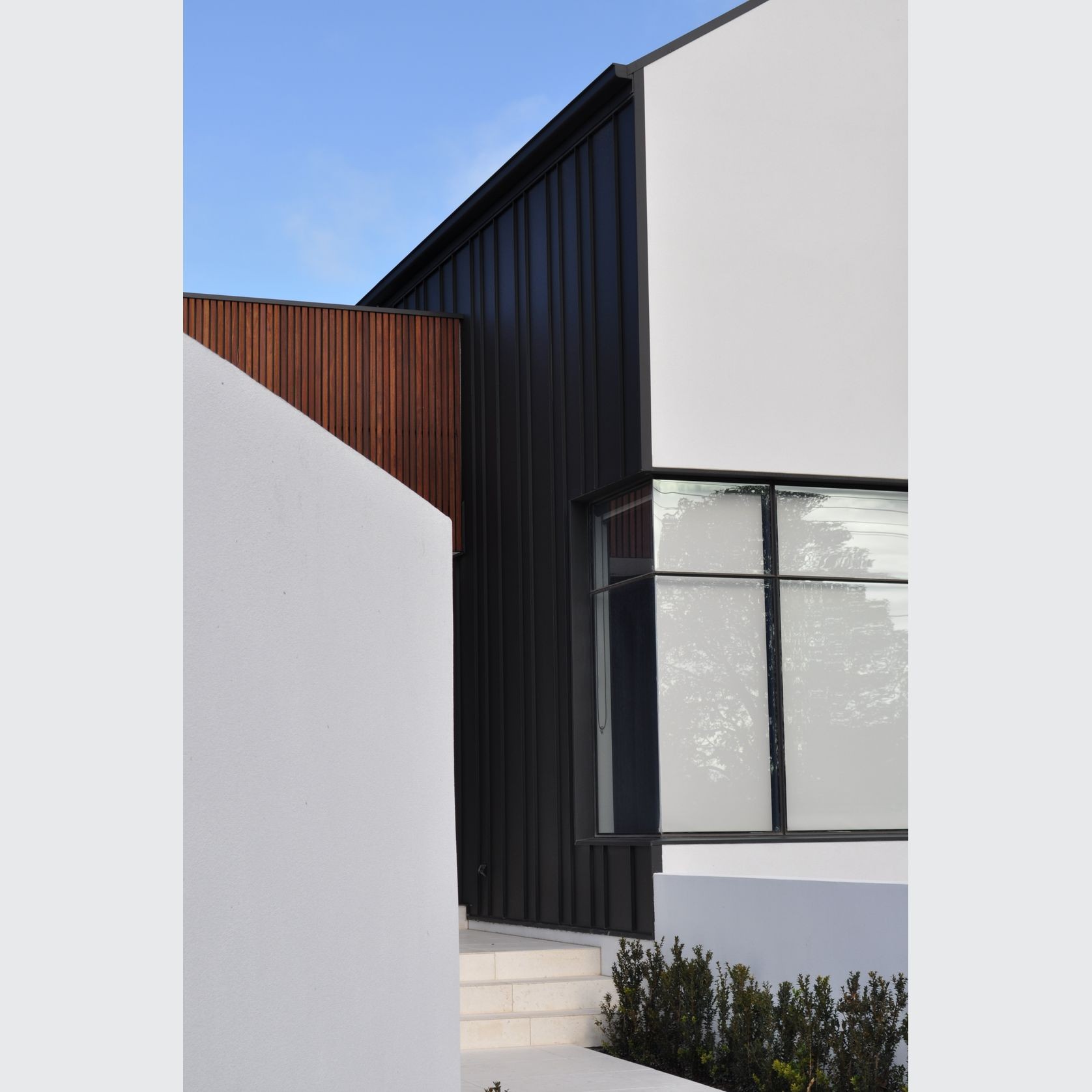

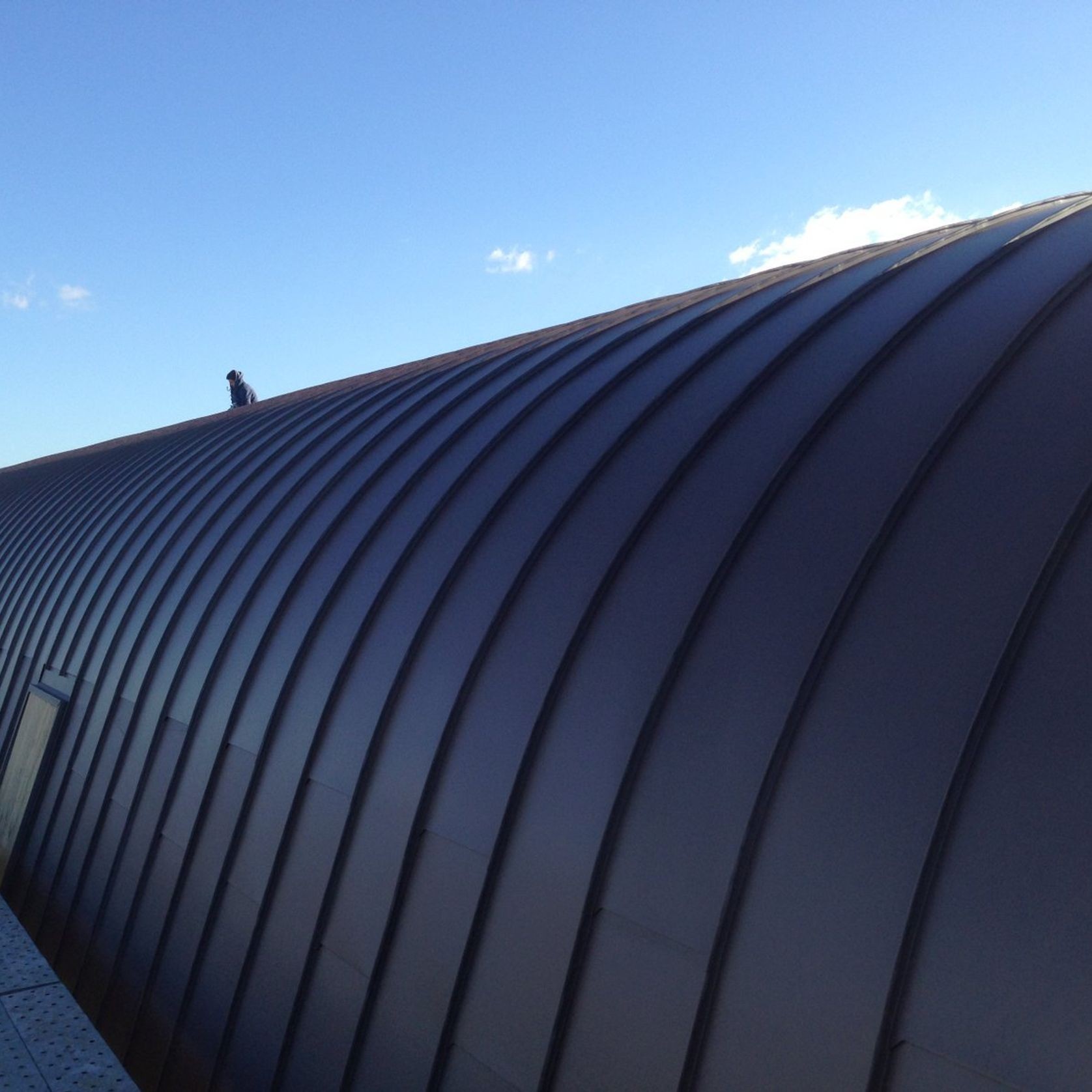

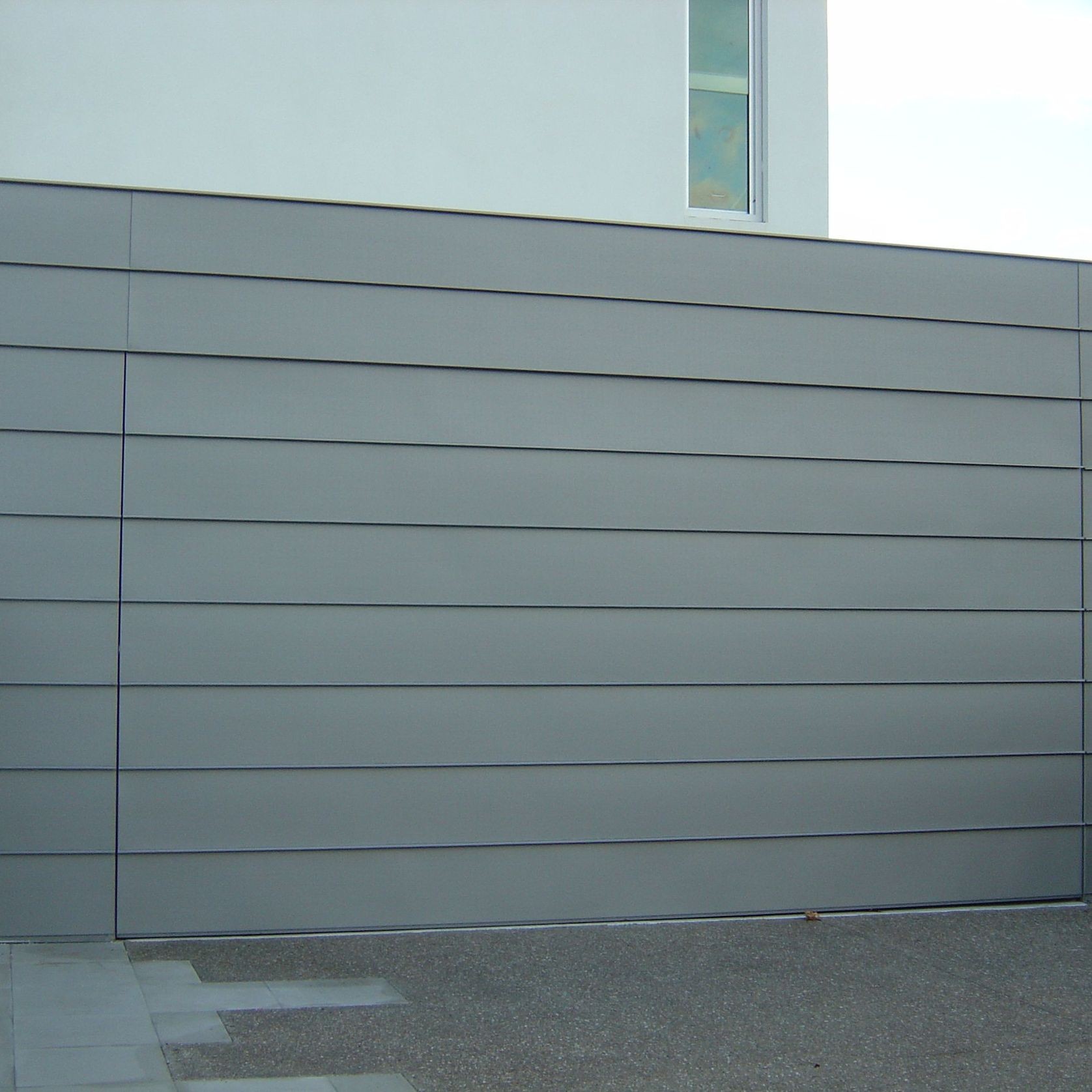

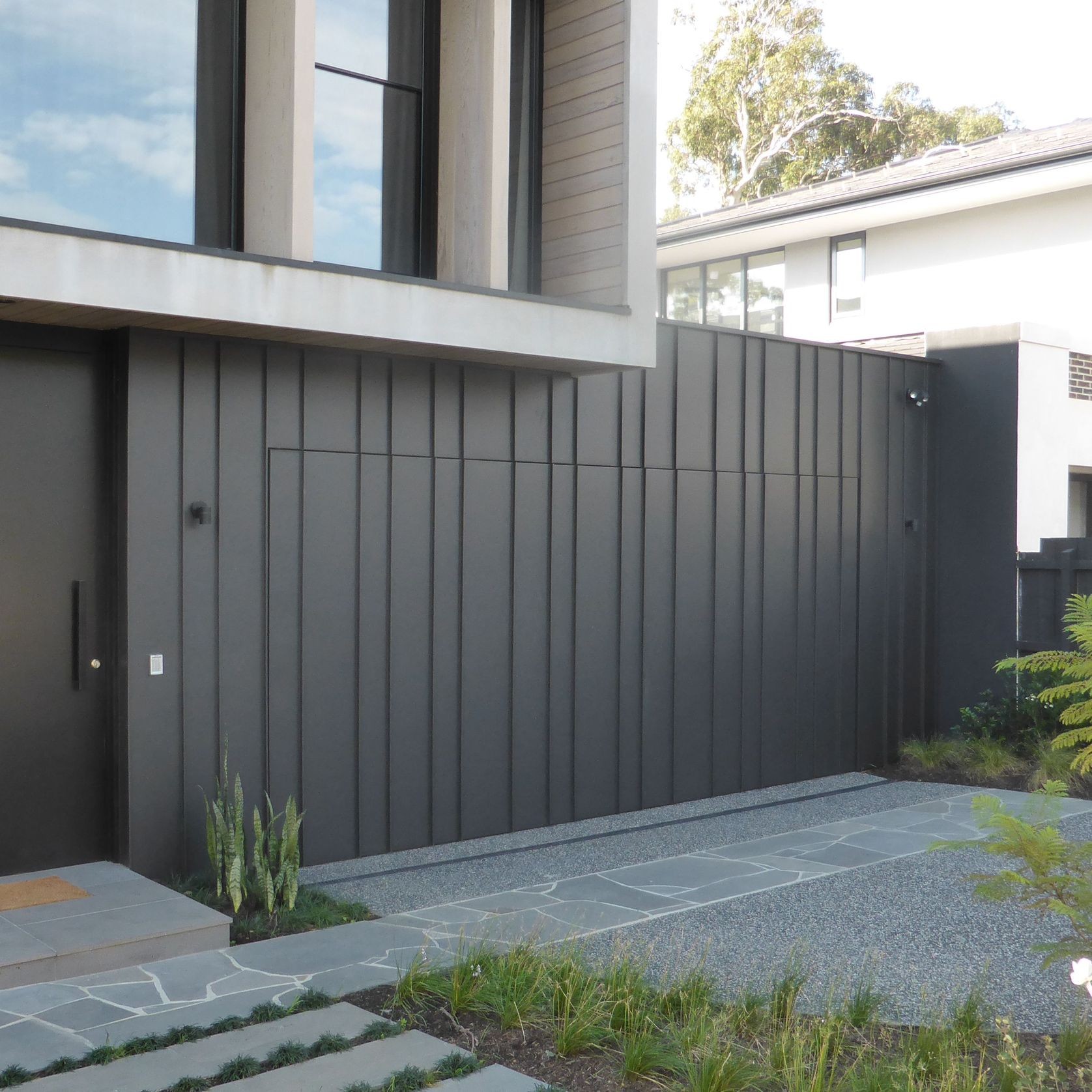

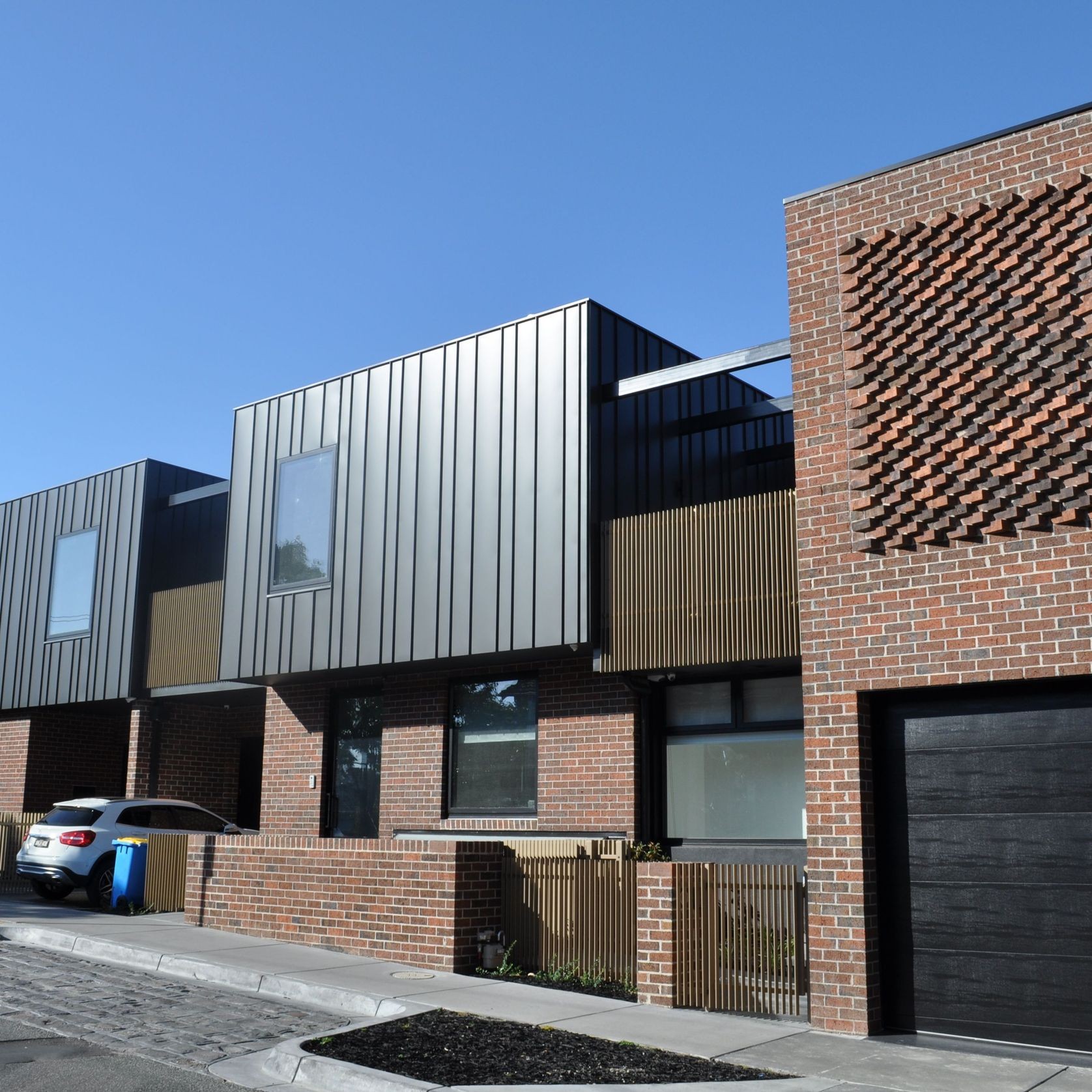

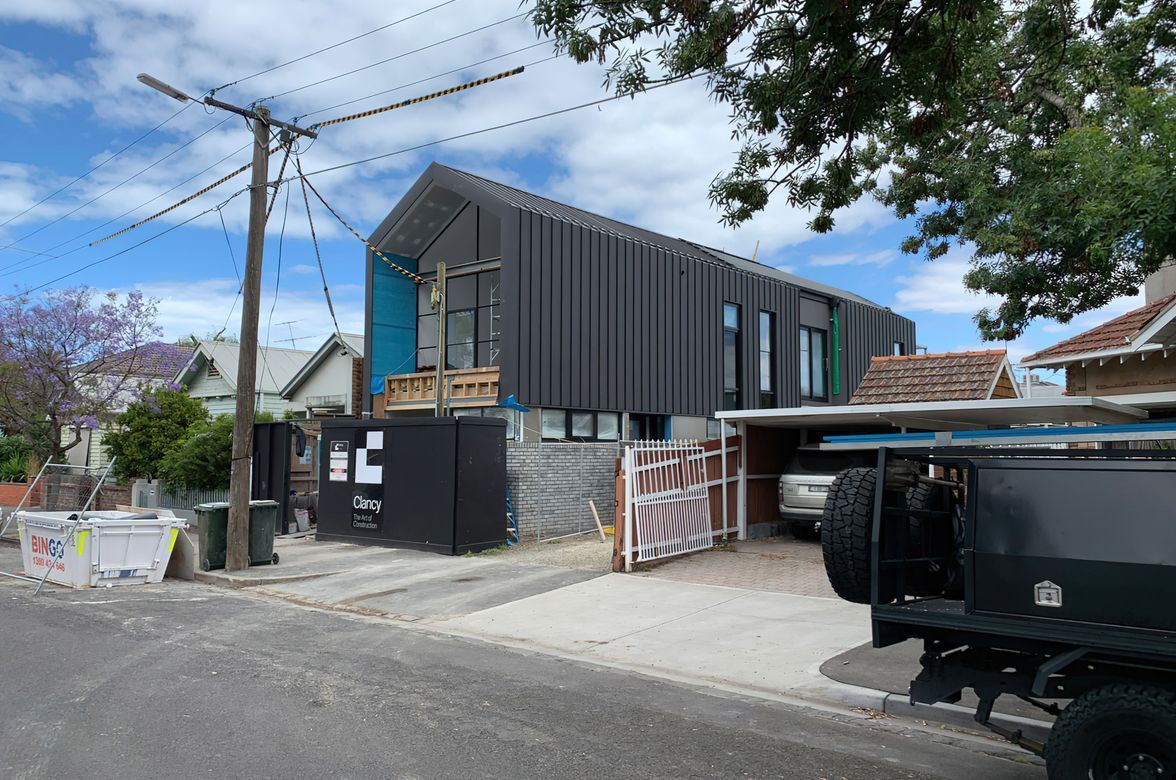

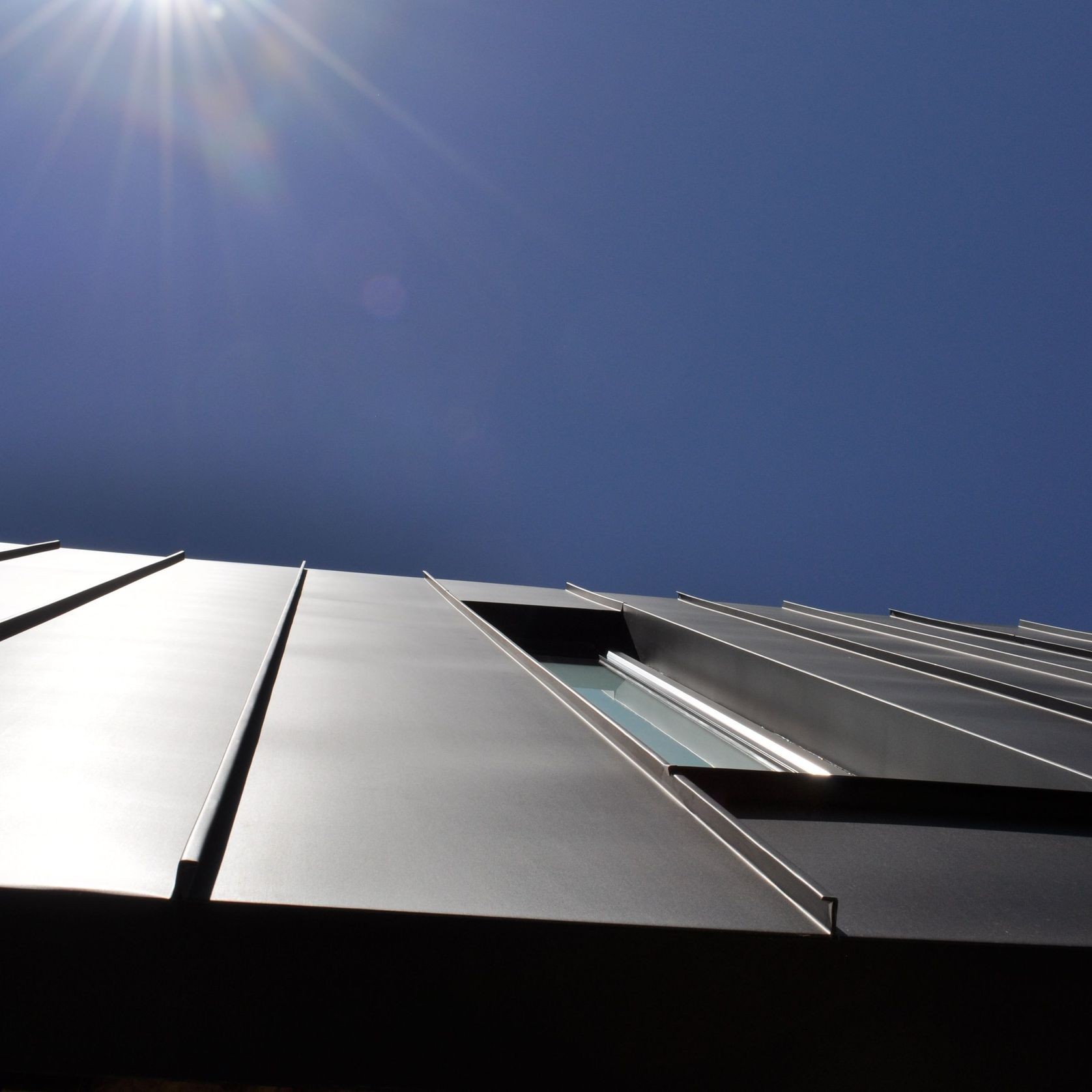

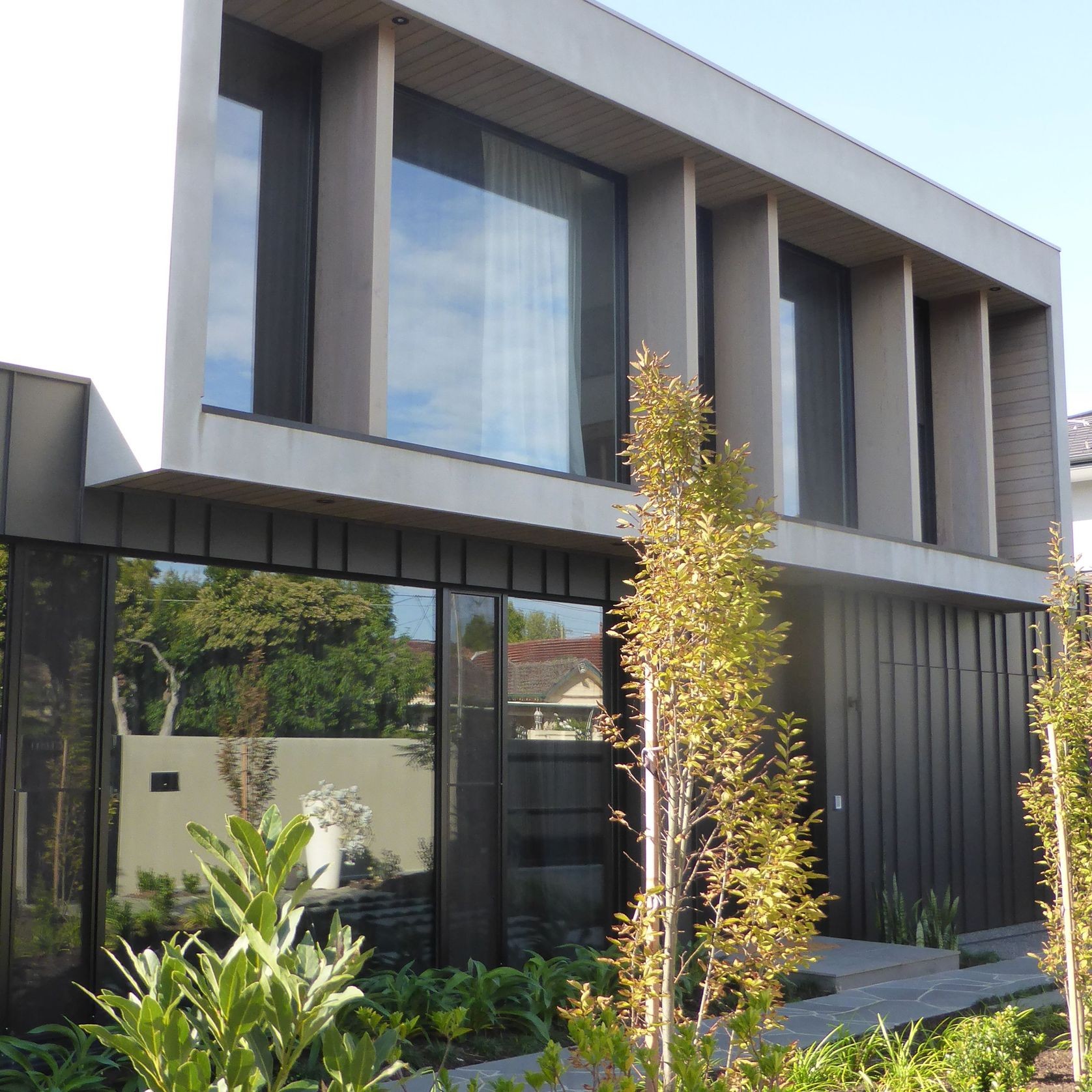

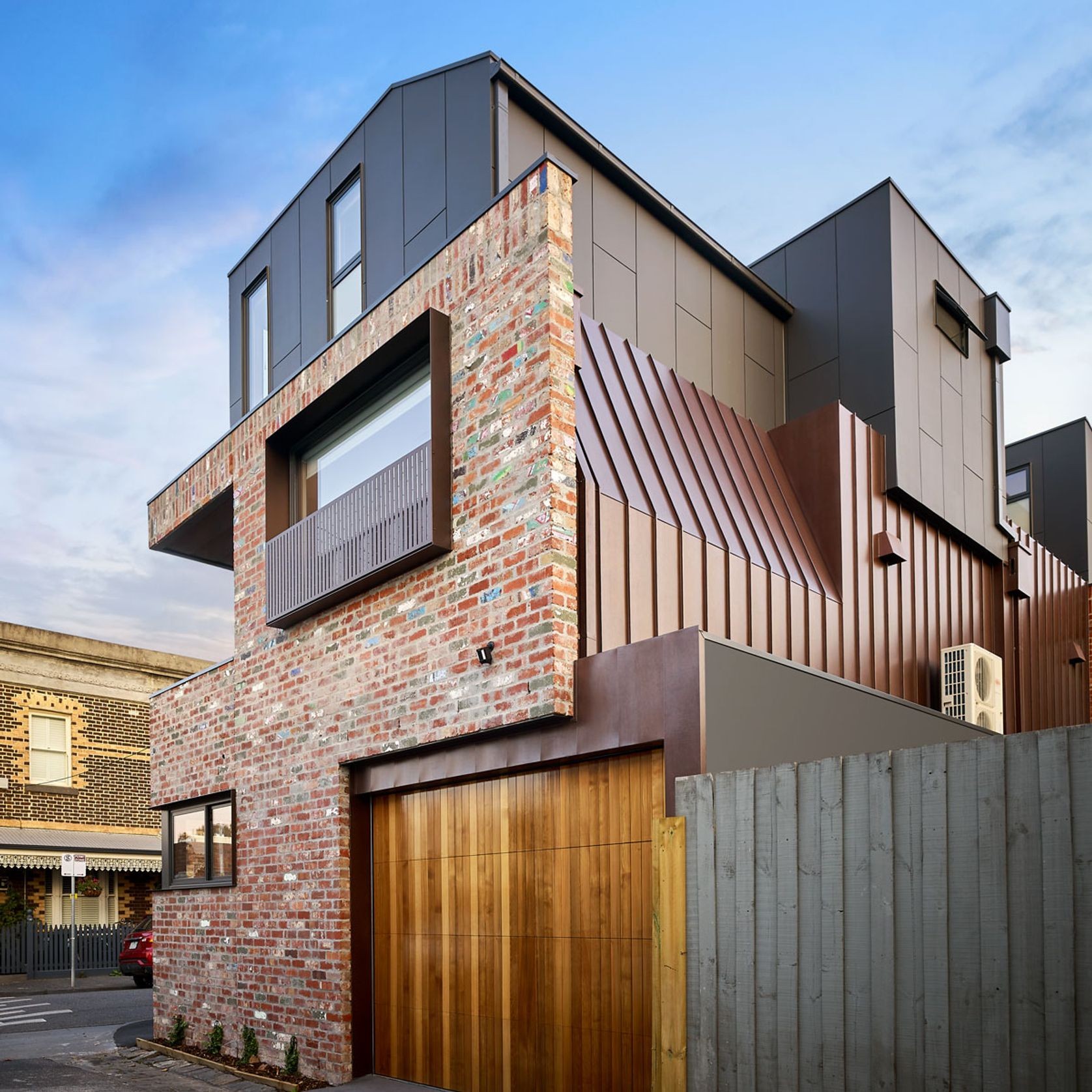

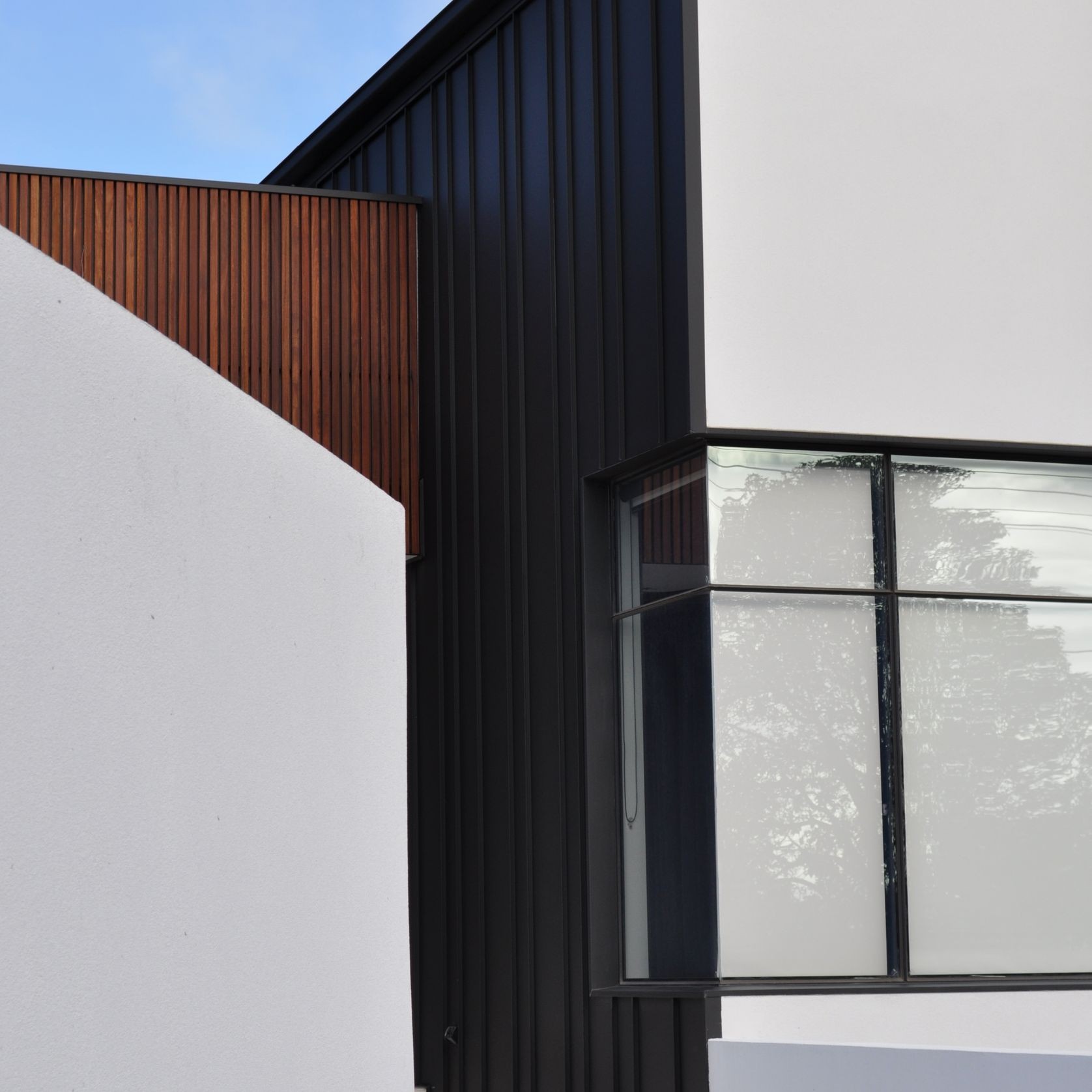

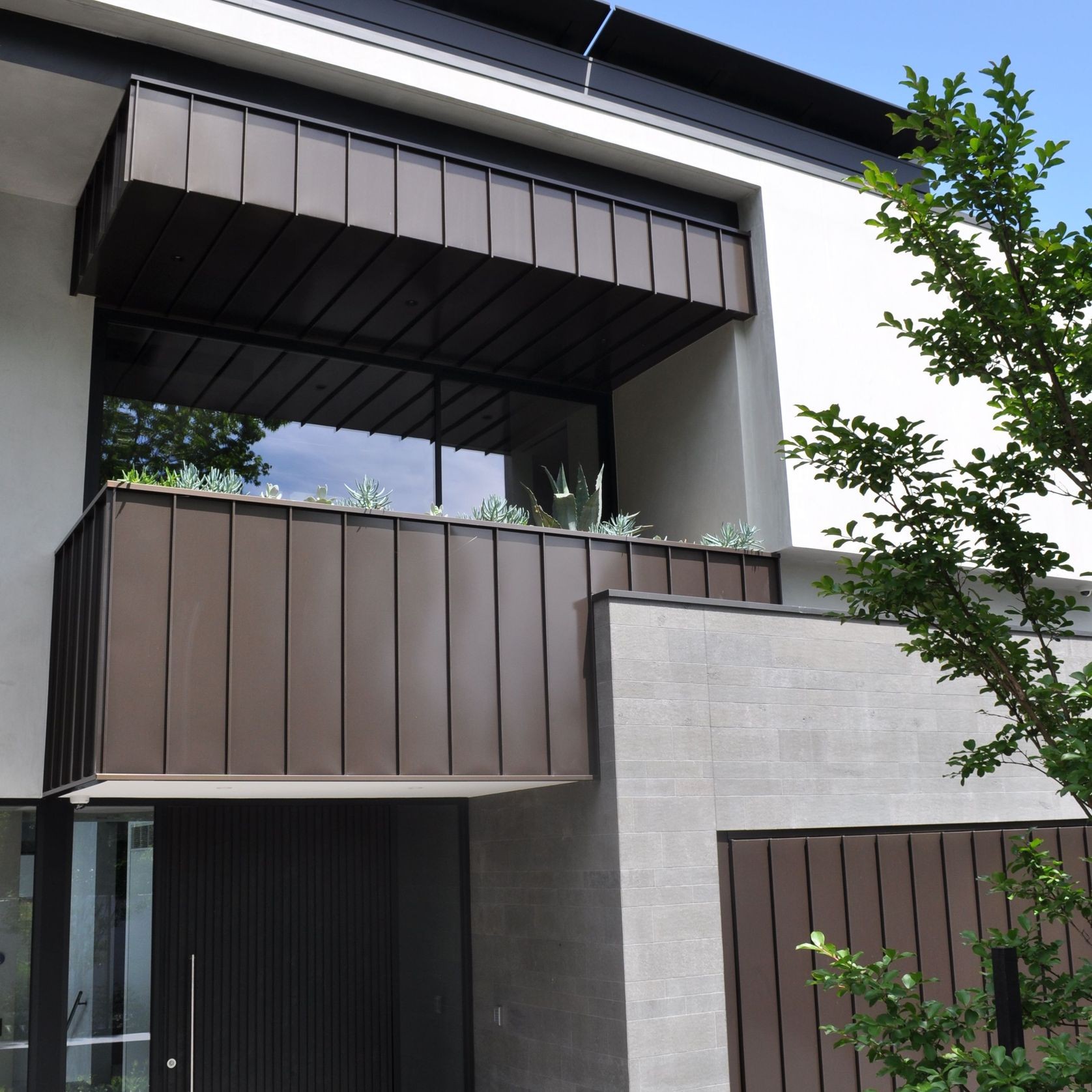

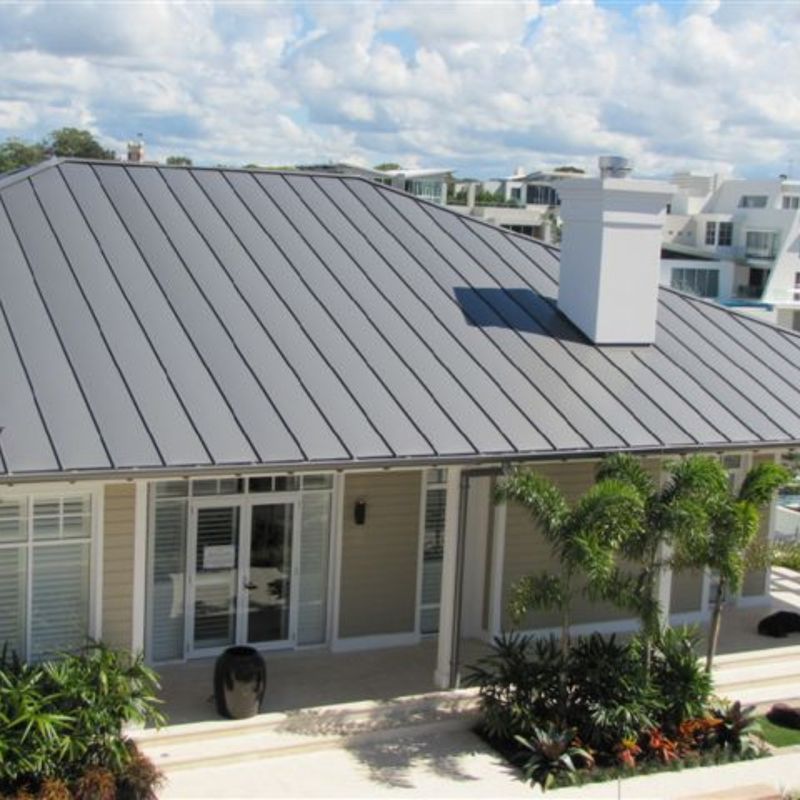

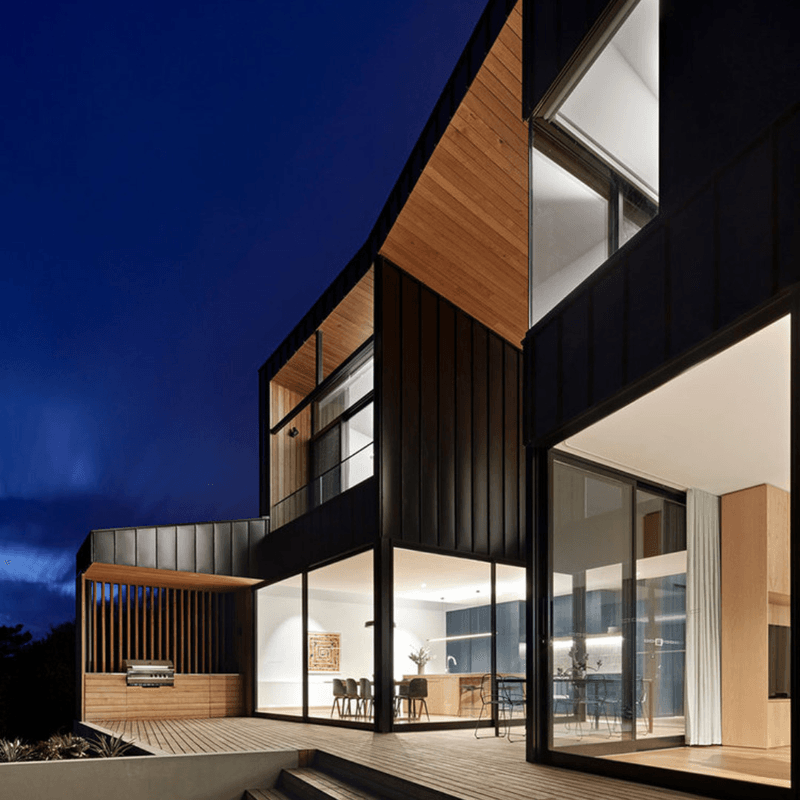

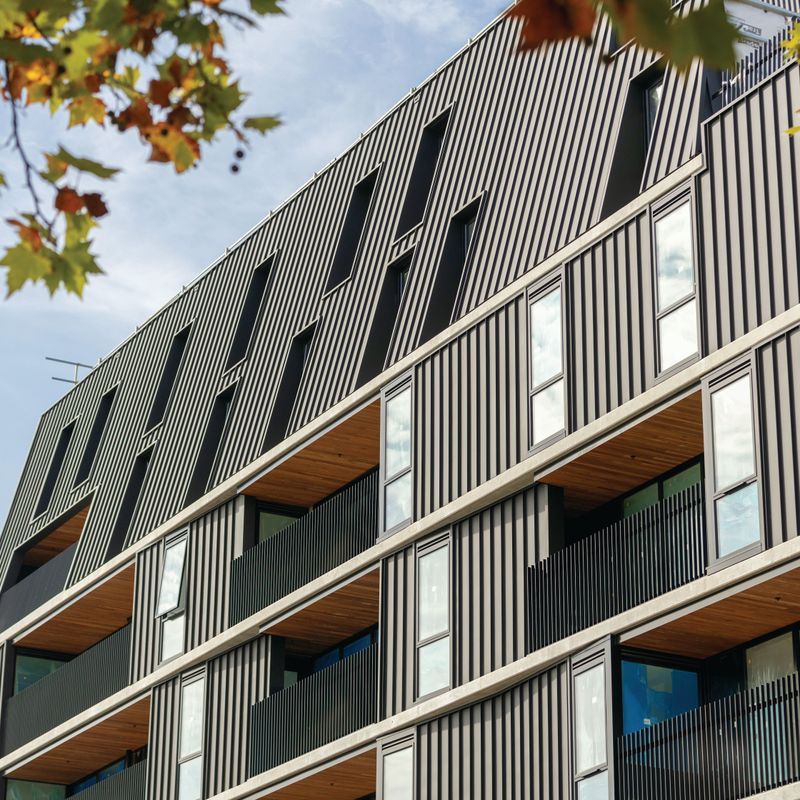

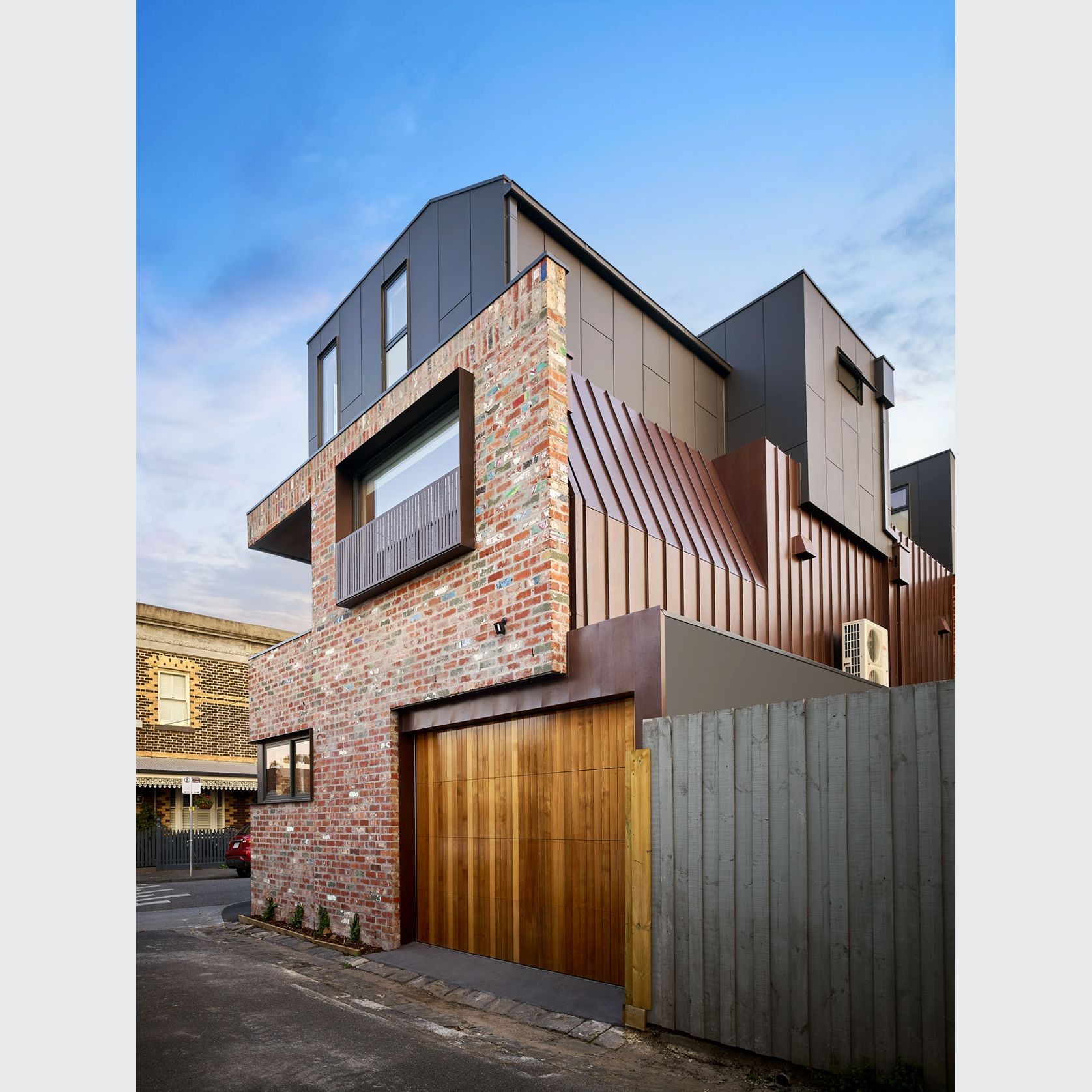

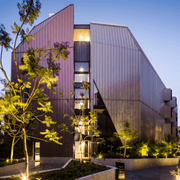

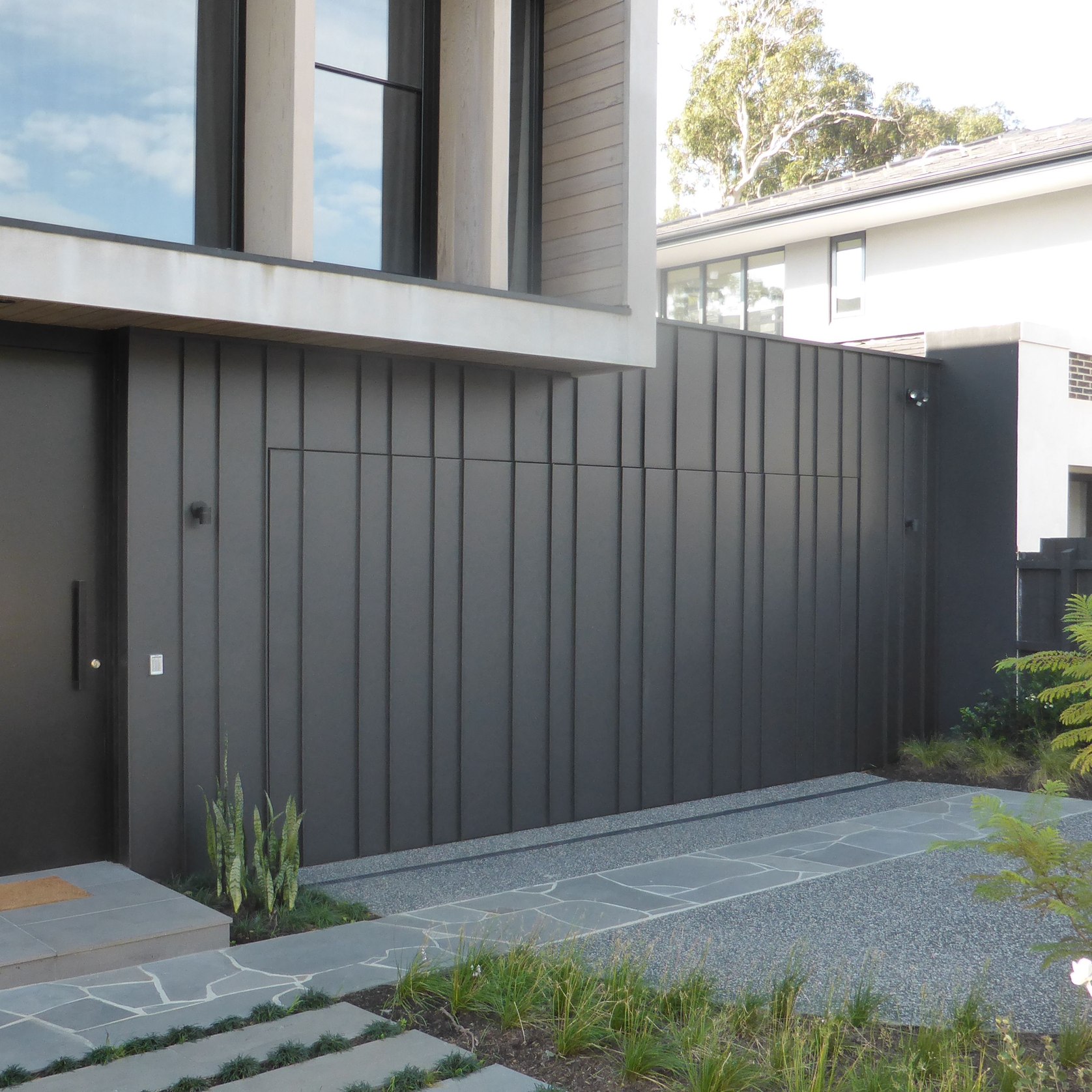

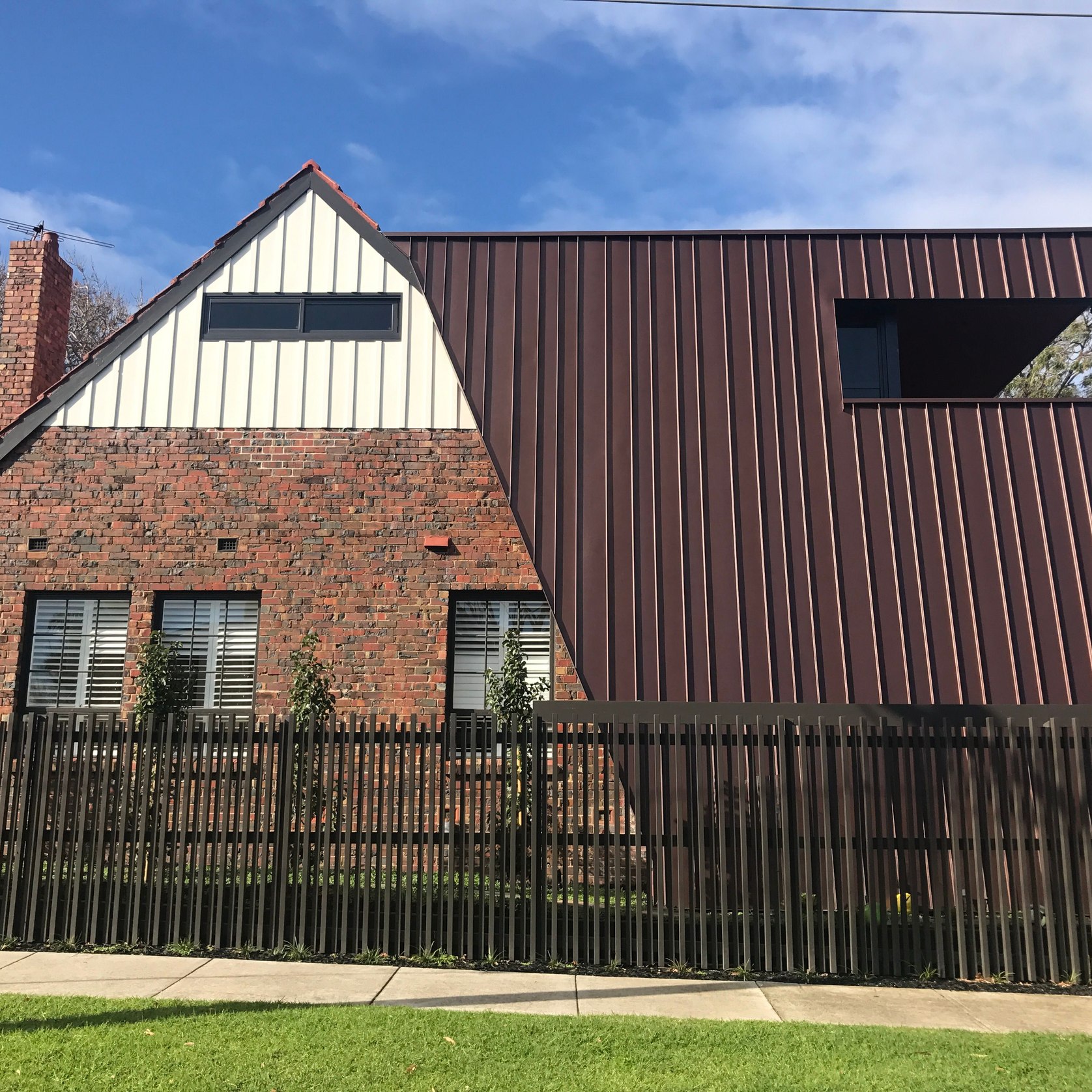

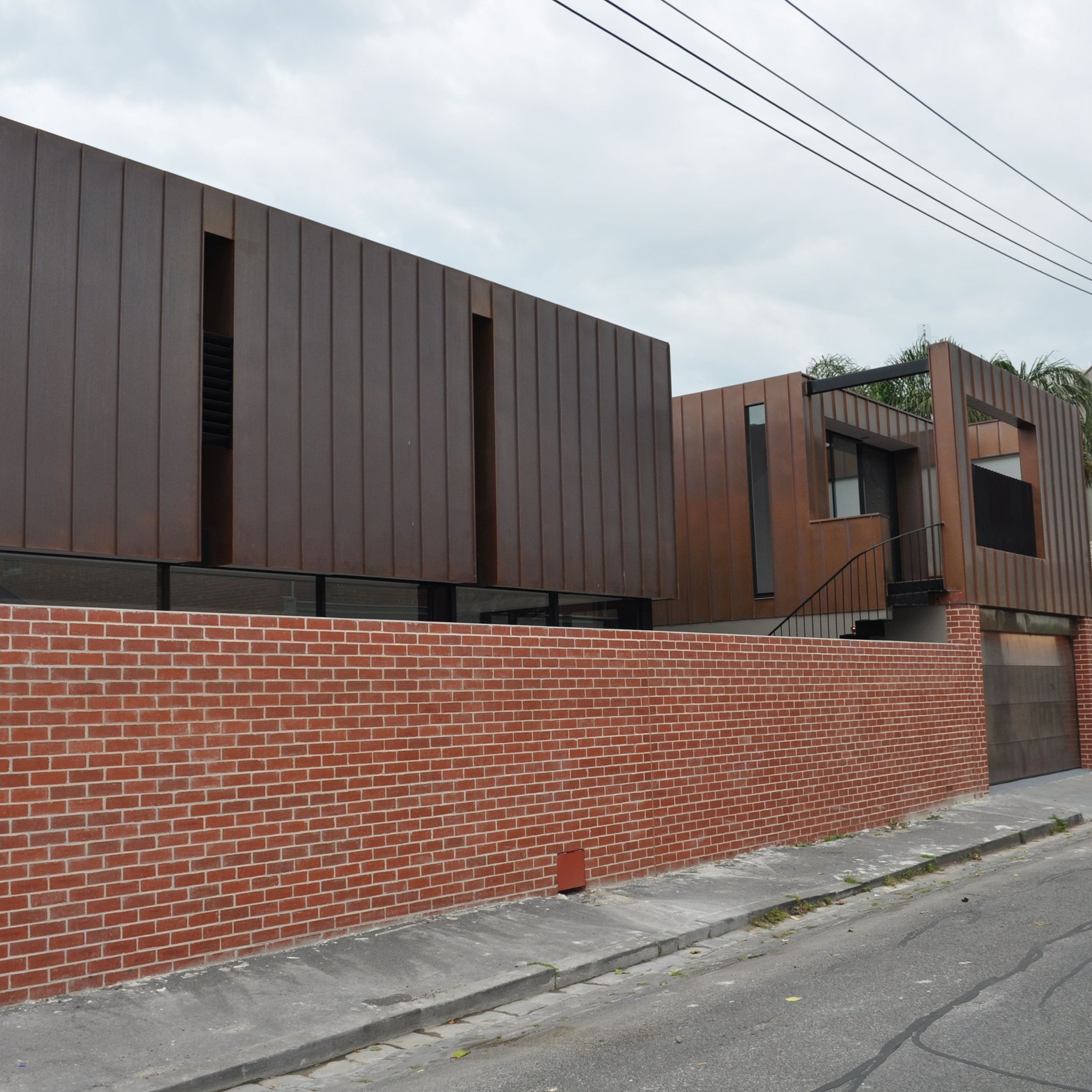

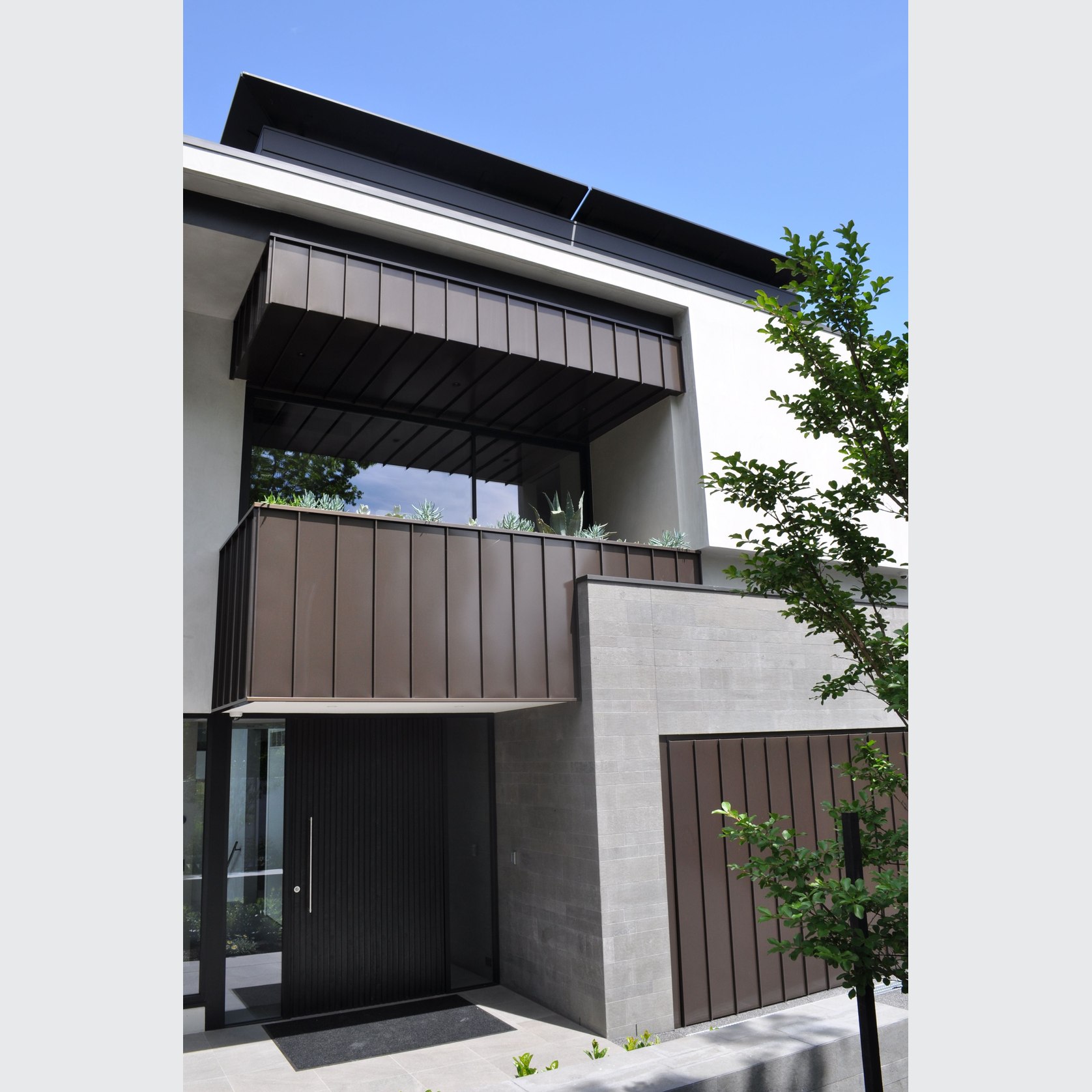

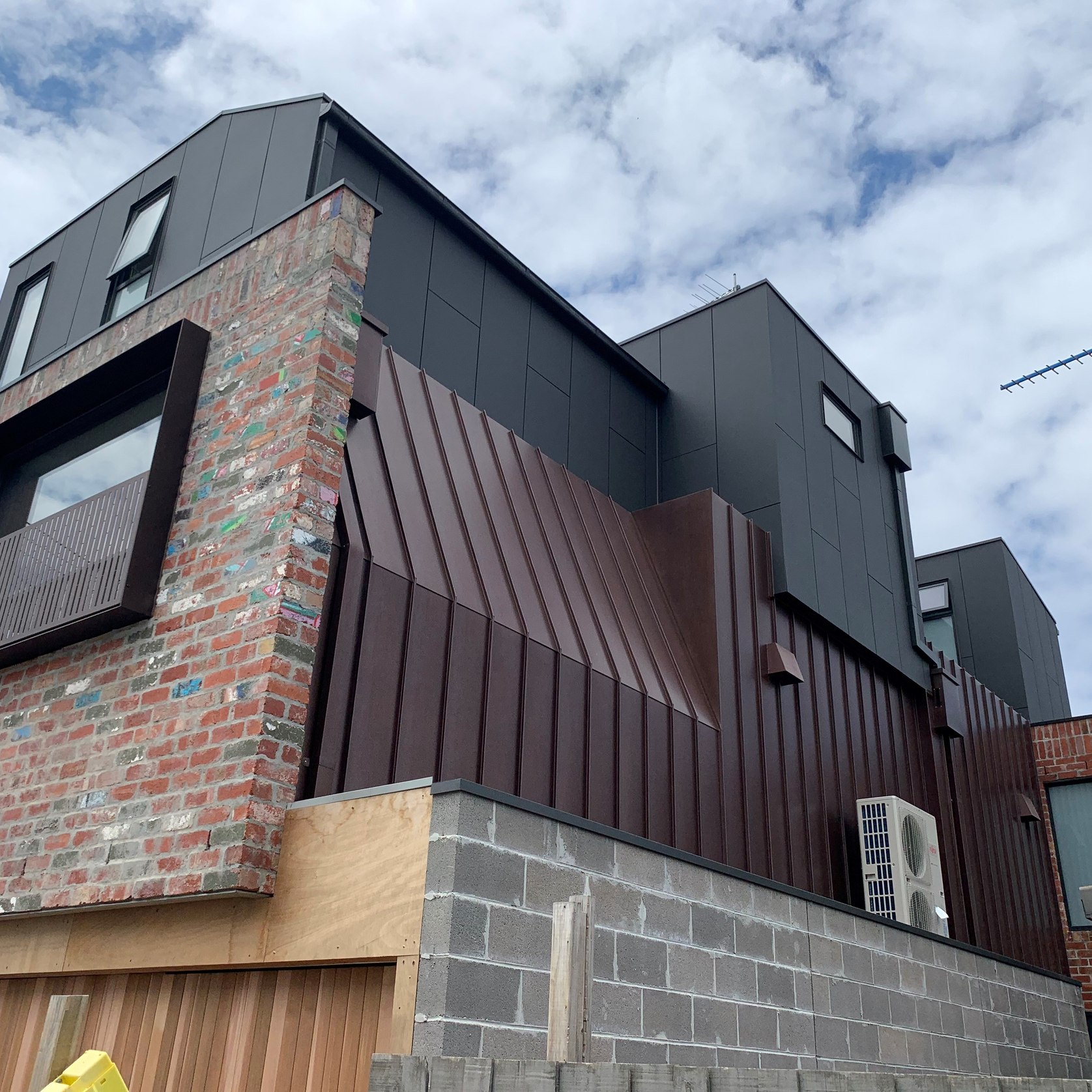

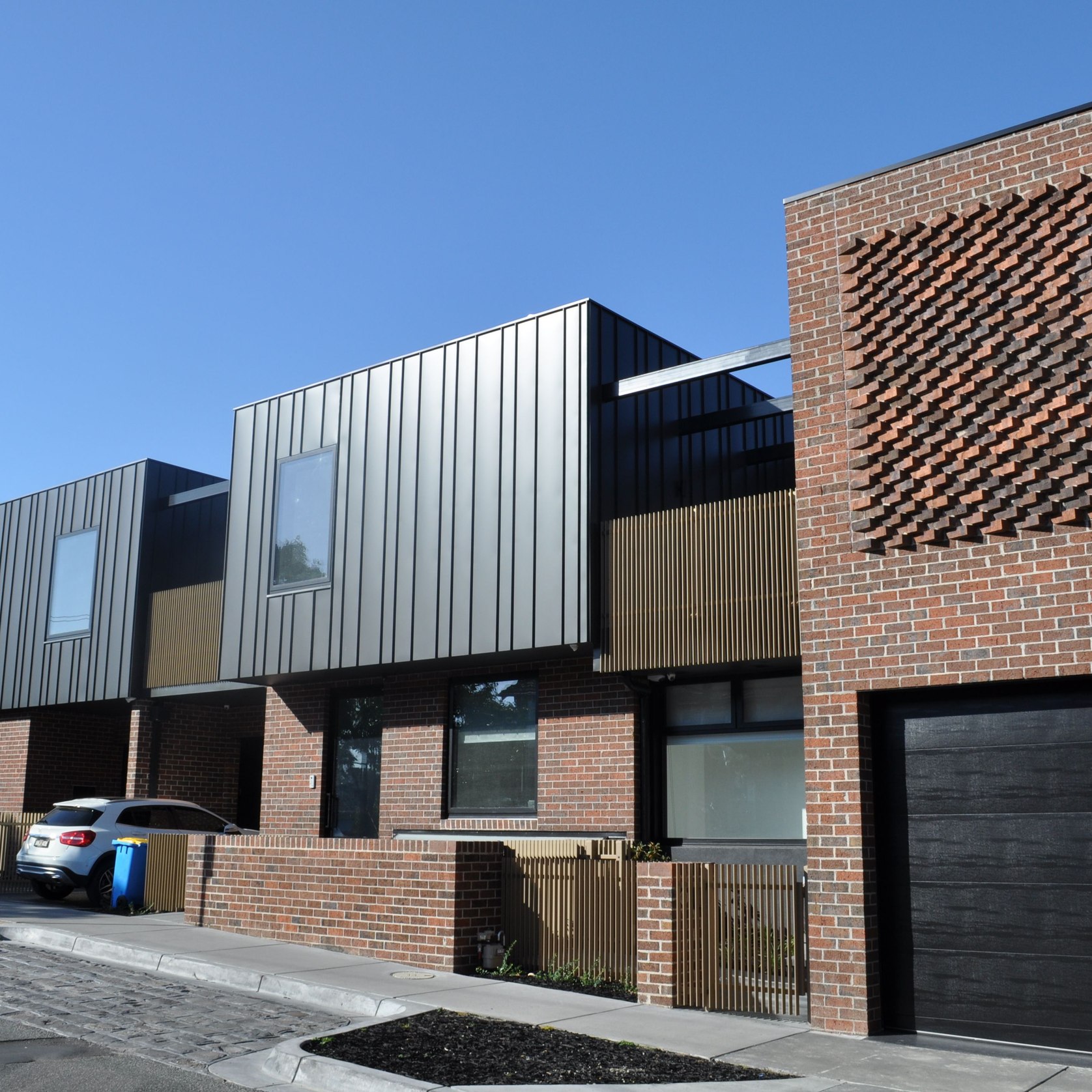

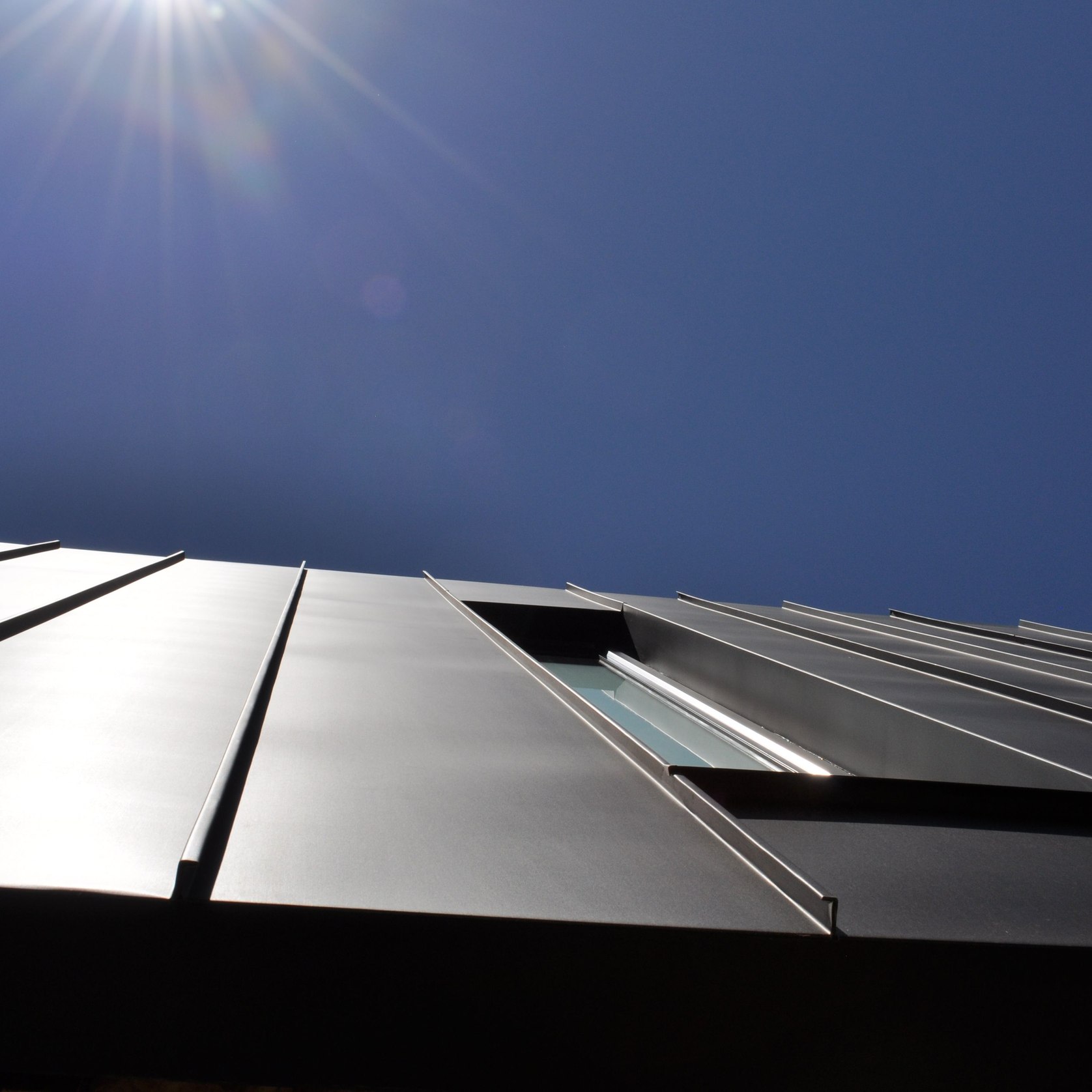

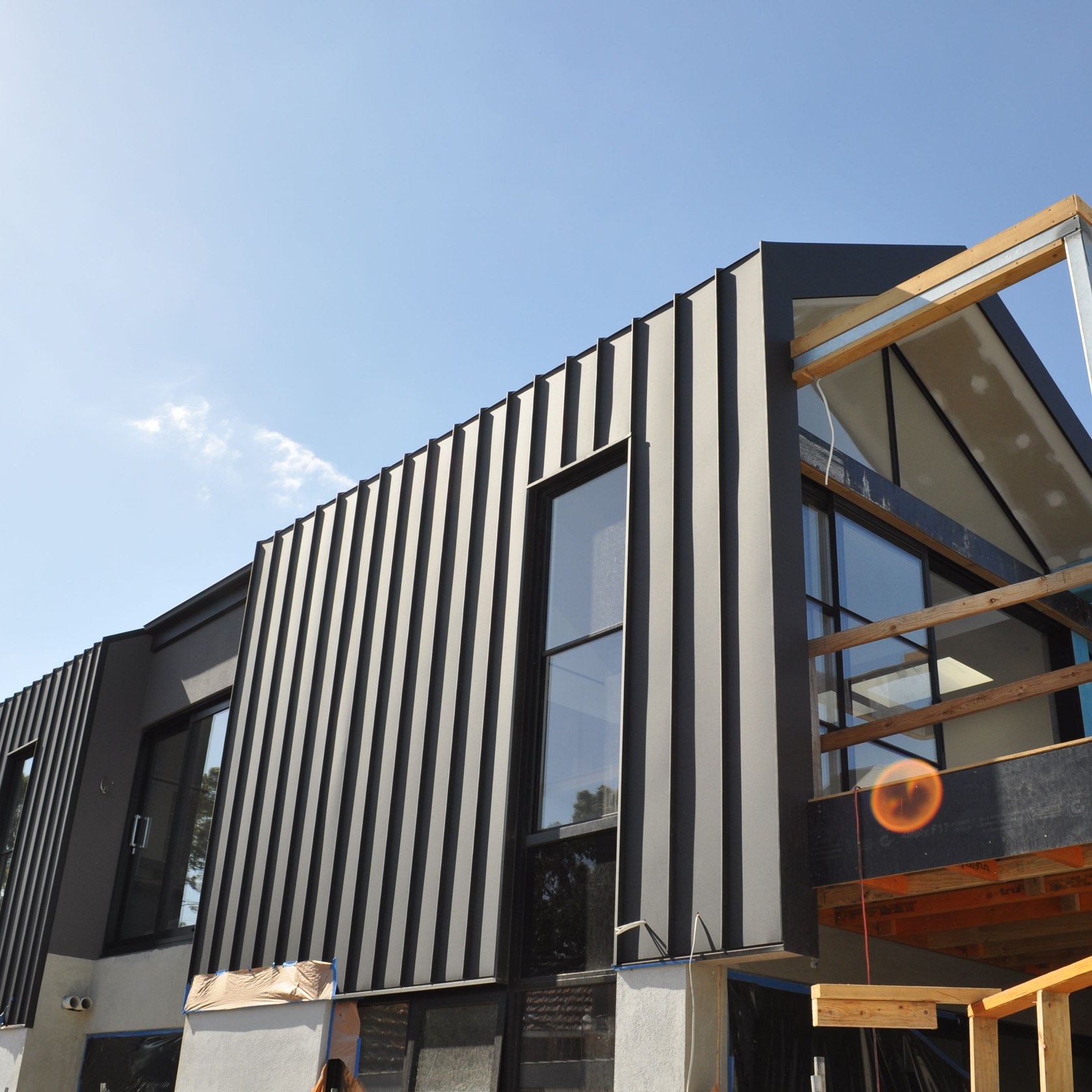

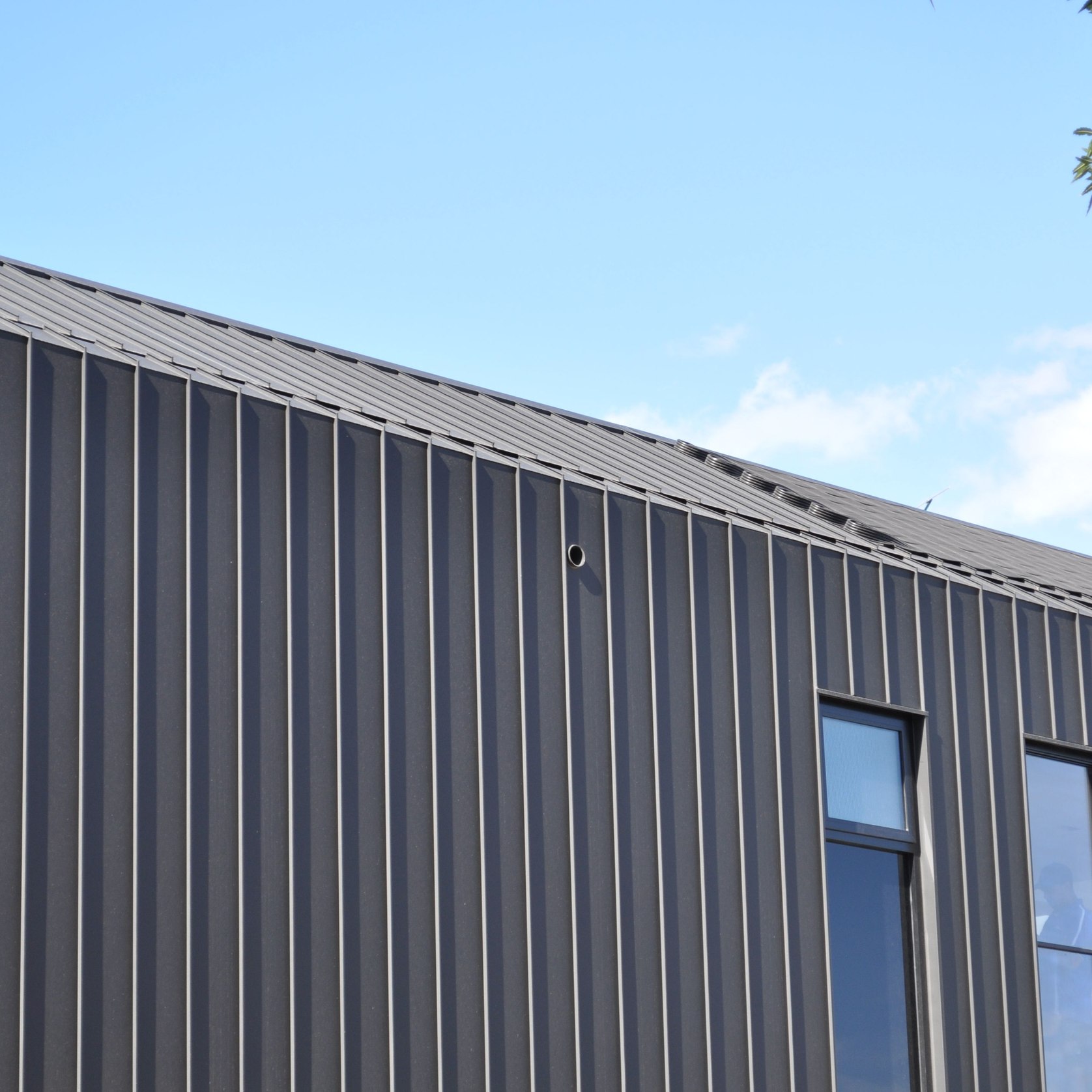

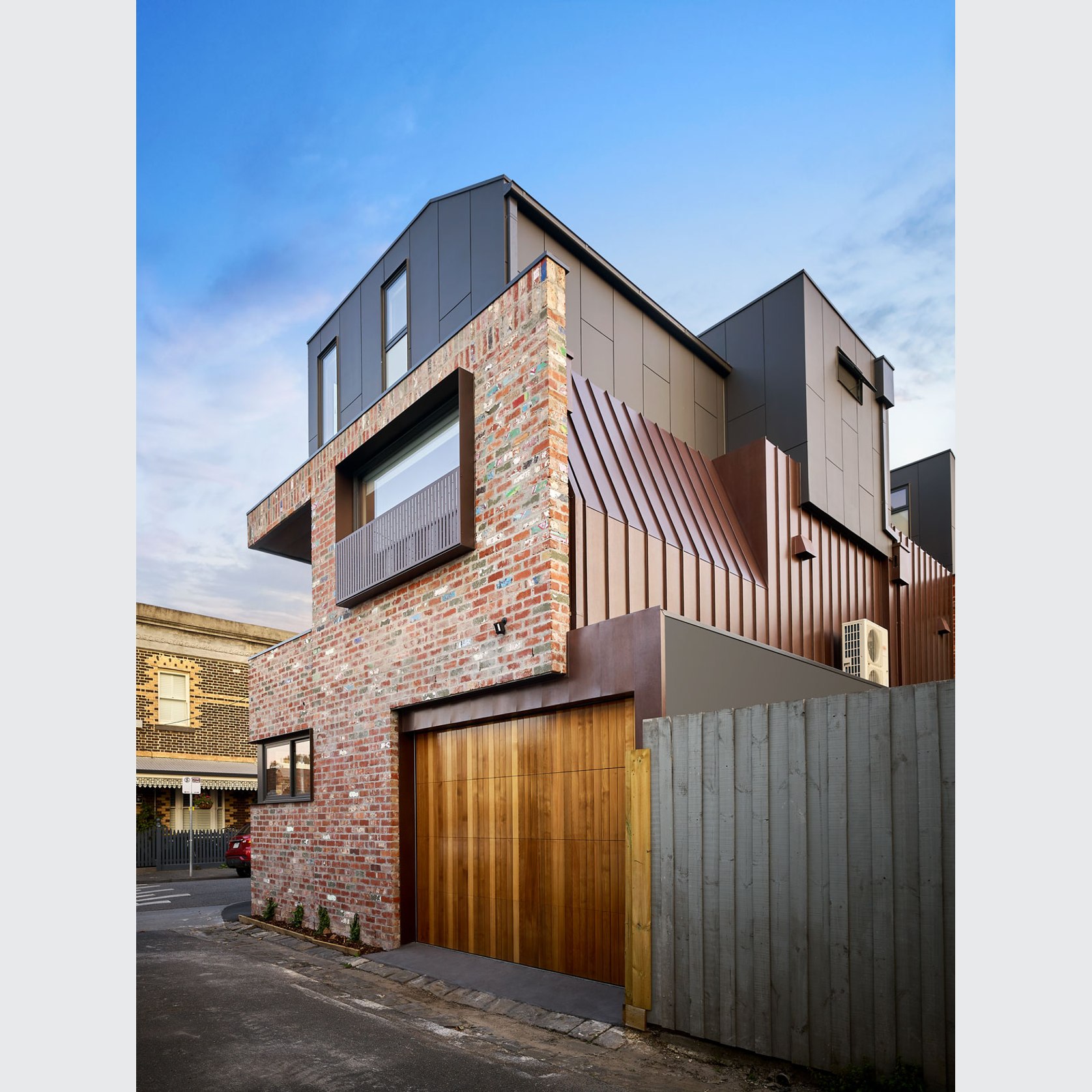

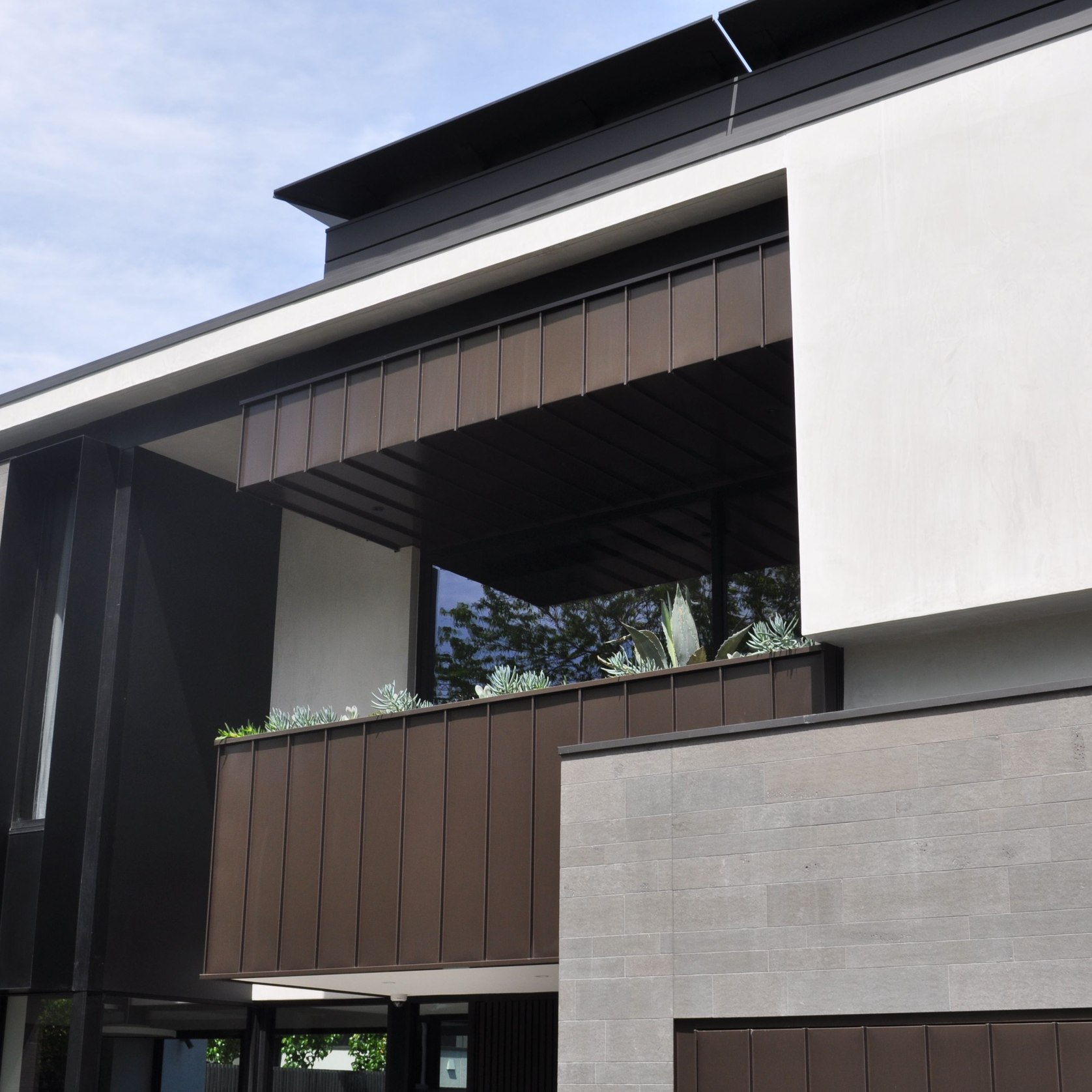

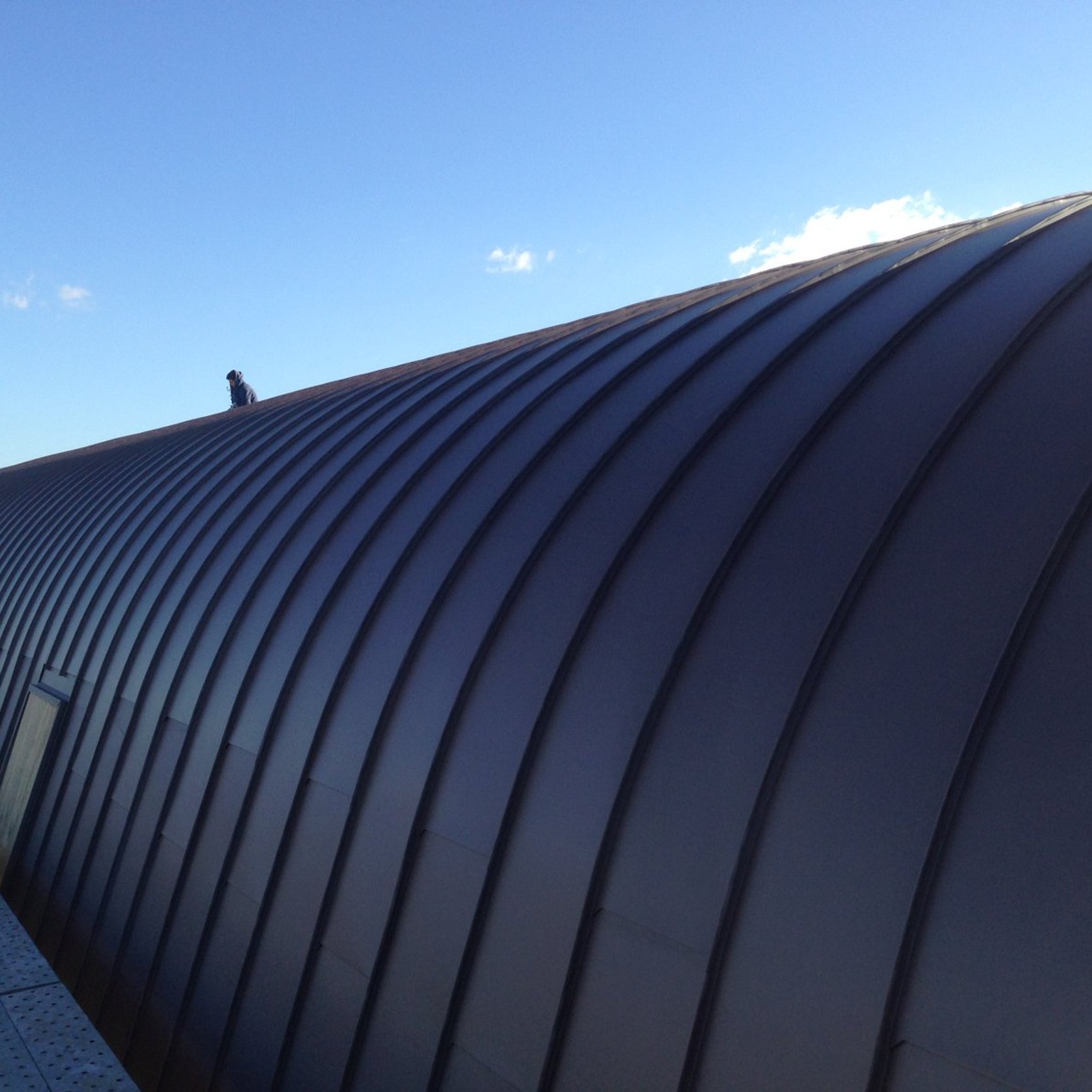

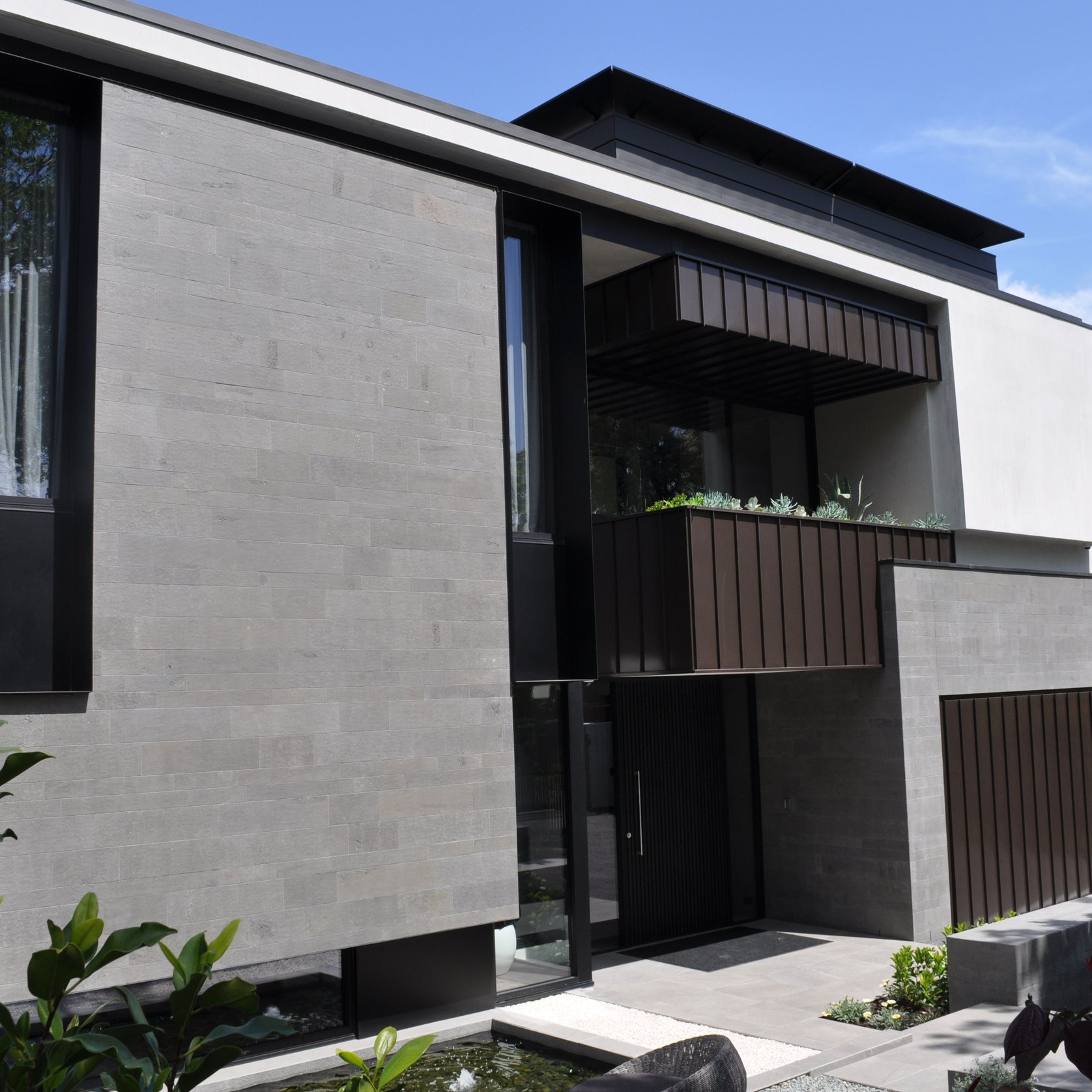

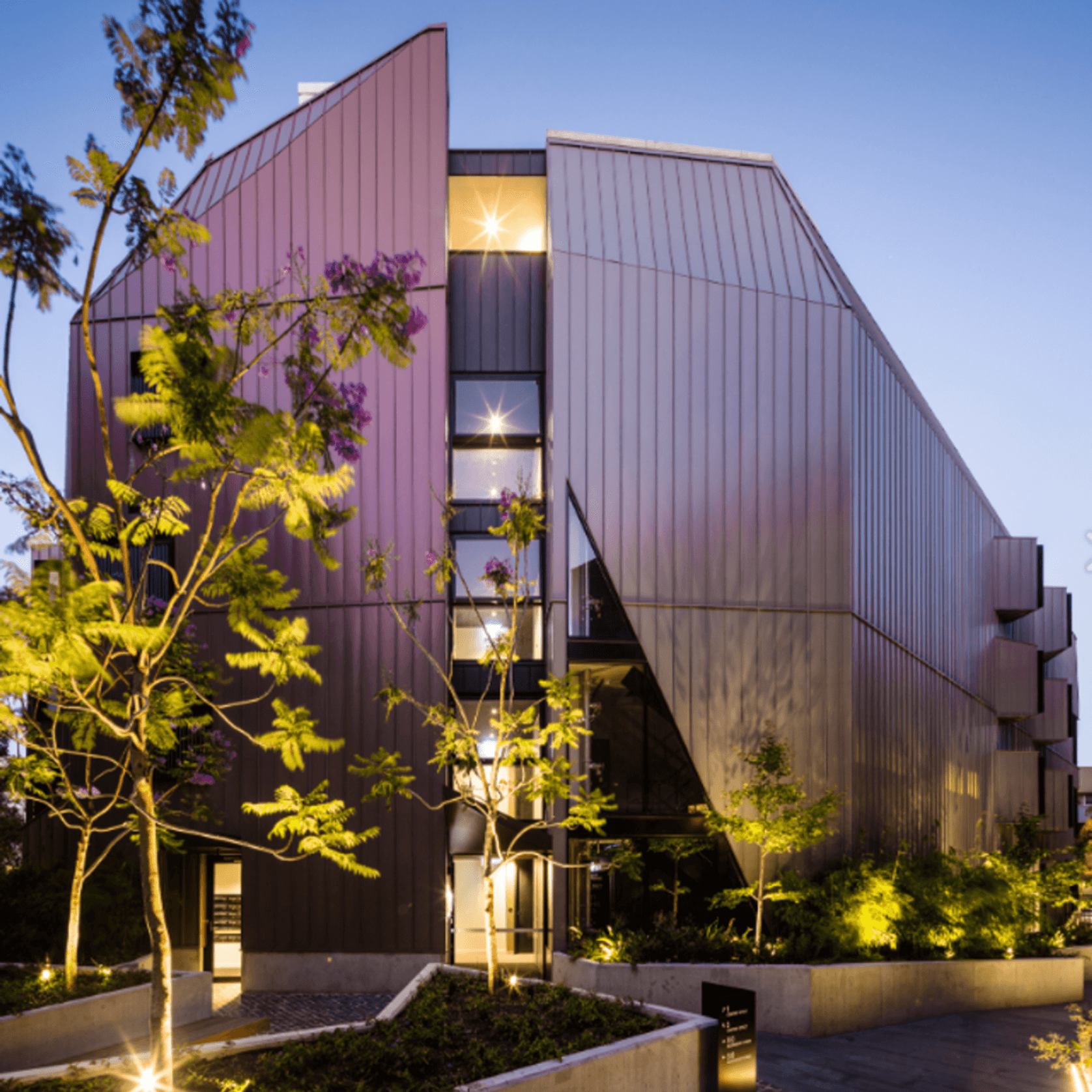

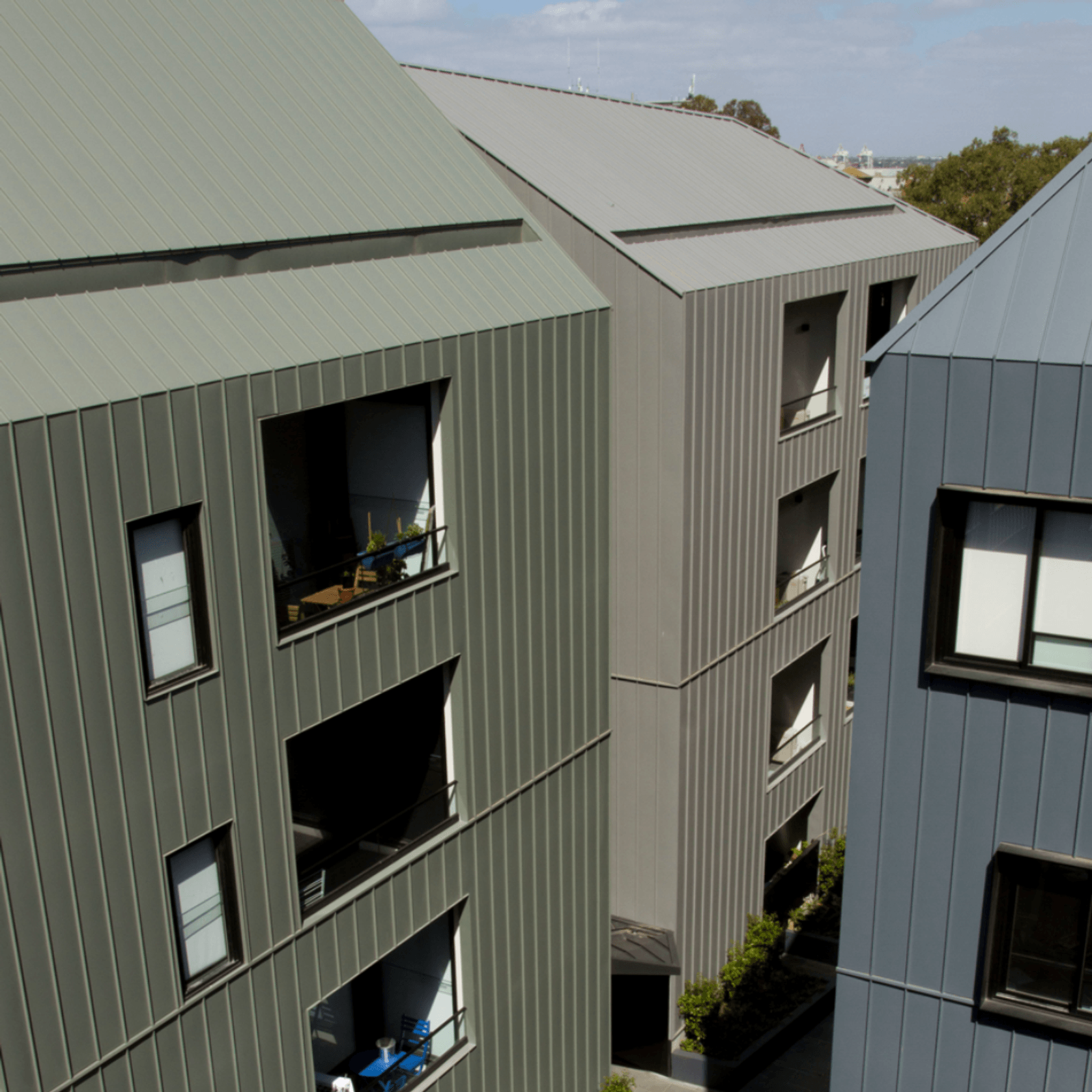

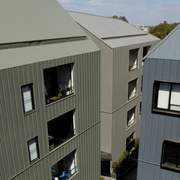

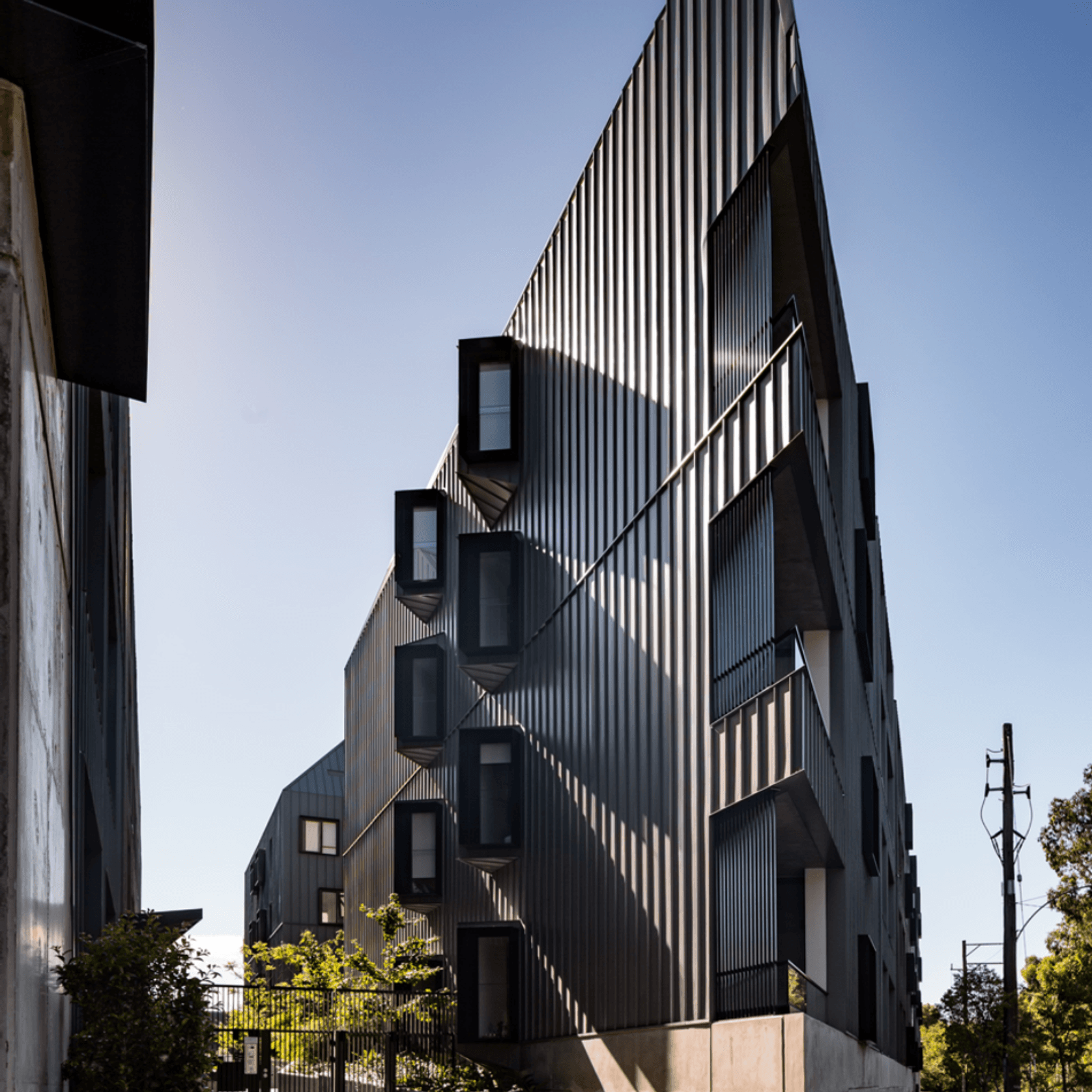

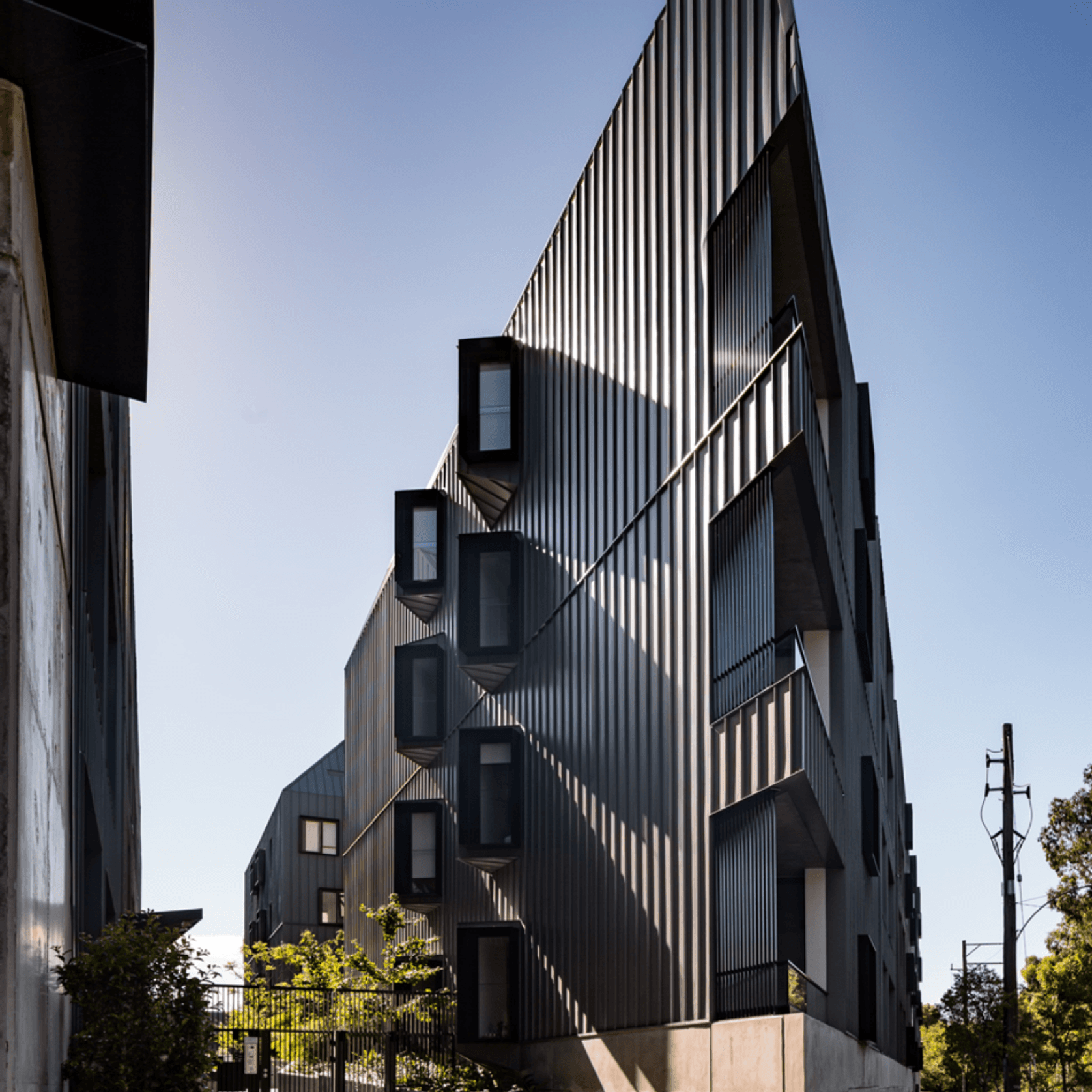

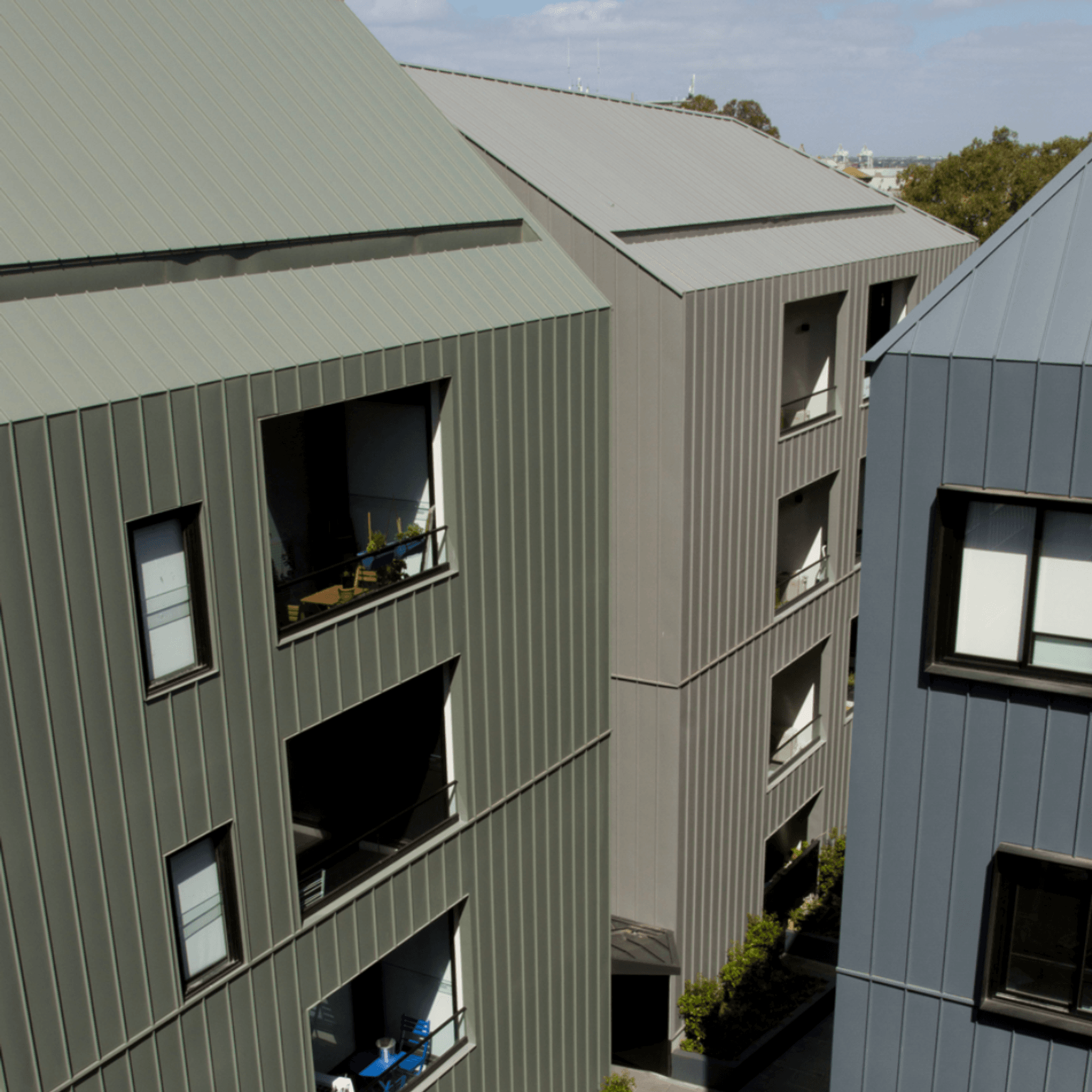

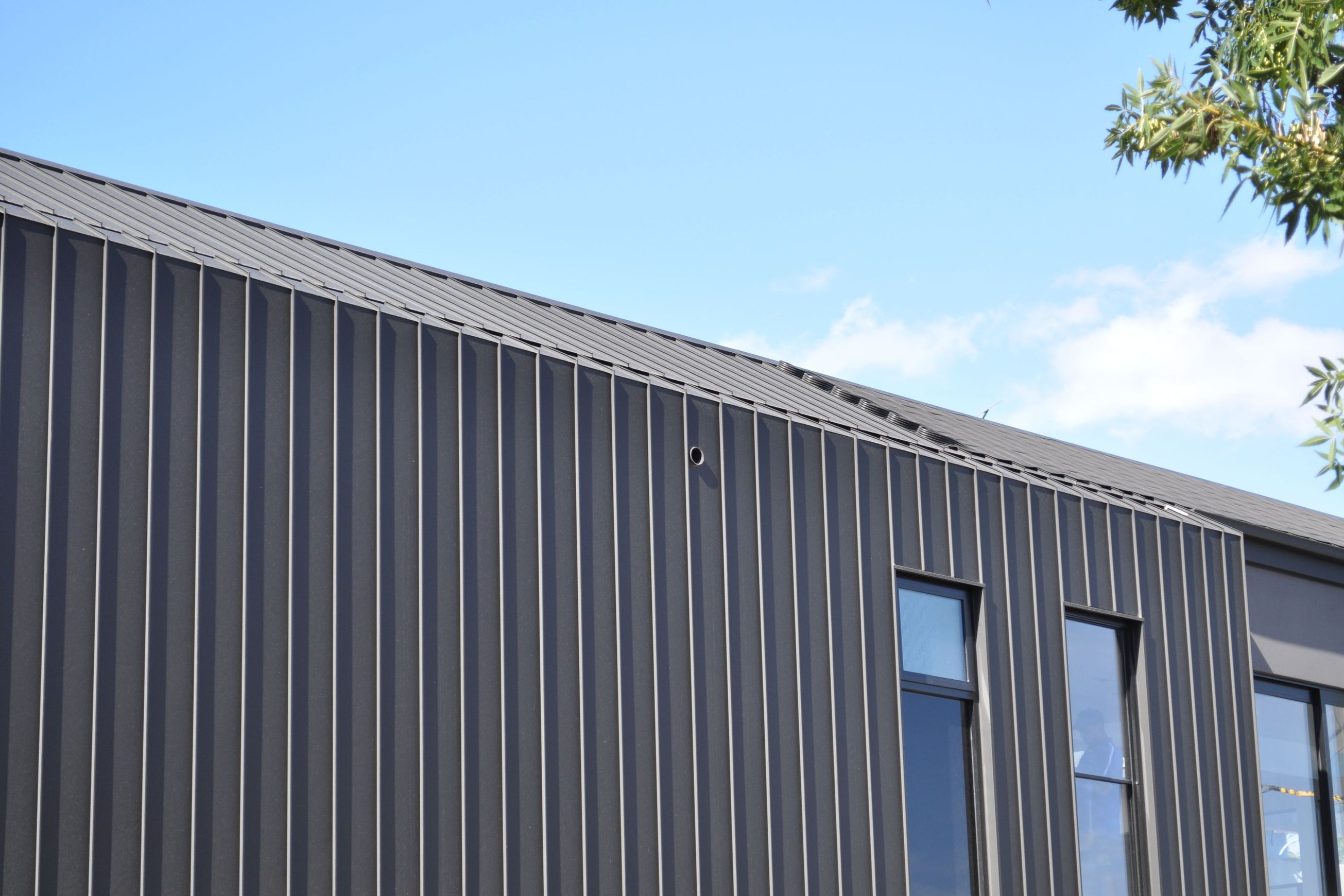

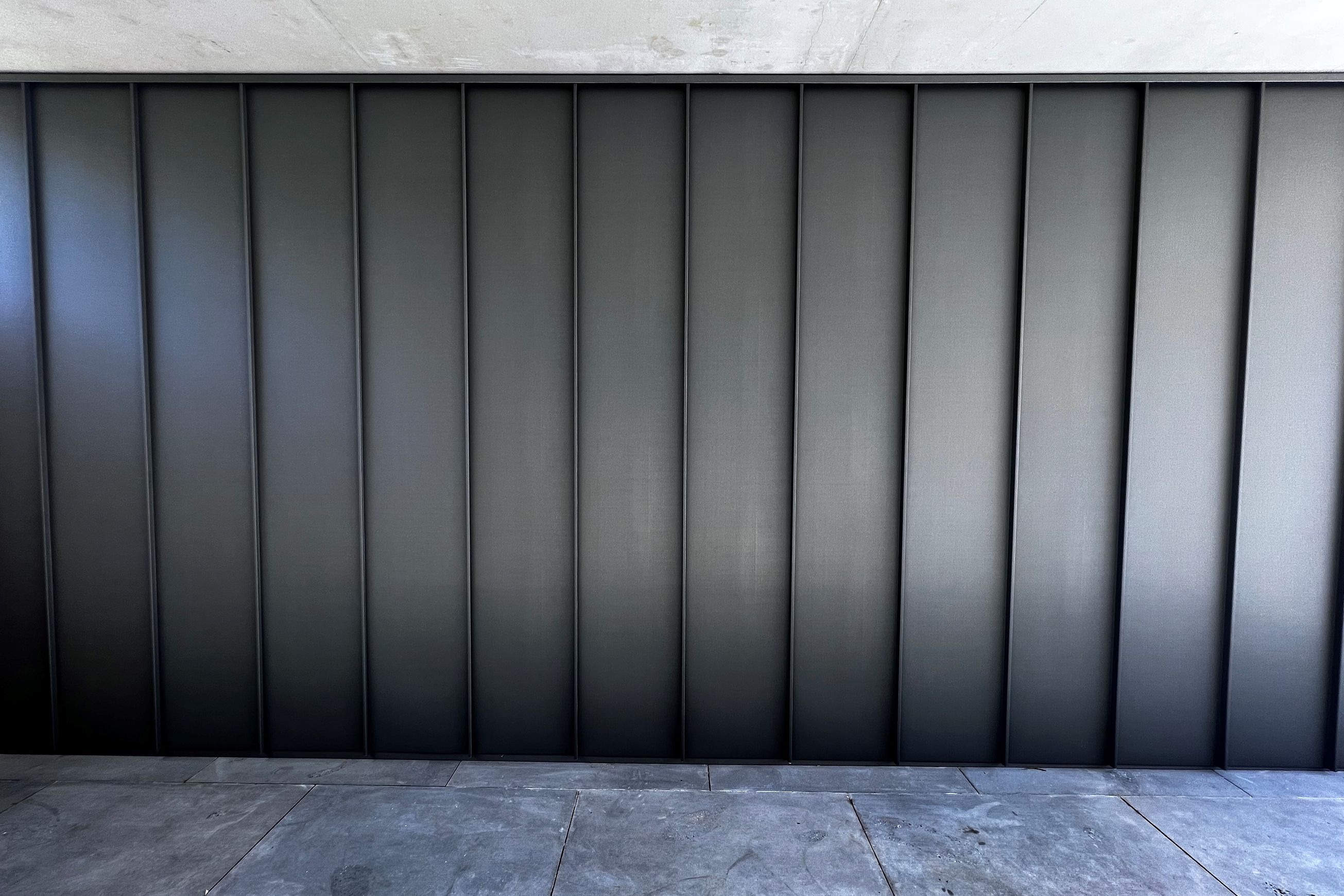

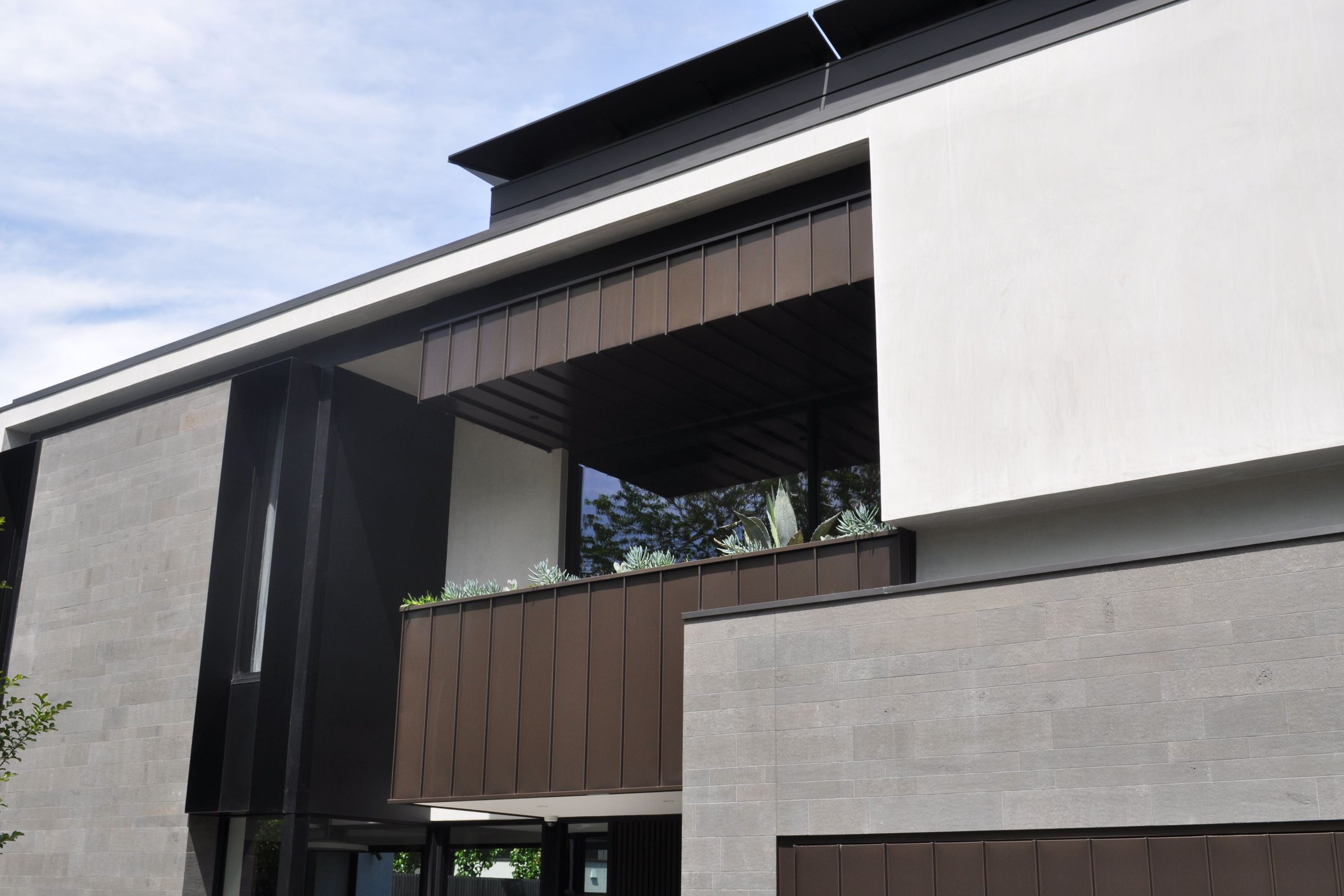

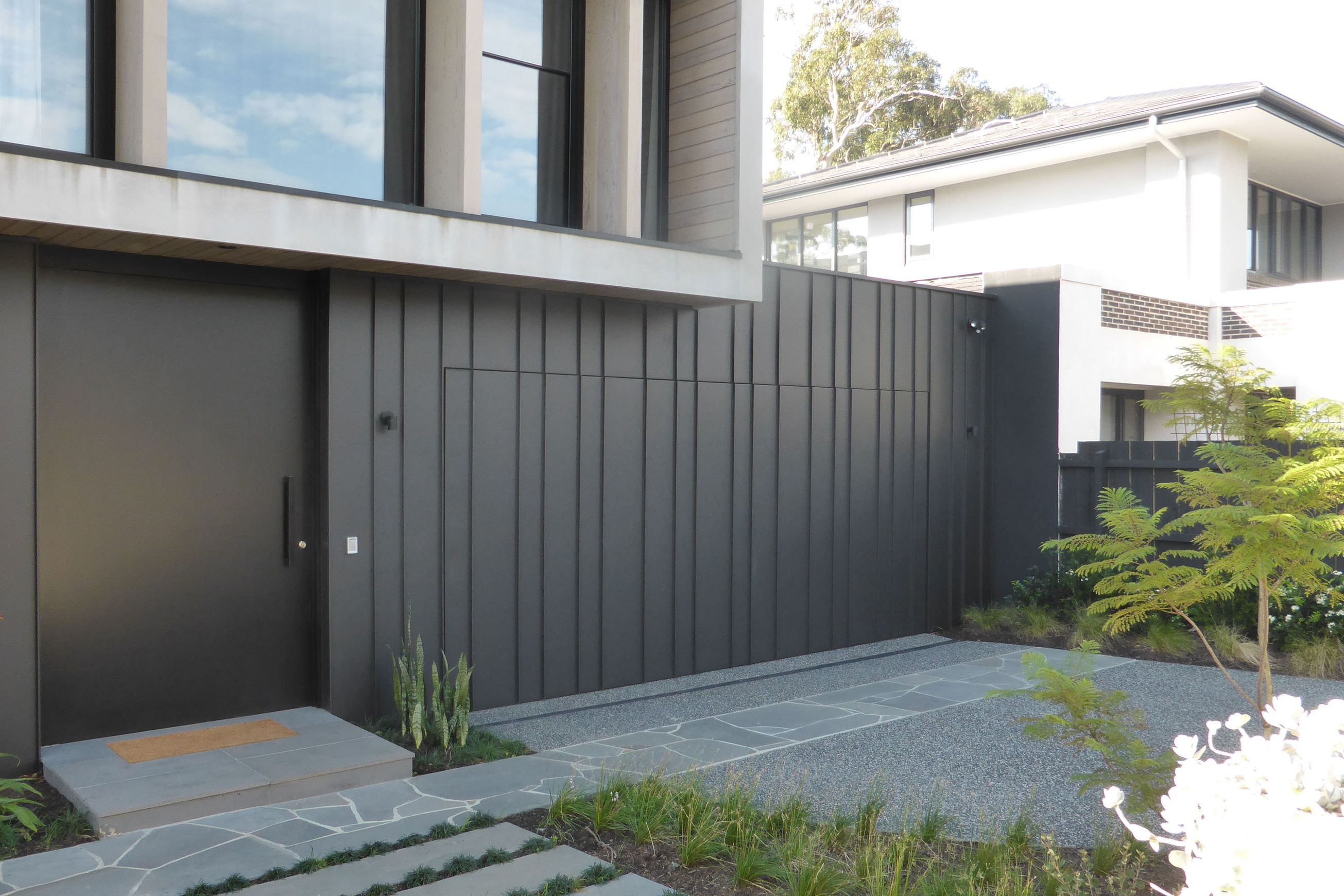

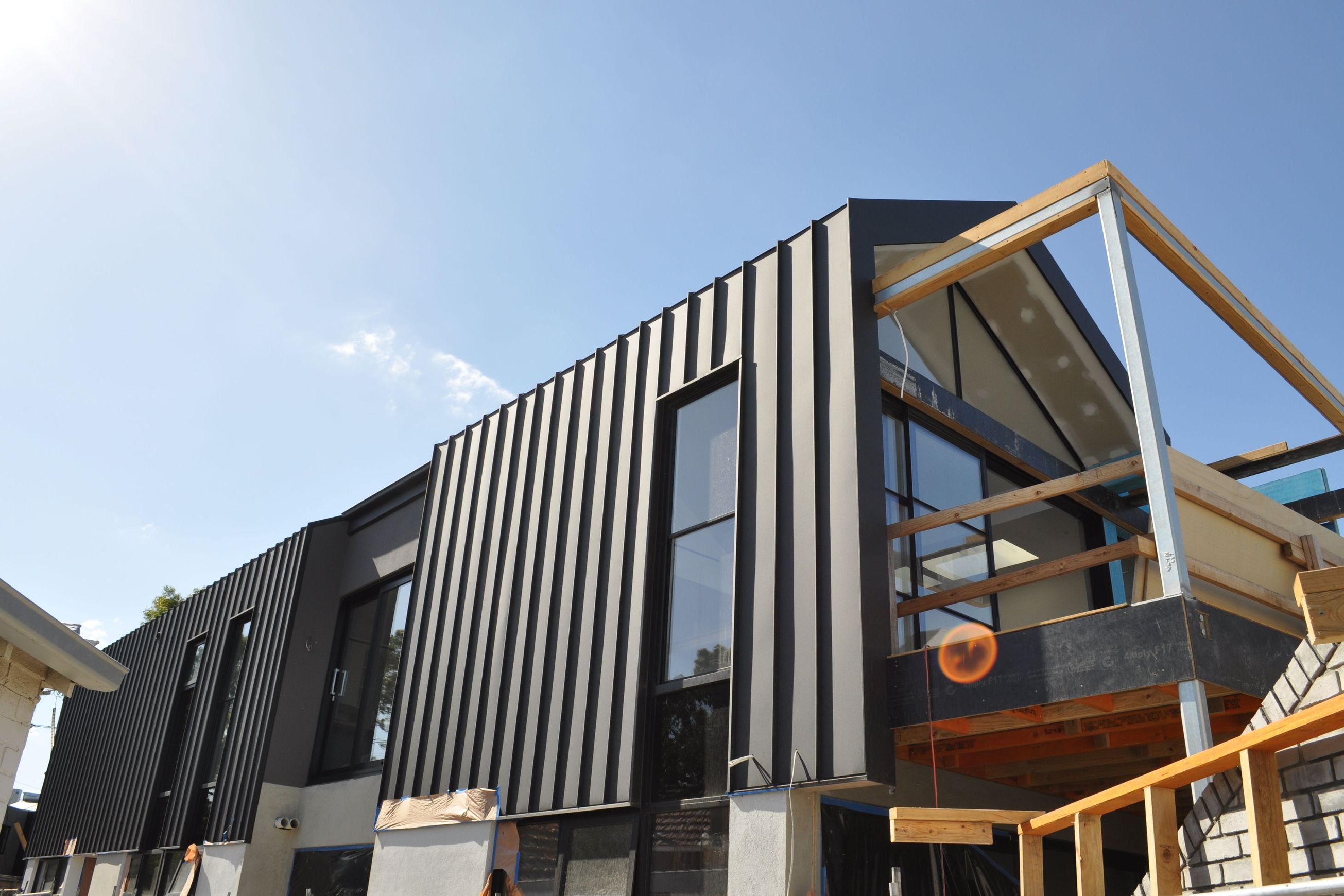

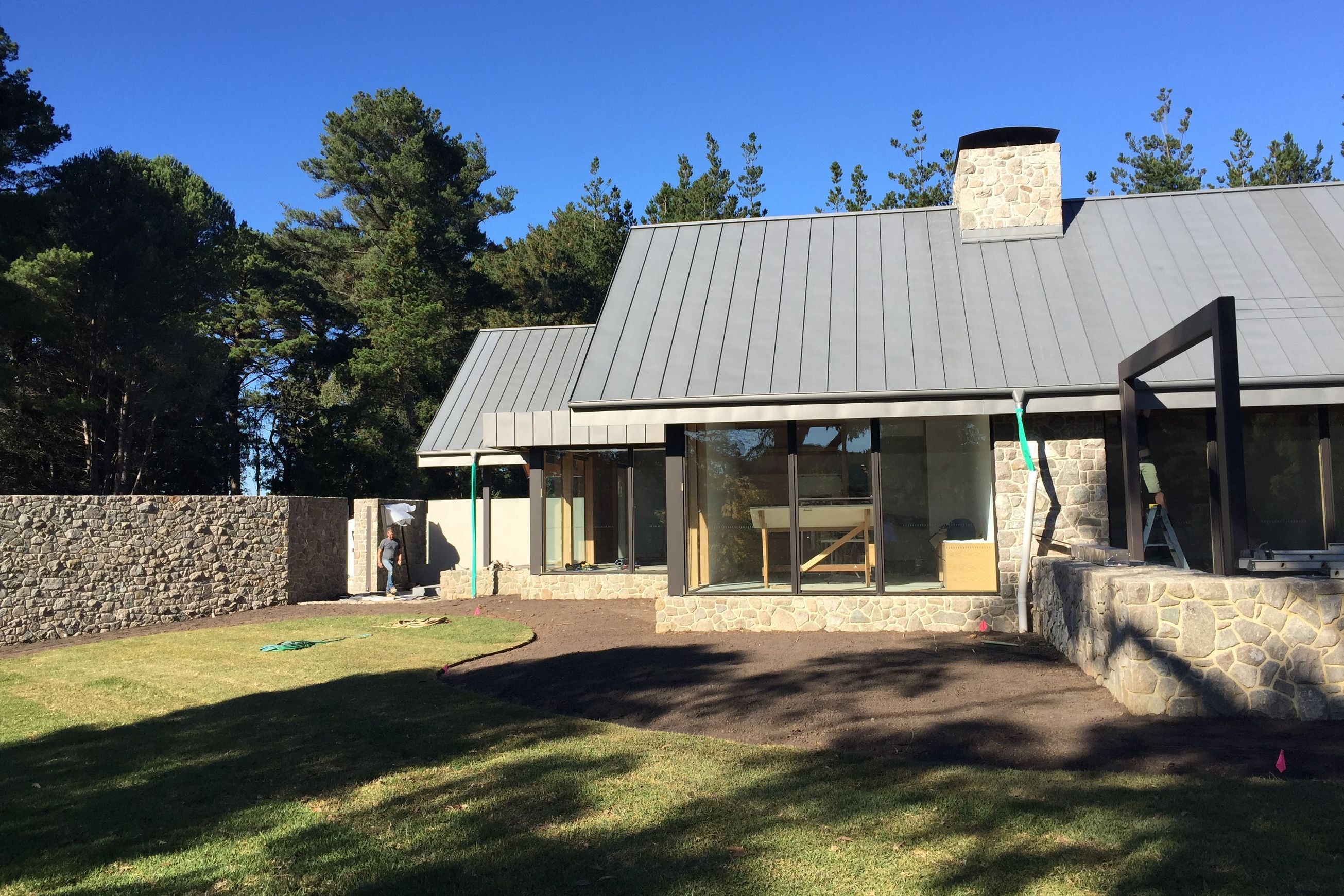

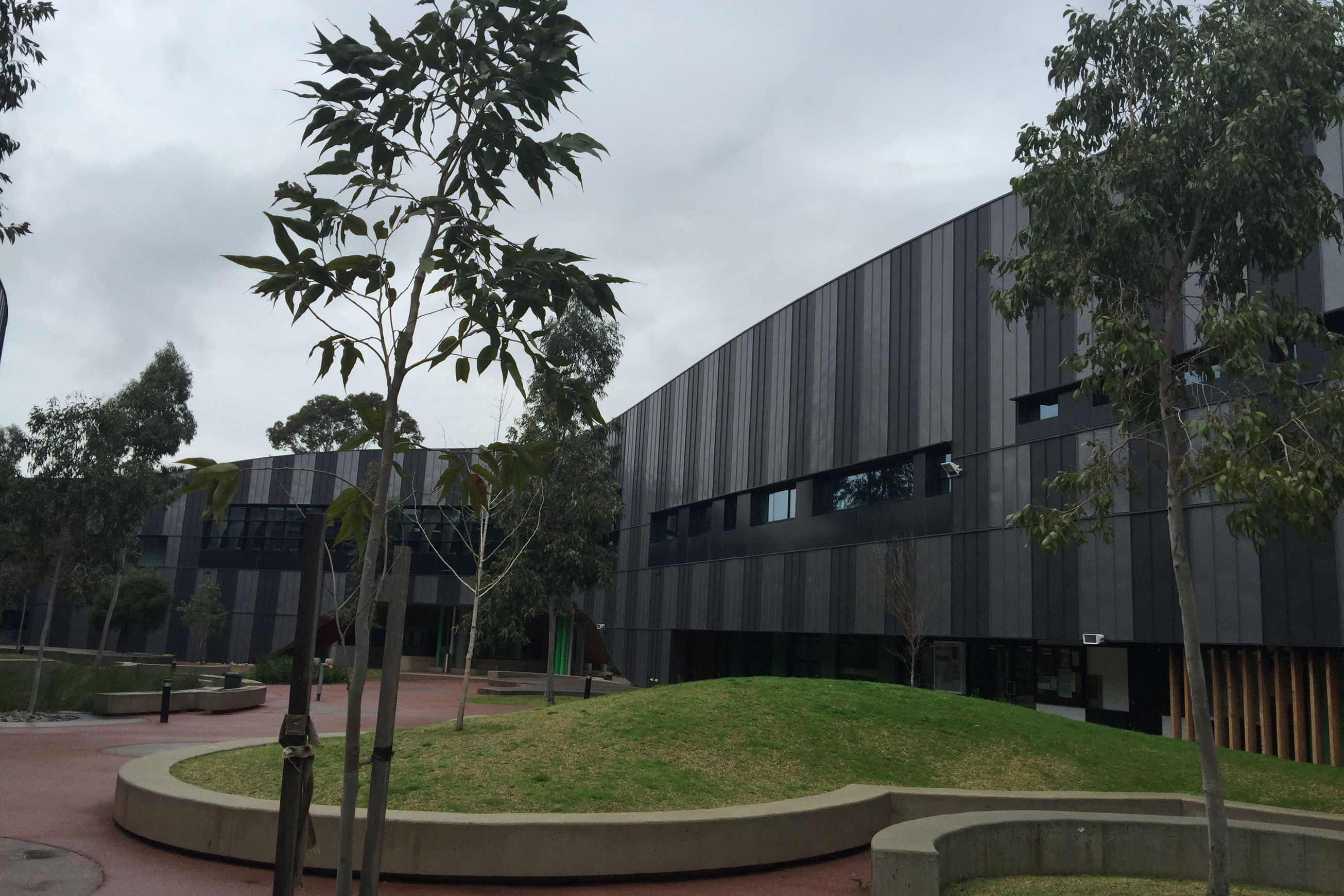

The Standing Seam roof cladding system is a roof and façade covering system.

Specs

Thickness

• 0.7 mm

Scope of use

Applications

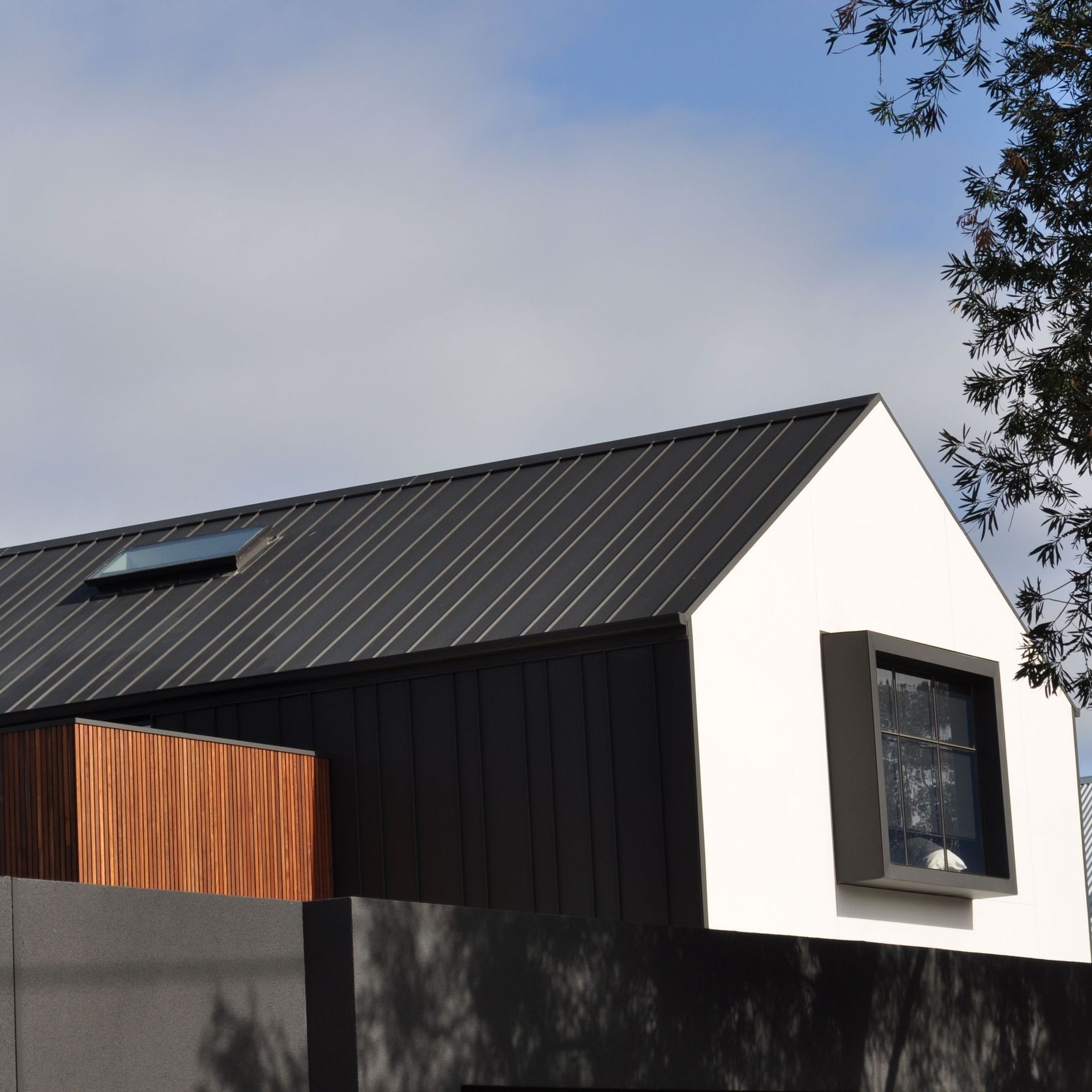

• Roofs with a pitch from 3° to vertical.
• Classes of internal humidity load: 1 to 4.
• Both renovations and new buildings, residential or commercial buildings.

Installation

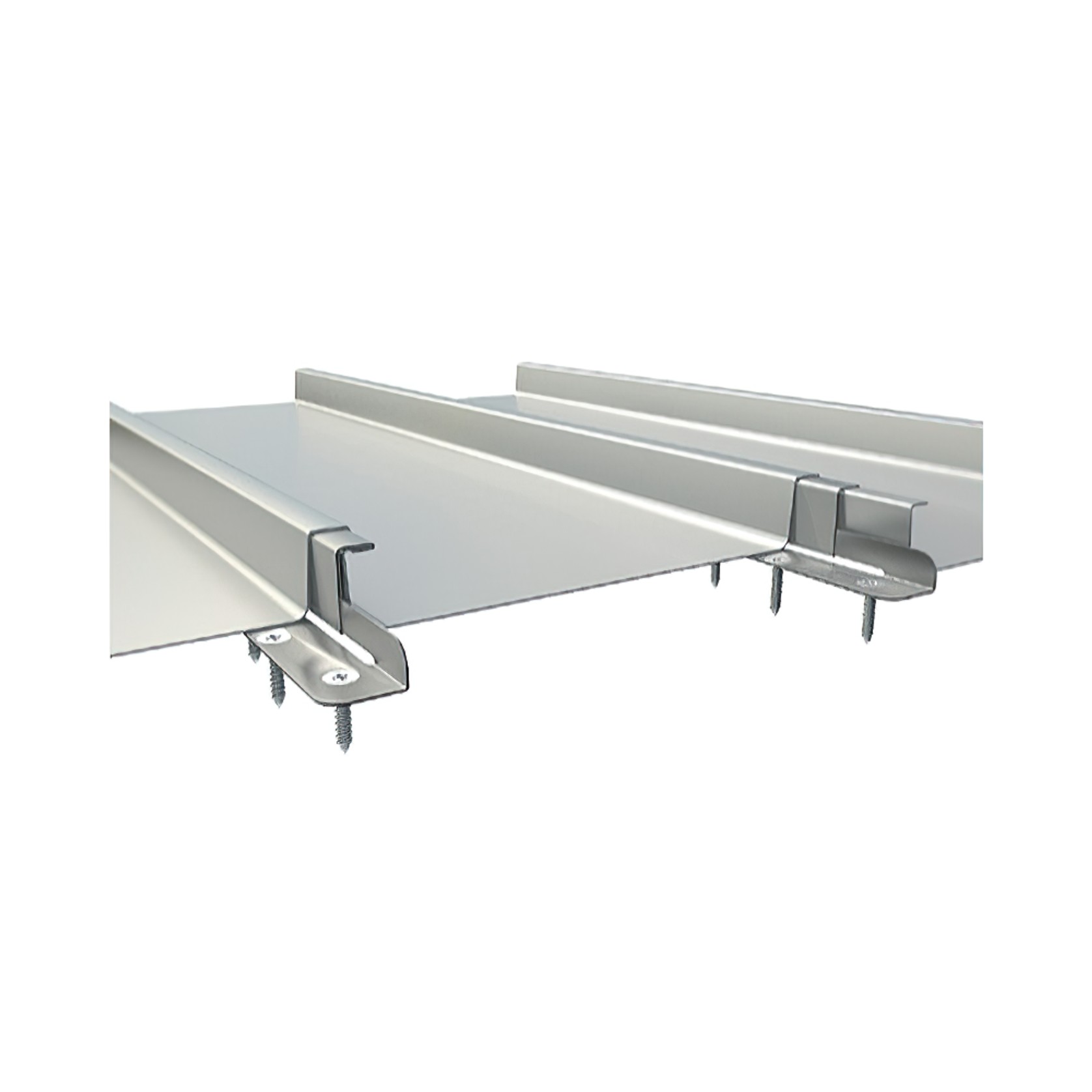

• Standing seam is installed with concealed clips on a minimum of 19mm plywood to roofs and 15mm to walls, including a Proctor vapour membrane between.
• For low-Roofing application, the 25-mm seam needs to be double- locked to prevent water ingress.
• As plywood needs to breathe, it is important to design an airflow behind the plywood.
• Continuous ventilation openings can be included in the flashings at the bottom and apex of the installation.

Performance

Testing to Australian Standards

Standing Seam and Archclad™ Cliptray 25 mm profiles have been tested to Australian standards as 4040.3-1992 "Methods of testing sheet roof and wall cladding method 3: Resistance to wind pressures for cyclone regions".

Architectural Cladding Australia Standing Seam and Cliptray profiles have been tested to Australia Standards AS/NZS 1170.2:2002 Structural Design Actions - Part 2: Wind Actions. Clause 5.3.2. This report details the results of the debris impact testing carried out on a sample of Architectural Cladding Australia's profile only.

All Archclad materials are non-combustible and have been tested to AS 1530.3-1999 Method for Fire tests on Building Materials, Components and Structures Part 3: simultaneous Determination of Ignitability, Flame Propagation, Heat release, and Smoke Release.
