Batten Metal Cladding
EuroSeam Batten Cap 32 mm Metal Cladding (EuroSeam Batten Cap Metal Cladding) is supplied by the Linked Group for use in external roof and wall cladding systems. Linked Group also supplies flashings and components.
- CategoryMetal Cladding
- RangeEuroSeam
- BrandEuroSeam

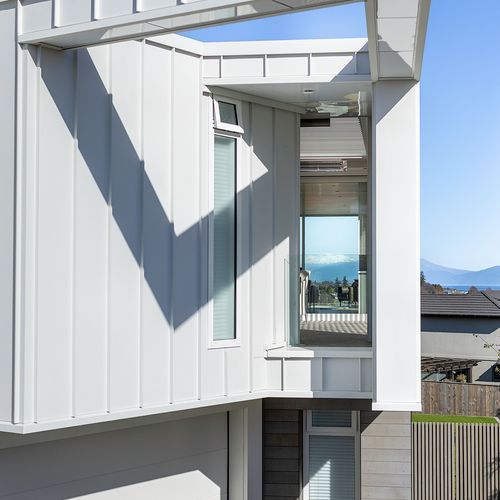

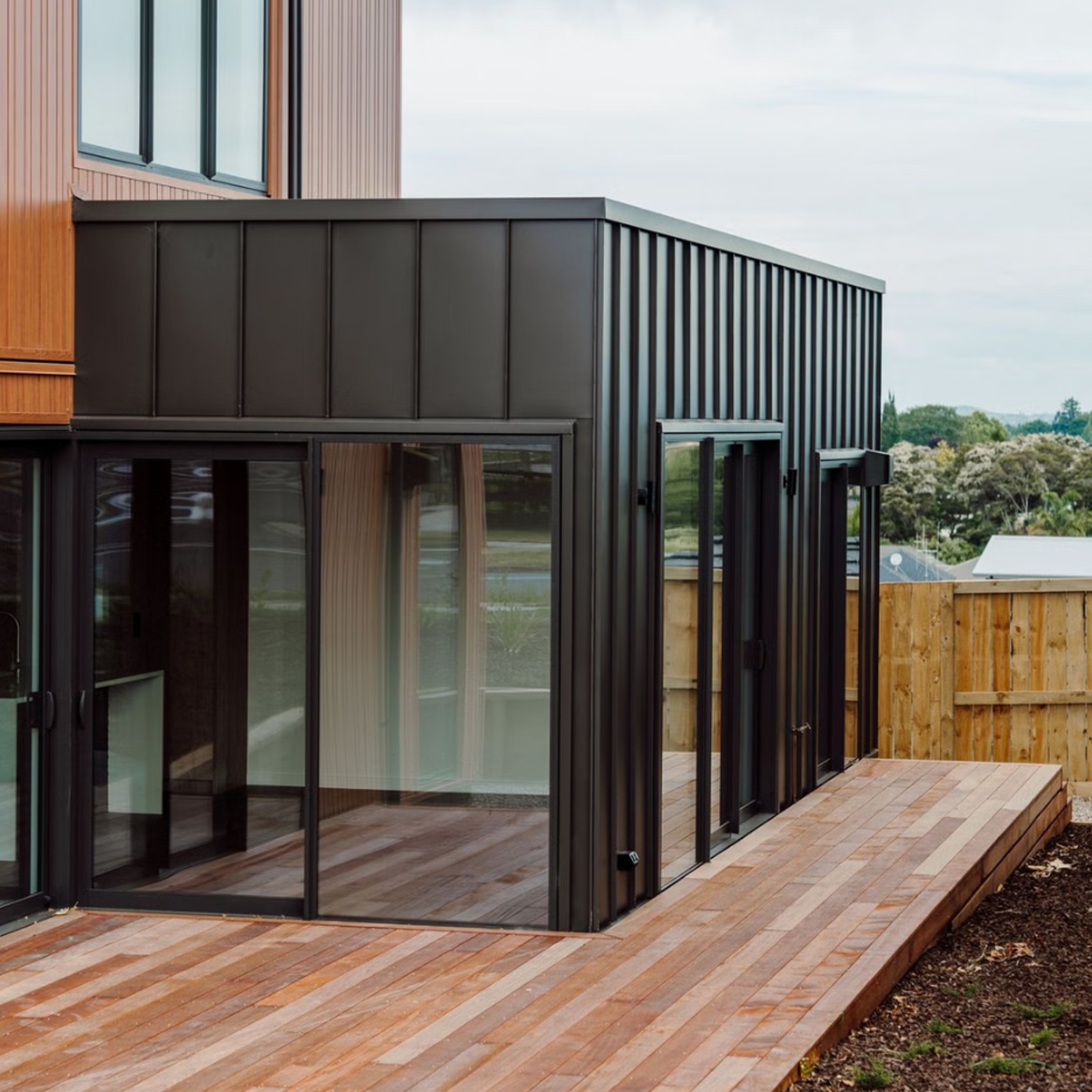

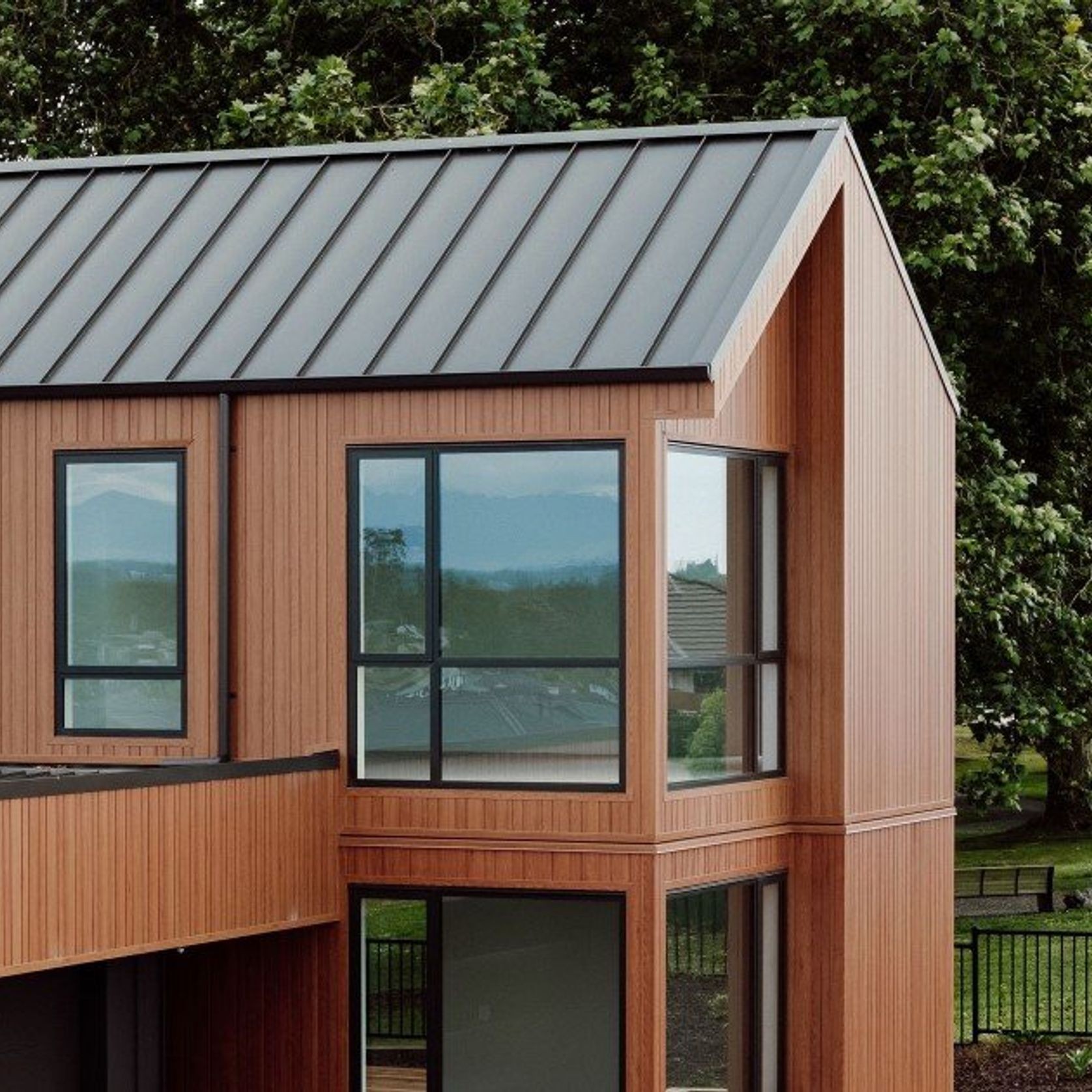

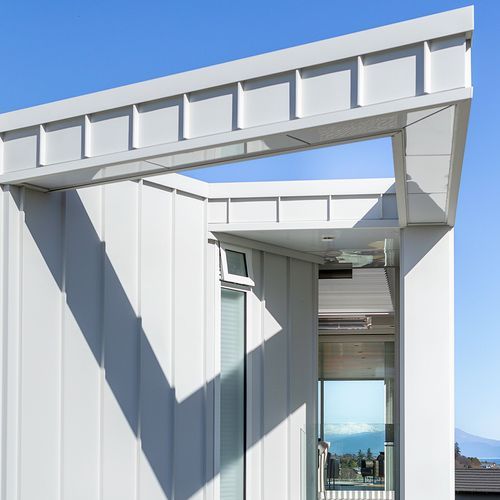

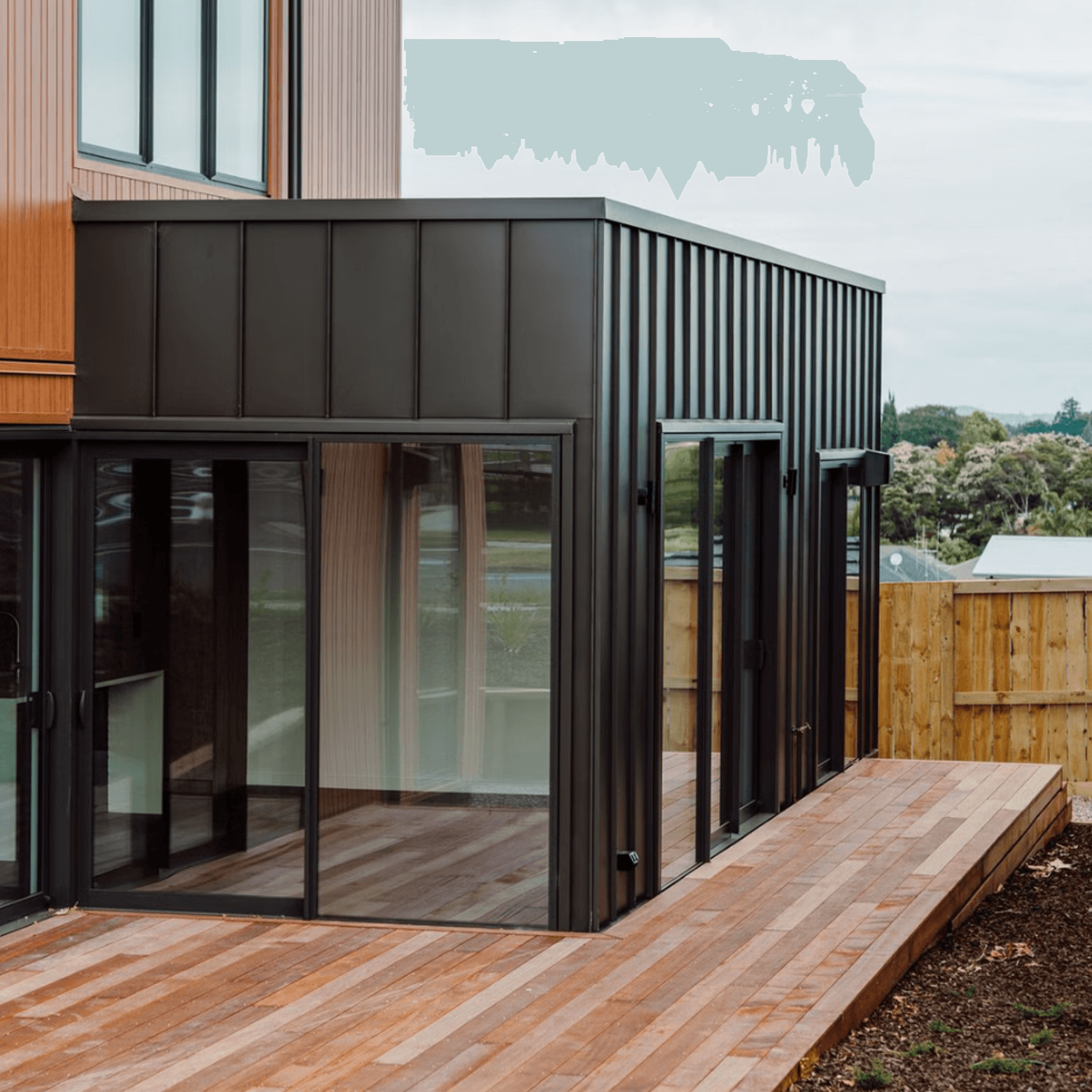

EuroSeam Batten Cap Metal Cladding is long-run metal-tray cladding manufactured from
- › 0.55 – 0.75 BMT Colorsteel®
- › 0.70 – 0.90 BMT pre-painted or plain aluminium
- › 0.60 – 0.80 mm copper finish, or
- › 0.70 – 1.0 mm zinc.
The profile has wide tray sections of 312 mm and 512 mm and a 32 mm high folded standing vertical seam edge on each side of the panel. The profile is designed to be butted up to hidden sliding clips that locks the two panel edges together at the seam to either a 15 mm minimum plywood substrate or 75 mm x 45 mm purlins at 400 mm centres. The seam is covered by a c ontinuous 52 mm 0.70 BMT cap cover. Subject to prior consultation with Linked Group on material colour and selection, the profile can be fixed to cavity battens (for walls) or 70 mm x 45 mm purlins at 400 mm centres. Linked Group recommend the installation of a vertical anti-canning layer between the building underlay and the EuroSeam Batten Cap Metal Cladding.
- EuroSeam Batten Cap Metal Cladding must be installed in accordance with all Linked Group requirements.
- Timber framing must have a maximum moisture content of 18 % at installation to reduce contraction and excessive canning.
For design, installation and maintenance information, refer to linkedgroup.co.nz.
