Metal Tray Cladding

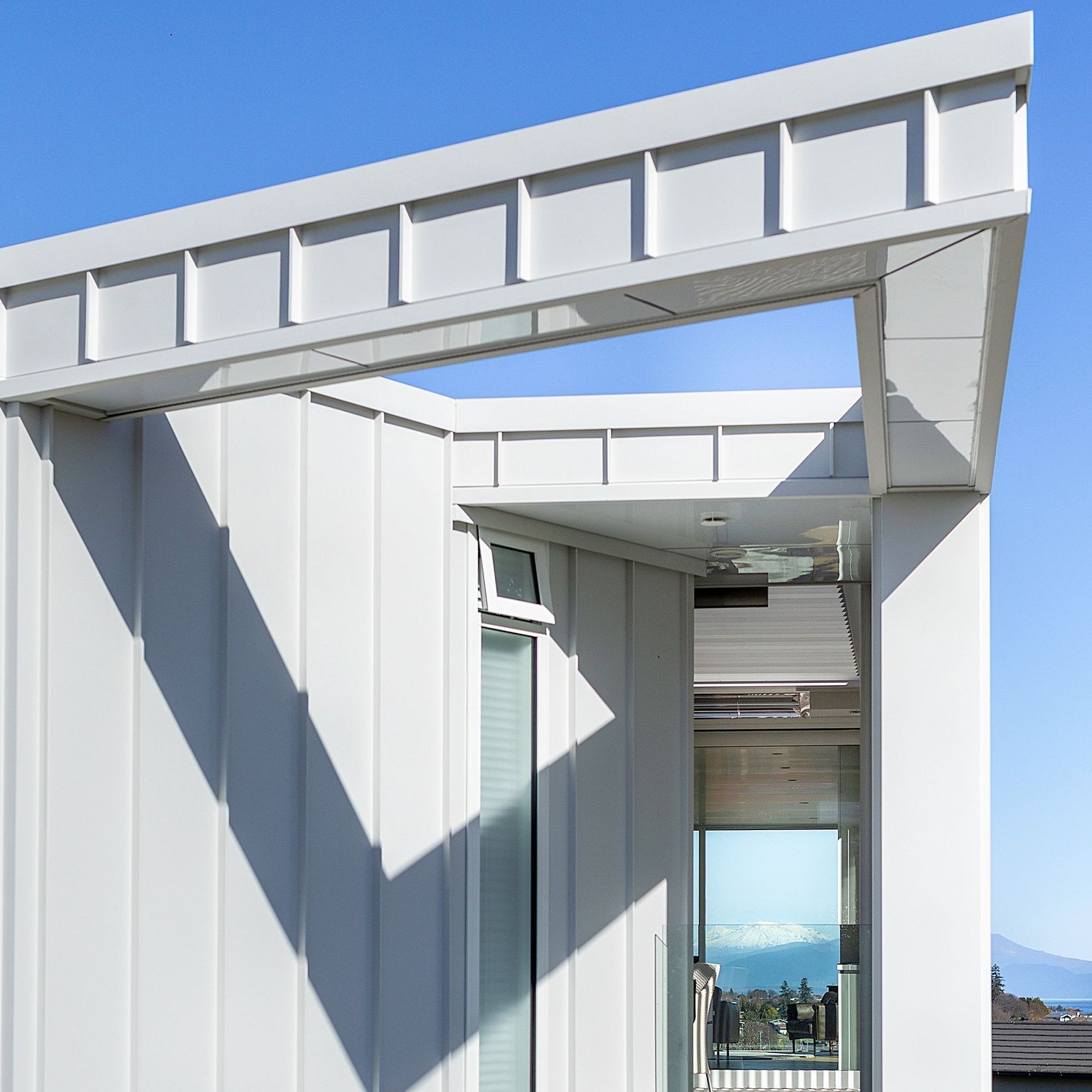

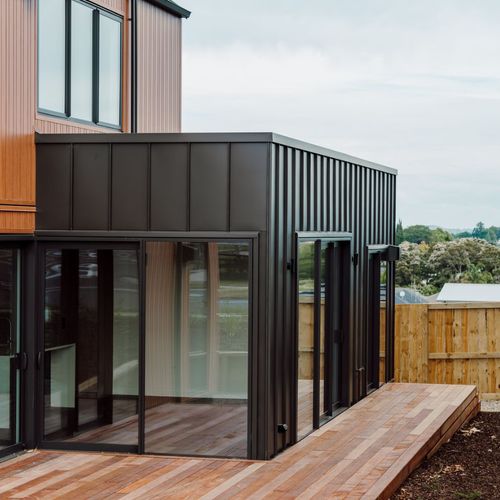

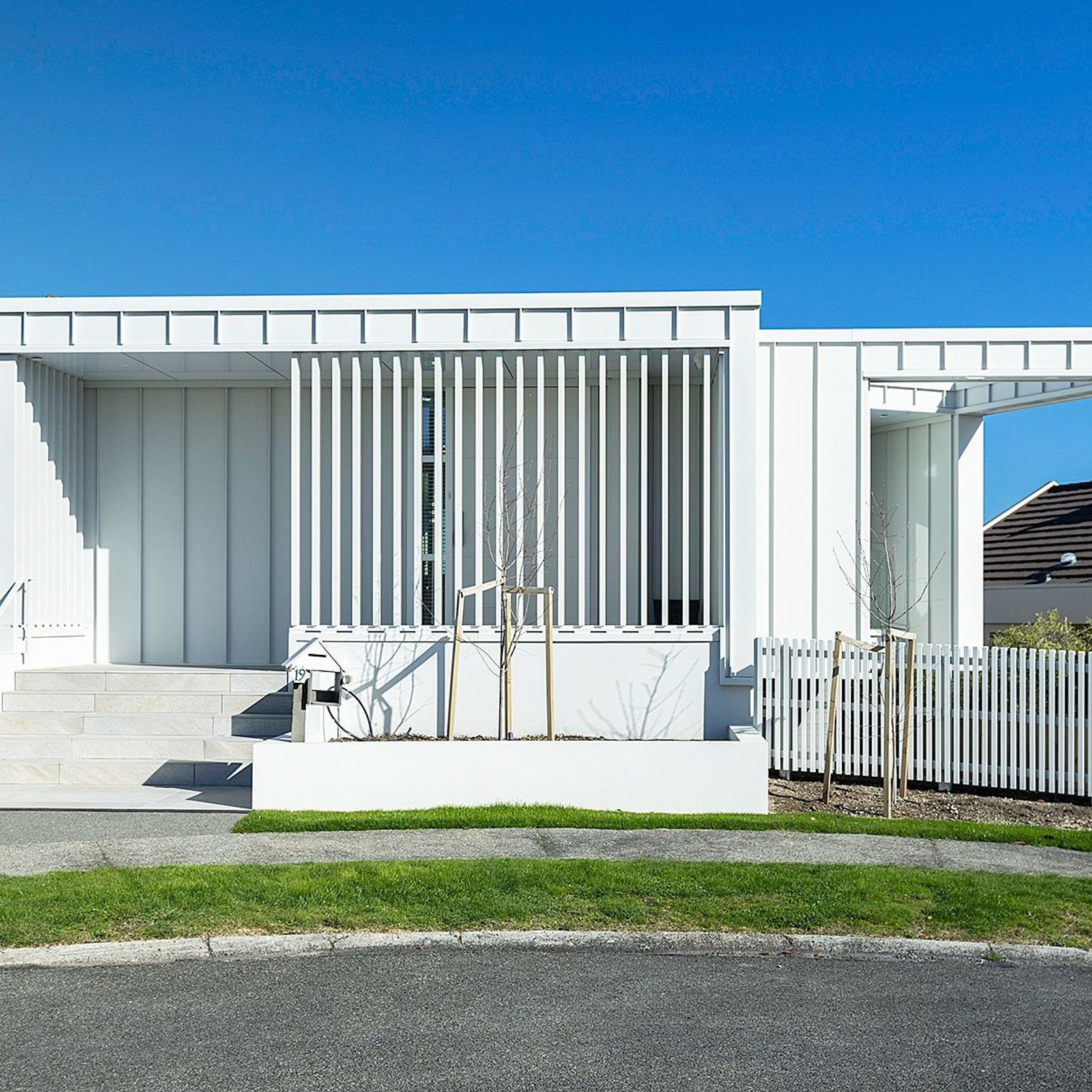

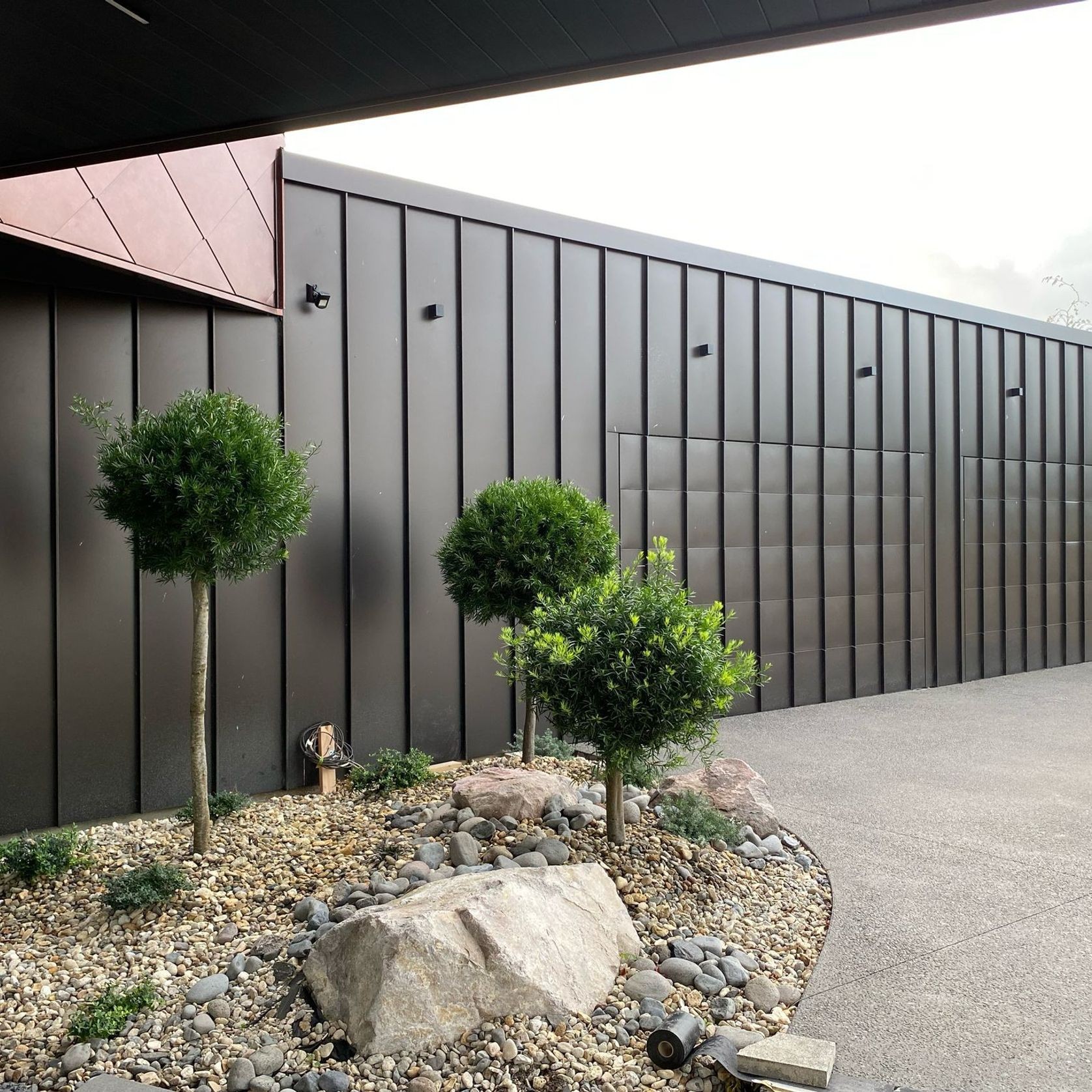

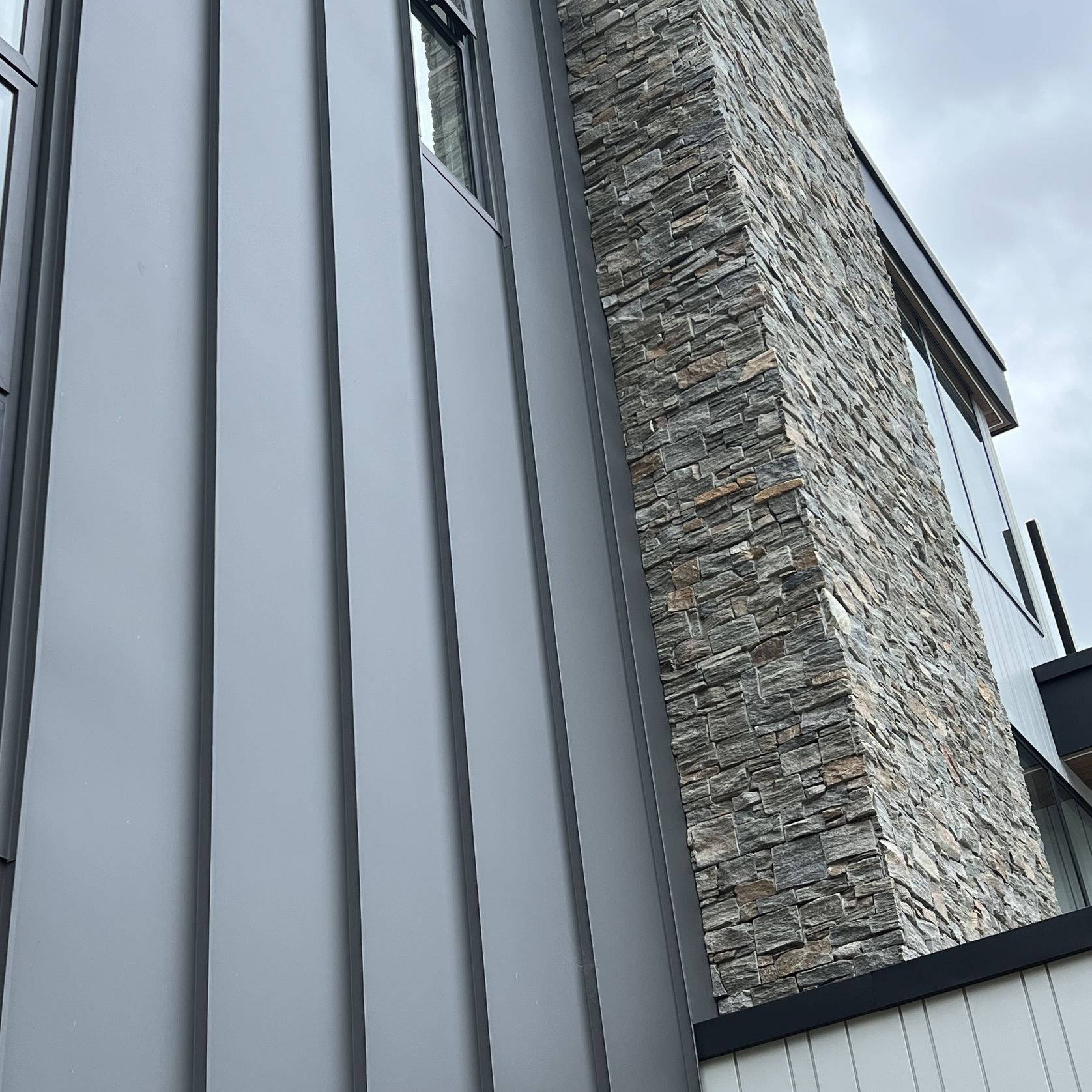

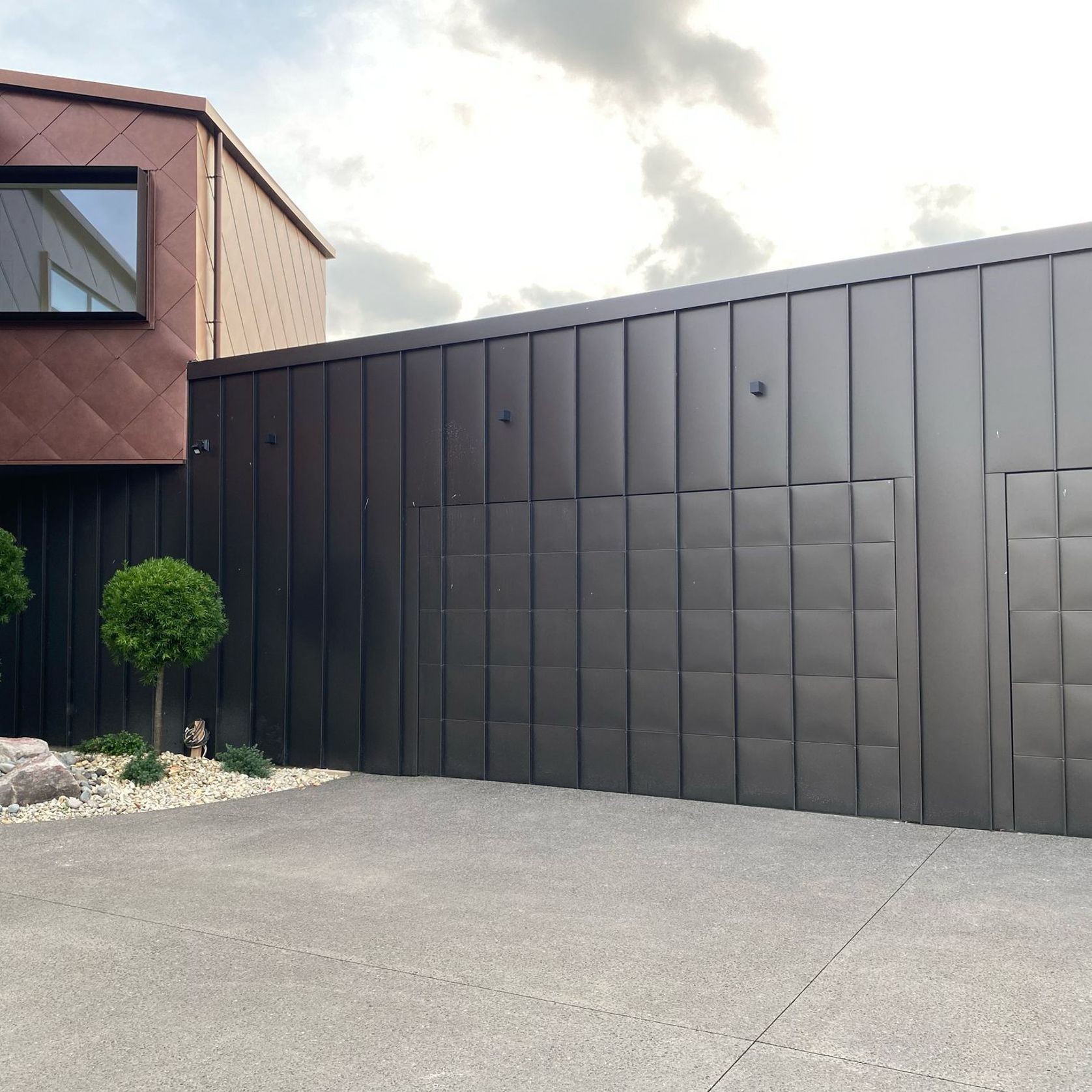

EuroSeam Standing Angle Seam, Double Lock 27 mm and 38 mm Metal Cladding (EuroSeam Standing Angle Seam Metal Cladding) is supplied by the Linked Group for use in external roof and wall cladding systems. Linked Group also supply custom profiles, flashings and components.
- CategoryMetal Cladding
- RangeEuroSeam
- BrandEuroSeam
EuroSeam Standing Angle Seam Metal Cladding is long run metal tray cladding manufactured from
- › 0.55 – 0.75 BMT Colorsteel®
- › 0.70 – 0.90 BMT pre-painted or plain aluminimum
- › 0.60 – 0.80 mm copper finish, or
- › 0.70 – 1.0 mm zinc.
The 27 mm profile has a folded standing seam of 27 mm and tray sections of 316 mm to 516 mm and the 38 mm profile has a folded standing seam of 38 mm and tray sections of 295 mm to 495 mm. The profiles lock together at the seam and are fixed with hidden sliding clips to a 15 mm minimum plywood substrate. With prior consultation with Linked Group on material and colour selection the profile can be fixed to cavity battens (for walls) or 70 mm x 45 mm purlins at 400 mm centres. For larger tray widths, Linked Group recommend the installation of an anti-canning layer between the building underlay and the EuroSeam Standing Angle Seam Metal Cladding.
EuroSeam Standing Angle Seam Metal Cladding must be installed in accordance with all Linked Group requirements.
For design, installation and maintenance information, refer to linkedgroup.co.nz.
