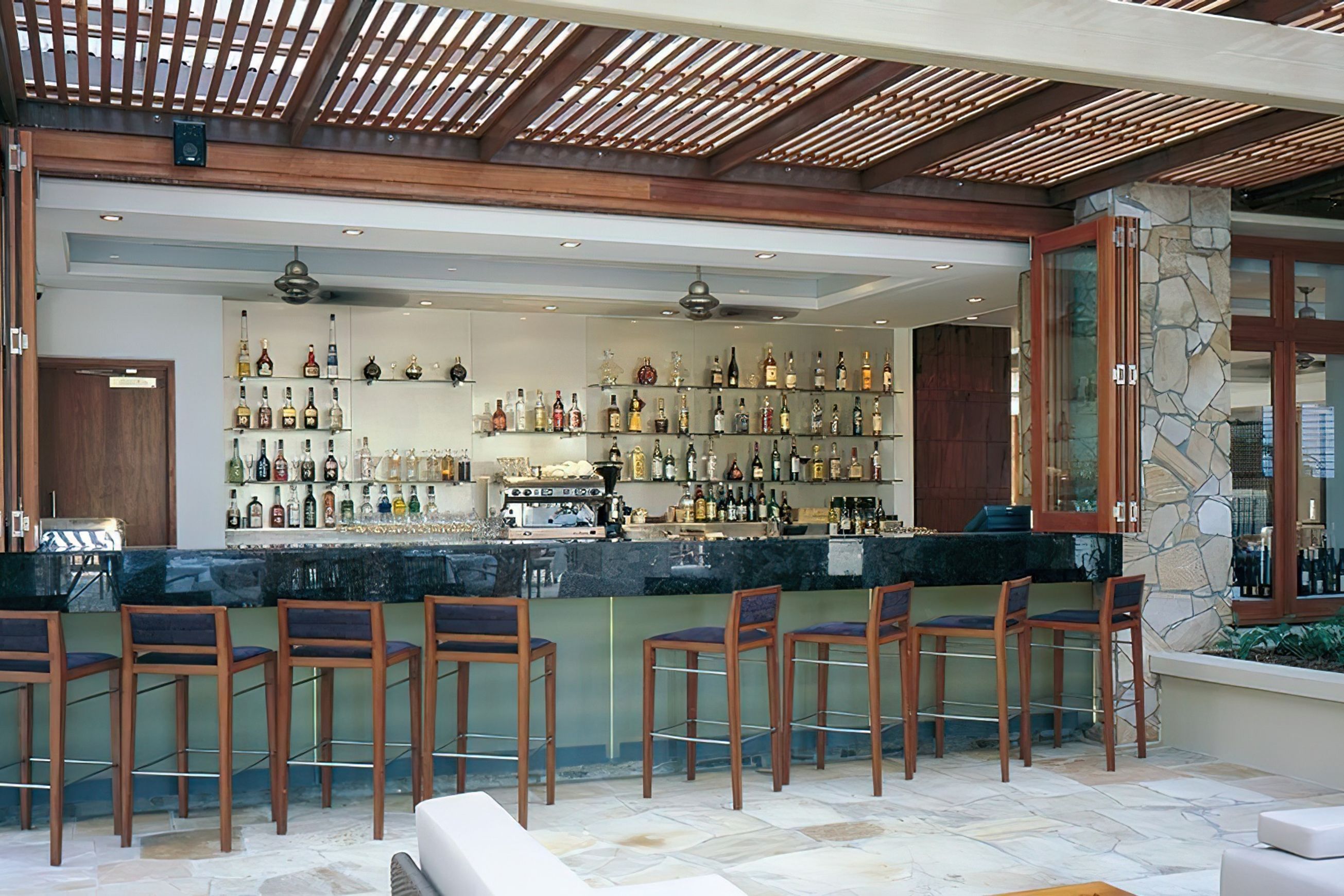

Centor E2 Folding Door System Hardware
by Centor®
Brisbane, Australia
- 35.8K profile views
- 3 saves
Developed first and constantly upgraded since its inception, Centor E2 hardware is the perfect choice for bifold doors in private residences or light commercial applications. It accommodates panels 1100mm wide by 3000mm high and weighing up to 60kg.
Product Details
- Product
- Centor E2 Folding Door System Hardware
- Category
- Bifold Doors
- Sold by
- Centor®
- Brand
- Centor
- Warranty
- 10 years
Developed first and constantly upgraded since its inception, Centor E2 hardware is the perfect choice for bifold doors in private residences or light commercial applications.
It accommodates panels 1100mm wide by 3000mm high and weighing up to 60kg.
- Specs
Stainless steel
- Max panel weight: 60kg
- Max panel width: 1100mm
- Max panel height: 3000mm
- Min panel thickness: 35mm
- Max number panels: 8 left + 8 right
Aluminium
- Max. panel weight: 40kg
- Max. panel height: 3000mm
- Max. panel width: 1000mm
- Min. panel thickness: 35mm
- Max. number panels: 8 left + 8 right
- Features
- Top-hung bifold system.
- Inward or outward opening panels.
- Use with timber or aluminium doors.
- Exterior or interior use.
- Cycle tested to the equivalent of opening and closing panels every day for 40 years.
- Secure E2-based doors with Centor Dropbolts or Centor Twinpoint locks.
- Backed by a 10-year warranty.
- Simple Assembly

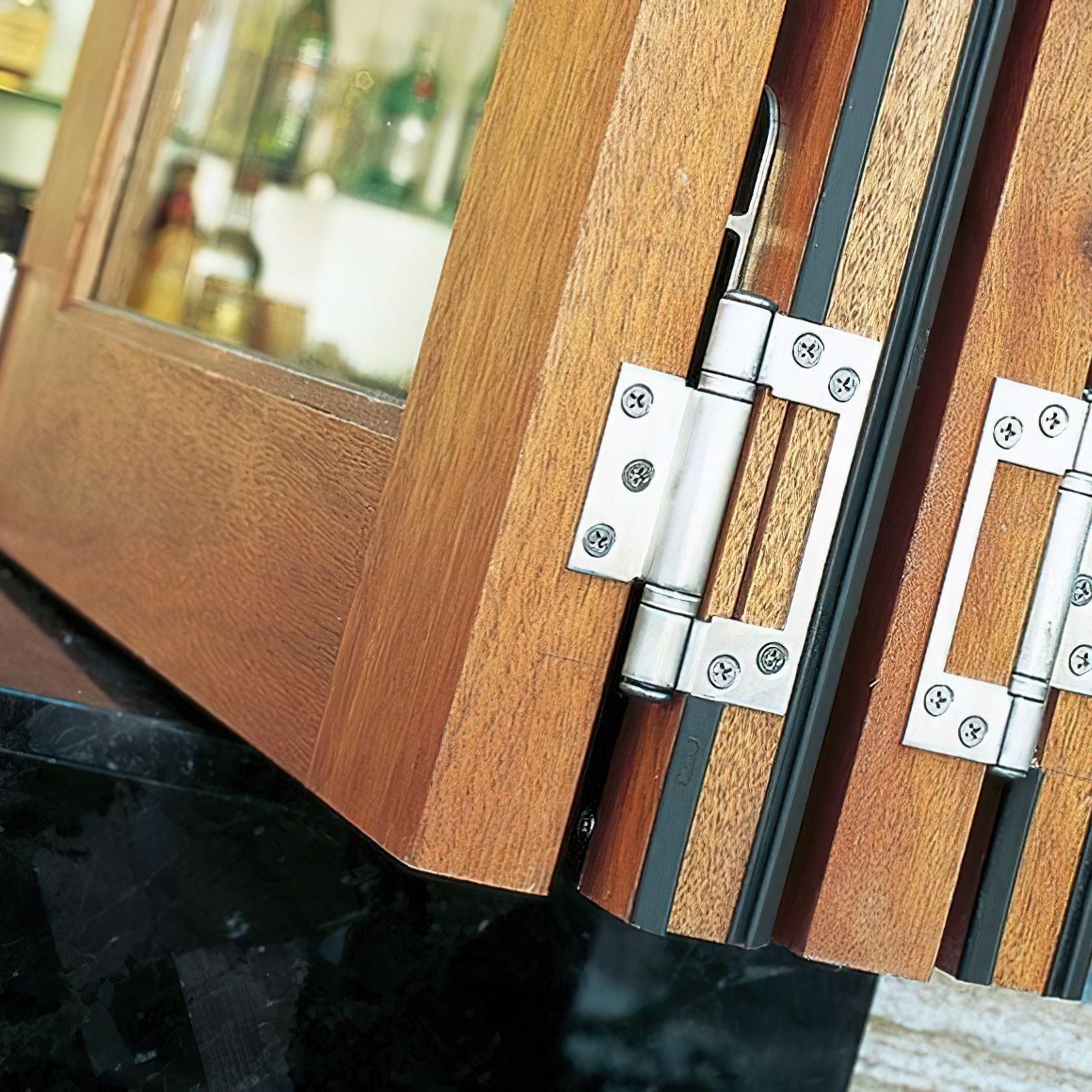

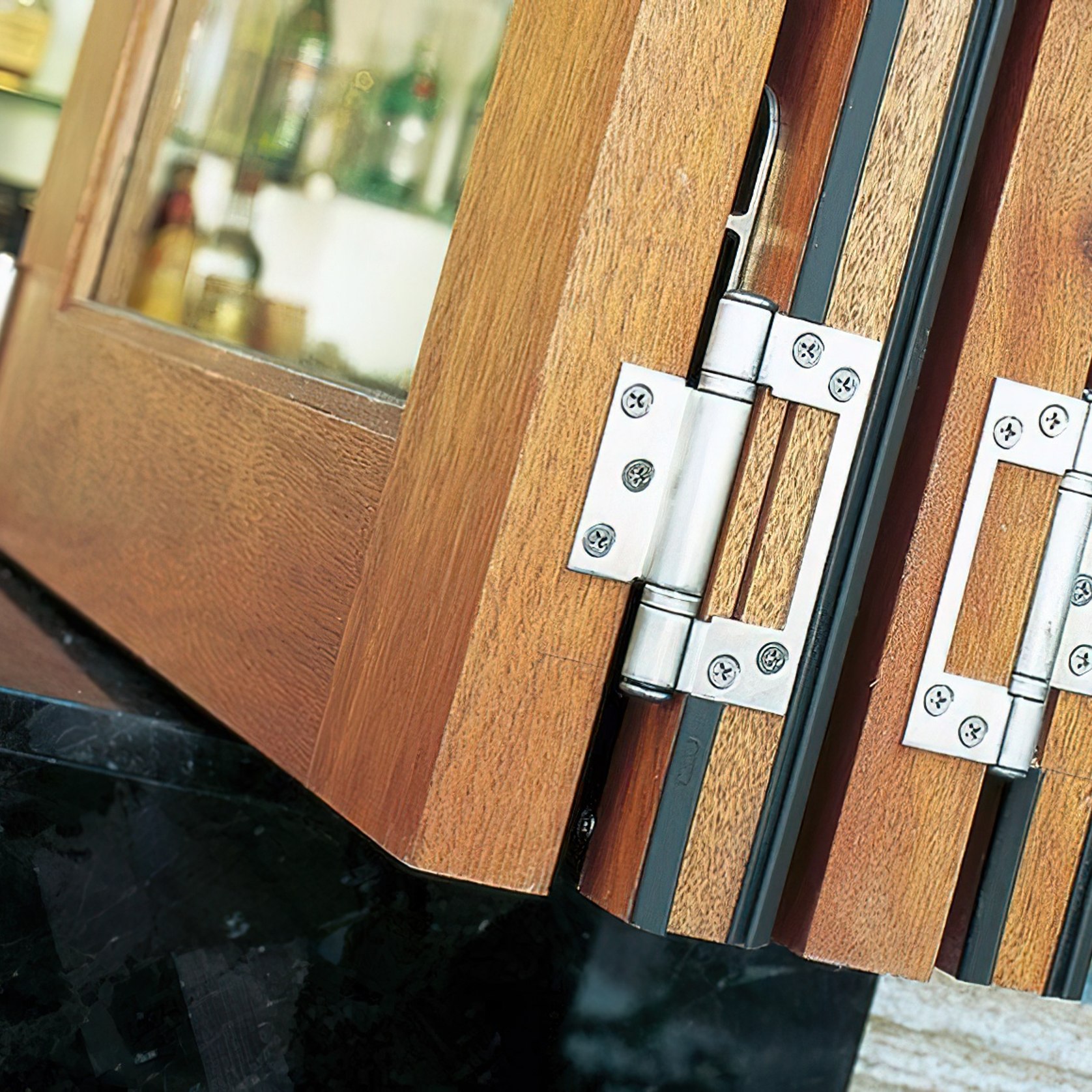

Centor E2 hardware is available with straight or offset hinges. The offset hinge system allows for equal-sized panels regardless of the configuration, ensuring manufacturing is simple. Quick-fix surface-mounted fittings allow for easy assembly.
Offset floor guides and floor pivots allow the guide channel to be concealed beneath closed doors, offering a neat appearance and preventing debris build-up in the channel.
- Fully Adjustable
The new Surelock 5 (patent-pending) allows for self-locking vertical adjustment with an 8mm Allen key. To raise or lower the panels, simply insert the Allen key into the end of the carrier to depress the pin and wind up or down. Once adjusted, the new setting is locked into place as the Allen key is removed.
Independent top and bottom lateral adjustment of +/-5mm is possible using a Phillips screwdriver.
- Quality Materials
Centor E2 hardware is manufactured in architectural-grade stainless steel or aluminium. Carriers, guides, pivots and hinges are available in stainless steel and PVD brass finishes.
Bearings are custom-machined while wheels are individually precision-ground to ensure silky smooth operation.
