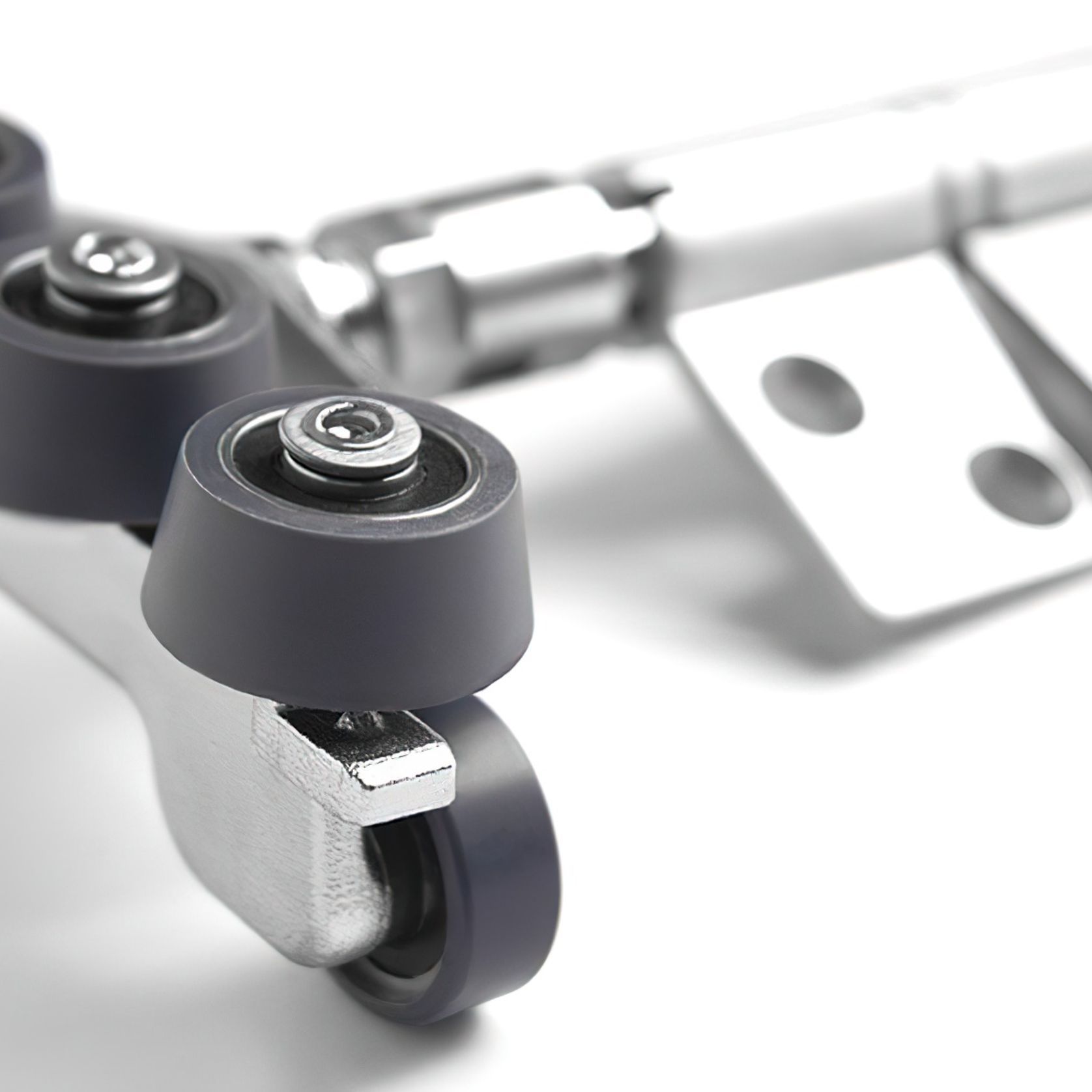

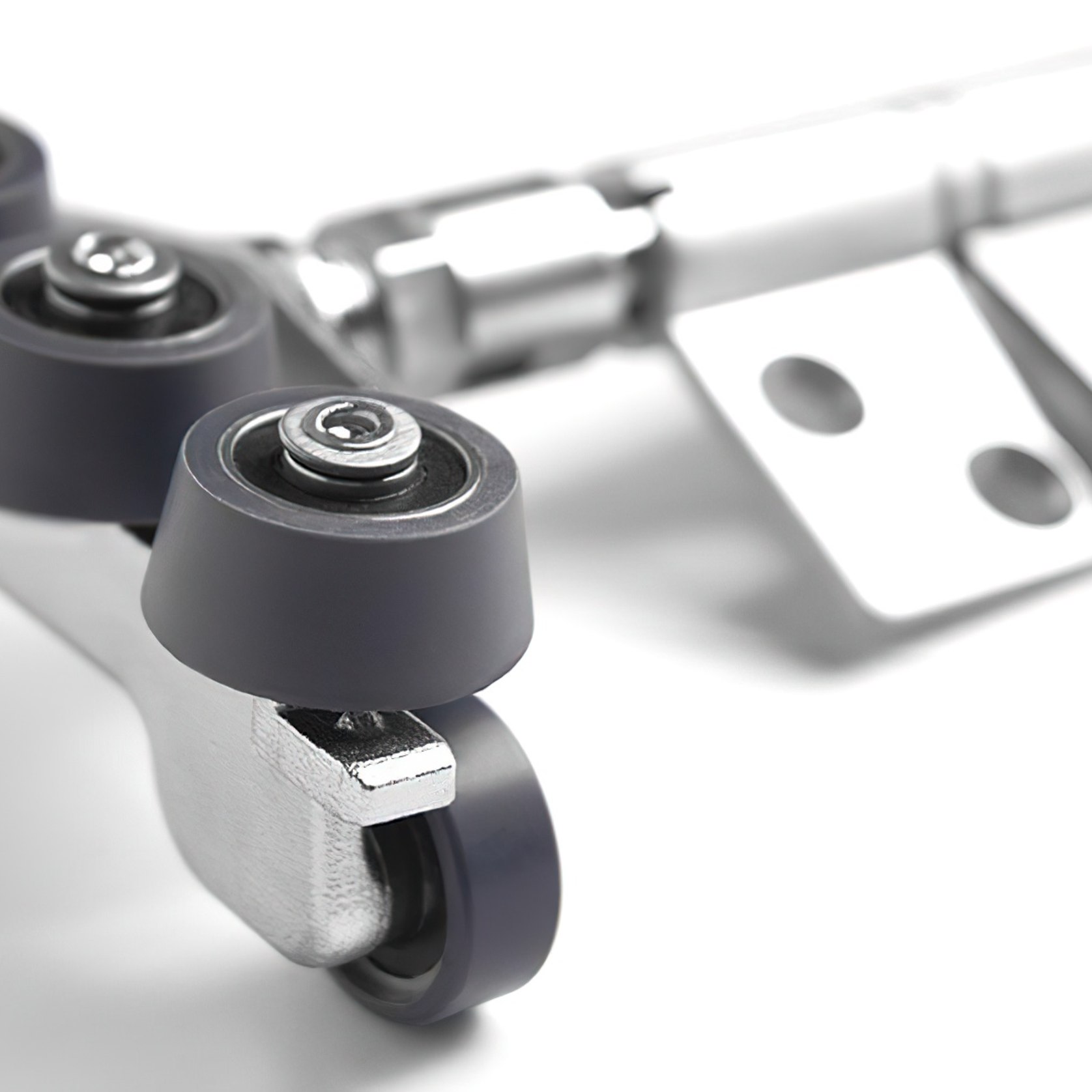

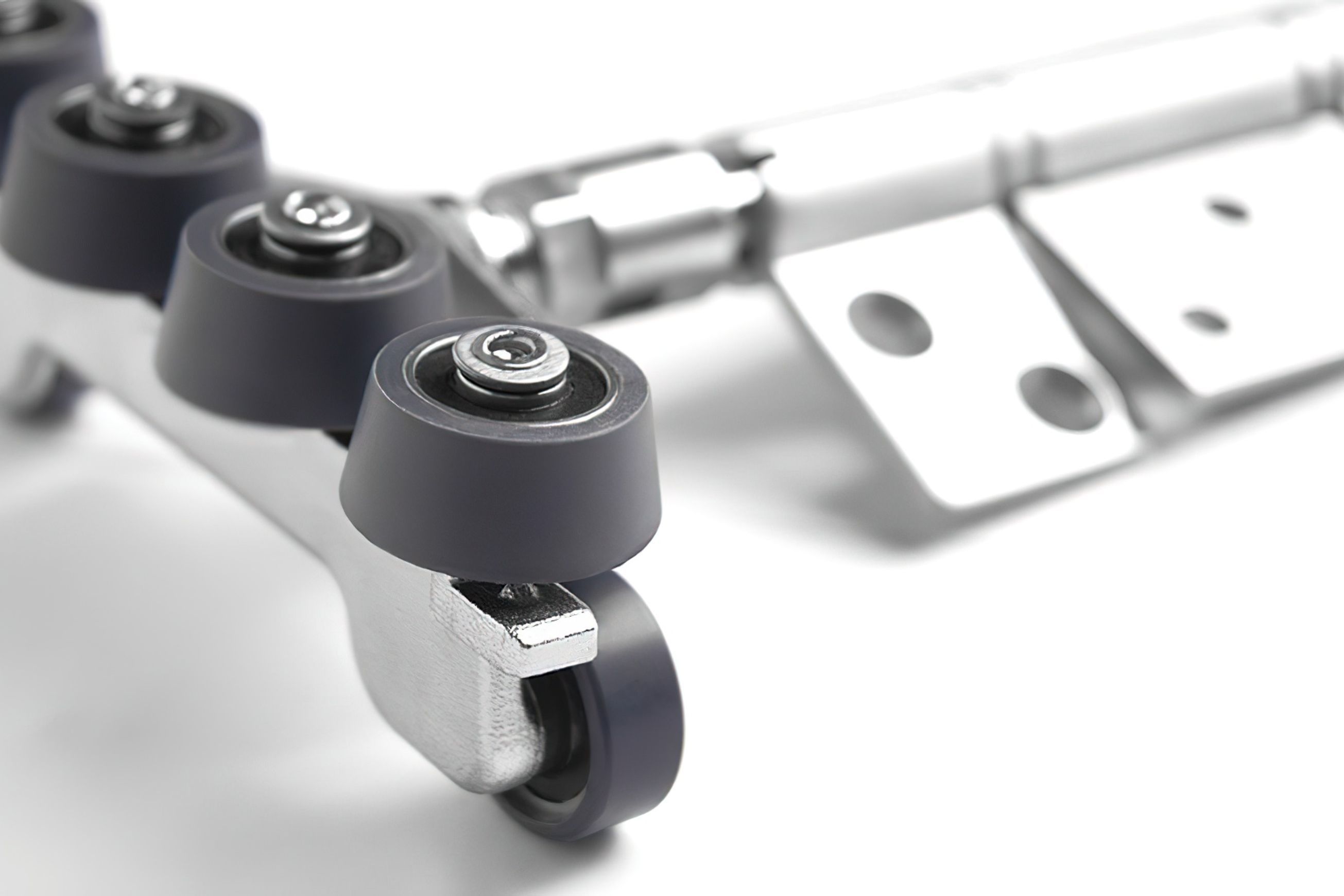

Centor F3 Folding Door System Hardware

Centor®

The Centor F3 hardware system allows bifold doors to be installed into any existing opening without the need for major structural changes to the structural beam. Perfect for use in residential renovations, our F3 hardware accommodates panels 1000mm wide by 2700mm high and 80kg.

Details
Specifications
  • Max panel weight: 80kg
  • Max panel width: 1000mm
  • Max panel height: 2700mm
  • Min panel thickness: 35mm
  • Max number panels: 8 left + 8 right
Features
  • Bottom-rolling bifold system.
  • Articulated carriers compensate for imperfect openings, ensuring smooth operation.
  • Guards on the carriers push grit away from the mechanism.
  • Inward or outward opening panels.
  • Suitable for double or triple glazing.
  • Exterior or interior use.
  • Externally accessible hardware cannot be compromised.
  • Extensively tested, including finite element analysis, cycle testing and corrosion testing.
  • Secure F3-based doors with Centor Dropbolts or Centor Twinpoint locks.
  • Backed by a 10-year warranty.
Simple Assembly

Centor F3 hardware is available with offset hinges which allow for equal-sized panels regardless of the configuration which ensures manufacturing is simple. Quick-fix surface-mounted fittings allow for easy assembly.

Offset floor guides and floor pivots allow the floor guide channel to be concealed beneath closed doors for a neat appearance. Sills are available.

Fully Adjustable

Centor F3 hardware features our patented Surelock 4™ adjustment mechanism for vertical and lateral adjustment using just a screwdriver and 14mm spanner.

Quality Materials

Centor F3 hardware is manufactured in architectural-grade stainless steel. Carriers, guides, pivots and hinges are available in stainless steel and PVD bronze finishes.

Bearings are custom-machined while wheels are individually precision-ground to ensure silky smooth operation.
