CS Ultimate® Oversized Cavity Slider
Auckland, New Zealand
- 589.1K profile views
- 125 saves
CS Ultimate® is a heavy duty cavity sliding door system designed for higher, wider, thicker and heavier doors and 140mm framing. The timber frame jambs are customised to suit the thickness of door that you specify (from 10mm glass to 88mm thick timber).
Should your door ever bow, the cavity jambs may be removed and scribed to suit the bow in the door. Heavy duty stainless steel carriages are standard on these units, increasing the maximum door weight up to 240kg per wheel set.
A number of detail options are available for customising this unit.
Suits doors up to 3500 x 4500mm.
Available with SofStop® Soft close for doors up to 100kg.
Product Details
- Product
- CS Ultimate® Oversized Cavity Slider
- Category
- Cavity Slider Doors
- Sold by
- CS Cavity Sliders
- Range
- CS Cavity Sliders
- Designer
- CS Cavity Sliders
- Brand
- CS Cavity Sliders
- Year
- 2023
- Country of origin
- New Zealand
- Type of use
- Commercial and Residential
- Installation
- Professional installation required
- Warranty
- 10 years
CS Ultimate® is a heavy duty cavity sliding door system designed for higher, wider, thicker and heavier doors and 140mm framing.
The timber frame jambs are customised to suit the thickness of door that you specify (from 10mm glass to 88mm thick timber).
Should your door ever bow, the cavity jambs may be removed and scribed to suit the bow in the door. Heavy duty stainless steel carriages are standard on these units, increasing the maximum door weight up to 240kg per wheel set.
A number of detail options are available for customising this unit.
Suits doors up to 3500 x 4500mm.
Available with SofStop® Soft close for doors up to 100kg.
- Specs / Details
Features
- Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
- Door and carriages can be removed without removing wall linings
- Frame jambs may be removed to scribe shape of bowed doors and re-fixed (timber only)
- Supplied fully assembled for on-site installation, with or without a door fitted
- Split jamb component made with heavier duty aluminium section than standard
- Door cannot jump off the track

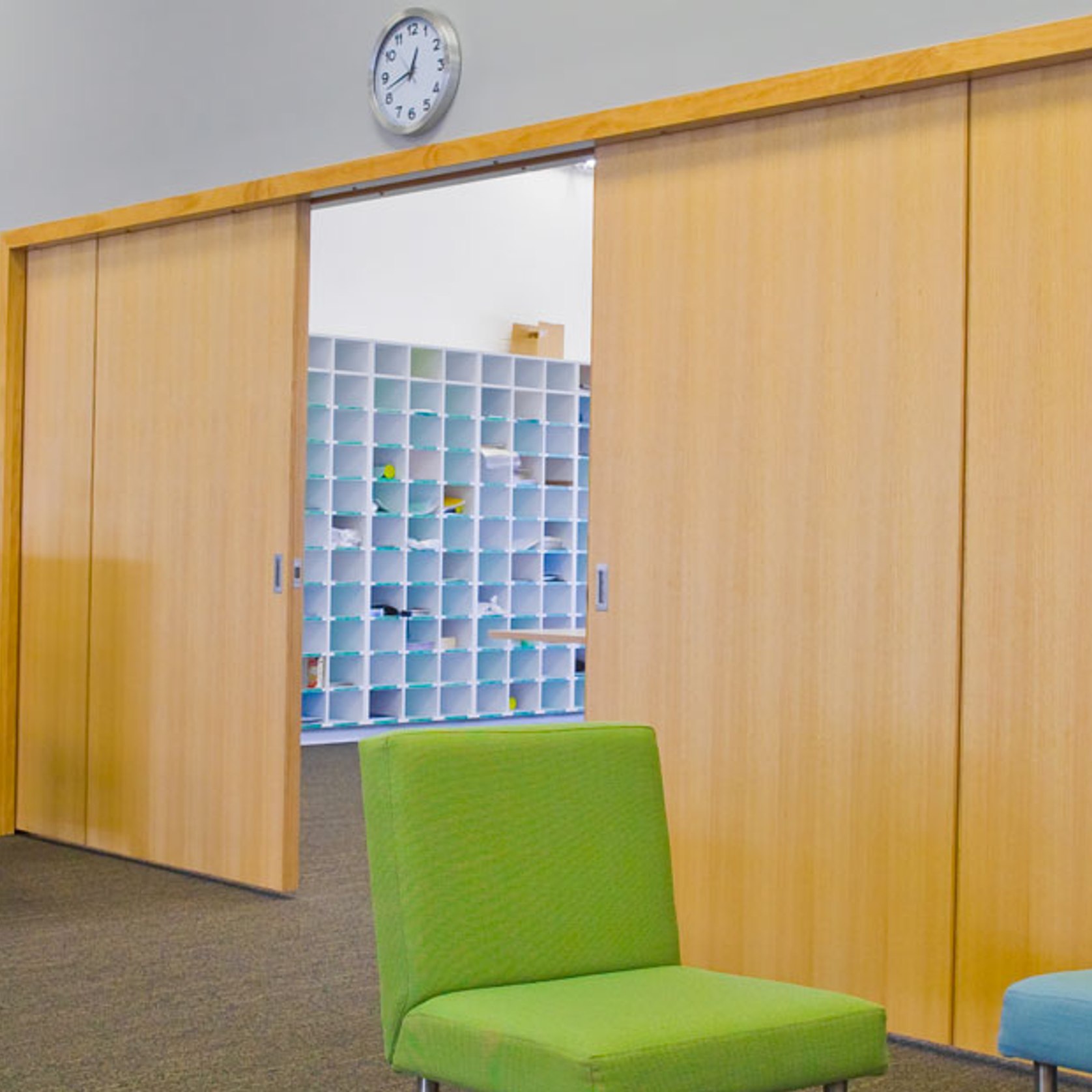

- Available as Single or Bi-Parting (double) units
- Fits into a standard thickness wall (140mm framing)
- No visible floor guides
