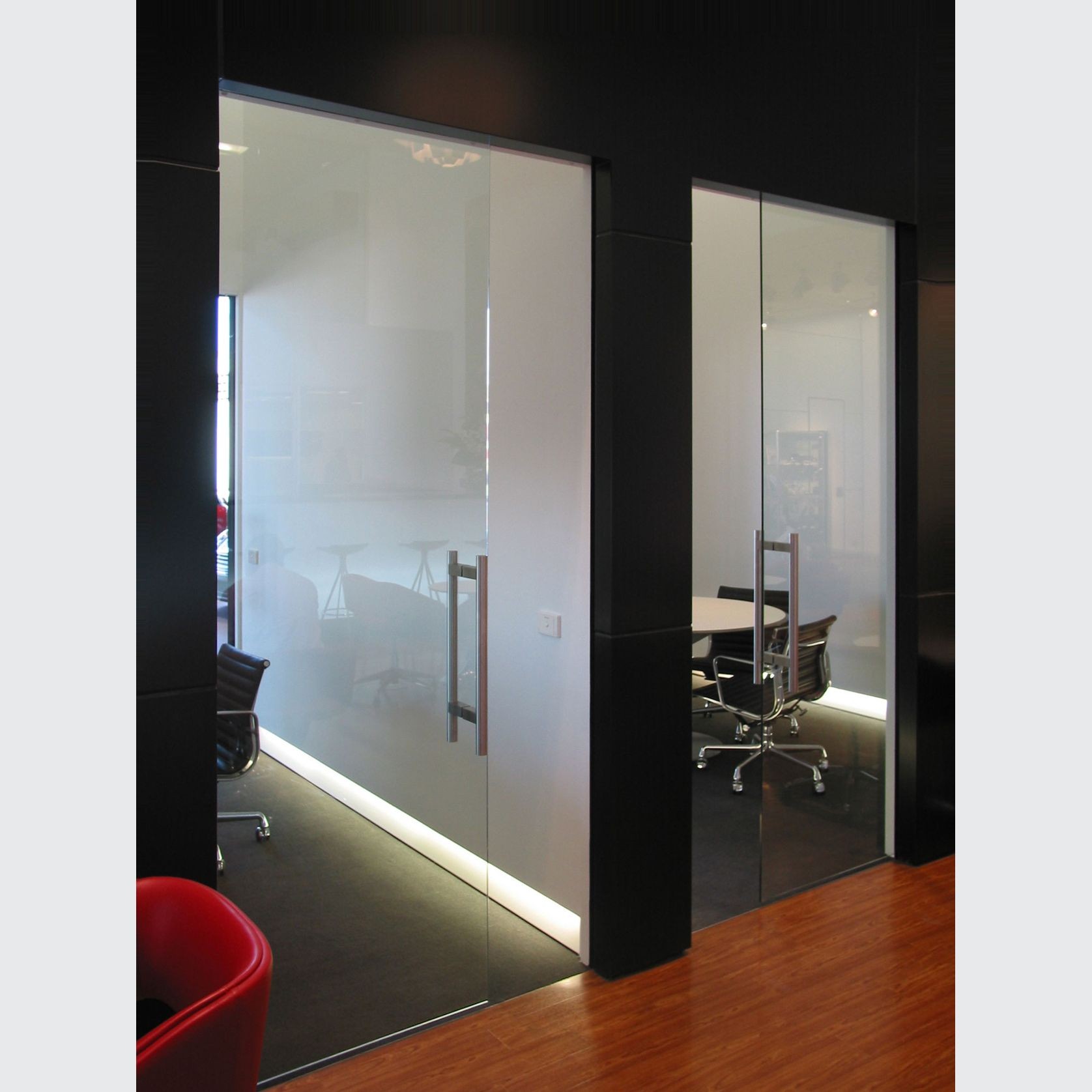

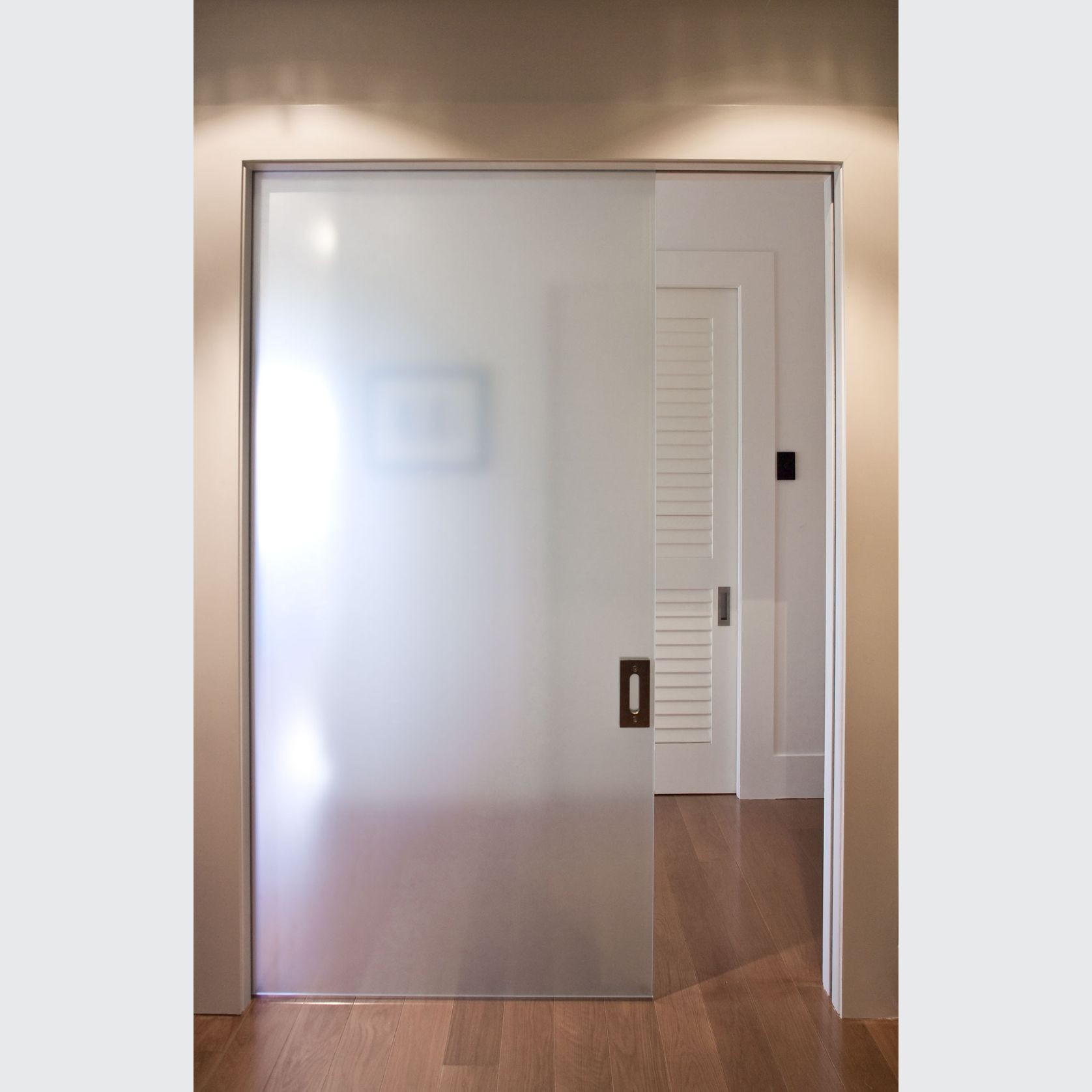

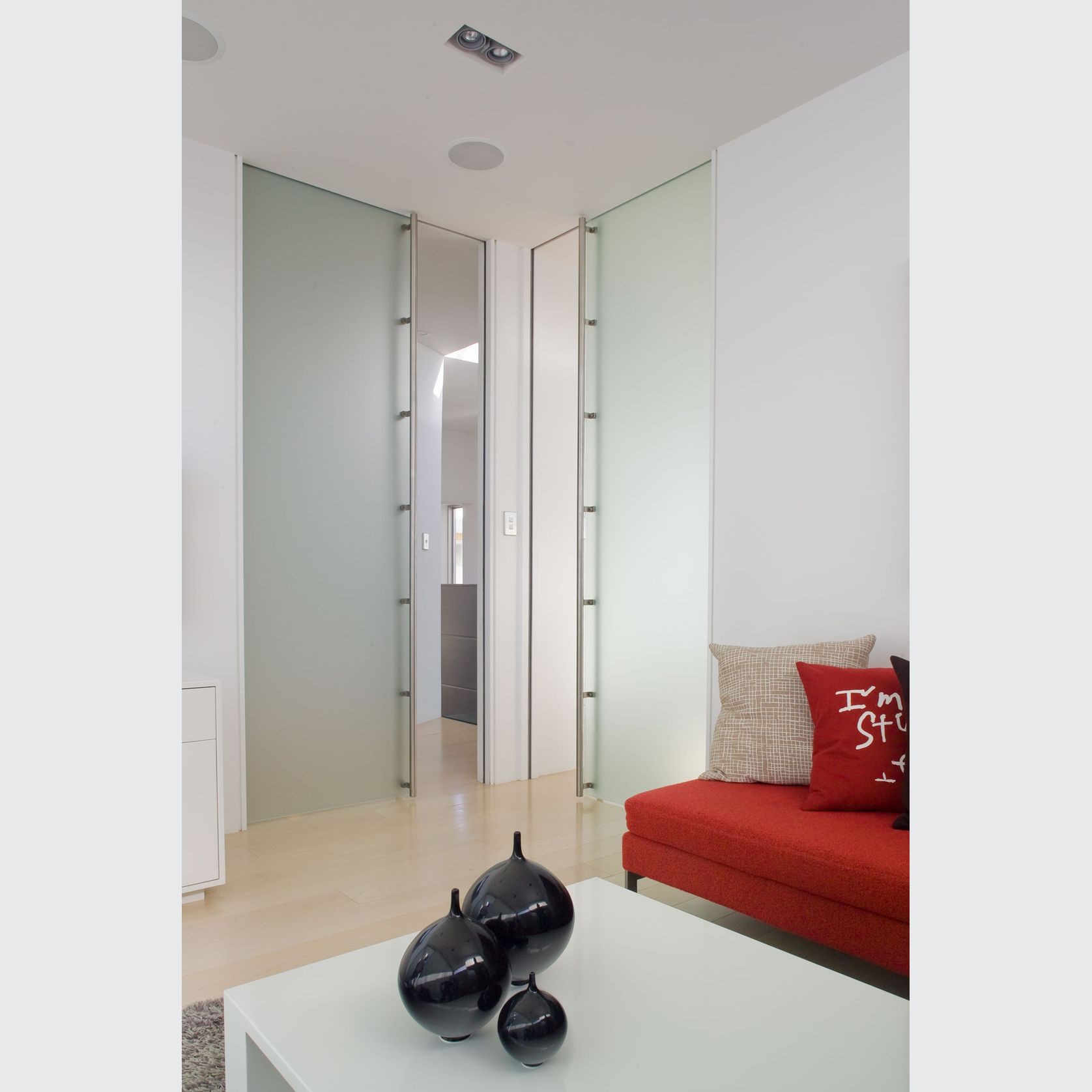

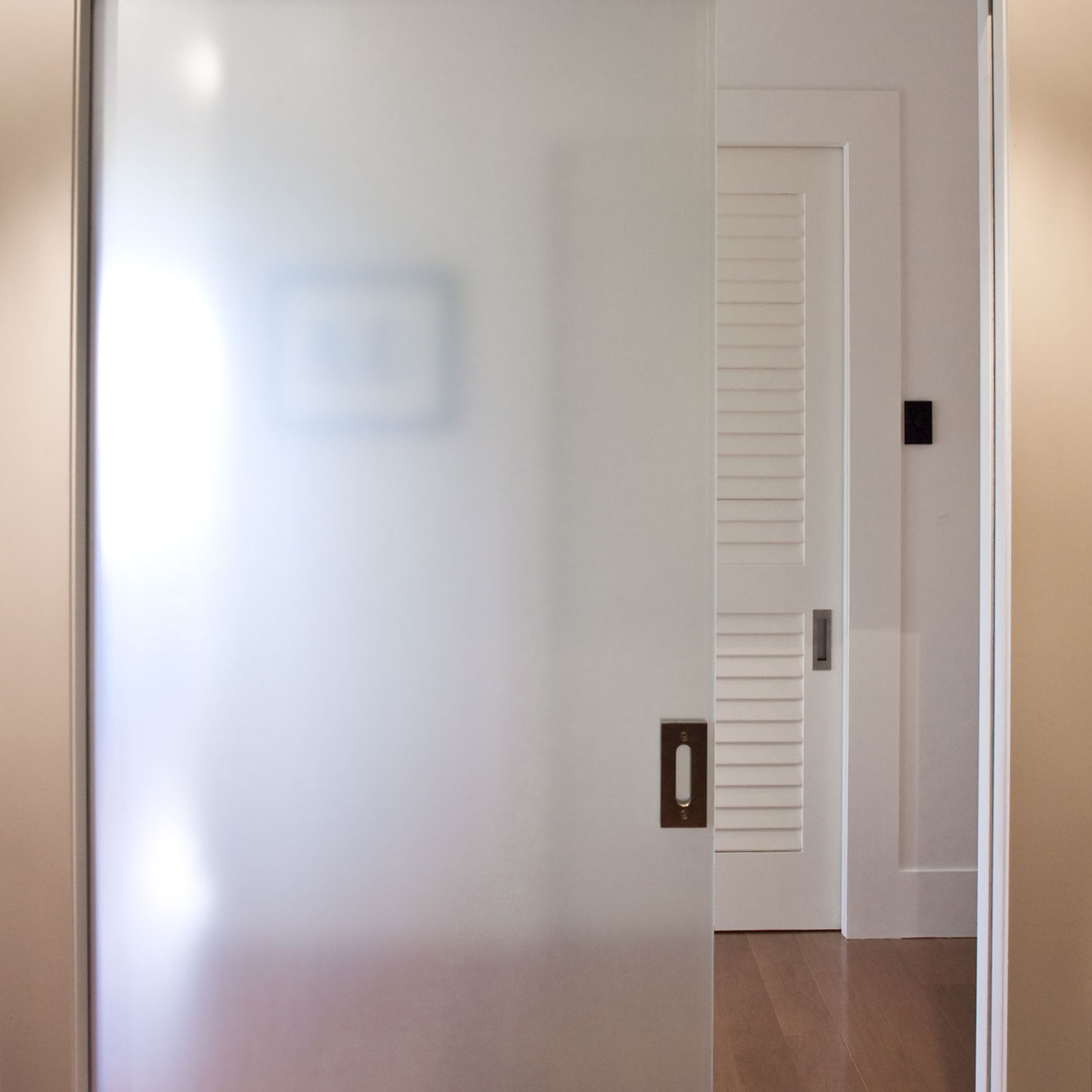

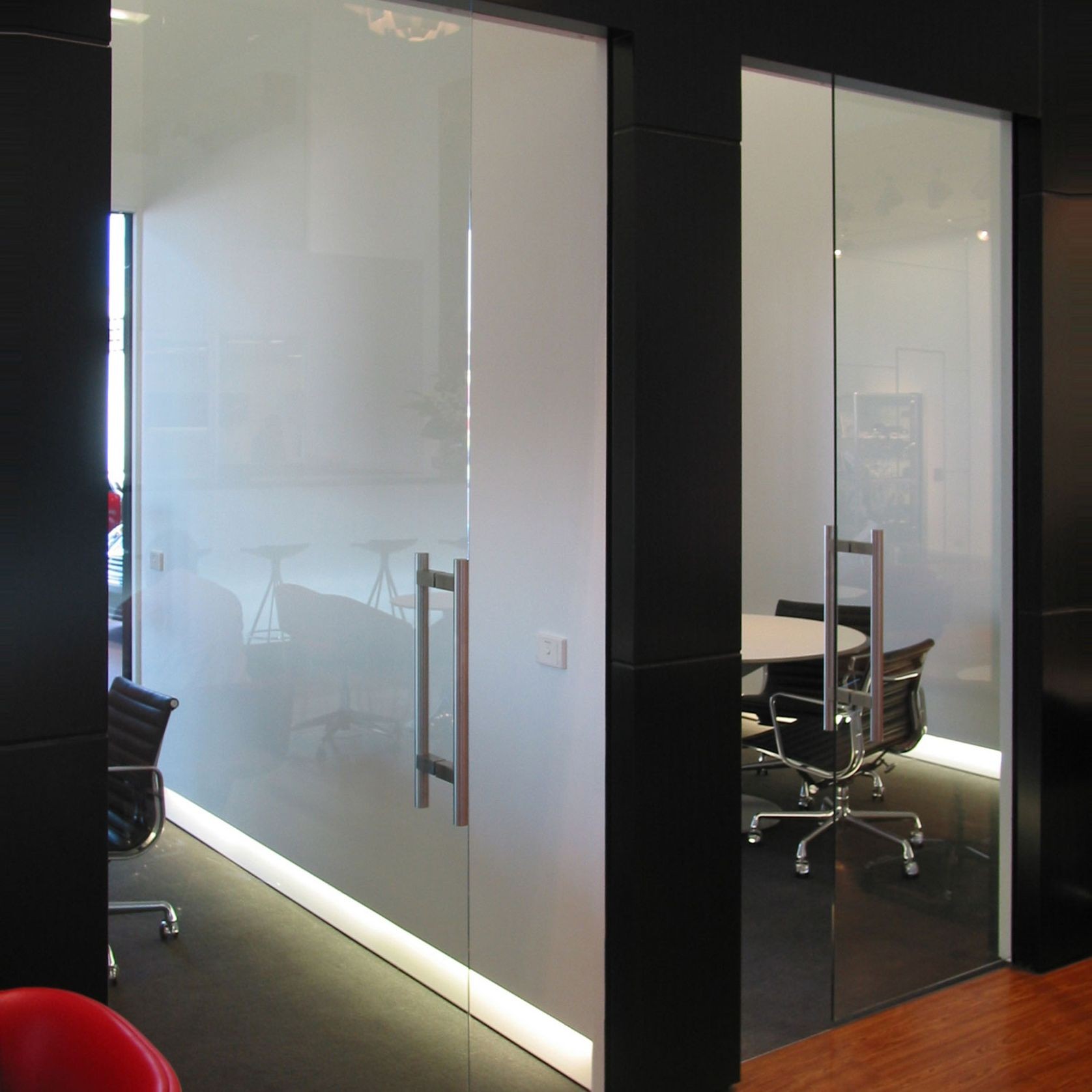

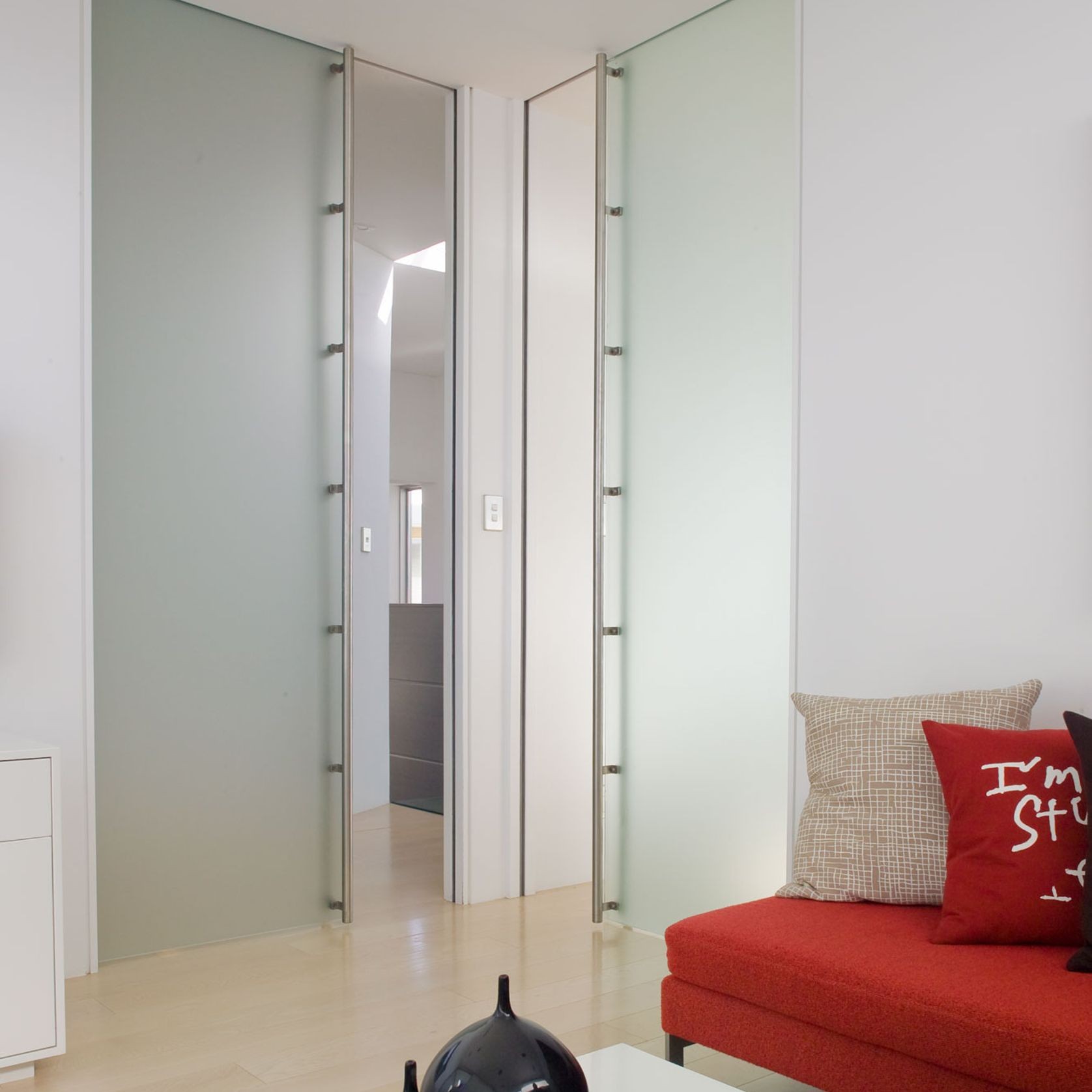

CS FramelessGlass units incorporate a toughened frameless glass panel as the door leaf, creating a light and uninterrupted space - even with the door closed. Units are supplied with a clamp bracket that may be either exposed or hidden above the head jambs depending on option selected at time of order.

Frosted glass and other finishes including "branded options" are available. 10mm or 12mm safety glass must be specified with these units.

Made to specification up to 2400mm high x 2000mm wide. Larger sizes available by special request.

Available with SofStop® Soft open/close for doors up to 100kg.

Features

  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Available as Single or Bi-Parting (double) units
  • Door cannot jump off the track
  • Fits into a standard thickness wall (90 x 45 framing)
  • Supplied fully assembled for on-site installation
  • No visible floor guides
Details
  • Category
    Cavity Slider Doors
  • Range
    CS Cavity Sliders
  • Brand
    CS Cavity Sliders
  • Designer
    CS Cavity Sliders
  • Year
    2023
  • Warranty
    10 years
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Specs / Details
  • Max. size: Custom sizes up to 2400h x 2000 w
  • Max. Door Weight (Standard): 120kg
  • Max. Door Weight (SofStop): 100kg
  • Wall Framing: 90mm
  • Wall Linings: 10 or 13mm
  • Door Thickness: 10 or 12mm toughened glass
Please note: CS FOR DOORS do not sell direct to the public. If you are a homeowner or independent builder with enquiries about our products, please direct enquiries to one of our distributors. More info on our website: https://csfordoors.co.nz/contact
