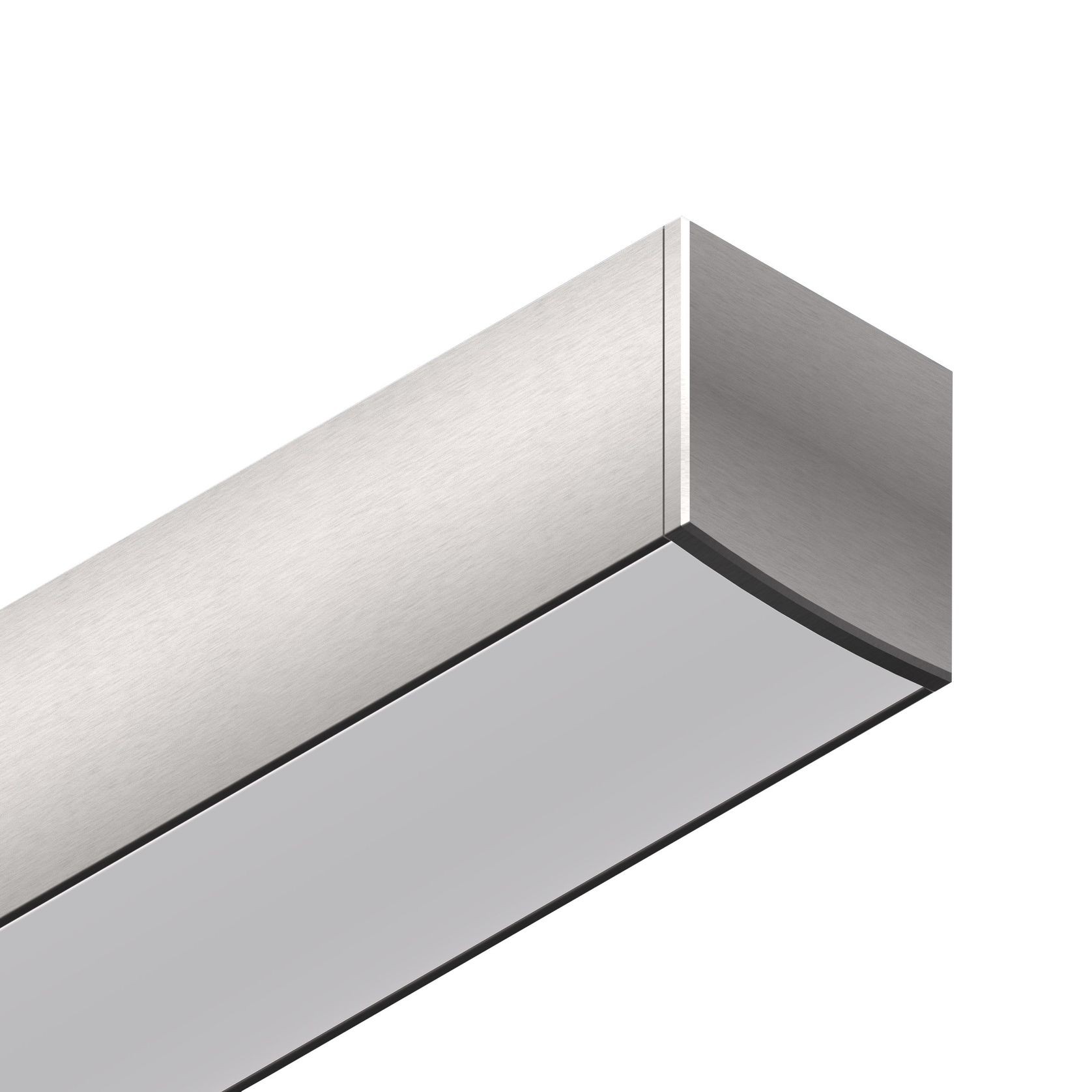

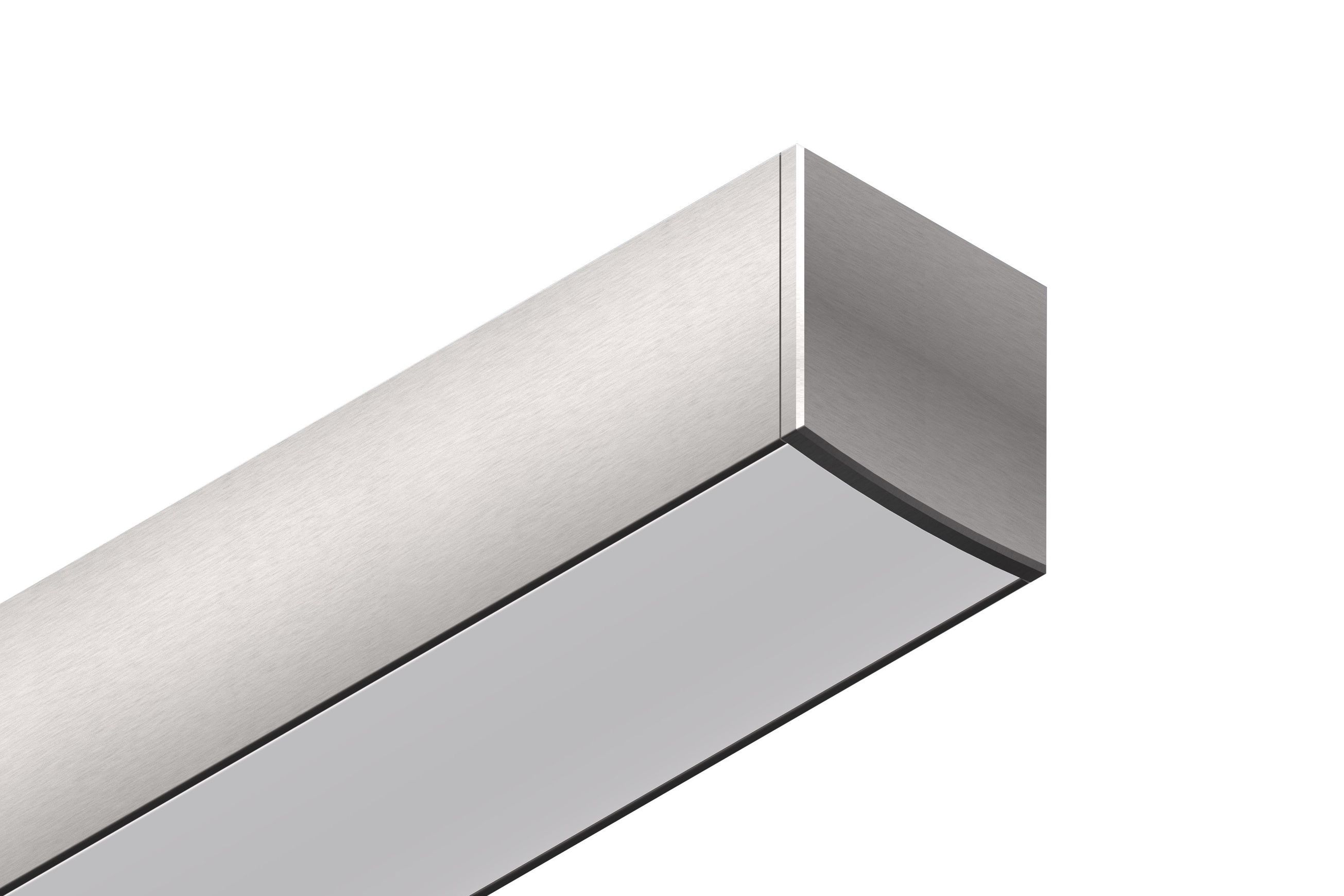

The Downhill Dan 30 Linear LED Light extrusion is a versatile and powerful downlighting system. Utilizing up to a 2986 lumen per metre LED strip, the profile is ideal for applications where maximum light output is key. A versatile system suitable for various mounting options, Downhill Dan 30 can be surface mounted, recessed suspended or wall mounted. Both wire and rod suspension options are available and the cowling accessory for plastered ceilings and walls creates a perfect trimless finish every time.

Details
  • Category
    Linear Lighting
  • Brand
    Offspring Profiles
Specifications

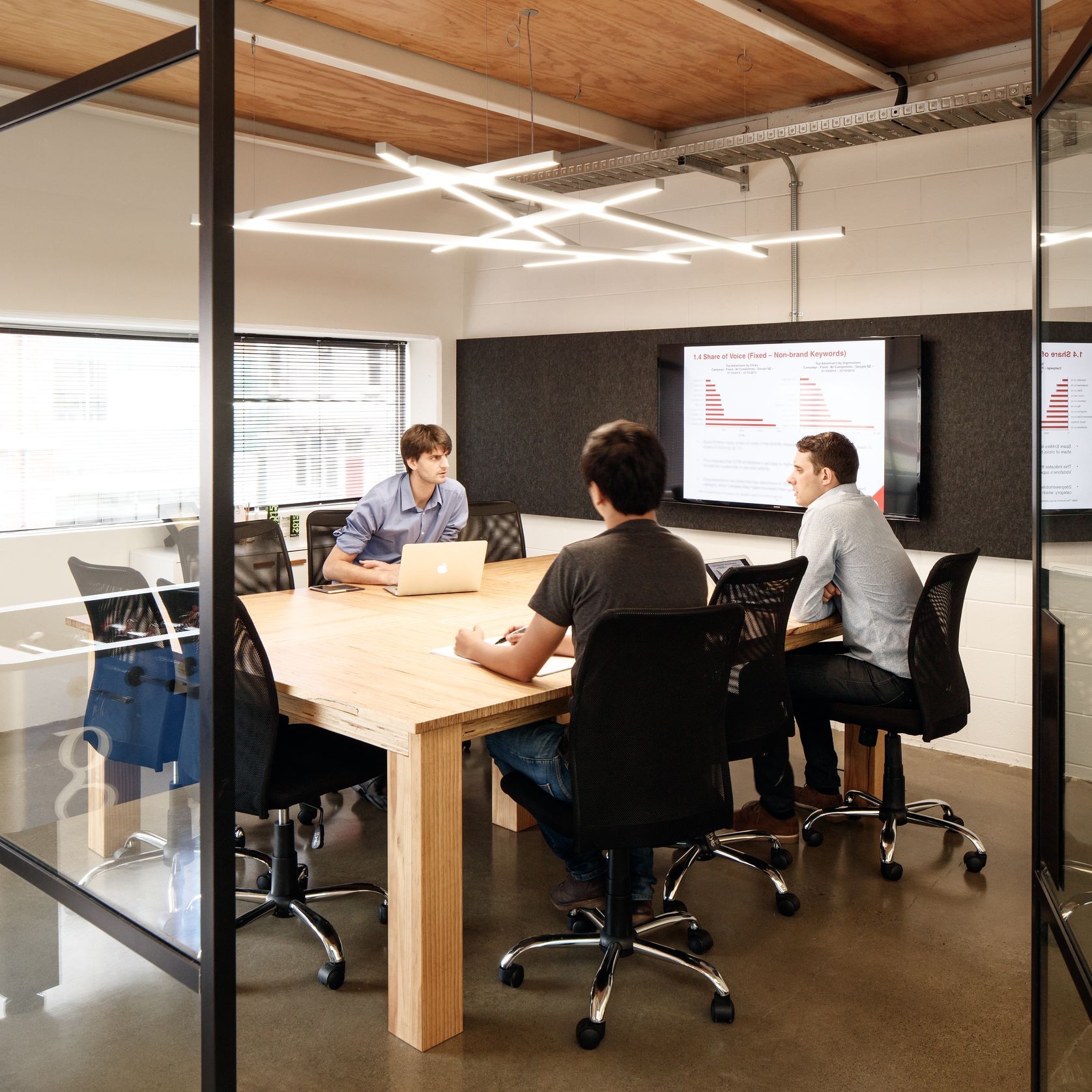

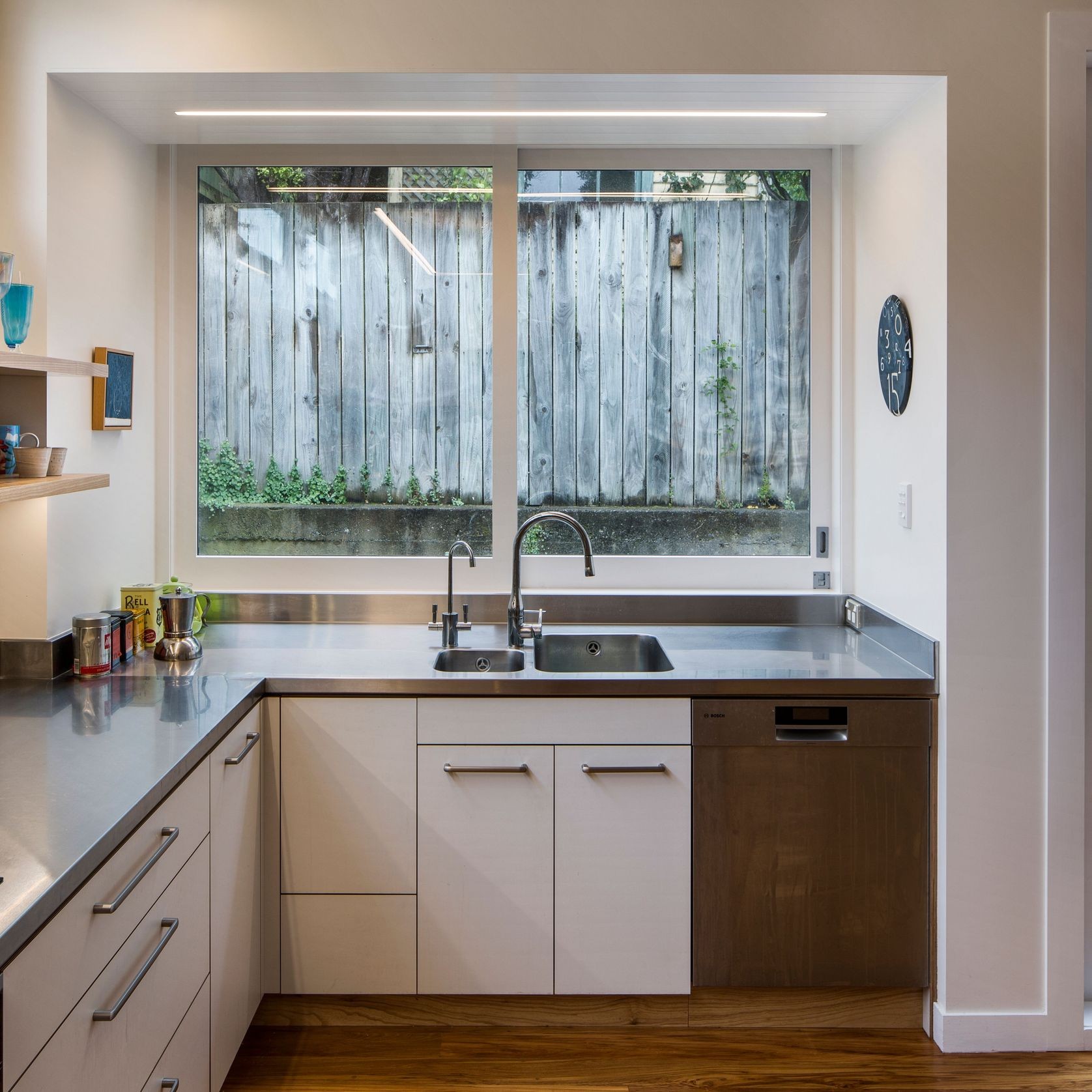

  • Applications - General downlighting in kitchens, living rooms, dining rooms, reception counters
  • Installation - Interior and exterior (with IP65 or IP67 rated LED strip)
  • Material - Aluminium body, polycarbonate diffuser, AES plastic or aluminium end caps
  • Finish - Natural silver anodised or custom powder coat
  • Light source - LED ribbon strip
  • Power supply - 24V DC - remote driver options ranging from 6W up to 320W
  • Dimming - Various options available including DALI, o-10V, DMX please enquire
  • Mounting options - Surface mounted, recessed, rod suspended, wire suspended, wall mounted.
  • Features - New Zealand designed and made, Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser), Provides heat sinking for high wattage LED strips and Dust & grease protection.
  • Diffuser options - Opal polycarbonate and clear polycarbonate
