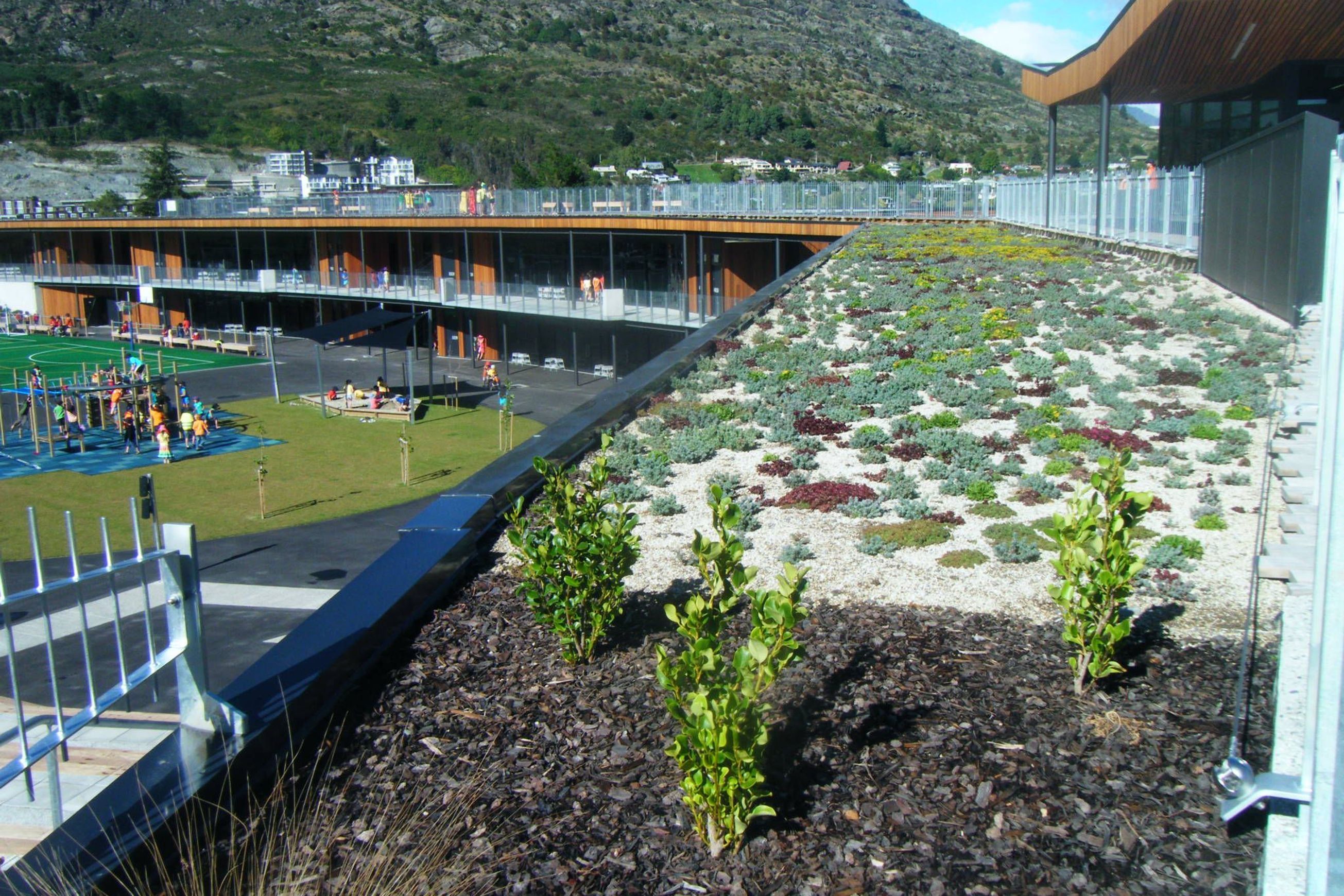

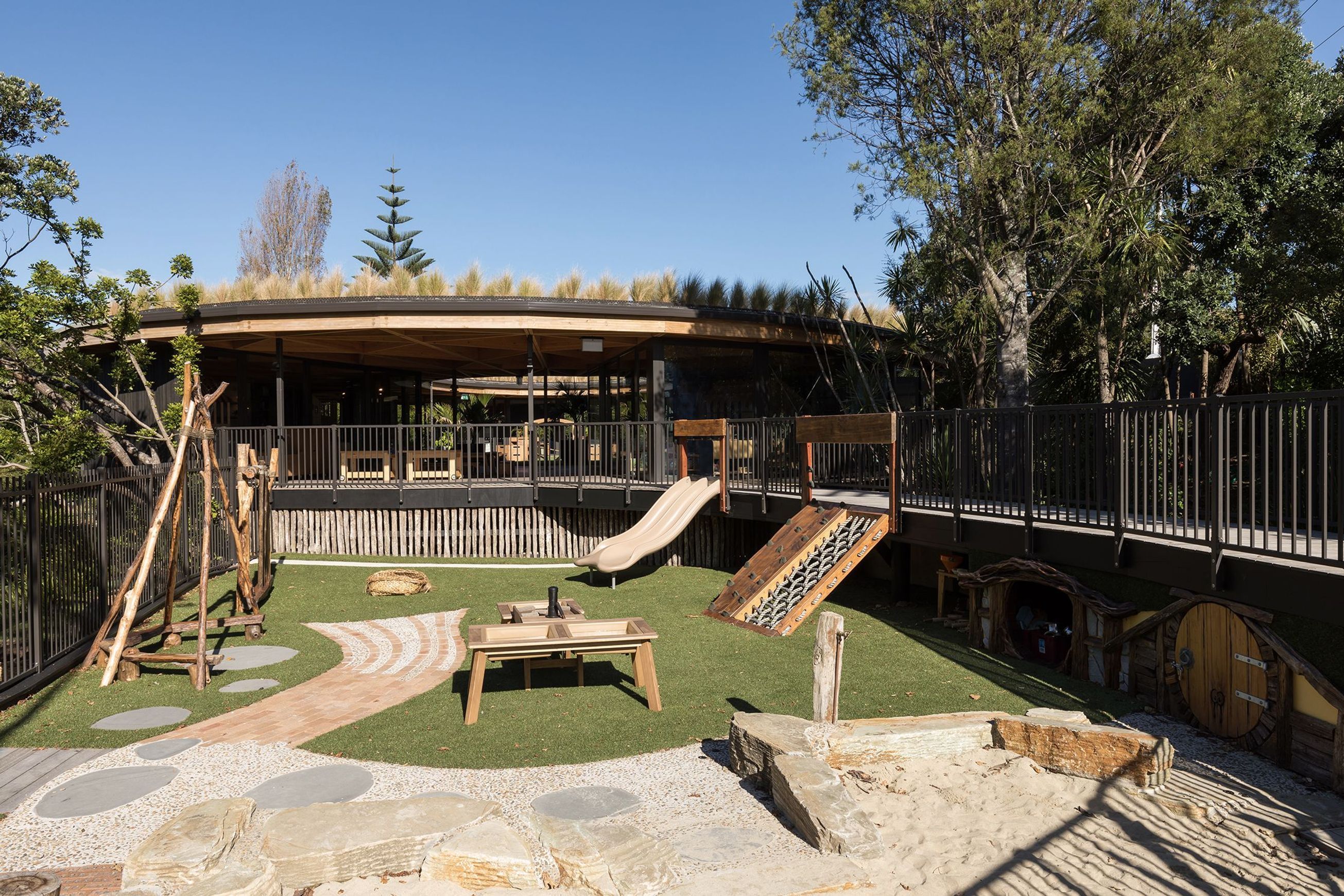

DUOTHERM Green Roof System

GW (Grey White)

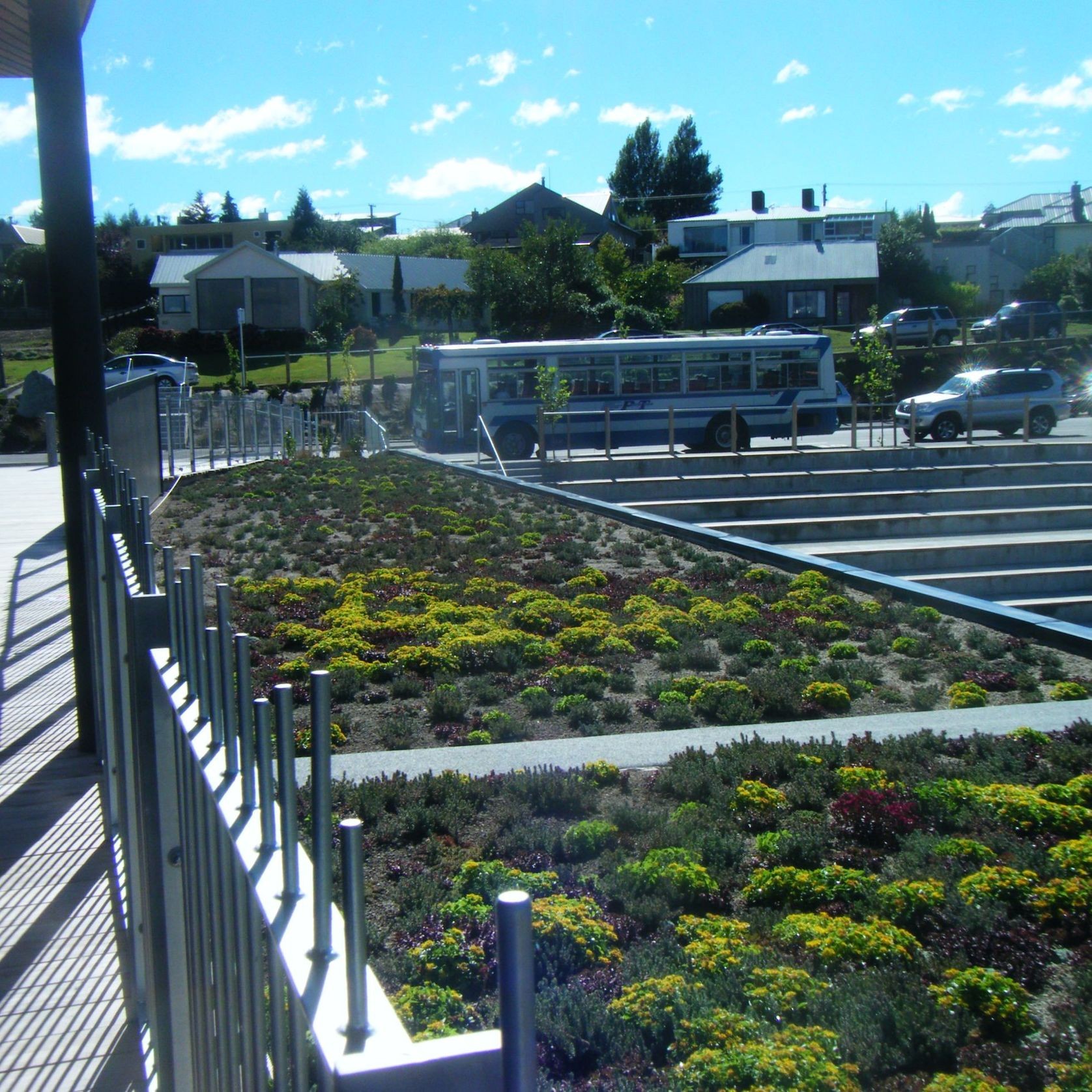

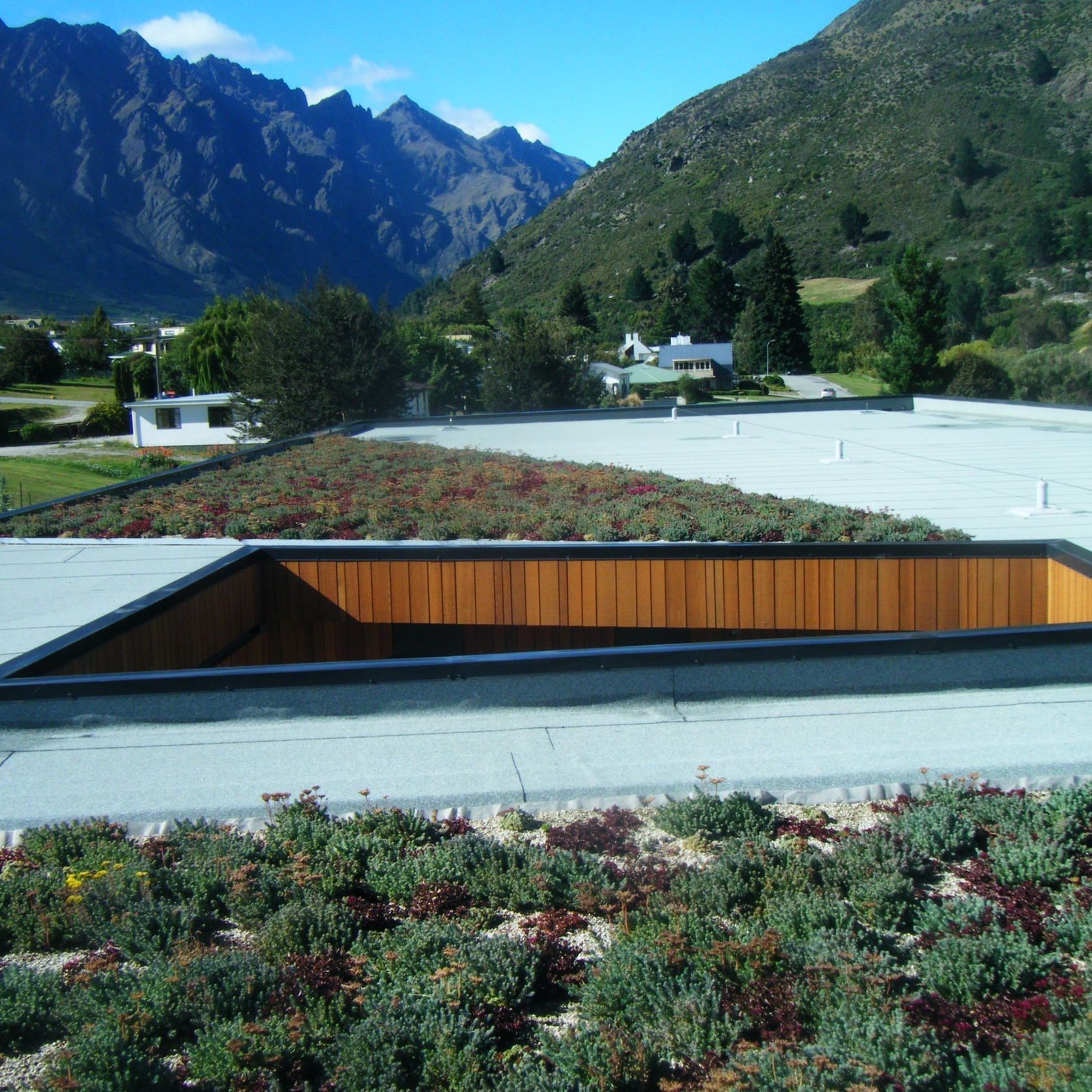

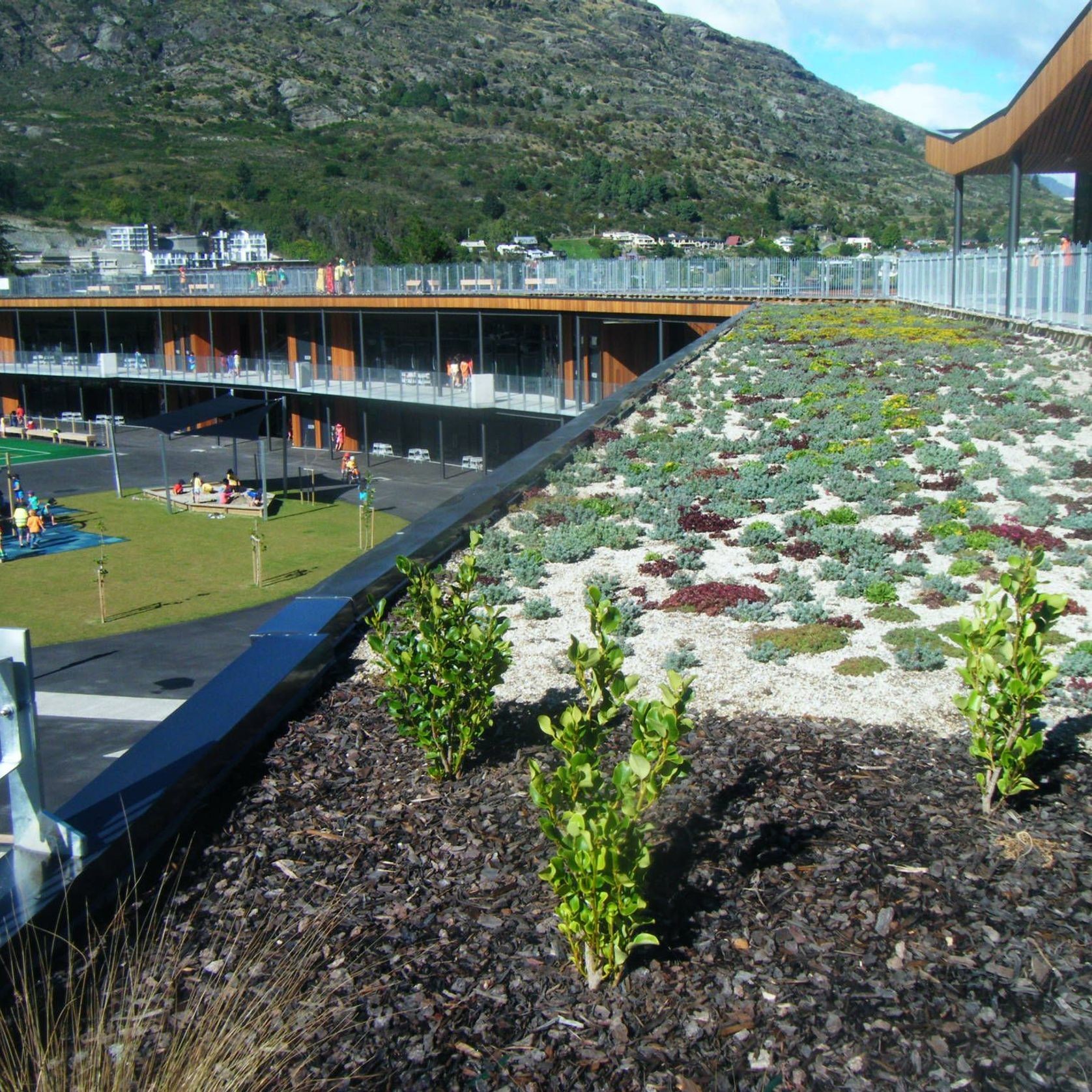

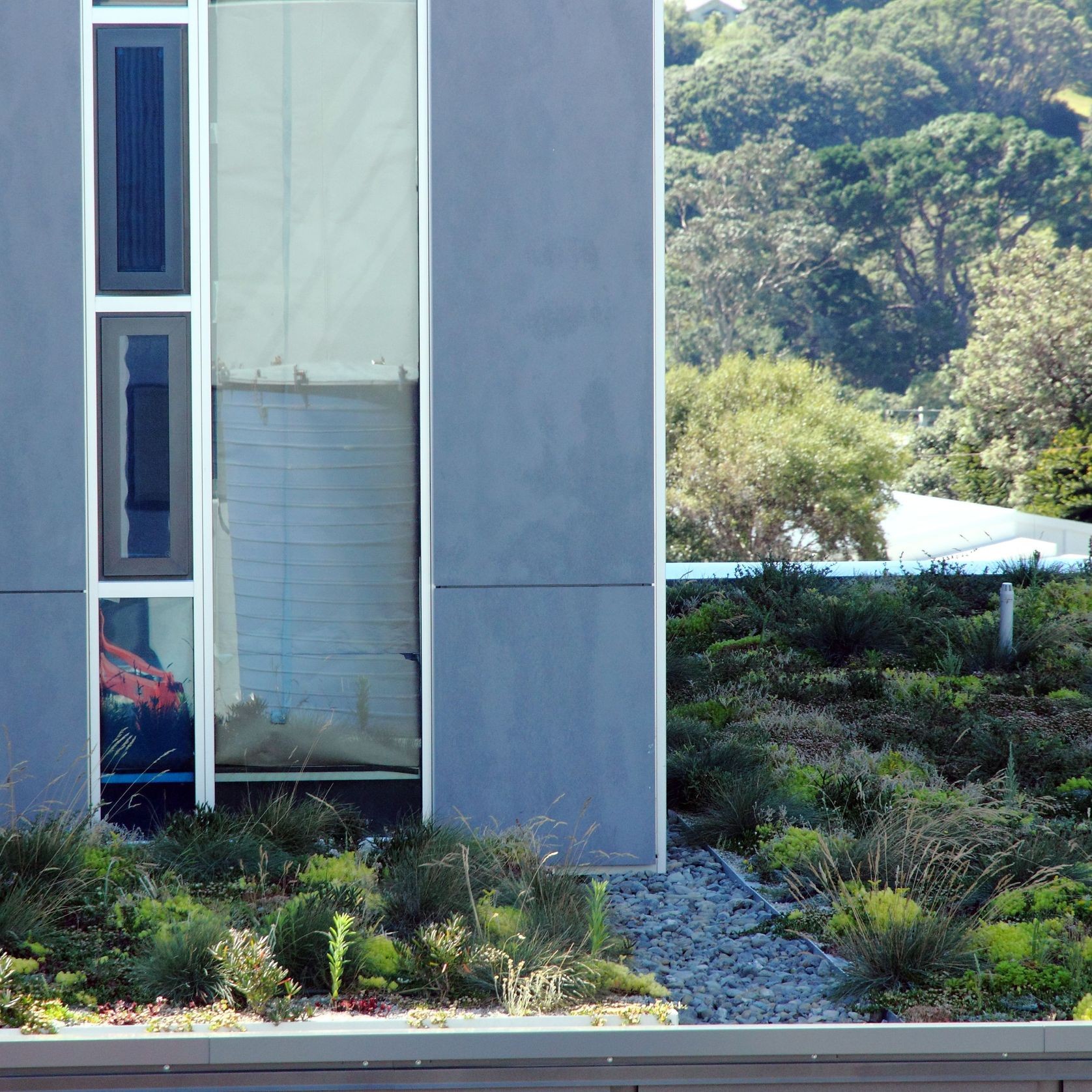

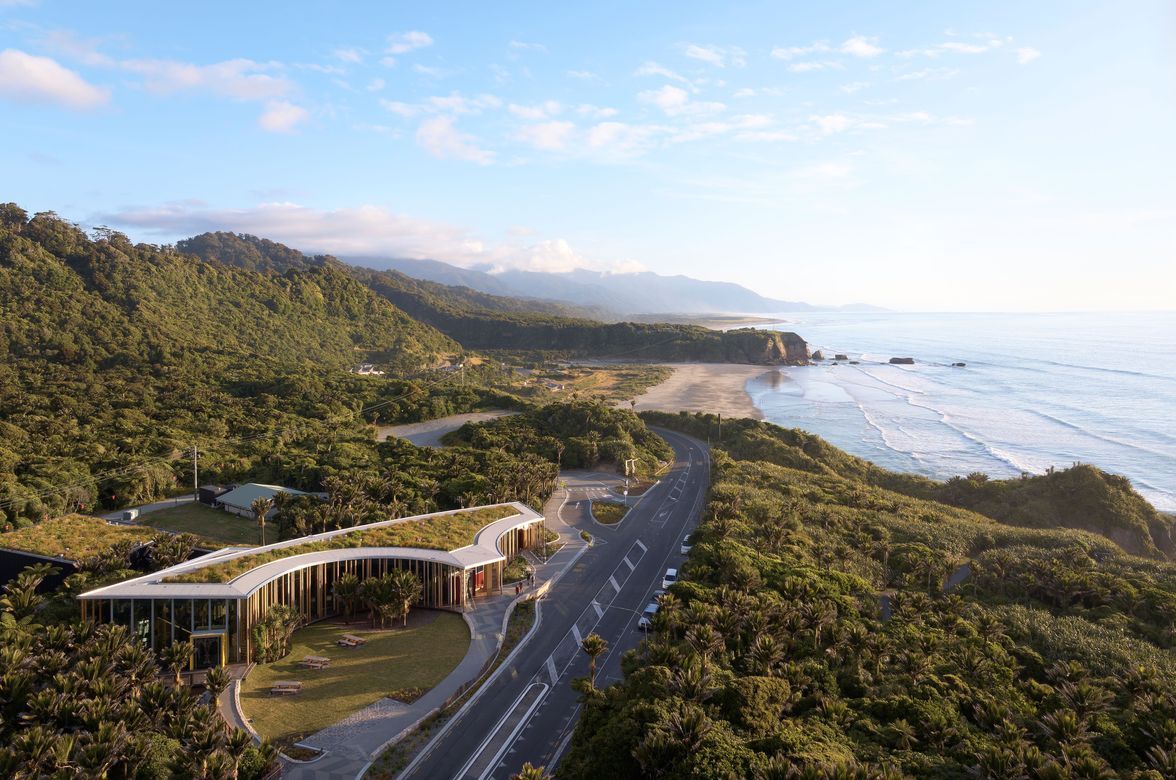

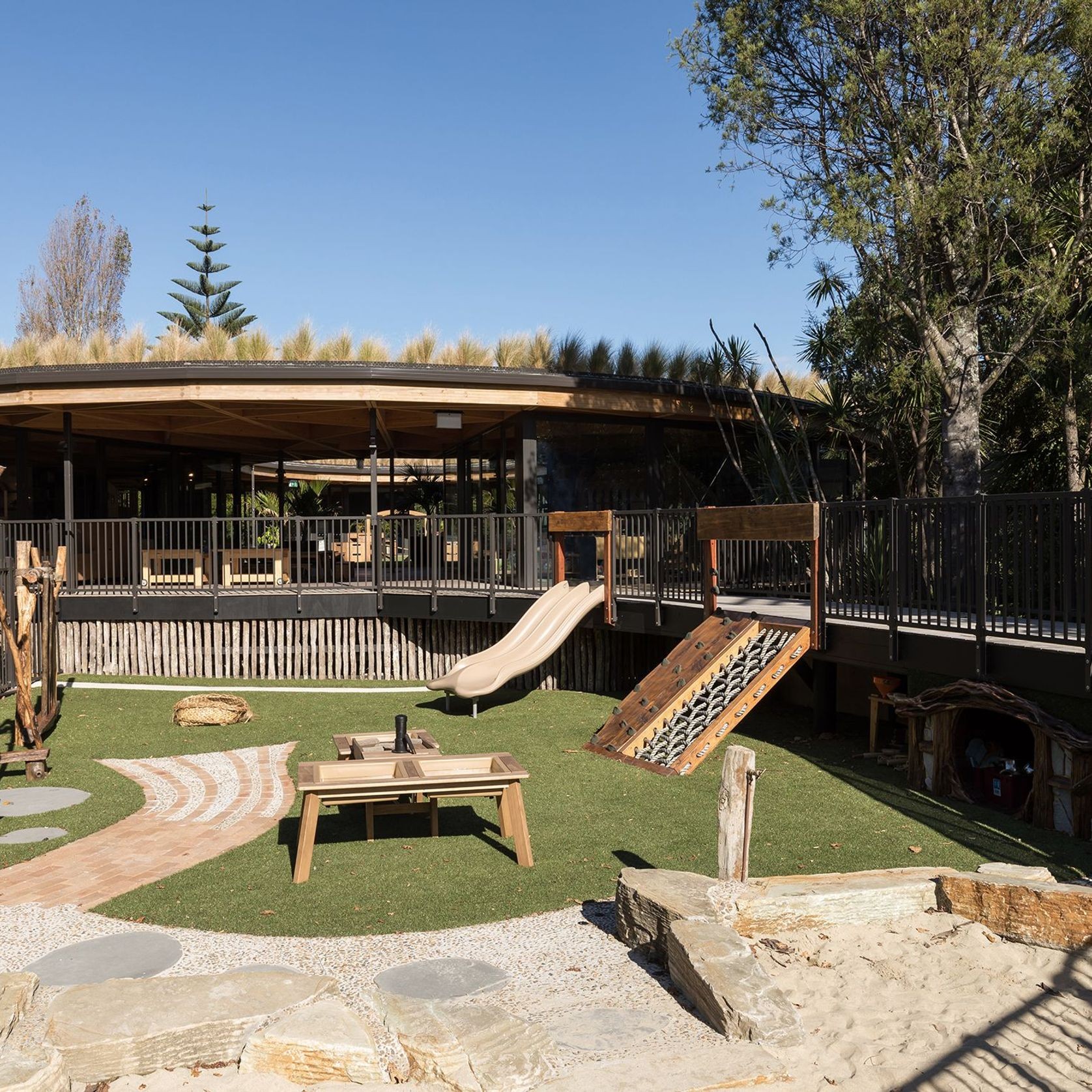

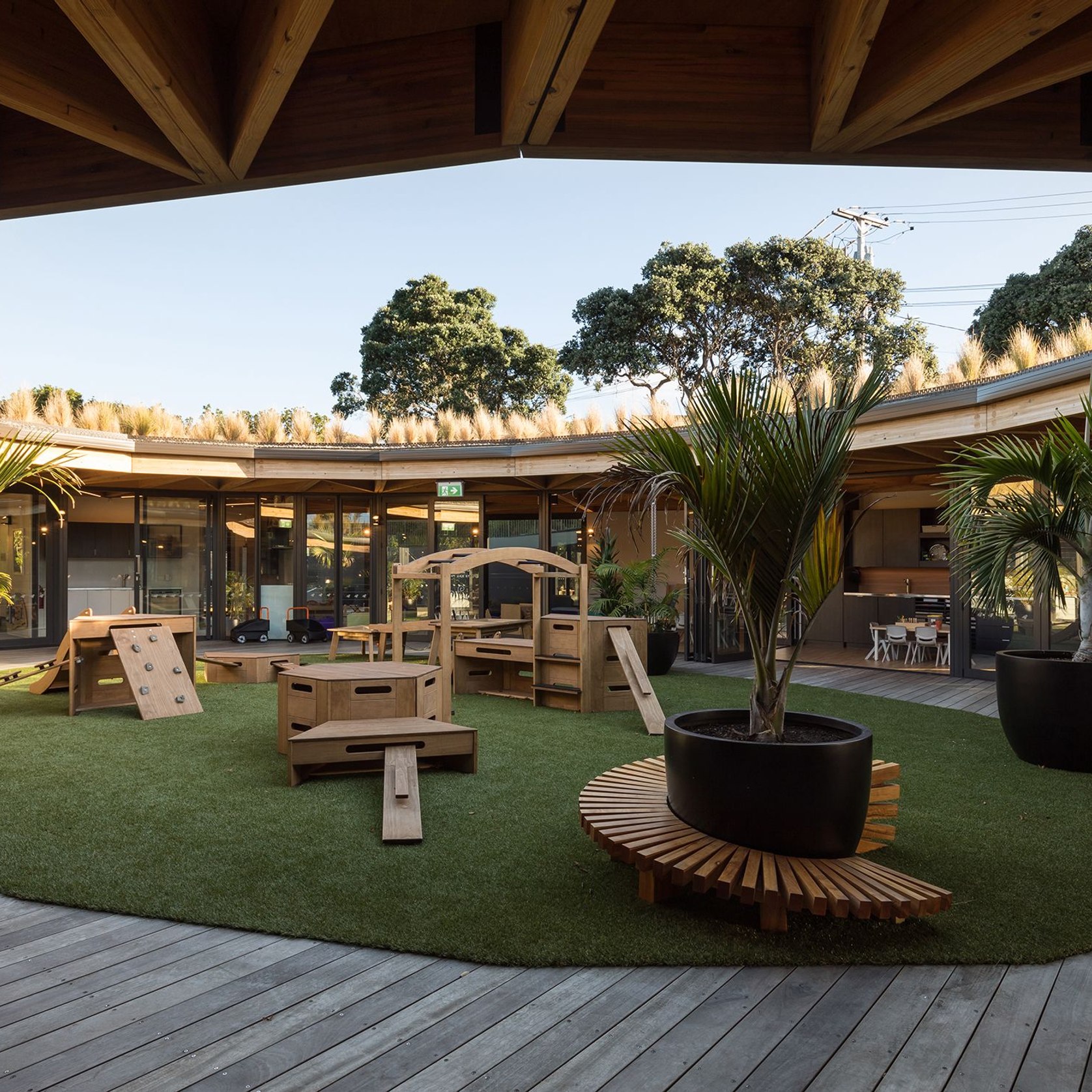

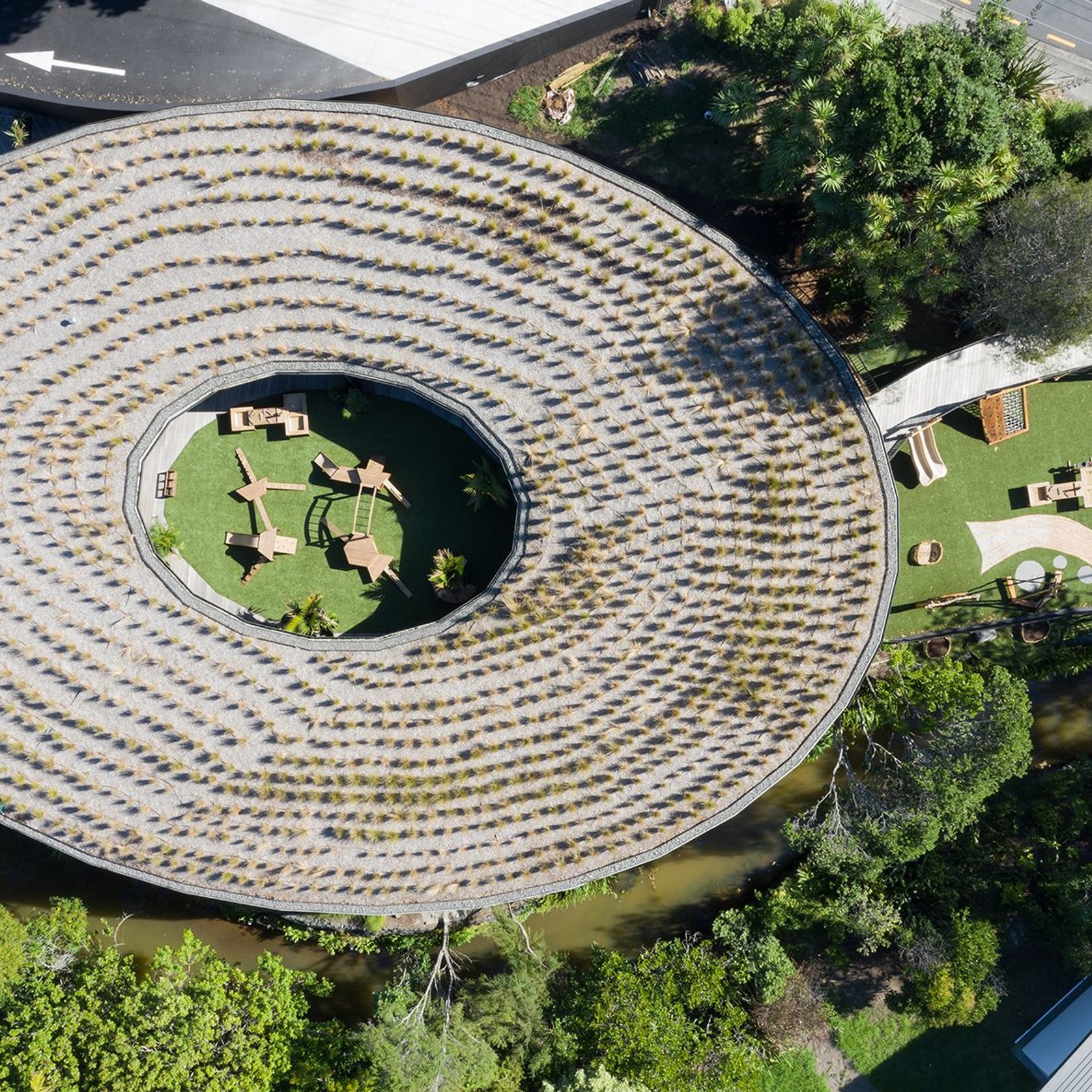

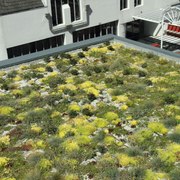

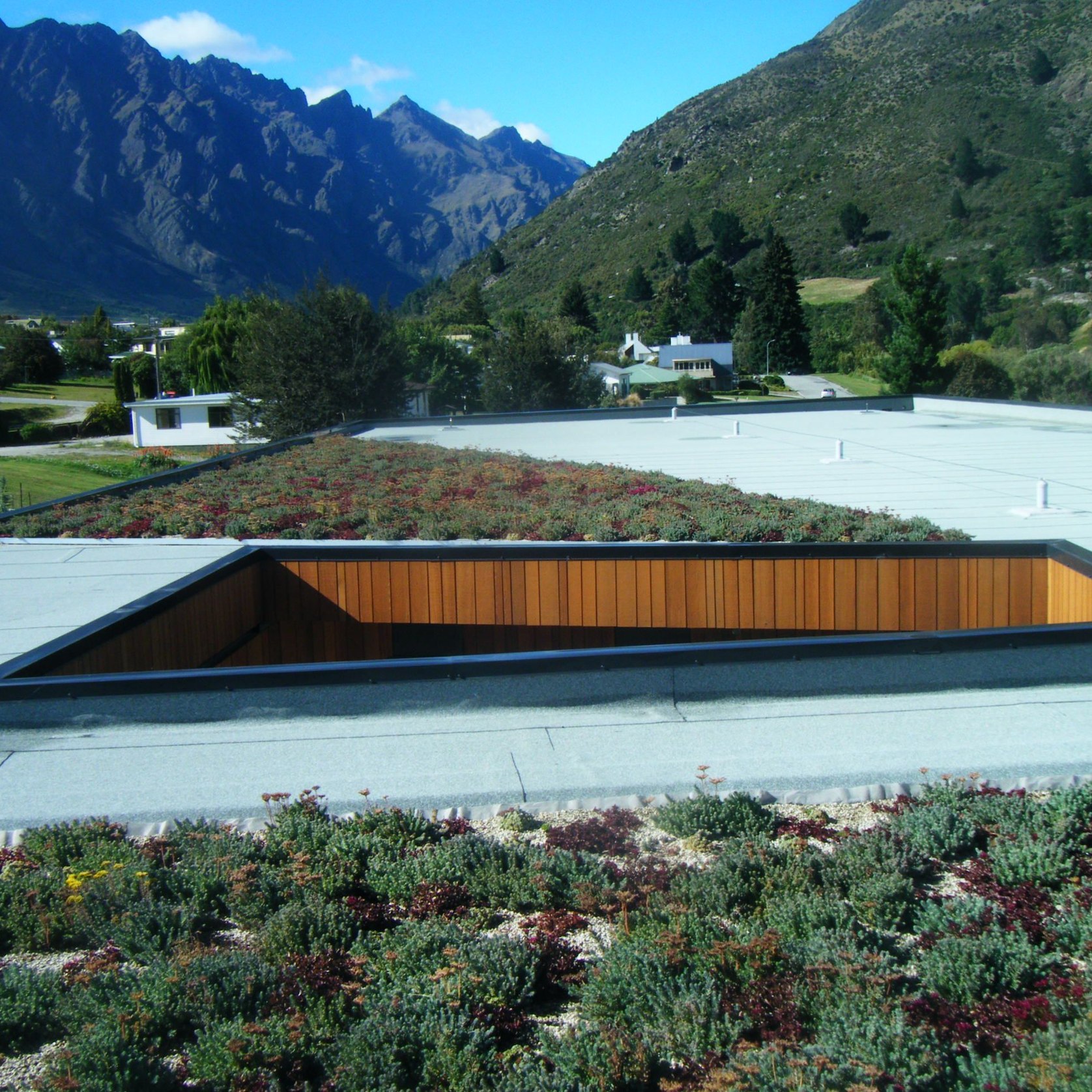

The EQUUS SOPREMA DUOTHERM Insulated Green Roof system encompasses a DUO two-layer waterproofing membrane, a vapour barrier, and thermal insulation with a growing medium to create an ecological and aesthetic system suitable for use on metal, concrete or plywood substrates.

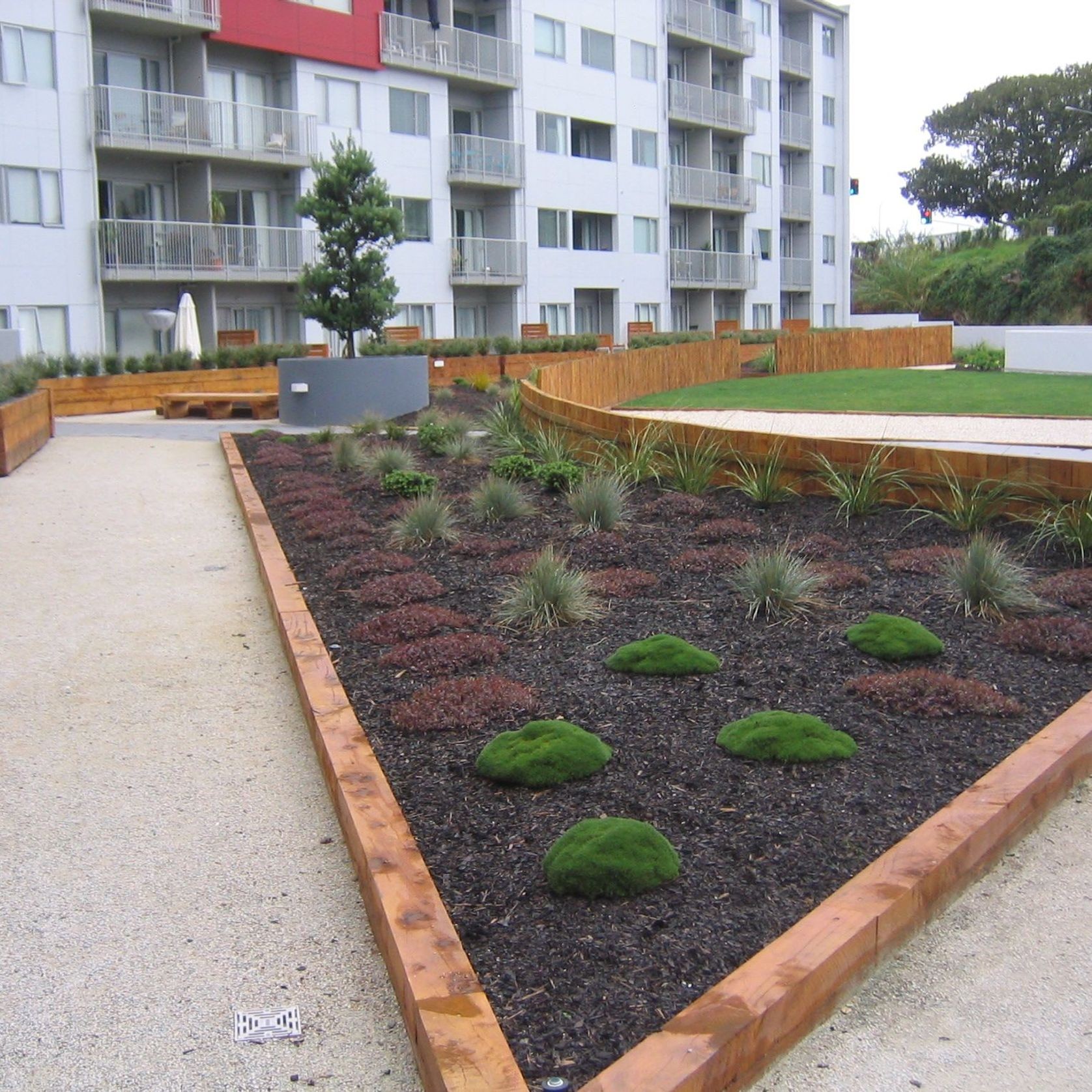

The system is ideal for roof gardens and/or similar situations including planter boxes and podium levels, however predominantly where soil overlays and plants and grass is to thrive. There are several benefits to having an Equus system for a green roof concept; the two layer waterproof membrane is formulated to be root resistant, the system provides thermal and sound insulation and provides a natural filter for rainwater.

  • CodeMark Certified System.
  • BRANZ Approved System.
  • Complies with the New Zealand Building Code.
  • Warranties available when used in conjunction with the correct specification and applied by an Equus Certified Applicator.

Why use a Green Roof?

  • Ecological and aesthetical roof concept
  • Thermal insulation
  • Sound insulation
  • Natural filter for rainwater (slow down effect in storm water release)
  • Additional protection of waterproofing
  • Increase in property value
  • Available in Intensive, Simple Intensive, and Extensive green roof systems

With a range of base sheets and cap sheets designed for different building requirements, DUOTHERM provides a customisable waterproofing solution that can be installed over plywood, concrete and metal substrates to form an efficient warm roof in any area of the country.

Details
  • Category
    Green Roofs, Torch-on Membranes, Warm Roofs
  • Range
    EQUUS SOPREMA
  • Brand
    SOPREMA
  • Warranty
    20 years
General
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
DUO - the superior waterproofing membrane
  • Fire retardant membrane
  • Over 90 years proven performance worldwide.

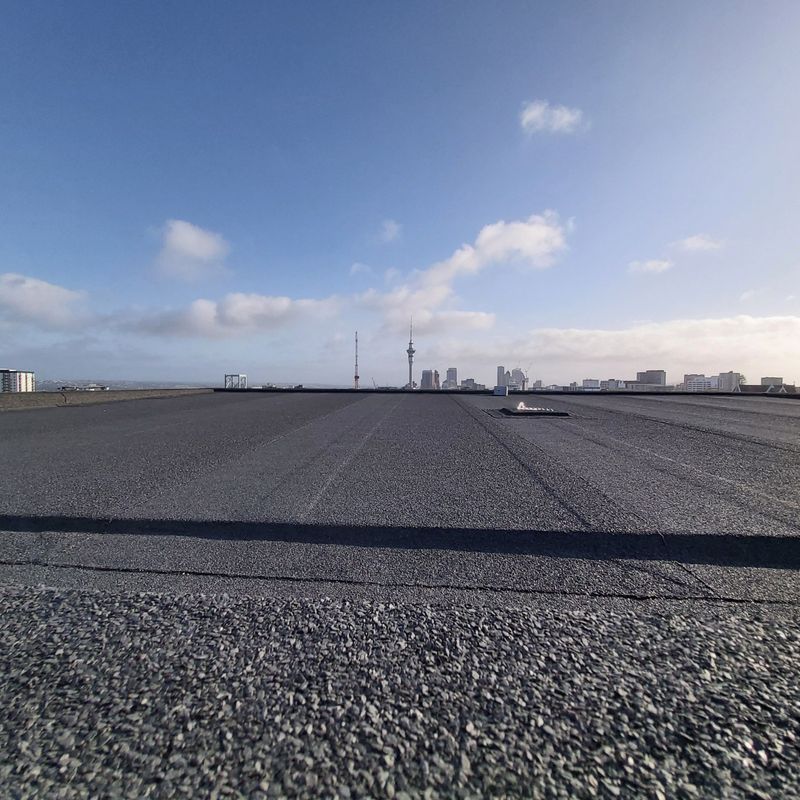

  • A high-tech, slate chip surface offering strong UV resistance and a tidy, aesthetic finish.
  • Excellent durability and easy maintenance.
  • Life expectancy of at least 35 years in all New Zealand climates.
Why choose a warm roof?
  • Specific project design with condensation risk analysis (CRA) and wind load calculations to ensure the best system available for the buildings requirements.
  • Condensation Control – A warm roof moves the dew point to the outside of the structure, ensuring there is no condensation build up in the ceiling cavity.
  • No condensation build up negates the need for mechanical venting, causing less penetrations in the membrane.
  • Energy Cost savings are maximized with less need for heating or cooling throughout the building.
  • Creates more space within the ceiling for services.
  • Light-weight system, strong and flexible for resistance to seismic movement.
EQUUS SOPREMA Technical Support:
  • Project specific specifications and details.
  • Condensation risk analysis for warm roof systems.
  • Wind uplift study for warm roof systems
  • On-site quality assurance
  • Nationwide network of Certified Applicators
  • Warranties available
