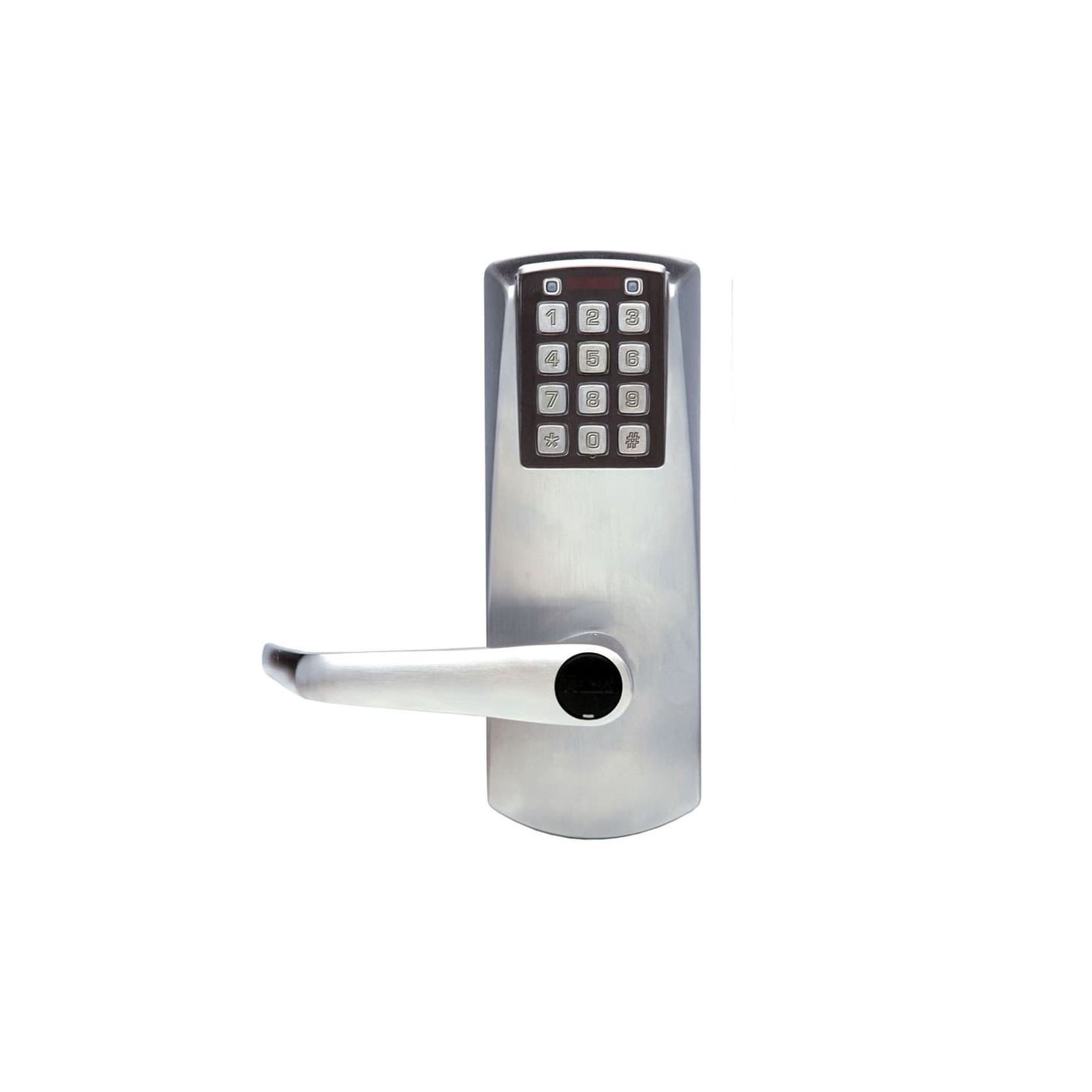

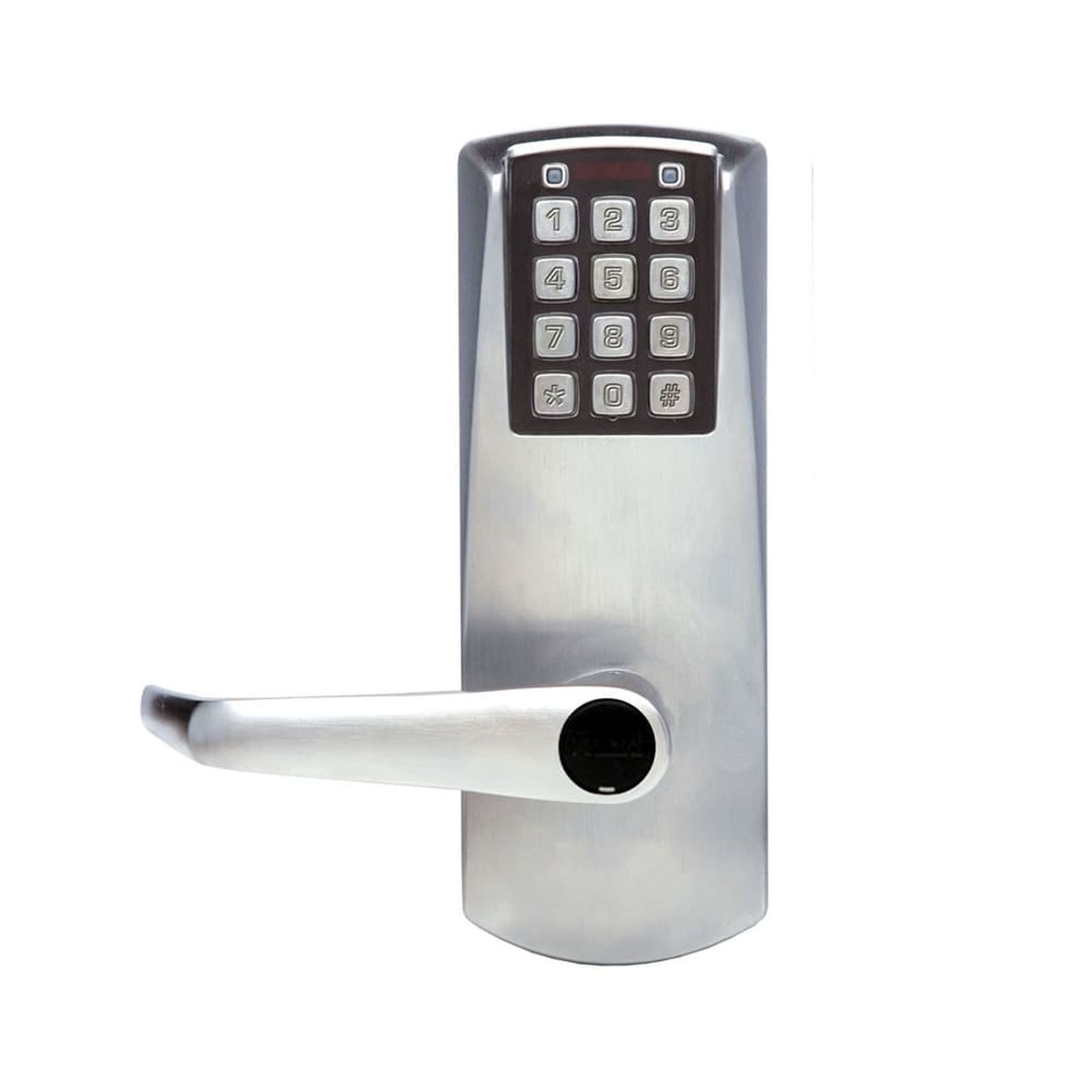

E-Plex 2000 Series Electronic Door Lock

The E-Plex 2000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes and is programmed via the keypad or with optional Microsoft Excel-based software.

Product Details

No Wires:

• Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks

Locking Device Options:

• Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
• Rim Exit Device: Compatible with most leading brands of Exit Devices (Exit Device and mounting hardware not included)
• American Standard Mortise: With 1¼" (32 mm) face plate; with and without deadbolt, auto deadbolt also available

Number of Codes:

• Multiple Users—100 Codes

Handing:

• Non-handed; pre-assembled for left-hand door installations—easily changed in the field

Audit Trail:

• The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.

Programming:

• Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software

Key Override (Optional):

• Optional Key-in-Lever cylinder in Schlage "C" Keyway with black cap
• Small format—Best and equivalent (6 or 7-pin length)

Operation Modes:

• PIN access
• Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
• Lockout

Authority Levels:

• Five different levels allow who has access to specific lock functions, including:

Master Level

• — performs all set-up and programming functions

Manager Level

• — administers common programming functions

Access User Level

• — entry granted with valid PIN

Service Level

• — codes for single event or single day access, programmable in advance

Maintenance Level

• — no access is granted, information can be uploaded/downloaded to/from the lock

User Parameters:

• User Parameters: Code length—adjustable to accept 4 to 8 digits
• Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Re-lock time—adjustable from 2 to 20 seconds

Exit Device Compatibility:

• Find a list of compatible exit devices in the Electronic Lock price book
• Material Length [mm] / Usable length [mm] / Key bow Option code
• User double-bitted keys, nickel-plated
• High-strength brass 160 / 105 / Oval / DSS160
• High-strength brass 100-360 45-305 Oval DSSxxx

Technical Details

• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  - Cylindririm Model:cal: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
  - Mortise: 2¾" (70 mm) backset
  - Exit T Varies by Exit Device

Latches:

• Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)

Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike

Minimum Stile Required: 5" (127 mm)

Key-in-Lever Cylinder: 1539 6-pin cylinder—Schlage "C" Keyway

Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included

Door Preparation:

• Cylindrical and Exit Trim—ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)
• Mortise—ASA 86 door preparation with three additional through bore holes

Door Thickness:

• Cylindrical Model: 1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)
• Exit Trim and Mortise Models: 1¾" (44 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1¾" (44 mm) to 2⅛" (54 mm)

Accessibility Standard: Americans with Disabilities Act (ADA)

Fire Rating: UL 10C fire rated

Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)

Environmental: Indoor/Outdoor approved; -31 °F (-35 °C) to 151 °F (66 °C)

Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory

Standard Finishes:

• Satin Chrome 26D (626) housings and levers

Optional Finishes:

• Satin Brass 04 (606) housings and levers
• Dark Bronze 744 (10B) housings and levers
