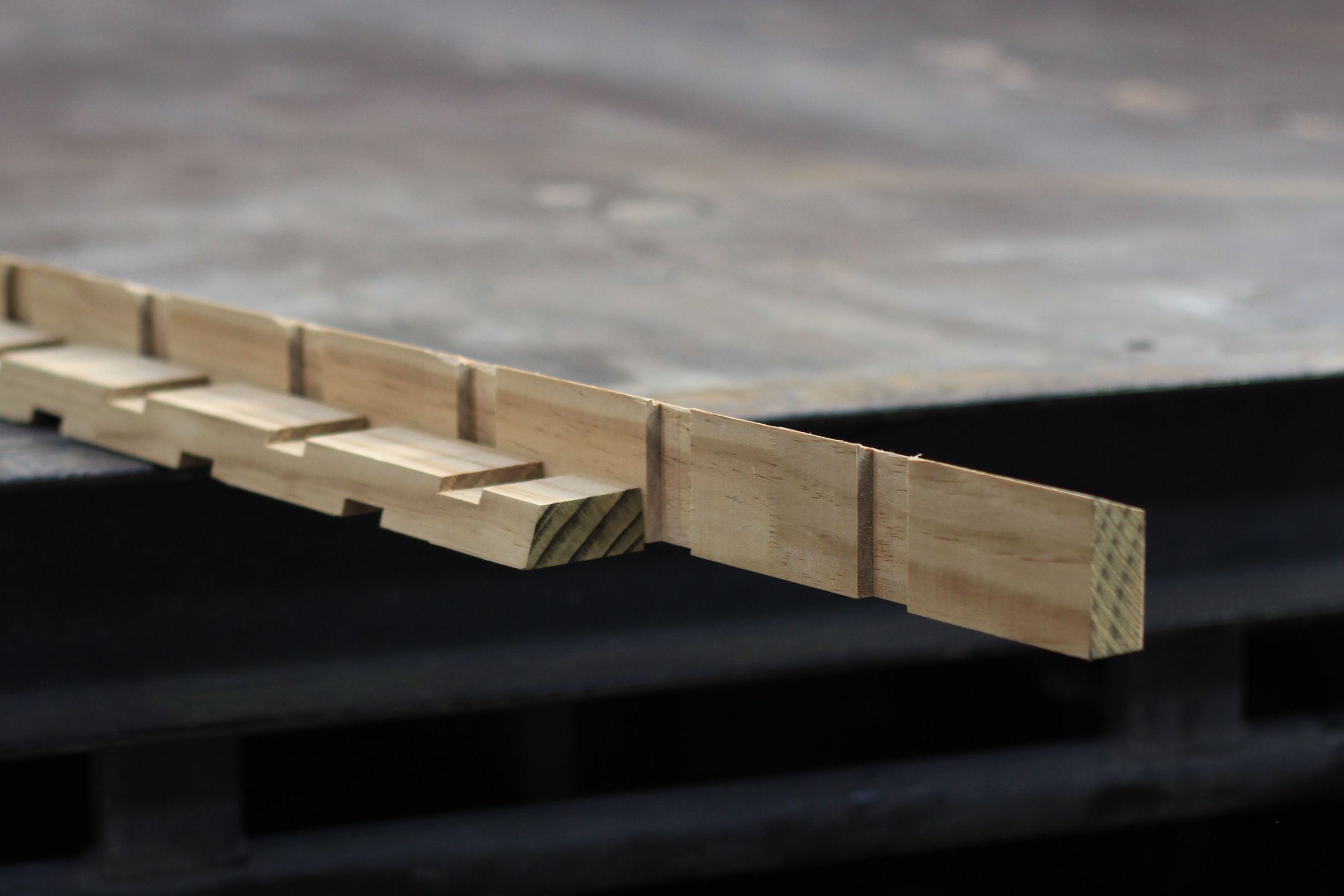

EB3 Castellated Timber Cavity Batten

The EB3 EzyBatten Castellated Timber Horizontal Cavity Batten is manufactured by Ezyscribe from quality NZ milled Radiata Pine, the products are proudly NZ made.

Ezyscribe Castellated Timber Cavity Battens create ventilation in a wall cavity, these can be used in a wide range of applications including residential and commercial pre-cladding and facade use.

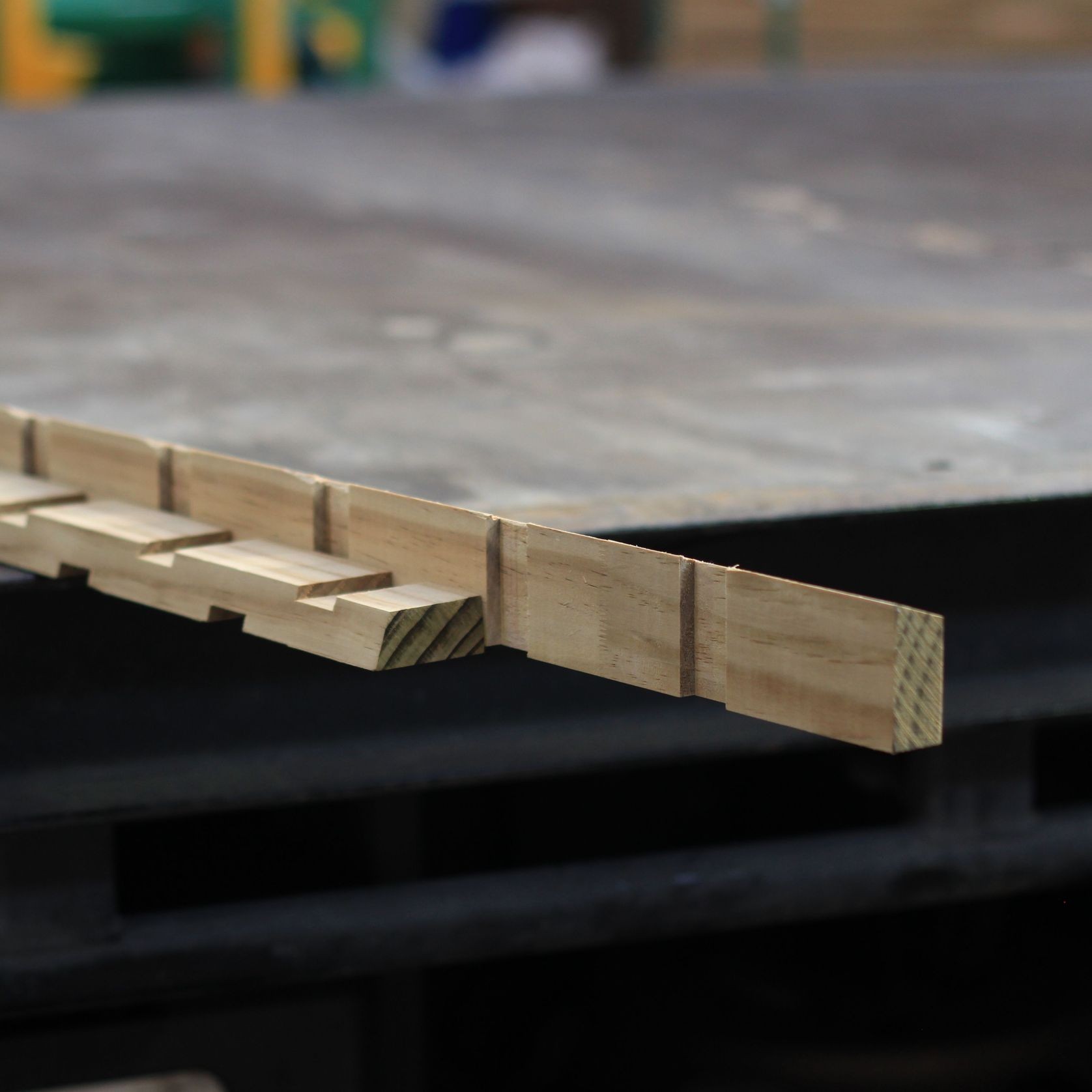

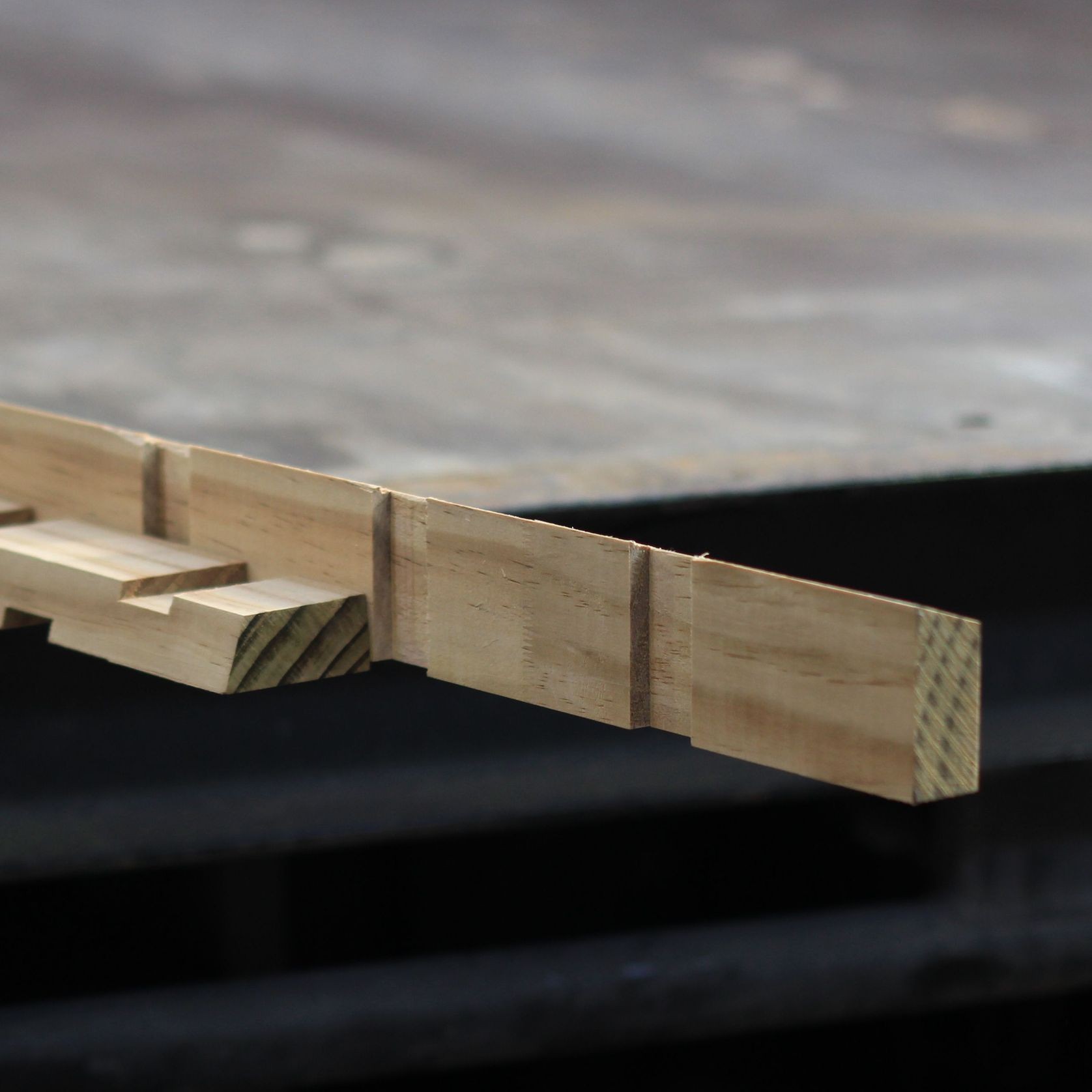

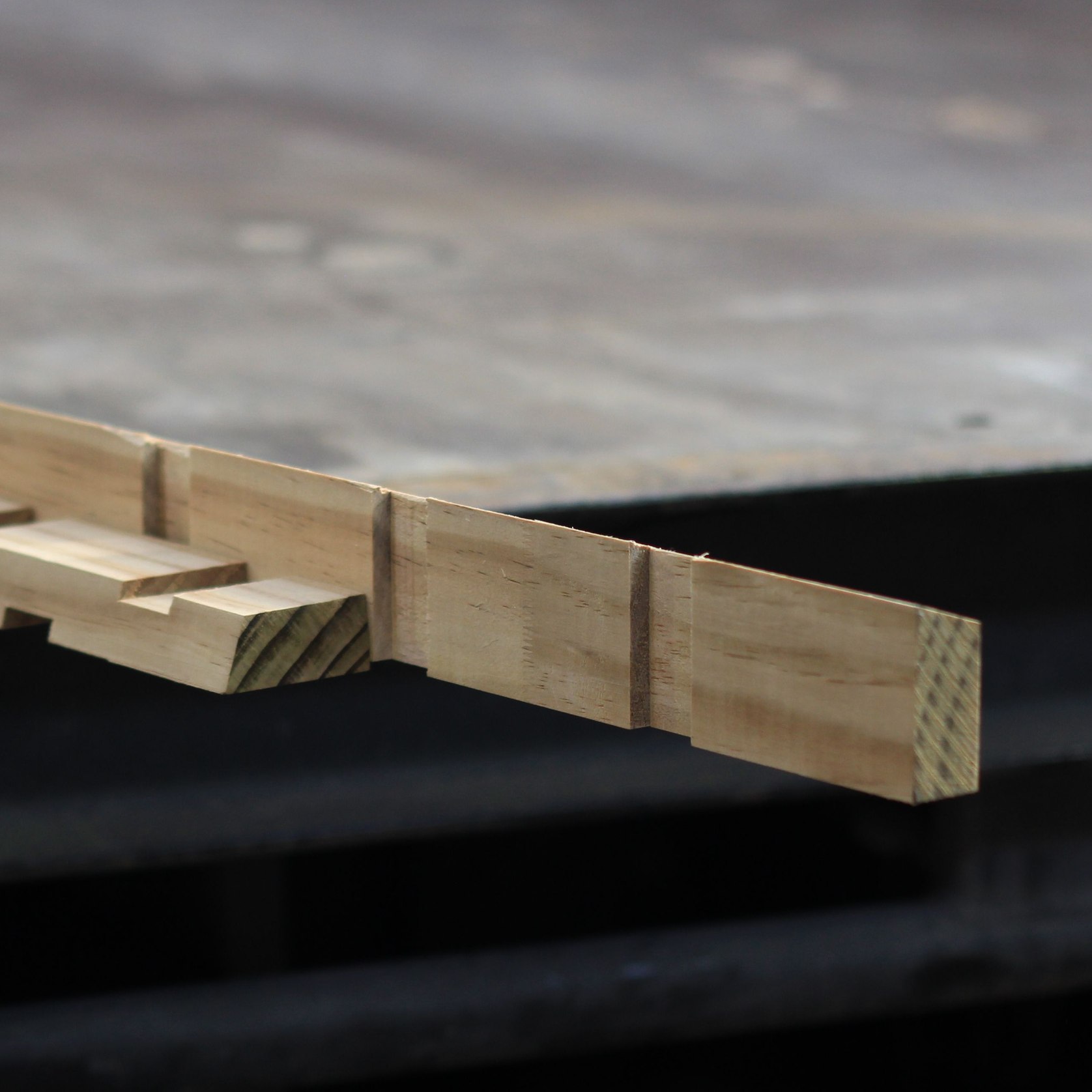

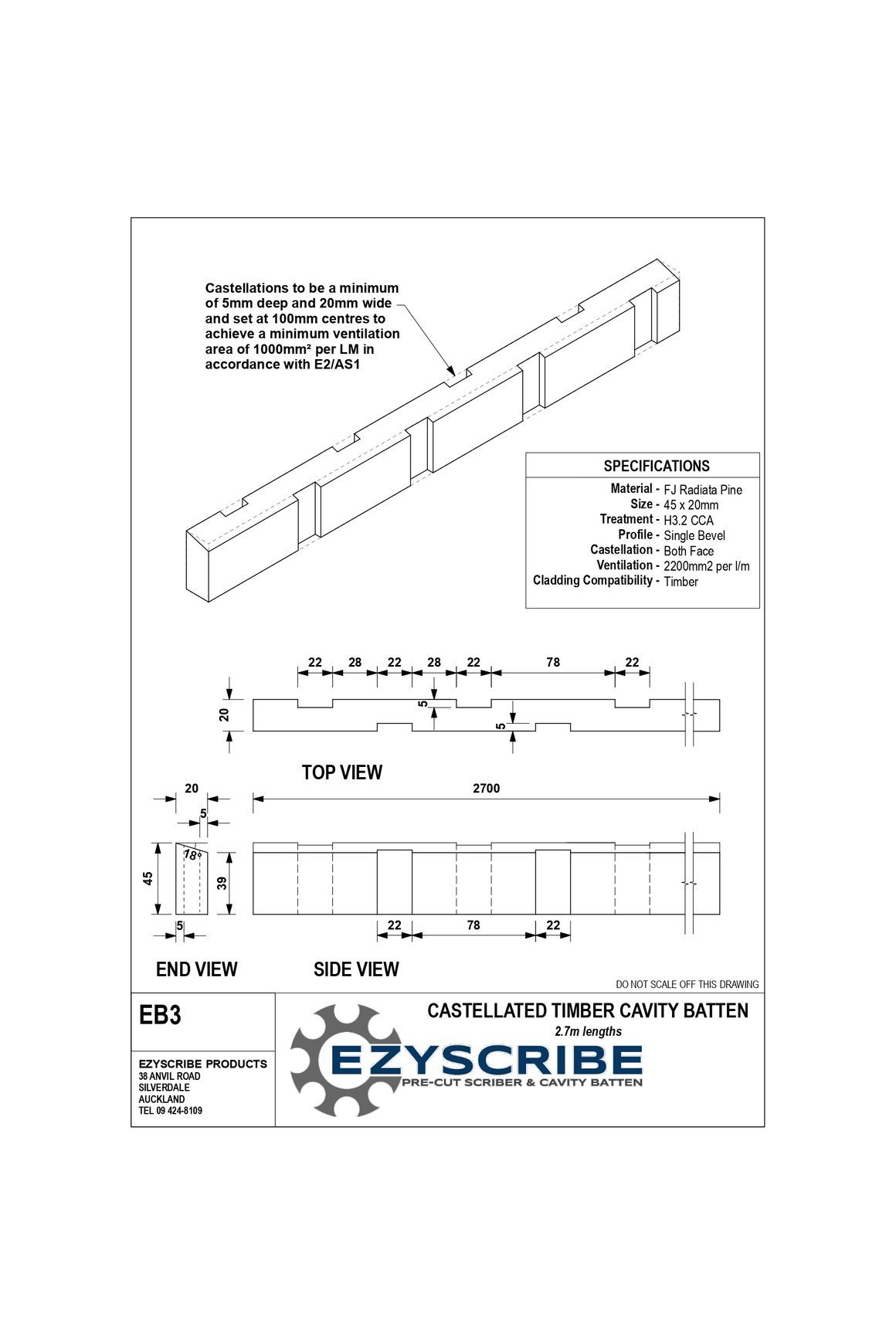

The EB3 Castellated Timber Cavity Batten comes H3.2 treated and Kiln dried, with a single bevel profile. The EB3 has Both Face castellation and is compatible with timber weatherboards.

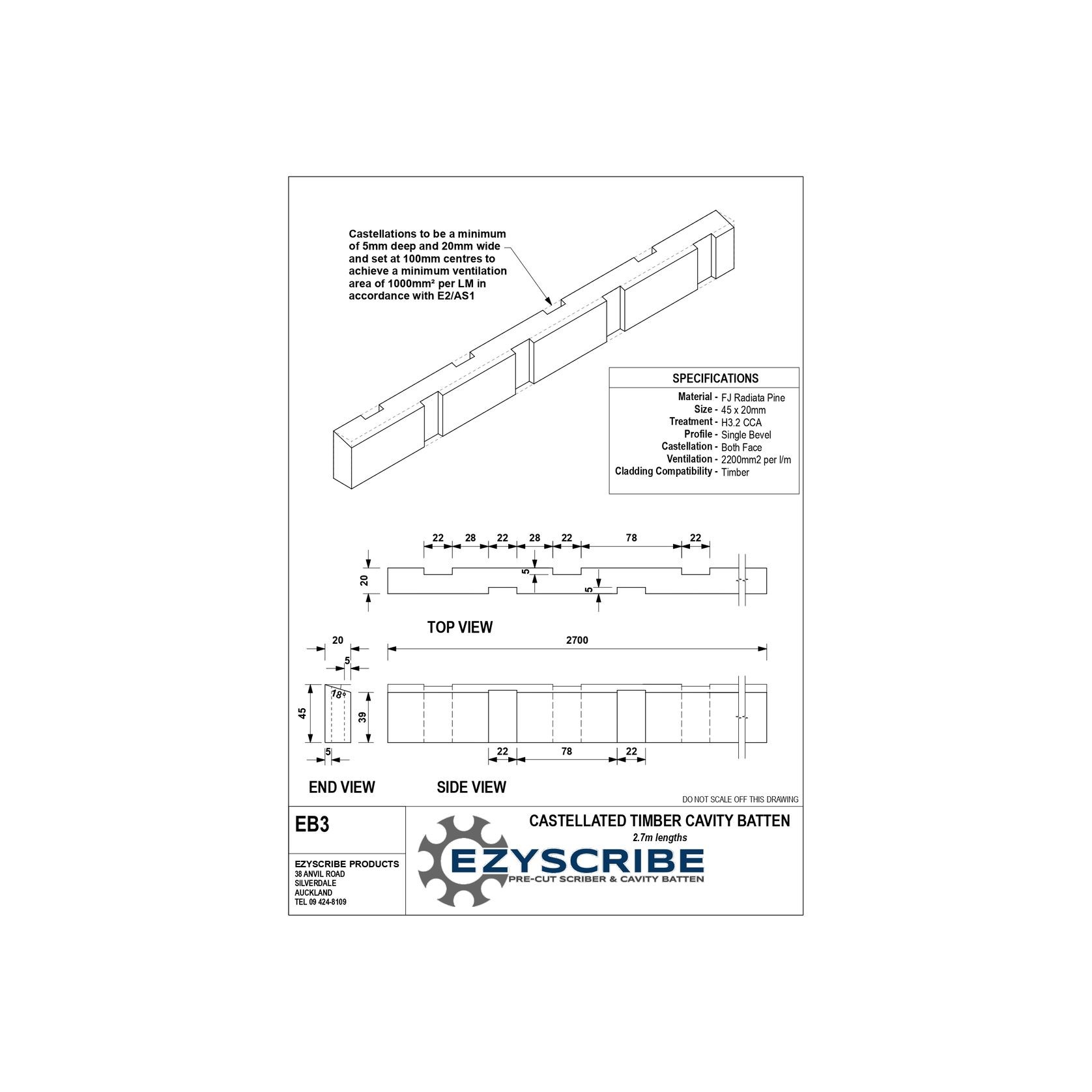

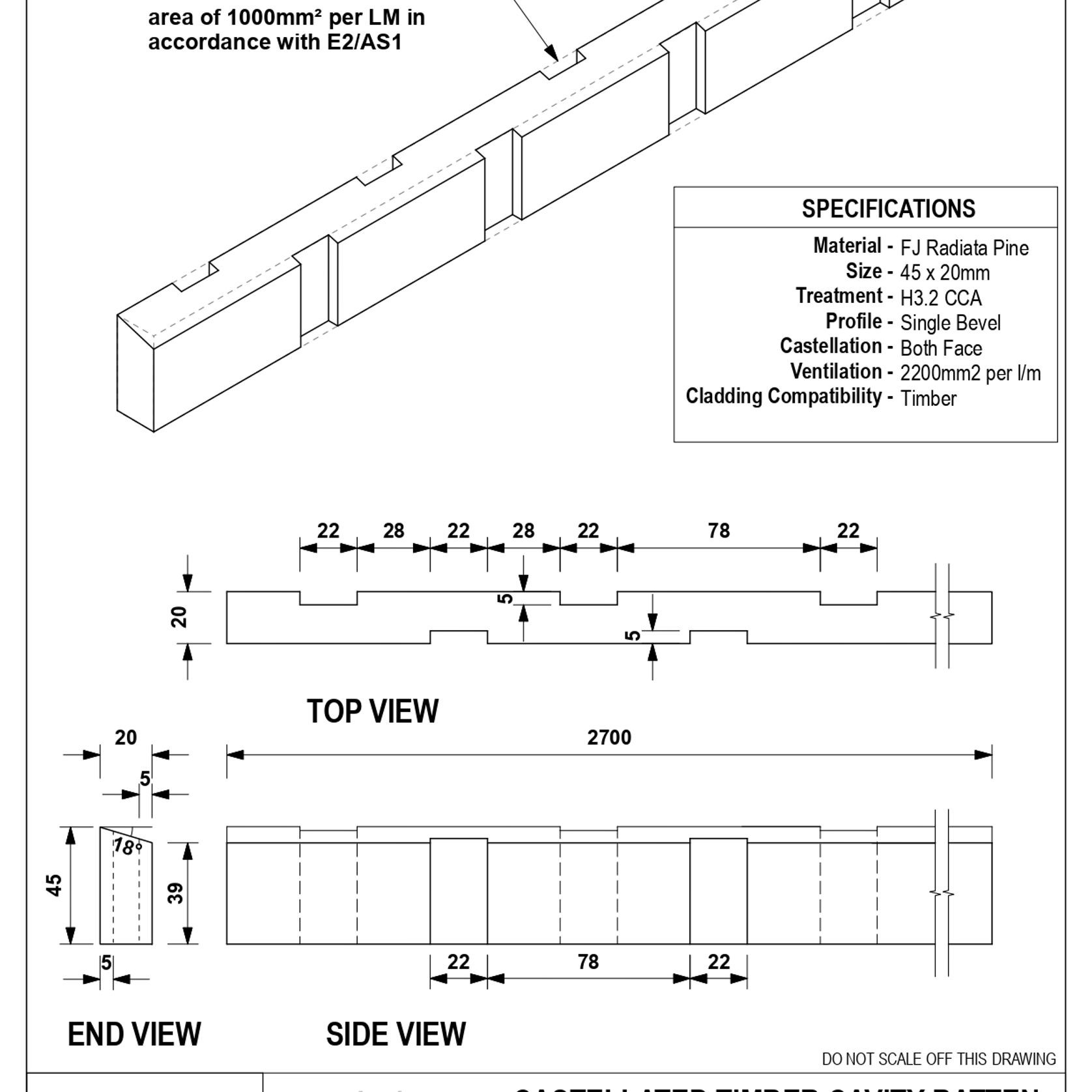

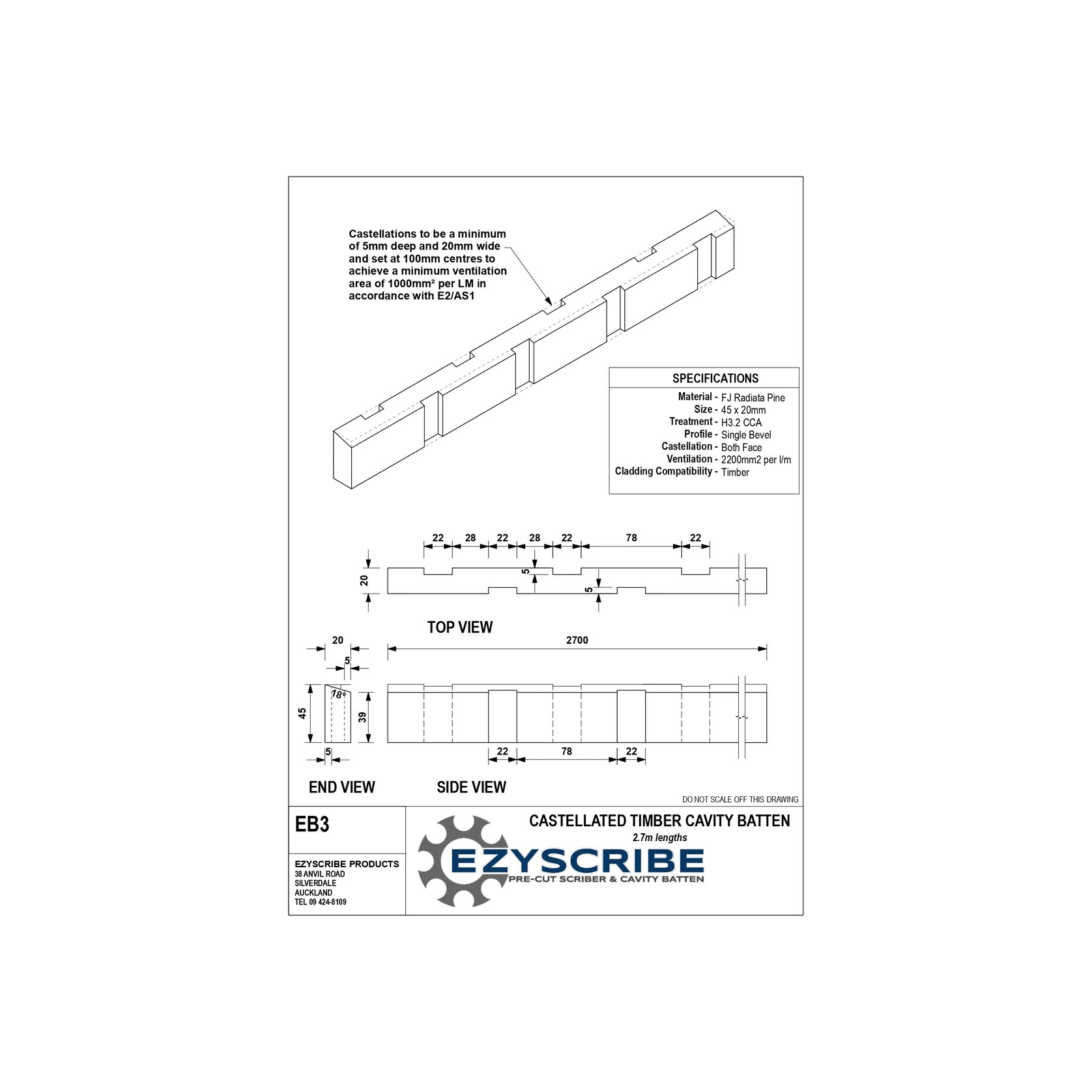

Castellations to be a minimum of 5mm deep and 20mm wide and set at 100mm centres to achieve a minimum ventilation area of 2000mm2 per LM.

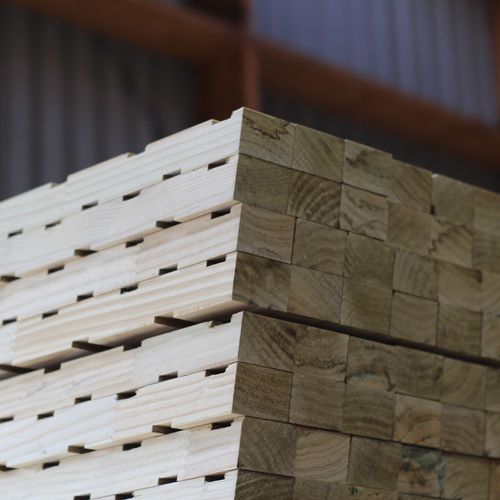

Ezyscribe supplies an EB3 castellated Timber Cavity Batten in 45x20mm, in bundles of 20 x 2.7m lengths. For customers convenience, Ezyscribe like to hold stock to allow for same or next day delivery where possible.

Ezyscribe provides a range of EzyBatten Horizontal Castellated Timber Cavity Battens including EB1, EB1MP, EB2, EB3MP, EB4, EB4MP, EB5, EB6, EB7, EB8, EB9 and EB10.

Ezyscribe can also cut to customers' specifications if a custom solution is required and encourage direct enquiries.
