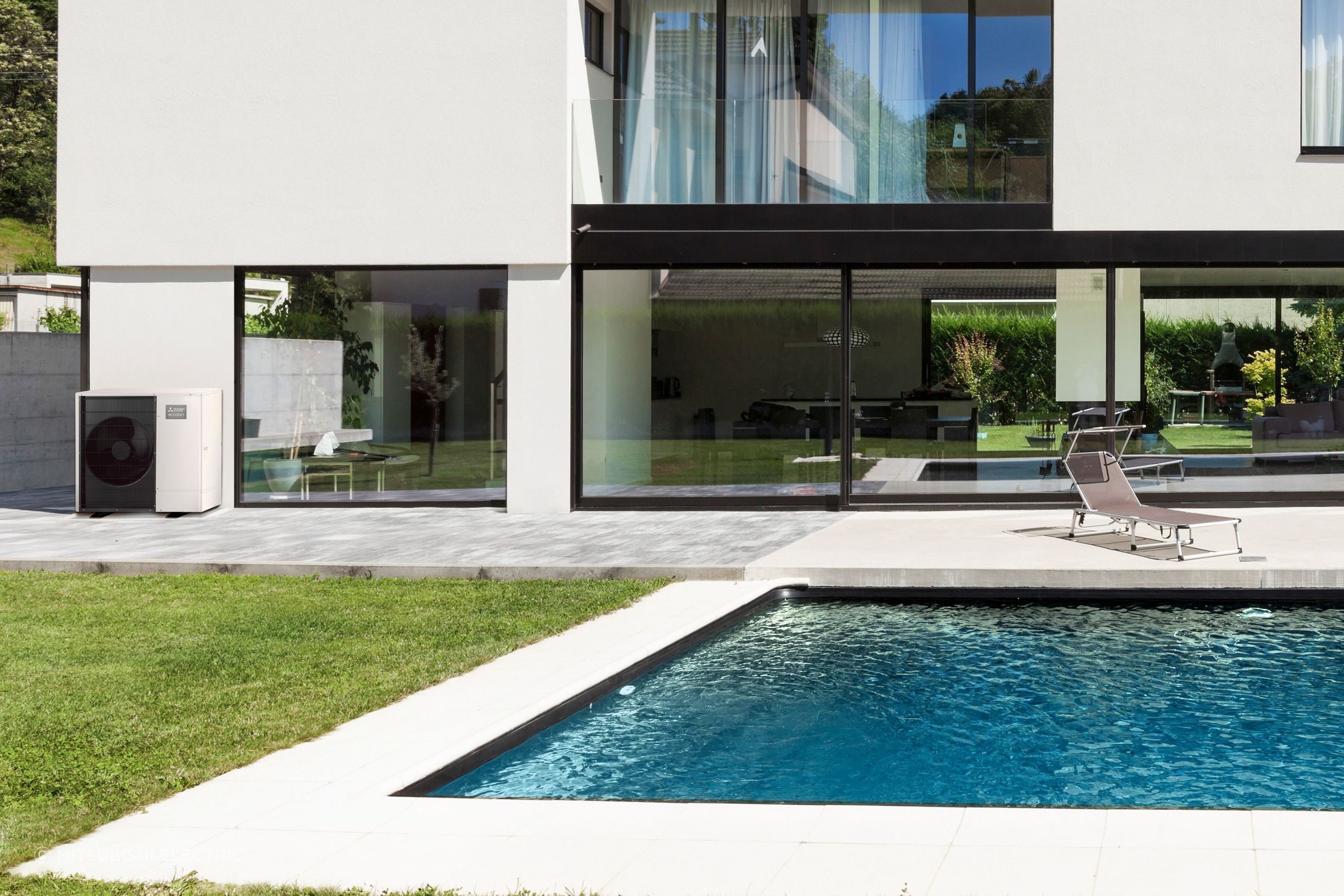

Ecodan for Swimming and Spa Pools

Mitsubishi Electric Ecodan Heat Pumps provide highly efficient hot water to swimming pools and spas.

Specs

Heating capacities available from 8kW - 23kW

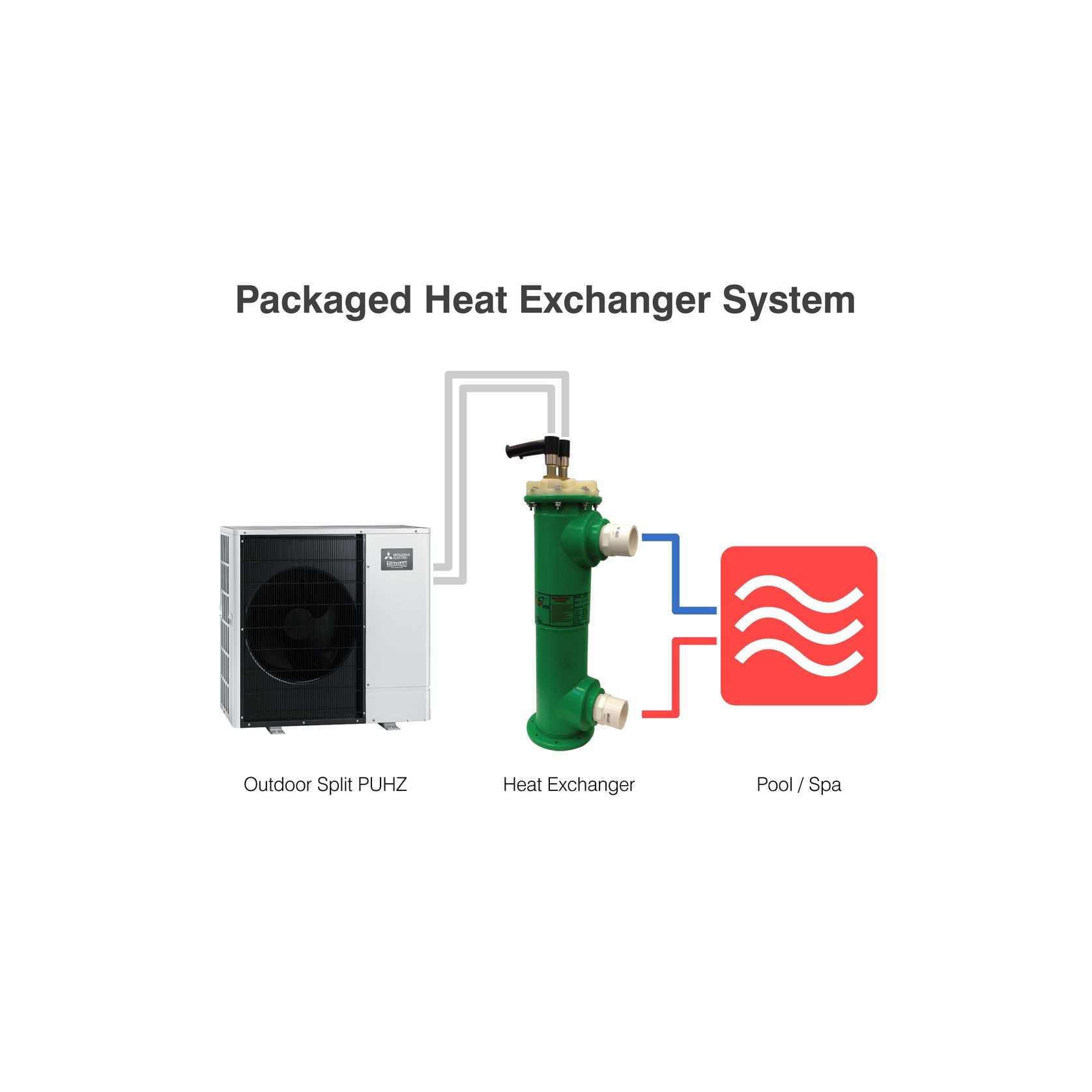

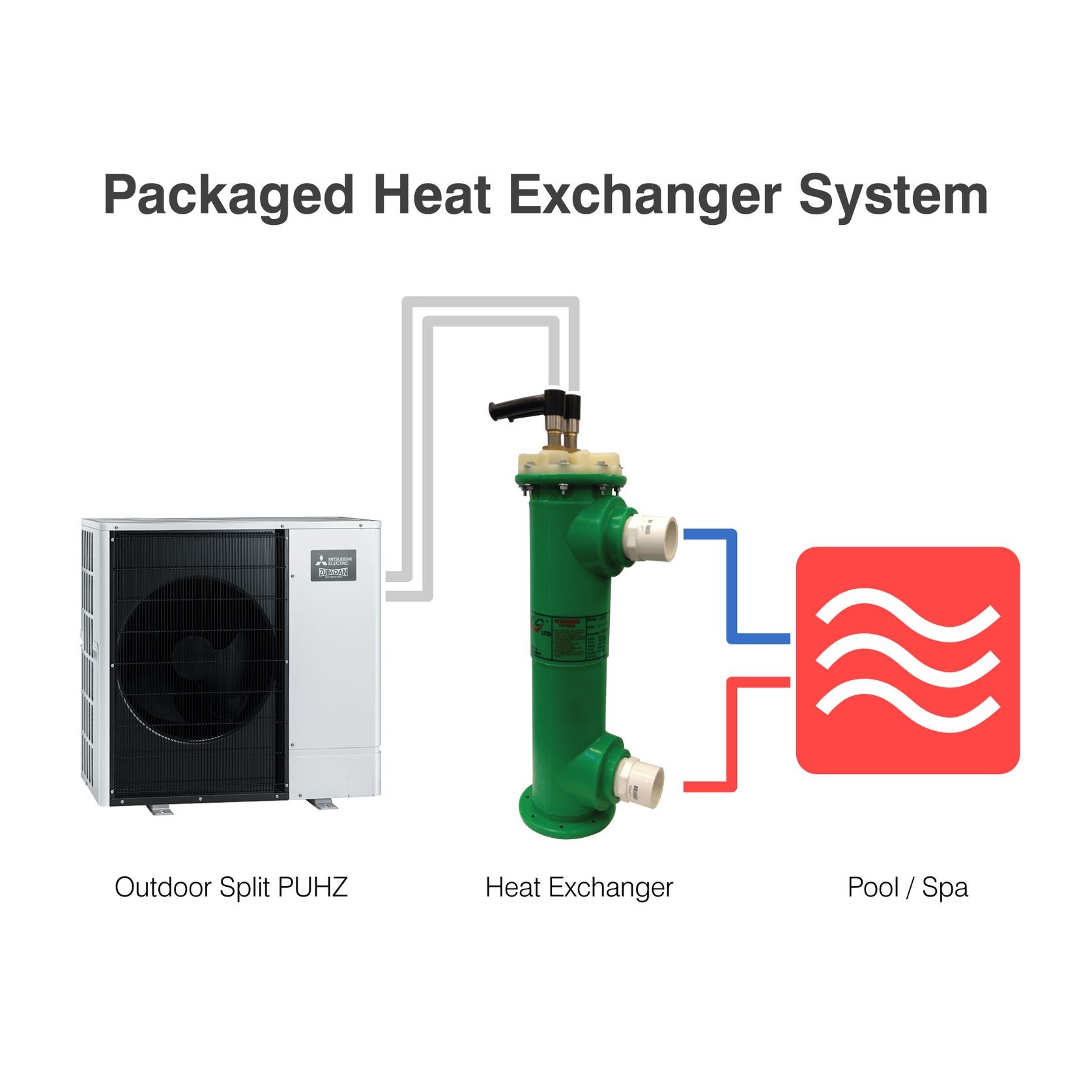

These split systems are ideal for pool and spa applications and require an external heat exchanger. The flexibility of this system allows the installer to position the heat exchanger right where the hot water is required for both new and retrofit installations.

Vaportec HXTi with high density plastics and a titanium coil heat exchanger for swimming and spa pool heating will require mounting and installation of refrigerant pipe work to the PUHZ-S(H)W outdoor unit.

The system is controlled by the advanced PAC-IF061B-E or PAC-IF032B-E Controller.

Scope of use

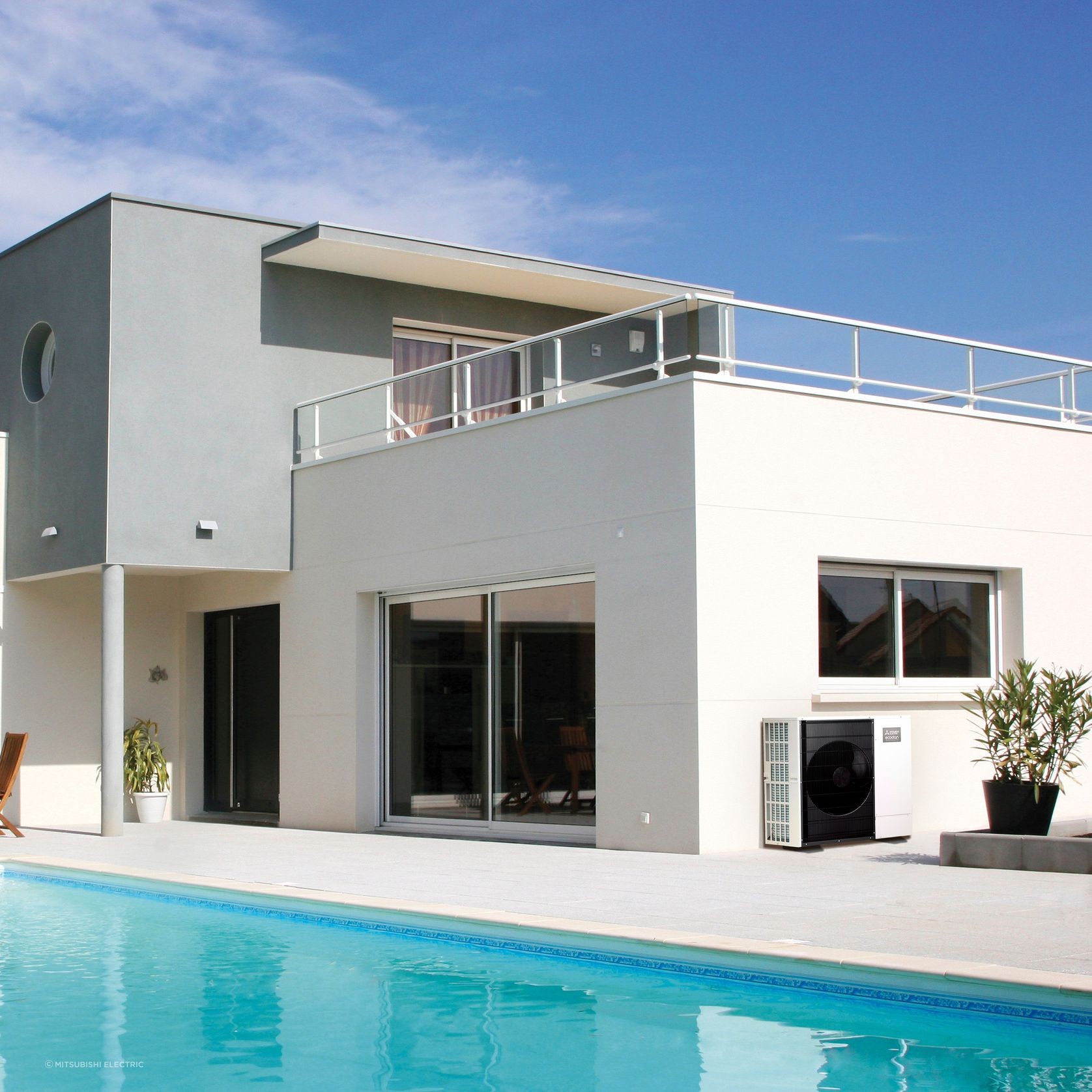

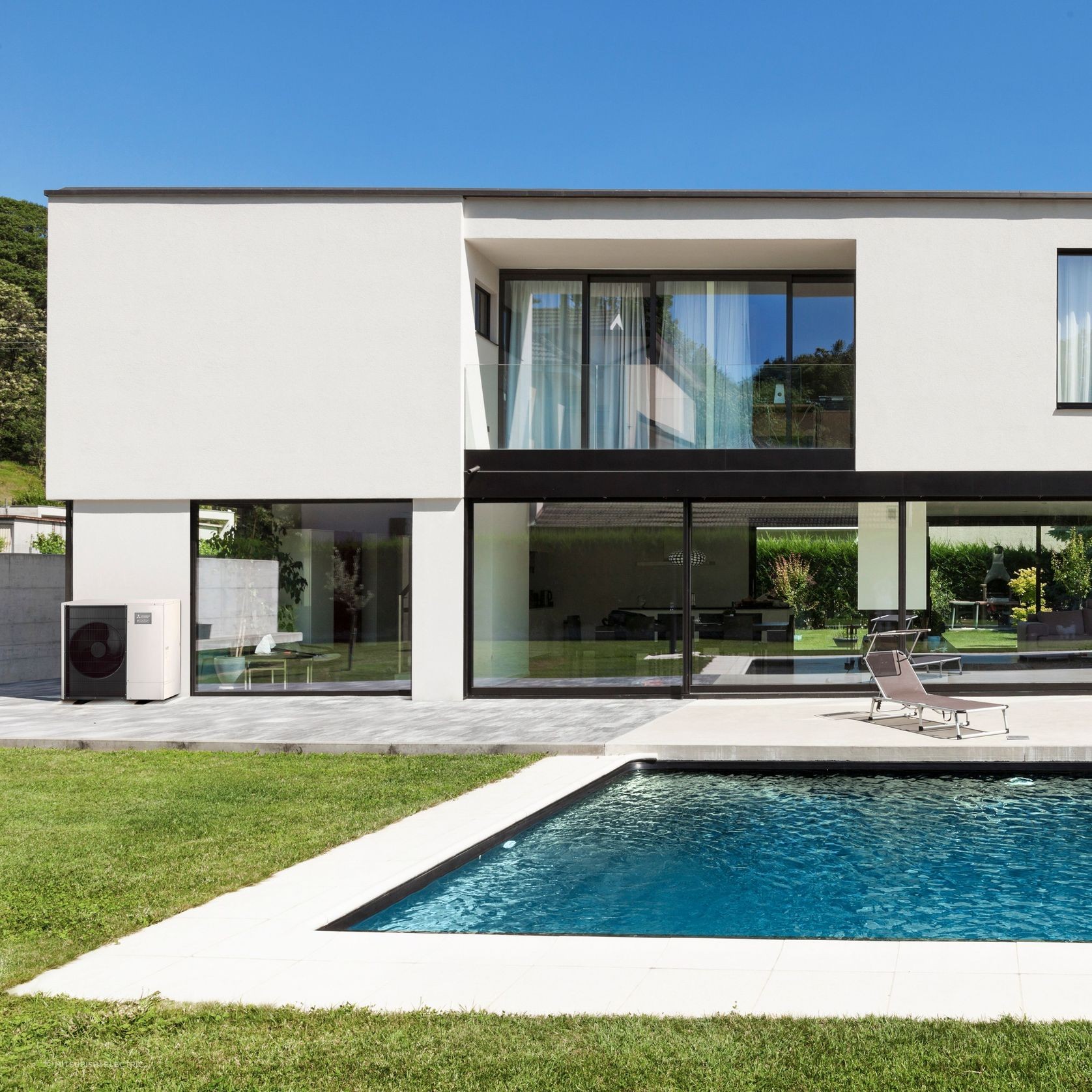

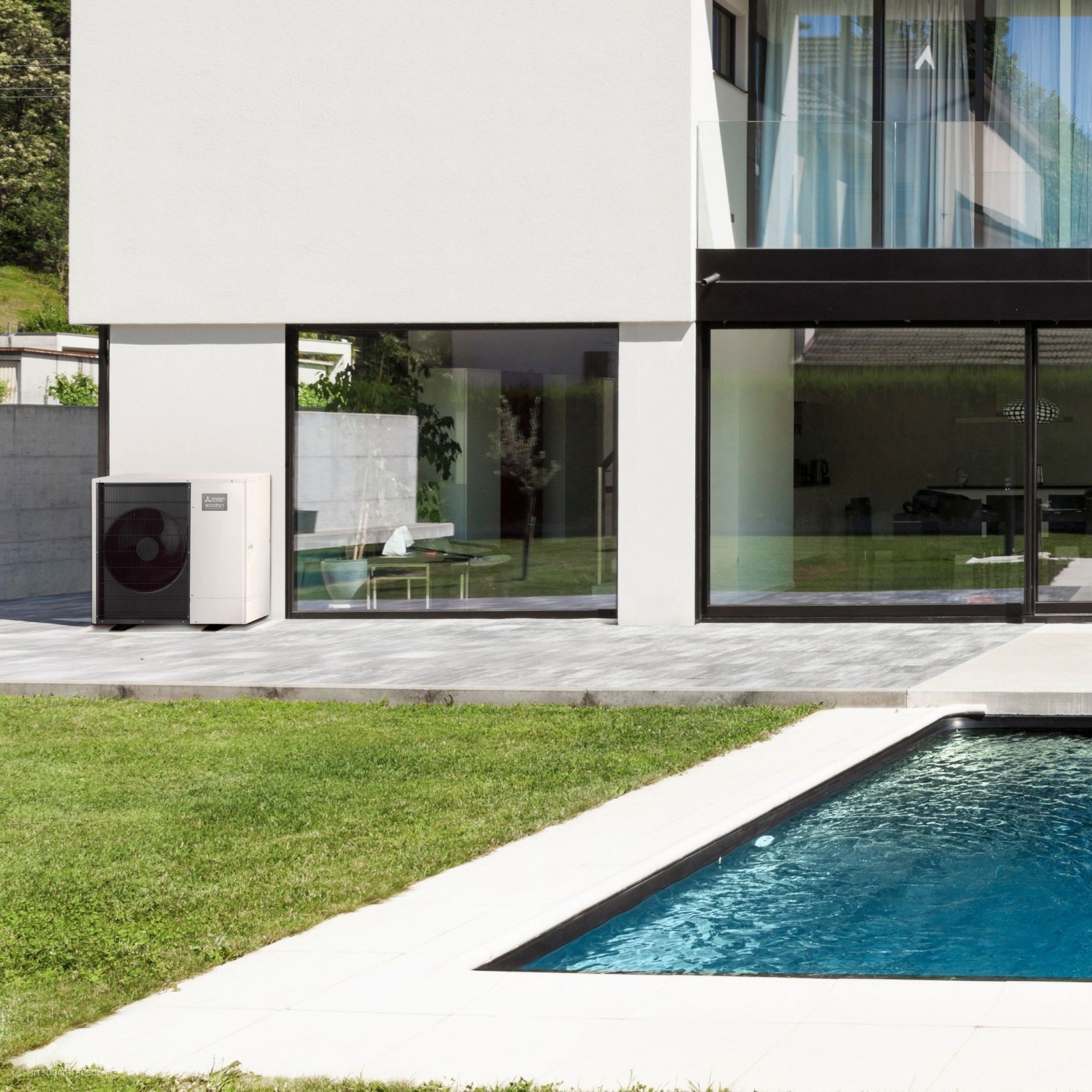

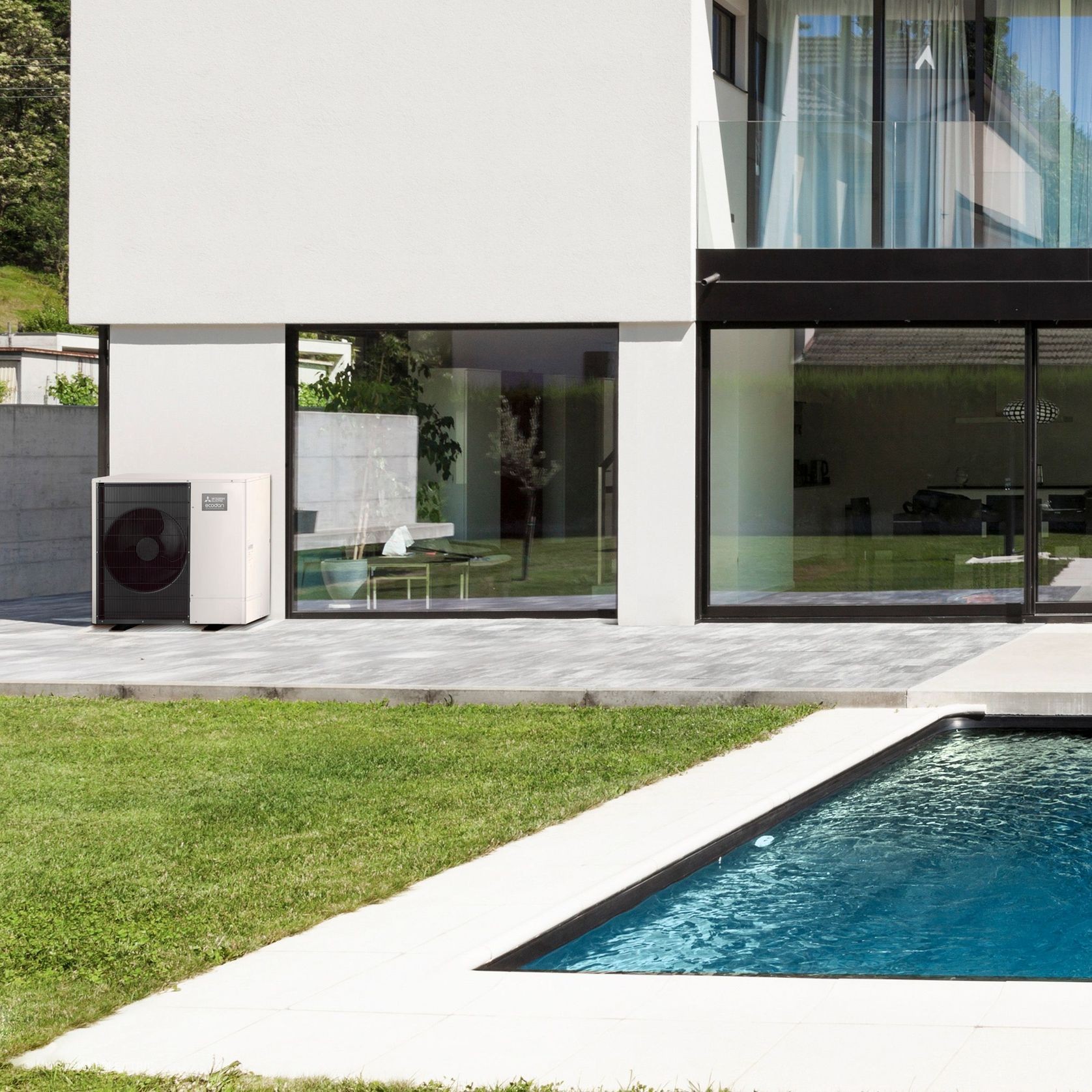

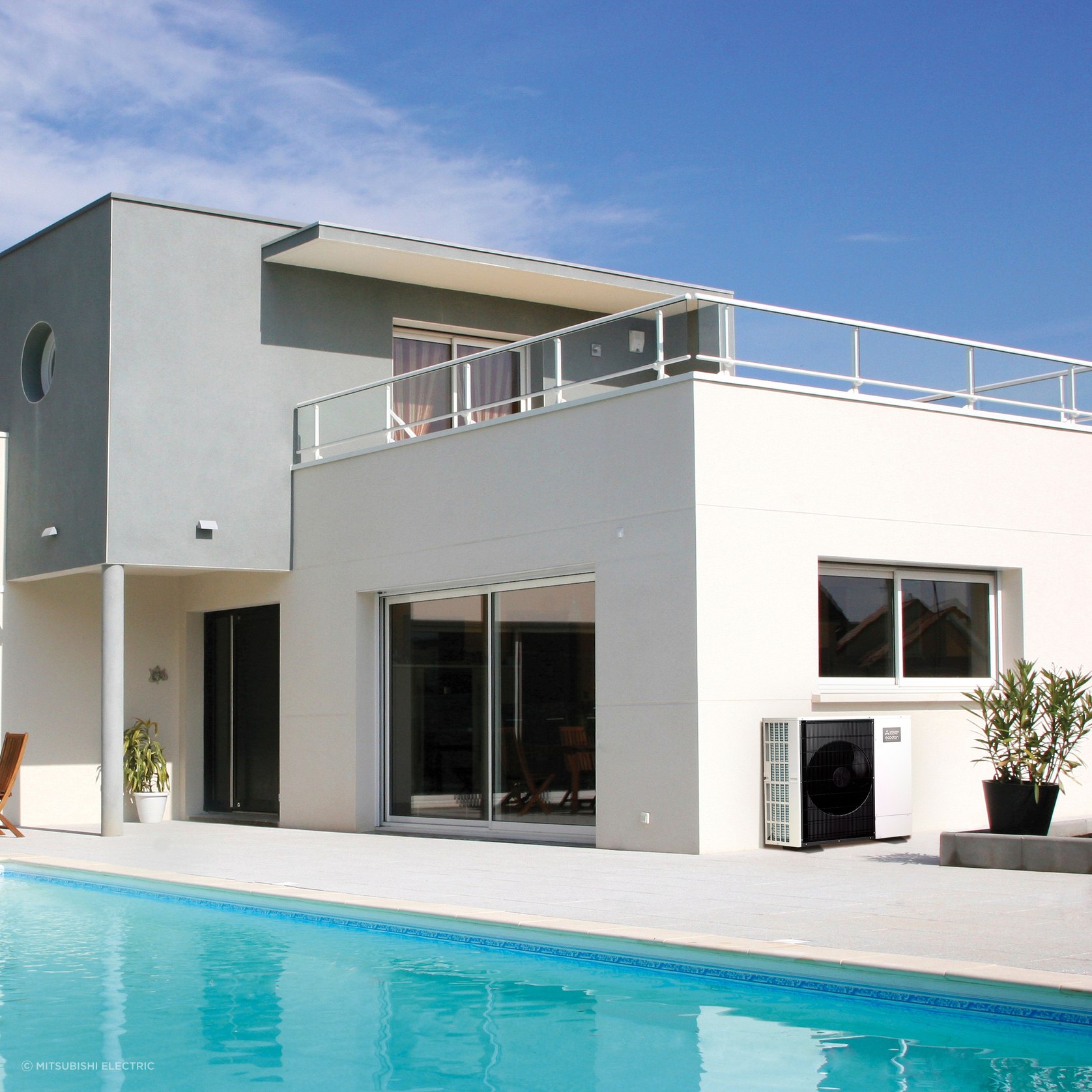

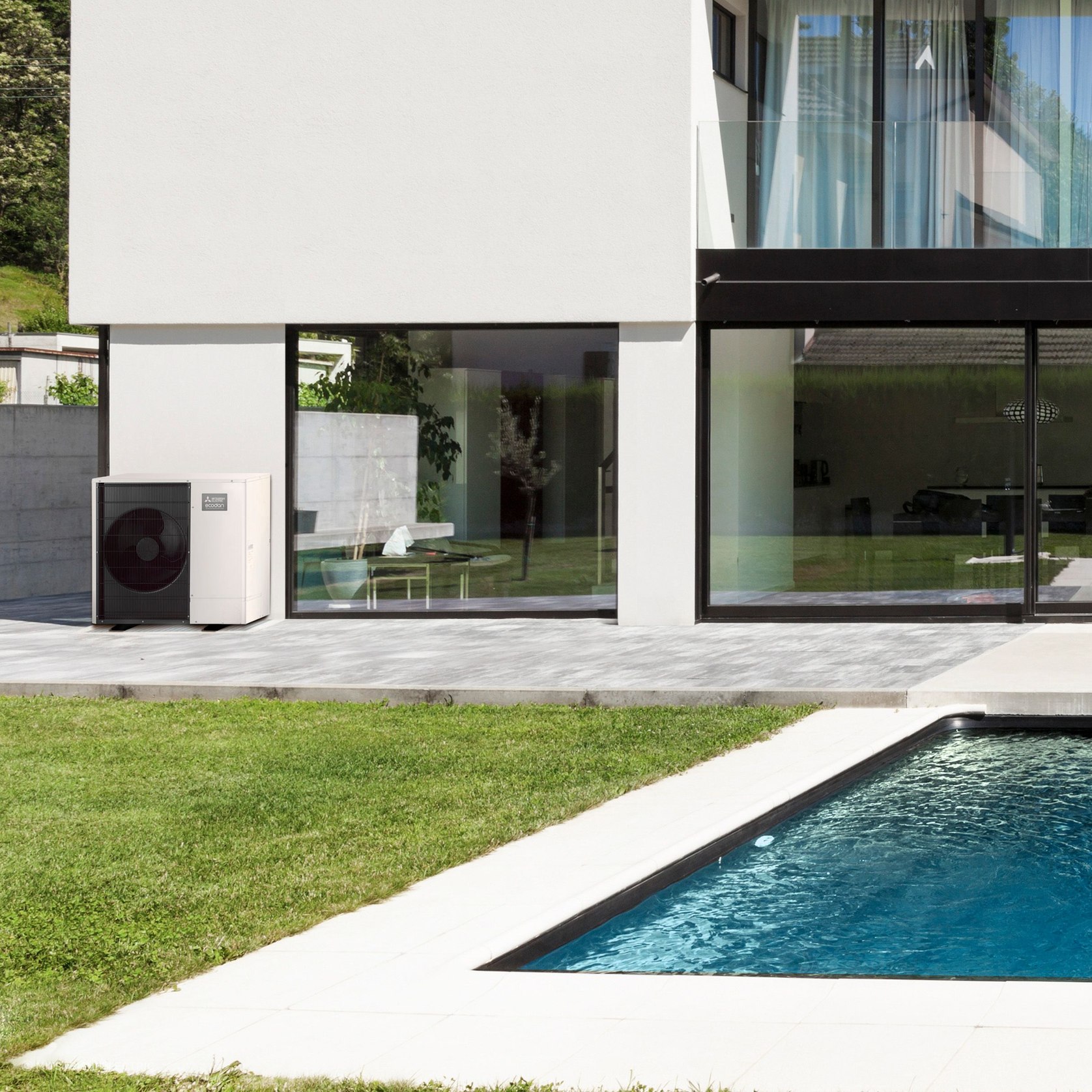

Swimming Pools

Most swimming pools are only used during the summer months and remain unused for the rest of the year. Installing a hot water heat pump can enable you to enjoy your swimming pool year-round! The range of split PUHZ Hot Water Heat Pumps can be matched with a titanium coil heat exchanger. This removes the risk of coil degradation due to salt or chlorine conditions.

Spa Pools

Spa pools consume more power than many swimming pools due to higher temperatures and potential heat losses. Installing a hot water heat pump to an existing spa pool can significantly reduce your heating costs. Power consumption can be reduced by three to four times.

Key Features

• Reliable year-round water heating
• Inverter driven for maximum energy efficiency
• Water temperature up to 60°C
• Operation in outdoor temperatures as low as -25°C*
• “Eco” Heating Mode for outdoor ambient temperature compensation
• Cooling Mode available
• Compact design
• Easy to use LCD Wall Controller with 7 Day Timer

* PUHZ-SHW80/112VAA and PUHZ-SHW230YKA2 Zubadan models only.

Performance

The range of split PUHZ Hot Water Heat Pumps can be matched with a titanium coil heat exchanger. This removes the risk of coil degradation due to salt or chlorine conditions.

New generation Zubadan Inverter Technology* provides powerful heating in cold regions where heat pump performance can diminish. With Zubadan, rated heating capacity is maintained even in outdoor temperatures as low as -15°C, with guaranteed heating operation at -25°C.

* PUHZ-SHW80/112VAA and PUHZ-SHW230YKA2 Zubadan models only.
