Single Phase Digital Energy Meter

By Direct Control
Visit Website
Eelectron

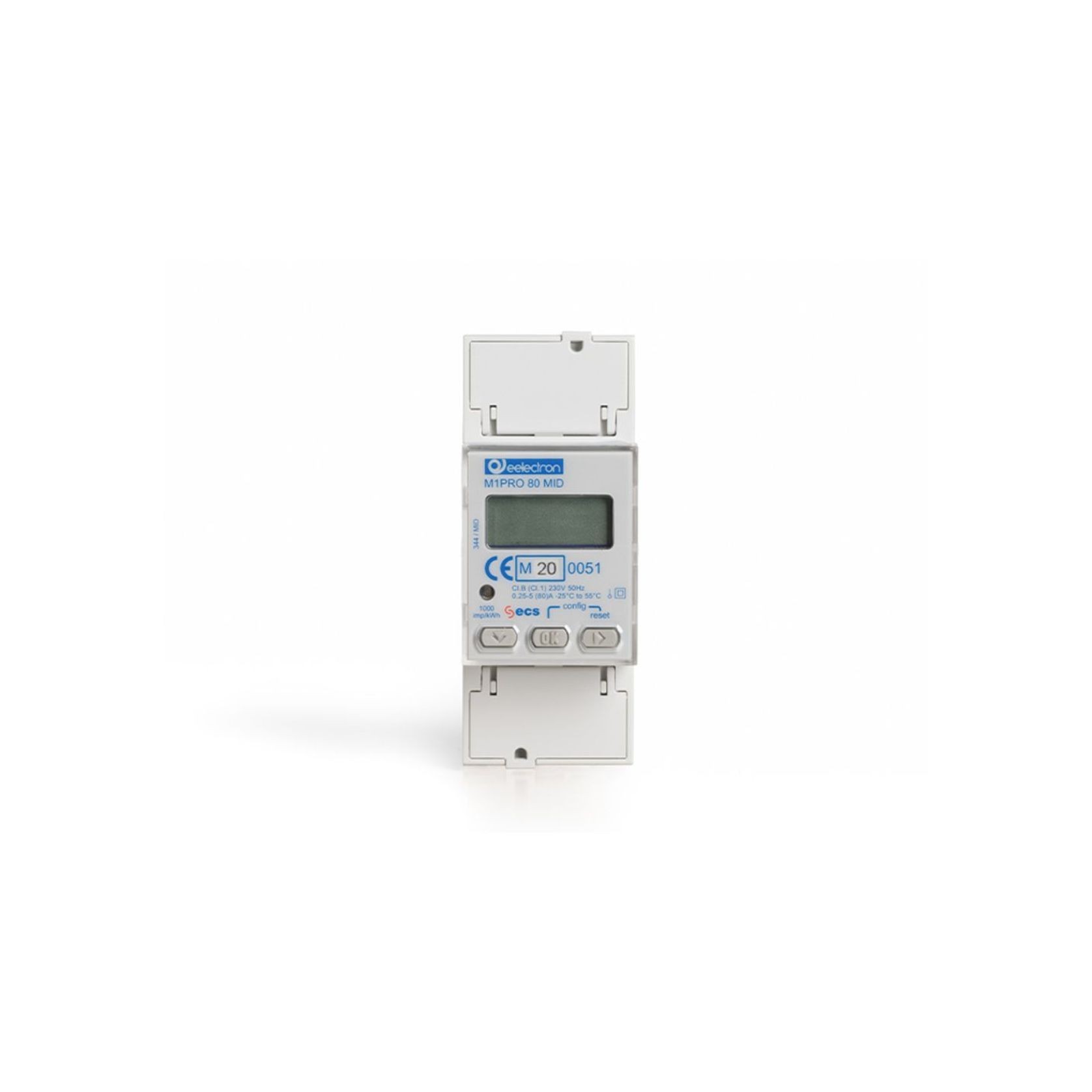

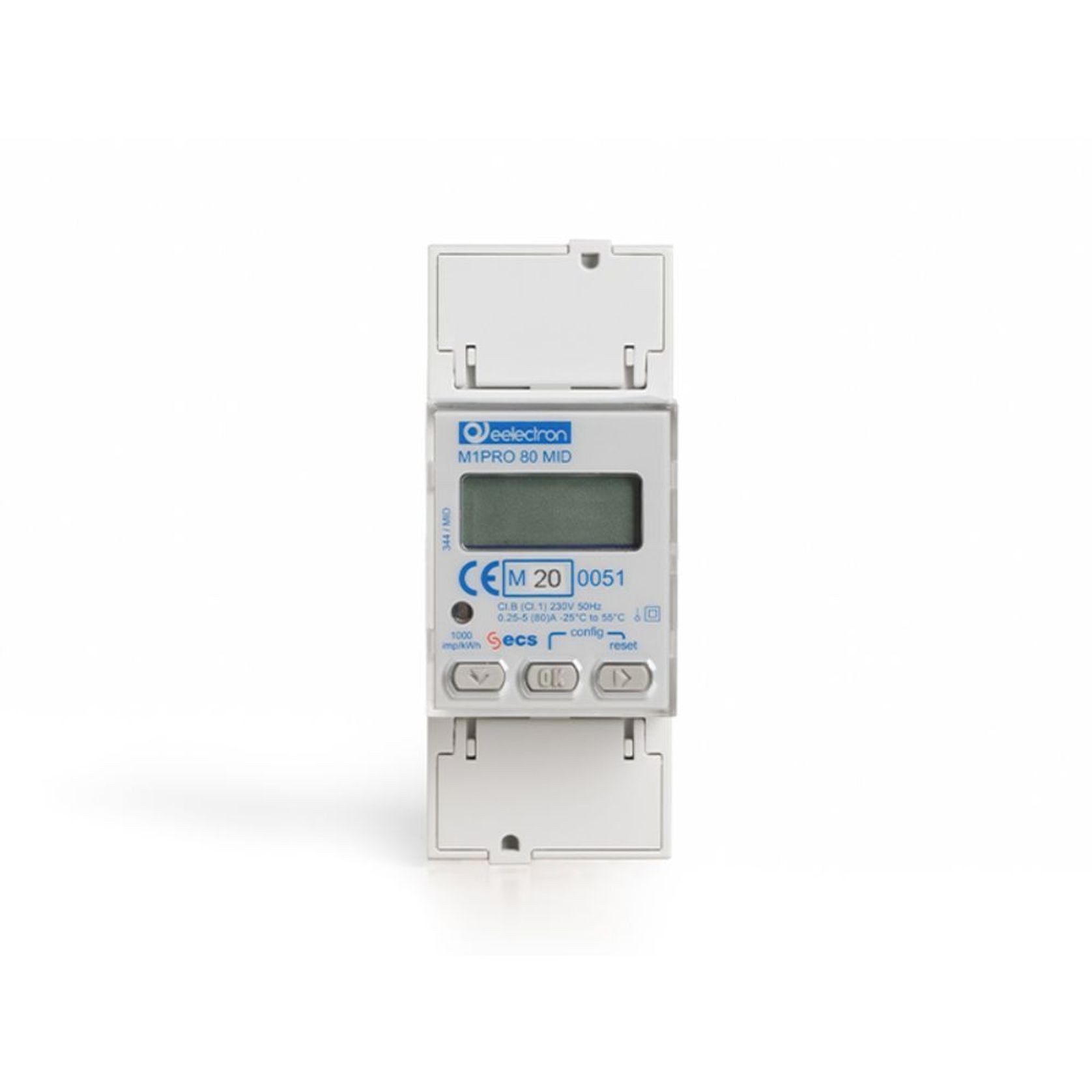

The Eelectron 1 Phase Digital Energy Meter – Direct Connection 80 A, model PM10E02IRE, integrates all the necessary measurement functions to monitor a single-phase electrical installation efficiently. This advanced energy meter provides precise monitoring, making it an essential tool for modern smart homes and buildings.

Details
  • Category
    Switchboards
General
  • Country of origin
    Italy
  • Type of use
    Commercial and Residential
  • Installation
    Professional installation required
Features
  • Comprehensive Measurement: Monitors current (I), voltage (V), power factor (PF), frequency (F), active power (P), reactive power (Q), and energies (both active and reactive).
  • Direct Connection: Supports direct connection with a current range of 0.25–5 (80) A, providing robust performance for various applications.
  • High Accuracy: Active Energy Class B (according to EN-50470)
    Reactive Energy Class 2 (according to IEC 62053-23).
  • Backlighted LCD Display: Features an 8-digit backlighted LCD display and 3 push-button keys for easy reading and configuration of parameters.
  • Self-Supplied: Operates self-sufficiently using the input voltage itself, ensuring reliable performance.
  • DIN Rail Installation: Designed for easy installation on a DIN rail with a compact width of 36 mm.
  • Tariff Management: Features 2 tariffs controlled by a 230 VAC digital input, enhancing energy management efficiency.
  • Pulse Outputs: Equipped with 2 S0 standard low voltage pulse outputs, MID certified for accurate and reliable energy measurement.
  • Environmental Range: Operates effectively in a temperature range of -25 °C to +55 °C and supports 4 quadrants for comprehensive energy measurement.
Applications
  • Residential Homes: Enhance energy efficiency and monitoring with precise single-phase electrical installation evaluation.
  • Commercial Buildings: Provide advanced energy management solutions for offices, shopping centres, and other commercial spaces.
  • Hotels: Optimise operational efficiency and energy savings by monitoring and managing energy usage.
  • Building Automation: Integrate seamlessly with smart building systems for comprehensive automation and energy management.
SKU: 111-Eelectron
