KNX Universal DIN Module 12 IN / 12 OUT Plus

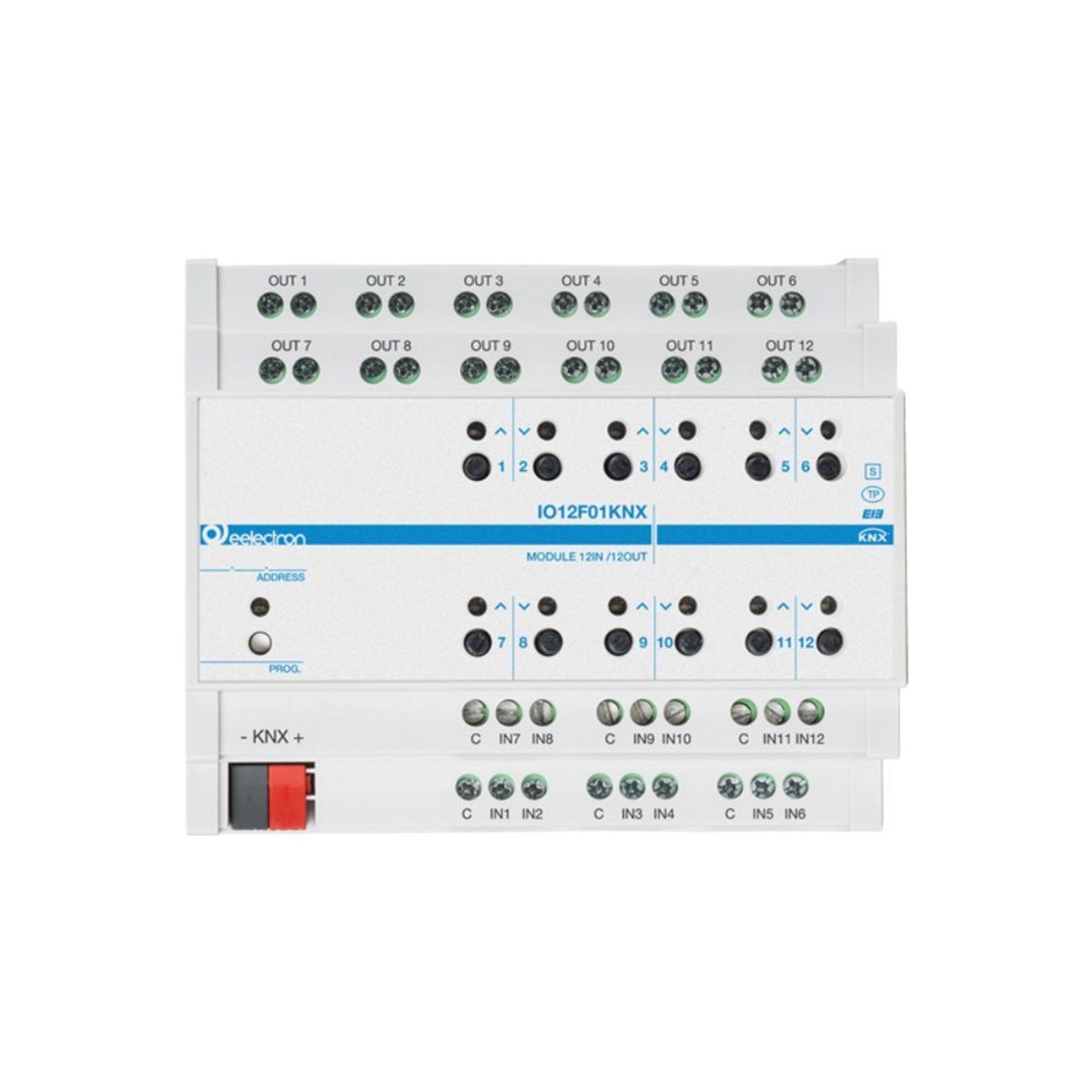

The Eelectron KNX Universal DIN Module 12 IN / 12 OUT Plus (IO12F01KNX) is a versatile and reliable DIN rail-mounted actuator designed for advanced control of various loads, lighting, HVAC systems, and more. Featuring 12 configurable relay outputs and 12 inputs, this device is an essential component for sophisticated smart home and building automation systems.
- CategoryLighting Automation, Switchboards
- Country of originItaly
- Type of useCommercial and Residential
- InstallationProfessional installation required
- 12 Configurable Outputs:
- Lighting/Load Control: Configure up to 12 outputs for precise control of lights and other loads.
- Valve Control: Manage 12 channels for valve control using PWM (solenoid actuators).
- Shutter/Venetian Control: Configure 6 channels for controlling roller shutters or venetian blinds.
- 3-Point Valve Control: Utilise 6 channels for precise 3-point valve control.
- Fan Coil Actuation: Control 3 fan coils for 2-pipe systems or 2 fan coils for 4-pipe systems.
- Advanced Relay Grouping: Combine relays with a logic interlock for special functions, such as 4-pipe/3-speed fan coil control.
- 12 Versatile Inputs:Digital Inputs: Connect to pushbuttons or switches for on/off commands, dimming, shutters or venetian blinds, scenarios, sequences, and step-by-step commands.
LED Outputs: Configure inputs as outputs to activate individual signalling LEDs (eelectron codes LD00A01ACC / LD00A11ACC).
Analogue Inputs: Configure 4 of the 12 inputs as analogue for connecting NTC temperature probes (eelectron codes TS00A01ACC / TS00B01ACC) to send temperature measurements on the bus and manage simple on/off controls. - Thermostat Modules: Enable 3 complete thermostat modules, each managing 2 stages with an integrated PI controller for driving heating and cooling equipment, valves, and 2- and 4-pipe fan coils.
- MicroSD Card Reader: The IO12F01KNX-SD version includes a microSD card reader for saving device programming, facilitating quick restoration on identical devices, and ensuring fast recovery in case of failure.
- Reliable Performance: Built with high-quality materials and superior craftsmanship, ensuring durability and long-lasting performance.
- Easy Integration: Designed for seamless integration with KNX systems, it facilitates comprehensive automation and energy management in buildings.
- Made in Italy: This product reflects the excellence of Italian design and production, ensuring top-tier quality and reliability.
- Residential Homes: Enhance home automation with precise control of lights, loads, shutters, and HVAC systems, improving comfort and energy efficiency.
- Commercial Buildings: Provide advanced automation and energy management for offices, shopping centres, and other commercial spaces.
- Hotels: Optimise guest experience and operational efficiency with reliable control of various loads and HVAC systems.
- Building Automation: Integrate seamlessly with KNX systems for comprehensive automation and energy management across diverse building applications.
