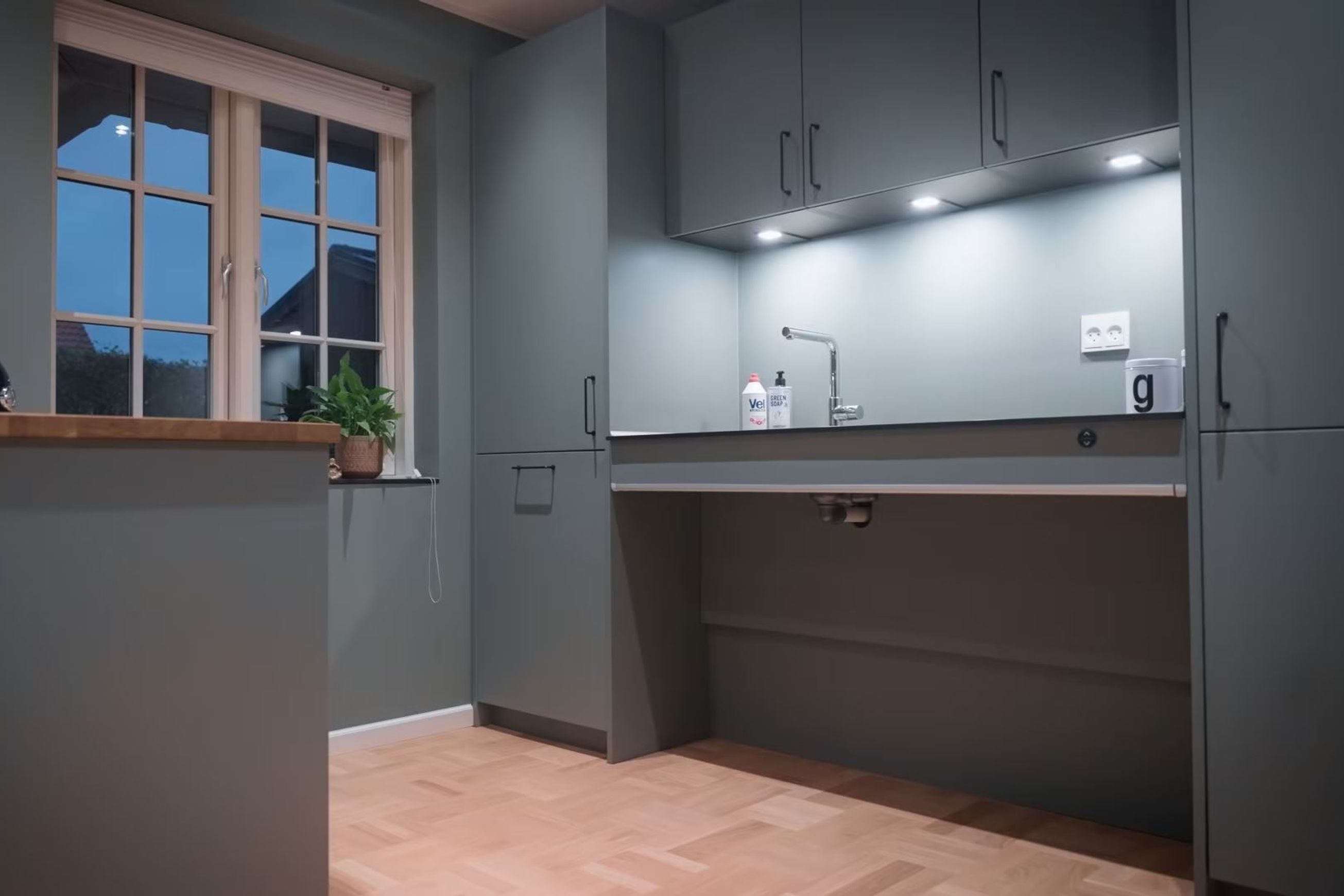

Electrical and Manual Height Adjusted Benchtop

An electric or manual height-adjustable benchtop is ideal in all situations where various users – both seated and standing – use the same benchtop.

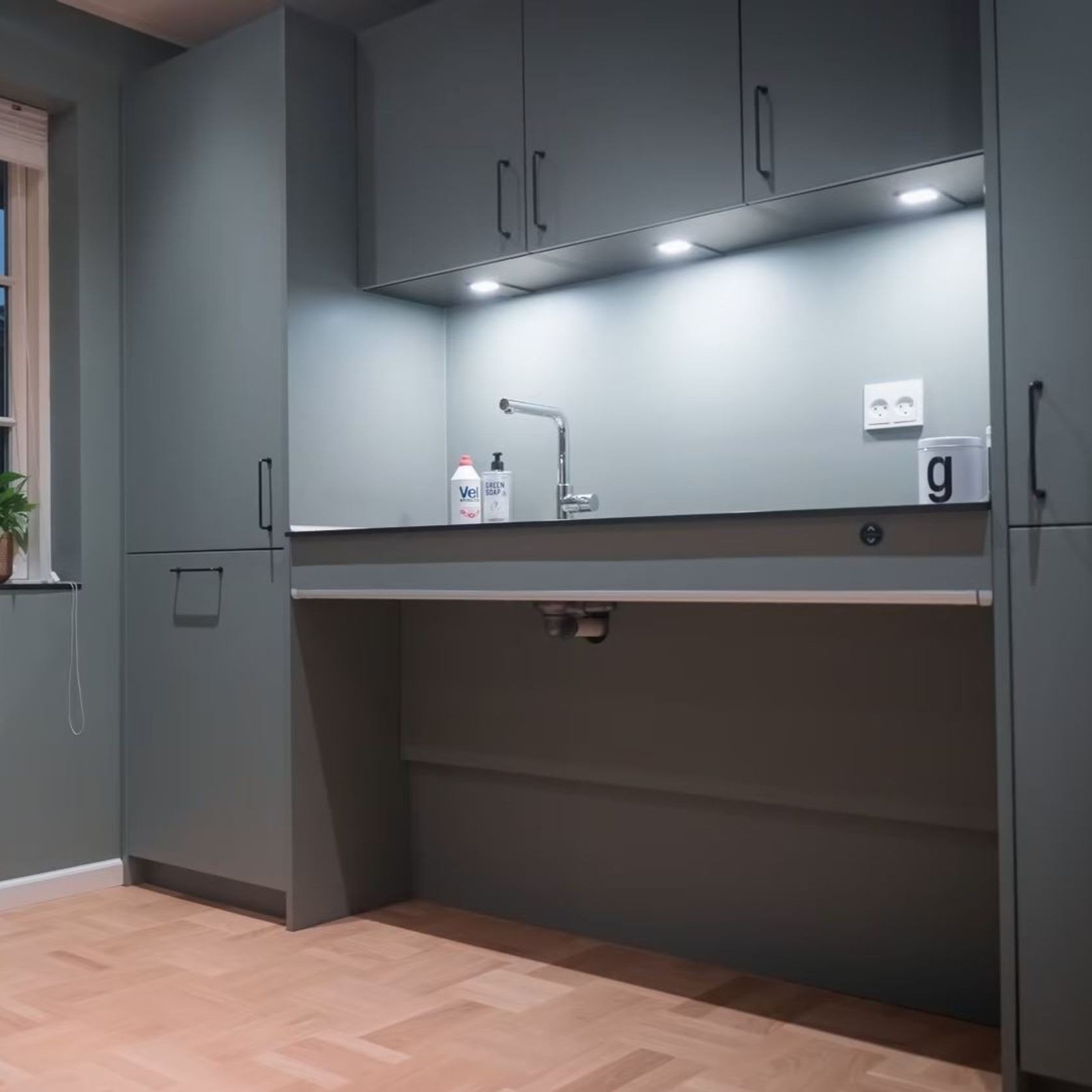

Electrical - Wall Mounted

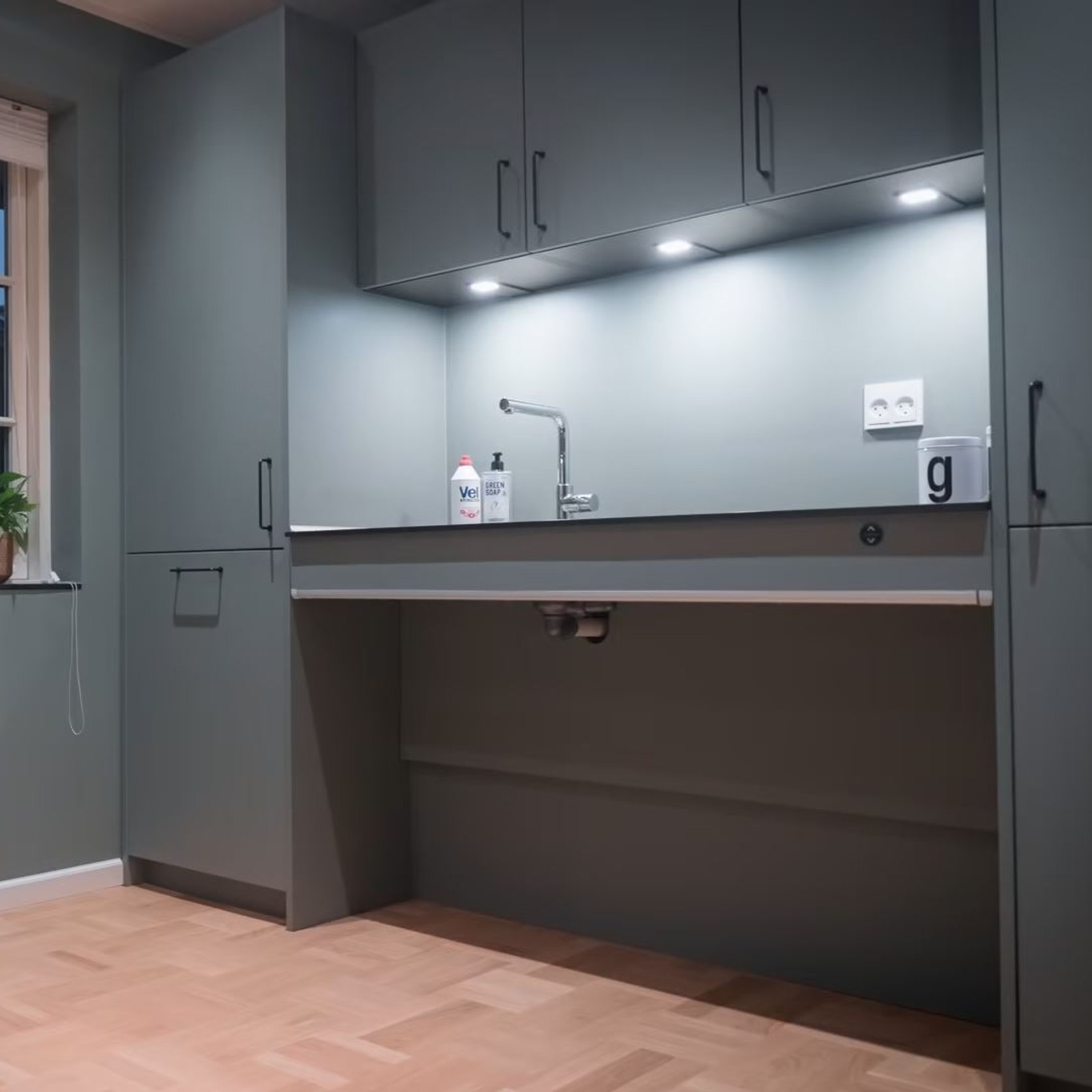

An electric height-adjustable benchtop is ideal in all situations where various users – both seated and standing – use the same benchtop. This is the most common design preference in schools and rehabilitation facilities.

• Height of the benchtop is adjusted via a switch that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300mm.
• We can manufacture a height adjustable frame up to a maximum length of 3000mm.
• All our height adjustable electrically operated frames can lift 150 kg

Electrical - Freestanding

A freestanding electric solution is a flexible work or dining table where the height of the worktop can be quickly and easily adjusted to the given user or situation. In addition to this a freestanding frame can be used where the walls are not strong enough to support our wall mounted models.

• Height of the freestanding benchtop is adjusted via a switch that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300 mm.
• The design of the legs and feet make the table stable and secure.
• It is possible to use the benchtop from all sides in a wheelchair.
• All our height adjustable frames can lift 100kg.
• Benchtops can be up to 3000 mm long and between 700-1000 mm wide

Manual - Wall Mounted

A manually height-adjustable benchtop is the budget solution for designs catering to both seated and standing users. These are most commonly used in areas which do not require frequent, daily adjustment.

• Height of the benchtop is adjusted via crank handle that can be placed wherever you want.
• Benchtops can be adjusted in height over a range of 300 mm.
• We can manufacture a height adjustable frame up to a maximum length of 3000 mm.
• All our height adjustable frames can lift 100 kg

Electrical - Wall Mounted

Wall cabinets can be moved diagonally towards the user, this makes it easy for seated users to see and access the contents of any cabinet. Height-adjustable wall cabinets provide extra storage options when traditional storage cannot be installed under benchtops, out of consideration for wheelchair access.

• Adjustment of the wall cabinet frame is via a switch located under the leading edge of the benchtop.
• You can locate this switch wherever you like under the leading edge of the benchtop.
• The design of the height adjustable frames ensures that they are as discreet as possible, regardless of the cabinet position.
• When the wall cabinets are lowered 430 mm to their lowest position, they are also extended 180 mm towards the user.
• Wall cabinets up to 2400 mm long can be installed on our height adjustable frames.
• Both of the wall cabinet frames we manufacture can lift between 110–220 kg’s, depending on the model used.
