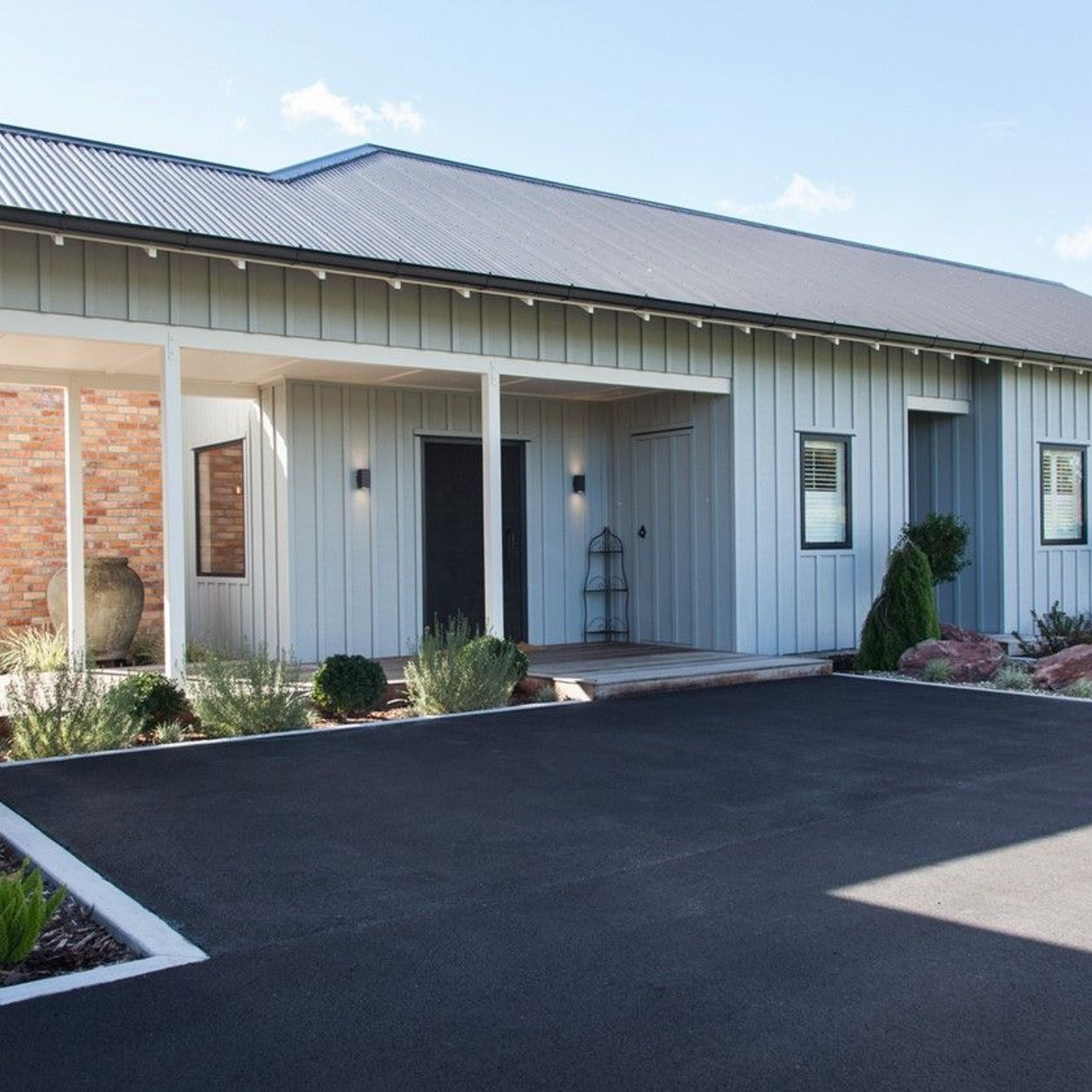

Enduroclad Board and Batten Cladding System gallery detail image

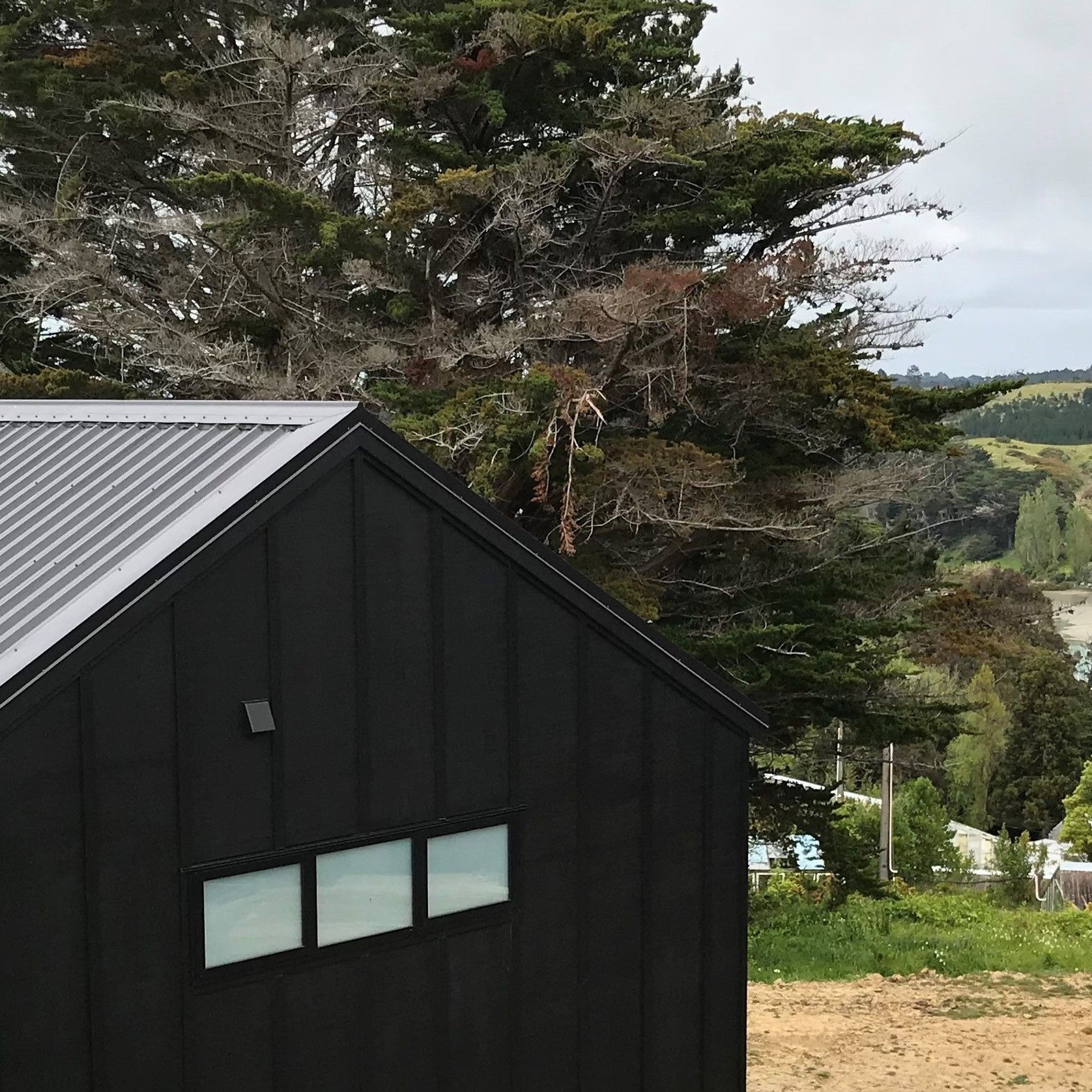

Enduroclad Board and Batten Cladding System gallery detail image

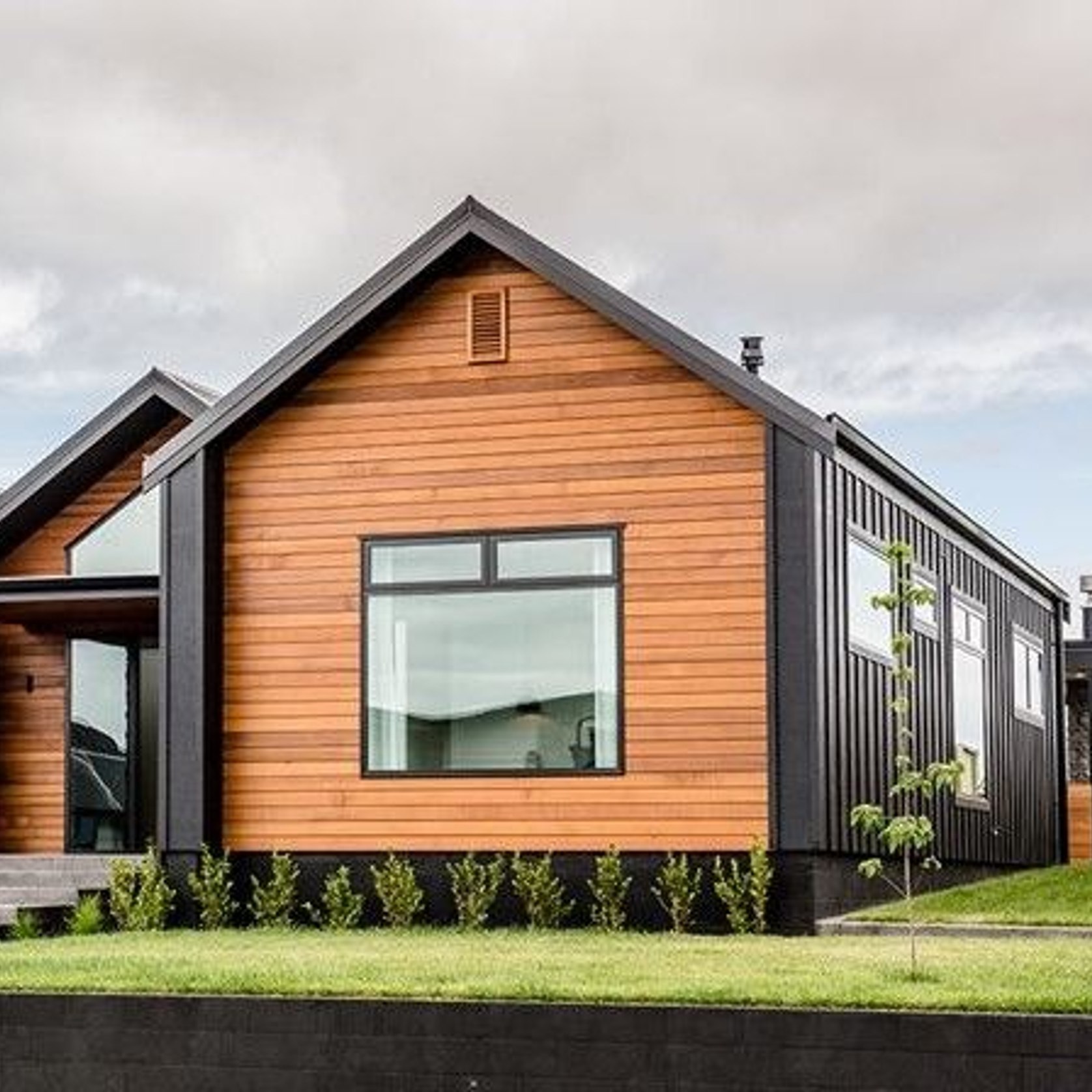

Enduroclad Board and Batten Cladding System gallery detail image

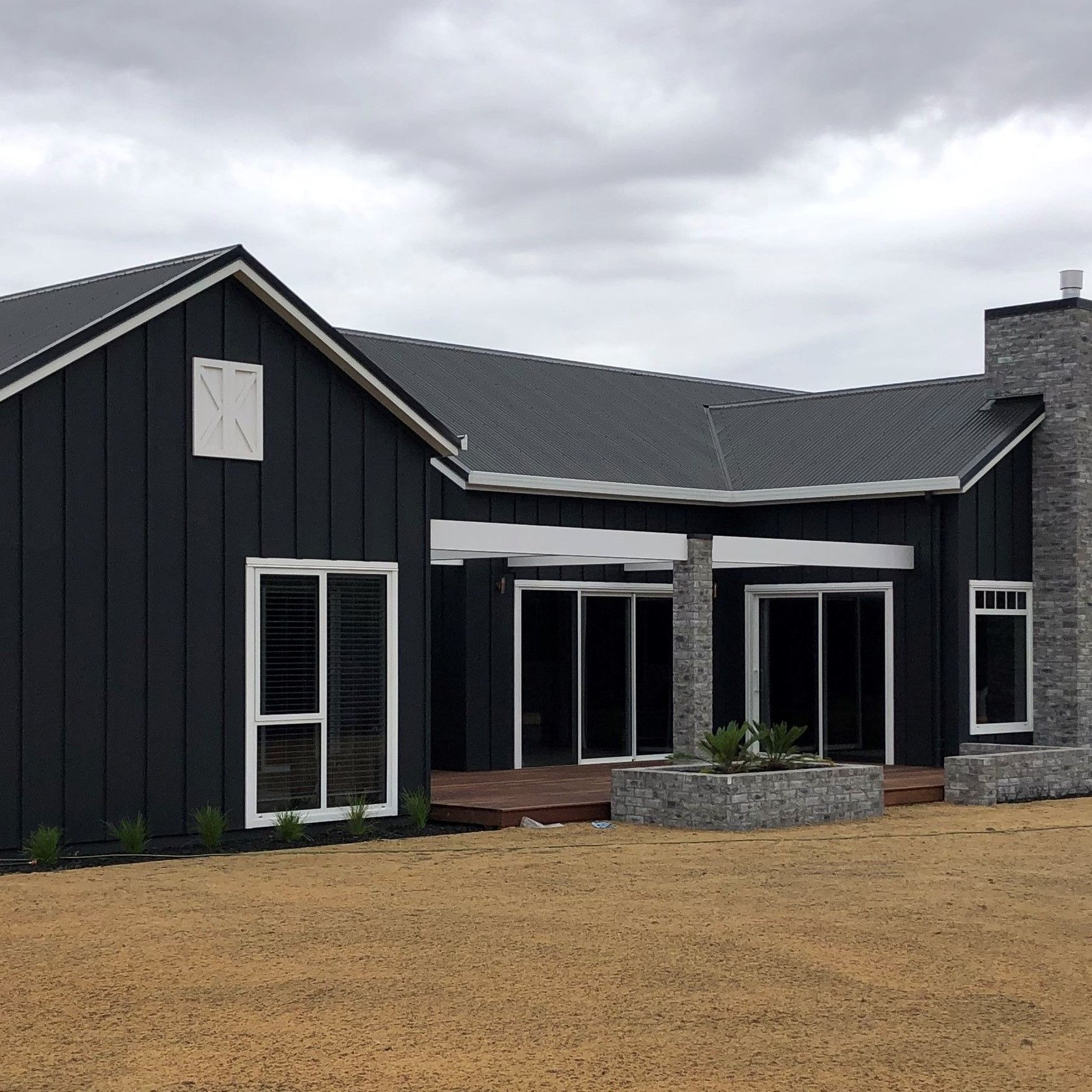

Enduroclad Board and Batten Cladding System gallery detail image

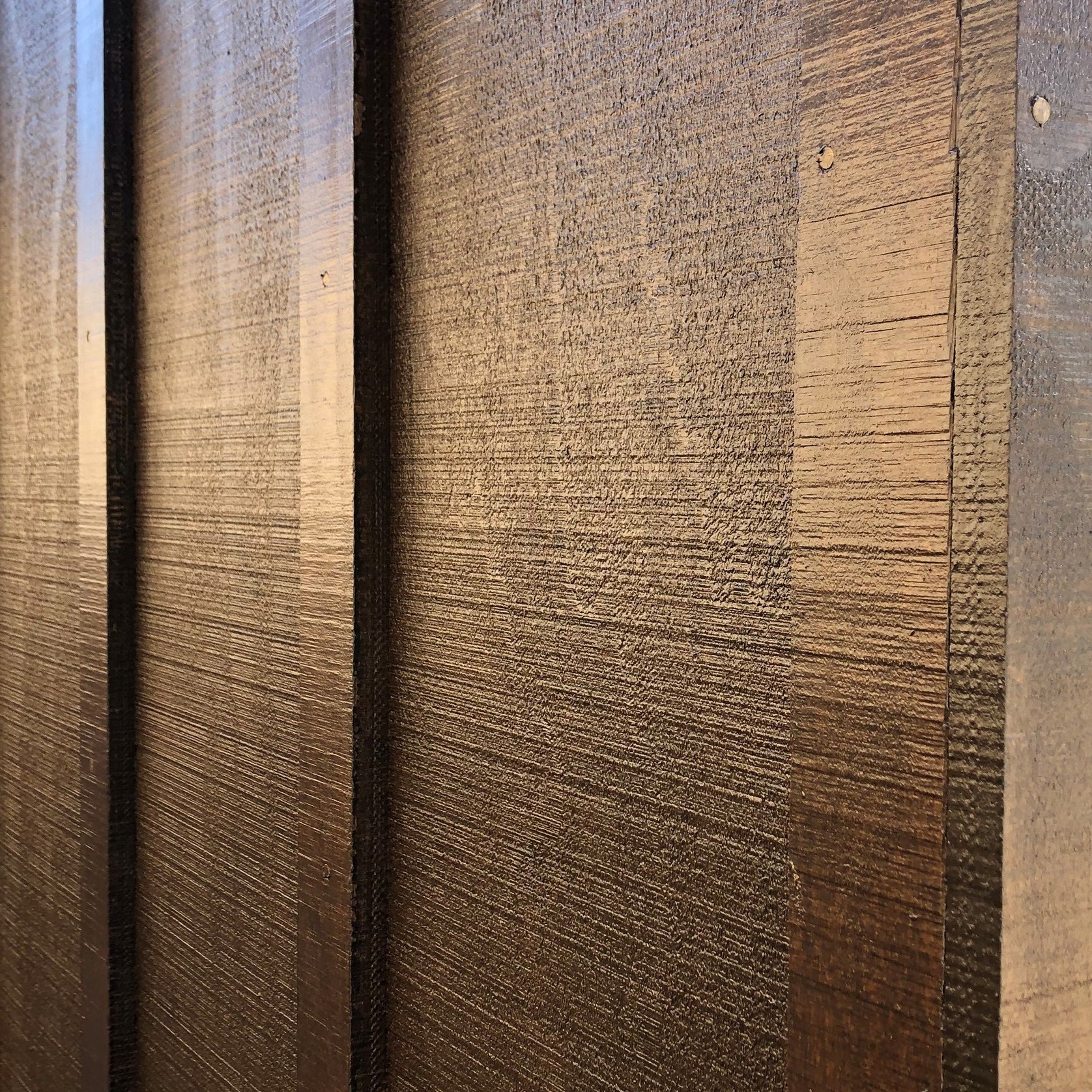

Enduroclad Board and Batten Cladding System gallery detail image

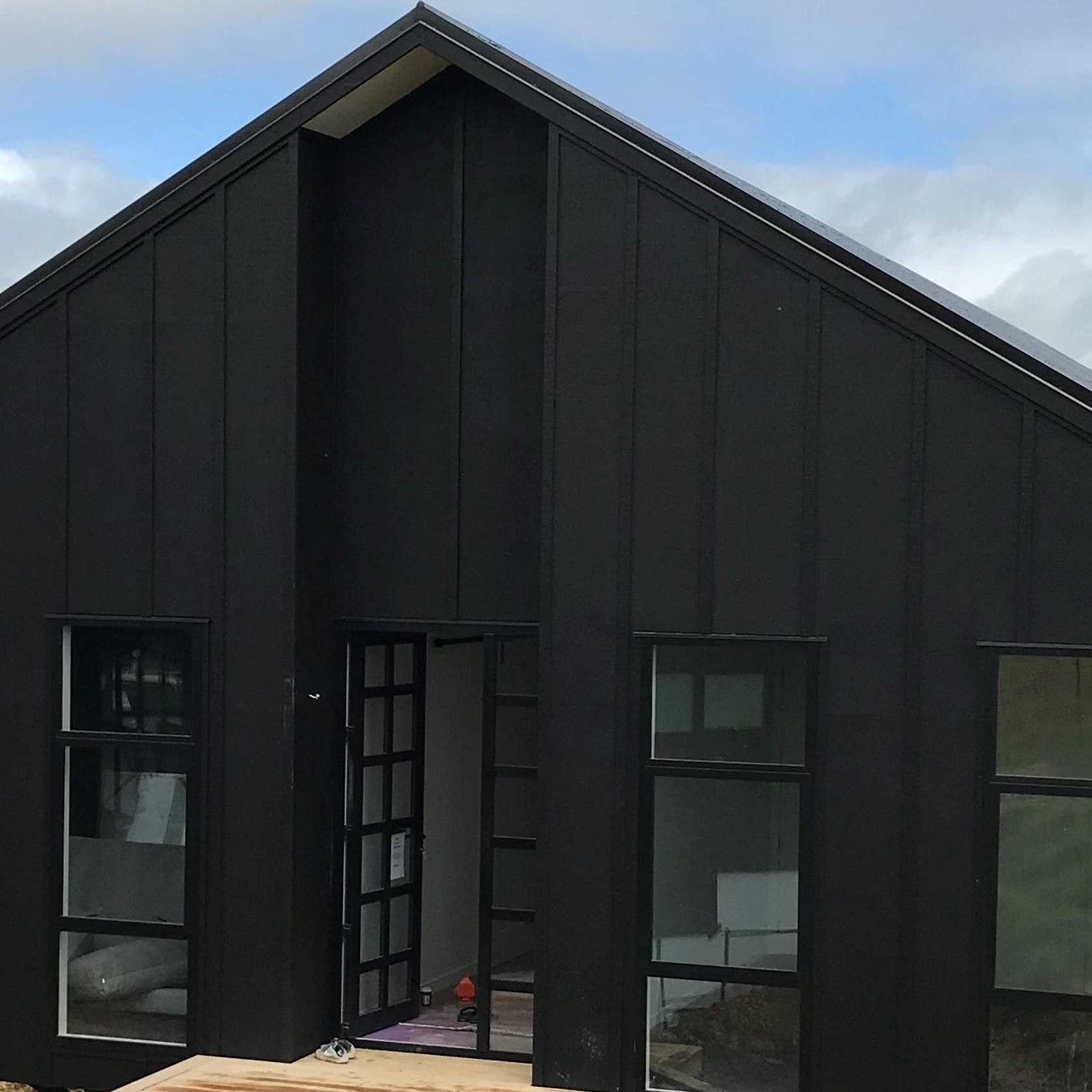

Enduroclad Board and Batten Cladding System gallery detail image

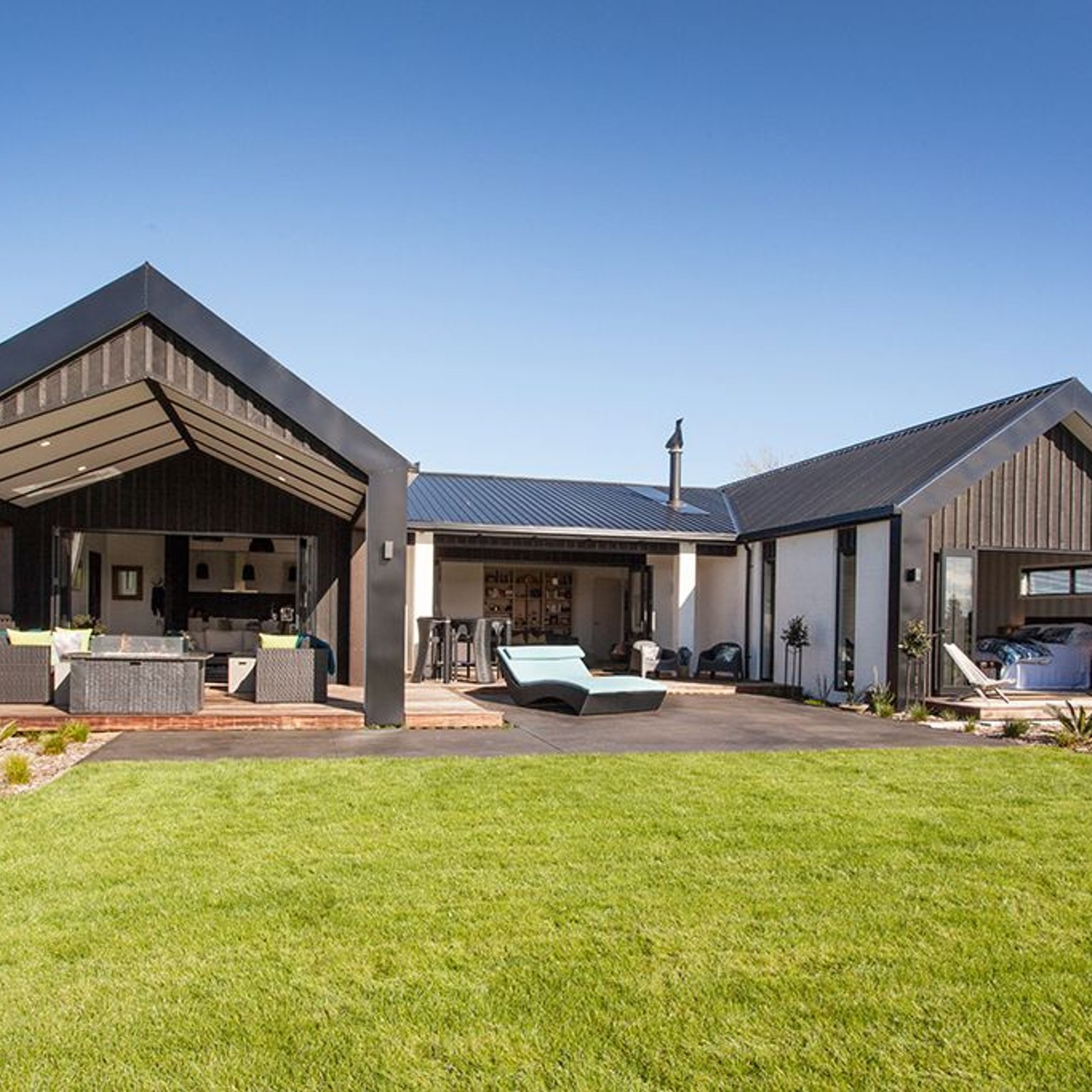

Enduroclad Board and Batten Cladding System gallery detail image

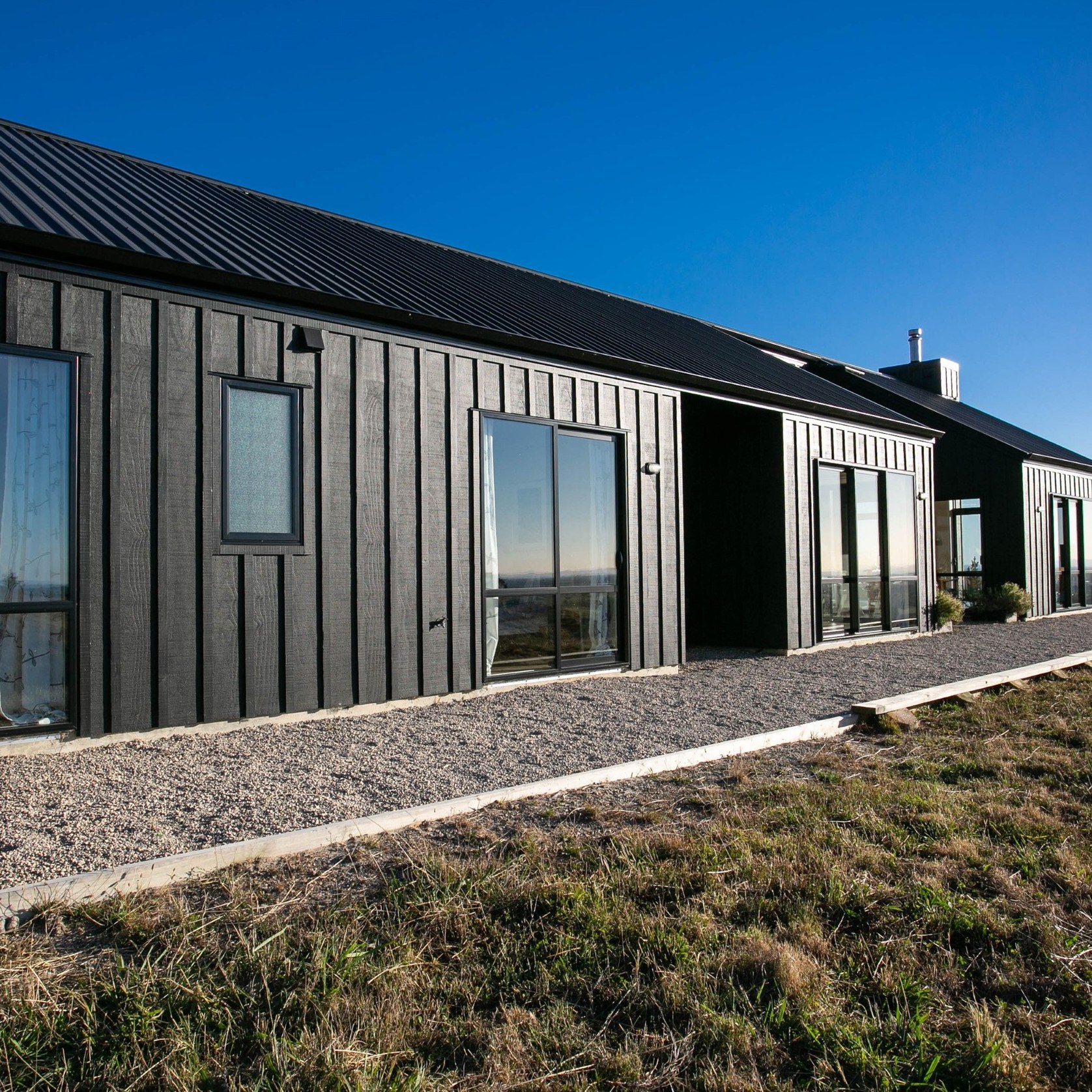

Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image
Enduroclad Board and Batten Cladding System gallery detail image

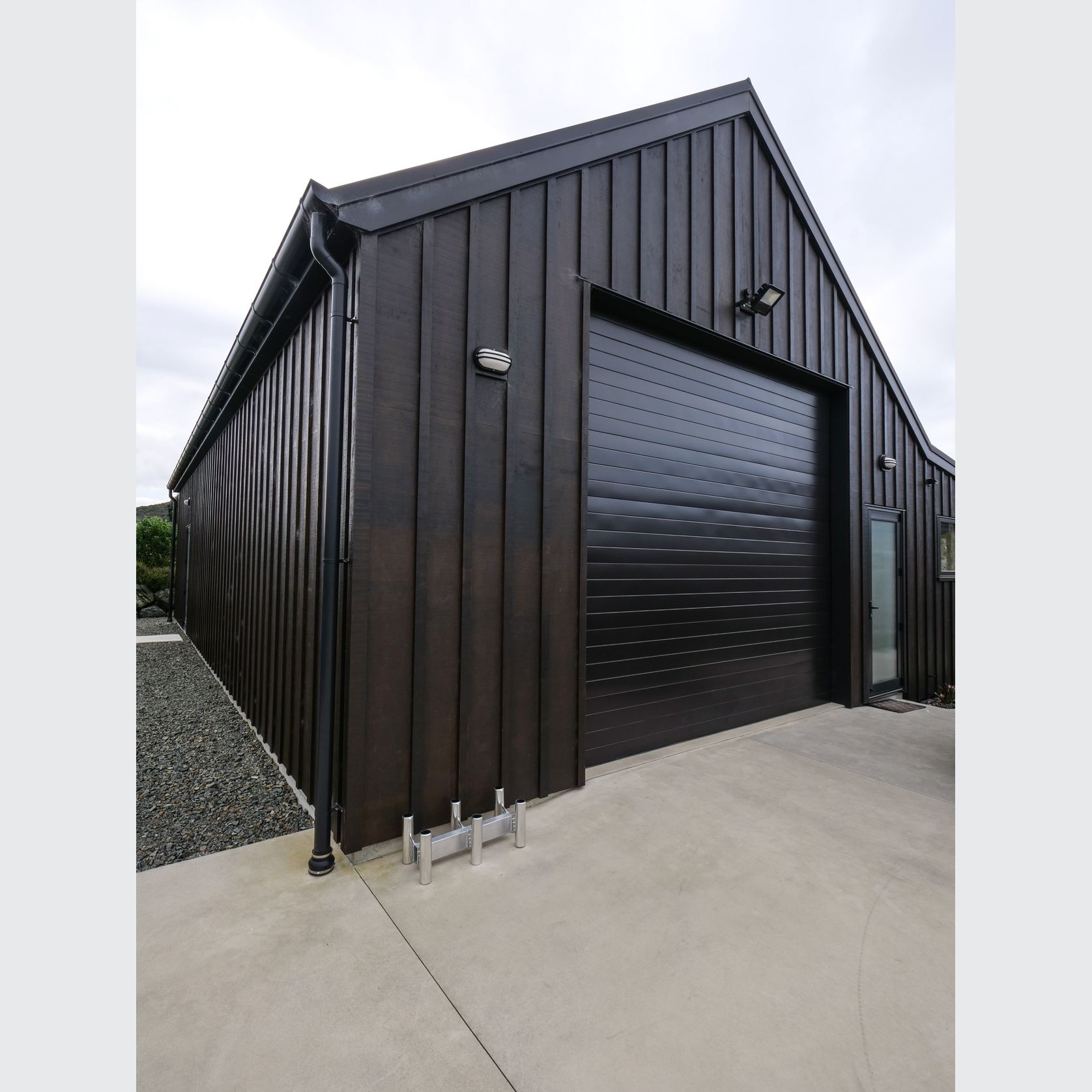

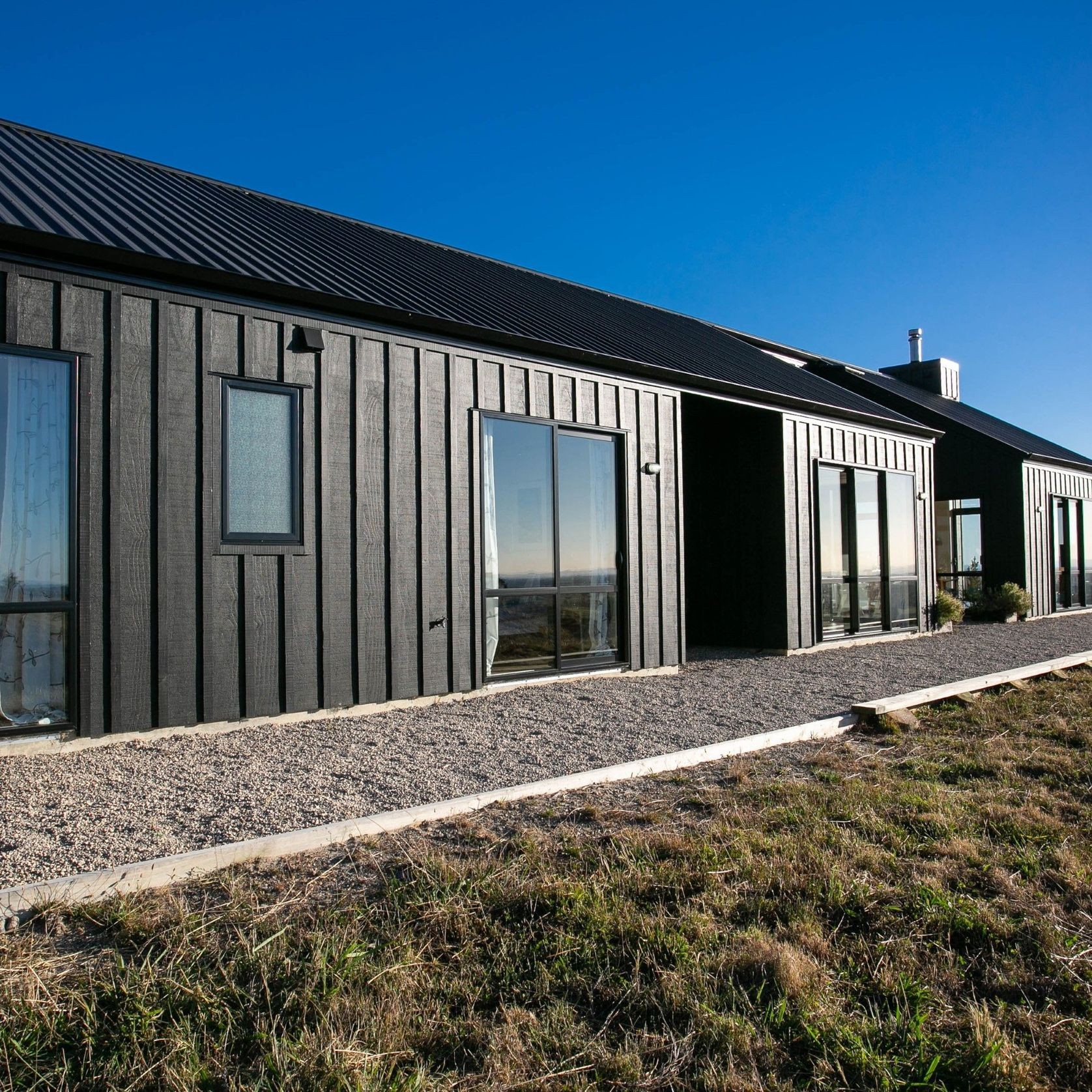

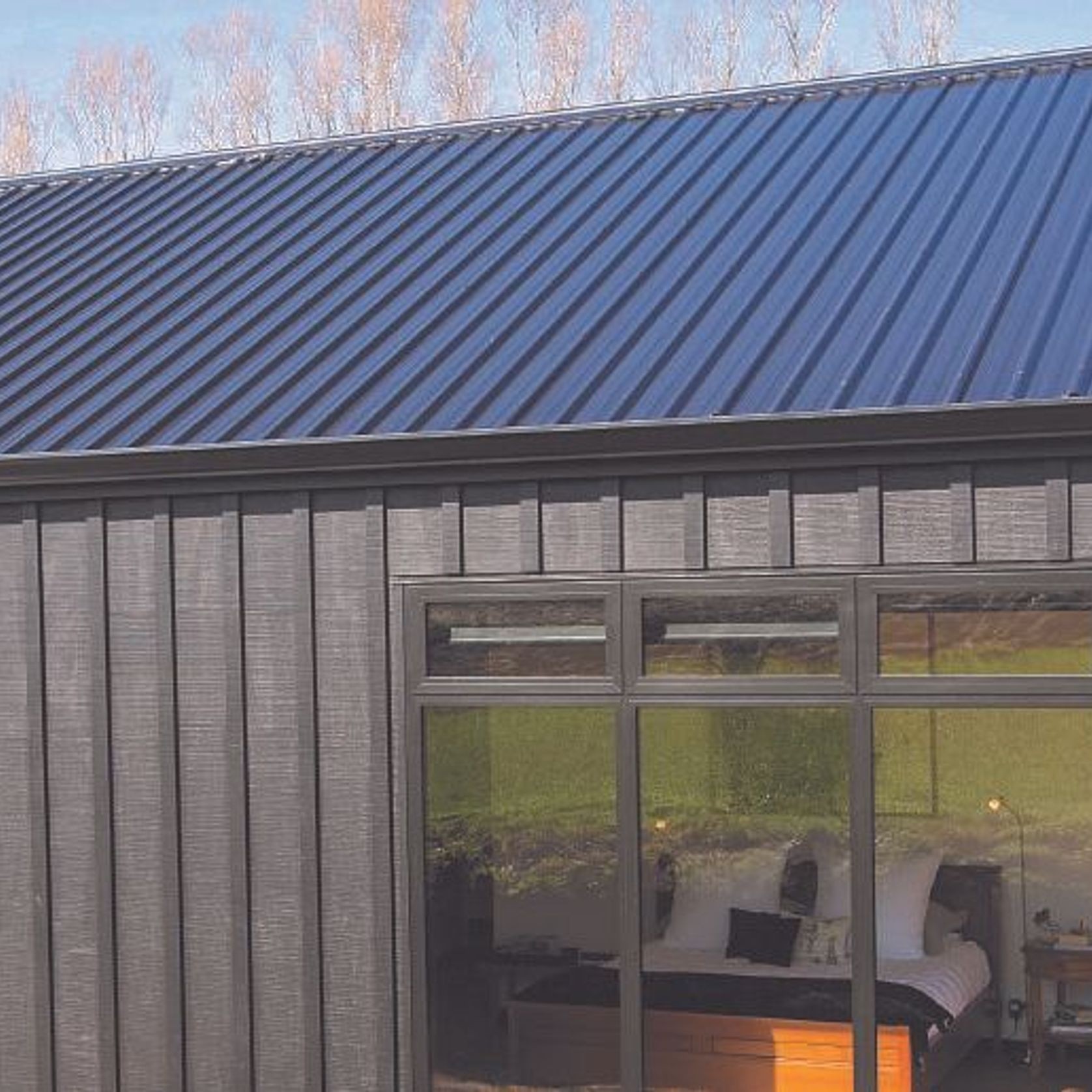

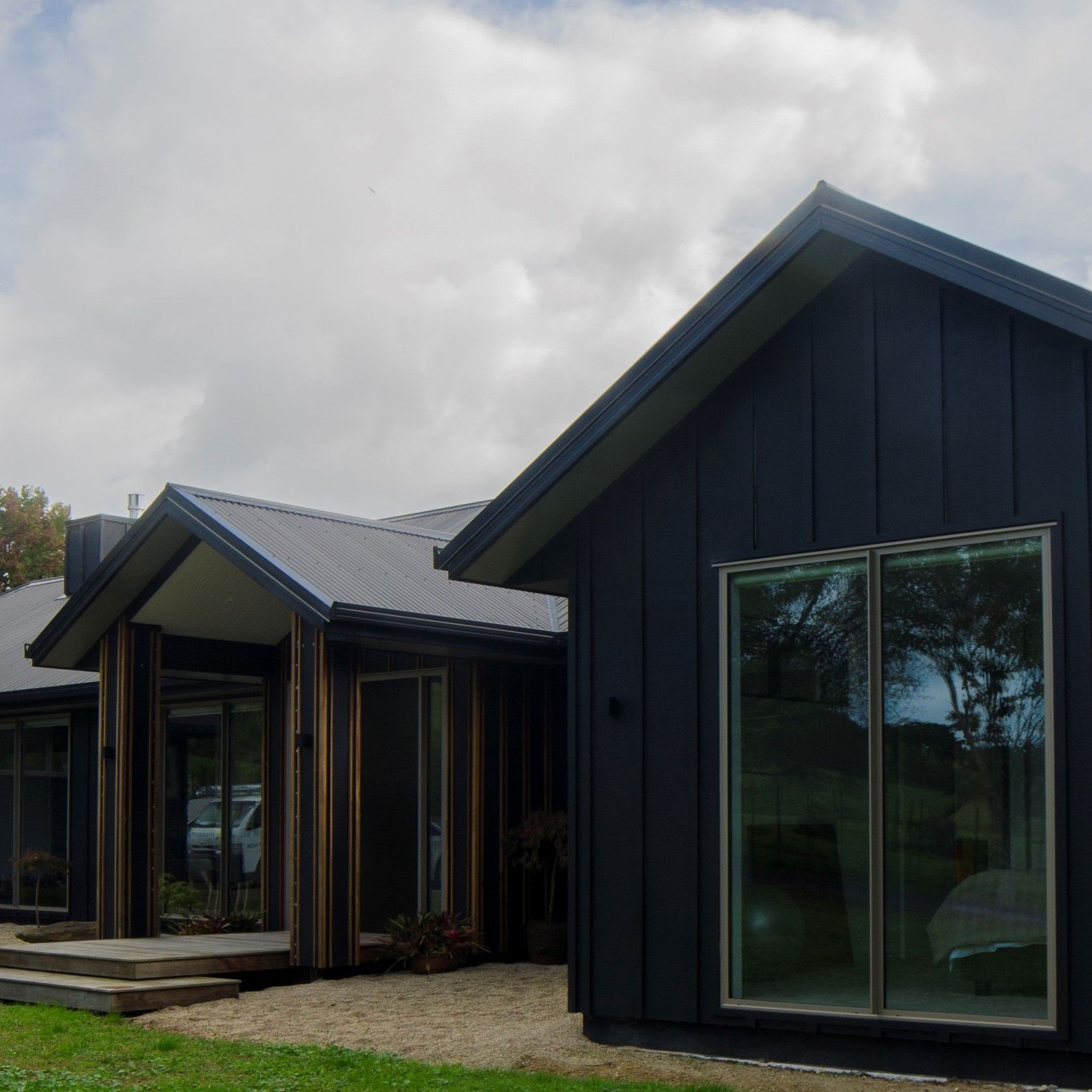

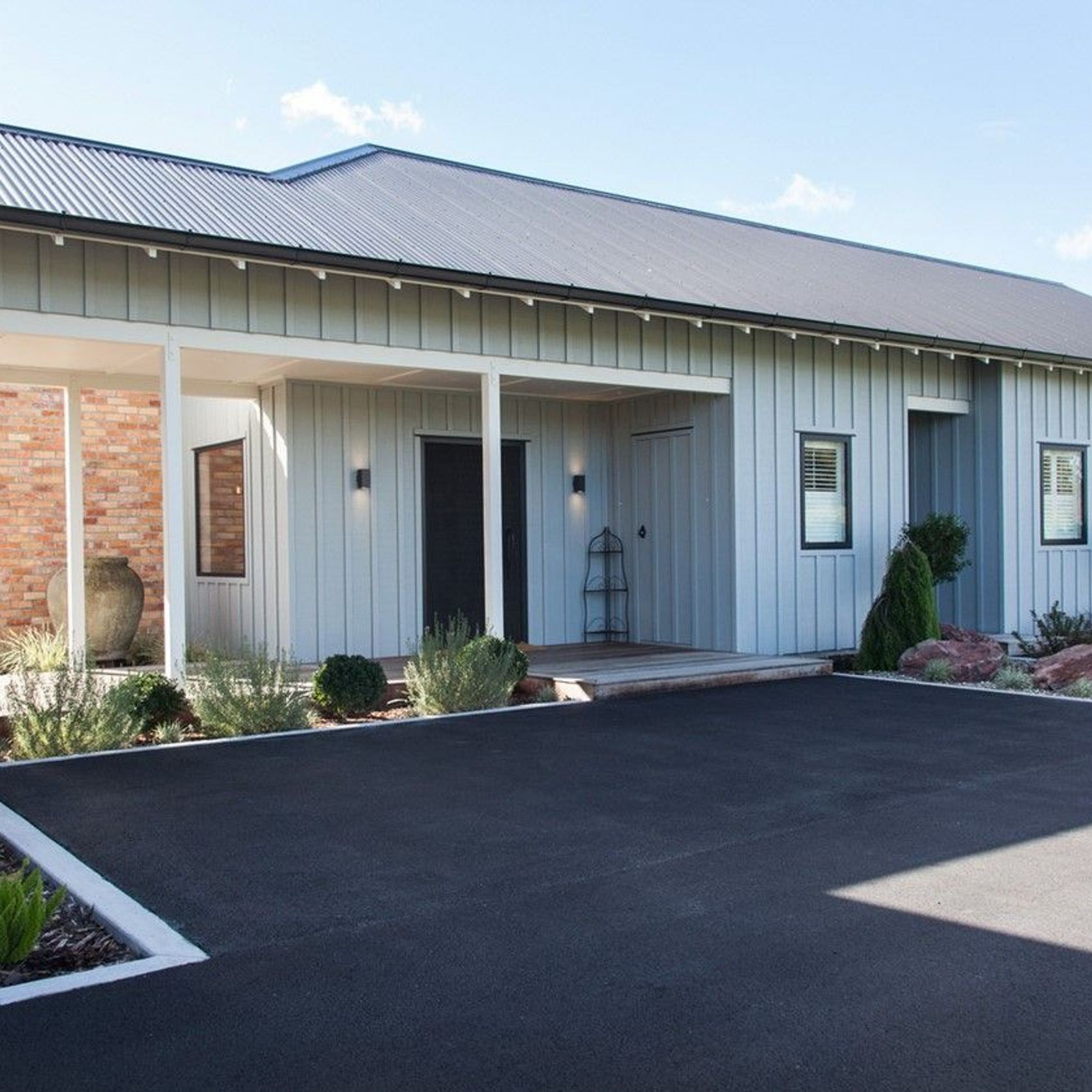

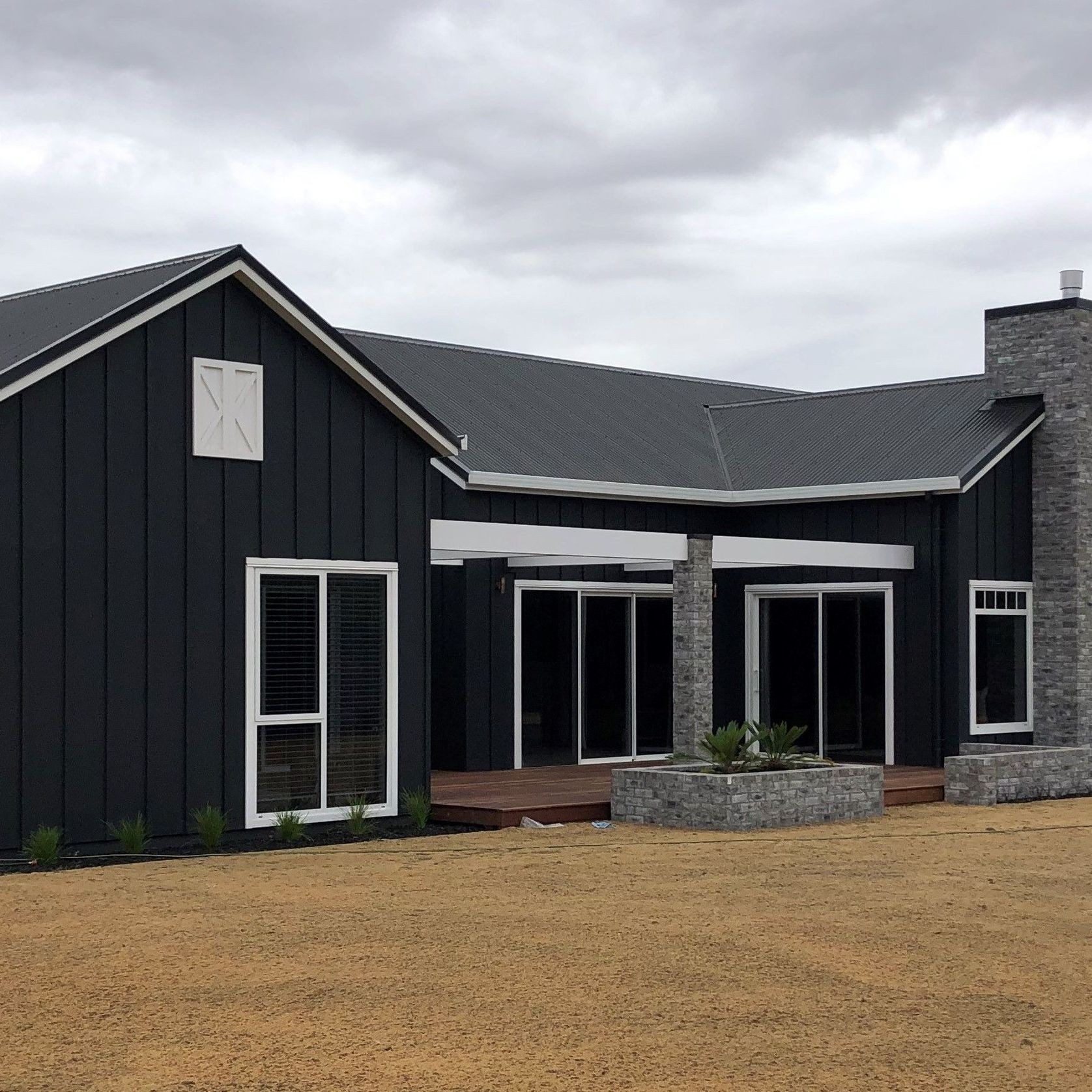

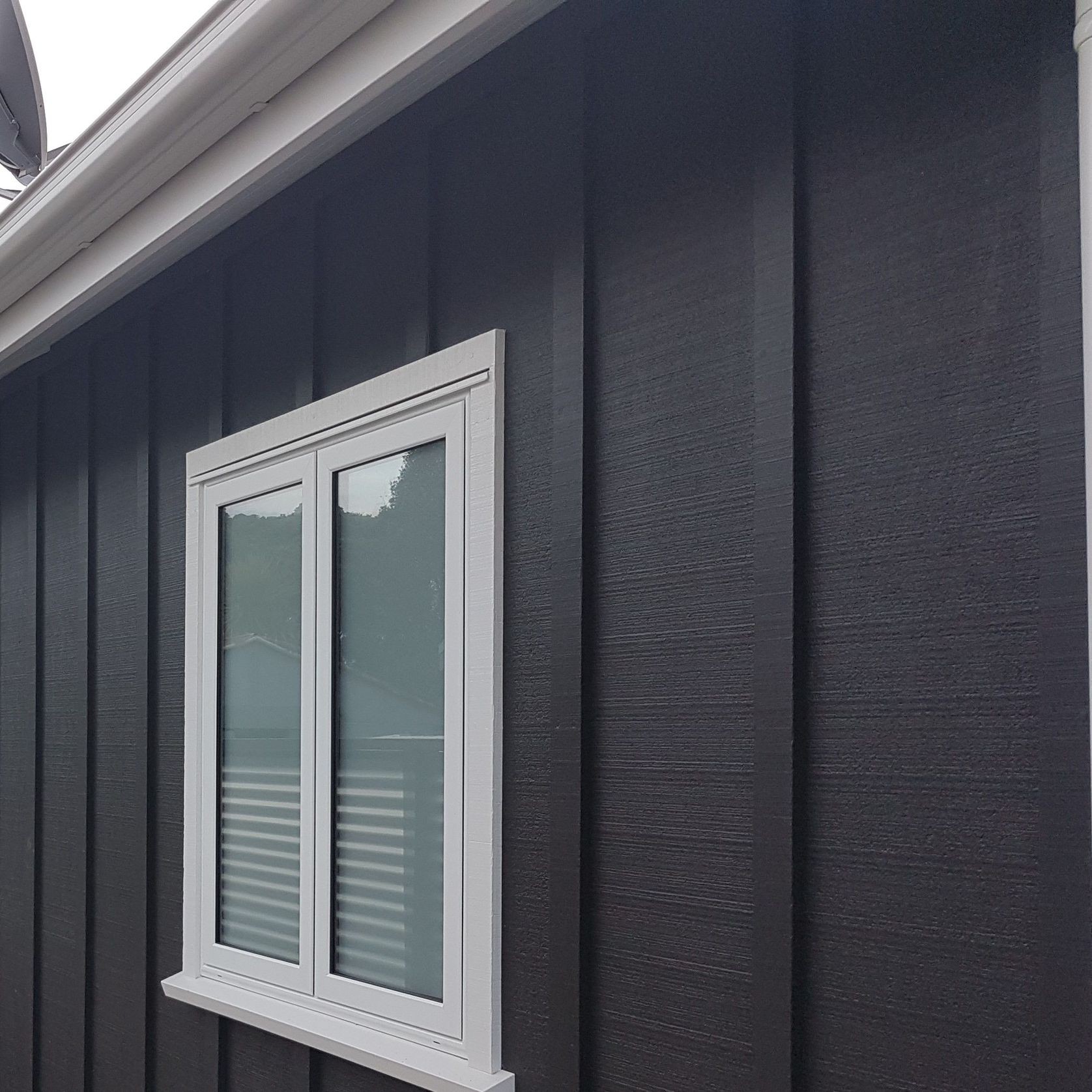

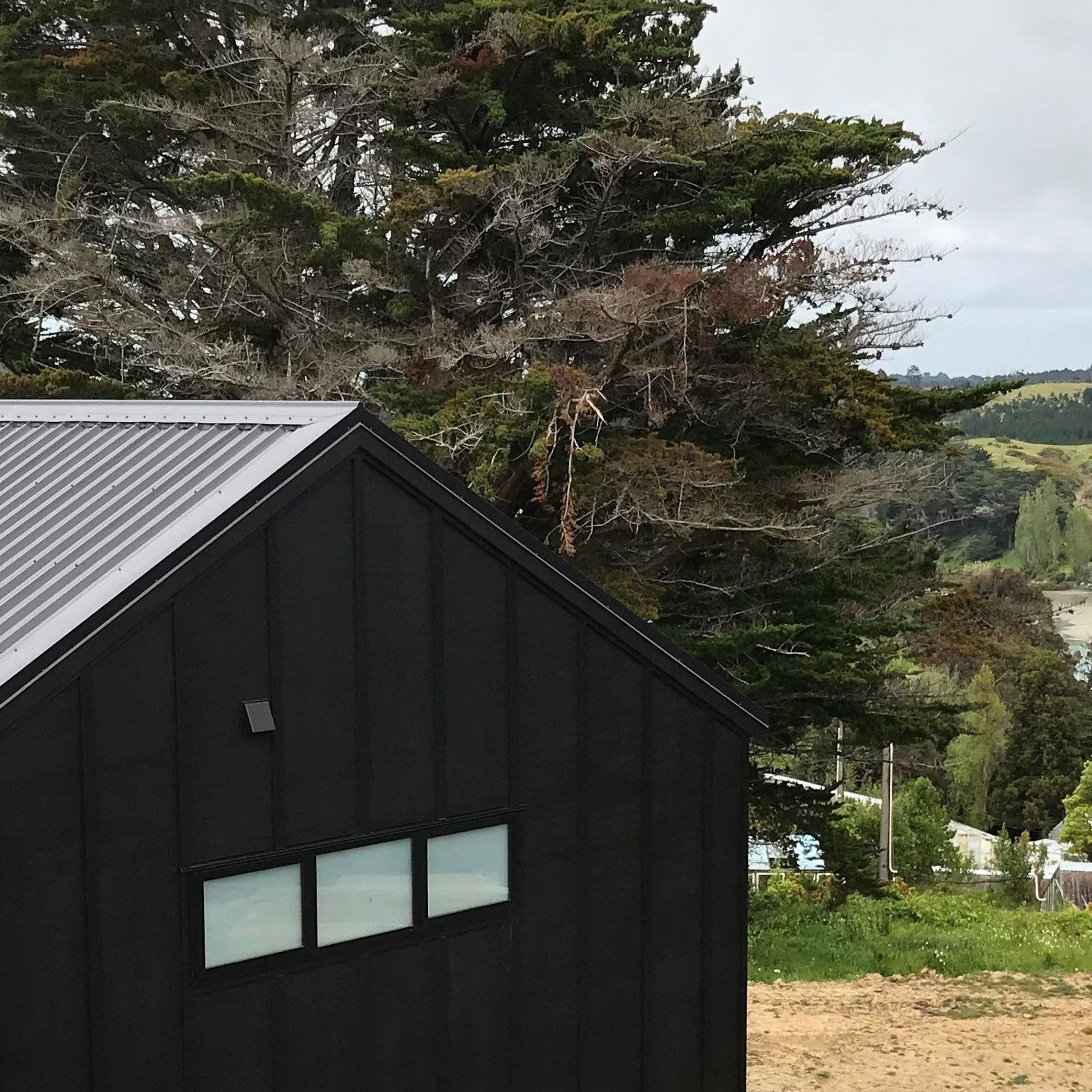

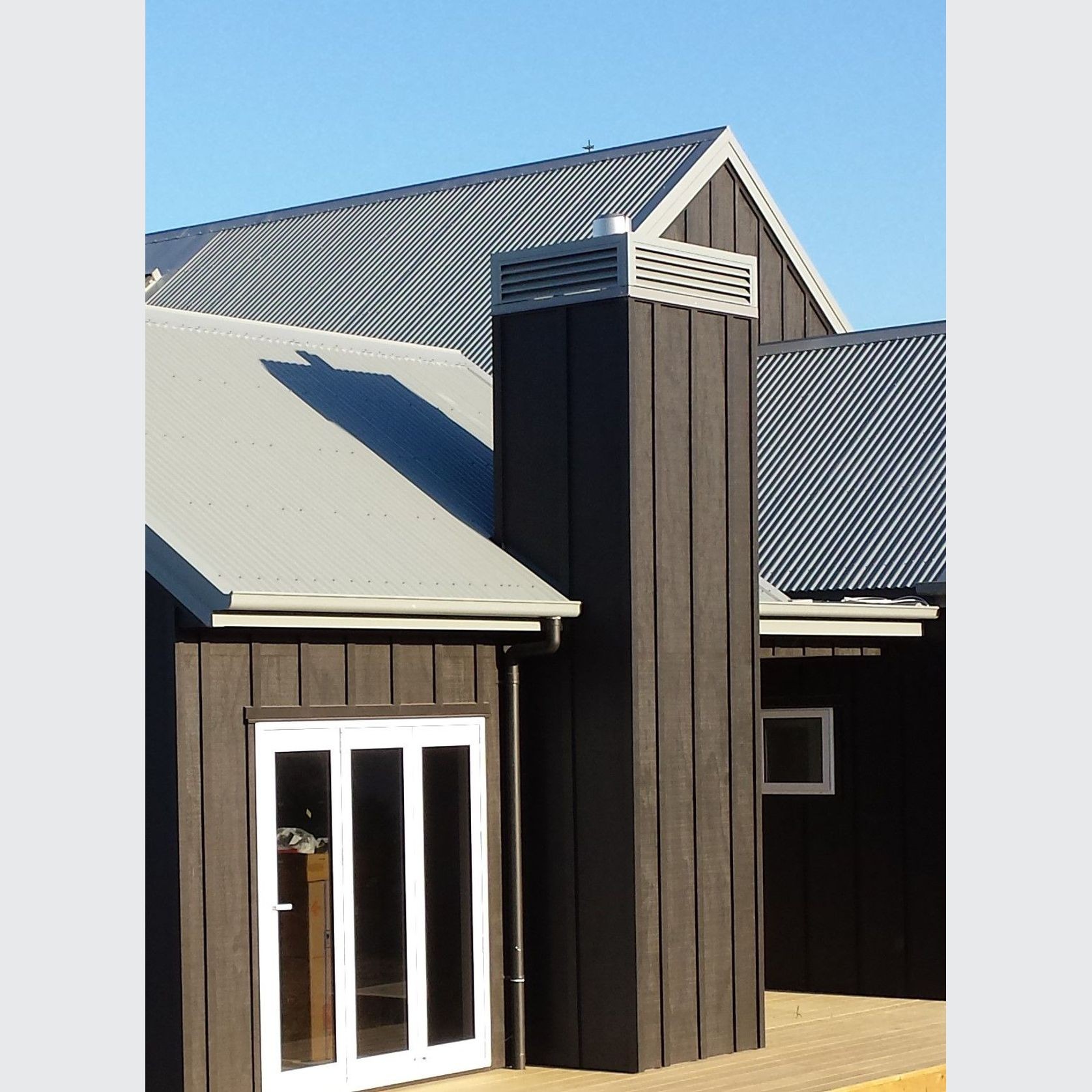

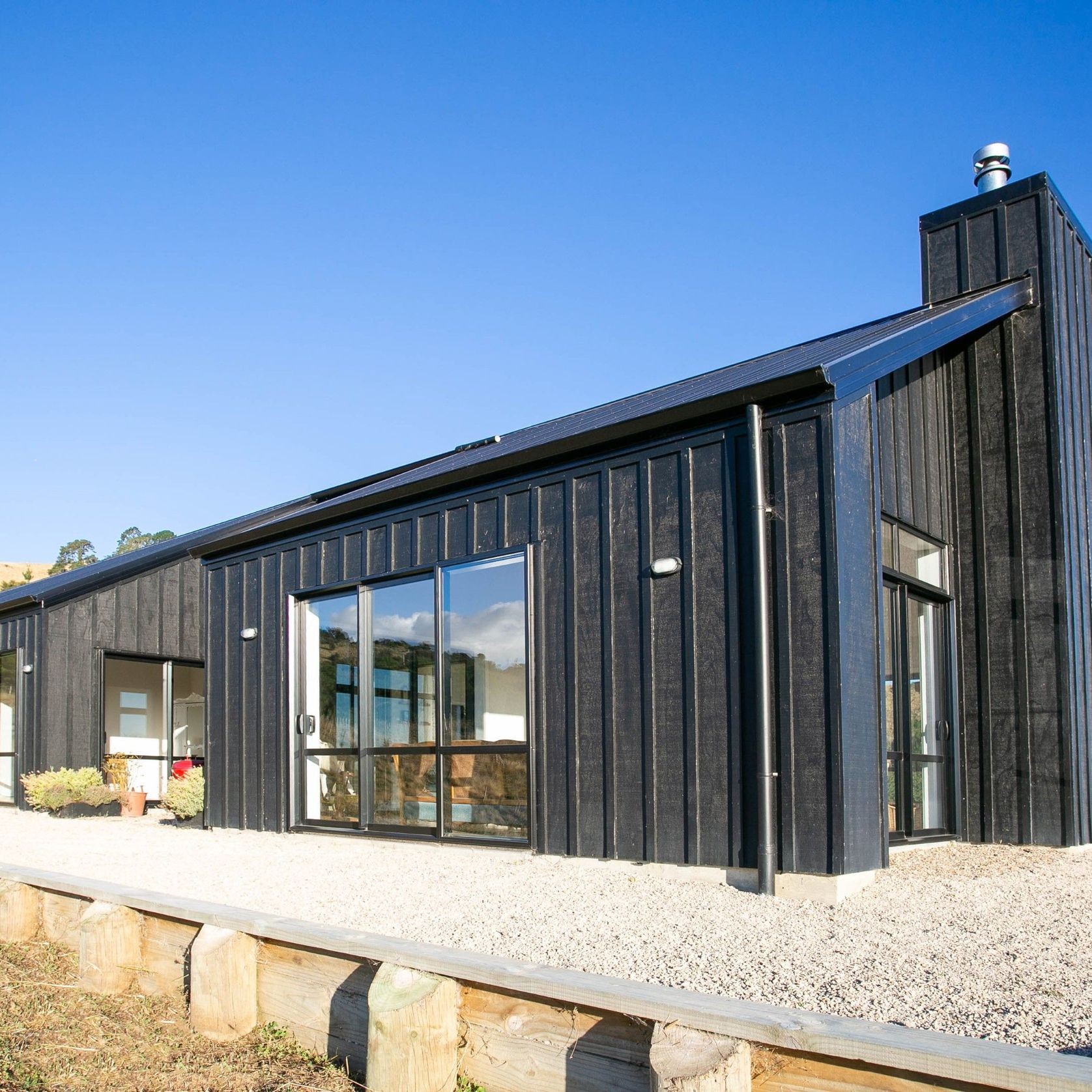

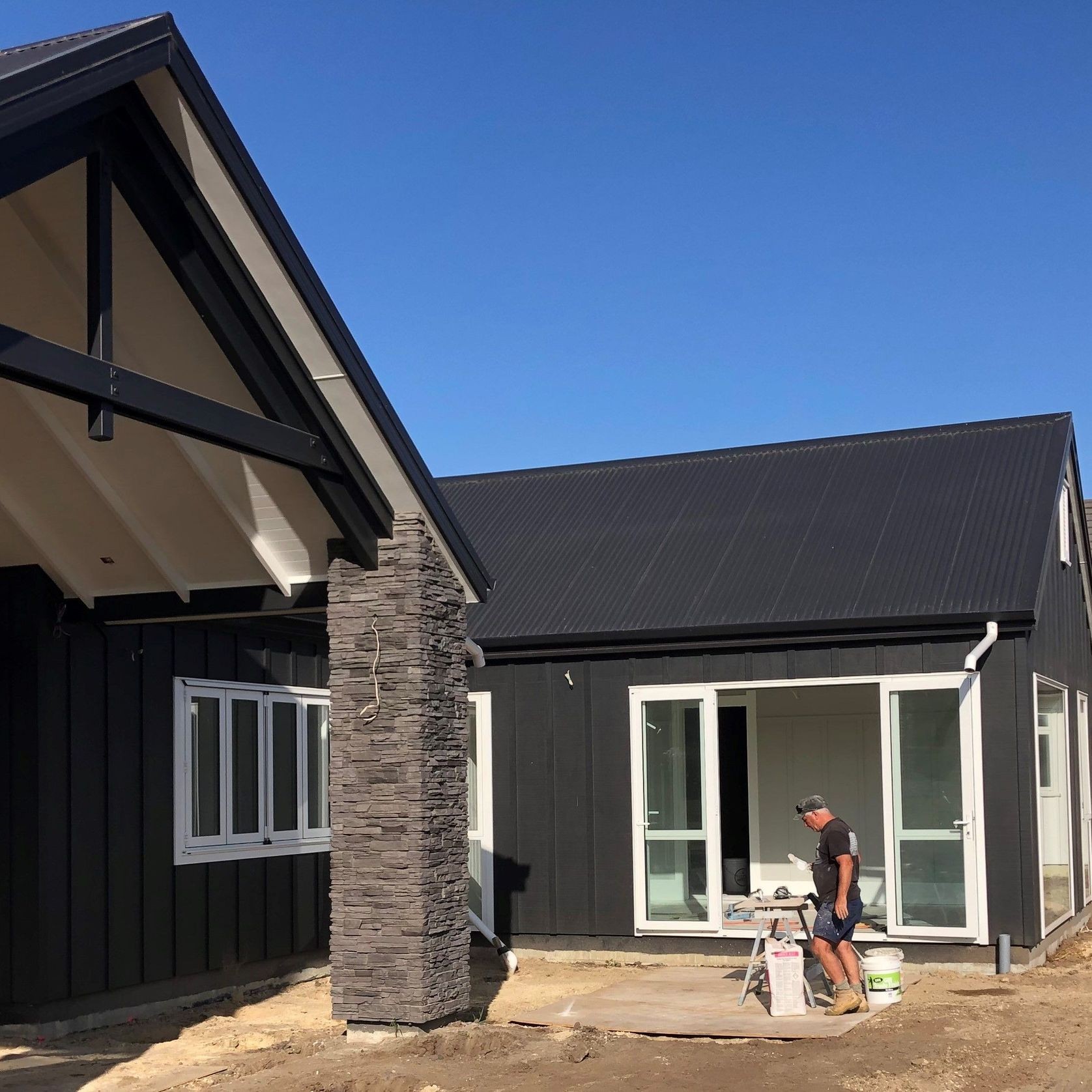

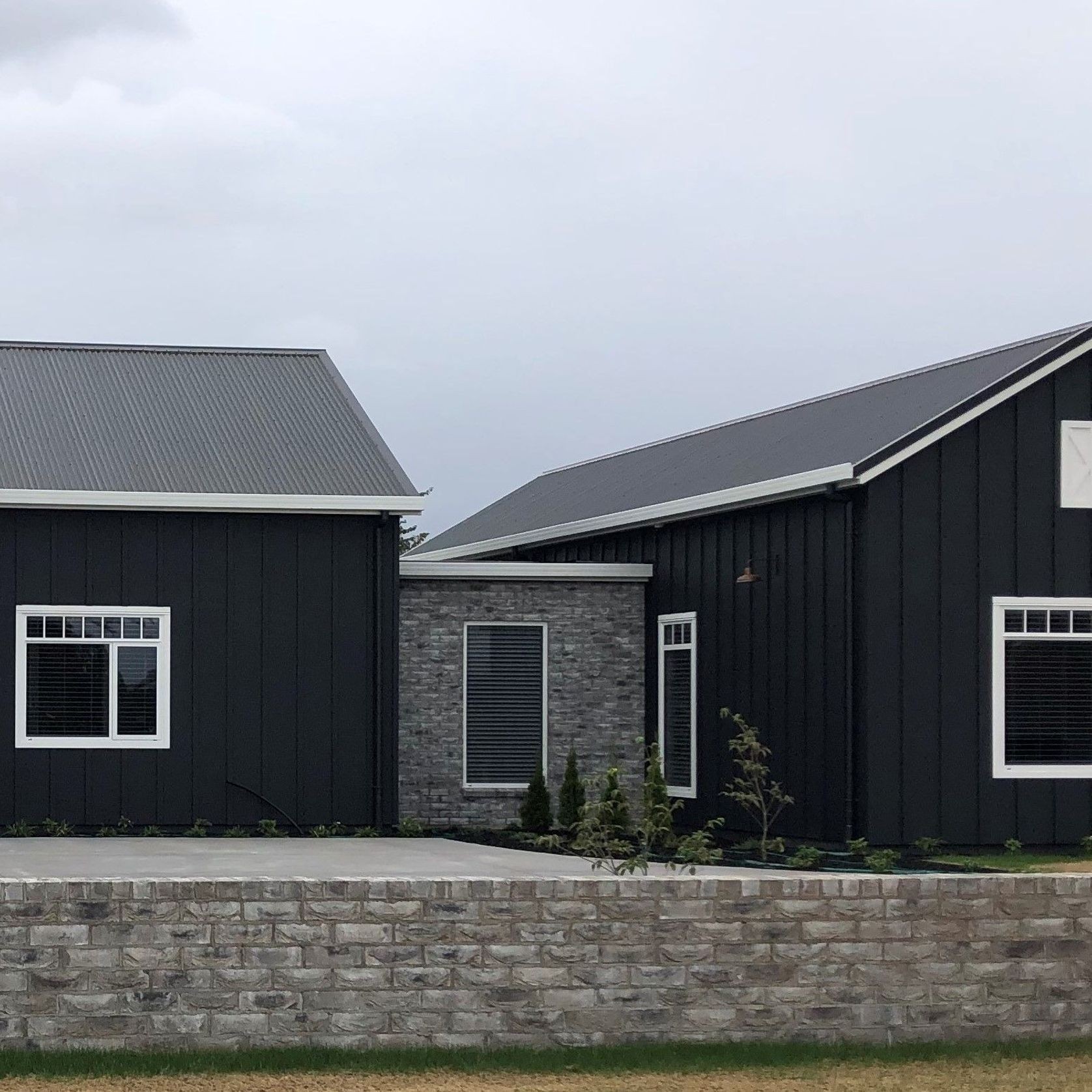

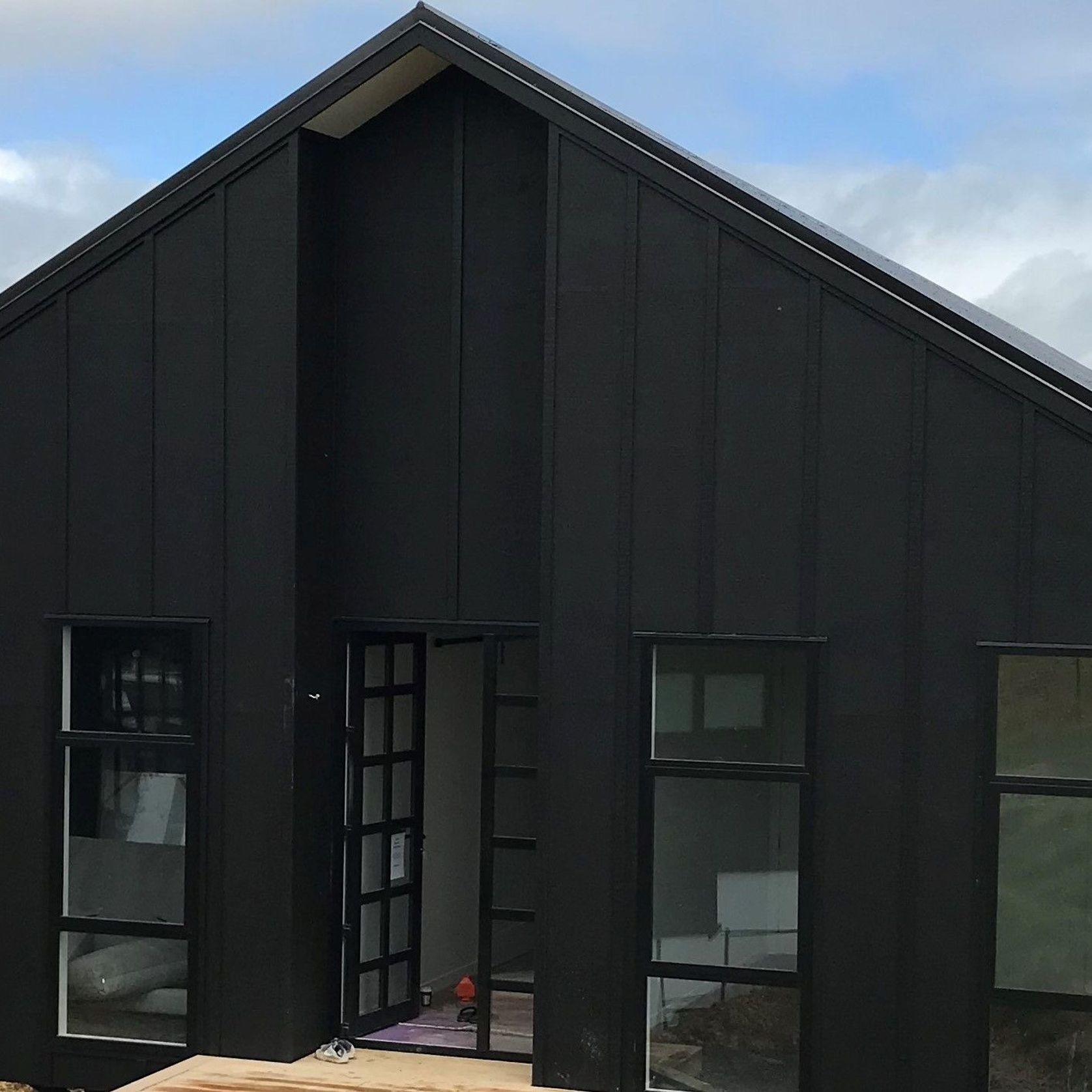

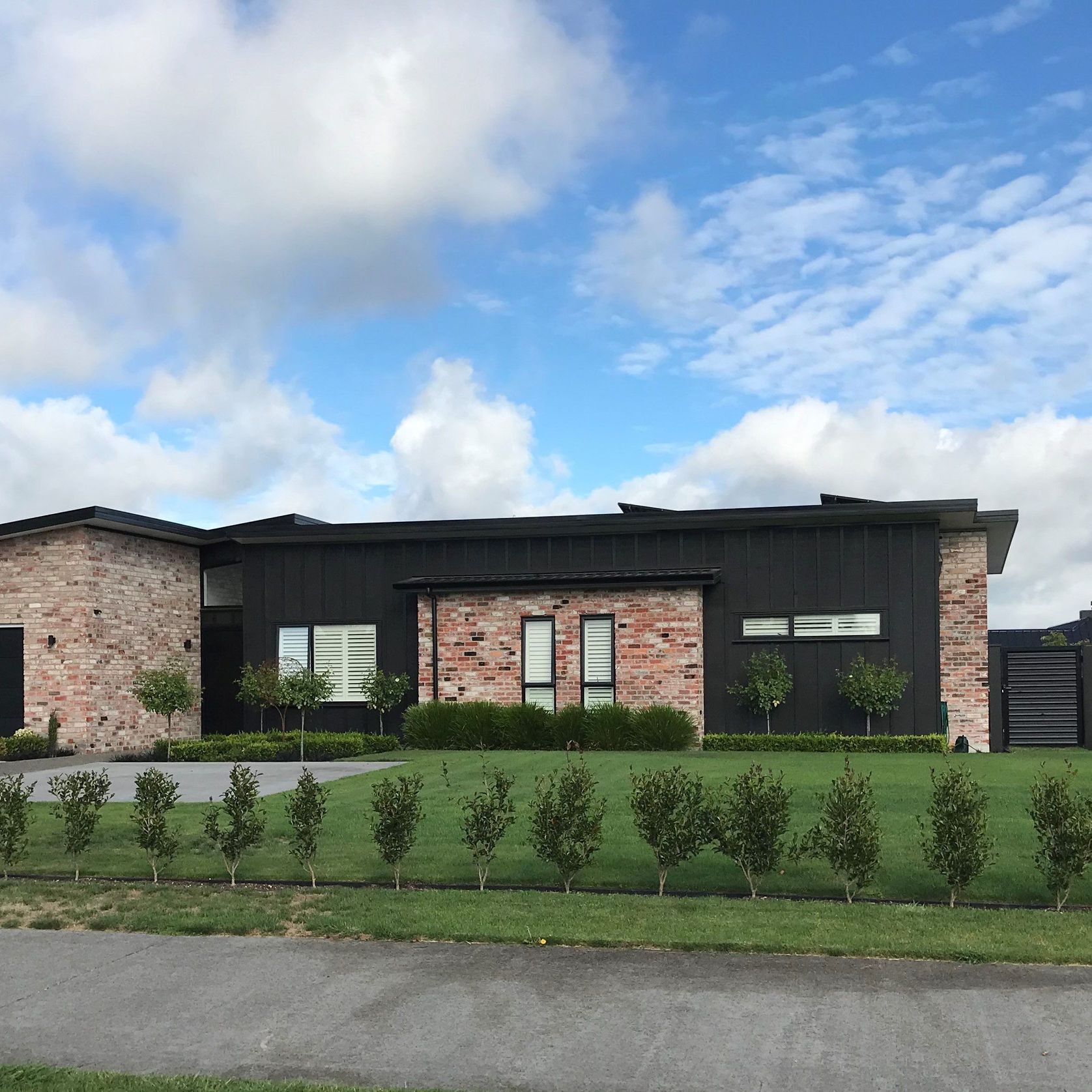

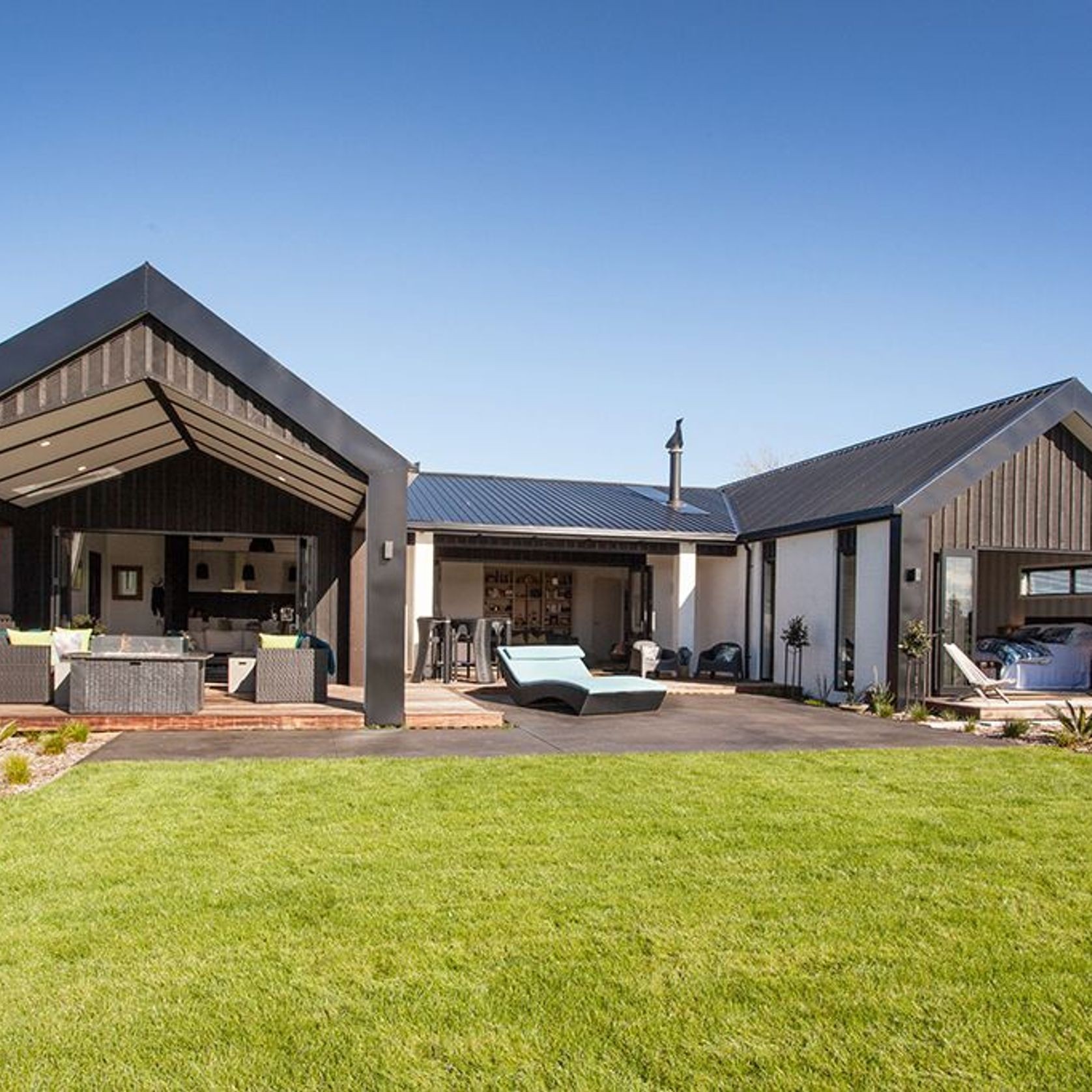

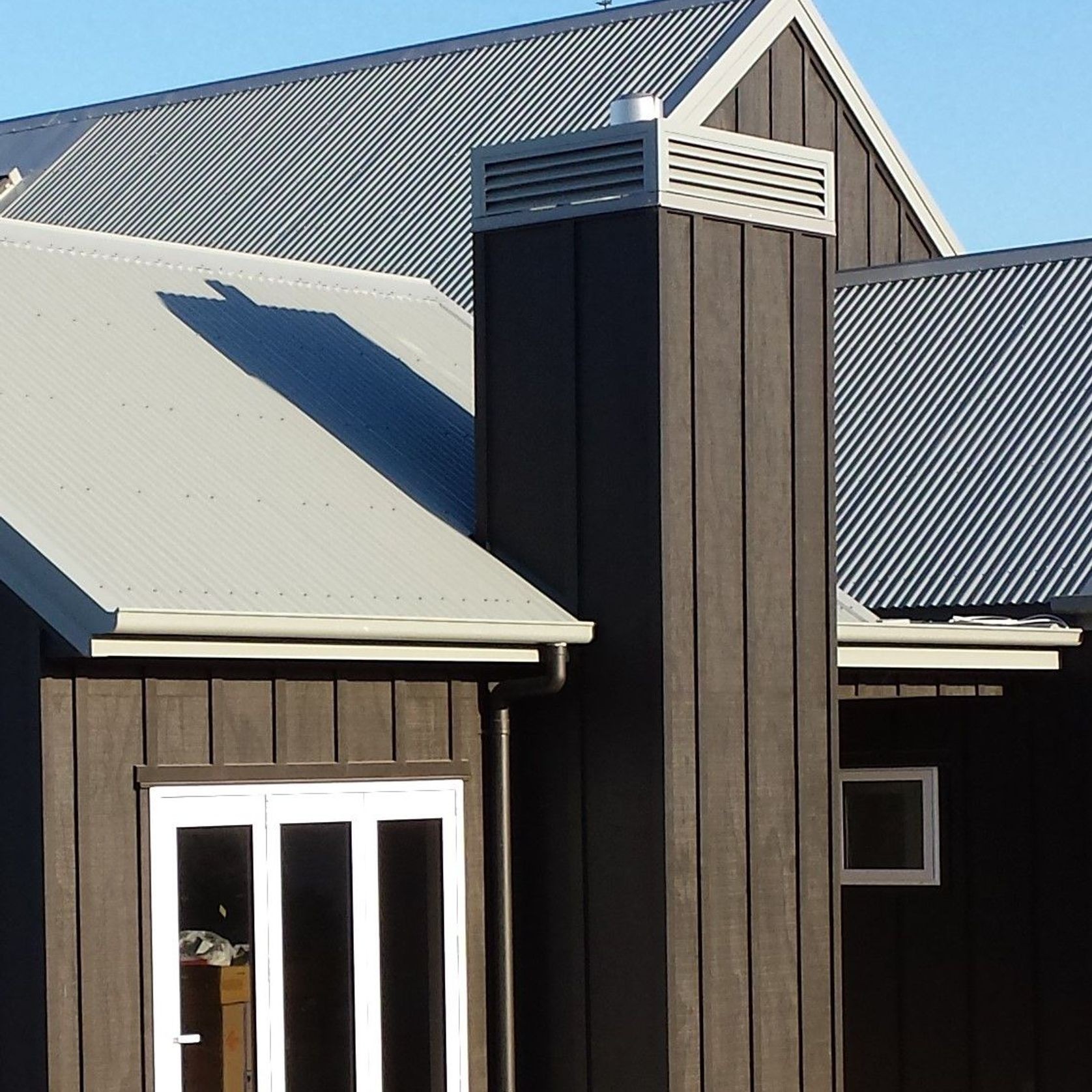

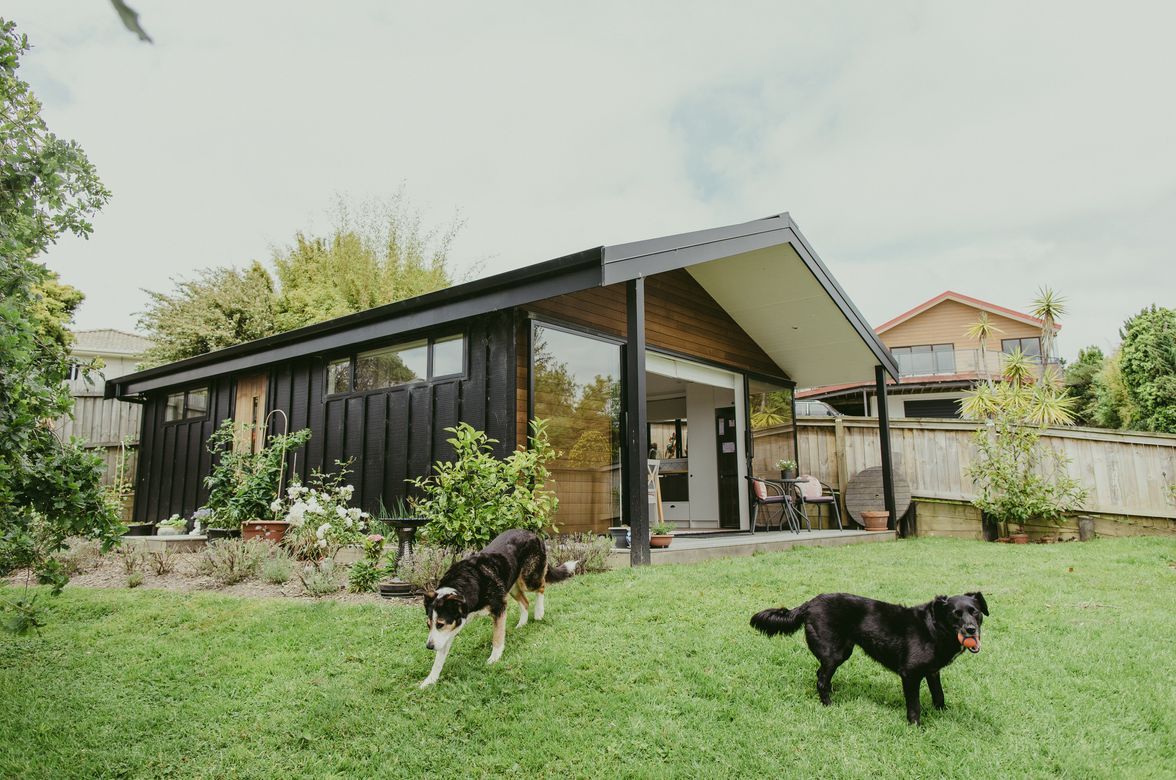

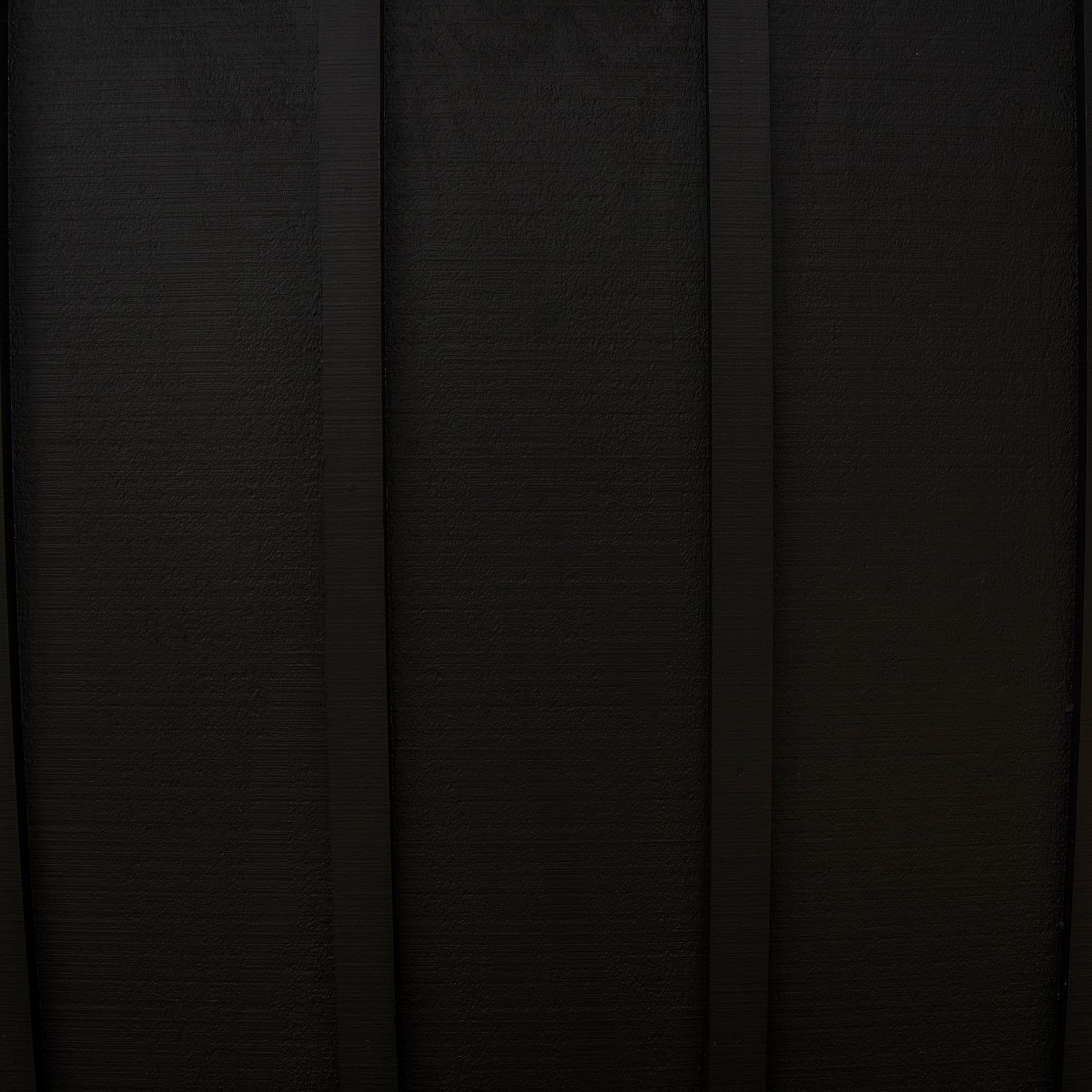

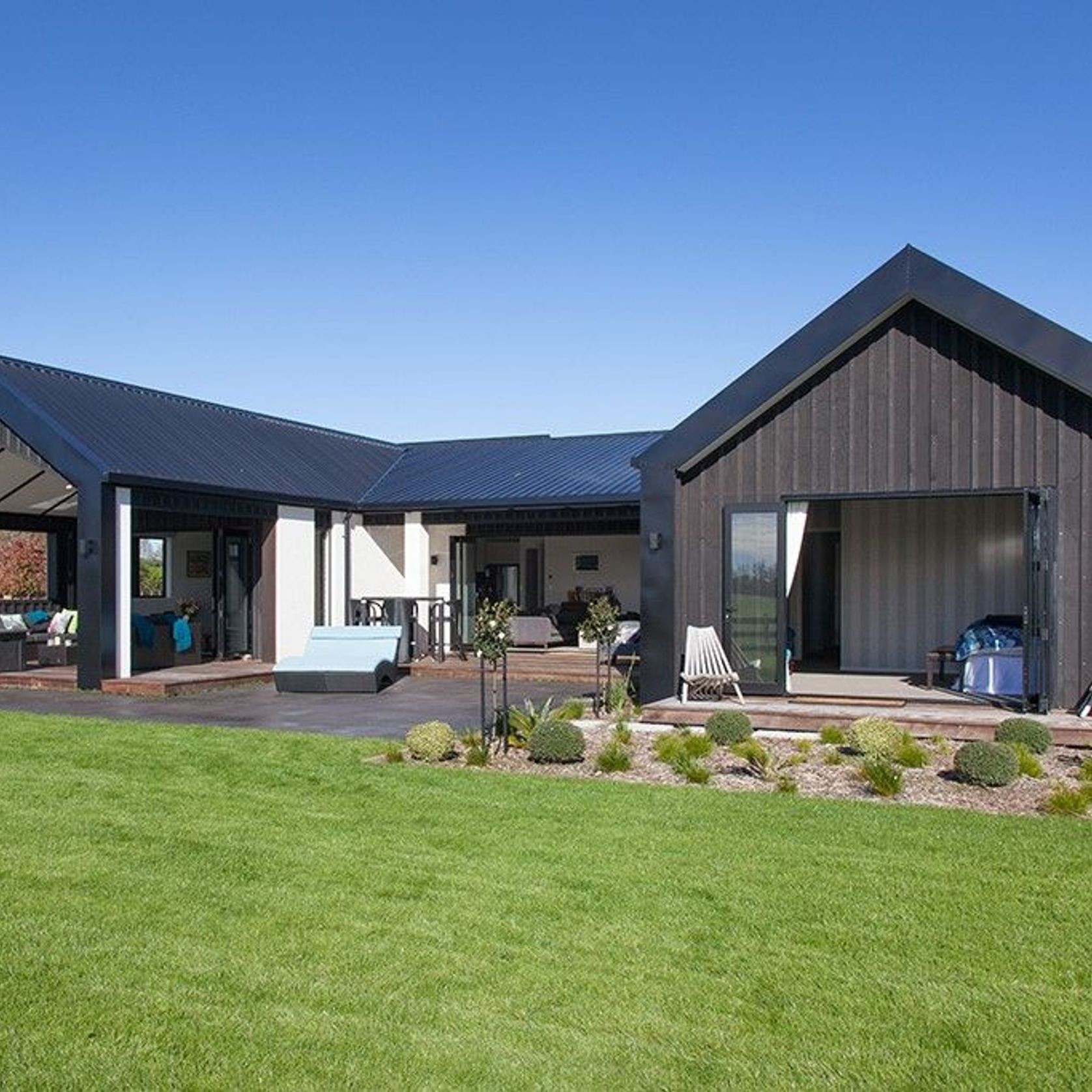

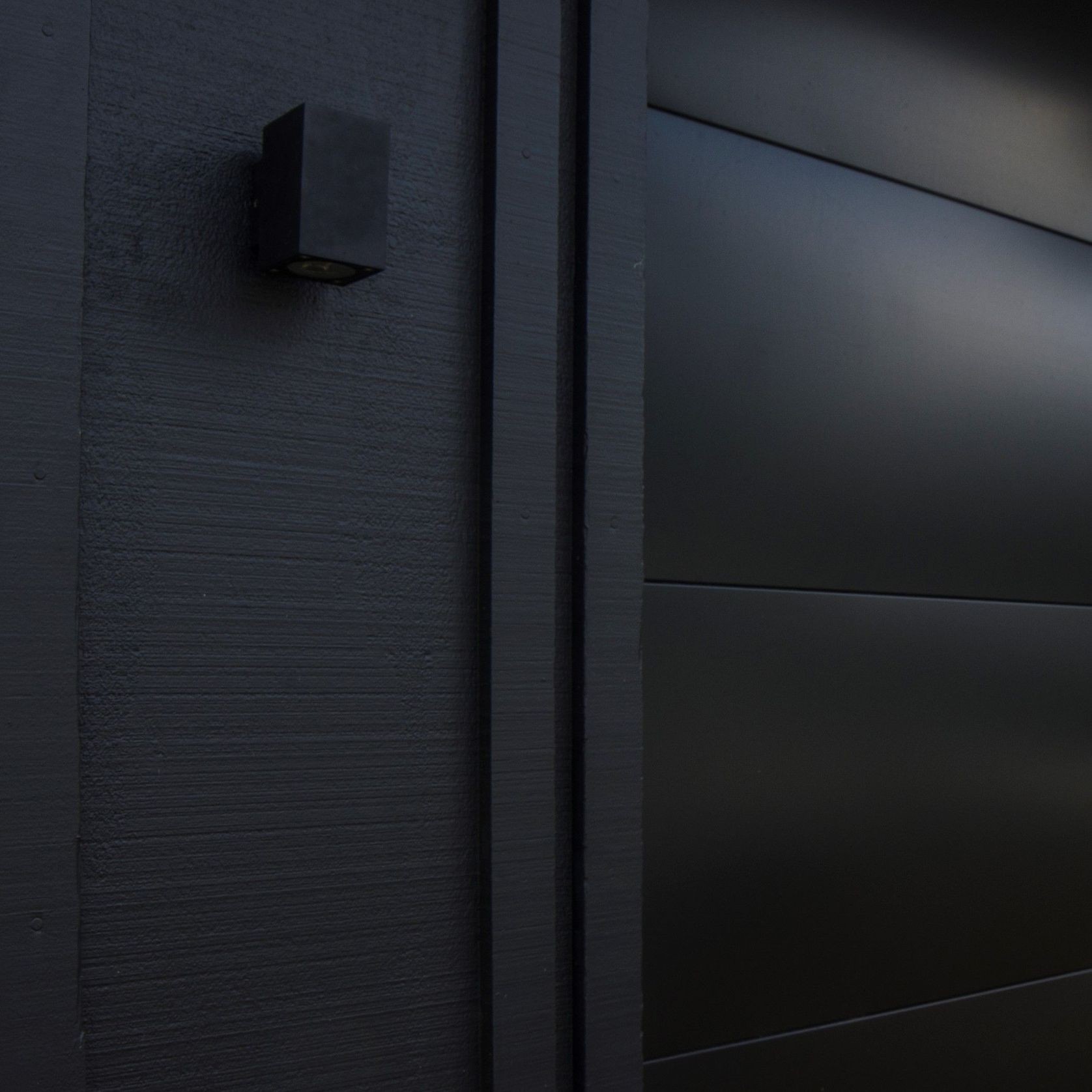

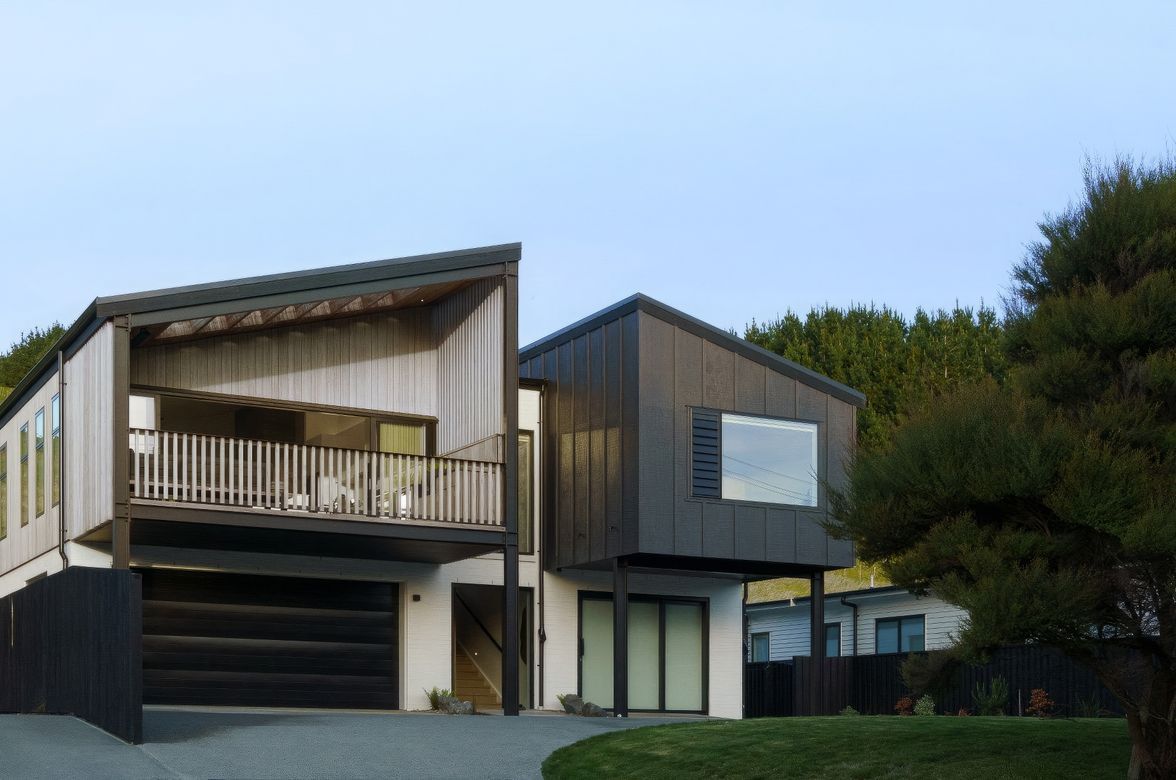

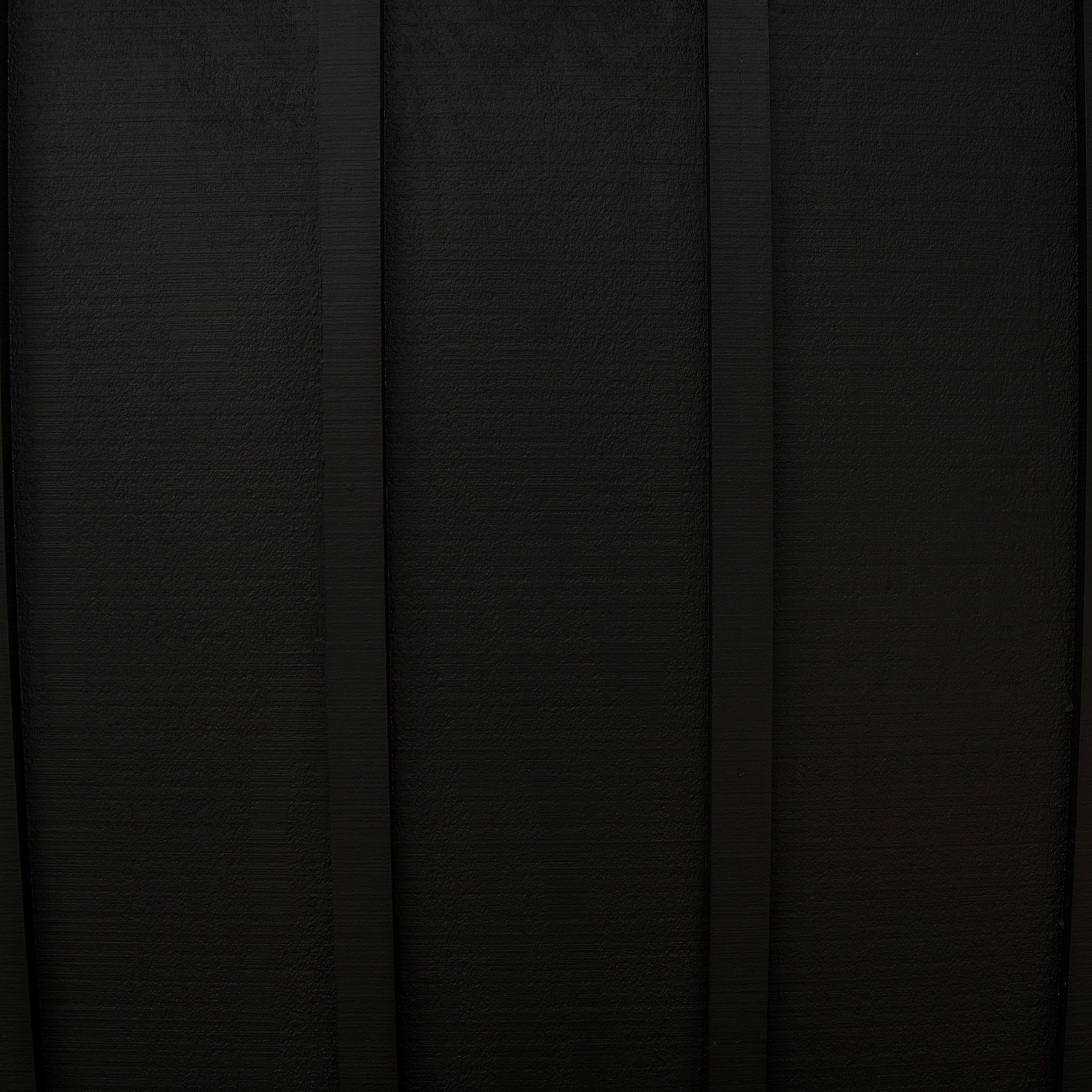

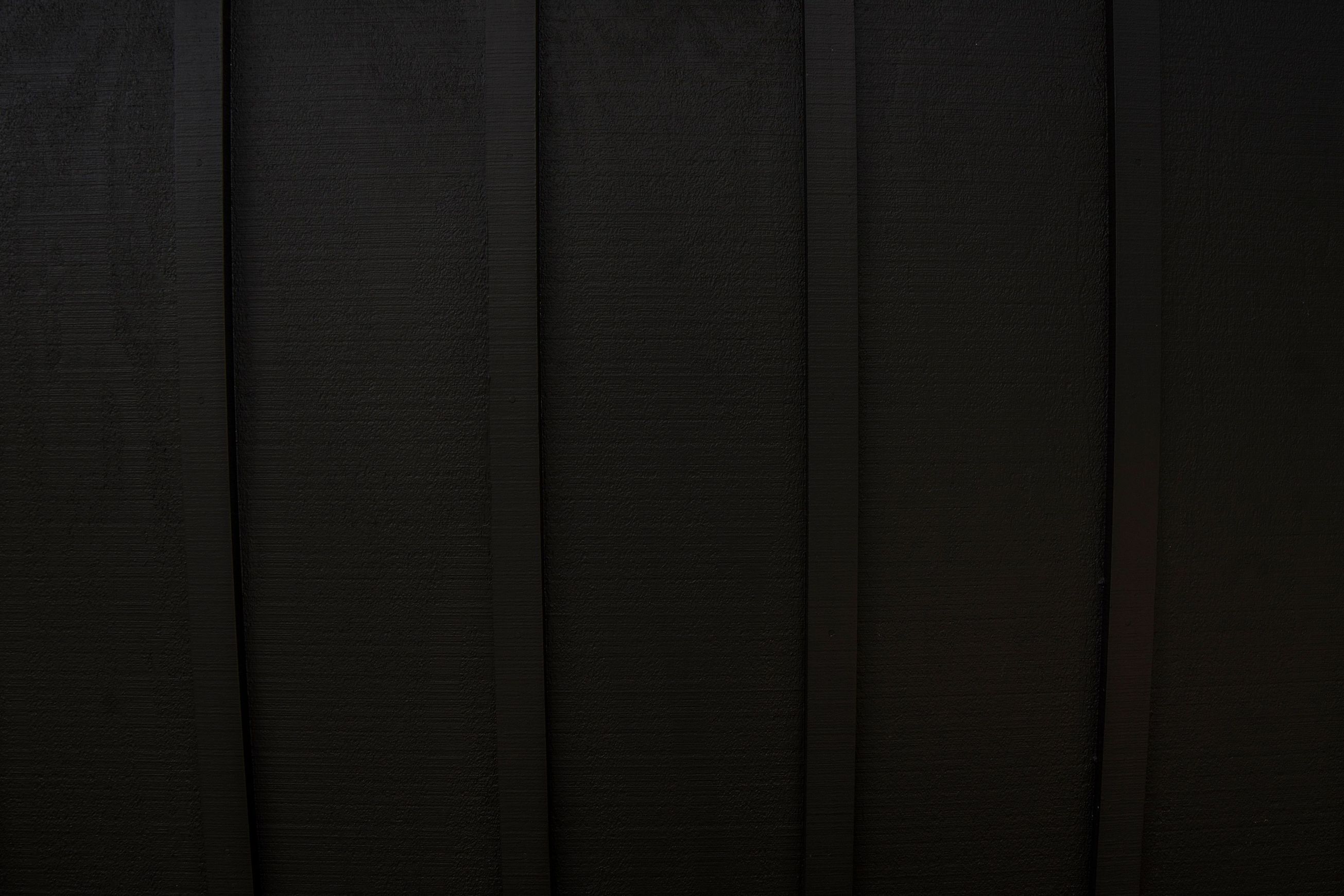

The base of this system is the New Zealand manufactured bandsawn face plywood sheets complemented with bandsawn weather grooved battens.

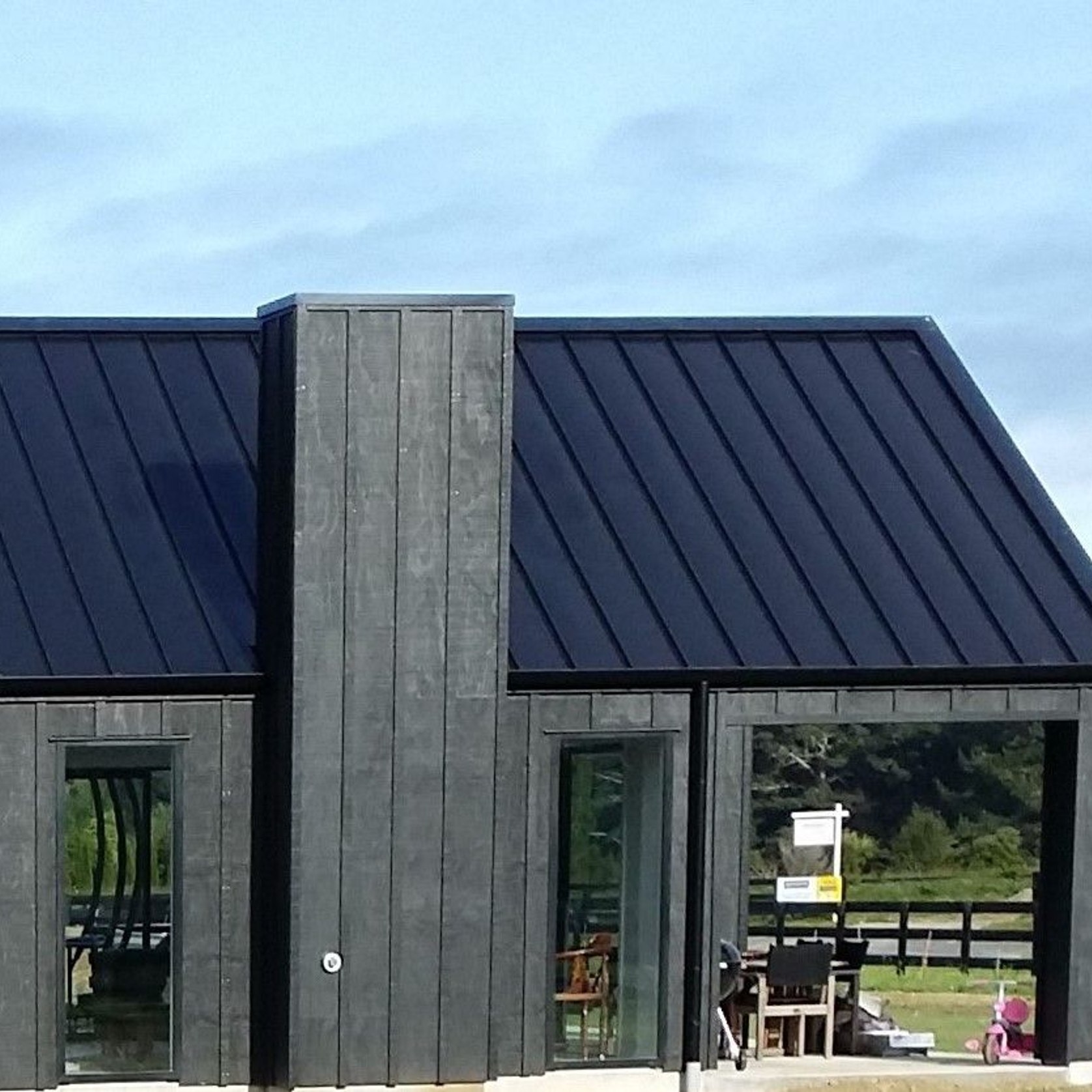

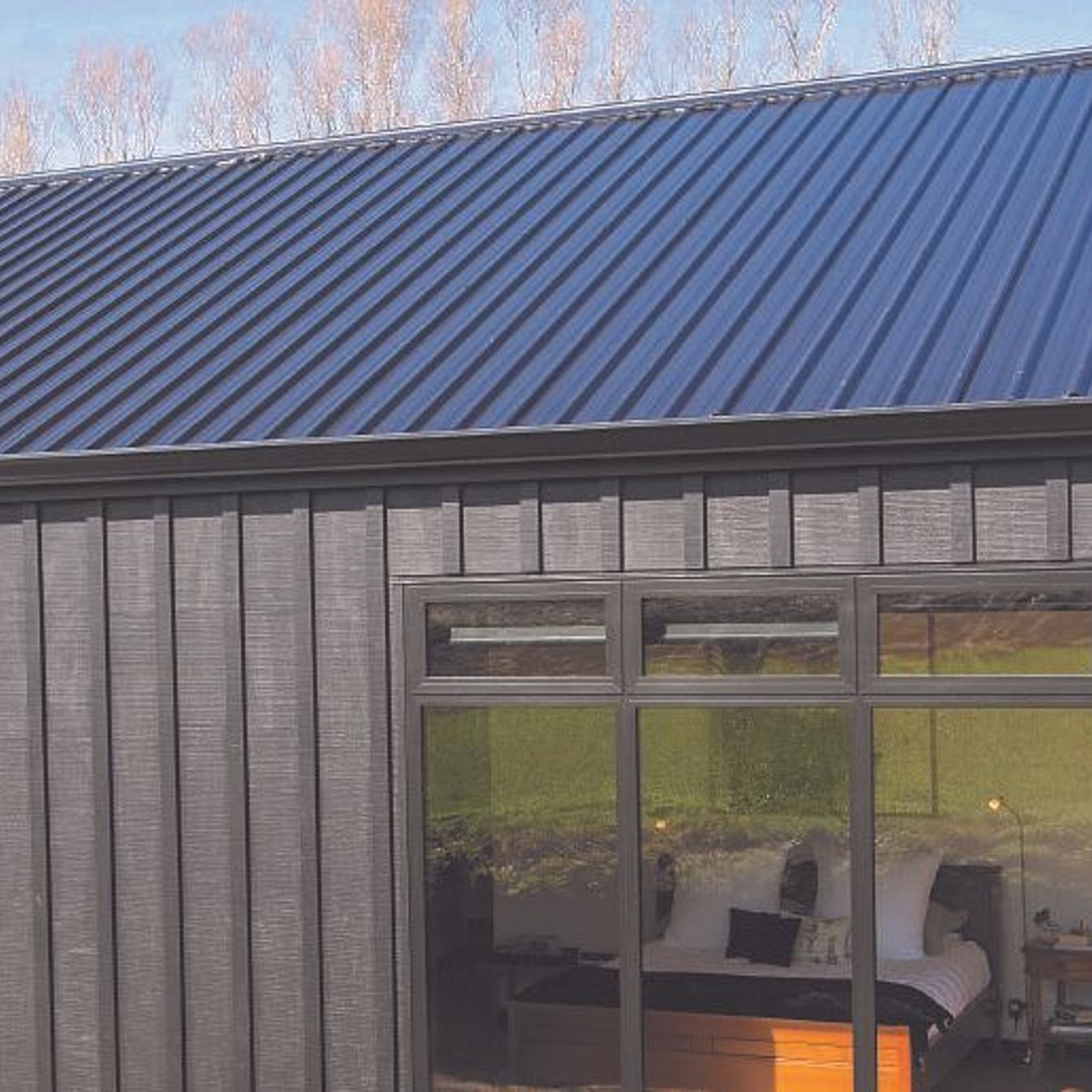

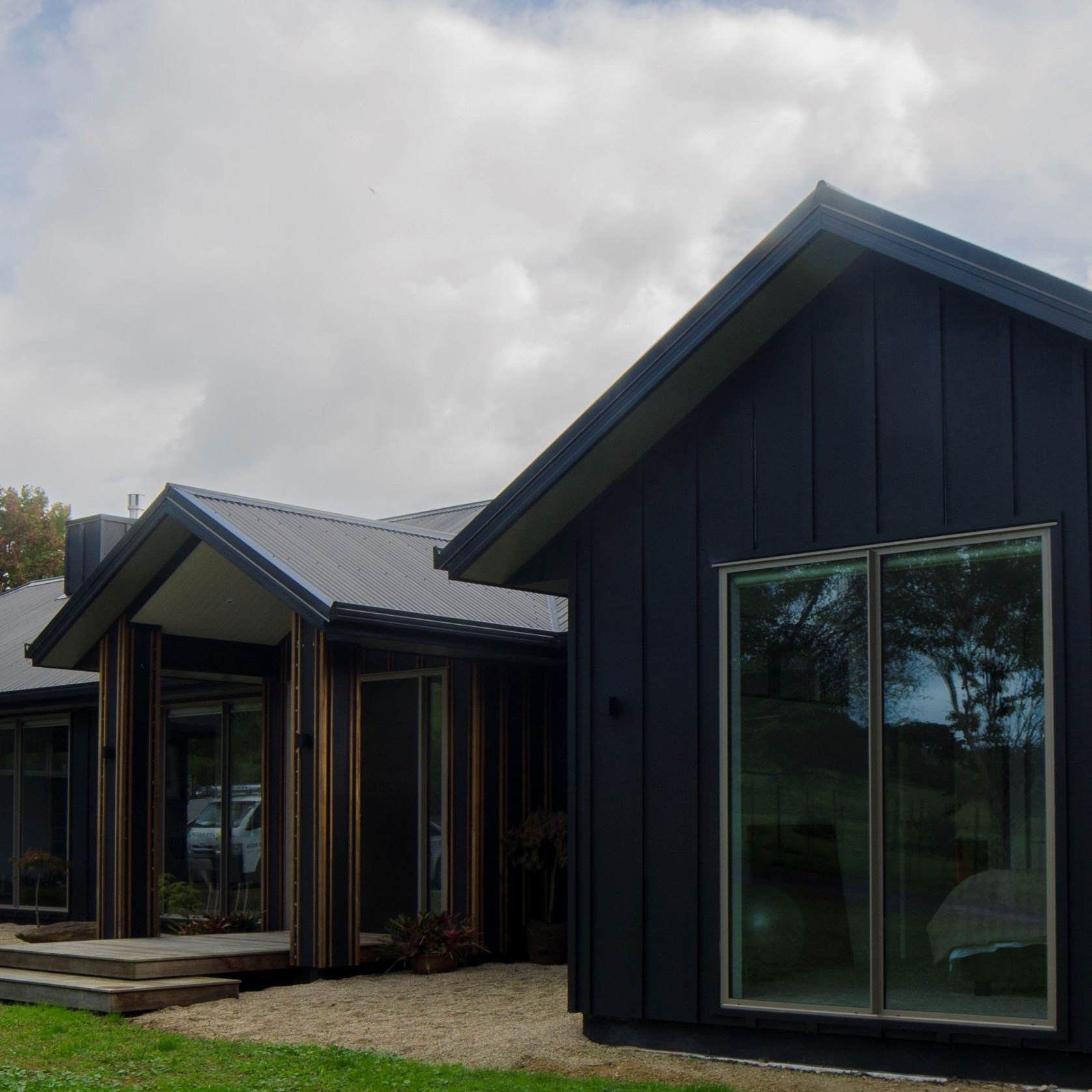

Together these provide the traditional board and batten look that has been so successful and durable for many years.

The Enduroclad Board and Batten Cladding System is unique. We begin with a 2.4m sheet and with a tongue and groove join them to create longer lengths eliminating the need for a horizontal Z flashing on walls above 2.4m in height.

The Enduroclad Cover batten range is manufactured from radiata pine, all have weather grooves on the back, have a bandsawn face and sides and are only available in random lengths in the following widths and thicknesses:

Details
  • Category
    Board and Batten
  • Brand
    Enduroclad
Specs / Details

About Triclad's Board and Batten Cladding:

  • NZ made from sustainable plantation pine

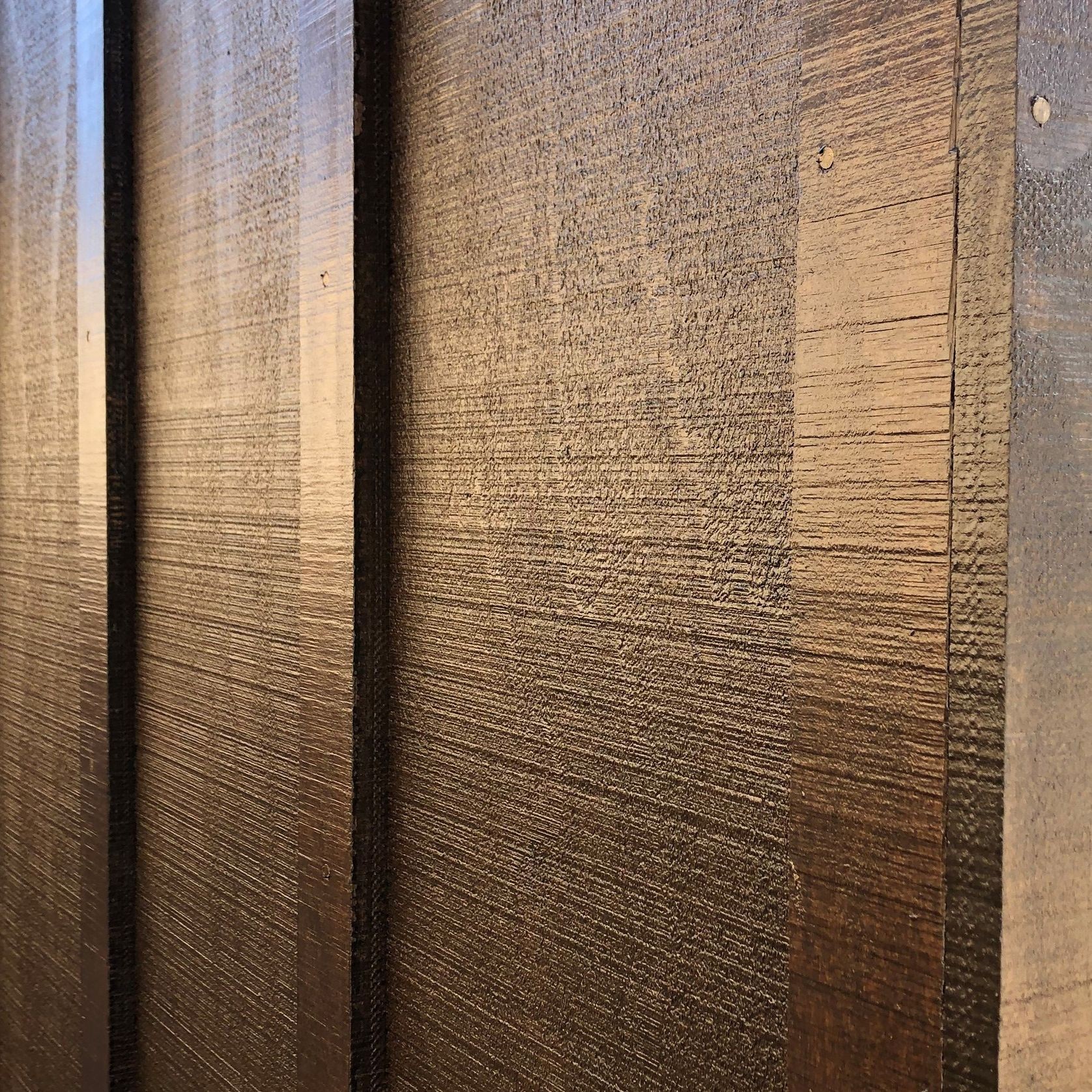

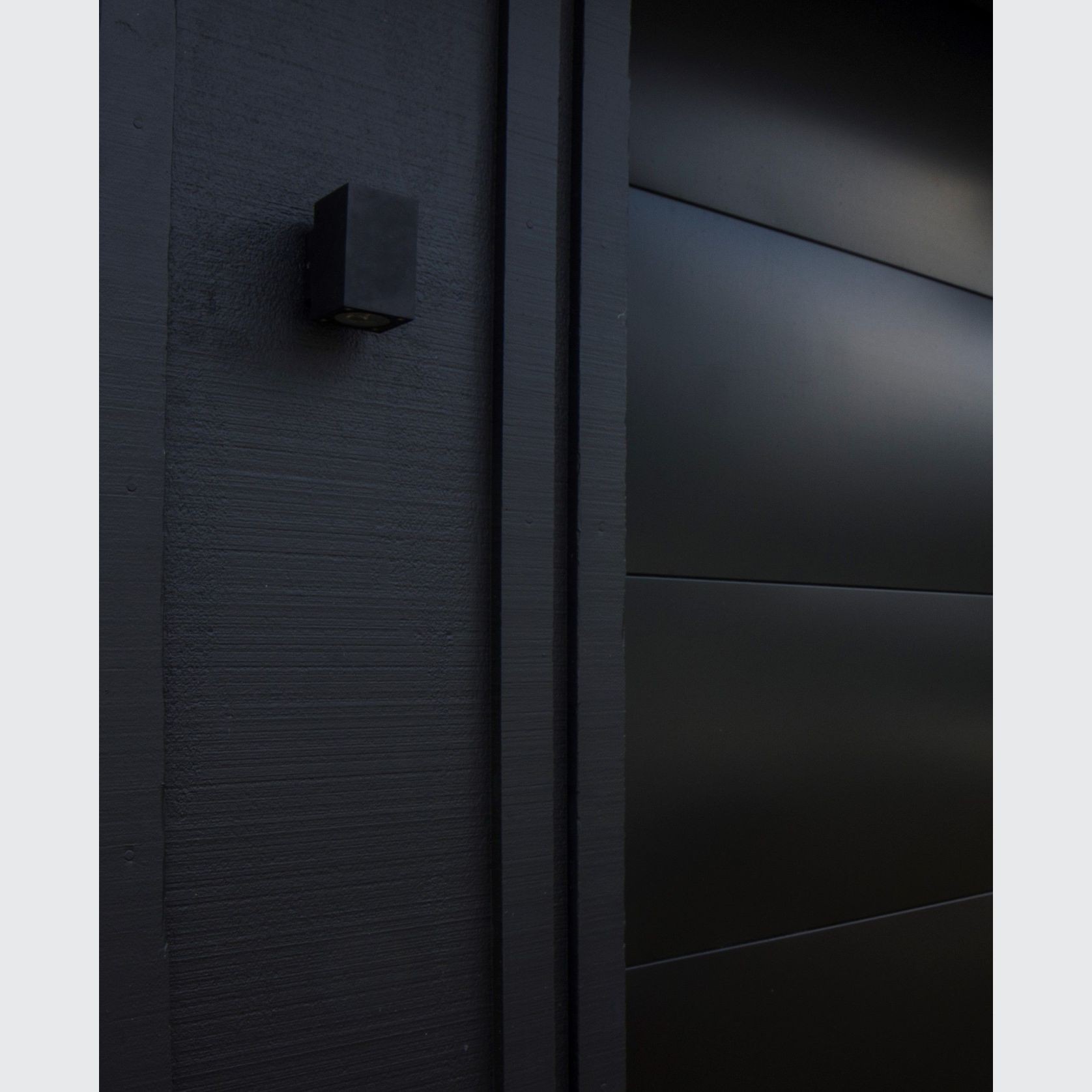

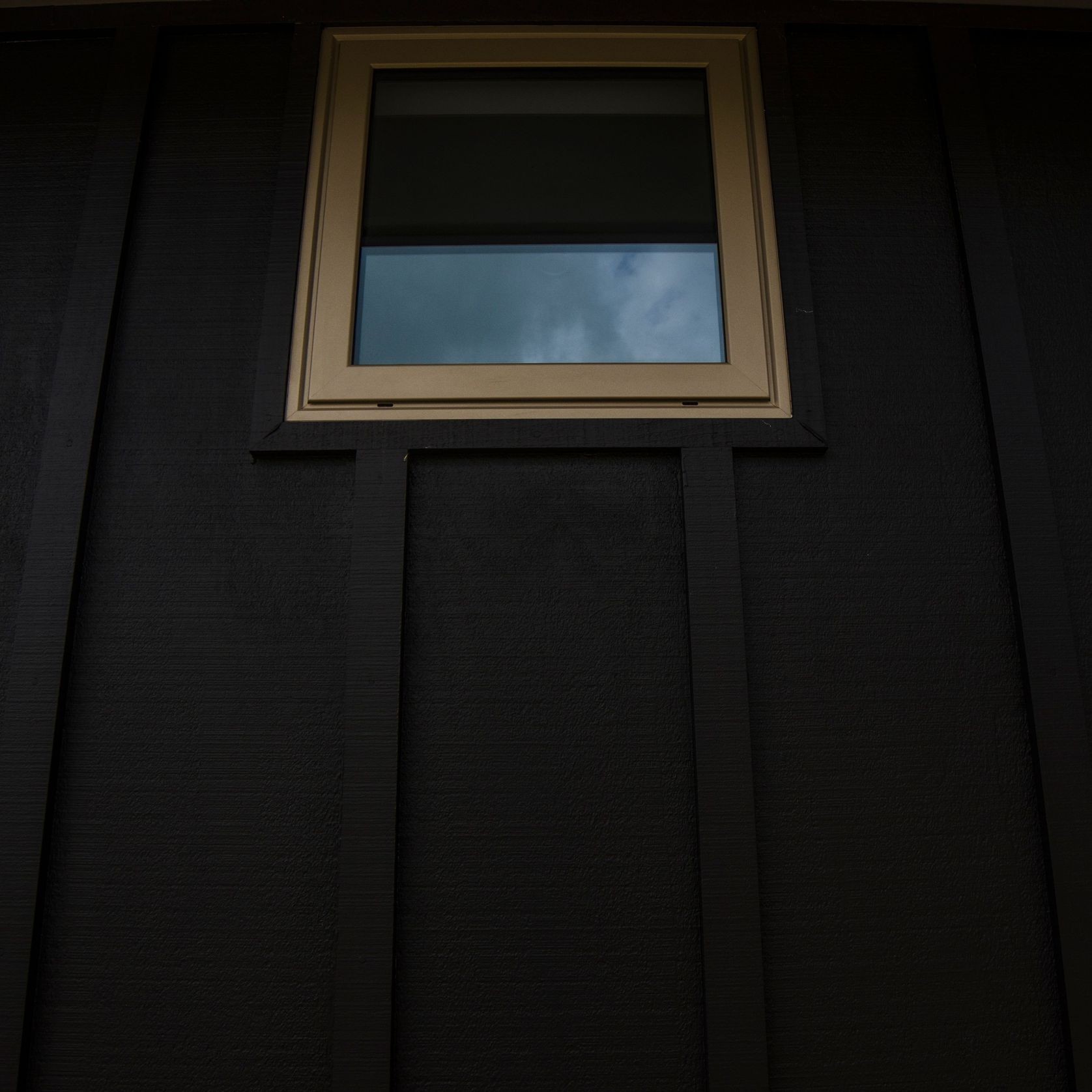

  • Traditional Bandsawn finish on both Board and Batten
  • Range of sizes (2.4m to 6.0m) to suit various stud heights and gable ends.
  • BRANZ appraised.
  • Sold through leading building materials merchants with take-off and quoting service available

The Enduroclad Board range is 12.5mm thick, 1198mm wide and is available in the following lengths:

2440mm, 2745mm, 3000mm, 3300mm, 3600mm, 3900mm, 4200mm, 4500mm, 4800mm, 5100mm, 5400mm, 5700mm, 6000mm

The Enduroclad Cover Batten range is manufactured from radiata pine, all have weather grooves on the back, have a bandsawn face and sides and are available in random lengths in the following widths and thicknesses:

40mm x 19mm, 65mm x 19mm, 90mm x 19mm, 45mm x 45mm

All components are treated to H3.1 Standard and the system has been appraised by BRANZ with Appraisal Certificate 1063 (2019) issued.

Visit Website

About the
Seller

The Triclad range of exterior bandsawm cladding products adds a natural timber beauty and charm to any building project.

Triclad markets three ranges of bandsawn exterior cladding products.

  • Plywood based Enduroclad Board and Batten System
  • Plywood based Triclad Lapped Weatherboard system
  • Finger jointed pine Bandsawn bevel back and shiplap weatherboard systems

All are manufactured from timbers grown from sustainable and managed plantation pine forests right here in New Zealand with the plywood based systems appraised by BRANZ to comply with New Zealand Building Code requirements.
