Go with the flow

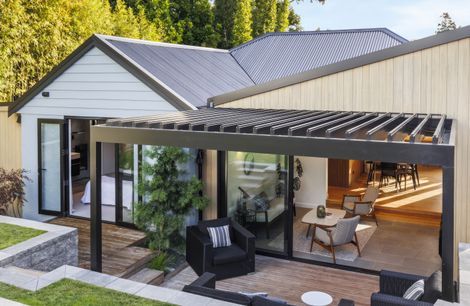

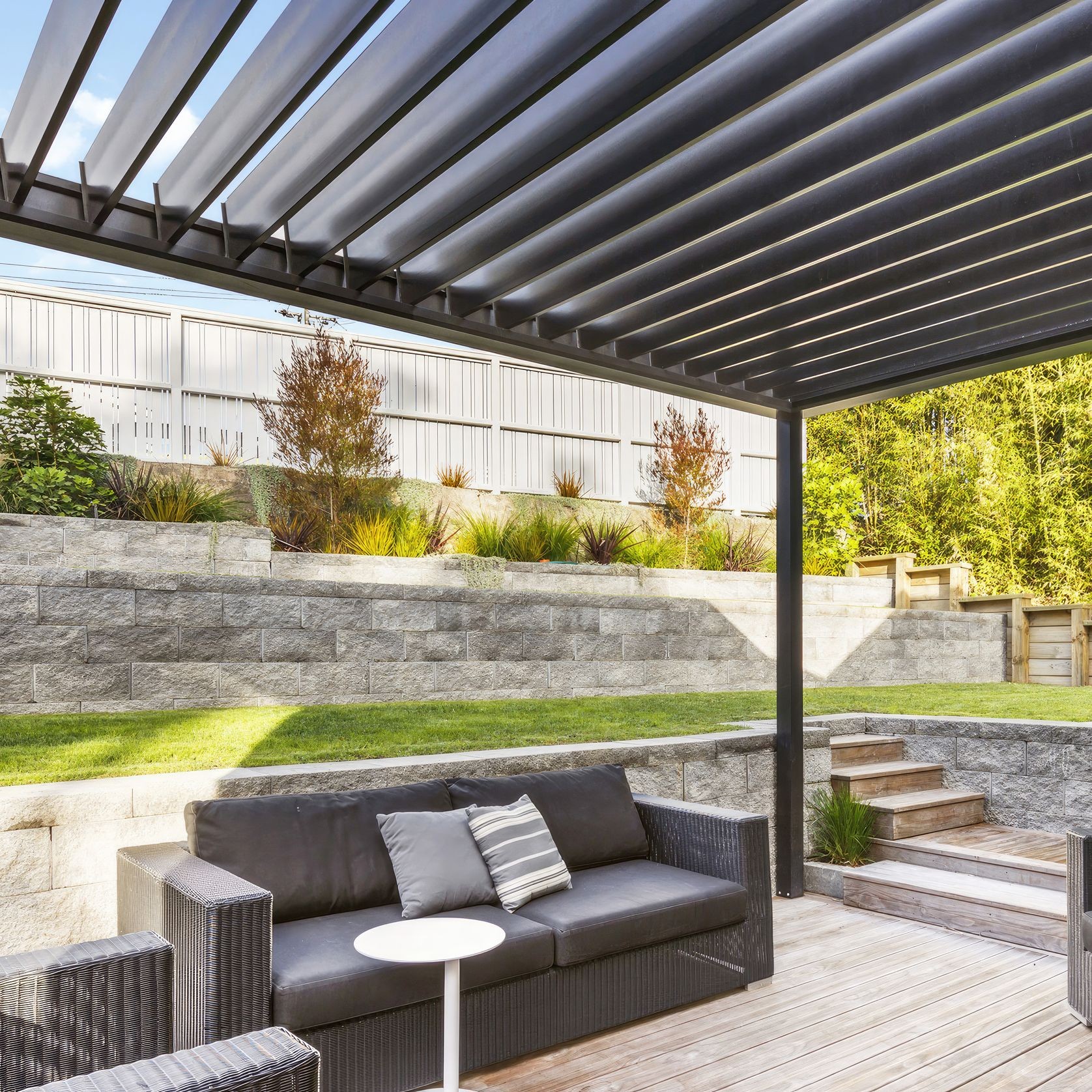

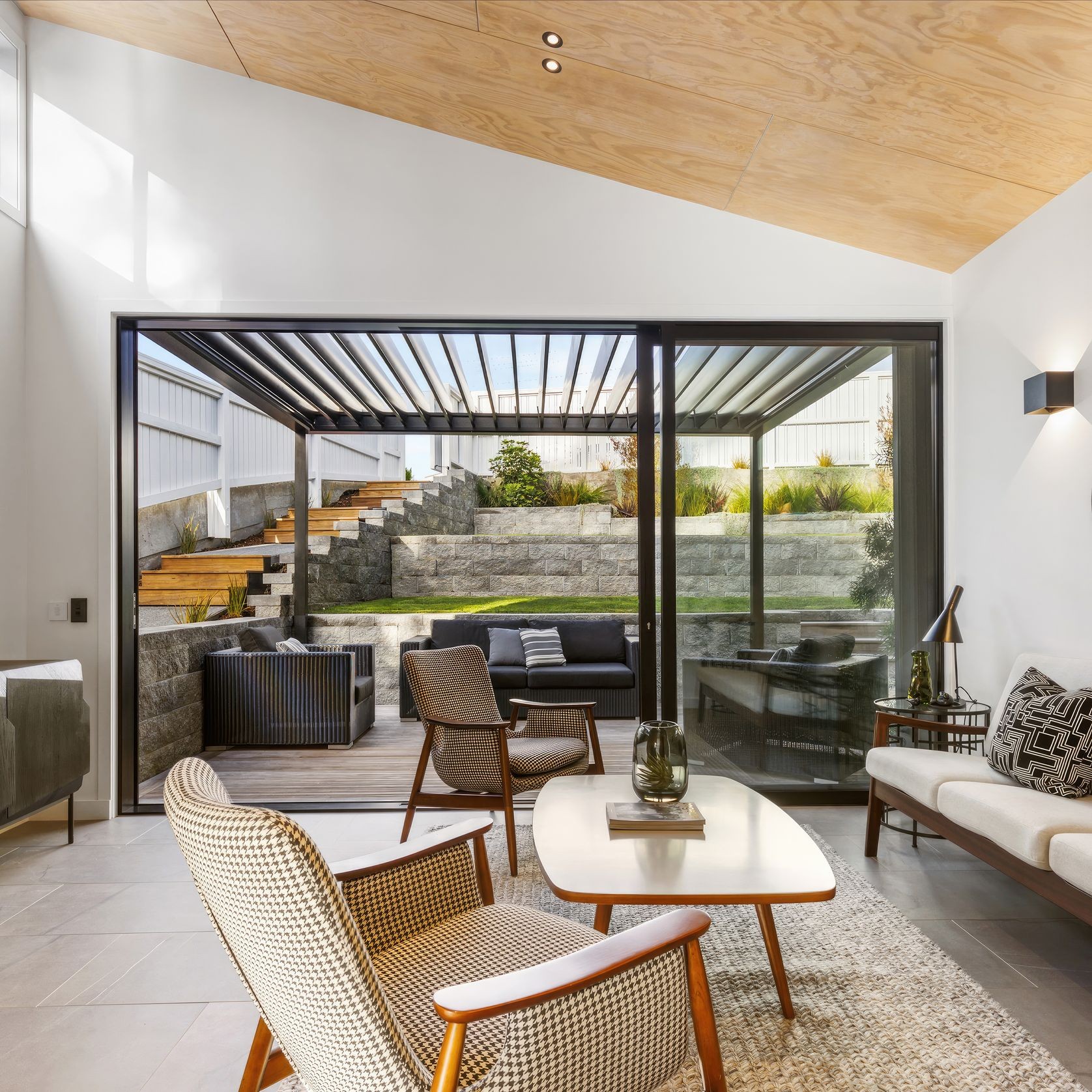

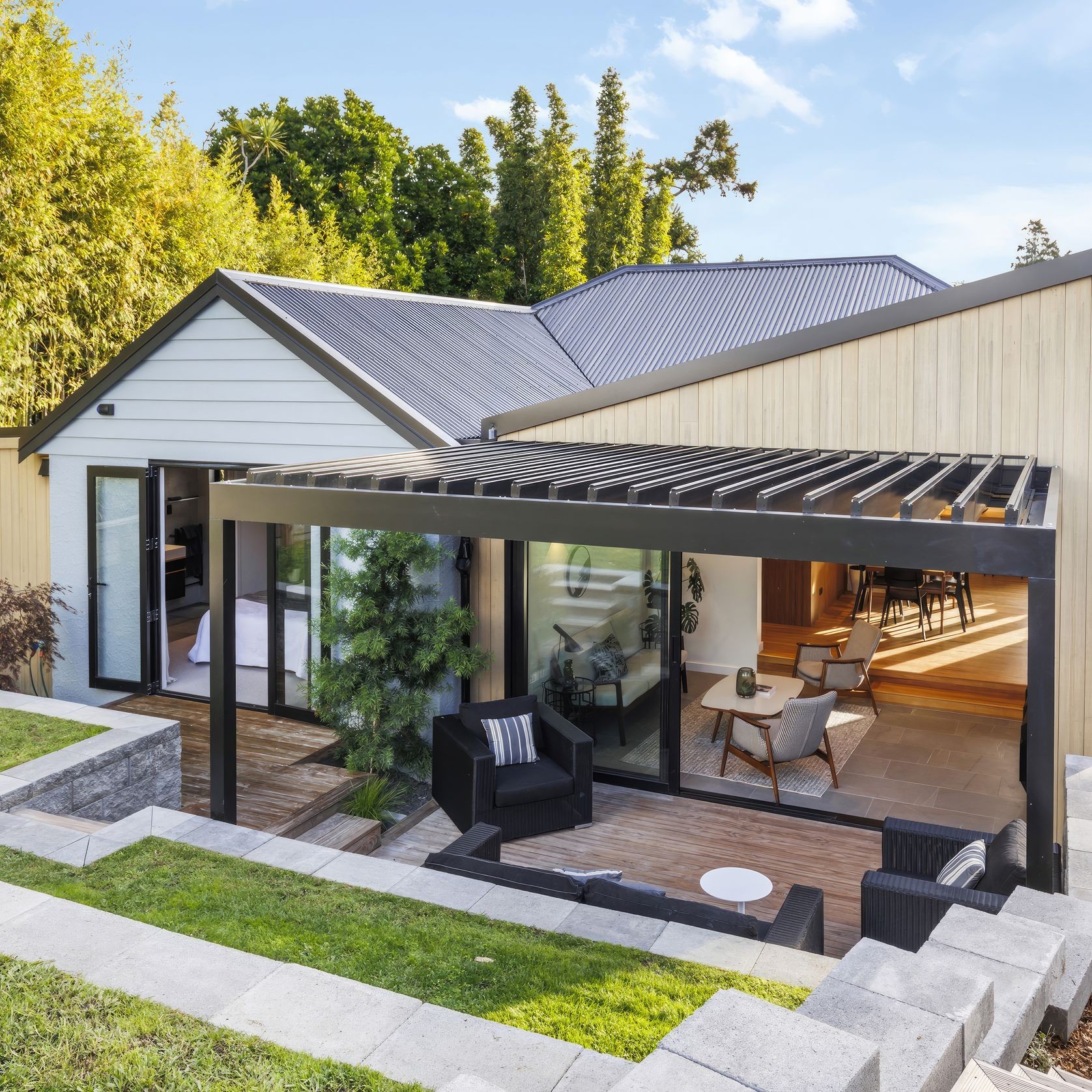

A highlight of this inner city property’s transformation into a contemporary urban hideaway is an EXO louvre roof that optimises indoor/outdoor flow, and maximises living space on a compact site. The protection offered by their louvre roof also allowed our clients the luxury of furnishing with luxurious sofas, and the option to cover the deck with rugs when they want to add to the cosy feel of their elegant new outdoor room.

Please enquire with us, as all our products are bespoke and custom-made.

We design your new EXO louvre roof system to suit your home and lifestyle.

Details
  • Category
    Louvre Roofs
Features

Beauty is more than skin deep

We want you to love your EXO louvre roof for years to come, so we make sure they’re engineered and built to last. We’re proud to use high-quality components in every EXO structure. Depending on the aesthetic you’re after you have the choice of either sleek, low-maintenance powder coating or woodgrain finish.

System Components

Each EXO louvre roof is a bespoke project. Our contemporary blades and gutter profiles are designed and engineered specifically for your home or building, and have what it takes to withstand local weather conditions.

Blades

Our unique blade designs use a sleek tongue and groove profile that is lightweight and can span up to 5m before another support or beam is needed.

3800 SERIES BLADE

Blade width: 221mm
Max blade length: 3800mm
Material: 6063 Series T6
Weight: 3.23 kg/m

5000 SERIES BLADE

Blade width: 221mm
Max blade length: 5000mm
Material: 6063 Series T6
Weight: 4.16 kg/m

GUTTER SPECIFICATIONS

Single gutter profile: 200 x 50 x 3mm RHS with integrated gutter
Double gutter profile: 200 x 50 x 3mm RHS with integrated gutter

Structural Frame

Our structural frames can be customised to suit any space, with spans larger than 5.6m simply requiring another support or laminated beam. All connections have been engineered to be simple, strong and discreet for a clean, minimalist look.

FRAME SPECIFICATIONS

Max-span between posts: 5.6m / 7.2m*
Weight Single Gutter: 5.4 kg/m
Weight Double Gutter: 8.5kg/m
Material: 6000 Series T6

Project Overview

Morningside Residence

Size: 5.2m x 3.1m  (16.12m2)
Blade colour:
Matt Black
Frame colour: Matt Black
Accessories: 
Rain Sensor
Architect: Ndesign

EXO Louvre Systems
Visit Website

About the
Seller

Create the ultimate all-weather outdoor living space.

With 30+ years’ experience in aluminium fabrication behind us, we’ve engineered the ultimate outdoor louvre roof for New Zealand’s unique weather conditions – the EXO louvre roof system. Adjustable in seconds at the touch of a button, your EXO louvre roof gives you seamless indoor/outdoor living all year round.

Contemporary aesthetics combined with highly functional design means your EXO louvre roof system can be customised to fit any space, and it’s much easier and more affordable than extending your home. It stacks up even more when you consider that we offer a complete end-to-end design and installation service that includes plumbing and electrical.

For inspiration check out some of our recent projects, then get in touch to talk to us about how an EXO louvre roof could create the ultimate all weather living space at your home.
