EzyCap Wall End Caps

By Studco
Visit Website

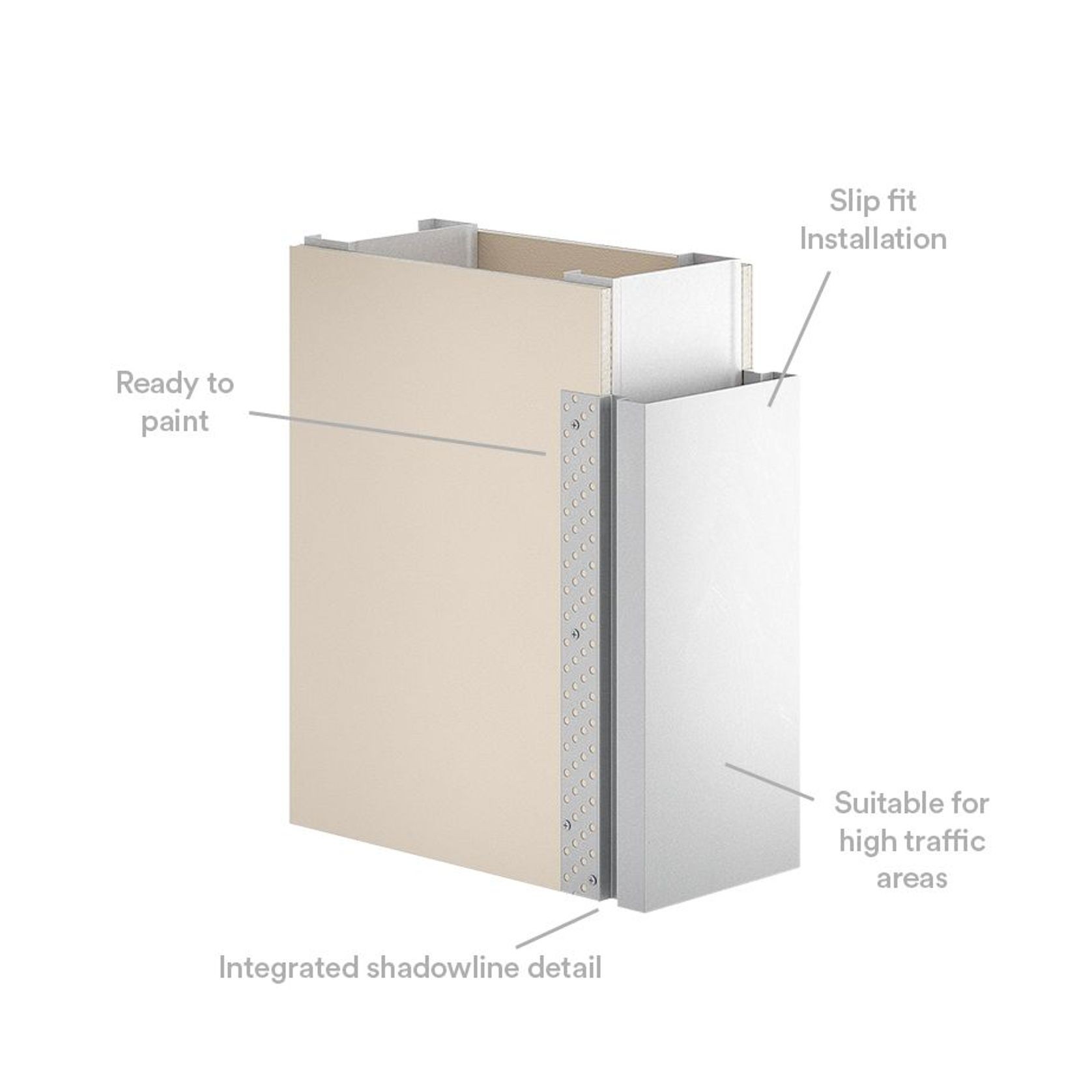

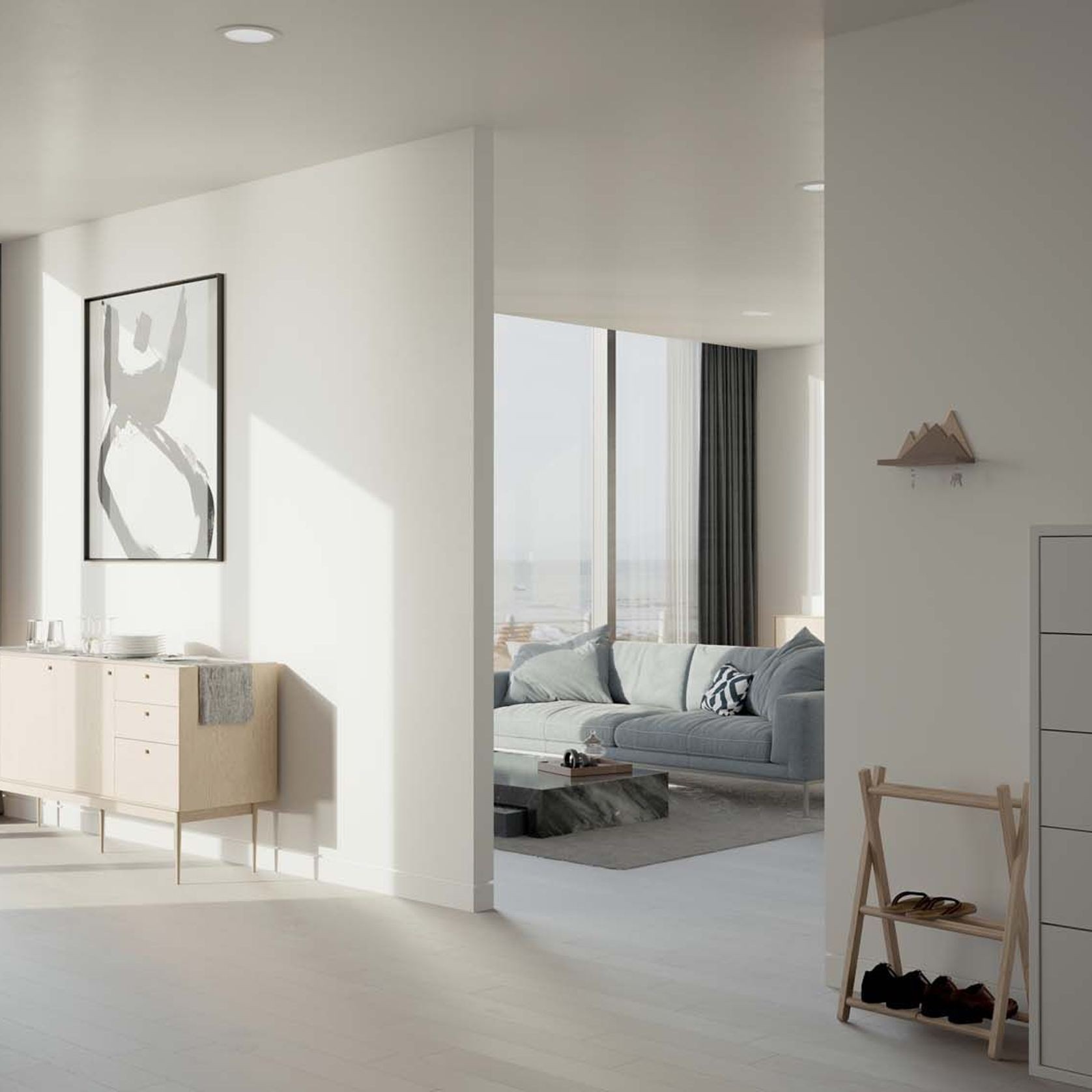

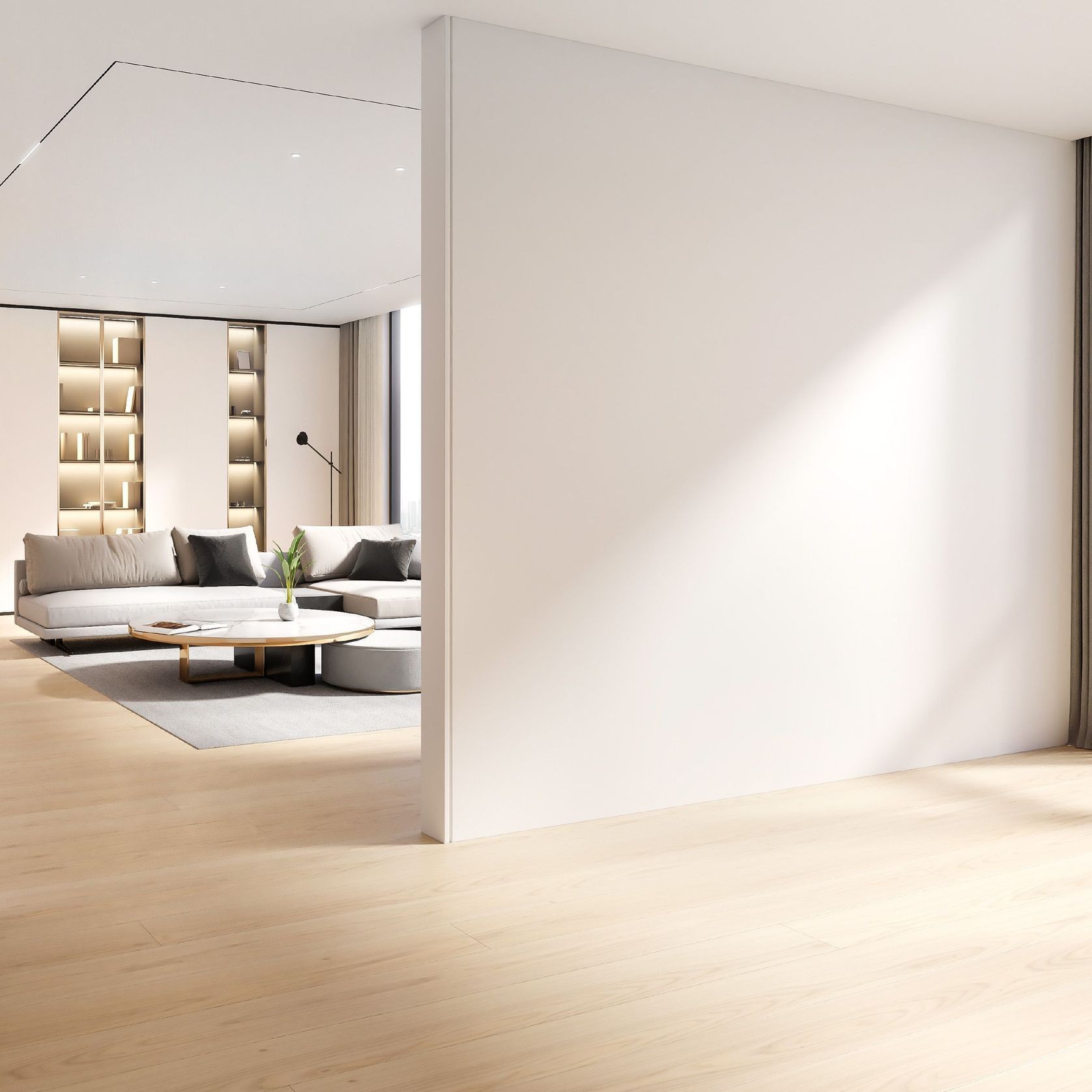

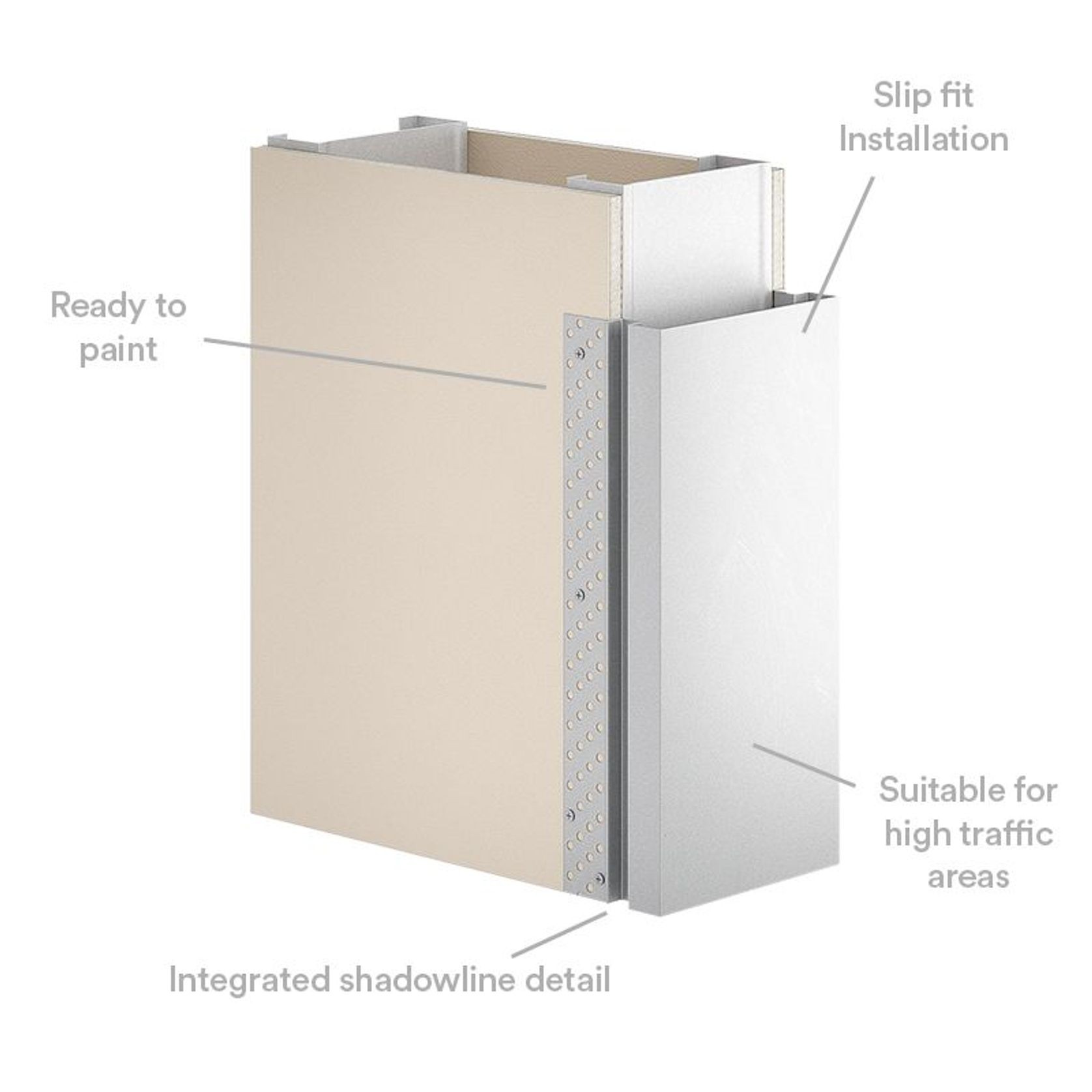

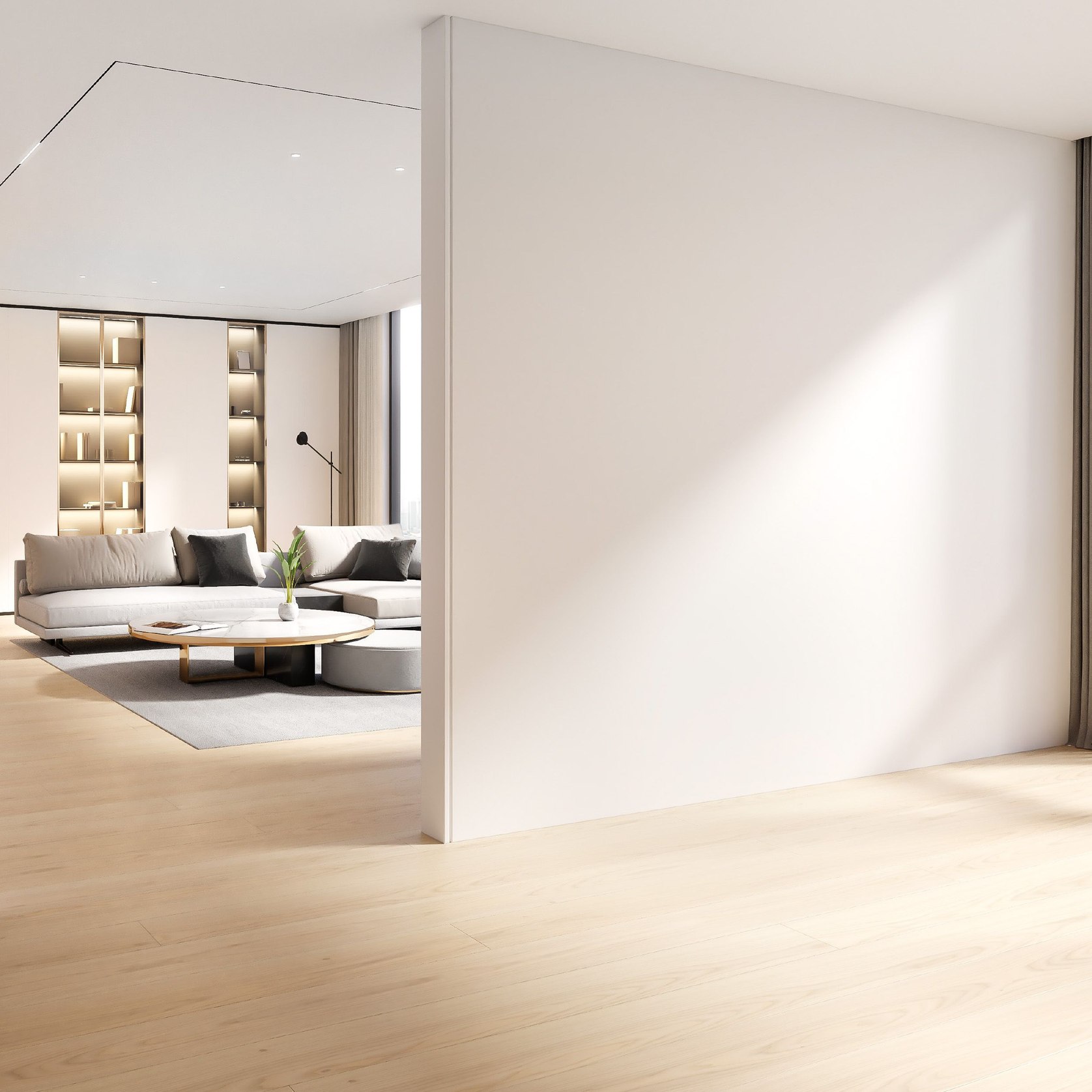

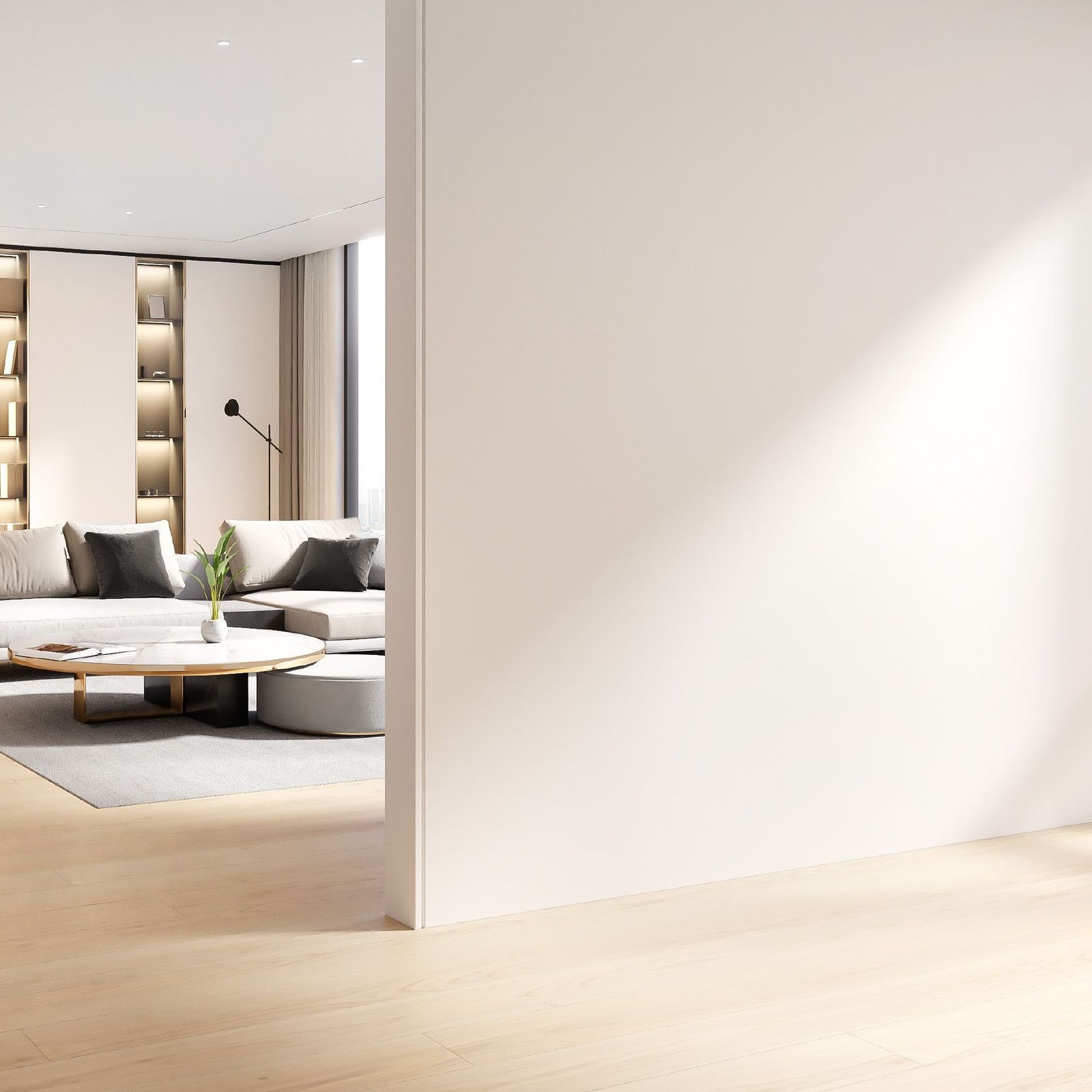

Capping of internal balustrades, window openings, and internal partition wall ends are all made easy using EzyCap®. Using a slip-fit fixing method, EzyCap simply slides onto the end of the plasterboard and doesn’t require preparation to paint in with the rest of the wall, significantly reducing time and effort during installation and presenting a crisp finished wall end.

As the strong and versatile alternative for stop ends, EzyCap is an economical way to cap wall ends and prevent damage from wear and tear in high-traffic areas over time, keeping masterpiece designs intact for years to come. Available as Standard Cap or with Shadowline detail.

Details
  • Category
    Construction 4.0, Skirtings, Mouldings & Jambs, Sliding Door Gear
  • Range
    Finishing
  • Brand
    EZ Concept
  • Designer
    EZ Concept
Features
  • Various profiles, including a a one-piece wall end cap with preformed shadowline detail.
  • Saves time on site with a simple slip-fit installation.
  • Reduces compound usage for wall ends.
  • Available in custom widths and lengths.
  • More durable solution than timber and perfect for high traffic areas.
  • Pre-finished with no extra preparation required for painting.
  • Australian made from BlueScope Steel.
Specs

EC79

  • Section Width (a): 79mm
  • Section Width (b): 84mm
  • Stud/Lining Thickness: 51 Stud+13+13
  • Length: 2700/3000/3600#

EC86

  • Section Width (a): 86mm
  • Section Width (b): 91mm
  • Stud/Lining Thickness: 64 Stud+10+10
  • Length: 2700/3000/3600#

EC92

  • Section Width (a): 86mm
  • Section Width (b): 91mm
  • Stud/Lining Thickness: 64 Stud+13+13
  • Length: 2700/3000/3600#

EC98

  • Section Width (a): 92mm
  • Section Width (b): 103mm
  • Stud/Lining Thickness: 76 Stud+10+10
  • Length: 2700/3000/3600#

EC104

  • Section Width (a): 104mm
  • Section Width (b): 107mm
  • Stud/Lining Thickness: 76 Stud+13+13
  • Length: 2700/3000/3600#

EC112

  • Section Width (a): 112mm
  • Section Width (b): 116mm
  • Stud/Lining Thickness: 92/90 Stud+10+10
  • Length: 2700/3000/3600#

EC118

  • Section Width (a): 118mm
  • Section Width (b): 126mm
  • Stud/Lining Thickness: 92/90 Stud+13+13
  • Length: 2700/3000/3600#

EC127

  • Section Width (a): 127mm
  • Section Width (b): 132mm
  • Stud/Lining Thickness: 92Stud+16+16
  • Length: 2700/3000/3600#
Visit Website

Other products
in this range

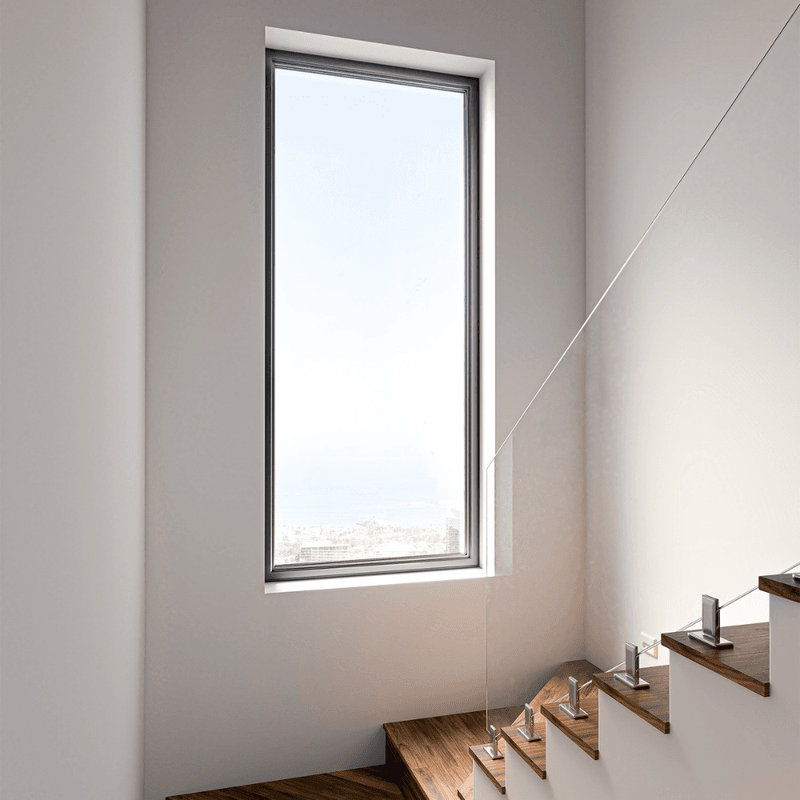

EzyReveal Steel Window Reveals
EzyReveal Steel Window Reveals
By Studco

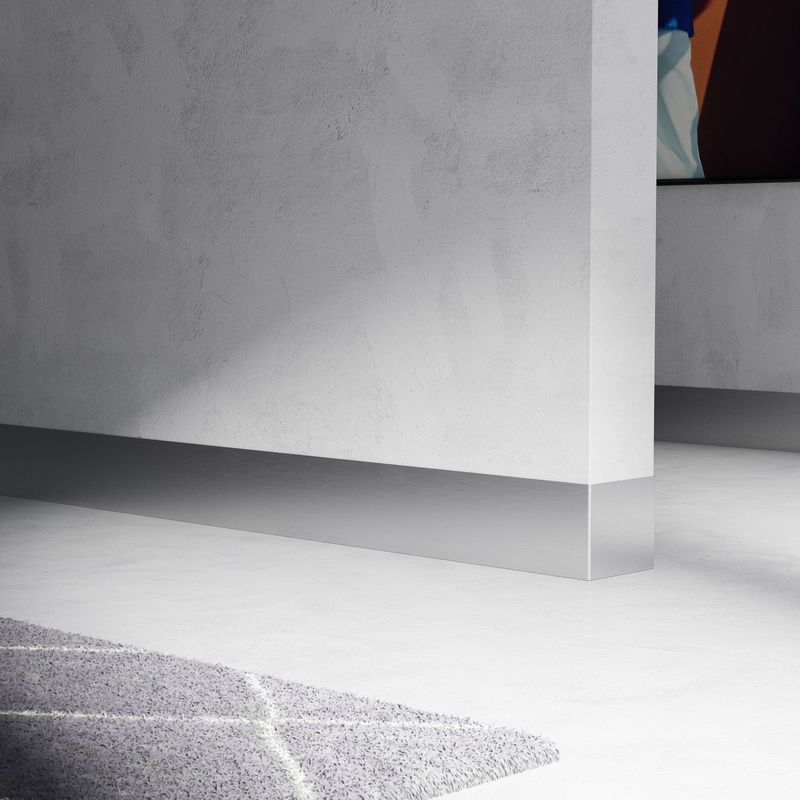

AluBase Shadowline Skirting Board
AluBase Shadowline Skirting Board
By Studco
AluBase® Flat Skirting board
AluBase® Flat Skirting board
By Studco
EzyPelmet Two-piece Steel Pelmet System
EzyPelmet Two-piece Steel Pelmet System
By Studco

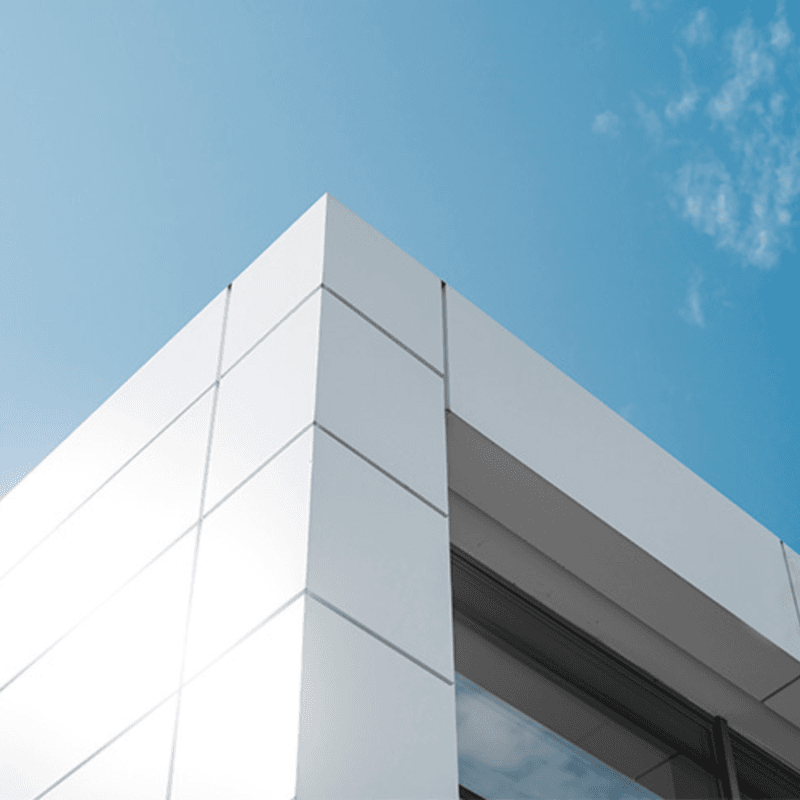

Finishing and Facade Angles
