Iseo F9000 Smart mechatronic key and Cylinder System

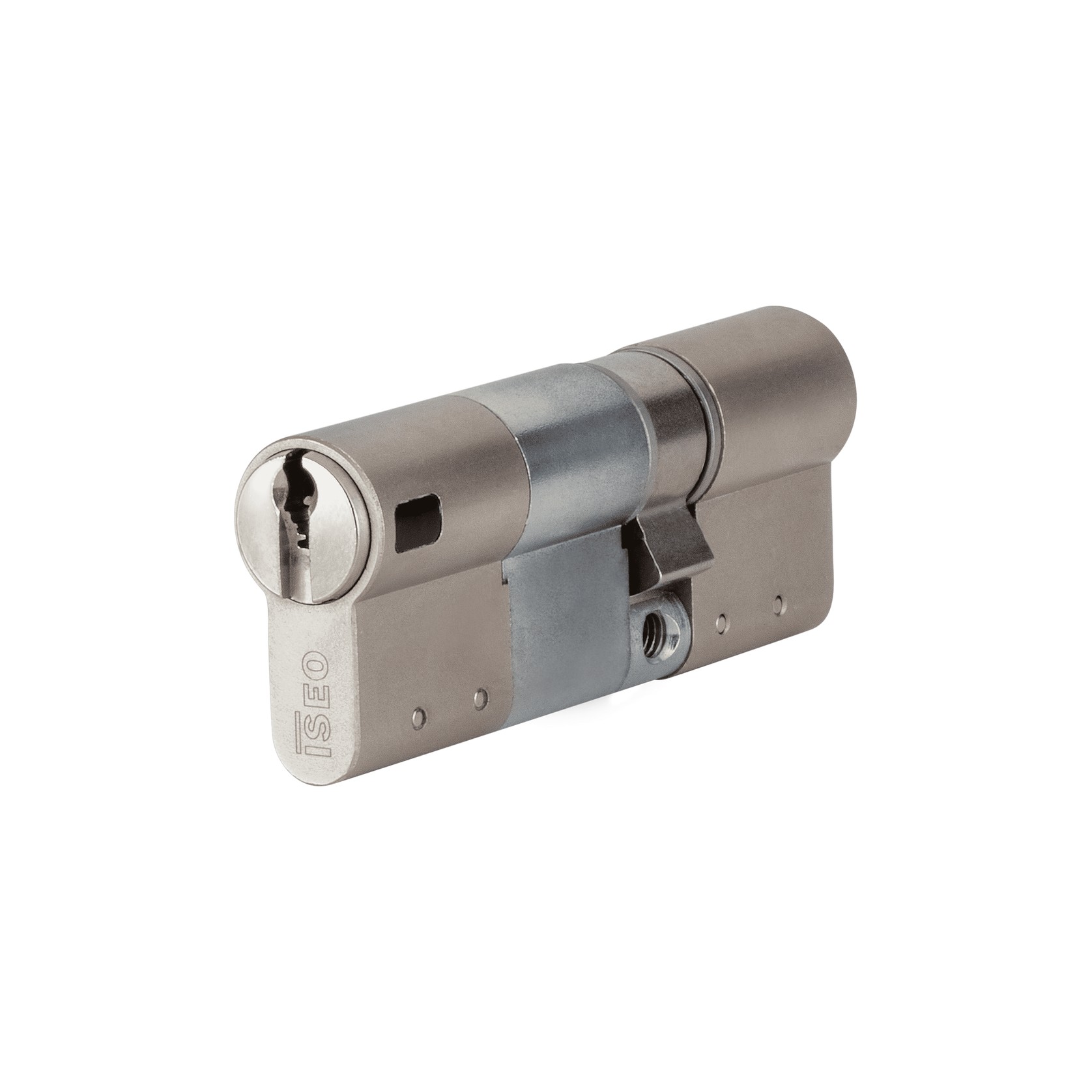

Cylinder Models

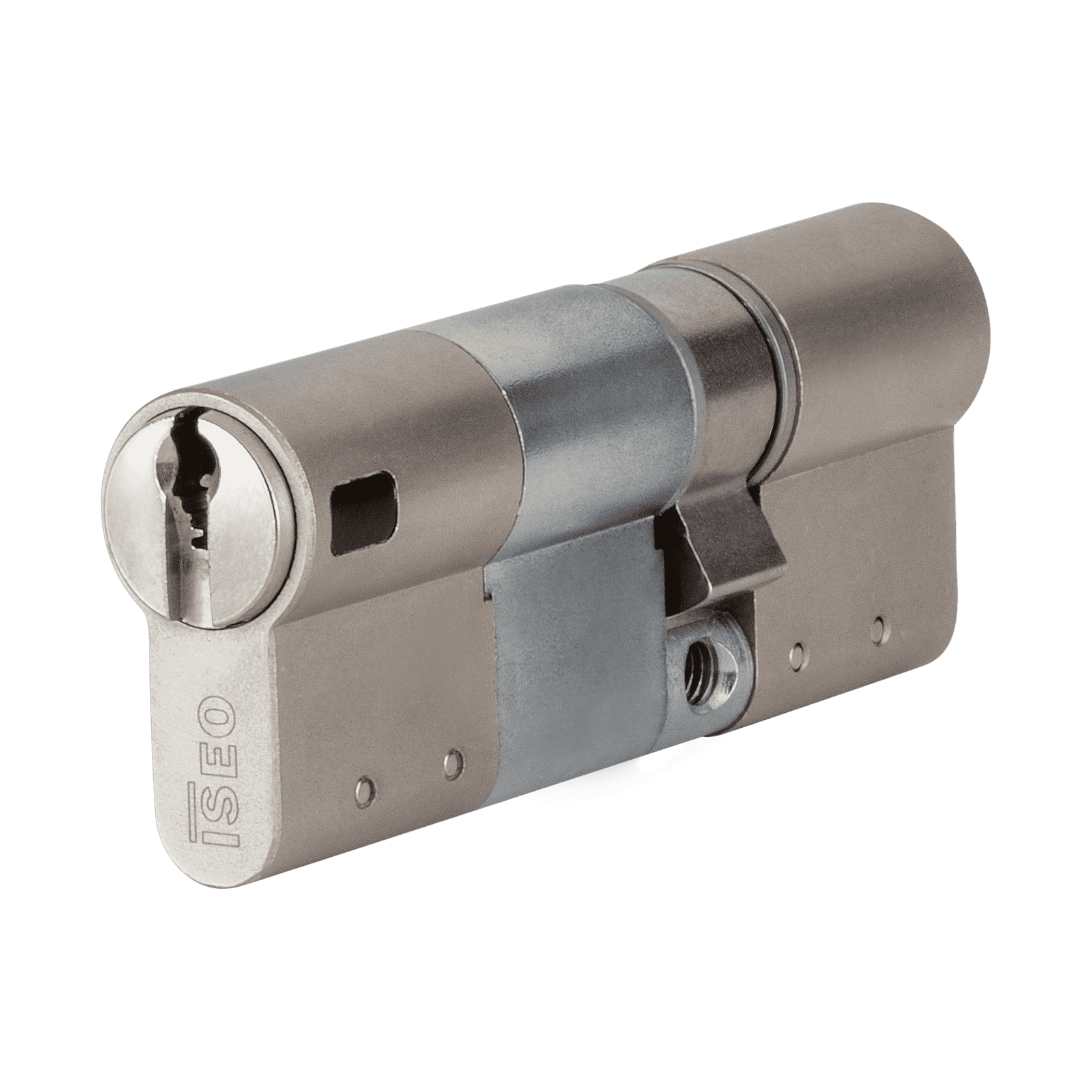

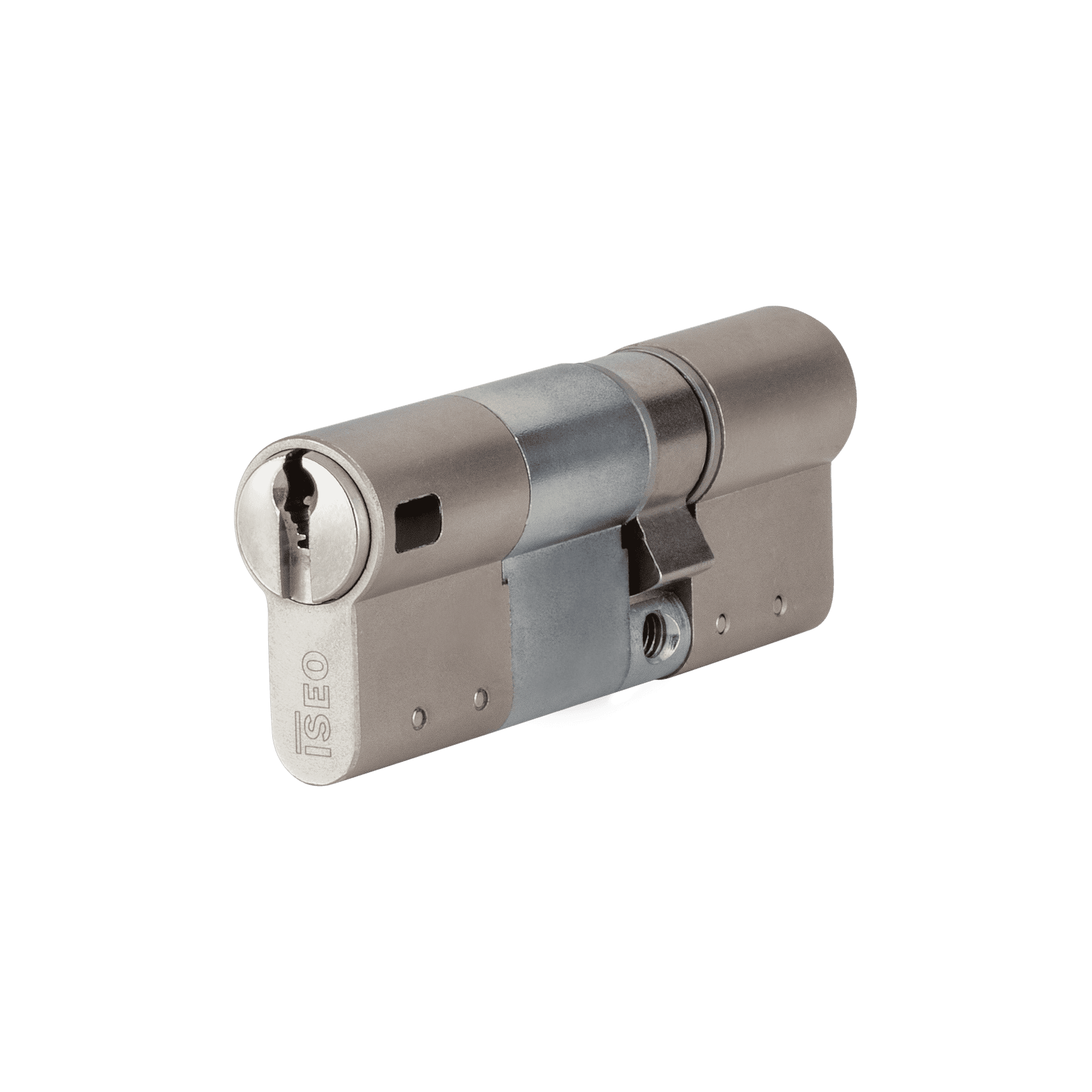

The F9000 system offers a variety of cylinder types to suit different installation requirements:
• Standard Cylinders: Traditional configurations for general applications.
• Free Cam Cylinders: Allow for reversible locking, enhancing flexibility.
• Knob Cylinders: Ideal for doors requiring internal locking mechanisms.
• Modular Cylinders: Offer customizable lengths and configurations.
• Oval Scandinavian Cylinders: Designed for specific regional standards.
• Threaded Rim Cylinders: Suitable for rim lock installations.
• Microswitch Cylinders: Integrate with electronic systems for advanced functionalities.

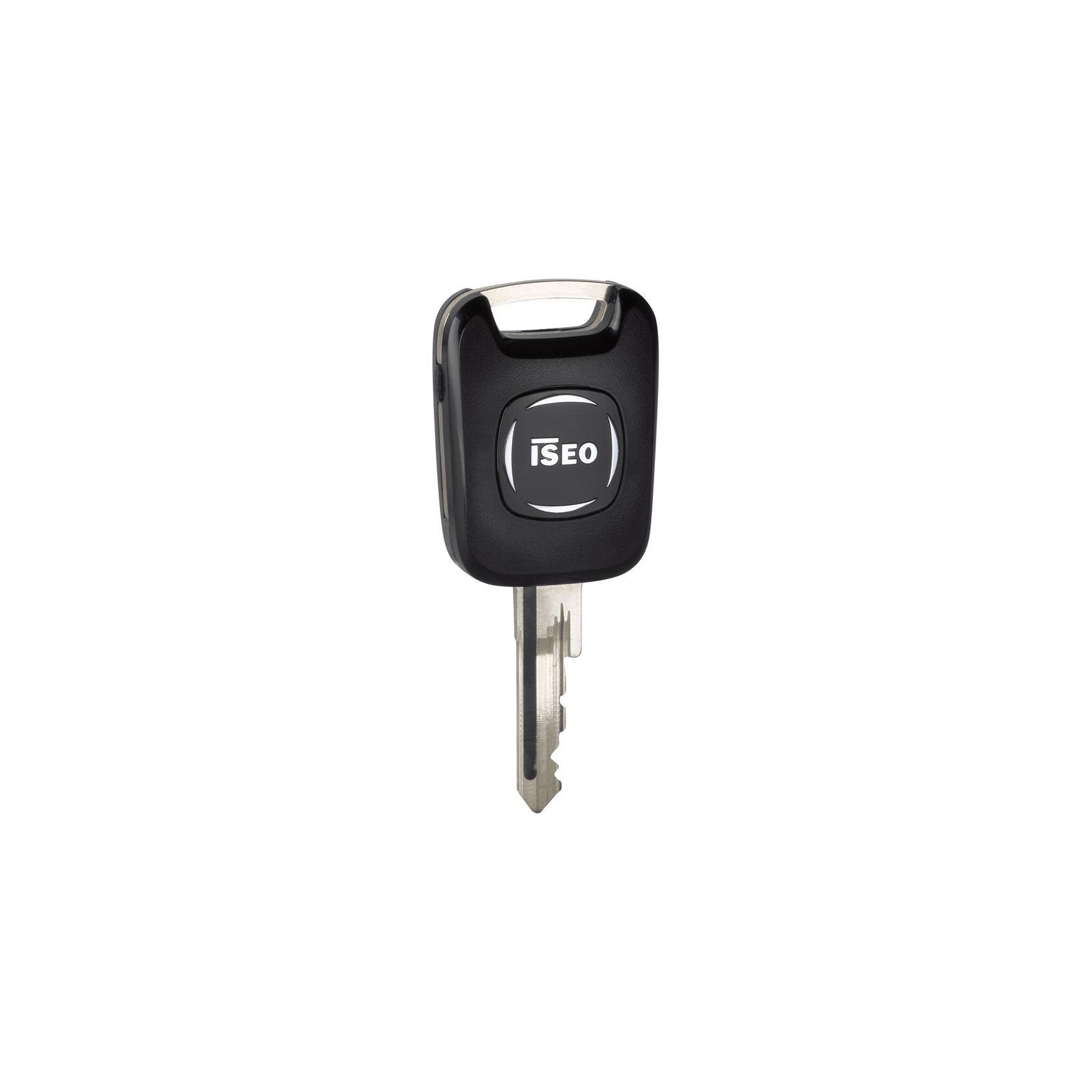

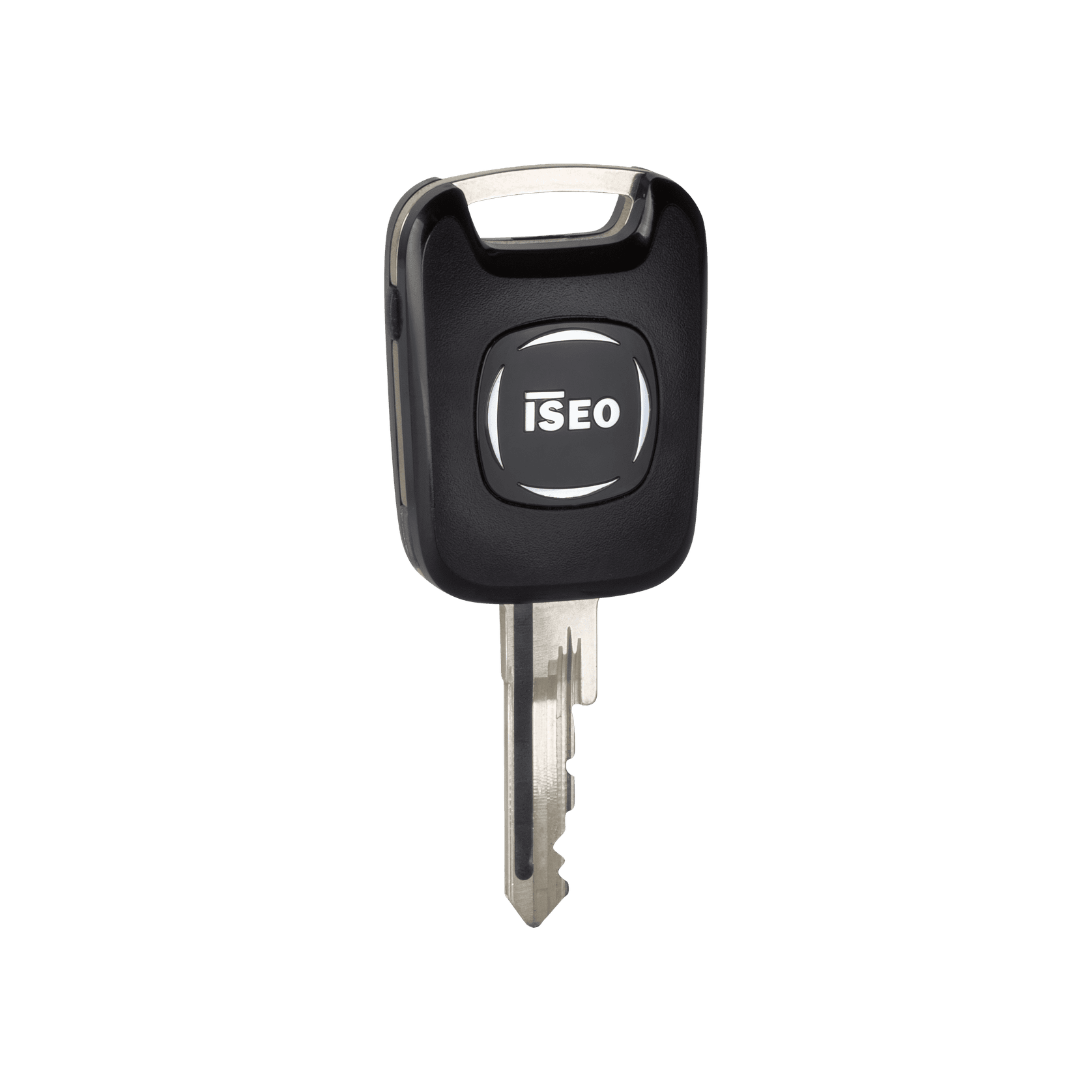

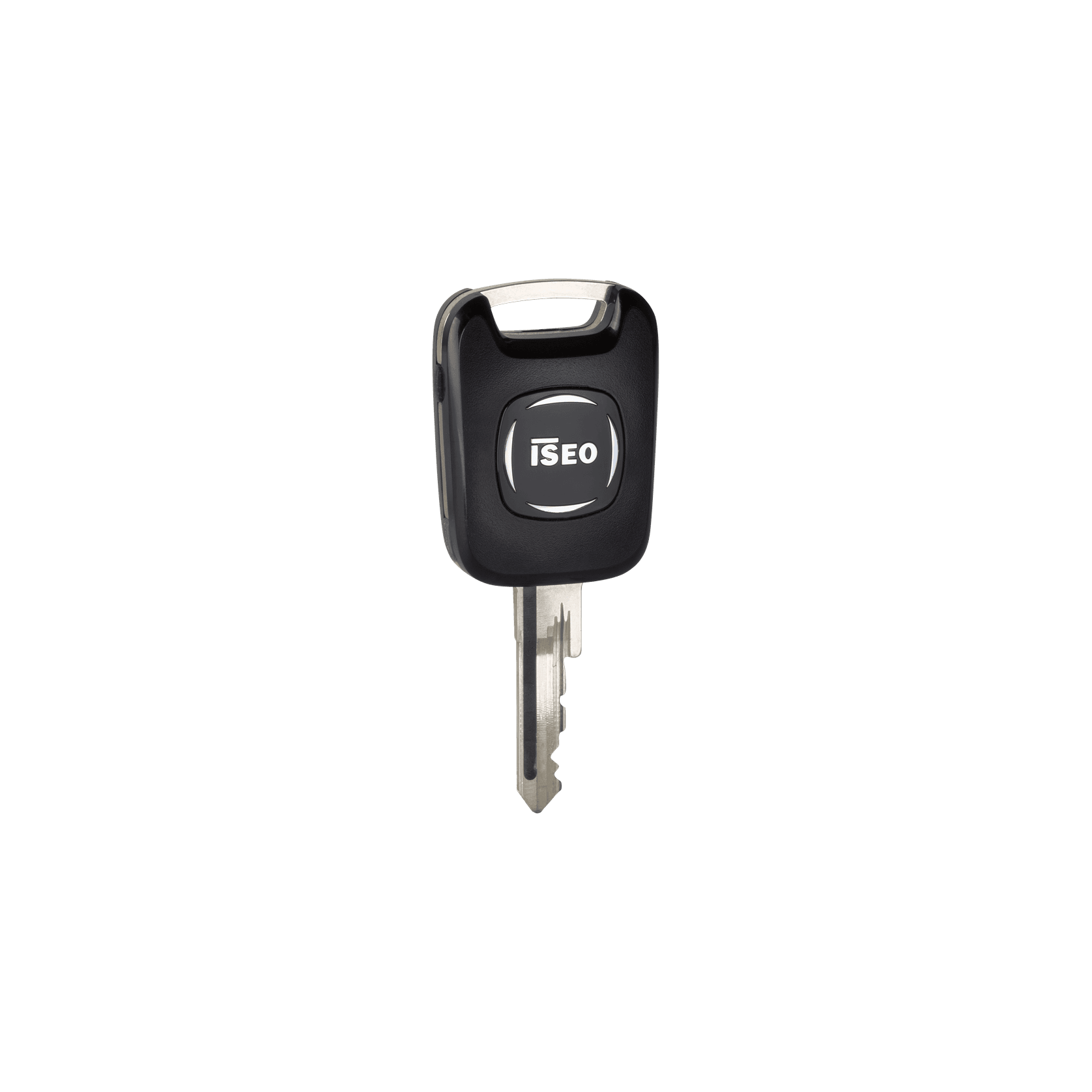

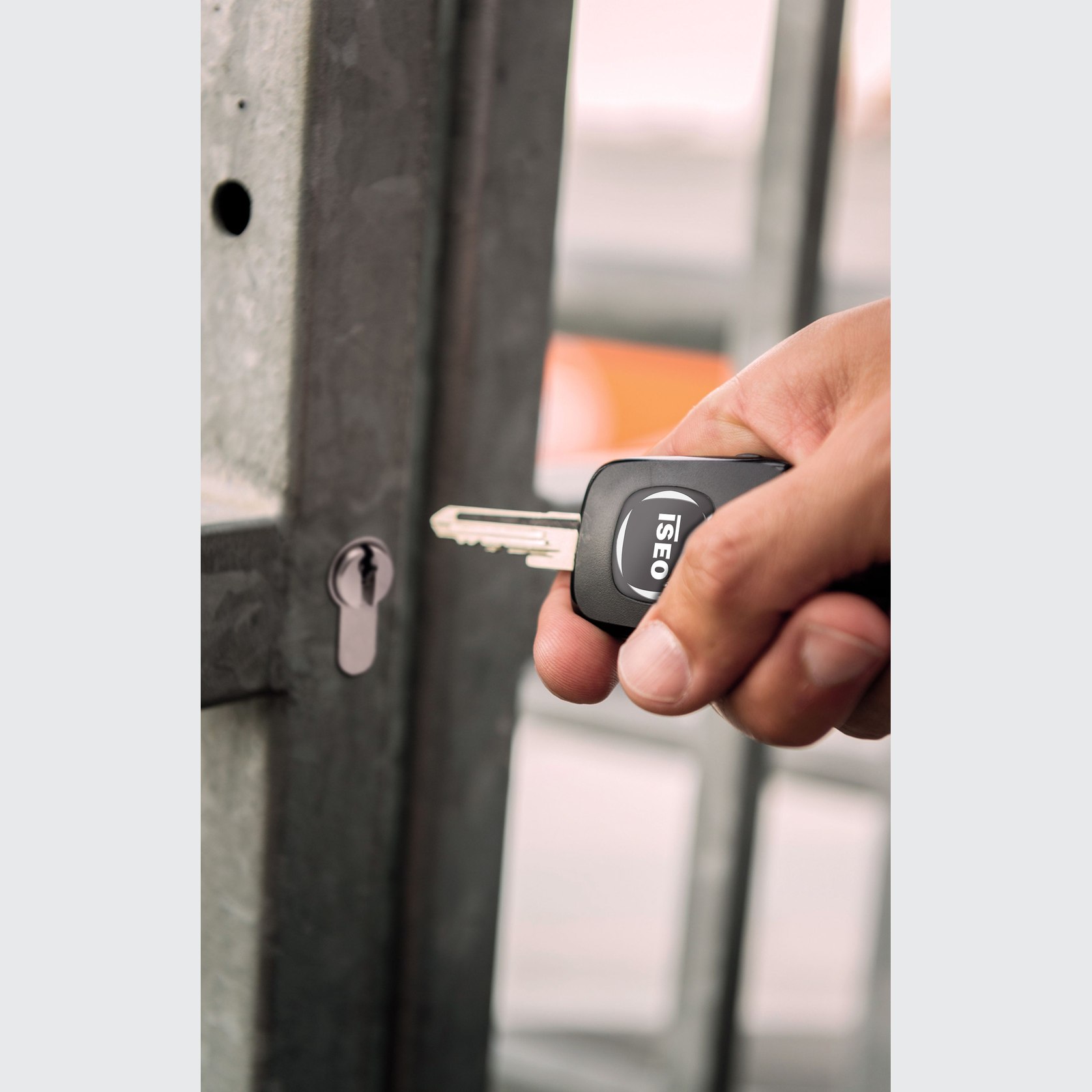

 Mechatronic Keys

ISEO's F9000 mechatronic keys are available in various models to cater to different user needs:
• ON User Key: Standard key for everyday access.
• UP User Key: Enhanced key with additional features.
• PR Programmer Key: Used for system configuration and management.
• EM Emergency Key: Provides emergency access when needed.
• LO Lockout Key: Prevents unauthorized access during maintenance.
• RL Reversal Lockout Key: Offers additional security during lockout situations.

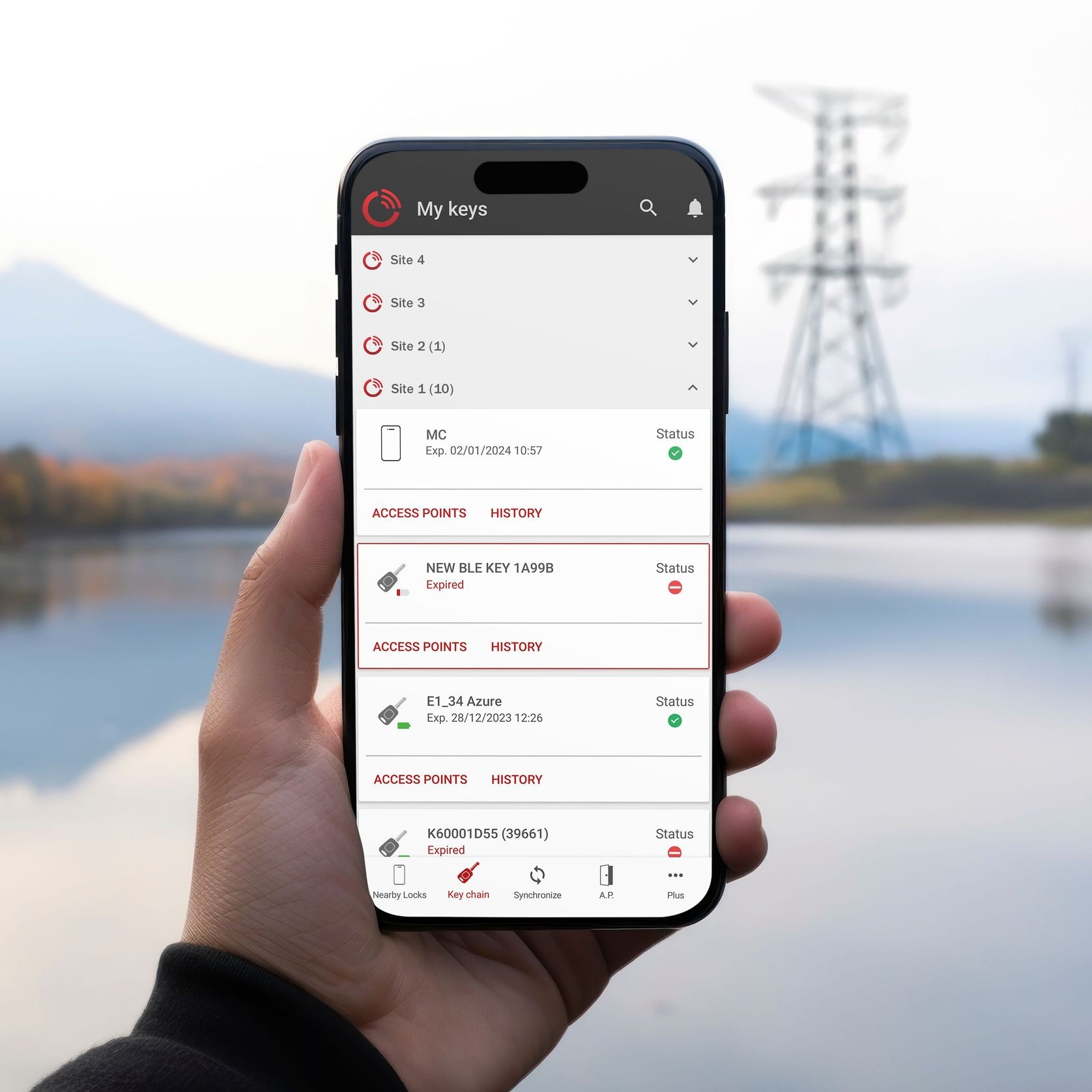

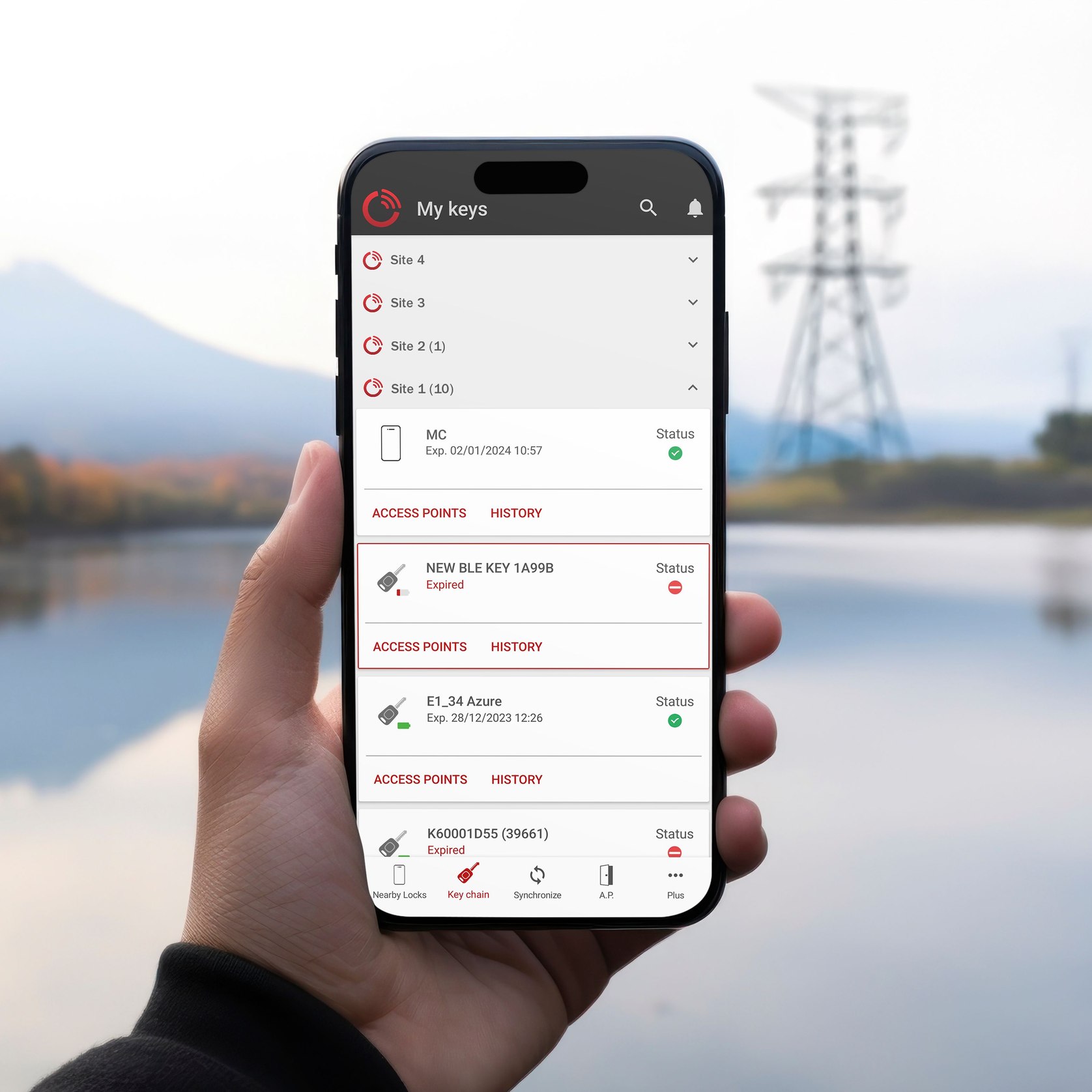

These keys are equipped with Bluetooth connectivity, enabling integration with ISEO's mobile applications for remote management and monitoring. Each key is uniquely identifiable and can be disabled remotely in case of loss or theft.

Applications

The versatility of the F9000 system makes it suitable for a wide range of applications:
• Residential Buildings: Enhance security and convenience for homeowners.
• Commercial Properties: Manage access across multiple entry points efficiently.
• Industrial Facilities: Protect sensitive areas and equipment.
• Public Institutions: Ensure secure access in schools, hospitals, and government buildings.
• Utility Infrastructure: Safeguard critical infrastructure with robust access control.

Key Features

• Contactless Data Transfer: Utilizes inductive coupling for reliable, contactless communication between key and cylinder.
• Customizable Access Rights: Assign and modify user permissions remotely, tailoring access to specific needs.
• Event Logging: Each key records up to 1,000 events, including openings and forced entries, with timestamps.
• Scalability: Supports up to 65,536 cylinders and 120,000 keys within a single system.
• Environmental Durability: Meets IP66 to IP69 ratings, ensuring resilience in harsh conditions.
• Future-Proof Security: Equipped with a powerful microprocessor and AES encryption readiness.

The ISEO F9000 system adheres to stringent international standards:
• EN1303:2015: Classified as "16000C6D" for cylinder security.

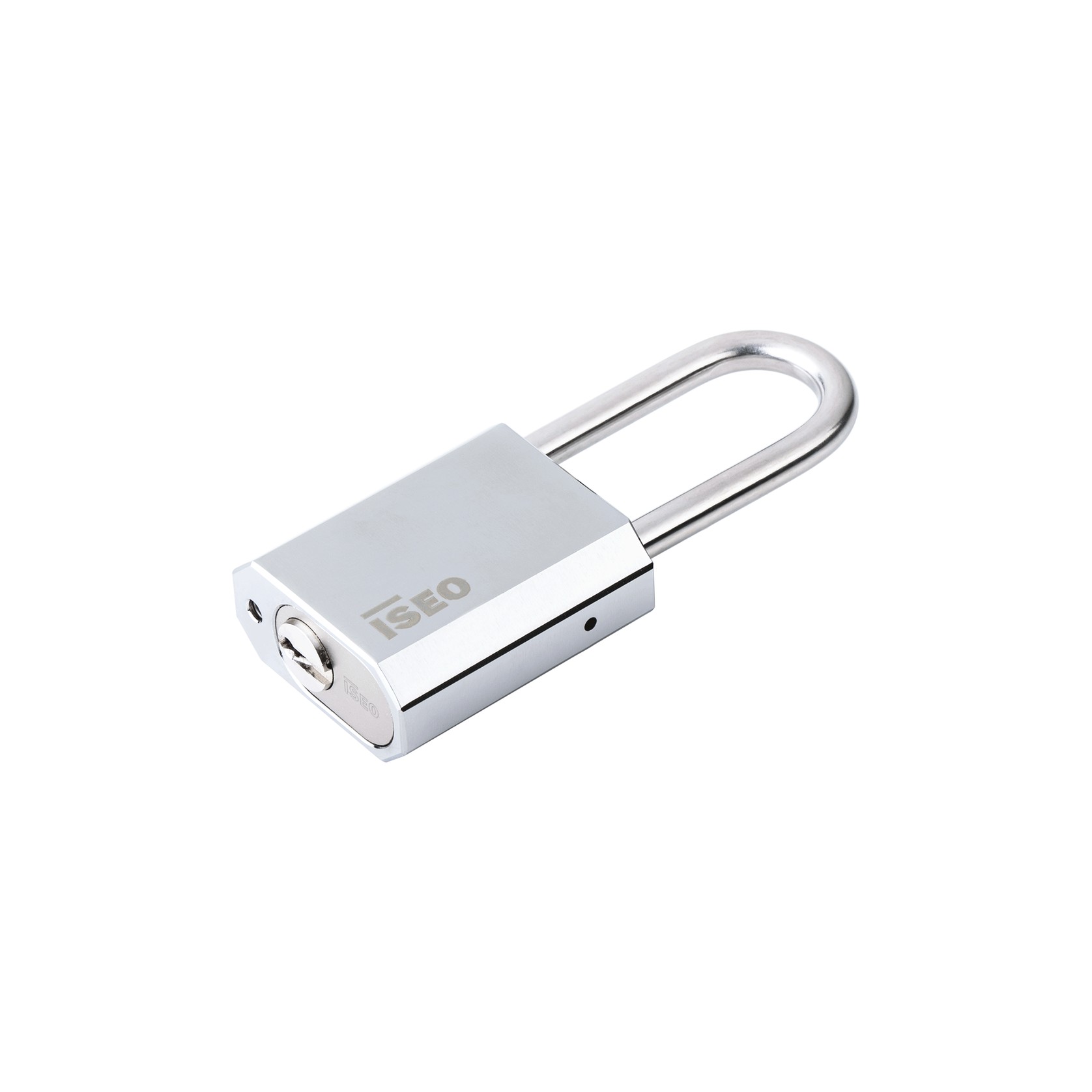

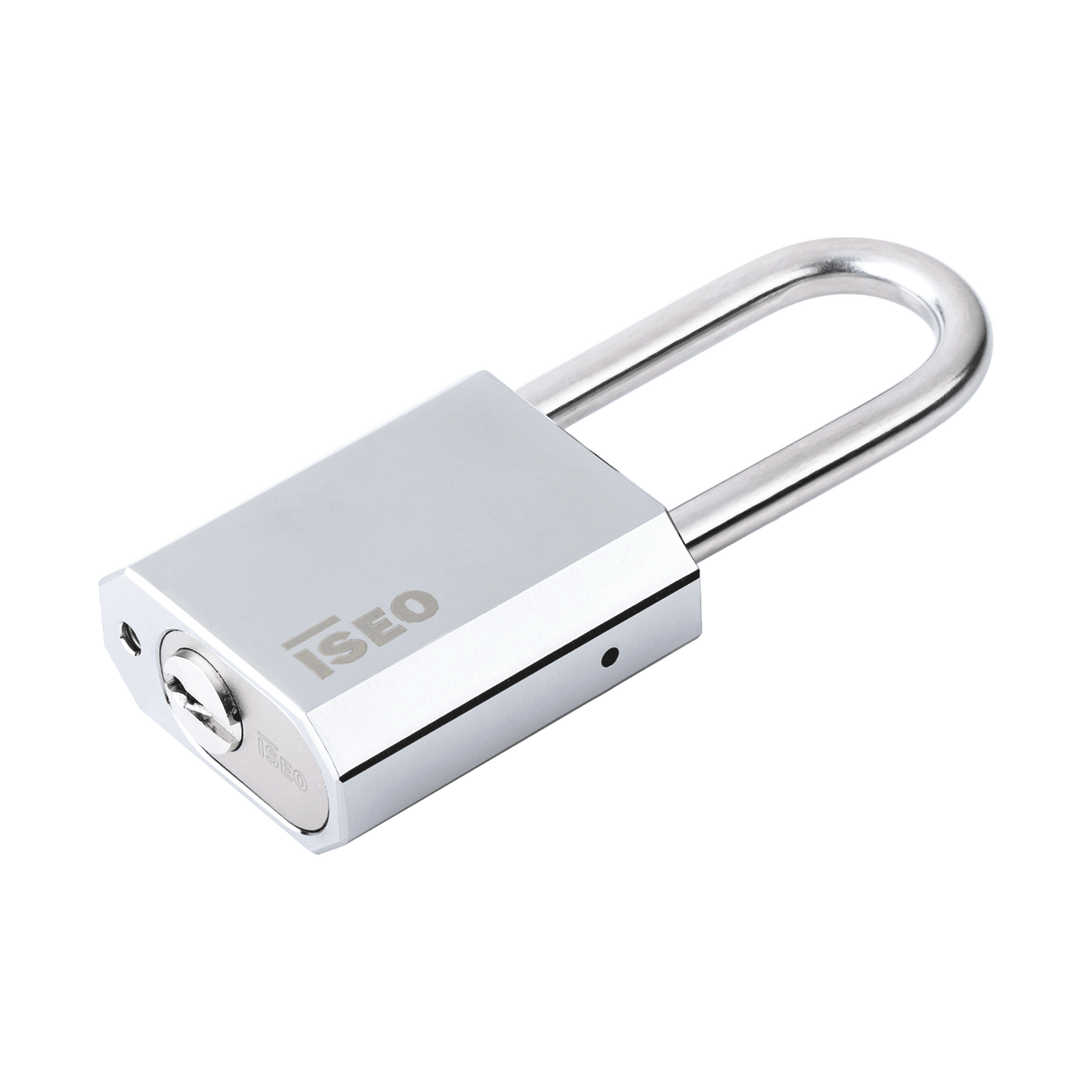

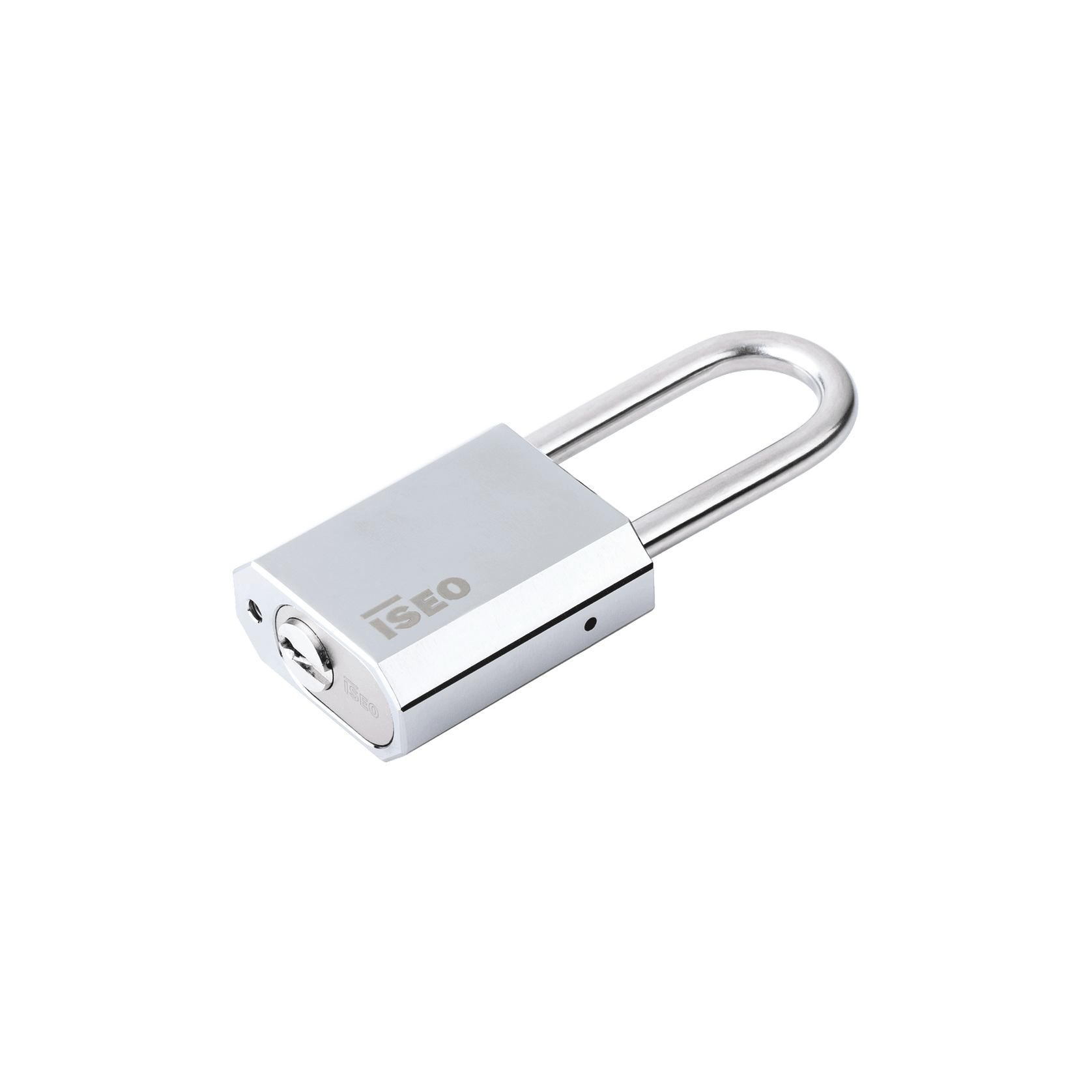

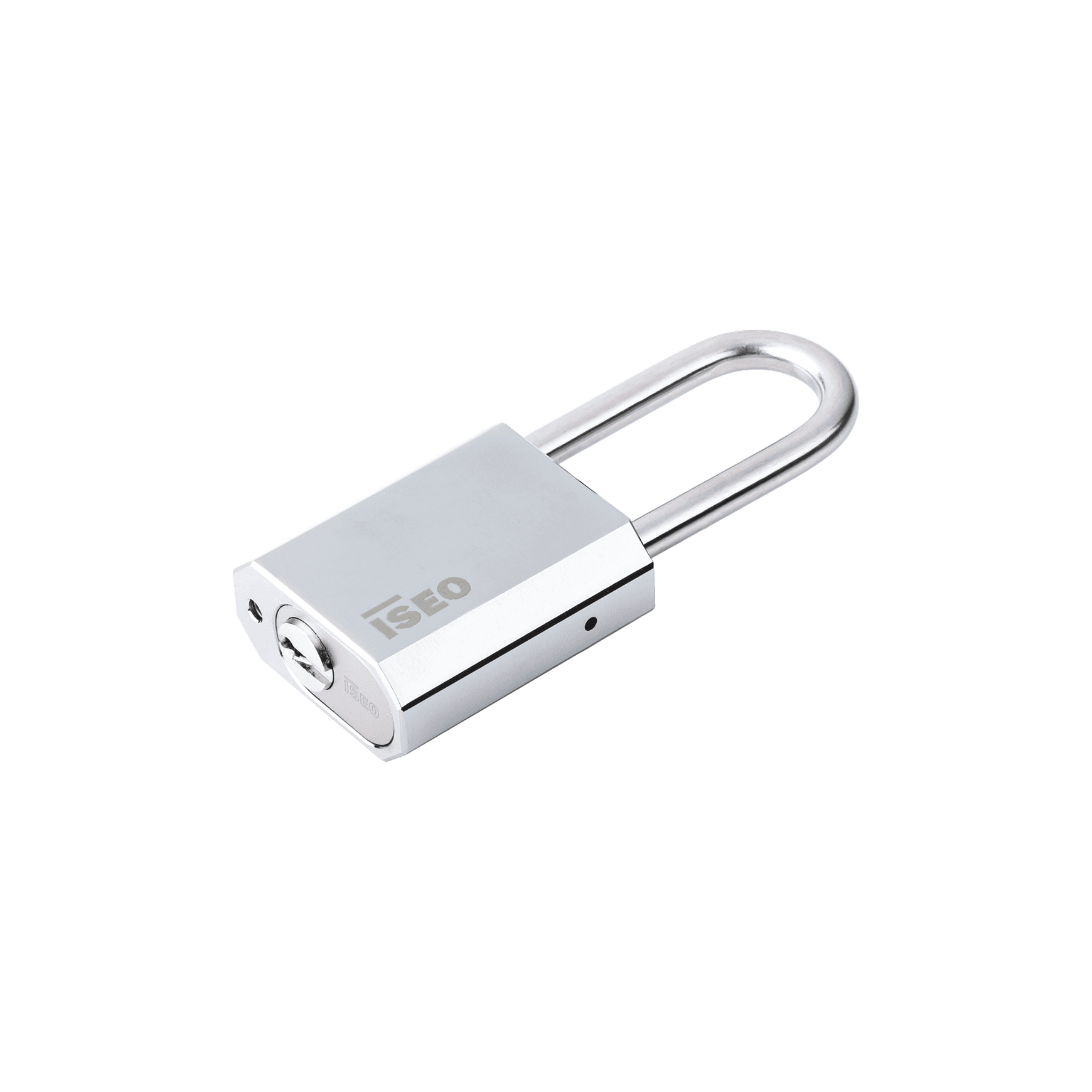

• EN15684:2012: Classified as "16B4FF32" for padlock security.
• ATEX Certification: Available for explosive atmospheres (Ex II 2 G Ex ib IIB T4).

The ISEO V364 is a high-security mechanical locking system designed to meet the demanding needs of both residential and commercial properties. Engineered for durability, reliability, and precision, the V364 system offers a robust solution for key management and access control.

Key Features:

Patented Profile: The V364 features a patented key profile for enhanced protection against unauthorized duplication.

High Security: Equipped with multiple rows of pins and complex key bitting for superior resistance against picking and manipulation.

Modular Design: Available in various cylinder formats including double, single, thumb turn, and padlock cylinders.

Keyed Alike & Master Key Options: Offers full keying flexibility—ideal for small to large master key systems.

Compliance & Certification: Designed in accordance with European standards, including EN 1303 for durability and attack resistance.

Ideal Applications:

Office buildings

Apartment complexes

Educational institutions

Retail stores

Public sector facilities

The ISEO V364 is a smart choice for those seeking advanced mechanical security with the option to scale and manage access efficiently.

LSA is a web-based multi-user customisable software that is used by administrators and access
managers to configure and operate any access control system based on ISEO's 1RIS platform.
This new-generation software is aimed at simplifying access management for all types of solution,
whether small, medium, large or complex systems.

With the ISEO F9000 ON keys and cylinders, you can easily manage your security systems through the
LSA software – the heart of your solution. The LSA software is designed to help you streamline access
management, improve security, and boost profitability, all while meeting the unique demands of your
company. LSA can be tailored to fit your specific requirements, whether in a SaaS model or as an
in-house installation. And with easy integration with third-party information systems, you can be sure
your existing infrastructure works seamlessly with our solution.

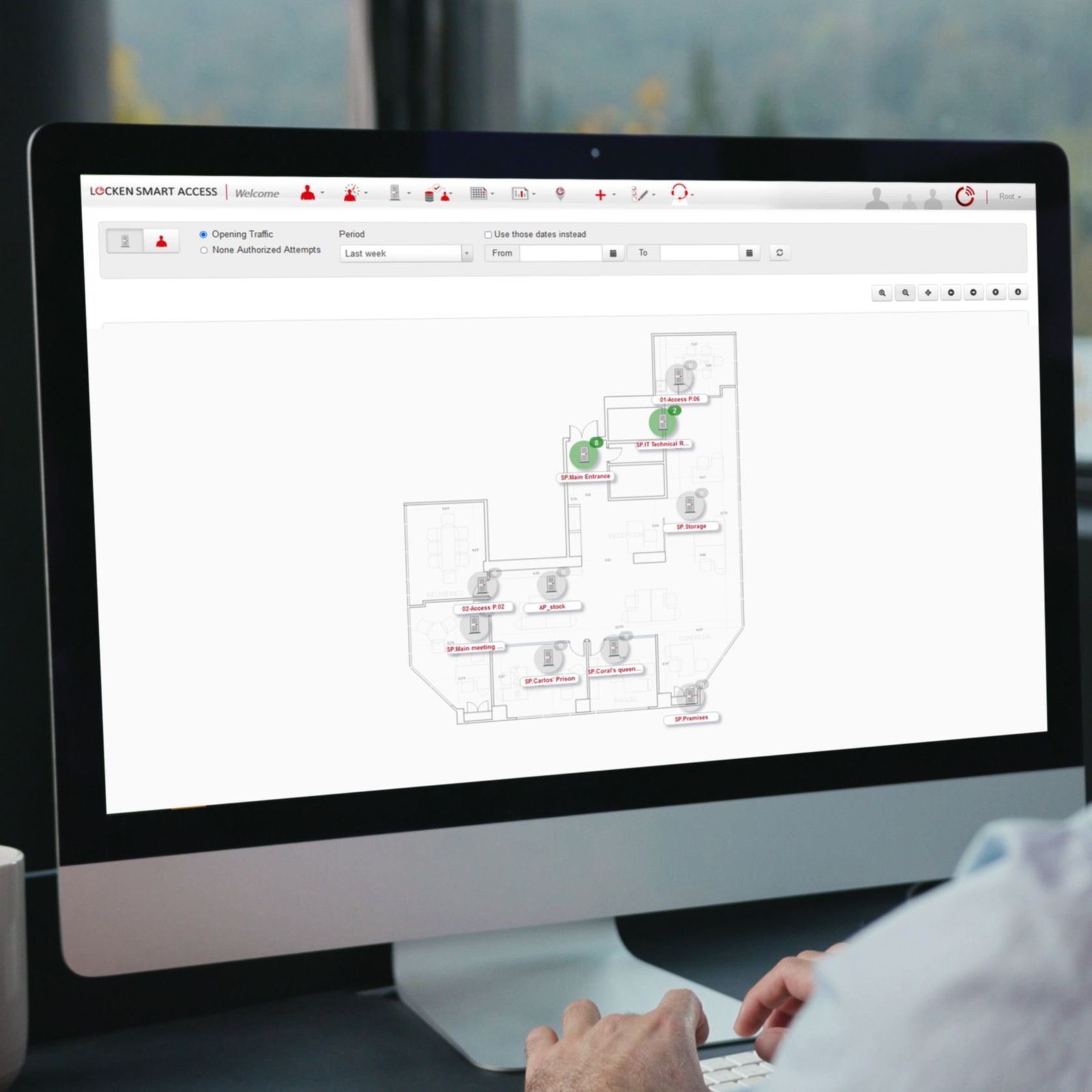

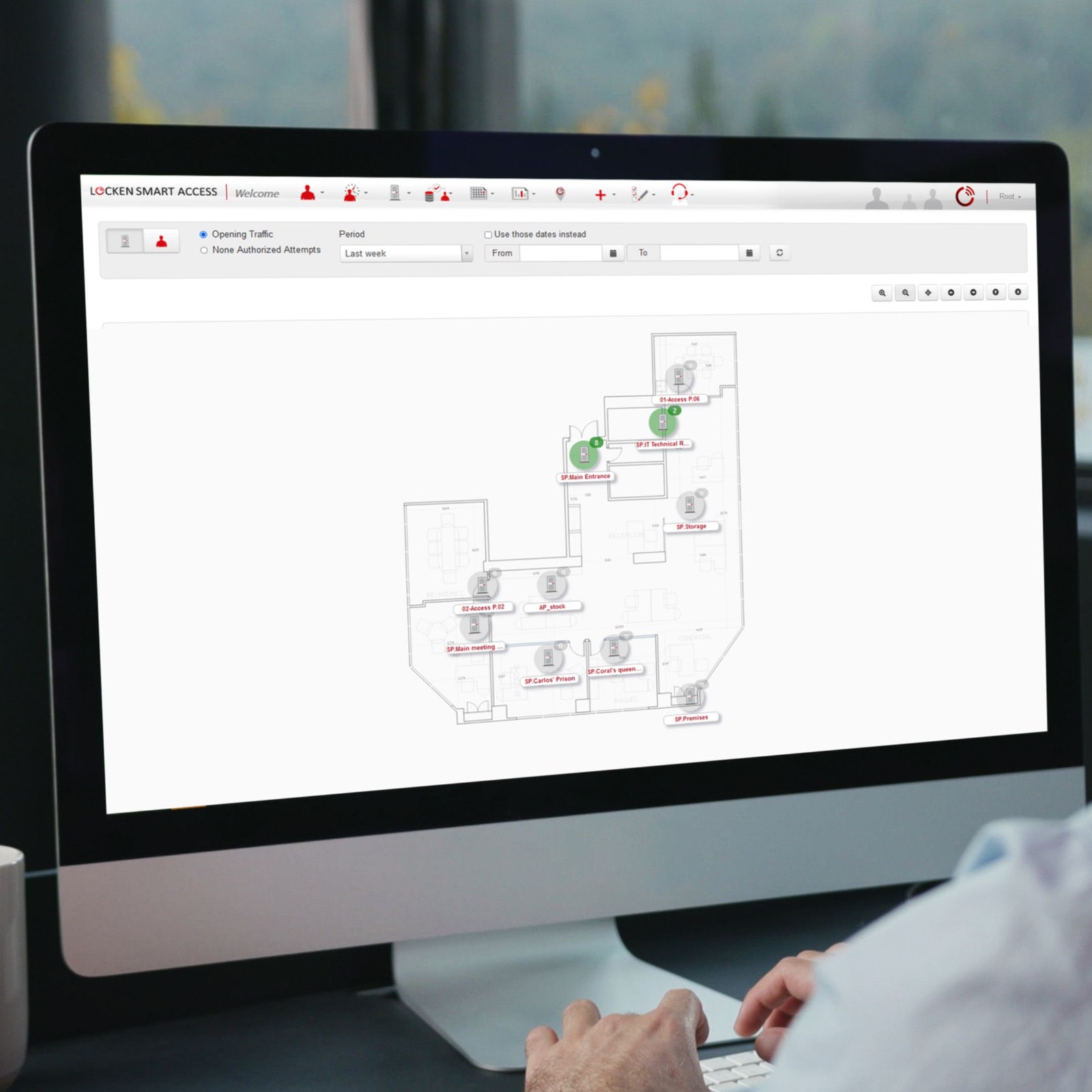

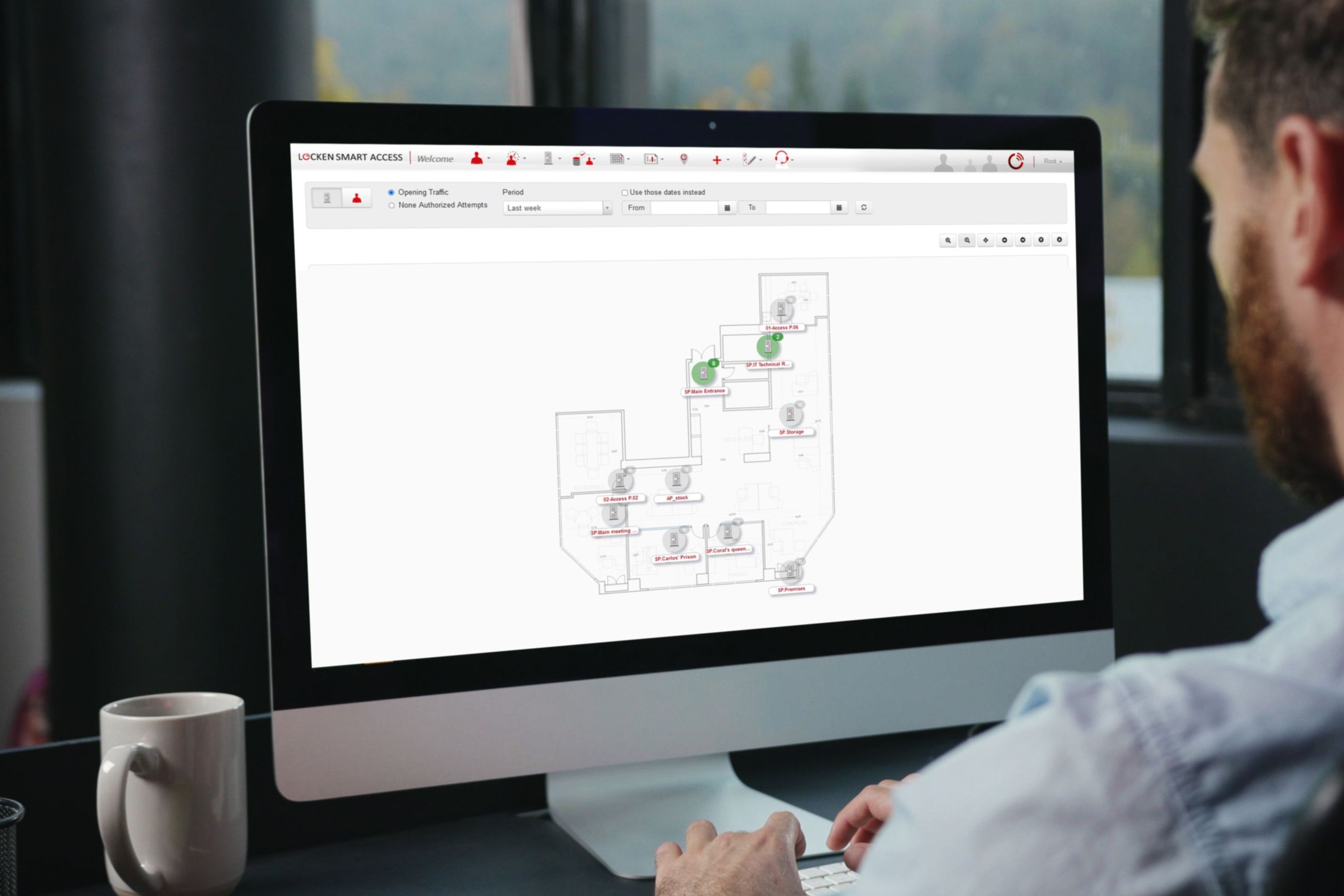

The LSA software also provides intuitive features, like real-time access requests and graphical
displays of key data (including maps, floor plans, and more), giving you complete control over your
access points and user presence at any time.
With ISEO’s expert support, this solution is fully customisable to the organisation’s needs, ensuring that
you get the most out of your system, today and as your needs evolve.

KEY BENEFITS

■ Save time
automate routine tasks, so your team only needs to intervene when there’s an exception
■ Increase efficiency
easily integrate with your existing IT systems, cutting down on management time and cost
■ Adaptable
tailor the software to meet your company’s unique requirements – and as those needs evolve, LSA
evolves with you
■ Simplify security
manage multiple hardware types – whether standalone or integrated – through a single, unified system
■ Customisable licenses
choose from software licenses with IT support and hosting or a subscription-based SaaS model to suit
your budget and operational needs
Enhanced operational and access management efficiency with LSA
