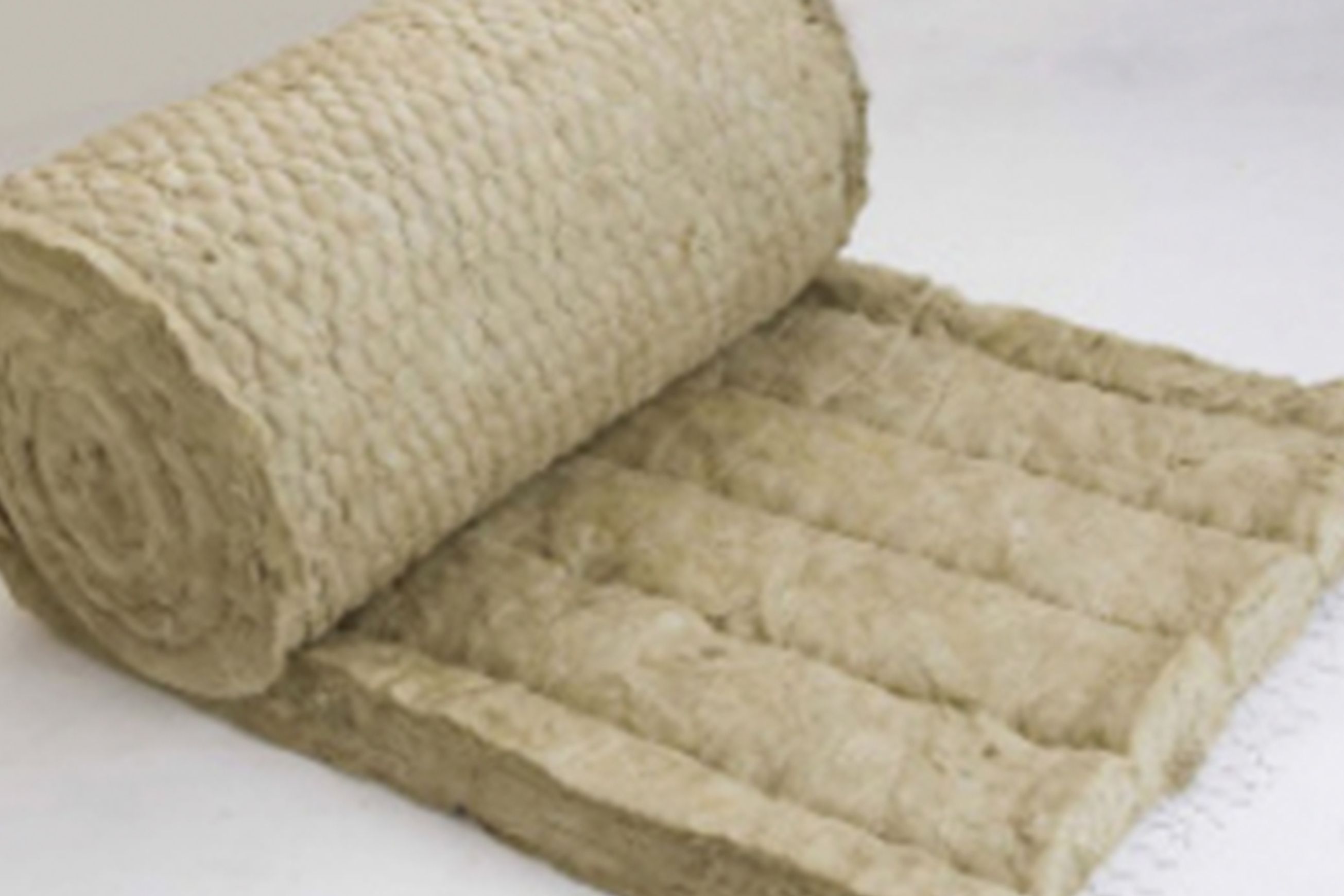

Fibertex 350 Board & Blanket | R0.8 - R1.5
- 80.3K profile views
- 7 saves
Bradford offers a range of rockwool products specifically designed for applications up to 820°C. These products are used to insulate tanks, vessels and larger process equipment from energy loss and to provide personnel protection. Products are generally selected by the temperature of the application.
Bradford Fibertex 350 a lightweight medium density rockwool insulation product designed for applications up to 350°C.

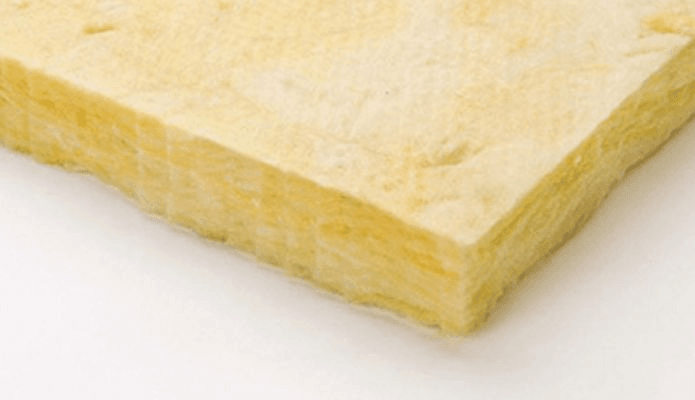

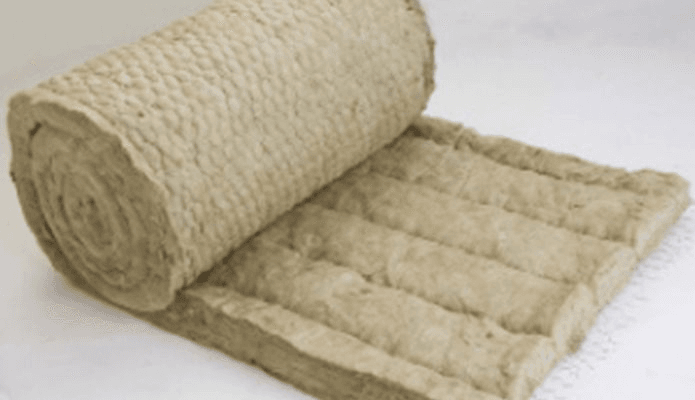

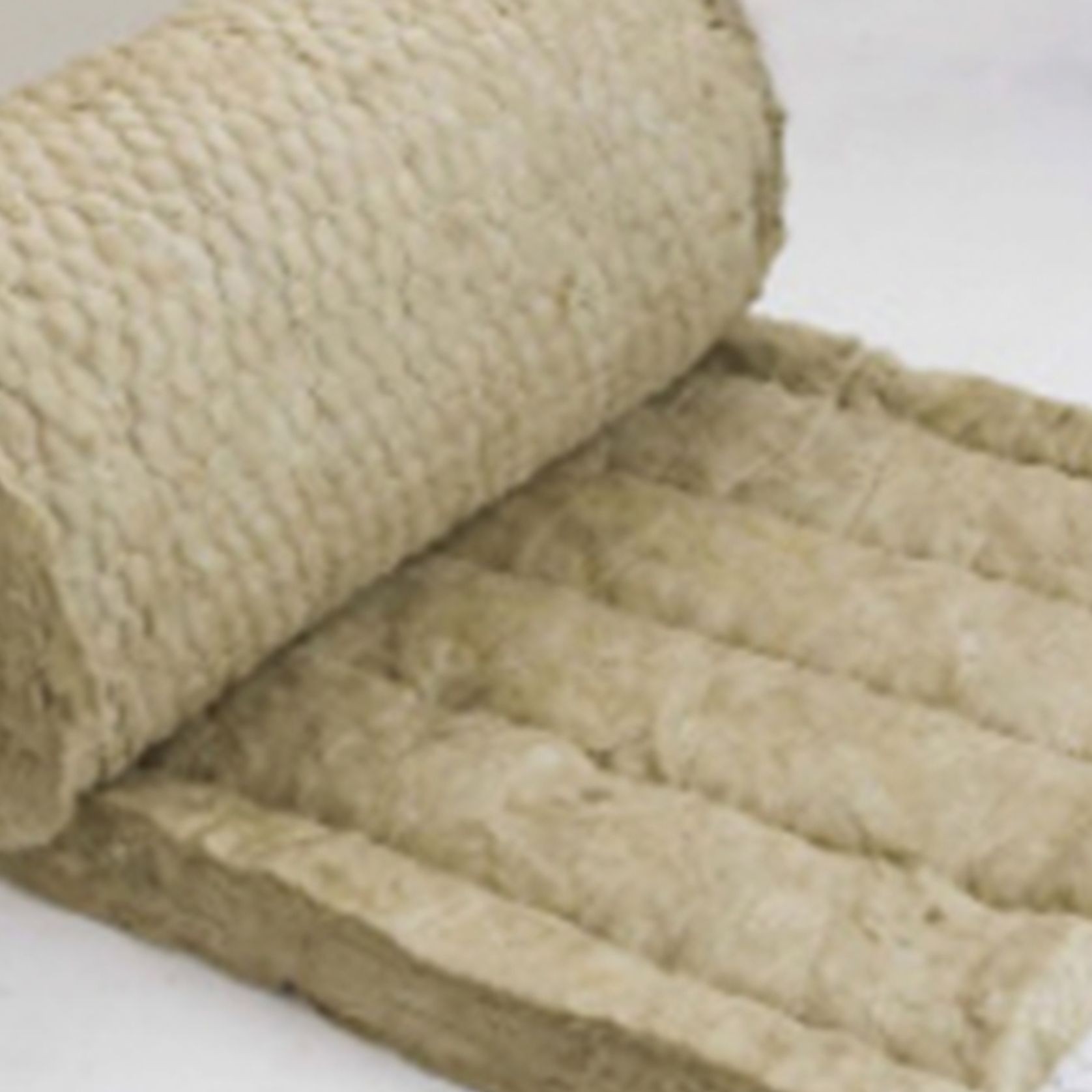

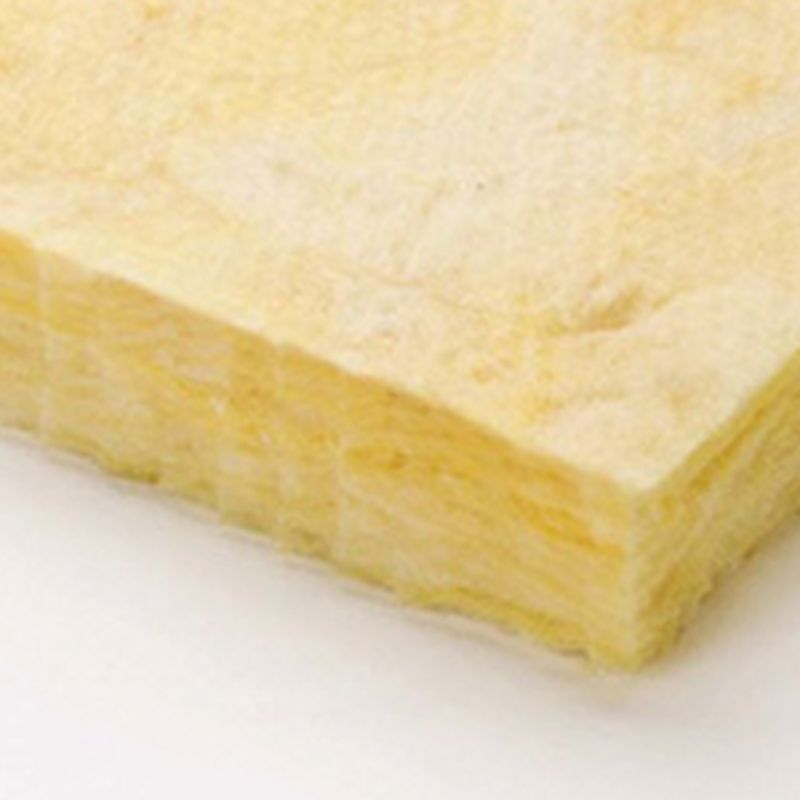

Bradford Fibertex 350 a lightweight medium density rockwool insulation product with excellent insulation and fire resistance properties. It is manufactured by spinning a molten mixture of natural rock and recycled products into fine wool like fibres which are bonded together using a thermosetting resin. The product can be identified by its light brown appearance.
Features and Benefits:
- Lightweight highly durable insulation product
- Easily forms to shape of equipment to be insulated
- Cost effective thermal insulation
- Performance is not adversely effected from contact with water
- Non-combustible (un-faced products only)
- Biosoluble safe to use product
Product Details
- Product
- Fibertex 350 Board & Blanket | R0.8 - R1.5
- Category
- Wall Insulation
- Sold by
- CSR Bradford Insulation
Product Variants
- Colours
- Material
- Size
CSR Bradford Insulation is specified by
Bradford offers a range of rockwool products specifically designed for applications up to 820°C.
These products are used to insulate tanks, vessels and larger process equipment from energy loss and to provide personnel protection. Products are generally selected by the temperature of the application.
Bradford Fibertex 350 a lightweight medium density rockwool insulation product designed for applications up to 350°C.
Bradford Fibertex 350 a lightweight medium density rockwool insulation product with excellent insulation and fire resistance properties. It is manufactured by spinning a molten mixture of natural rock and recycled products into fine wool like fibres which are bonded together using a thermosetting resin. The product can be identified by its light brown appearance.
Features and Benefits:
- Lightweight highly durable insulation product
- Easily forms to shape of equipment to be insulated
- Cost effective thermal insulation
- Performance is not adversely effected from contact with water
- Non-combustible (un-faced products only)
- Biosoluble safe to use product
- Scope of use
Fibertex 350 is designed for use in applications where operating temperatures do not exceed 350°C. It is ideal for use in process temperature control, energy conservation, condensation prevention, acoustic absorption treatment and personnel protection from plant and equipment. Typical applications include:
- storage tanks
- heat exchangers
- reactors
- precipitators
- stacks
- ovens
- air conditioning ductwork
- refrigeration equipment
- large diameter piping.
Bradford Fibertex 350 is easily installed by impaling the boards or blankets on weld pins and securing with speed clips. The un-faced surface of the Rockwool board or blanket is to be applied to the hot surface to be insulated.
On small vessels the insulation may be simply retained by wire mesh or metal bands. For acoustic panel applications ensure cavity dimension does not exceed the product thickness.
Downloads
Downloads (2)2 Direct downloads • 11 Available on request
Frequently asked questions about
Fibertex 350 Board & Blanket | R0.8 - R1.5
The Fibertex 350 Board & Blanket | R0.8 - R1.5 is supplied by CSR Bradford Insulation. It is also on their website, and you can browse every product CSR Bradford Insulation lists on ArchiPro.
CSR Bradford Insulation does not publish a price for the Fibertex 350 Board & Blanket | R0.8 - R1.5 on ArchiPro. for pricing, or visit their website.
It comes in 7 sizes: Board 114044 - L1200 x D30 x W600 mm, Board 114045 - L1200 x D50 x W600 mm, Board 114046 - L1200 x D75 x W600 mm, Board 114047 - L1200 x D100 x W600 mm, Blanket 118438 - L4000 x D30 x W600 mm, Blanket 118439 - L4000 x D50 x W600 mm and Blanket 118440 - L4000 x D75 x W600 mm. For a size that is not listed, .
Yes. It is part of the Commercial Insulation range from CSR Bradford Insulation, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The CSR Bradford Insulation profile on ArchiPro has the rest of their products.
