Supertel Insulation | R0.4 - R3.0
- 80.8K profile views
- 7 saves
Bradford Supertel™ is designed as internal insulation for HVAC ductwork. It also has many applications as a general insulation product to enhance both thermal and acoustic performance.

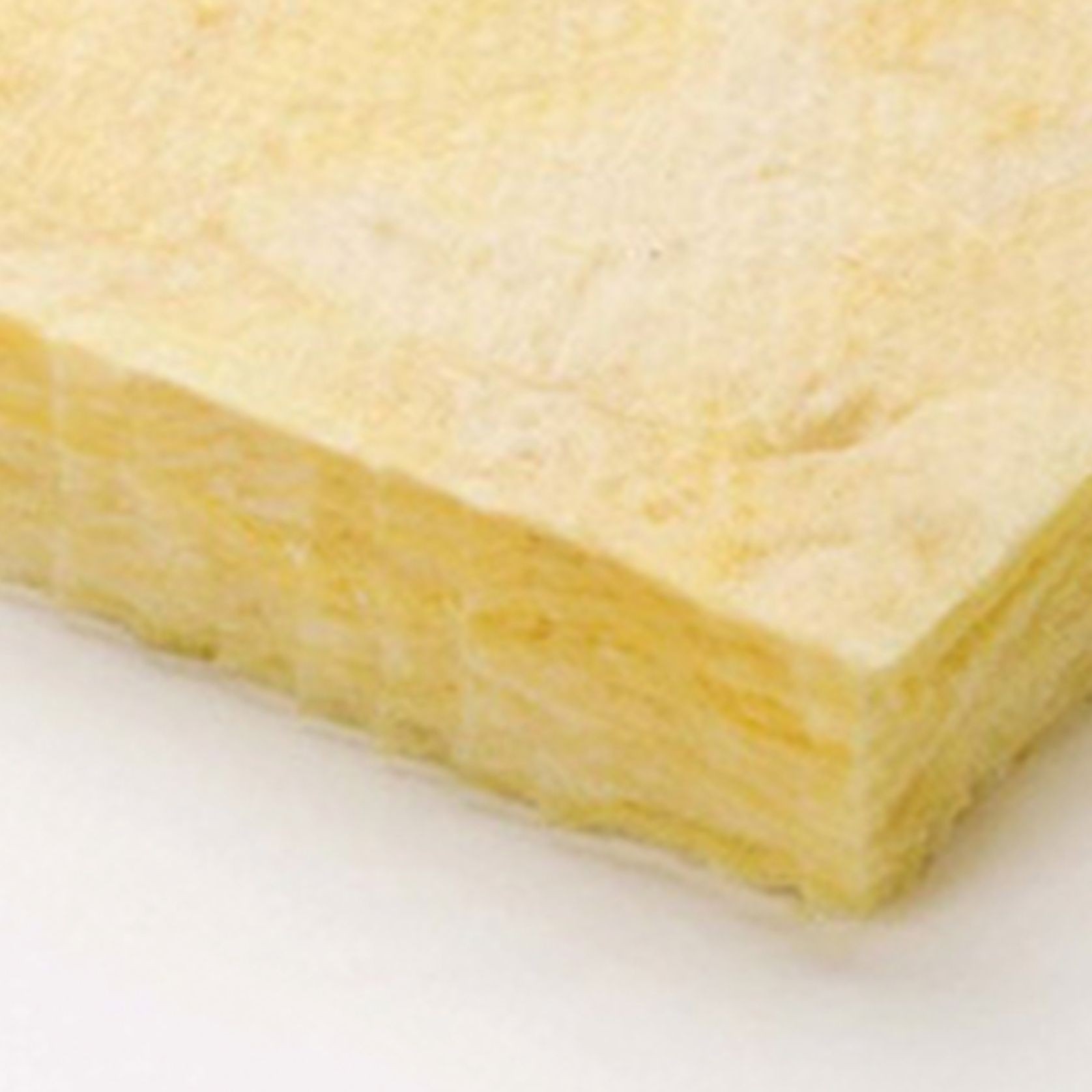

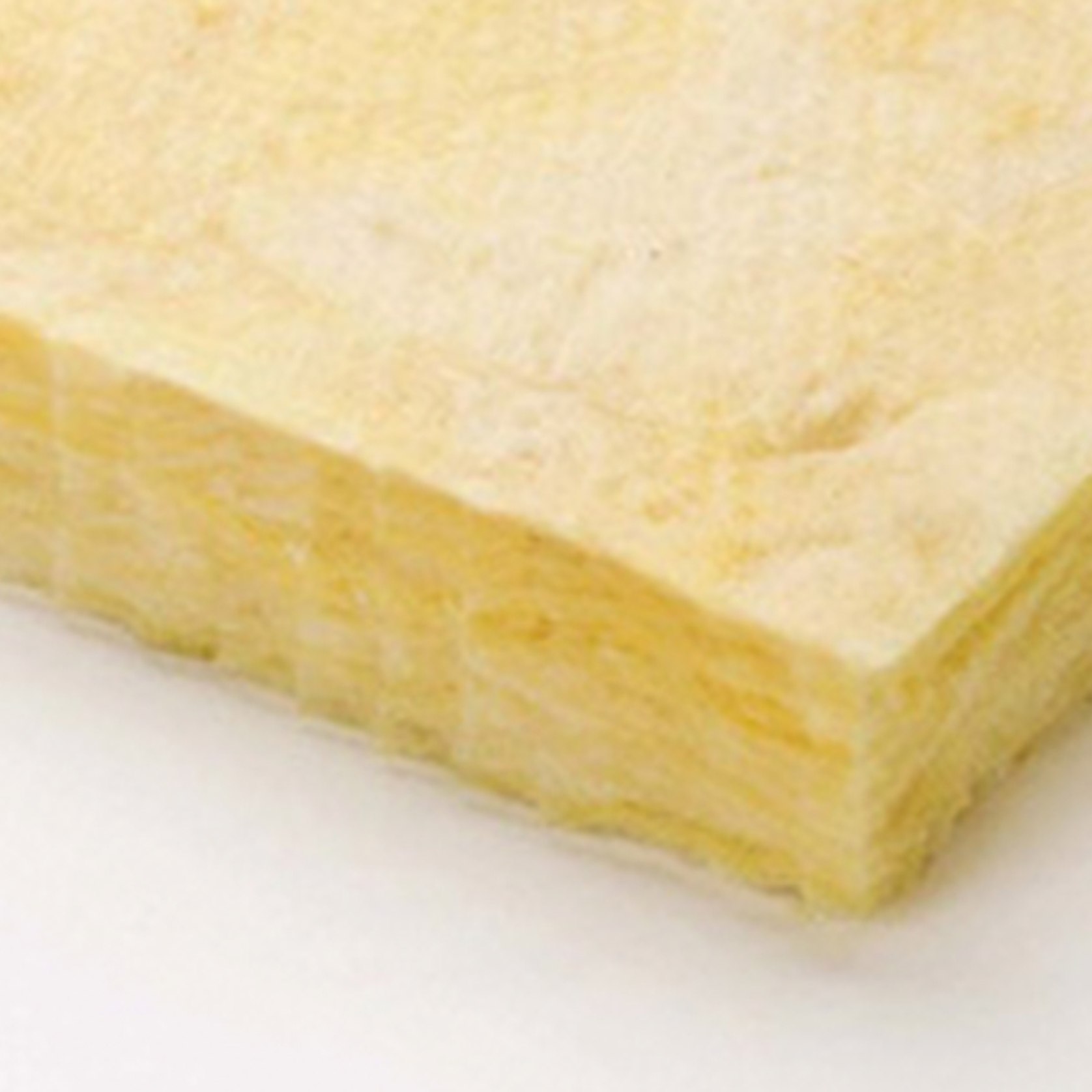

Bradford Supertel is manufactured from a resilient engineered glasswool insulation blanket typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.
Features and Benefits:
- Lightweight
- Easily handled
- High tensile strength
- Resists damage
- Maximum performance at minimal thickness
- Helps meet the NZ Building Code energy efficiency provisions
- Provides both energy and cost savings
- Biosoluble material - safe to use
- Made from up to 65% recycled material
Product Details
- Product
- Supertel Insulation | R0.4 - R3.0
- Category
- Wall Insulation
- Sold by
- CSR Bradford Insulation
Product Variants
- Colours
- Material
- Size
CSR Bradford Insulation is specified by
Bradford Supertel™ is designed as internal insulation for HVAC ductwork.
It also has many applications as a general insulation product to enhance both thermal and acoustic performance.
Bradford Supertel is manufactured from a resilient engineered glasswool insulation blanket typically with an appropriate facing. The blanket is manufactured by spinning molten glass, containing up to 65% recycled content, into fine wool like fibres. These are bonded together using a thermosetting resin. The product can be identified by its golden appearance.
Features and Benefits:
- Lightweight
- Easily handled
- High tensile strength
- Resists damage
- Maximum performance at minimal thickness
- Helps meet the NZ Building Code energy efficiency provisions
- Provides both energy and cost savings
- Biosoluble material - safe to use
- Made from up to 65% recycled material
- Scope of use
Supertel™ has been designed as a thermal and acoustic internal lining for all air conditioning duct work or may be used for other thermal and acoustic applications where high insulation performance is required at minimal thickness. Supertel™ comes in a range of thicknesses that meet the performance requirements as set out by the NZ Building Code.
Typical HVAC applications include:
- Offices
- High rise
- Hospitals
- Shopping centres etc
Downloads
Downloads (2)2 Direct downloads • 11 Available on request
Frequently asked questions about
Supertel Insulation | R0.4 - R3.0
The Supertel Insulation | R0.4 - R3.0 is supplied by CSR Bradford Insulation. It is also on their website, and you can browse every product CSR Bradford Insulation lists on ArchiPro.
CSR Bradford Insulation does not publish a price for the Supertel Insulation | R0.4 - R3.0 on ArchiPro. for pricing, or visit their website.
It comes in 19 sizes: Supertel Board 16026 - L2400 x D13 x W1200 mm - 19.2kg, Supertel Board 15311 - L2400 x D25 x W1200 mm - 23kg, Supertel Board 15714 - L2400 x D25 x W1500 mm - 28.8kg, Supertel Board 111256 - L2400 x D40 x W1200 mm - 21kg, Supertel Board 111397 - L2400 x D40 x W1500 mm - 26.3kg, Supertel Board 15332 - L2400 x D50 x W1200 mm - 23kg, Supertel Board 15709 - L2400 x D50 x W1500 mm - 28.8kg, Supertel Board 96036 - L2400 x D63 x W1200 mm - 23.2kg, Supertel Board 15282 - L2400 x D75 x W1200 mm - 20.7kg, Supertel Board 30493 - L2400 x D75 x W1500 mm - 17.3kg, Supertel Board 15371 - L2400 x D100 x W1200 mm - 18.4kg, Supertel Board 15371 v2 - L2400 x D100 x W1500 mm - 23kg, Supertel Blanket 15759 - L15000 x D25 x W1200 mm - 14.4kg, Supertel Blanket 15805 - L15000 x D25 x W1500 mm - 18kg, Supertel Blanket 111400 - L15000 x D40 x W1200 mm - 21.9kg, Supertel Blanket 111398 - L10000 x D40 x W1500 mm - 18.2kg, Supertel Blanket 16028 - L10000 x D50 x W1200 mm - 19.2kg, Supertel Blanket 15488 - L10000 x D50 x W1200 mm - 24kg and Supertel Blanket 15976 - L7500 x D75 x W1200 mm - 21.6kg. For a size that is not listed, .
Yes. It is part of the Commercial Insulation range from CSR Bradford Insulation, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The CSR Bradford Insulation profile on ArchiPro has the rest of their products.
