Water Storage System - Flo-Vault^® by Atlantis

Name: Water Storage System - Flo-Vault® by Atlantis
Brand: Atlantis Corporation
Availability: InStock

Atlantis Corporation

Visit Website

Water Storage System - Flo-Vault® by Atlantis gallery detail image

Dimensions

L575 x W575 x H500 mm - 8kg

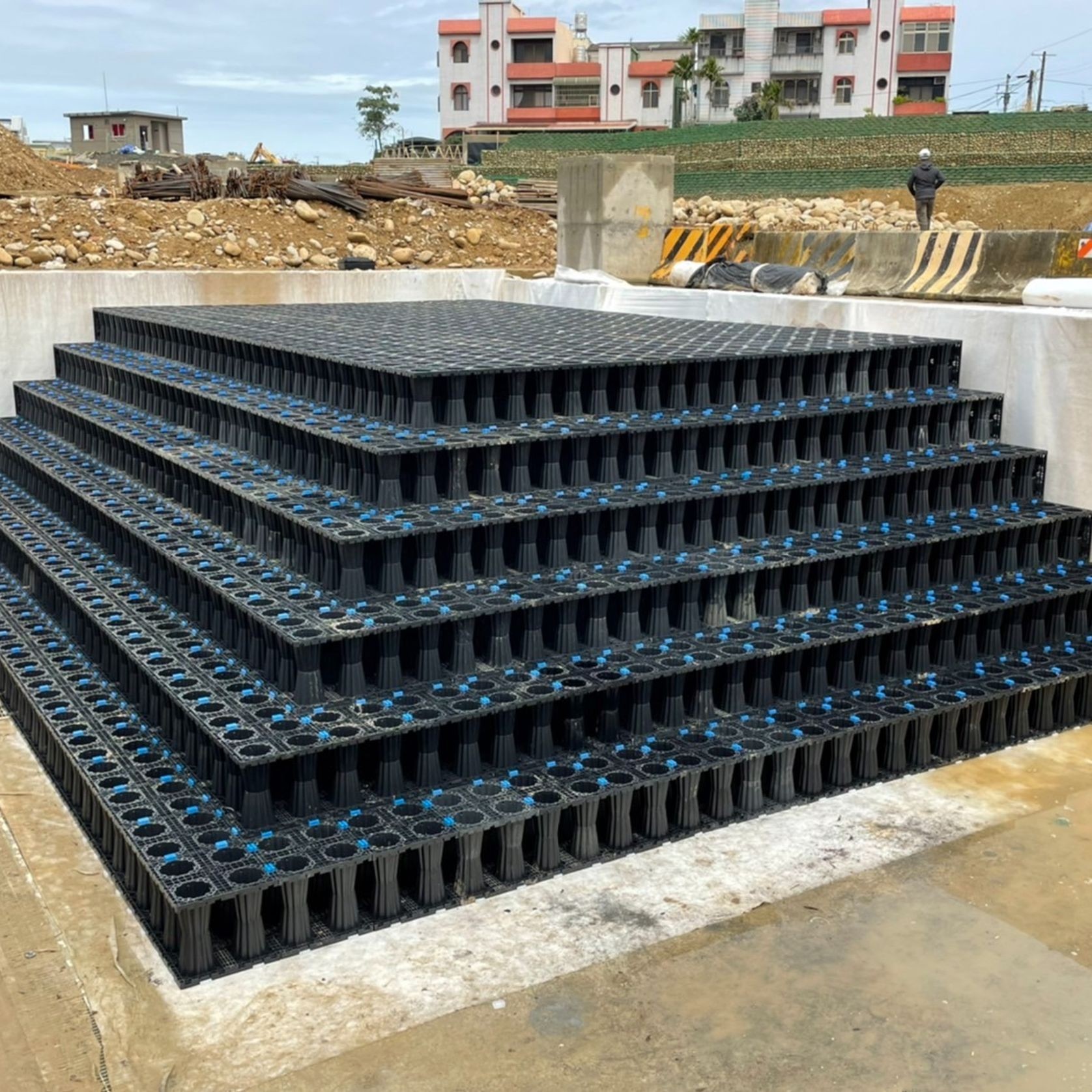

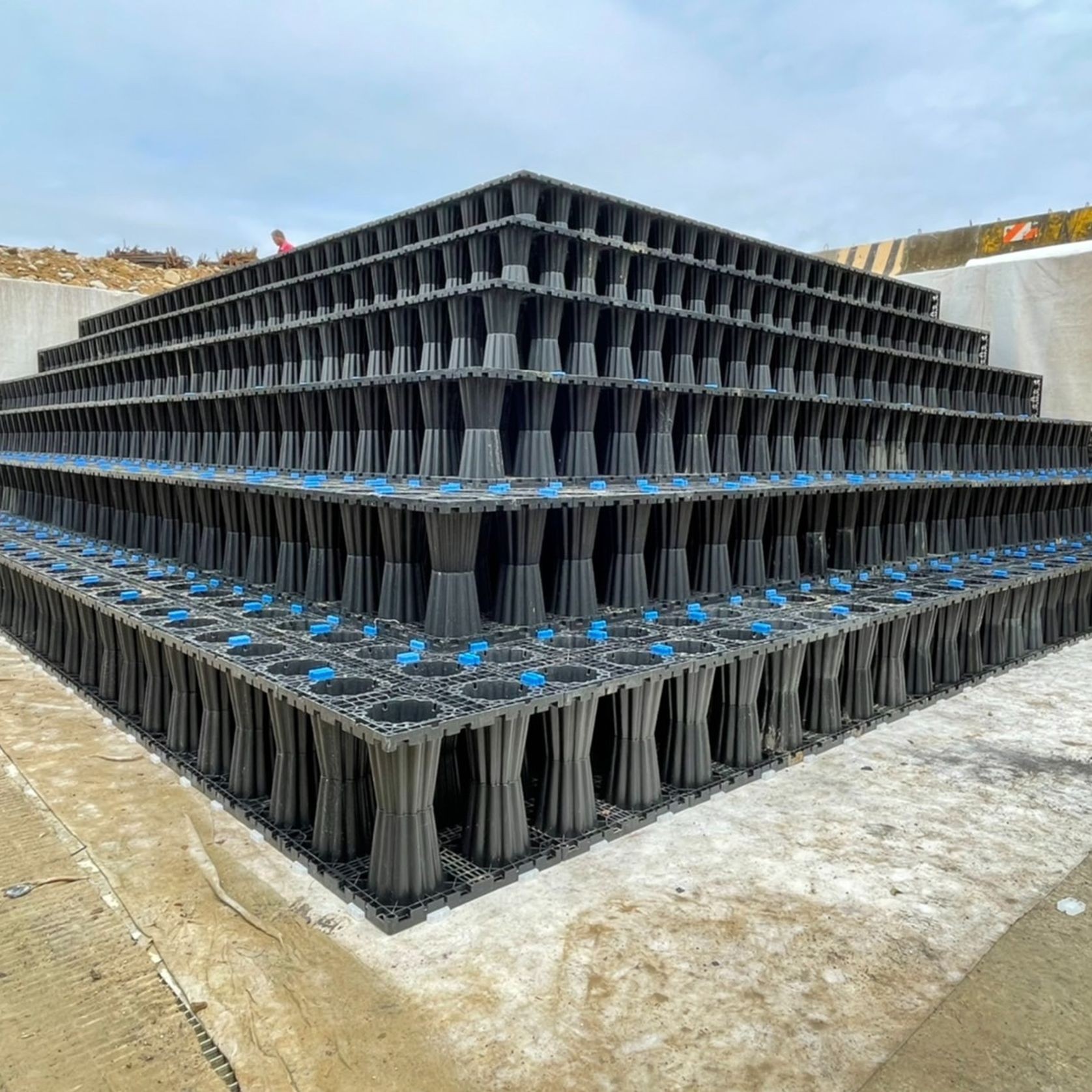

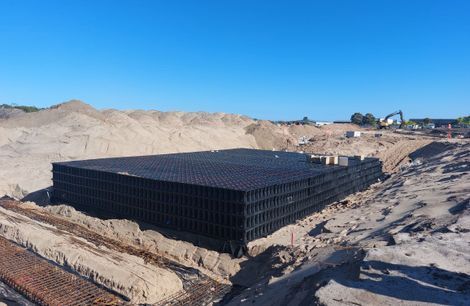

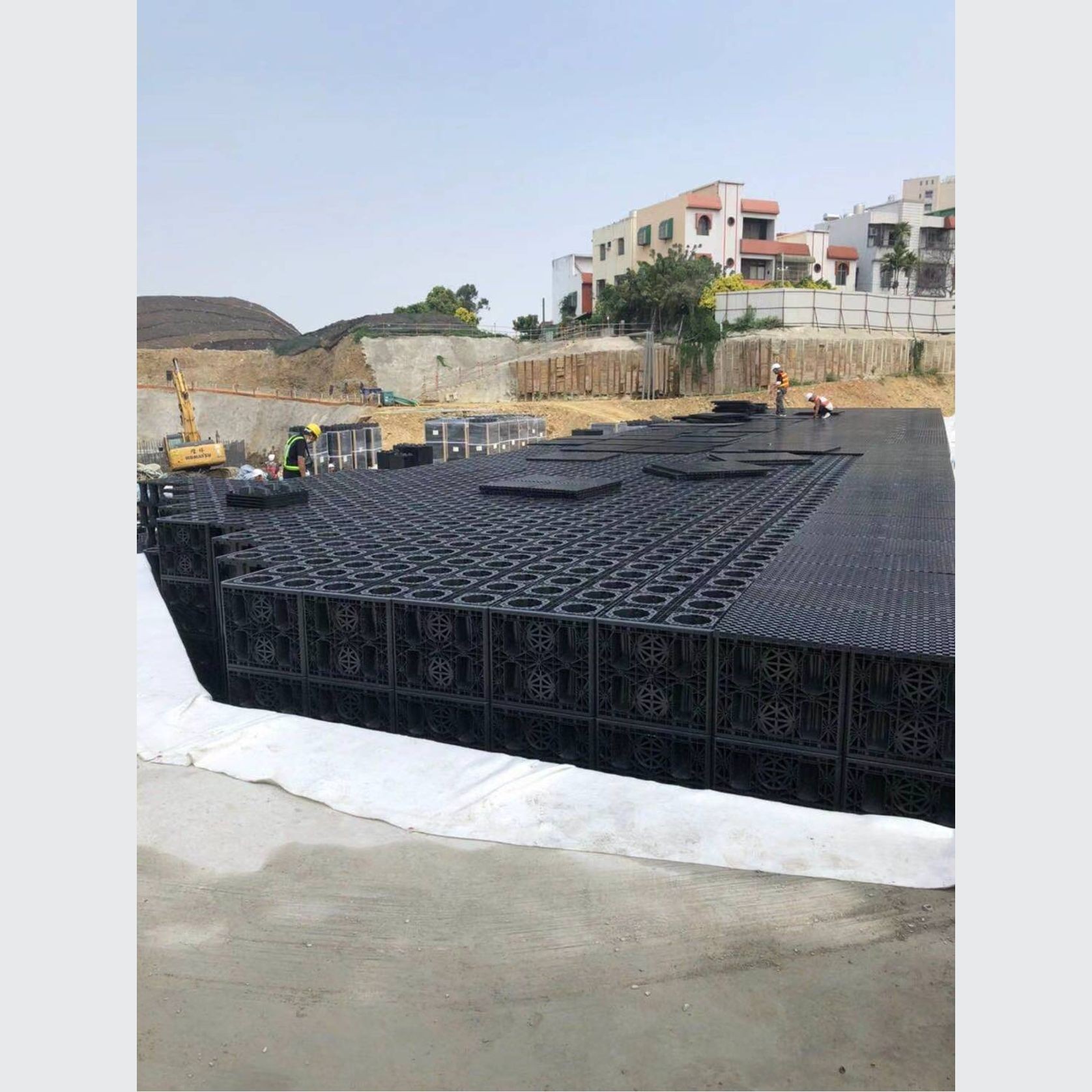

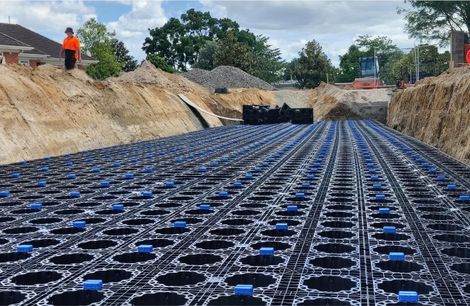

The Atlantis Flo-Vault® is an innovative and lightweight modular tank system designed for underground water storage and various other applications. This advanced system provides an efficient and flexible solution for constructing tanks of any volume, tailored to specific site conditions. Moreover, its modular design ensures easy assembly and adaptability, making it ideal for a wide range of water management needs.

The Flo-Vault® is perfect for underground water storage, offering a robust solution that can be customized to meet the requirements of any project. Whether managing stormwater, irrigation systems, or landscape design, the Flo-Vault® excels in performance and reliability. Additionally, its lightweight structure allows for straightforward installation, reducing labor costs and time.

Details

Category
Stormwater Drainage, Detention Tanks, Channel Drainage
Range
Modular Water Tanks
Brand
Atlantis
Designer
Atlantis

Scope of use

Detentions tanks
Rainwater harvesting Tanks
Soakaway tanks
Rain Gardens
Flood Mitigation
Retrofit of concrete channels
Swale
Bio Filtration.
W.S.U.D & S.U.D.S, L.I.D applications
Landscape Void Fill
Planter box

Features

Long term history in the ground
Excellent engineering knowledge
Strong, tanks can resist up to 40 tonnes per SQM
Earthquake resistant
Can be installed by unskilled labour

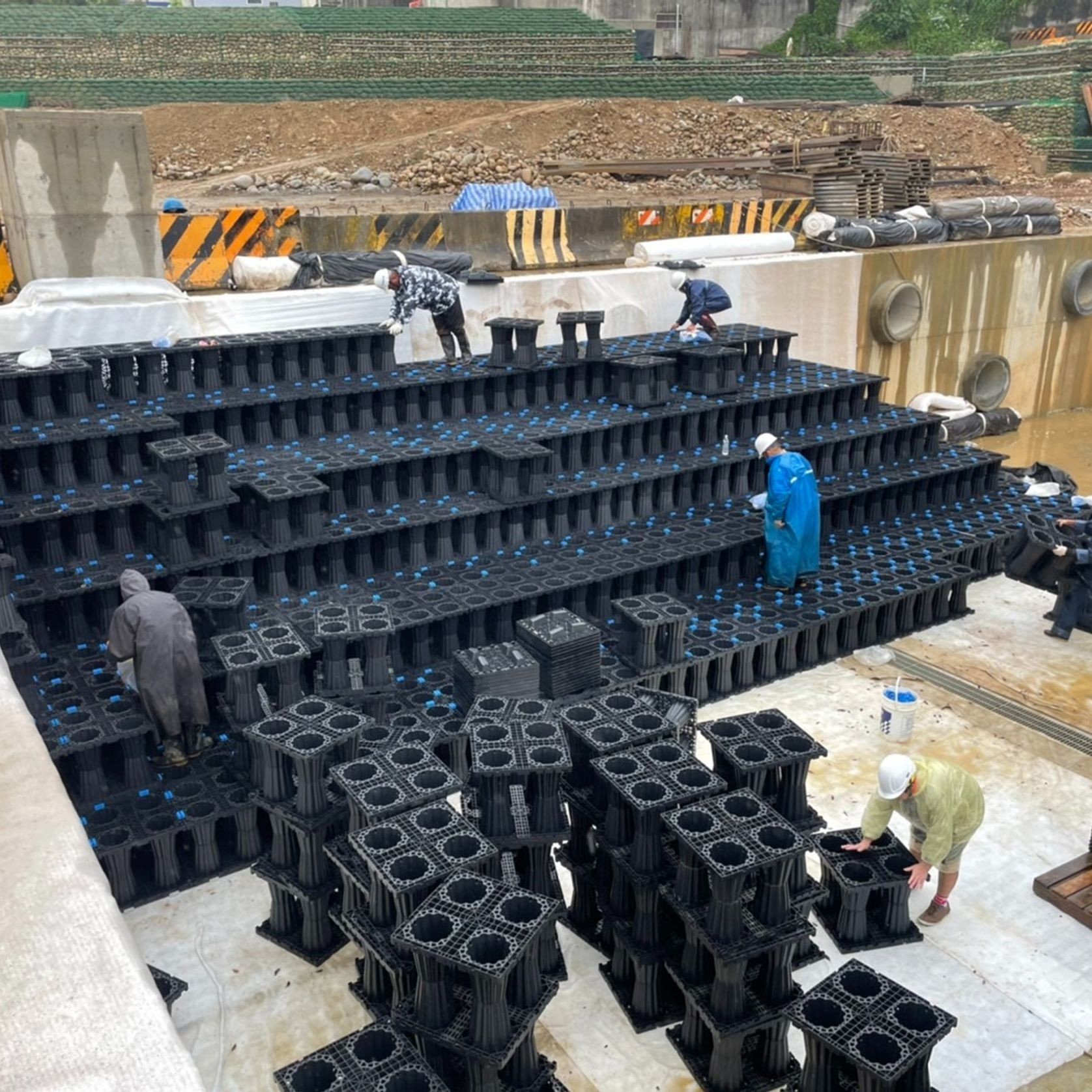

Easy to assemble
Fast to install
Made from 100% recycled materials
Can be recycled after use
Modular design, can easily create irregular shapes
Multiple uses, soakaway, water retention, drainage

Water Quality

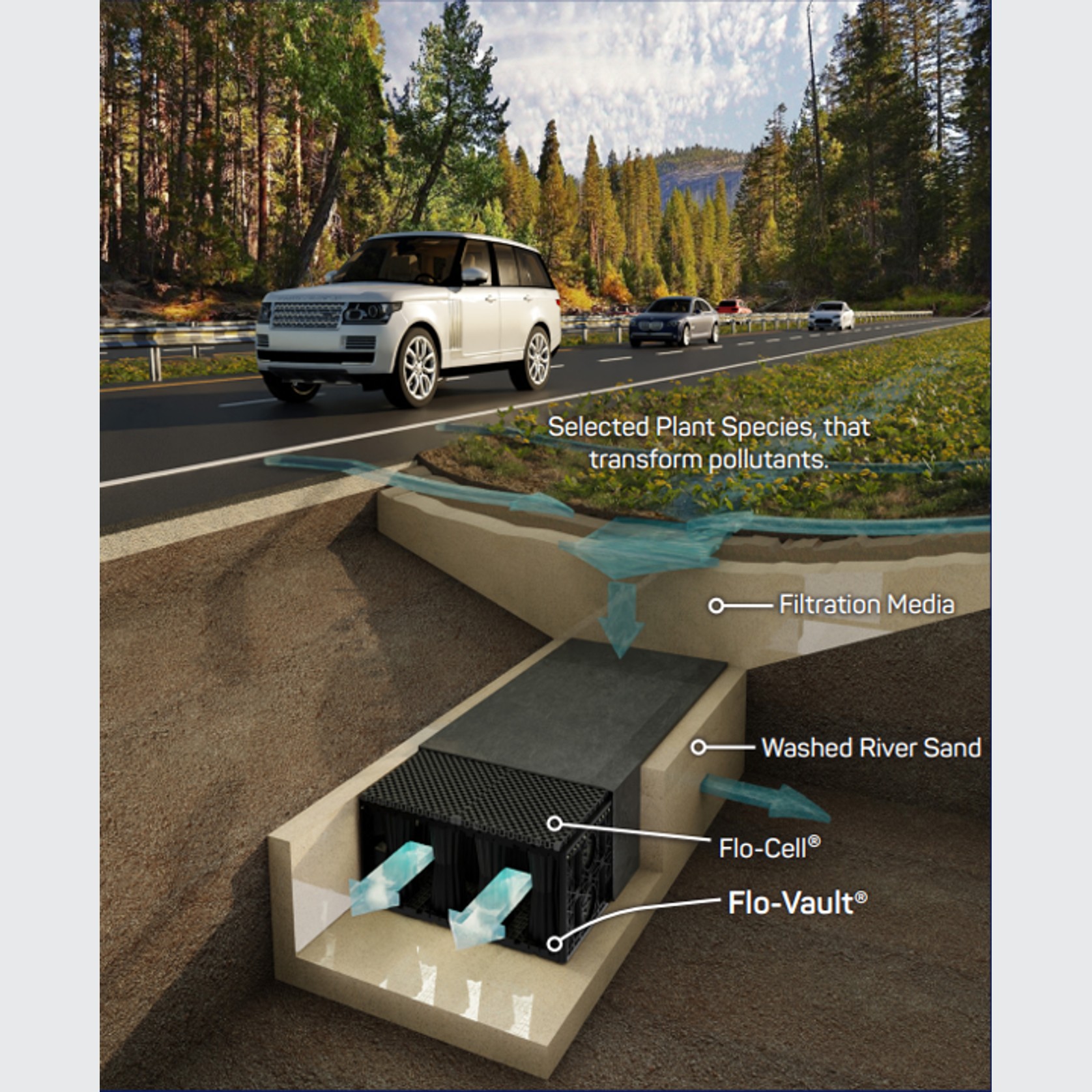

Atlantis modular tank systems excel when there is a requirement to achieve high water quality, particularly in the effective removal of nutrients and gross pollutants. In addition to the obvious environmental benefits, the sub -surface location of the tank system provides more useable ground area and enhanced aesthetic setting compared to above ground concrete or plastic tanks.

The Modular Advantage

Atlantis modular tank system performance supersedes outdated aggregate trenches. The Atlantis system provides a void space of over 90% compared to less than 20% in typical aggregate trenches. Consequently, with a smaller footprint the Atlantis system achieves the same storage capacity as an aggregate trench. This saves time and money in installation and civil works costs. The lightweight design of Atlantis® modular tank modules also make installation quicker, safer and cheaper. No sediment build up occurs in the Atlantis system, unlike the clogging that is characteristic of aggregate based approaches.
