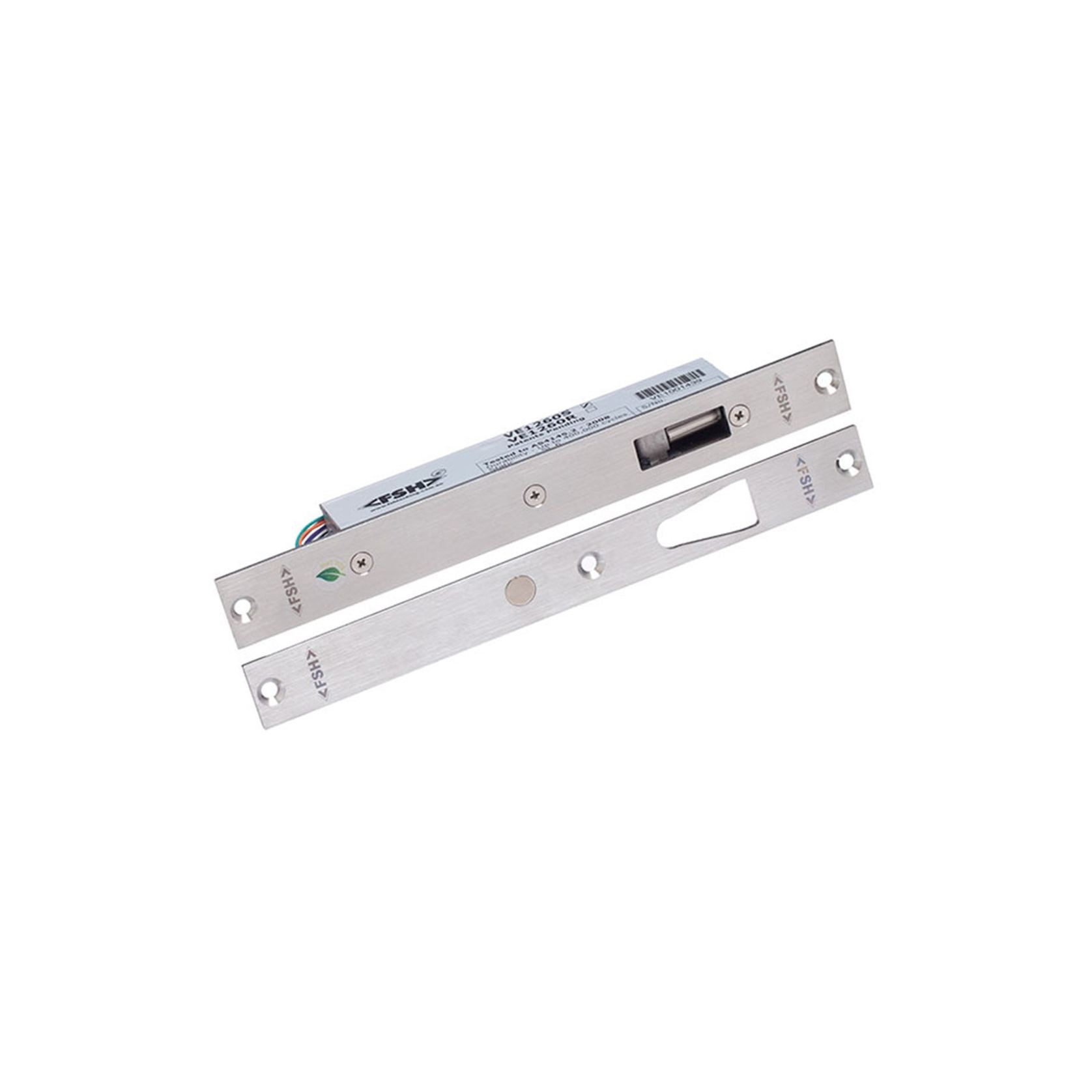

FSH Drop Bolt (V Lock) Square Edge
VE1260S
Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.
Features:
- Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance
- It can be installed vertically or horizontally and can be used on 180° swing through opening doors
- Fire rated to 4 hours
- Releases with up to 35kg of pre-load/side load
- Motorised locking device
- Simple PTO/PTL locking mode changeover
- Square end face plate for retro fitting to existing installations
- Tested to 400,000 cycles
- 12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc
- Fully monitored including door position reed
Product Details
- Product
- FSH Drop Bolt (V Lock) Square Edge Fire Rated VE1260S
- Category
- Door Bolts
- Sold by
- Keeler Hardware
- Range
- FSH
- Brand
- FSH
- Country of origin
- Australia
- Type of use
- Commercial and Residential
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Tools required
- Assembly
- Professional assembly recommended
Product Variants
- Colours
- Max Door Gap
- Holding Force
- Multi Voltage
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
FSH Drop Bolt (V Lock) Square EdgeVE1260S Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch.
The previous door locking system's locking plate is replaced by an electric door strike system.
Features:
- Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance
- It can be installed vertically or horizontally and can be used on 180° swing through opening doors
- Fire rated to 4 hours
- Releases with up to 35kg of pre-load/side load
- Motorised locking device
- Simple PTO/PTL locking mode changeover
- Square end face plate for retro fitting to existing installations
- Tested to 400,000 cycles
- 12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc
- Fully monitored including door position reed
- Specs
Specifications:
- Multi Voltage: 12Vdc to 30Vdc
- Holding Force: 1000 Kg.

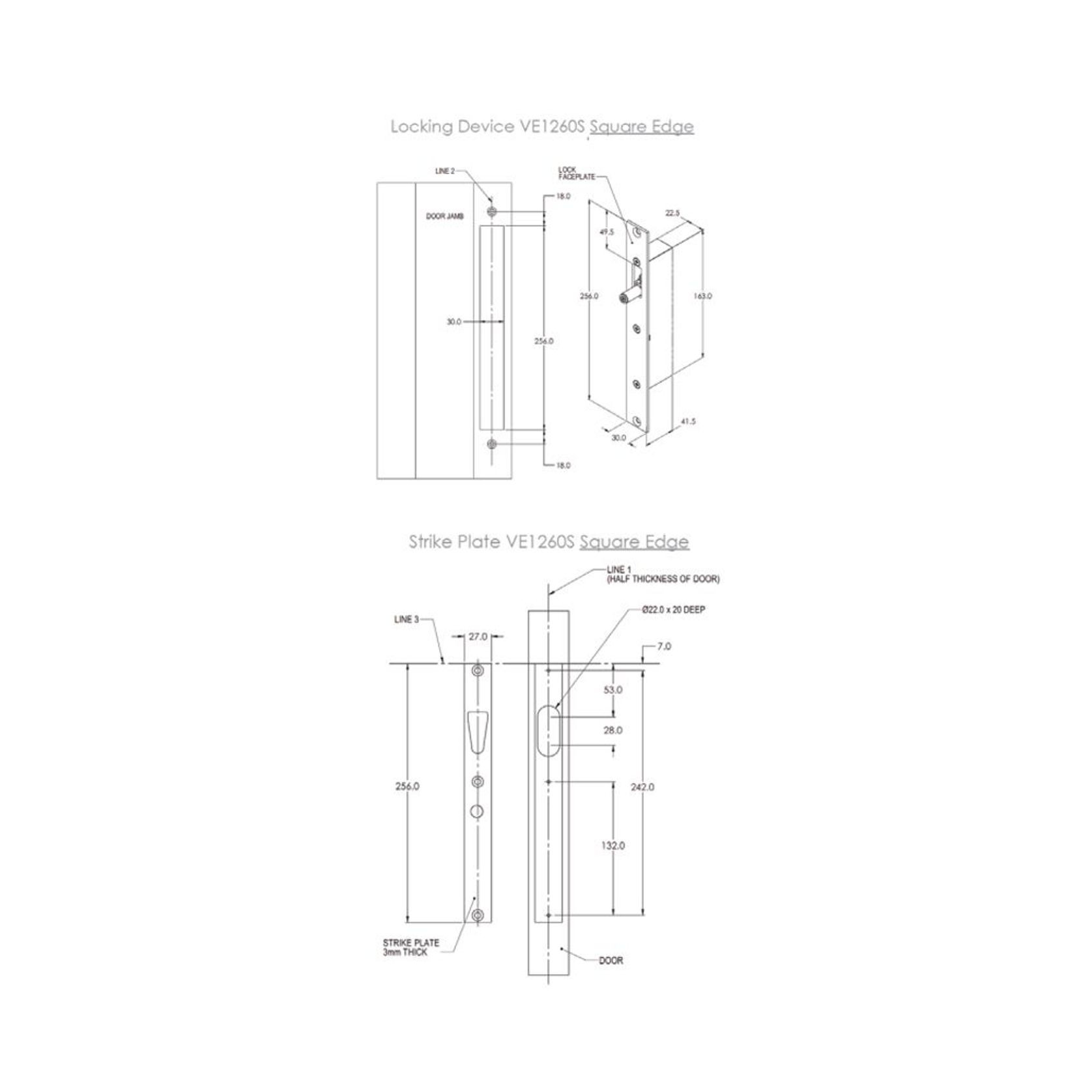

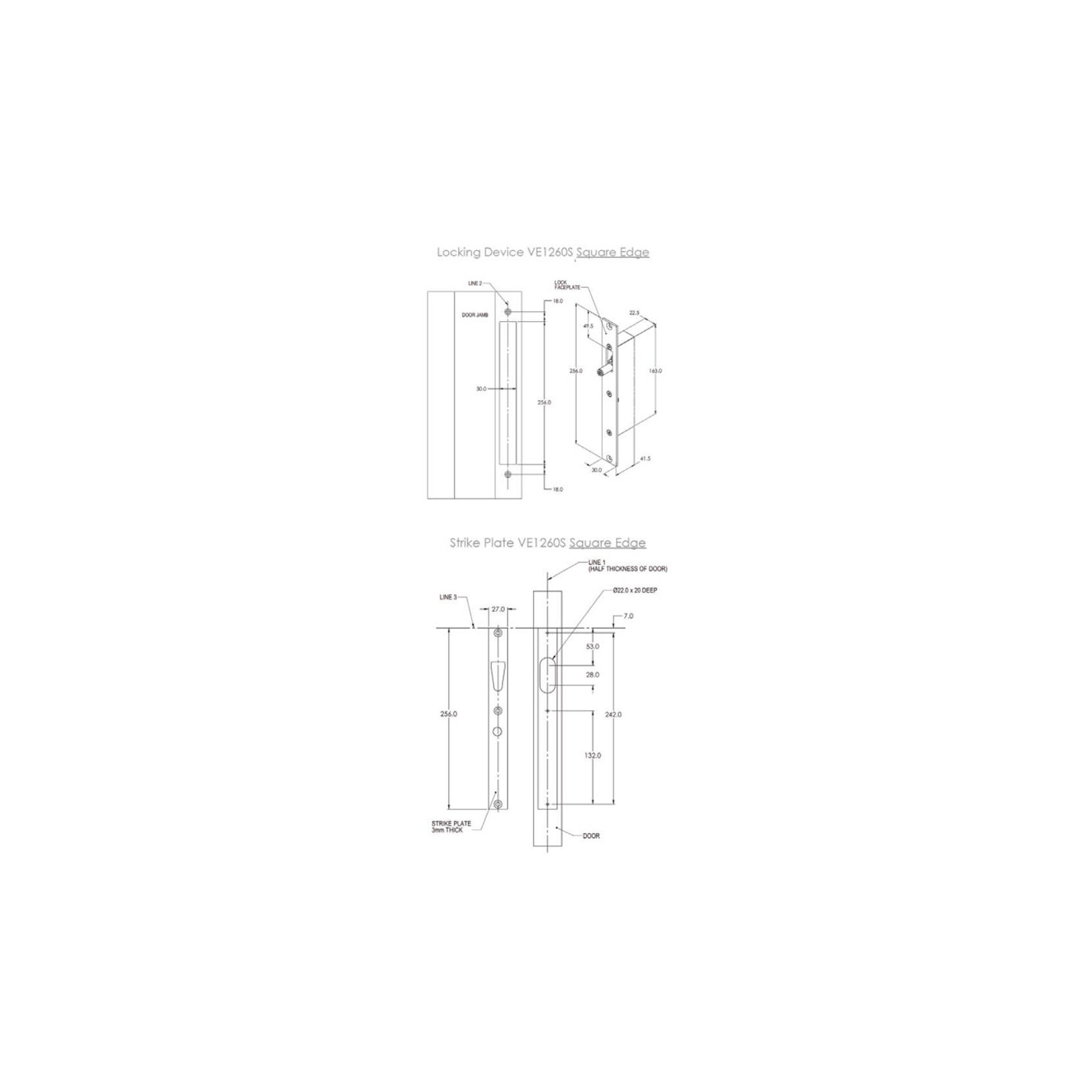

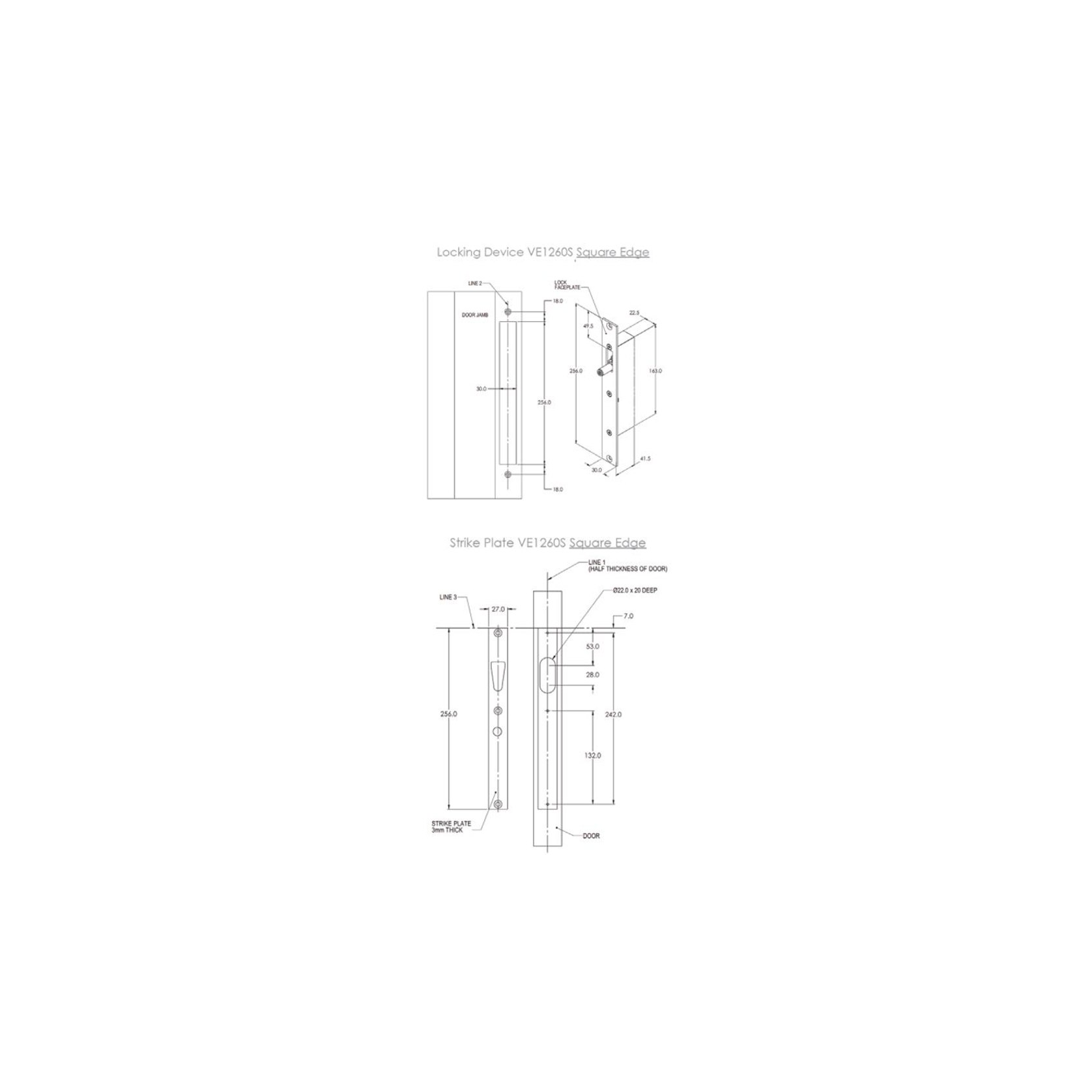

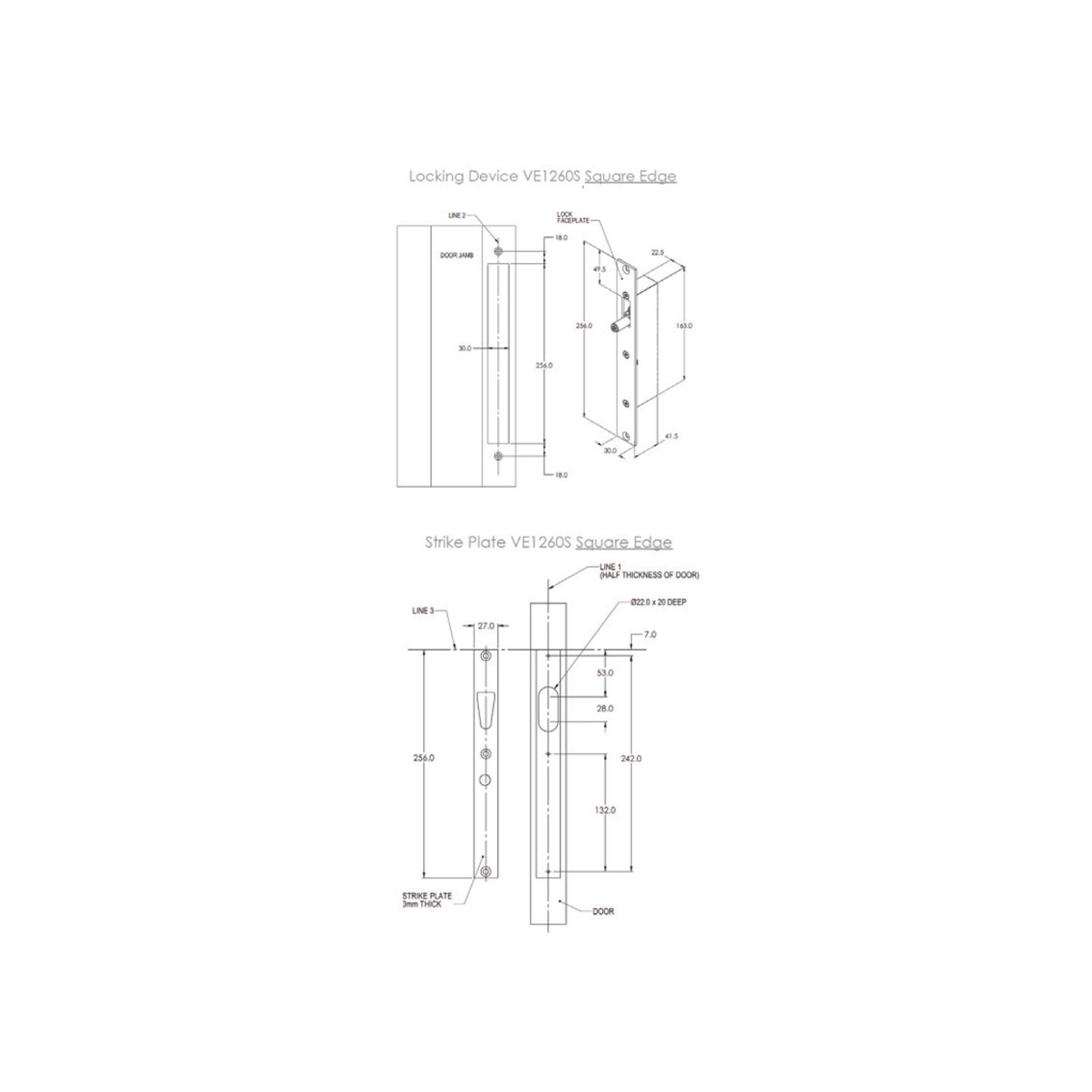

- Face Plate Dimensions:Length: 256mm
Width: 30mm
Thickness: 3mm - Body Dimensions:Length: 163mm
Width: 22.5mm
Depth: 41.5mm - Strike Dimensions:Length: 256mm
Width: 27mm
Thickness: 3mm
- Scope of use
Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.
