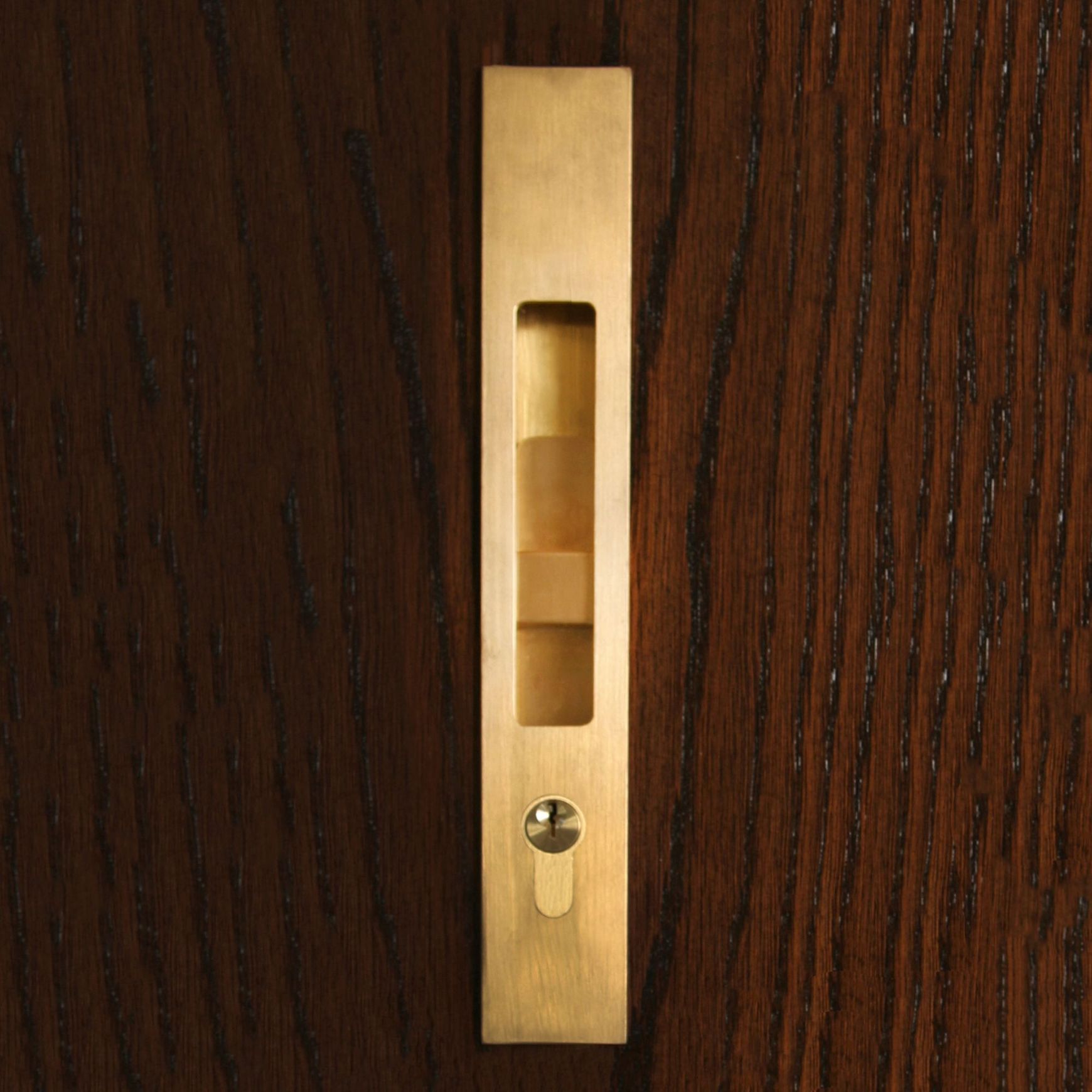

HB1830 Key Locking Flush Bolt
Auckland, New Zealand
- 968.2K profile views
- 80 saves

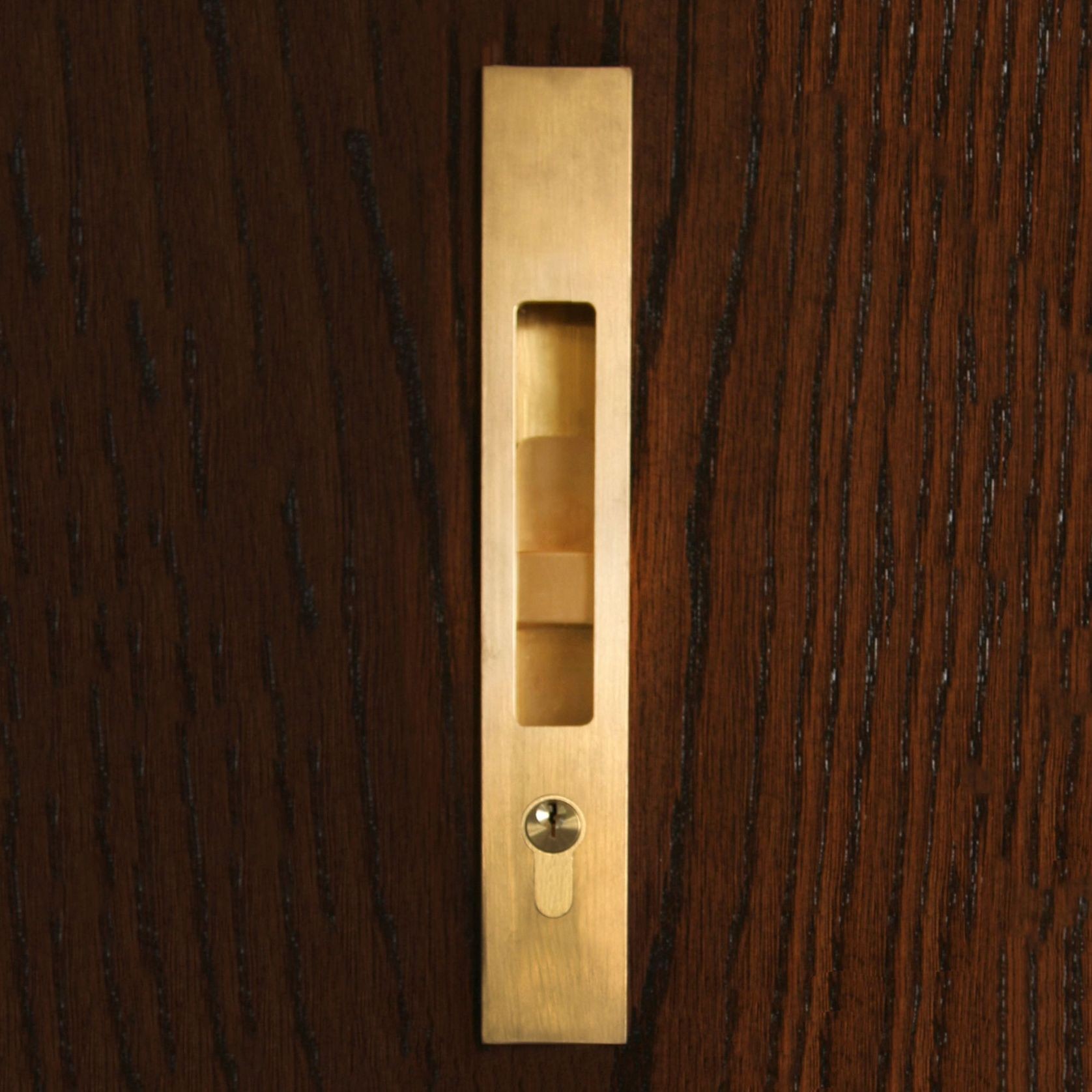

The HB 1830 is a larger key locking version of the HB 1810 & 1820 Flush Bolts. This bolt is able to be key locked with a standard euro cylinder providing additional security for sliding doors and windows.
To accommodate a standard euro cylinder the body of the HB 1830 is significantly larger than its HB 1810 & 1820 counterparts. The bolt weighs approximately 1.3kgs and is ideally suited to large scale solid timber doors of at least 42mm thickness.
Bolts can be mounted to the top or bottom of doors depending on door detail. The cylinder position however will not change and therefore if the bolt is mounted to the top of the door the cylinder will appear ‘upside down.’
Ships with fixing kits and includes a standard 3pin Euro cylinder that sits flush with the face of the bolt (21mm from centre of cam to edge). Available in round bolt end only. Extension kits available separately.
