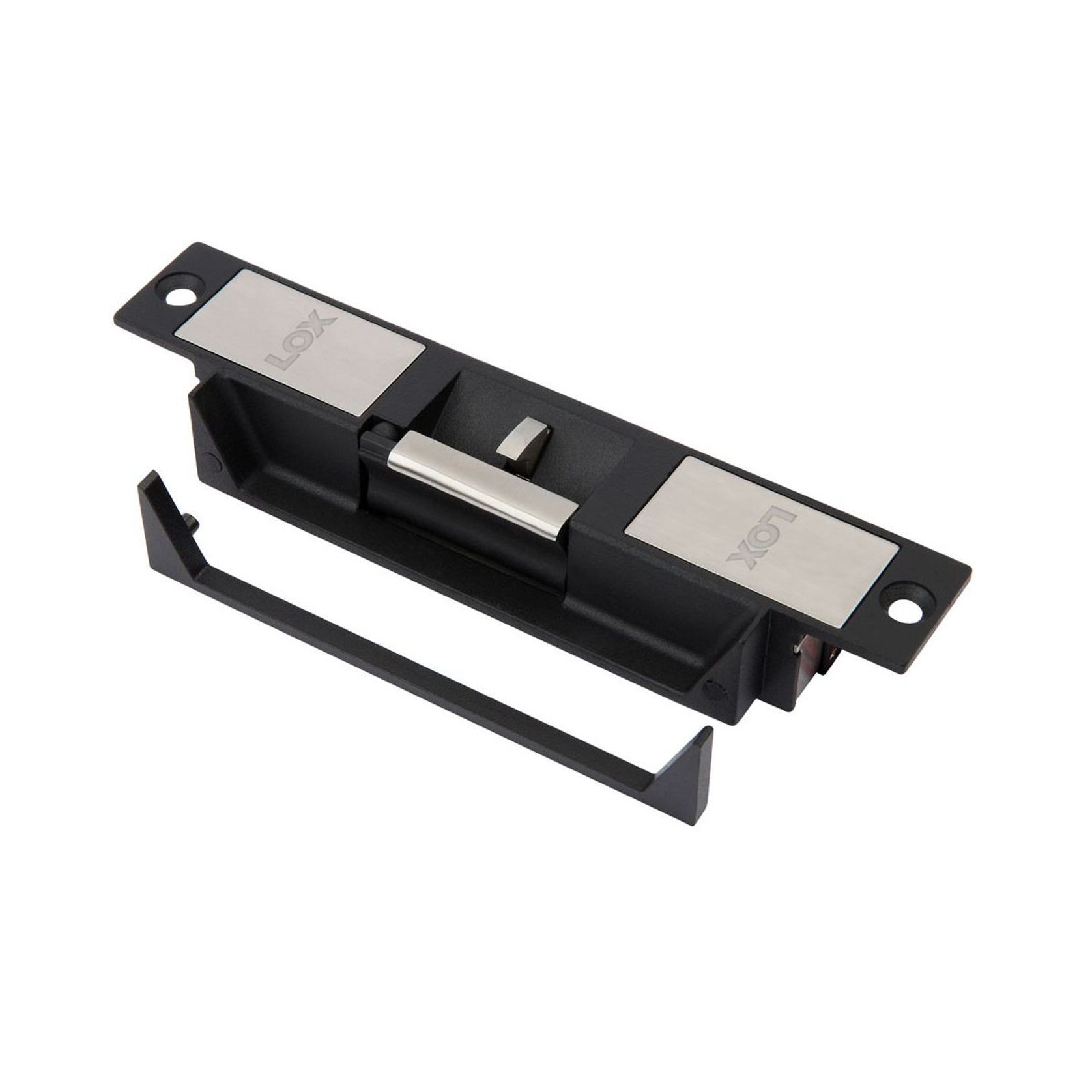

LOX Electric Strike
ES20M

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

Designed for use with all access control systems.
Retrofit compatible with FSH and Padde Australian Footprint strikes
Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed.
Fail safe/fail secure is changeable on site.
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

Tags

multi voltage lock electric strike power supply status sensor

Product Details

Product: LOX High Security Electric Strike Monitored Multi Voltage 10-30VDC ES20M
Category: Door Bolts
Sold by: Keeler Hardware
Range: LOX

Keeler Hardware is specified by

(34) Professionals

LOX High Security Electric Strike Monitored Multi Voltage 10-30VDC ES20M

Visit site

Suitable for use on hinged doors to work with an extensive range of locks. Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened. Designed for use with all access control systems. Retrofit compatible with FSH and Padde Australian Footprint strikes Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed. Fail safe/fail secure is changeable on site. Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

LOX Electric Strike ES20M Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems.

Suitable for use on hinged doors to work with an extensive range of locks.

Designed for use with all access control systems.
Retrofit compatible with FSH and Padde Australian Footprint strikes
Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed.
Fail safe/fail secure is changeable on site.
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

Specs

Specifications:

Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
Current: 12vdc @ 250mA, 24vdc @ 125mA,
Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
LSS Monitoring: Status sensor of the internal locking mechanism
DSS Monitoring: Door latch sensor, door latch engaged within strike keeper
ATS Monitoring: Door strike removed or repositioned sensor
Temperature: Range - 20 degress celcius to 60 degrees celcius
Material: Stainless Steel

Features:

Electric strikes are designed for use with all access control systems
Retrofit compatible with FSH and Padde Australian Footprint strikes
Comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed
Fail safe/fail secure is changeable on site
Suitable for use on hinged doors to work with an extensive range of locks
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets)
Monitored - Door latch monitoring (DSS) and Lock status monitoring (LSS)
Anti-tamper sensor (ATS)
Fire rated up to 4 hours
Power to lock/power to open field selectable
Solenoid can be continuously powered
Optional extension lips
Self adhesive installation template
Includes tab mounting kit
Pre-drilled for extension lips
Supplied with silencer rubber buffer
ES20M is suitable for 18mm latch with a 3mm door gap.
