Fundermax | Exterior m.look Cladding
m.look Exterior panels are an architectural facade panel manufactured from a heavy duty, high-pressure laminate & reinforced fibreglass. Installed using aluminium alloy systems, supplied in T & L rails for vertical & horizontal applications.
Extreme heat and blazing sunshine. The robust material is stands out with its high scratch resistance, light fastness, impact resistance, anti-graffiti properties and hail resistance and it is also easy to clean. A mineral, non-combustible core is located between the weather-resistant, decorative surfaces. Speaking of decorative: the wide variety of possible decors impresses first the users and then the viewers. The logical consequence of this: m.look Exterior panels are used in commercial as well as in public and private spaces for exterior applications.

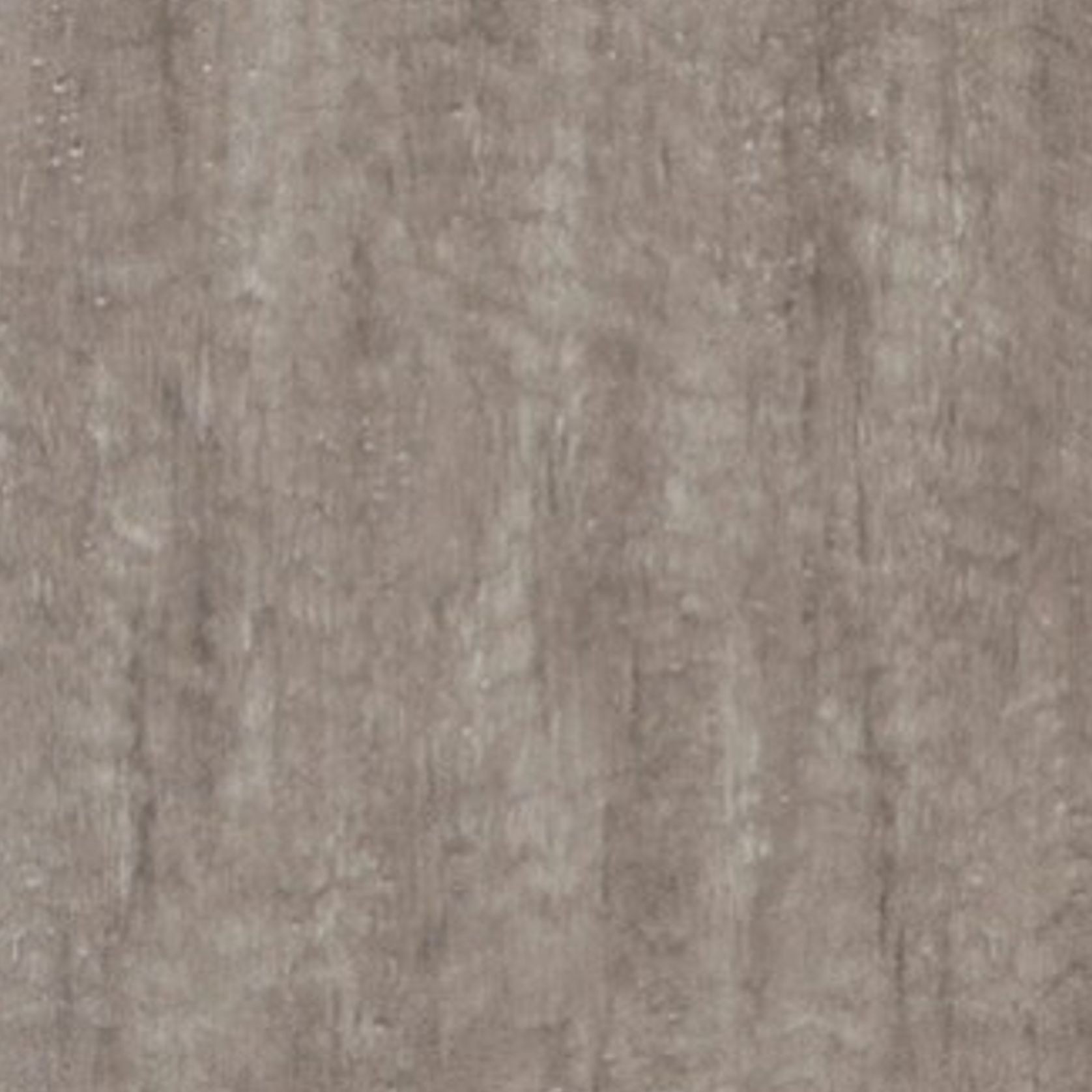

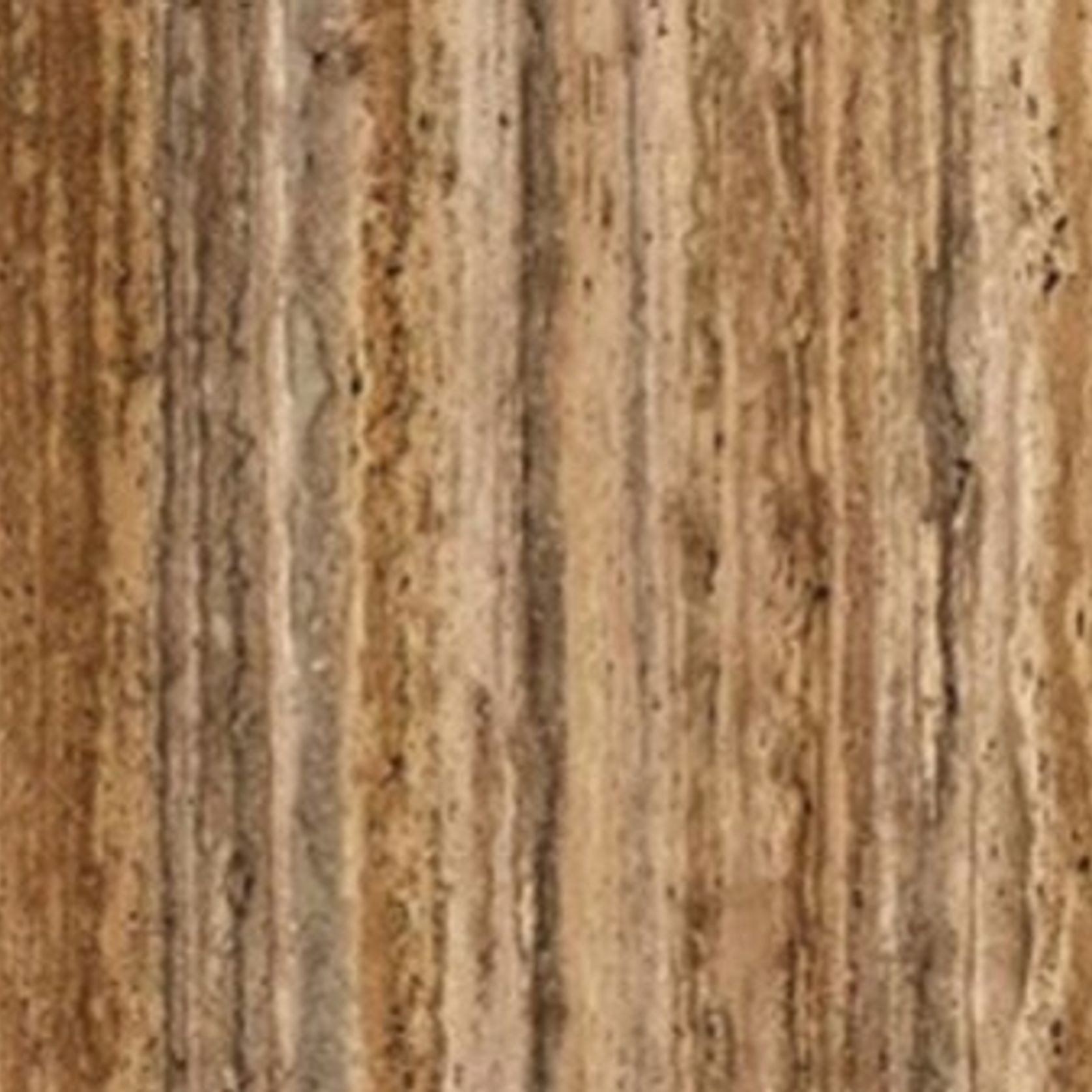

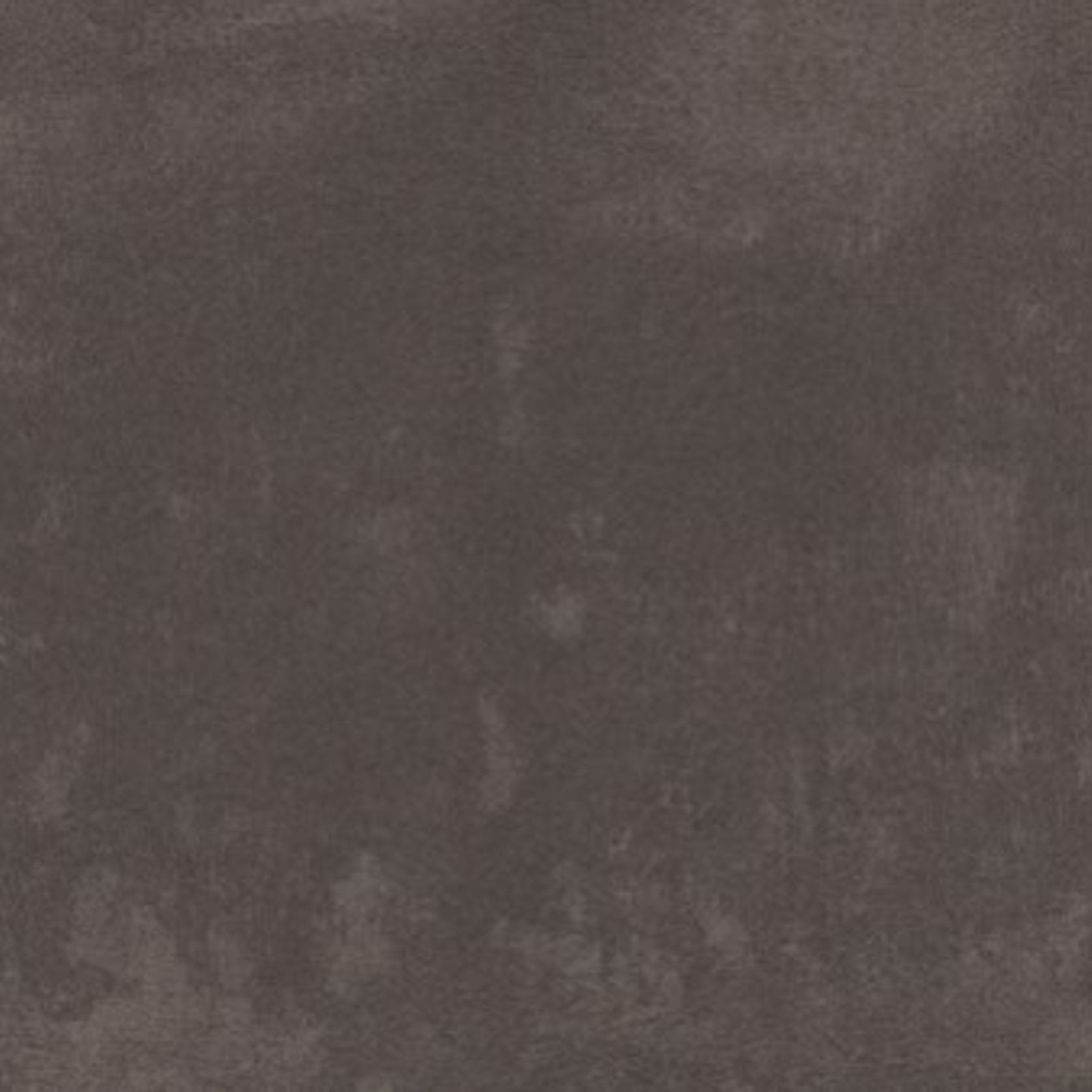

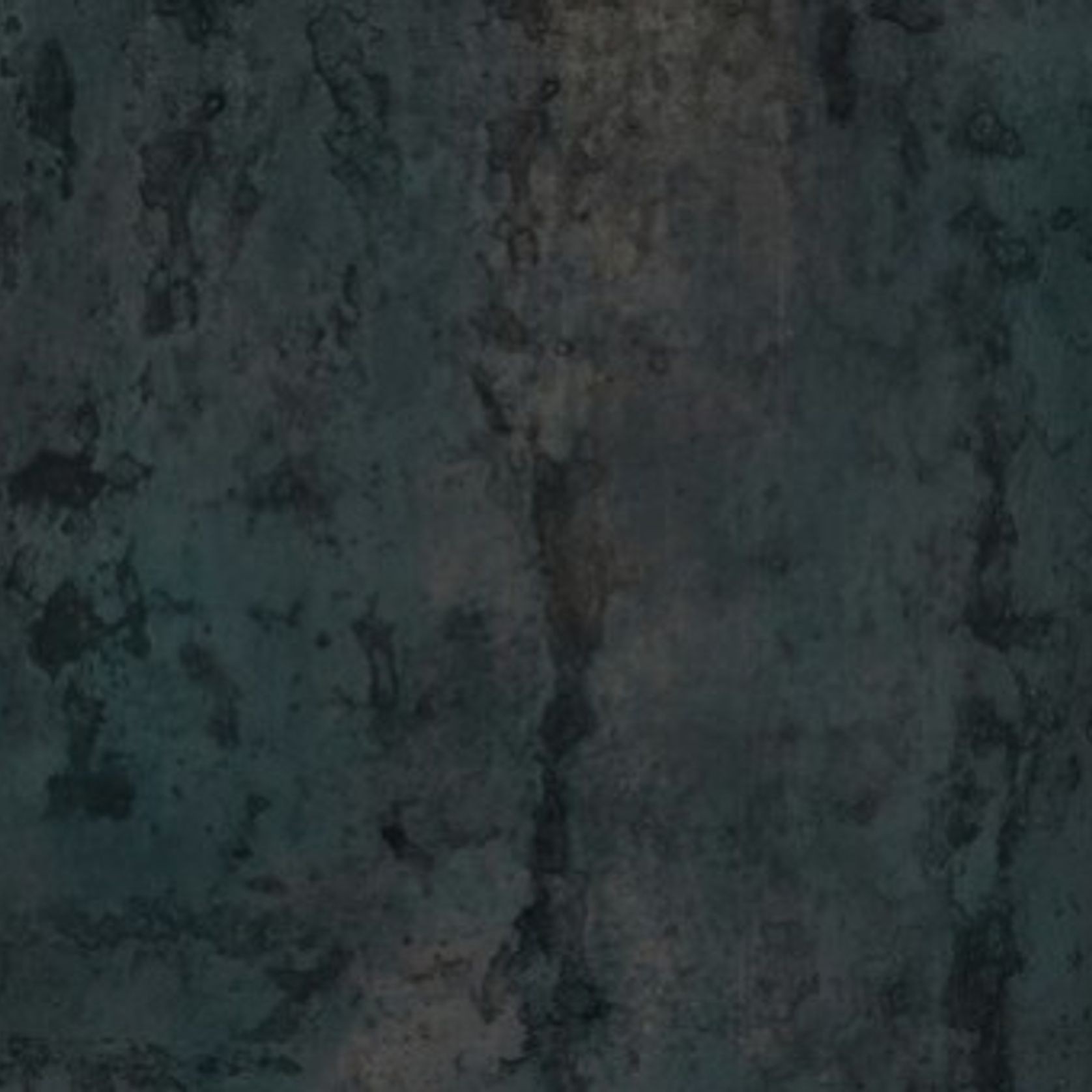

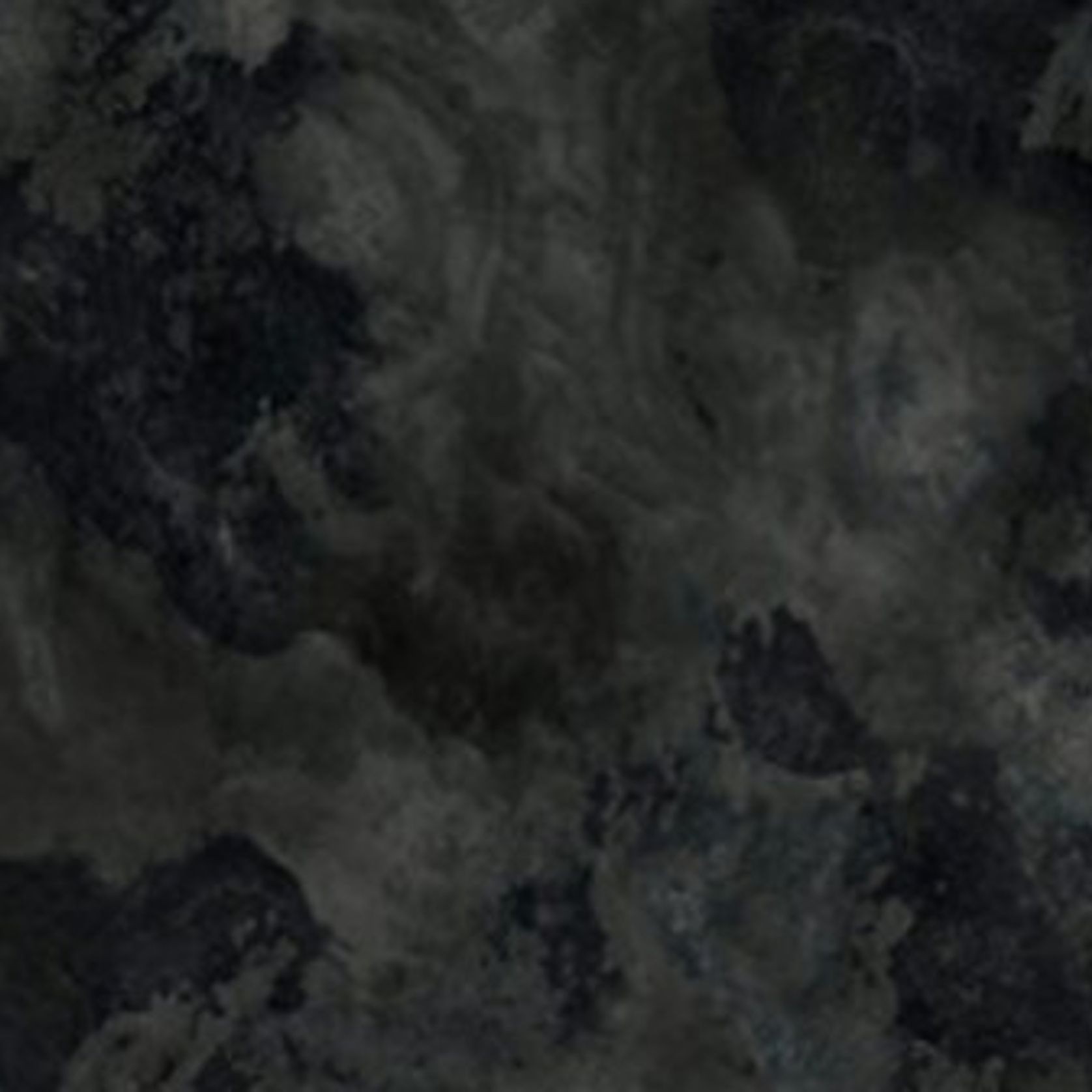

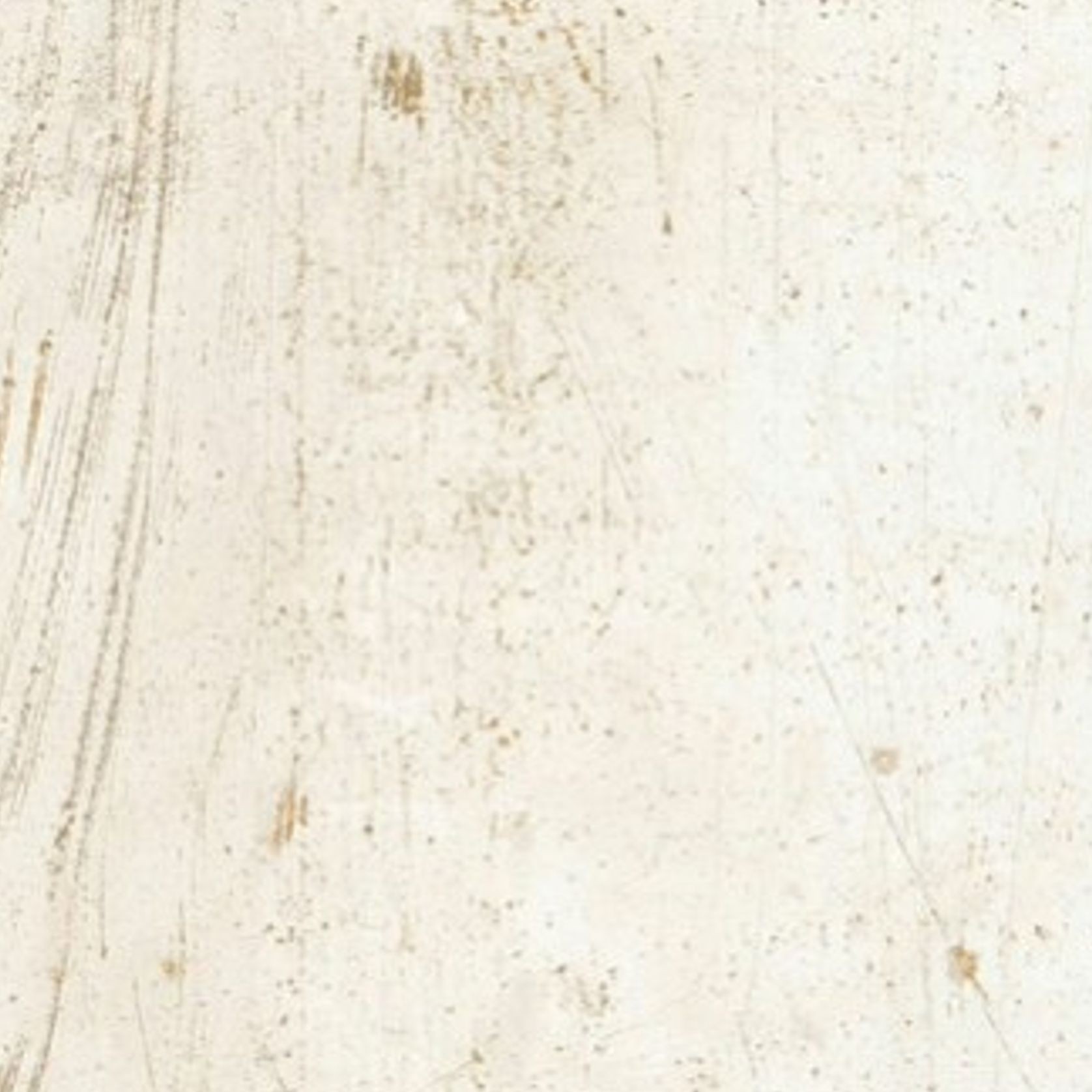

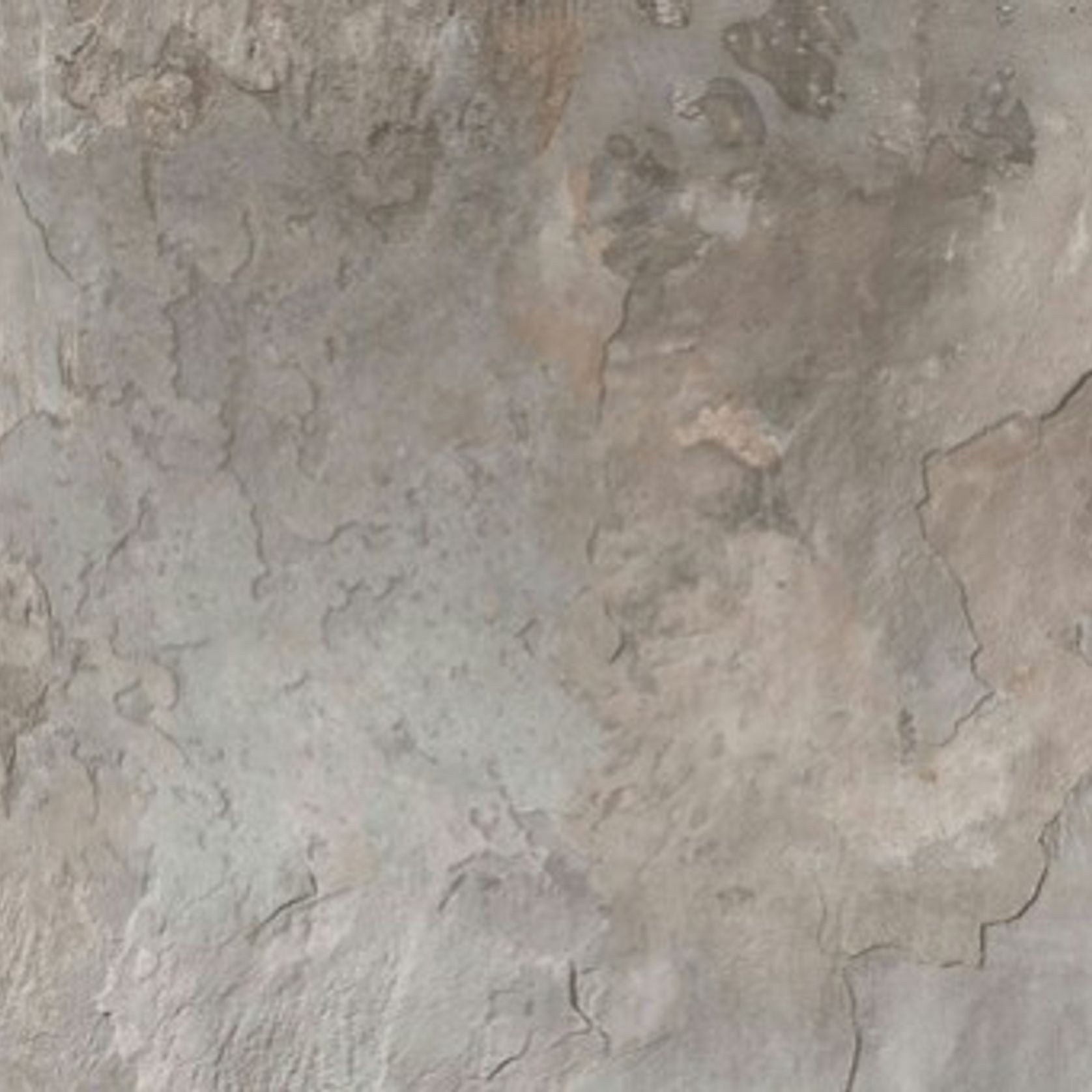

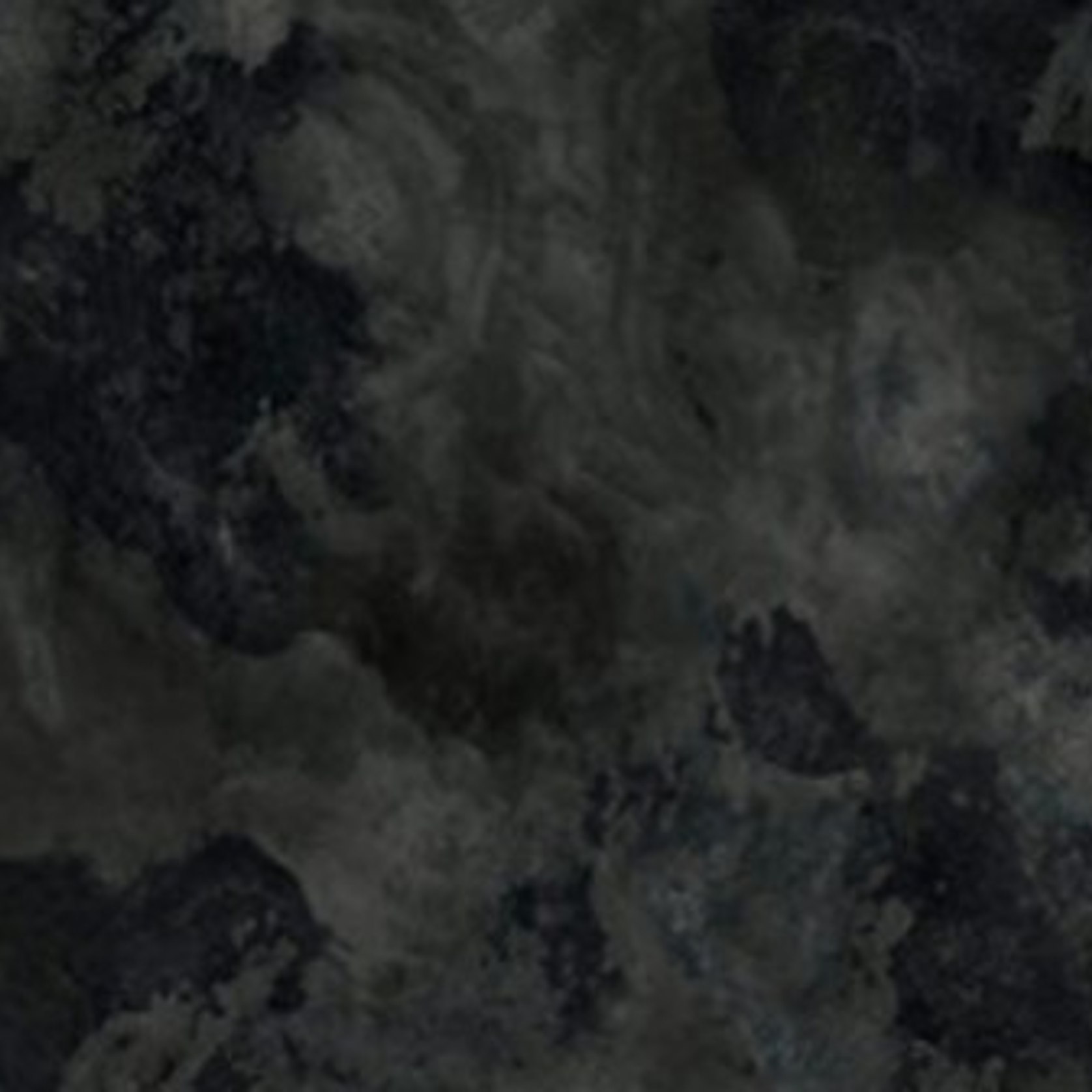

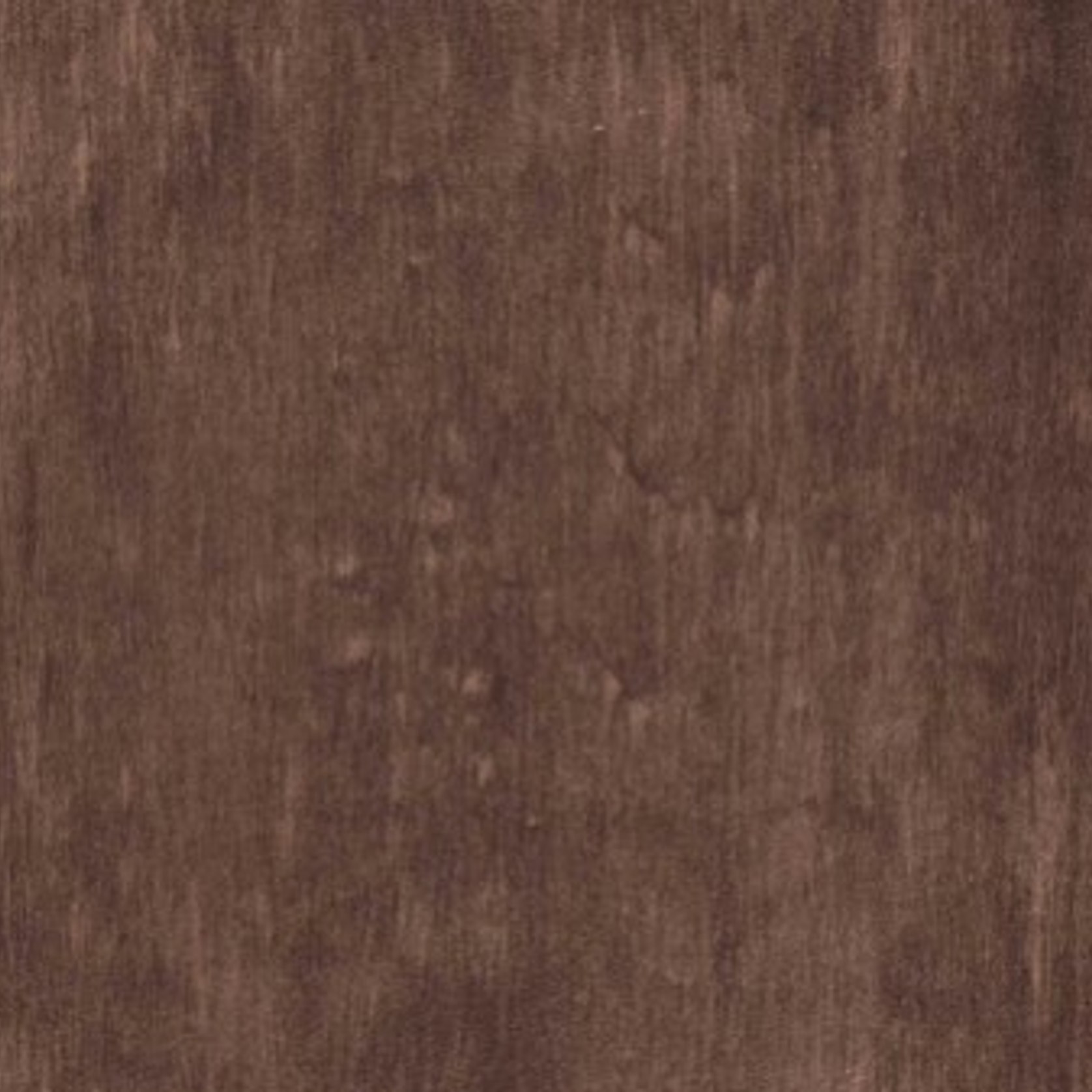

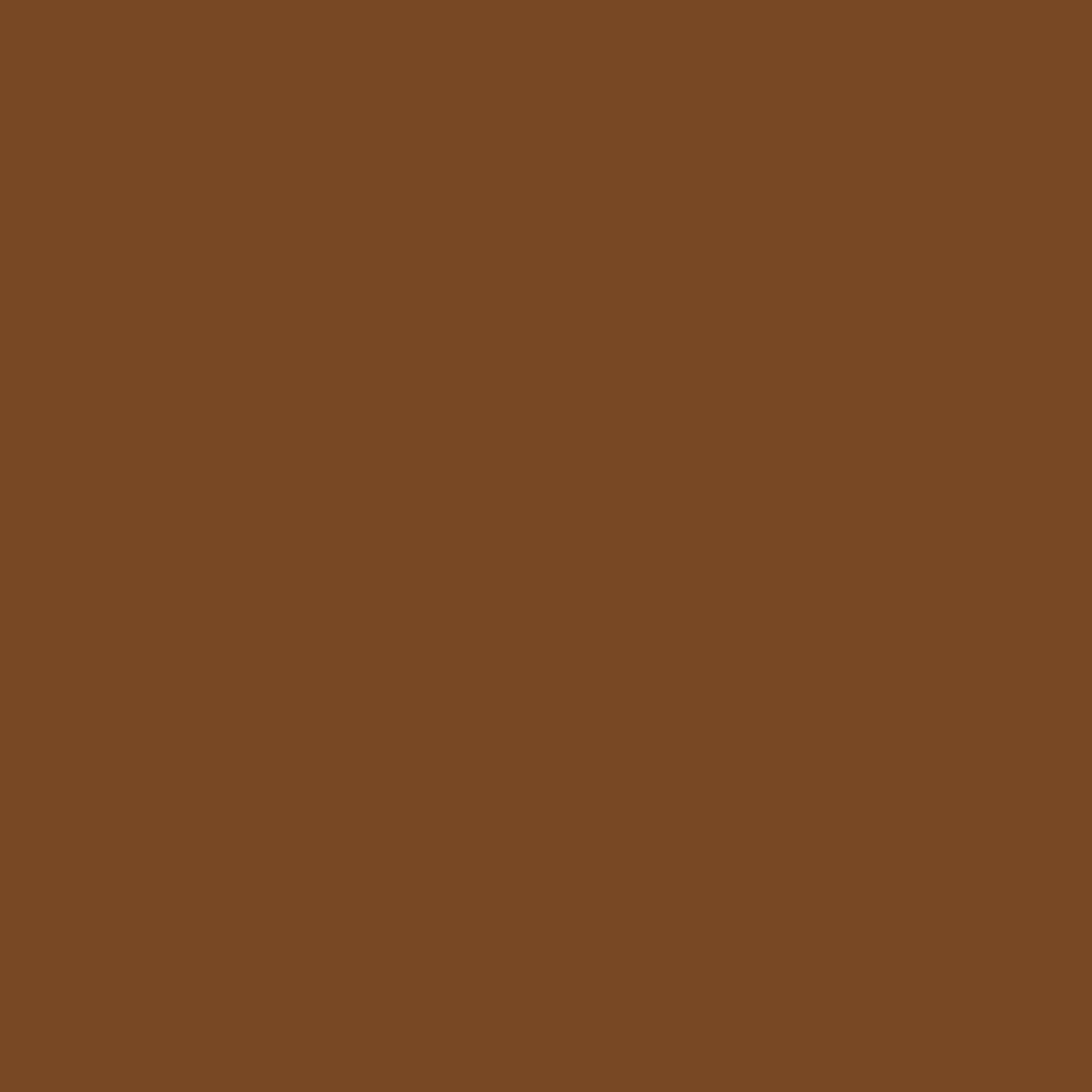

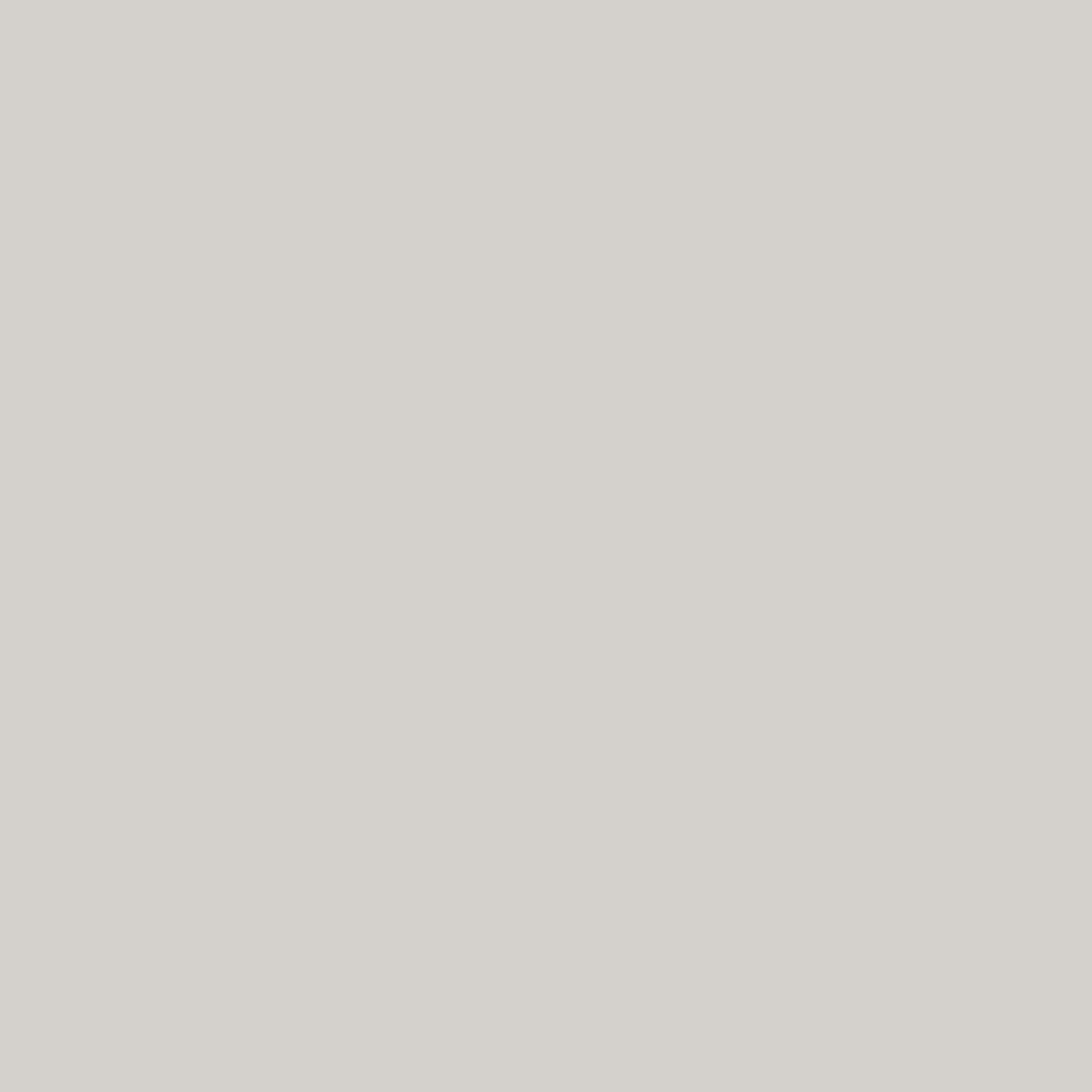

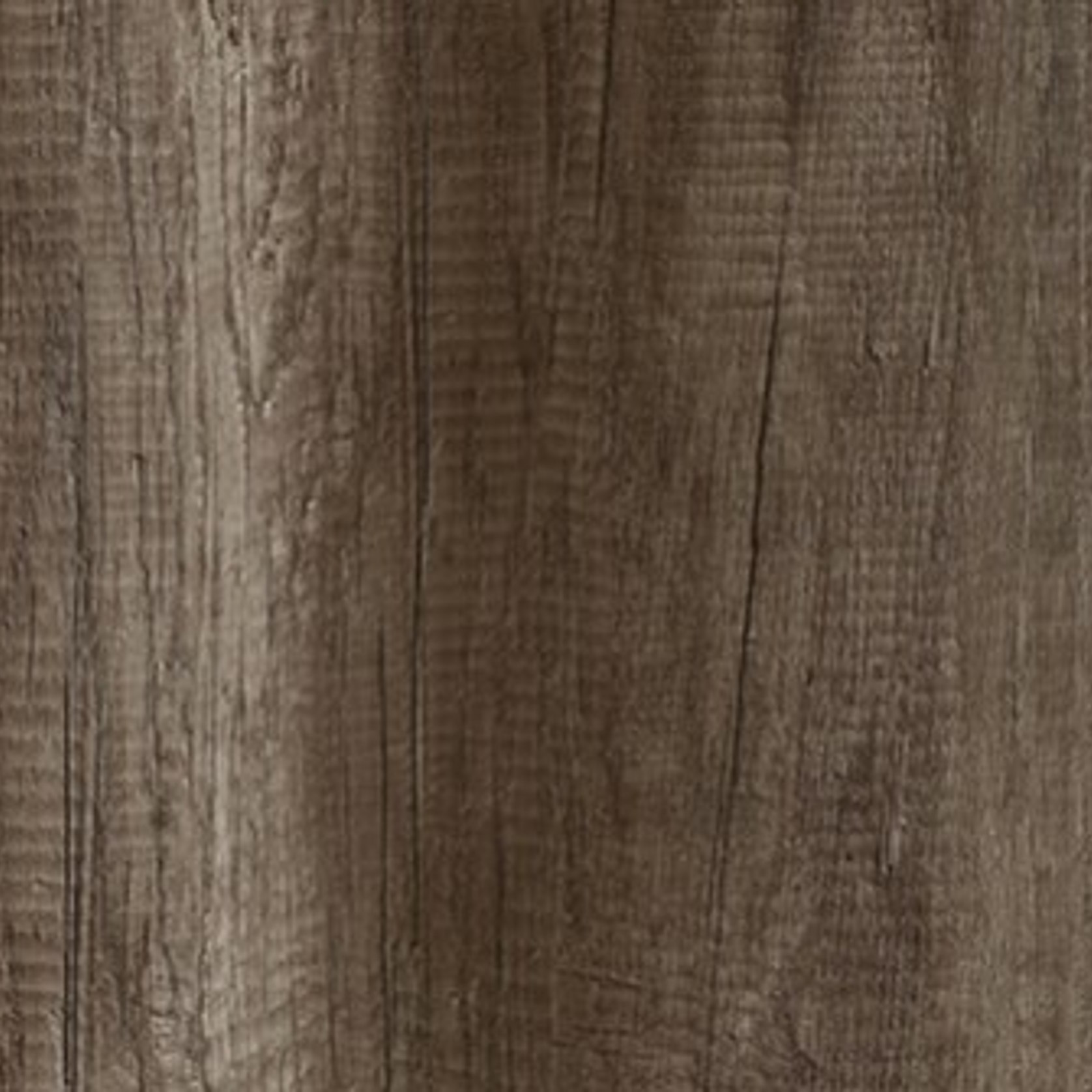

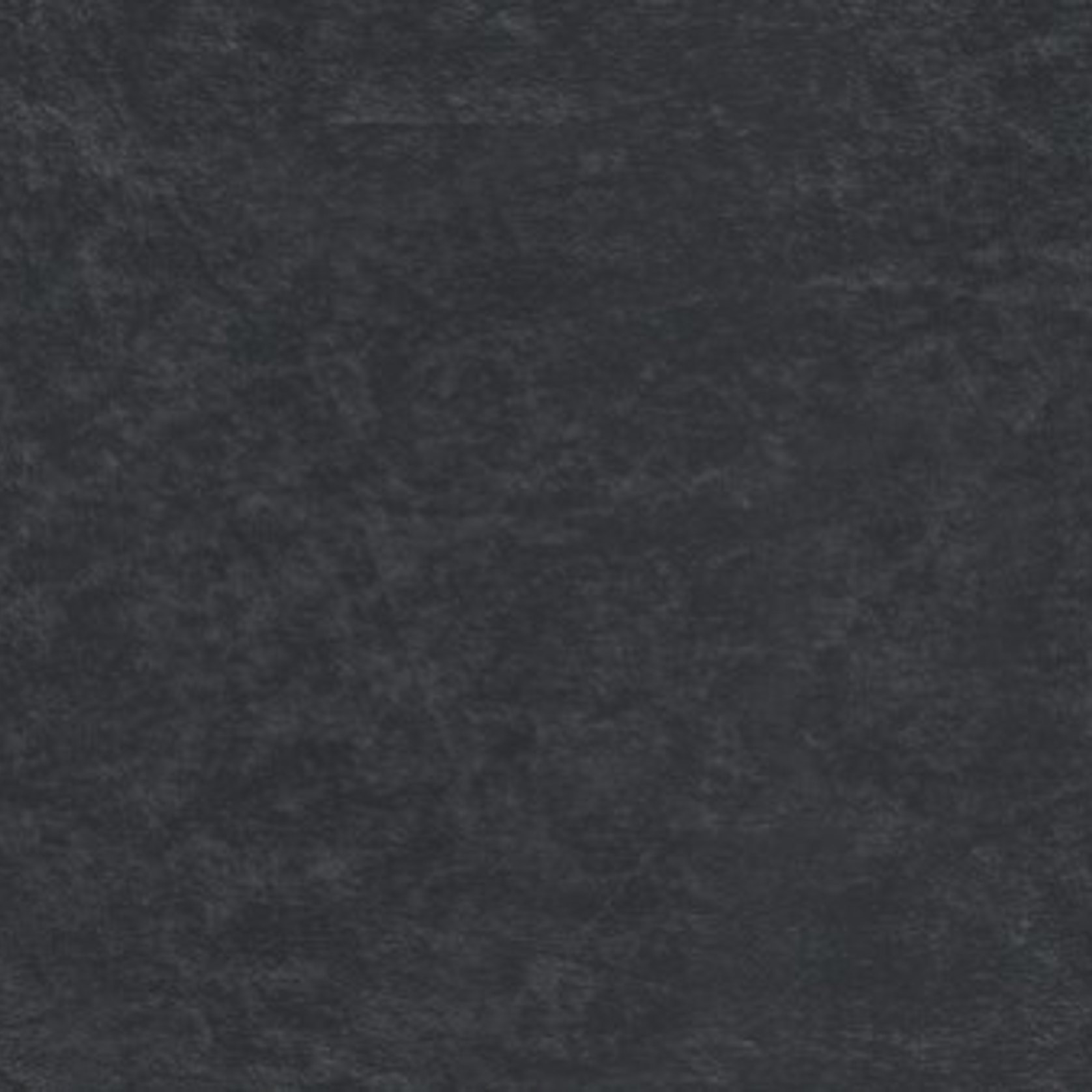

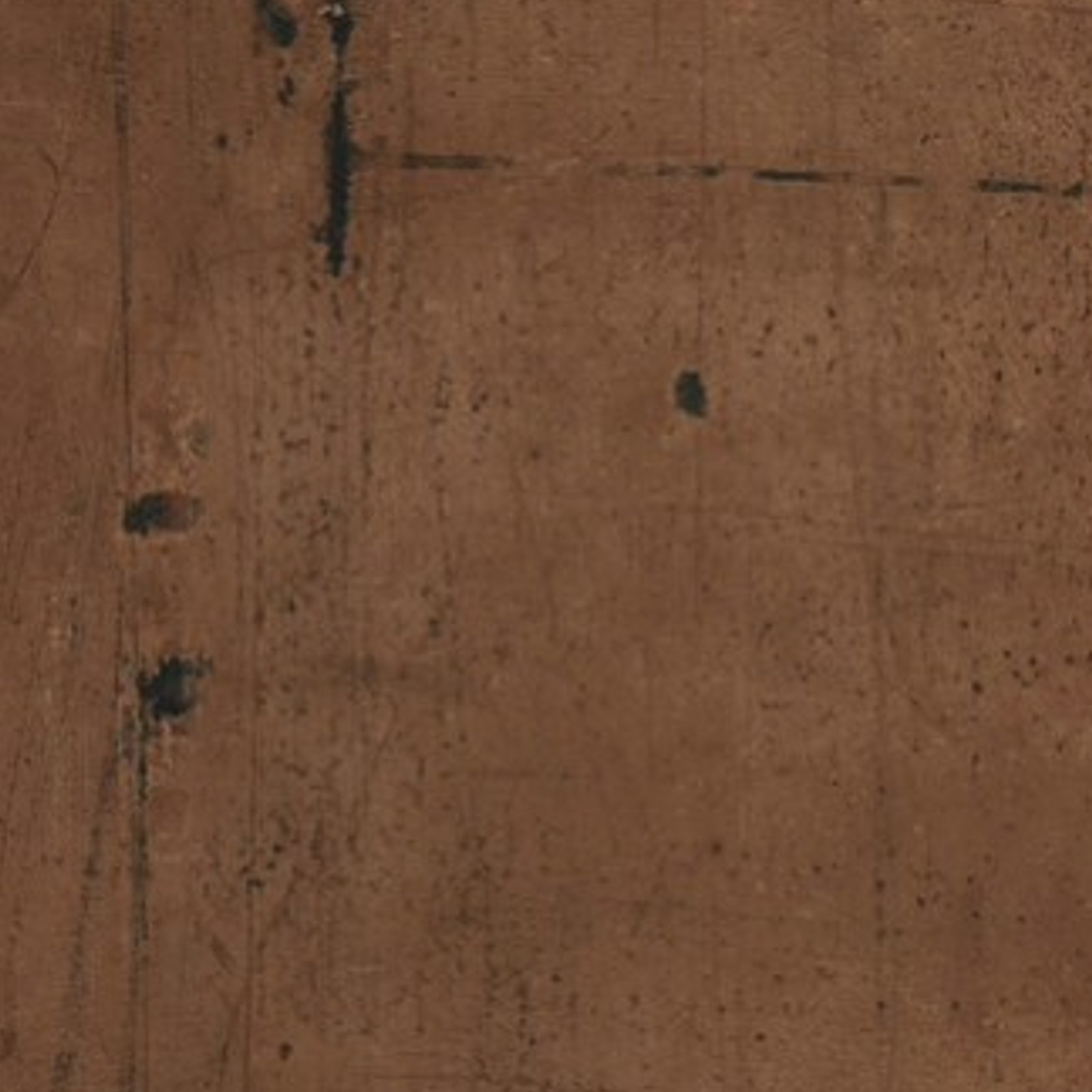

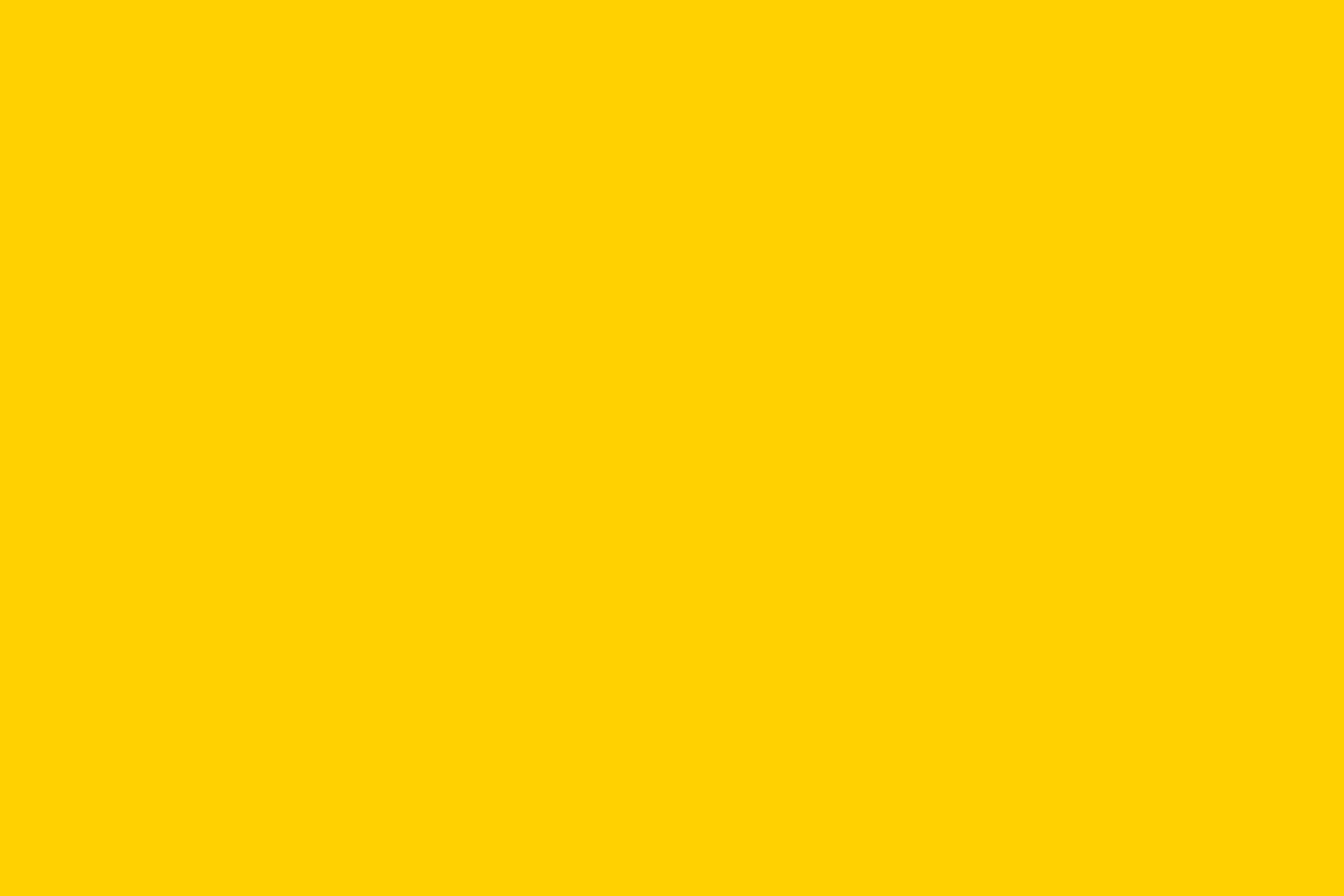

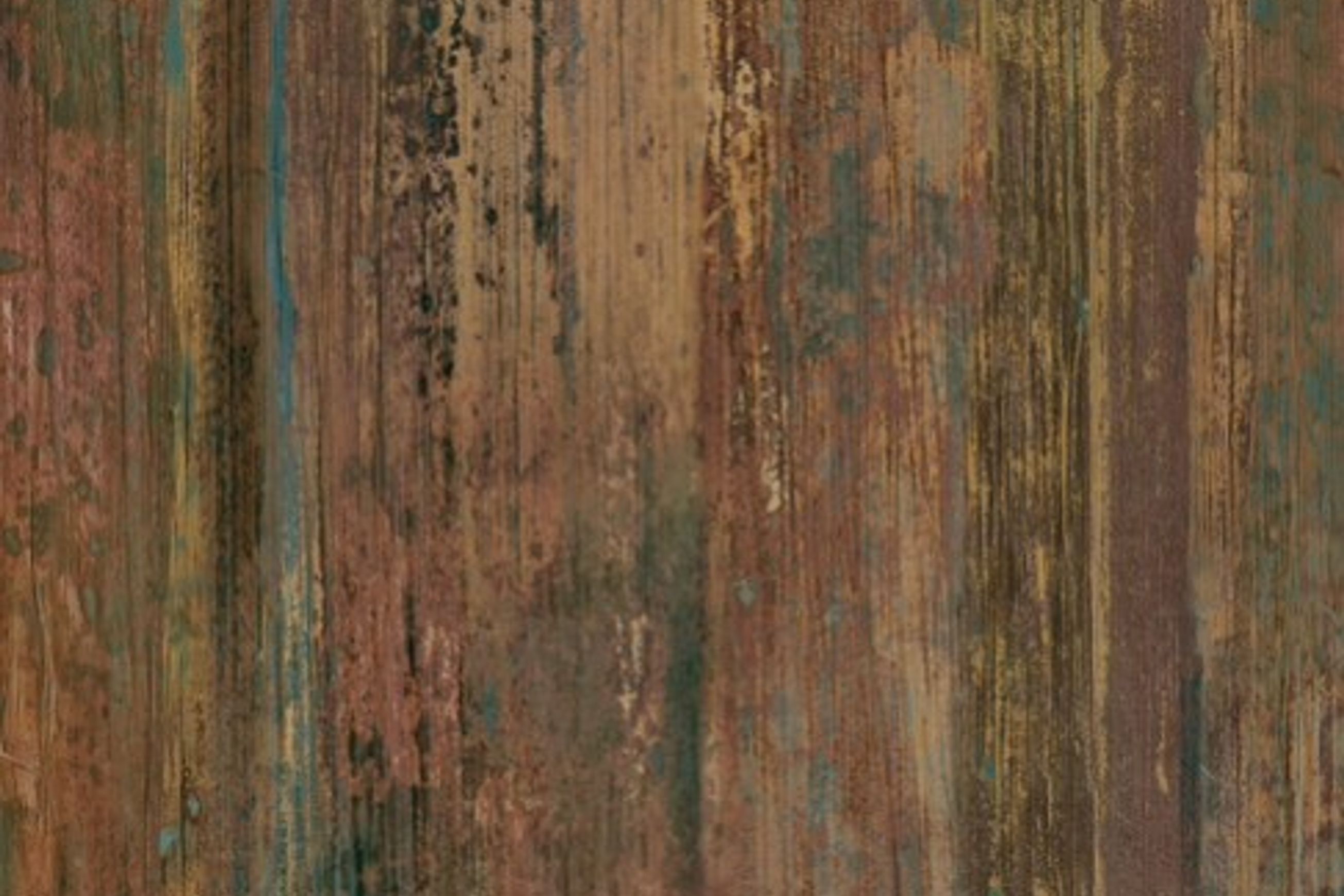

Speaking of decorative: The multitude of possible decors first inspires the users and then the viewers. The logical consequence of this is that m.look Exterior panels are used for both commercial and public outdoor applications.
- CategoryWall Panels & Cladding
- RangeFundermax
- BrandFundermax
- Warranty10 years
From exterior cladding to fence elements
Properties such as robustness and resistance to climate, UV radiation and weathering characterize m.look Exterior panels. The non-combustible high-pressure laminates are tested according to the EN 438-2 standard and assigned to fire protection class A2 - s1, d0 according to EN 13501-1. In addition, it is the numerous decors that contribute to the versatility of the HPL panels.
- Non-bearing, rear-ventilated walls
- Panel elements for non-bearing walls

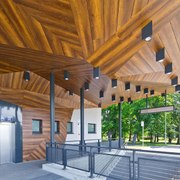

- Balcony cladding

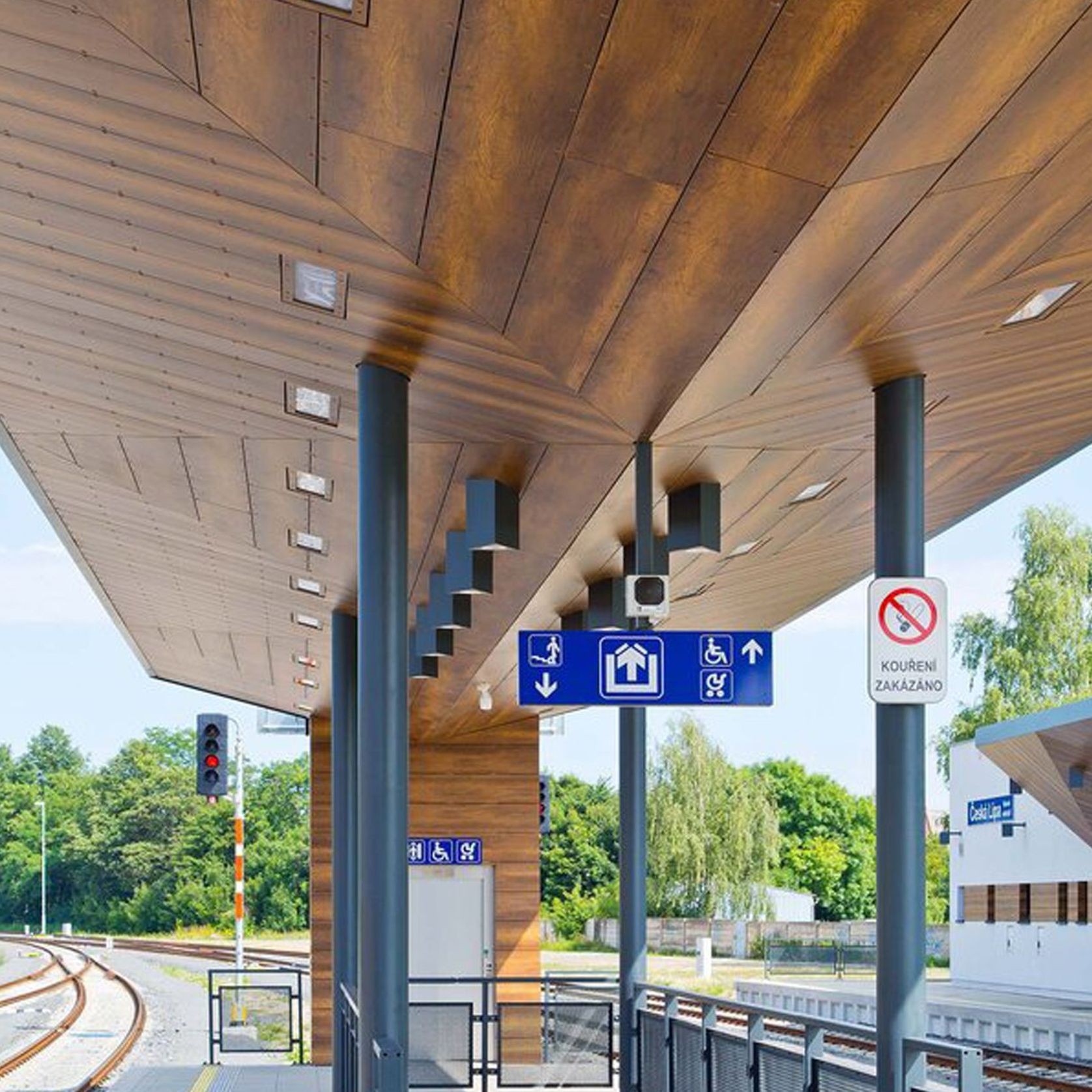

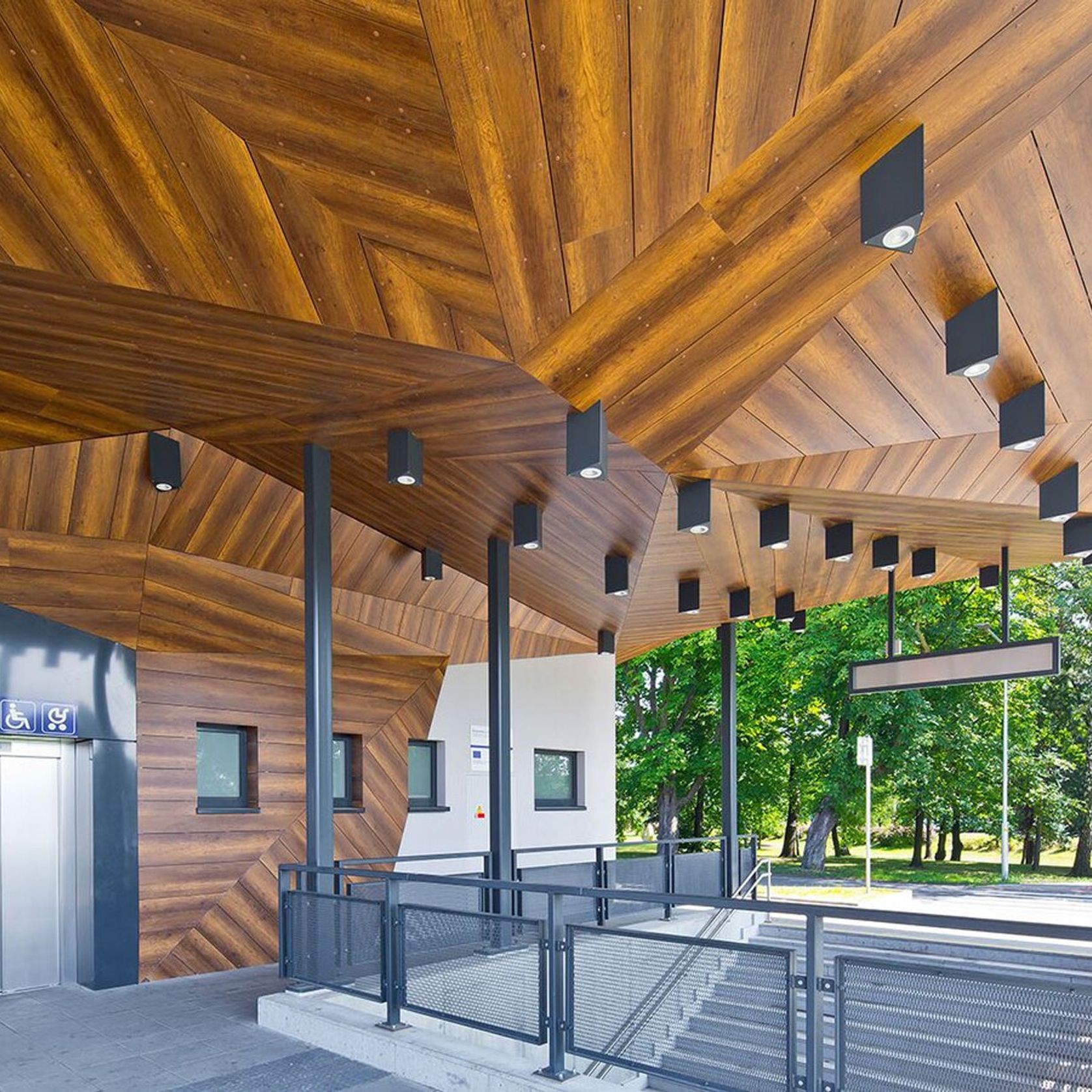

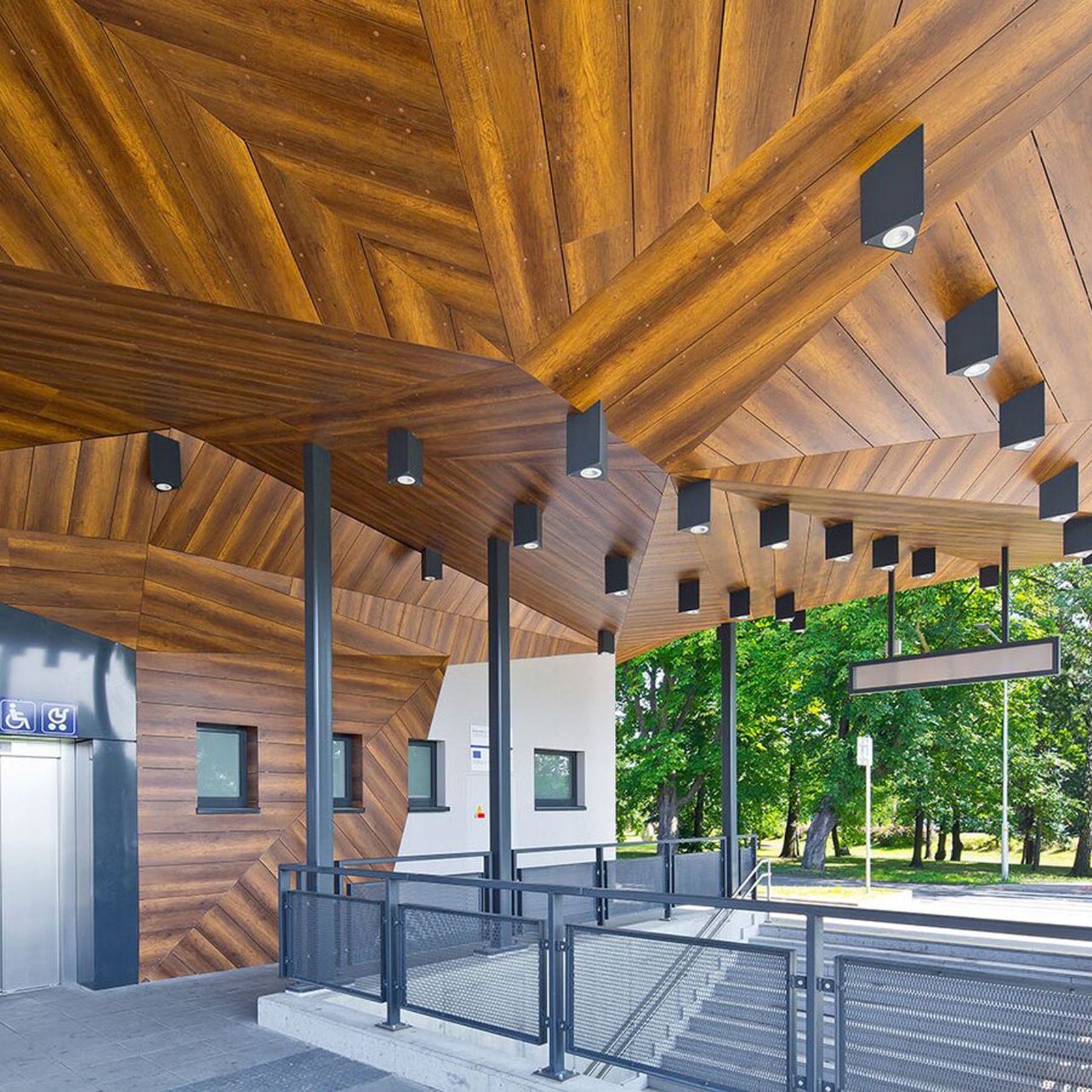

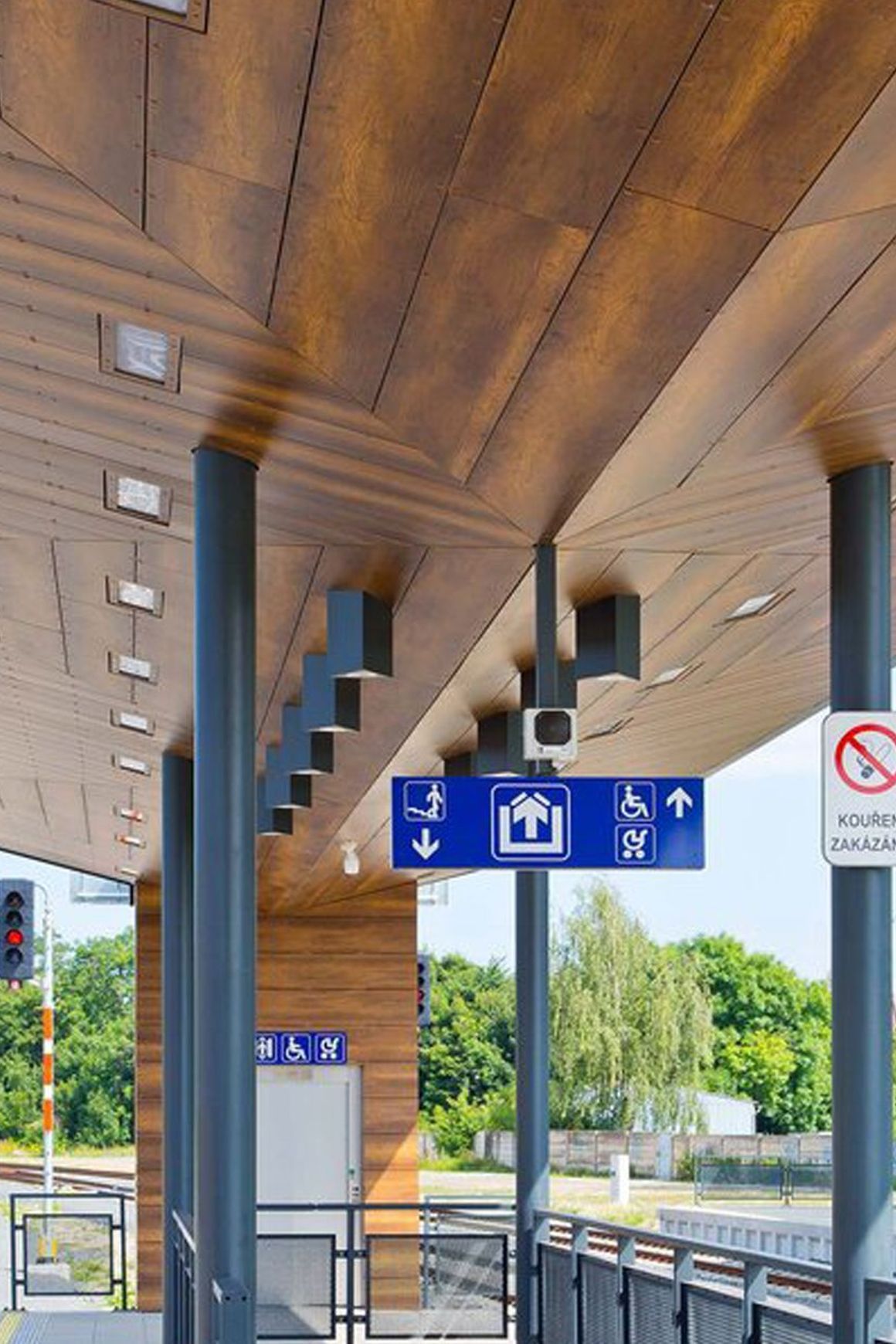

- Soffits
- Cover for sandwich panel walls
- Sliding elements
- Sun protection
- Fence elements
- Window and door panels
- Dividers
- Exterior cladding for prefabricated wood elements
Tip: m.look panels are also available for interior applications and have been approved as wall cladding by the German Institute for Building Technology (DIBt).
The assembly is done with rivets on an aluminum substructure. It is important to ensure that the substructure provides vertical rear ventilation from the base to the roof.
Dimensions
- 3580 x 1580; 7.0 for facade applications
- 3580 x 1580; 9.0 for balcony, railing and staircase parapet panels
- The panels are supplied in the required cut-to-size dimensions. The maximum length is 3,580 mm and the maximum width is 1,580 mm.
Fire Protection Class
- m.look panels are classified in class A2 - s1, d0 according to the EN 13501-1 standard.
