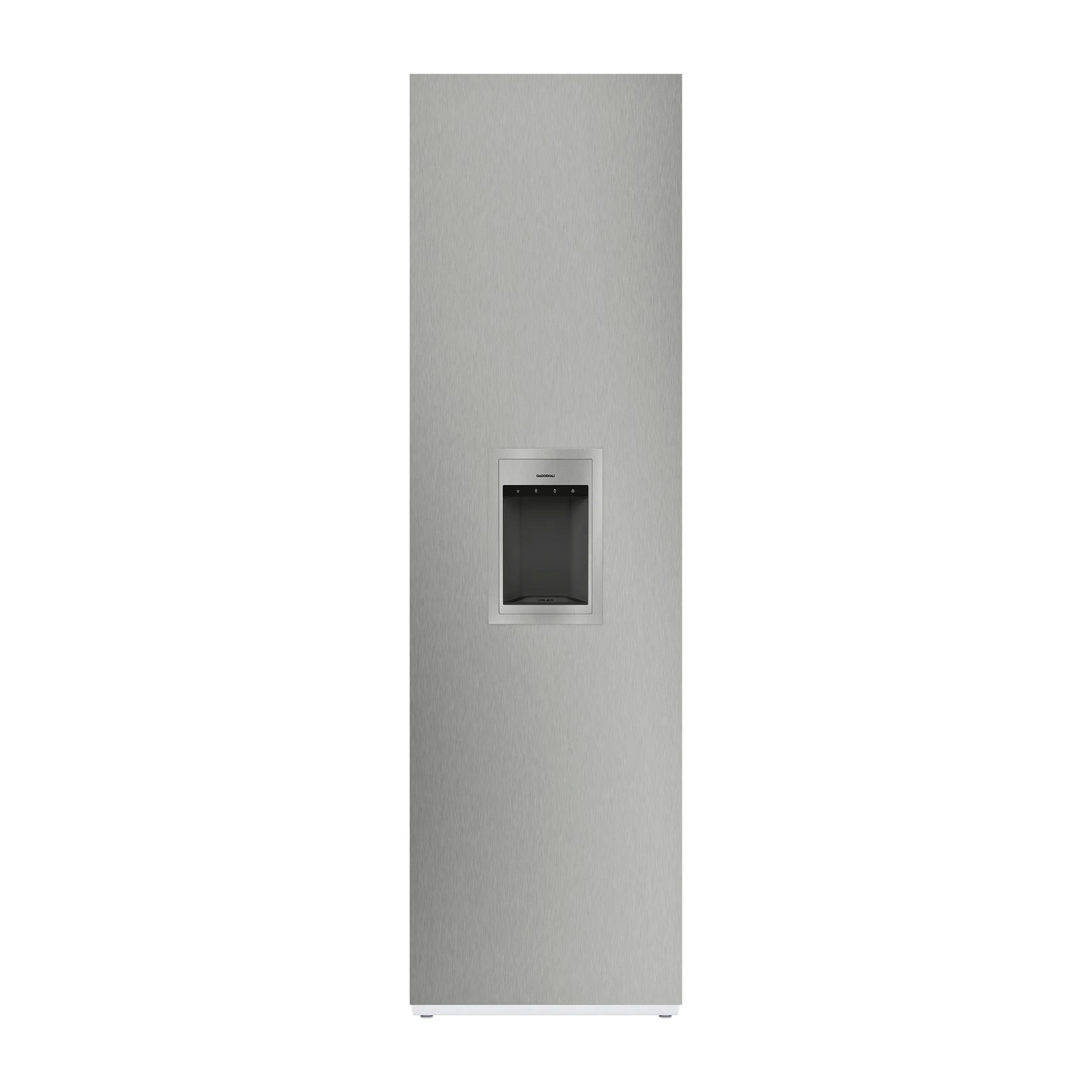

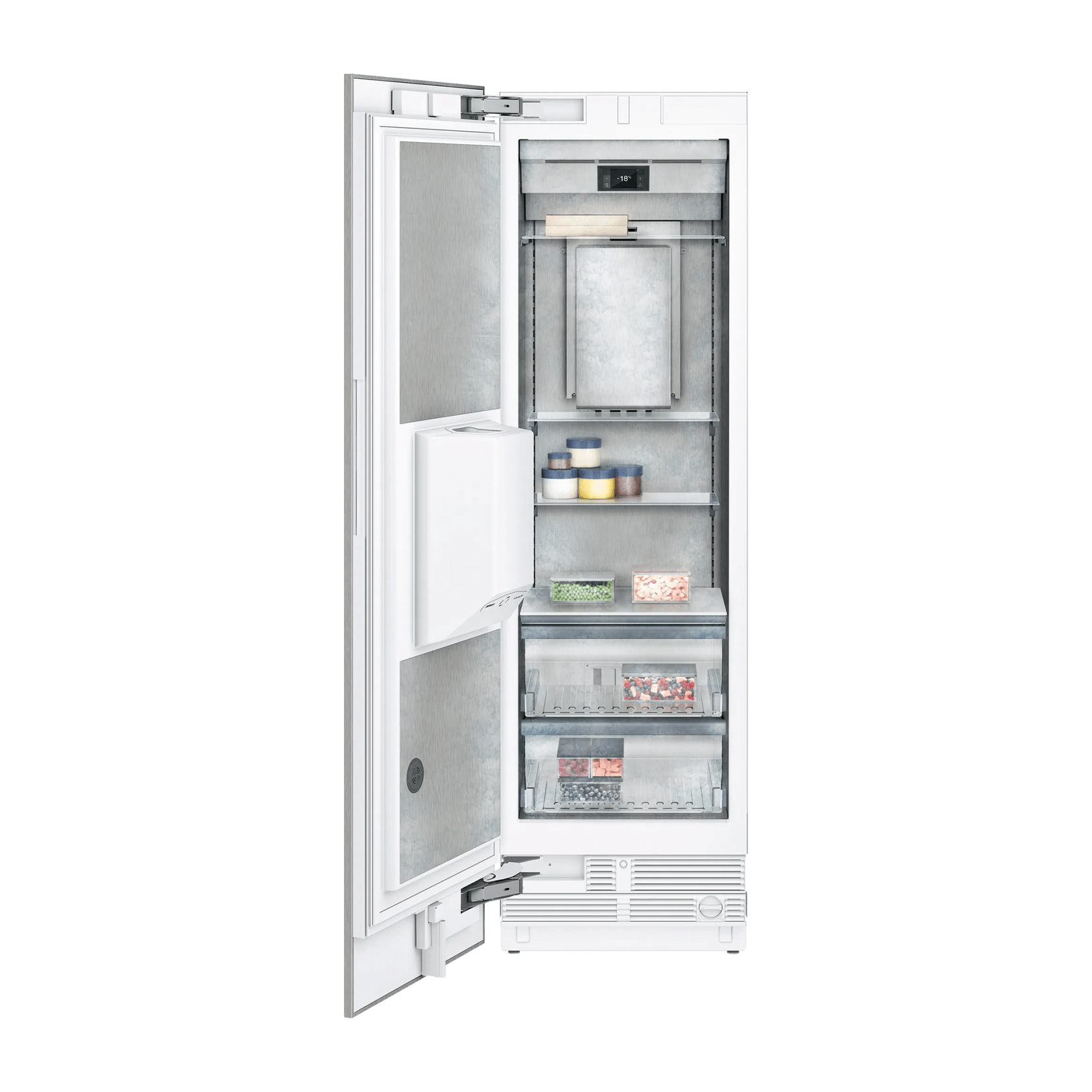

Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge

Selectrix Wanaka
Visit Website

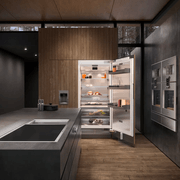

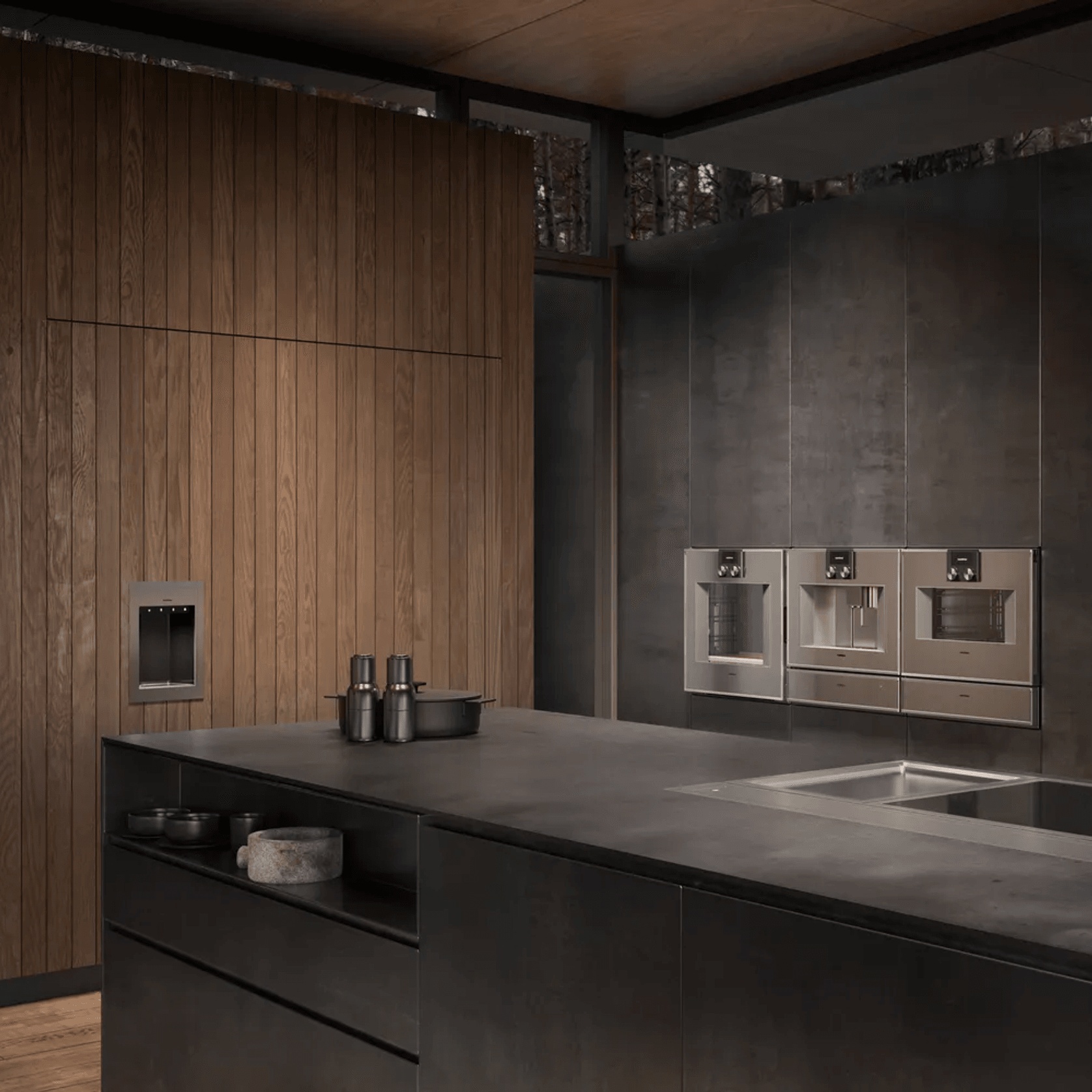

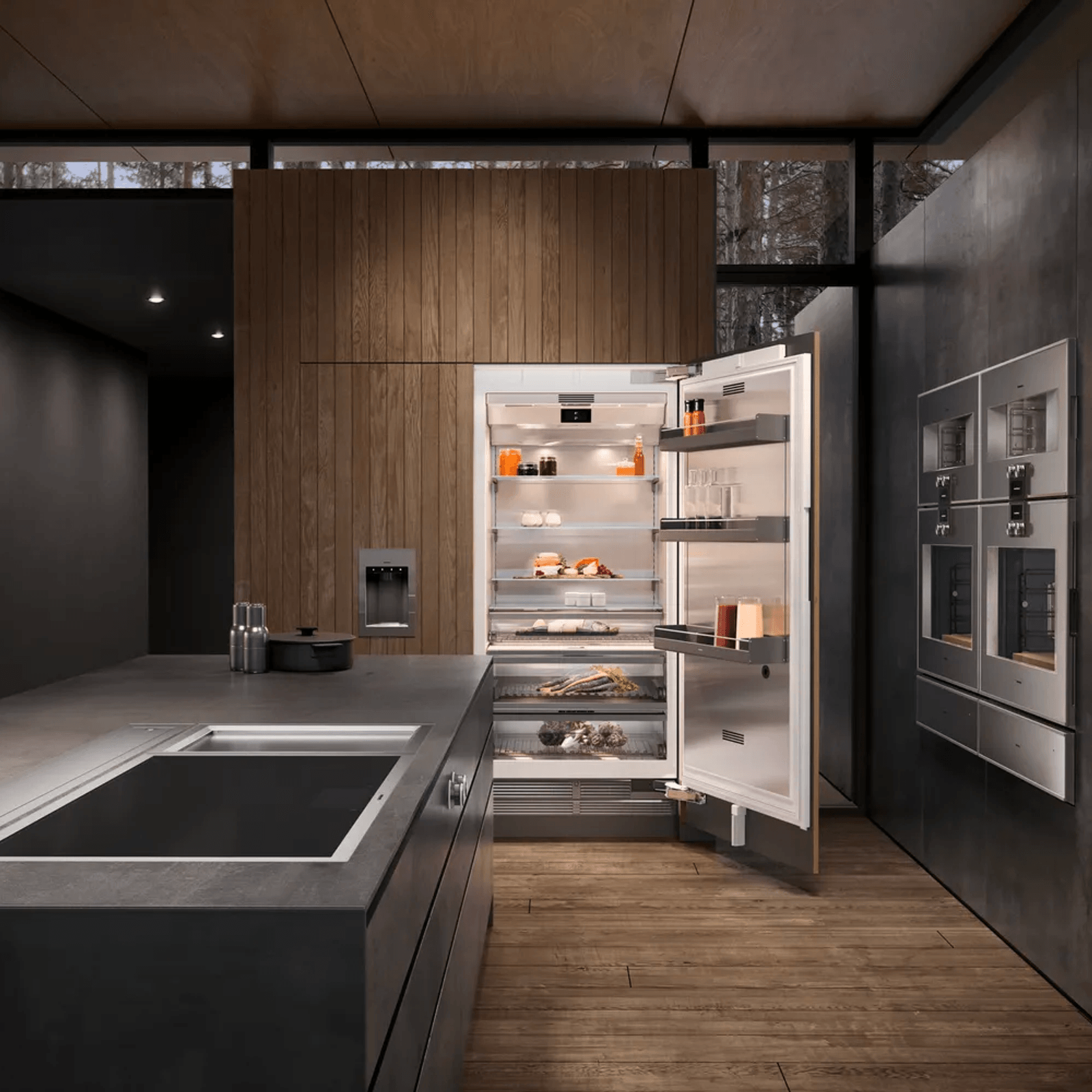

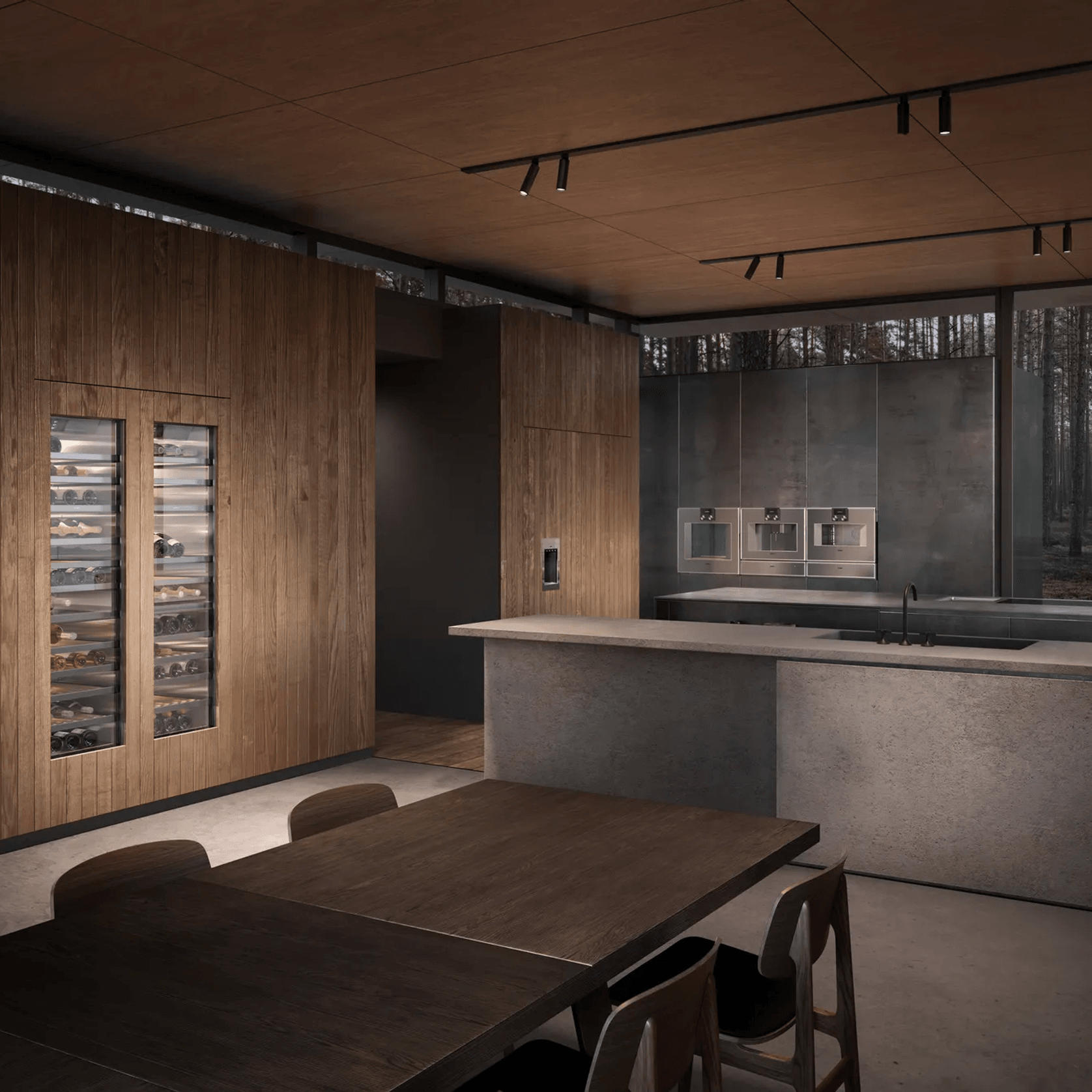

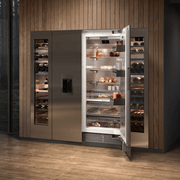

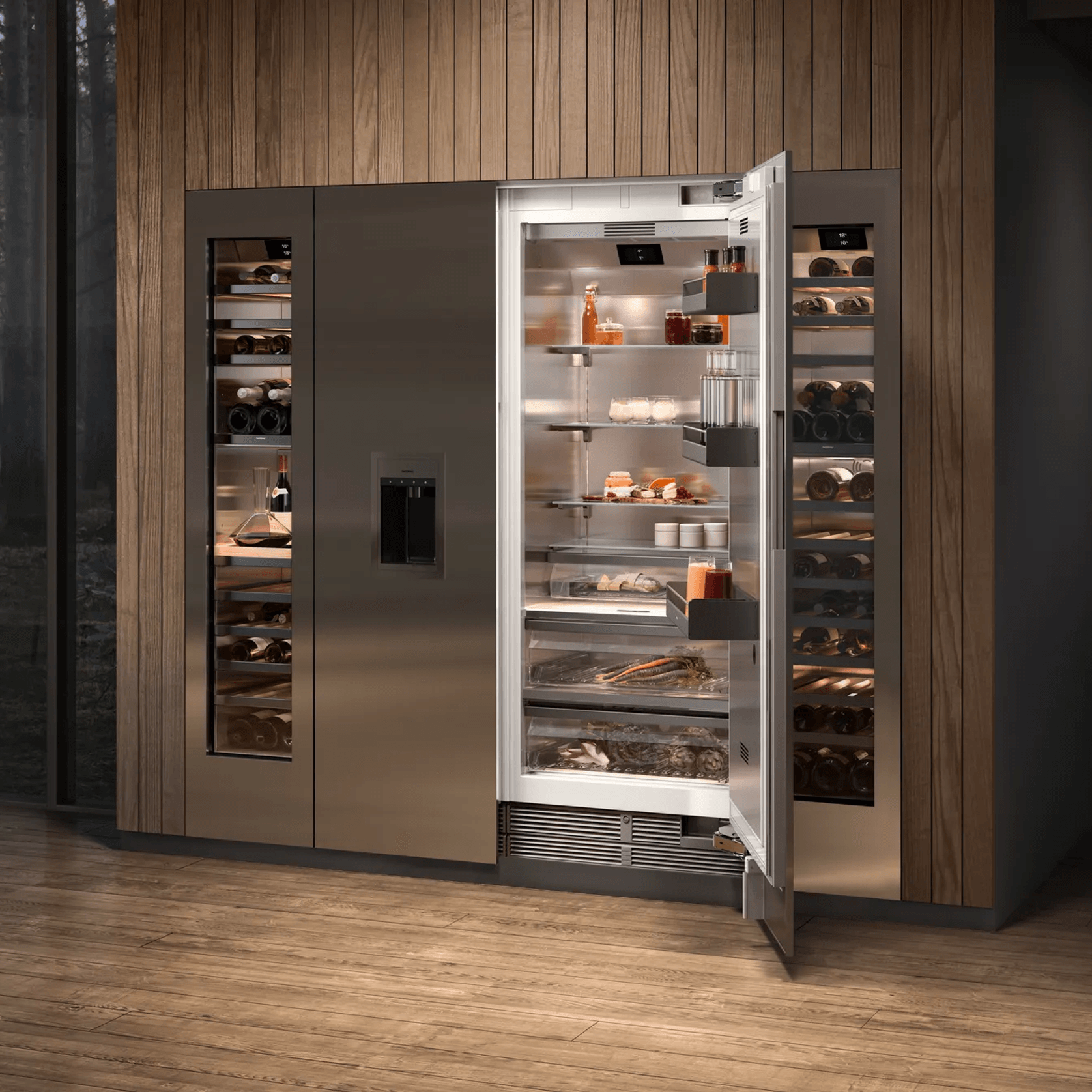

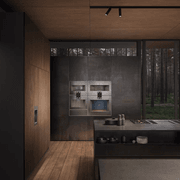

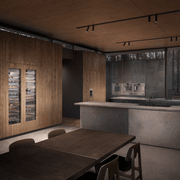

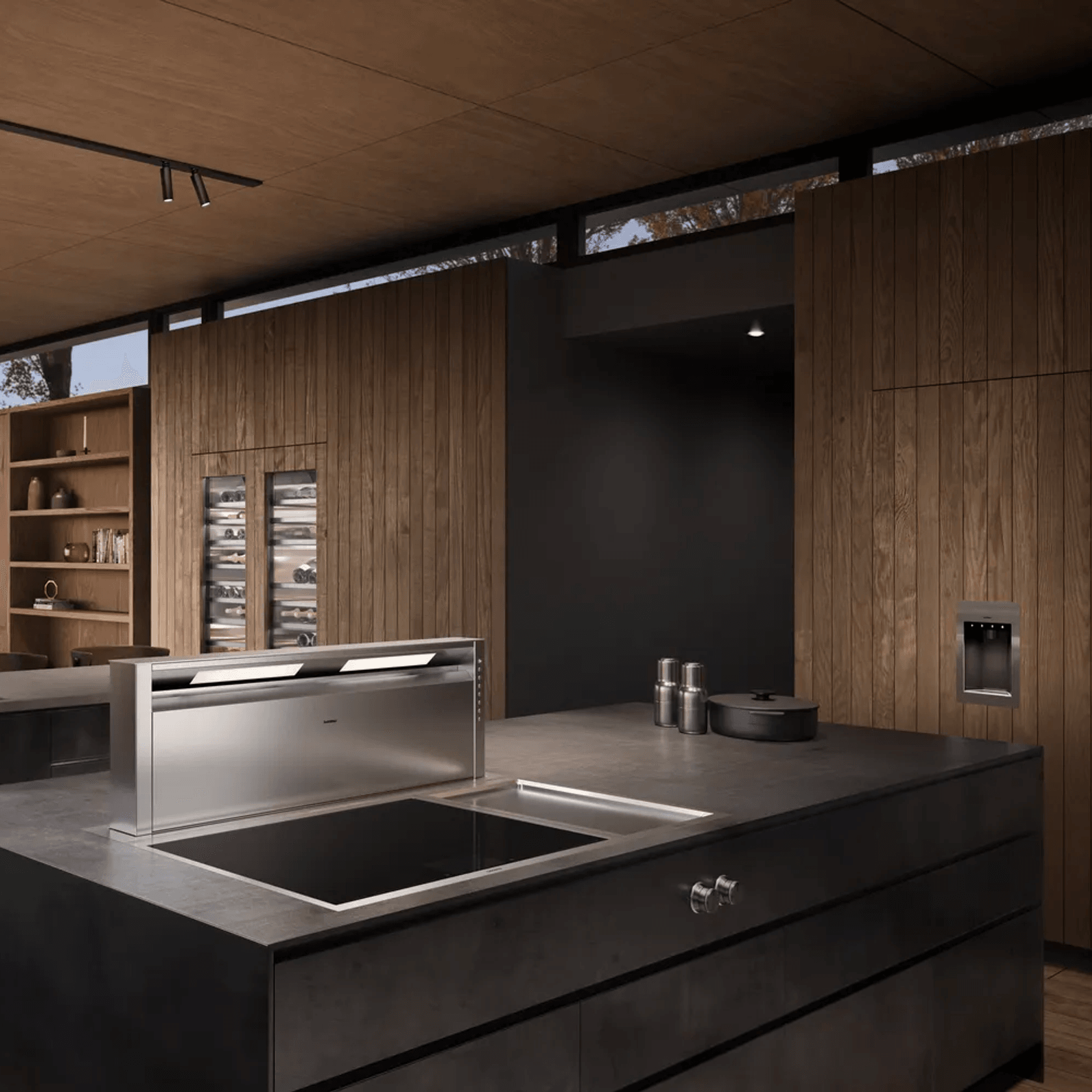

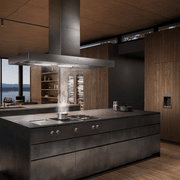

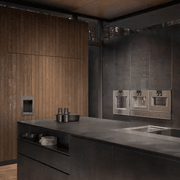

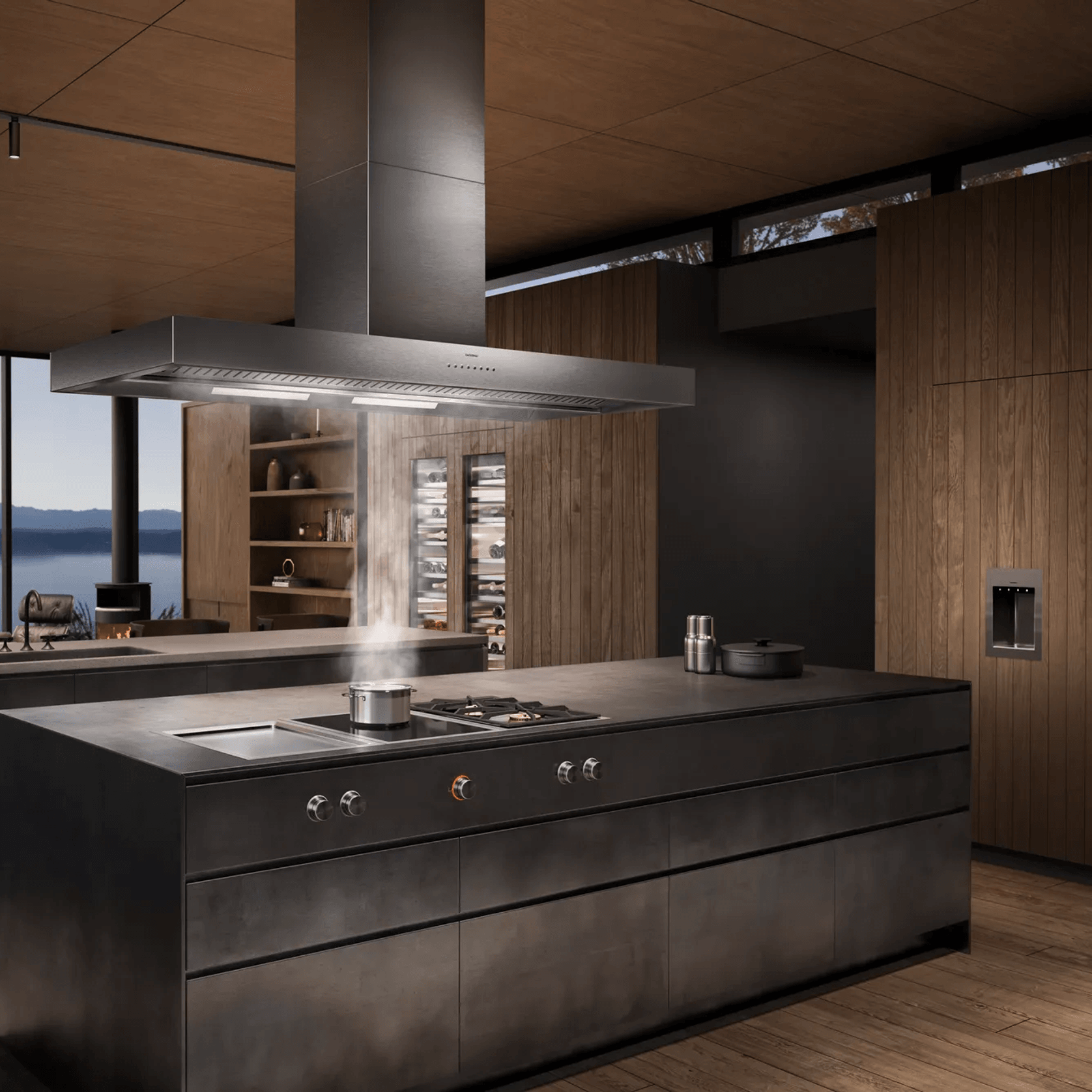

Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
Gaggenau Vario Built-in Freezer 400 Series Soft Close Flat Hinge gallery detail image
  • Stainless steel interior with solid anthracite aluminium elements
  • Warm white and glare-free LED light spots
  • Opening assist for door with two options:
  • 1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
  • The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door racks can be aligned on the same level
  • 212.5 x 60.3 cm
Details
  • Category
    Fridges & Freezers
  • Range
    Gaggenau
  • Brand
    Gaggenau
Specifications

Capacity

  • Total volume 359 litres
  • TFT touch display operation.
  • Clear text display.
  • Touch key operation for ice and water dispenser.

Consumption Rates

  • 3.5 Energy star rating
  • Energy consumption 353 kWh
  • Noise level 38 dB (re 1 pW).

Technical Information

  • Dynamic cold air distribution.
  • Automatic defrosting with defrost water evaporation.
  • When rest mode is active, the appliance can only be opened using a handle.
  • Open-door and malfunction alarm.
  • Home network integration for digital services (Home Connect) wireless via WiFi.
  • The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Freezing

  • No-frost technology with fast freezing at -30 °C.
  • Temperature adjustable from -14 °C to -24 °C.
  • Freezing capacity 14 kg/24 h.
  • Storage time after a malfunction 10 h.
  • 4 safety glass shelves, white glass, 2 of which are individually height adjustable.
  • 2 fully extendable drawers with transparent front.

Ice and Water Dispenser

  • Warm white LED lighting.
  • Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
  • Integrated, with fixed inlet water connection.
  • Particle filter for water inlet, integrated in ventilation grille area.
  • Can be switched off.
  • Ice cube production approx. 1.4 kg/24 h.
  • Ice cubes and crushed ice.
  • Removable ice storage container with approx. 3.2 kg capacity.
  • Ice water supply approx. 1.5 litres.

Connection

  • Total connected load 0.300 KW.
  • Connecting cable 3.0 m, detachable.
  • Water inlet.
  • Supply hose 2.9 m with 3/4 " connection.
  • Water pressure 2 to 8 bar.
Performance
  • Flat hinge.
  • Door opening angle of 115°, fixable at 90°.
  • Max. door panel weight 67 kg.
  • Shut-off valve for water connection must be planned next to the appliance and always be accessible.
  • If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.
SKU: RF463505
