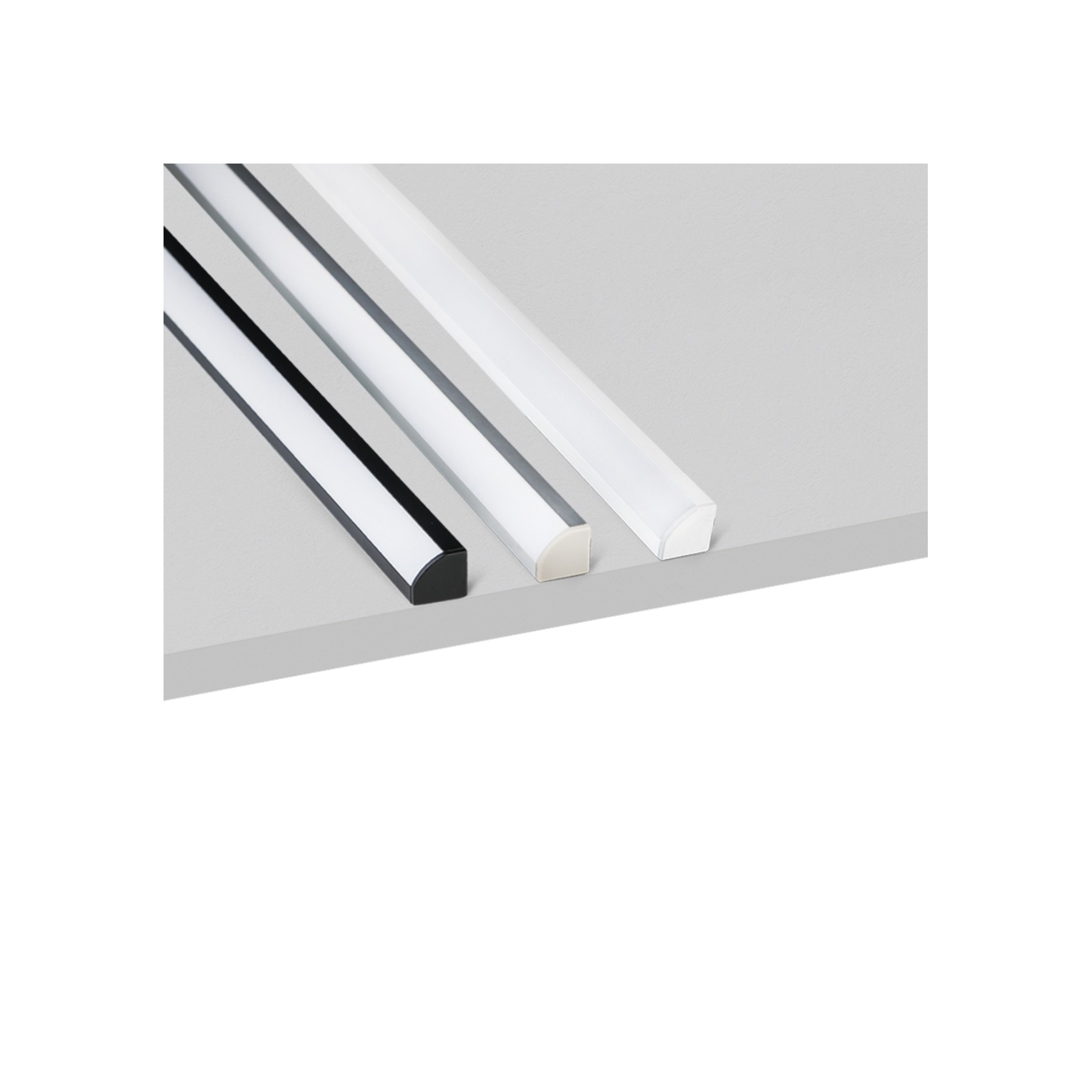

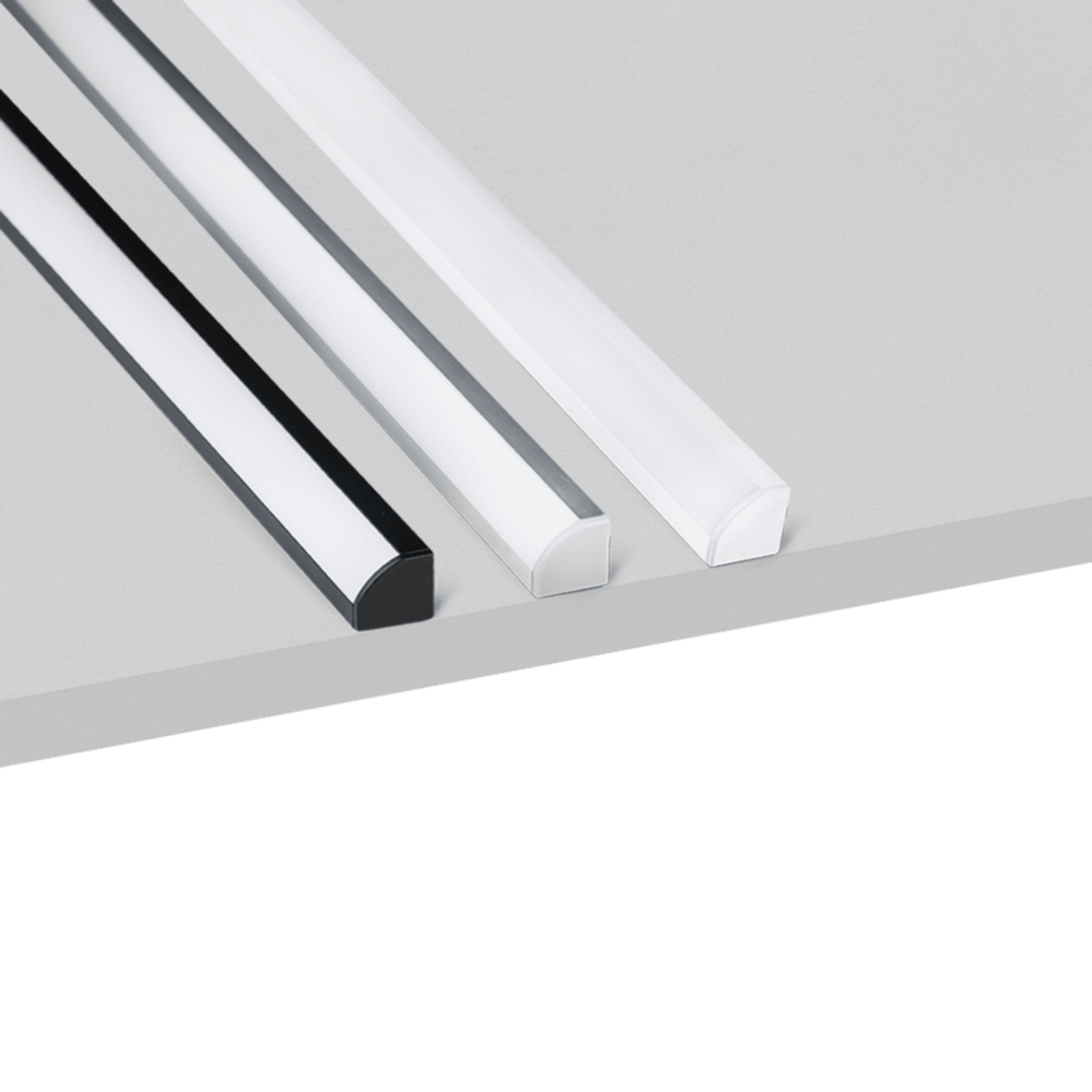

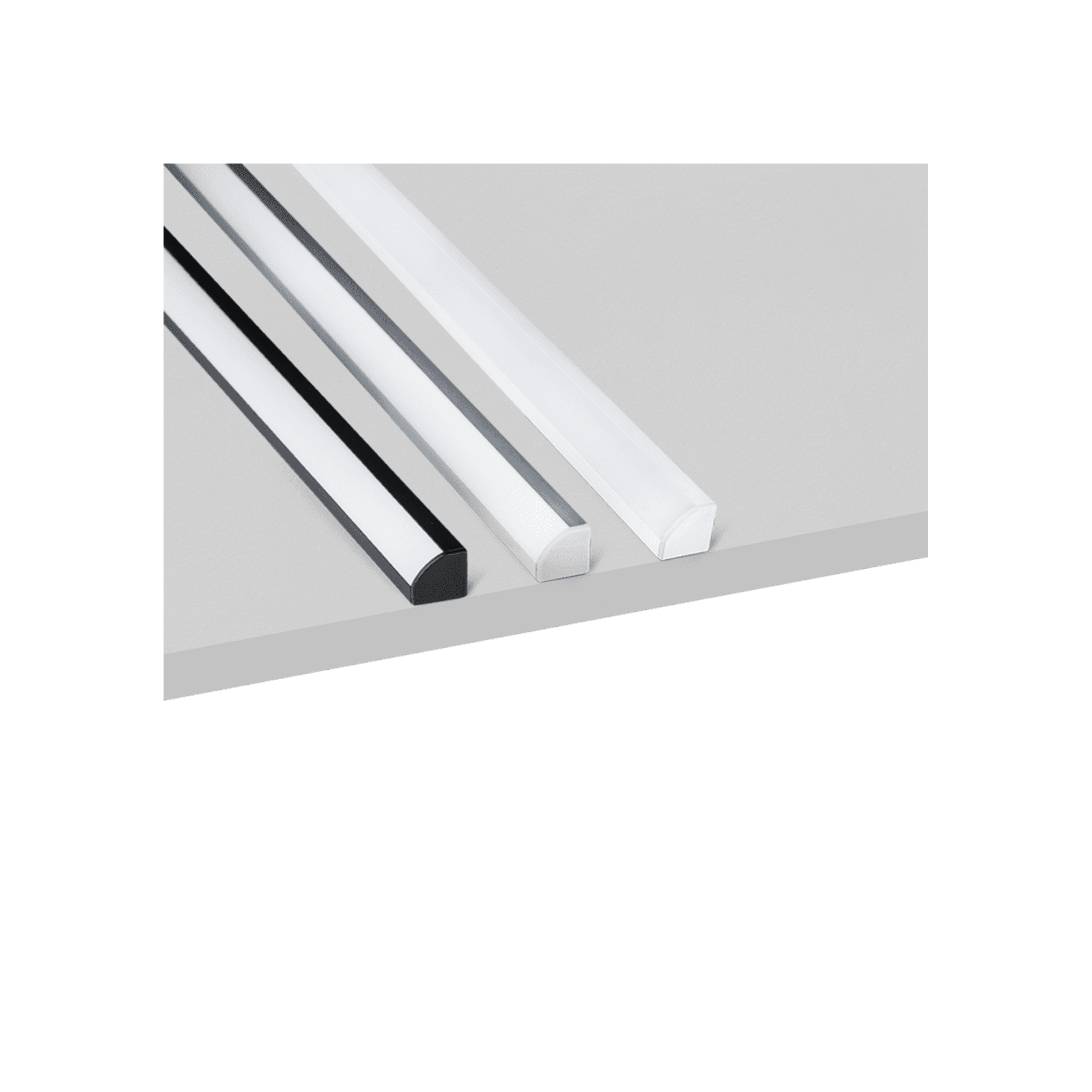

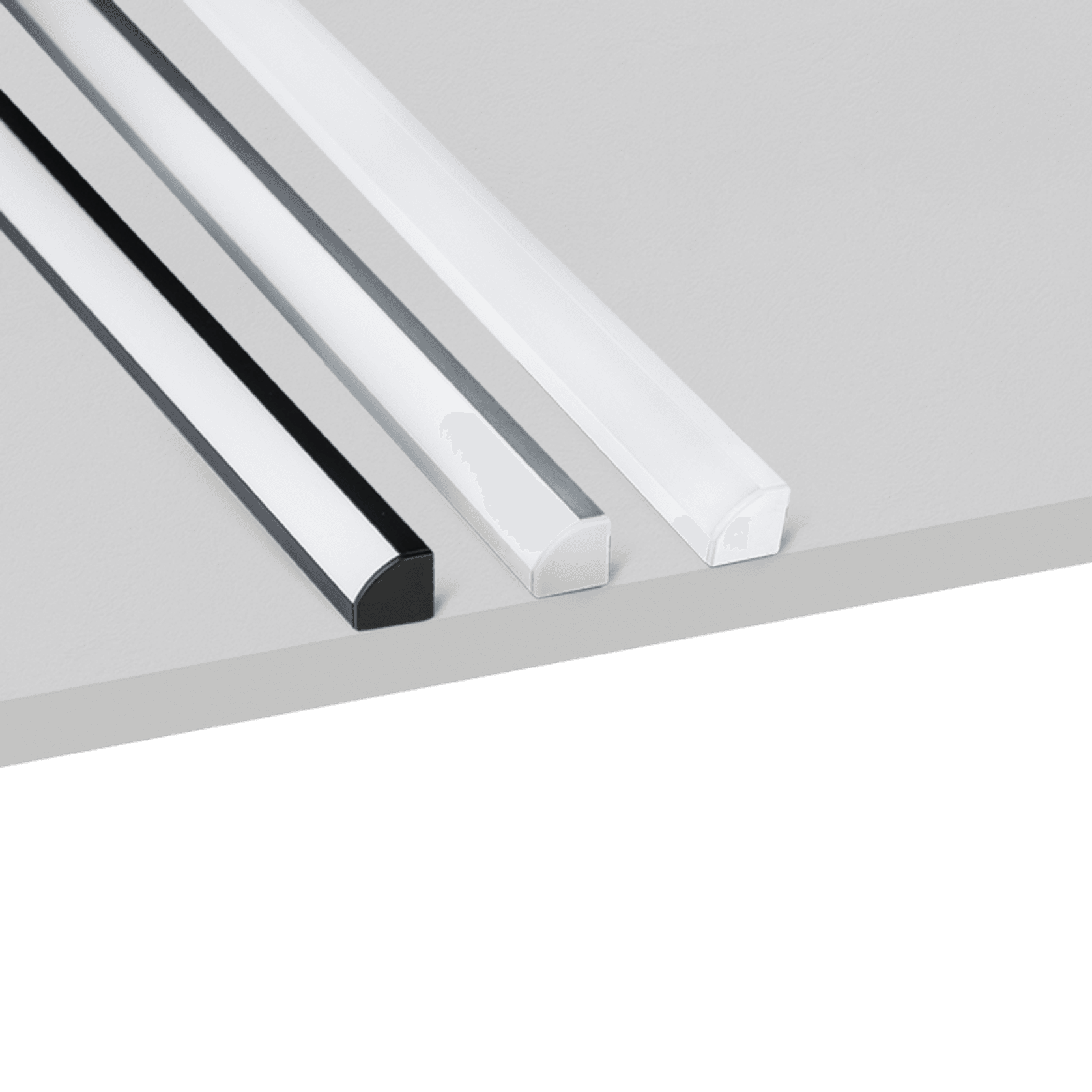

Surface Mounted Linear LED Profile

Graze linear profile series offers new lighting possibilities for a range of project applications. Pitched LED mounting enables grazing and other angled lighting distribution effects. Perfect for joinery integration, task lighting and architectural features.

Constructed from high grade 6063T extruded aluminium with natural anodised surface treatment as standard, allowing optimal heat transfer and continuous illumination. Uses a high quality opal PMMA diffuser with optional surface finishes available. Perfectly suited to the Deltaflex, Zeroflex or Powerflex series of LED strip lighting.

Details
  • Category
    Linear Lighting
  • Range
    Linear Profiles
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • Deltaflex
    • 5W
    • 10W
    • 15W
    • 20W
    • 20W (RGB)
    • 23W (Tunable White)
    • 30W (RGBW)
  • Zeroflex
    • 10W
    • 15W
  • Powerflex
    • 10W
    • 12W
    • 18W
    • 21W

Luminous Flux/m:

Deltaflex
•5W: 420 - 480 Lm
•10W: 780 - 810 Lm
•15W: 1103 - 1286 Lm
•20W: 1378 - 1604 Lm
•20W(RGB): 880 Lm
•23W (Tunable White): 2407 Lm
•30W (RGBW): 1659 Lm
Zeroflex
•10W: 900 - 1000 Lm
•15W: 1350 - 1500 Lm
Powerflex
•10W: 1344 - 1536 Lm
•12W: 1680 - 1920 Lm
•18W: 2520 - 2880 Lm
•21W: 2940 - 3360 Lm

Luminaire Efficacy:

  • Deltaflex
    • 5W: 84 - 96 Lm/W
    • 10W: 78 - 81 Lm/W
    • 15W: 74 - 86 Lm/W
    • 20W: 69 - 80 Lm/W
    • 23W: 105 Lm/W
  • Zeroflex
    • 10W: 90 - 100 Lm/W
    • 15W: 90 - 100 Lm/W
  • Powerflex
    • 10W: 134 - 154 Lm/W
    • 12W: 140 - 160 Lm/W
    • 18W: 140 - 160 Lm/W
    • 21W: 140 - 160 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K
  • 2700 - 6500K (Tunable White)
  • RGB
  • RGBW

Distribution: 110°

Mounting: Surface

Size: (Width) 18mm x (Height) 18mm x (Length) 2500mm

Finish Options:

  • Natural Anodised
  • White
  • Black
  • Custom

Warranty: 5 Years

Accessories / Options

Accessories / Options:
