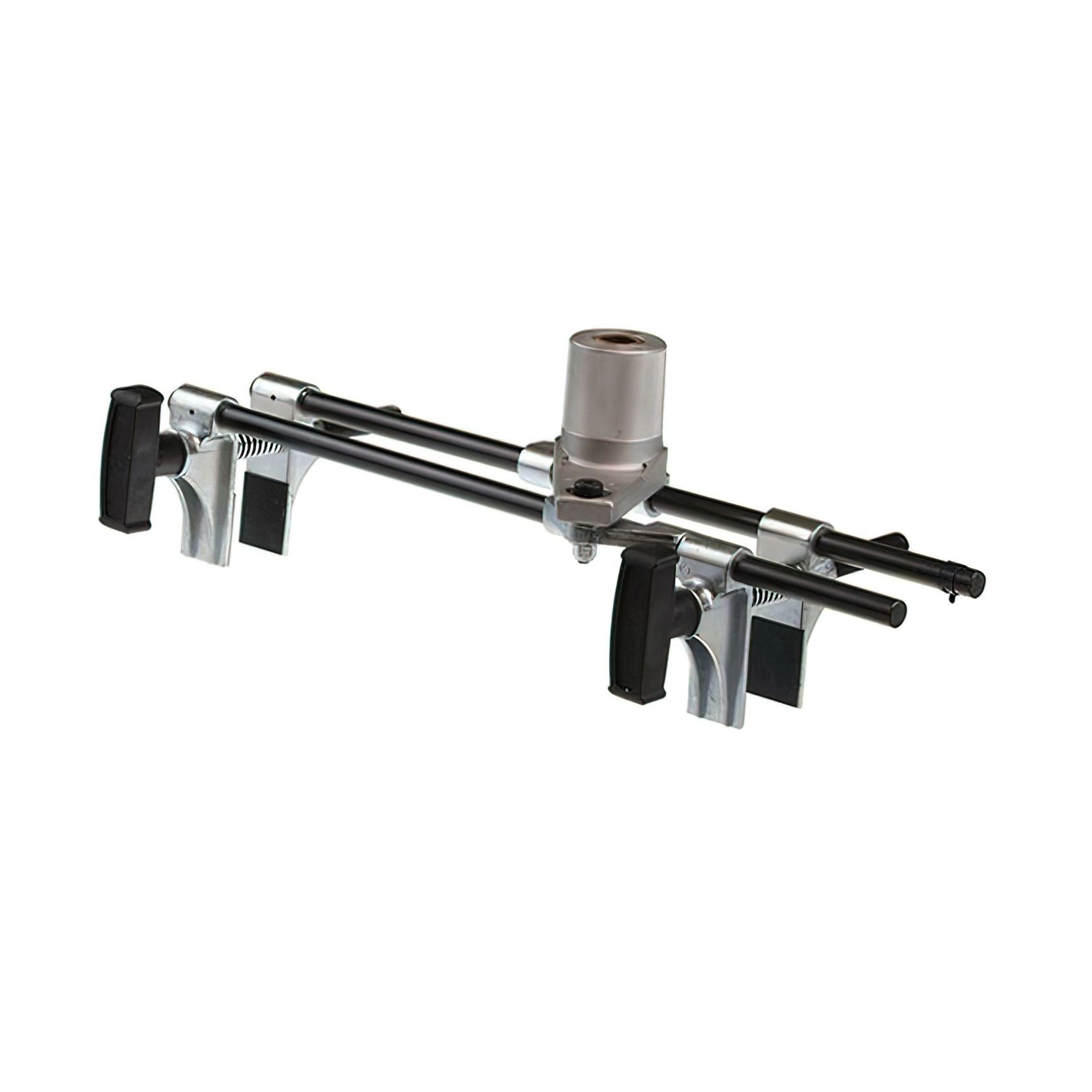

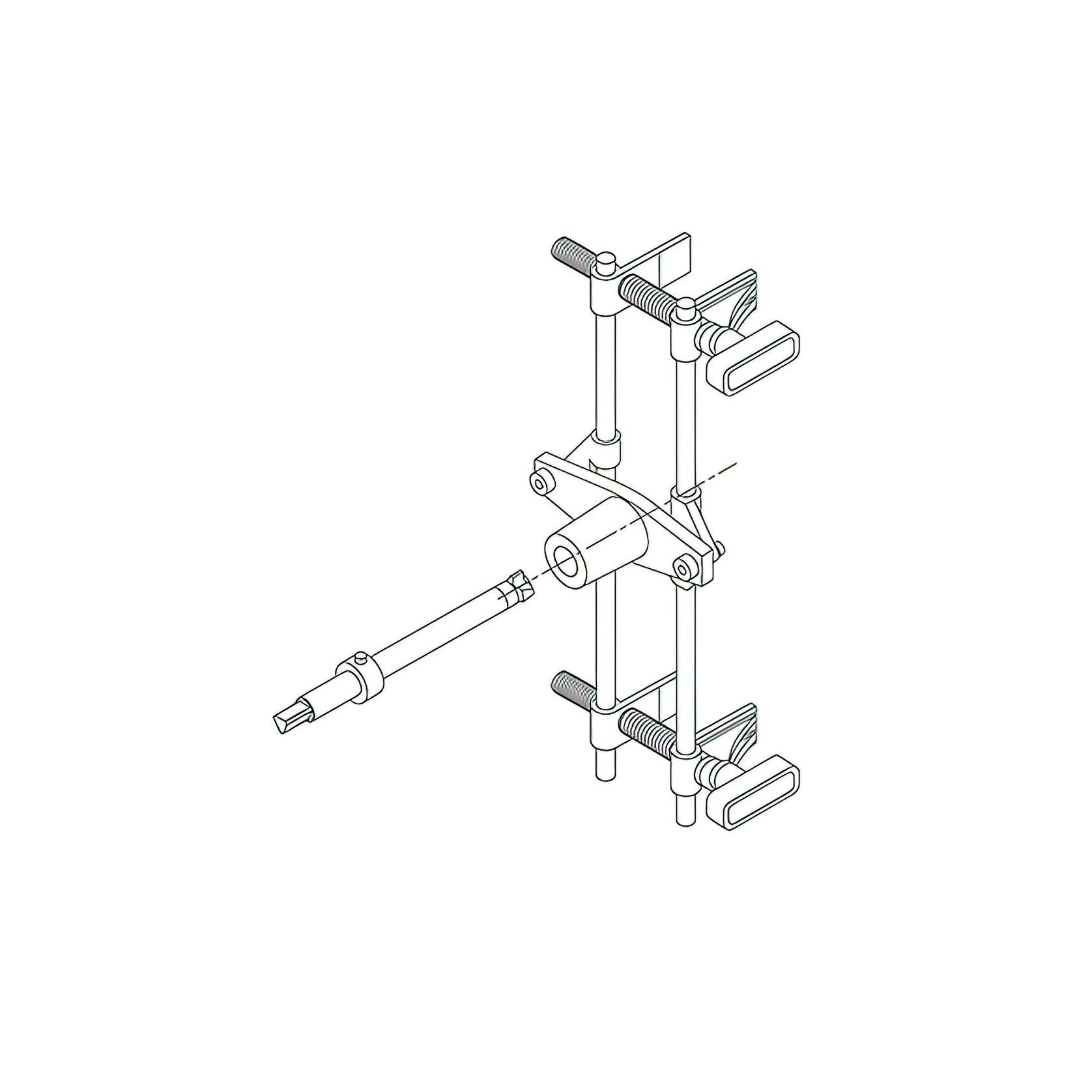

Hafele DBB Lock Morticer Jig and Fittings with 3 Cutters 001.67.700

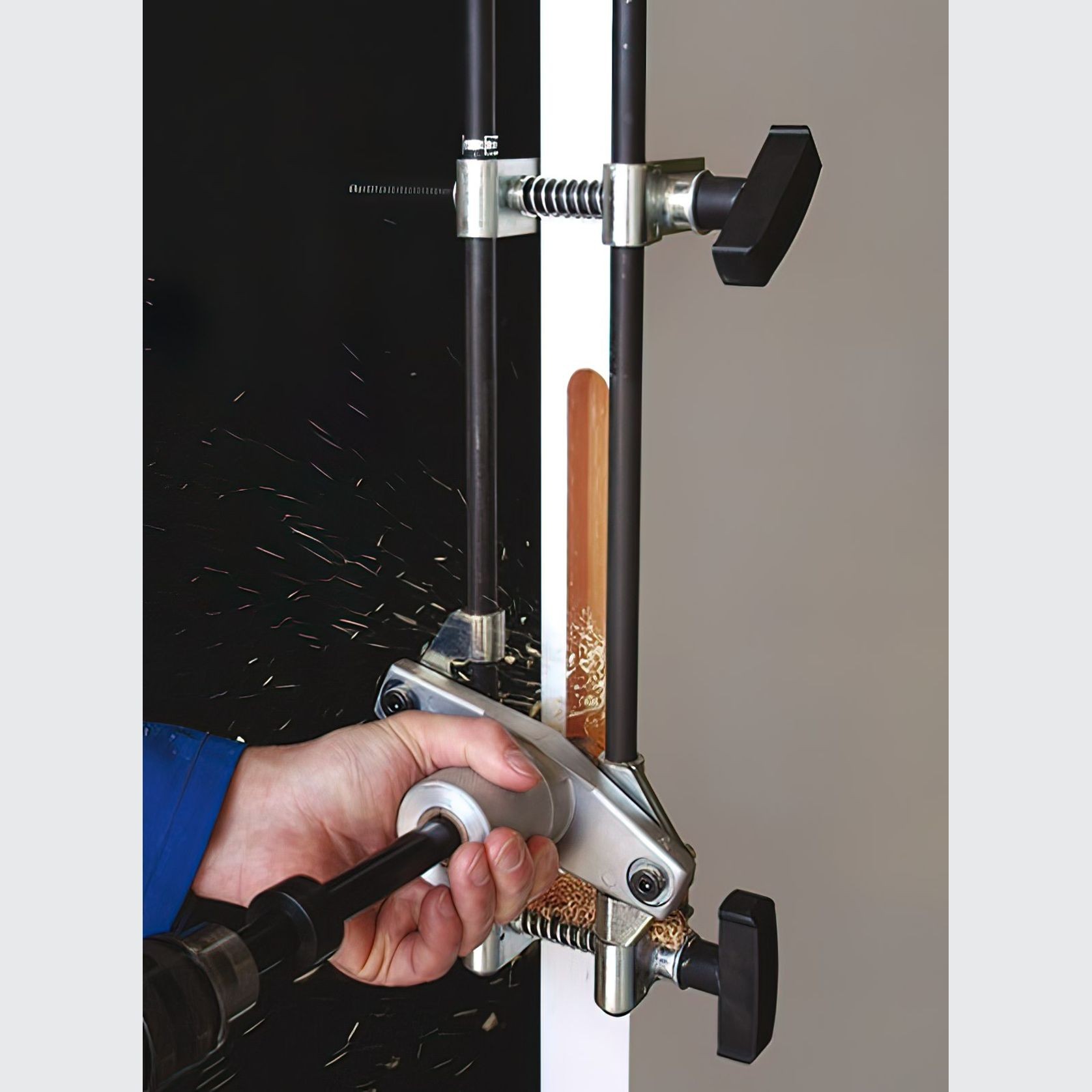

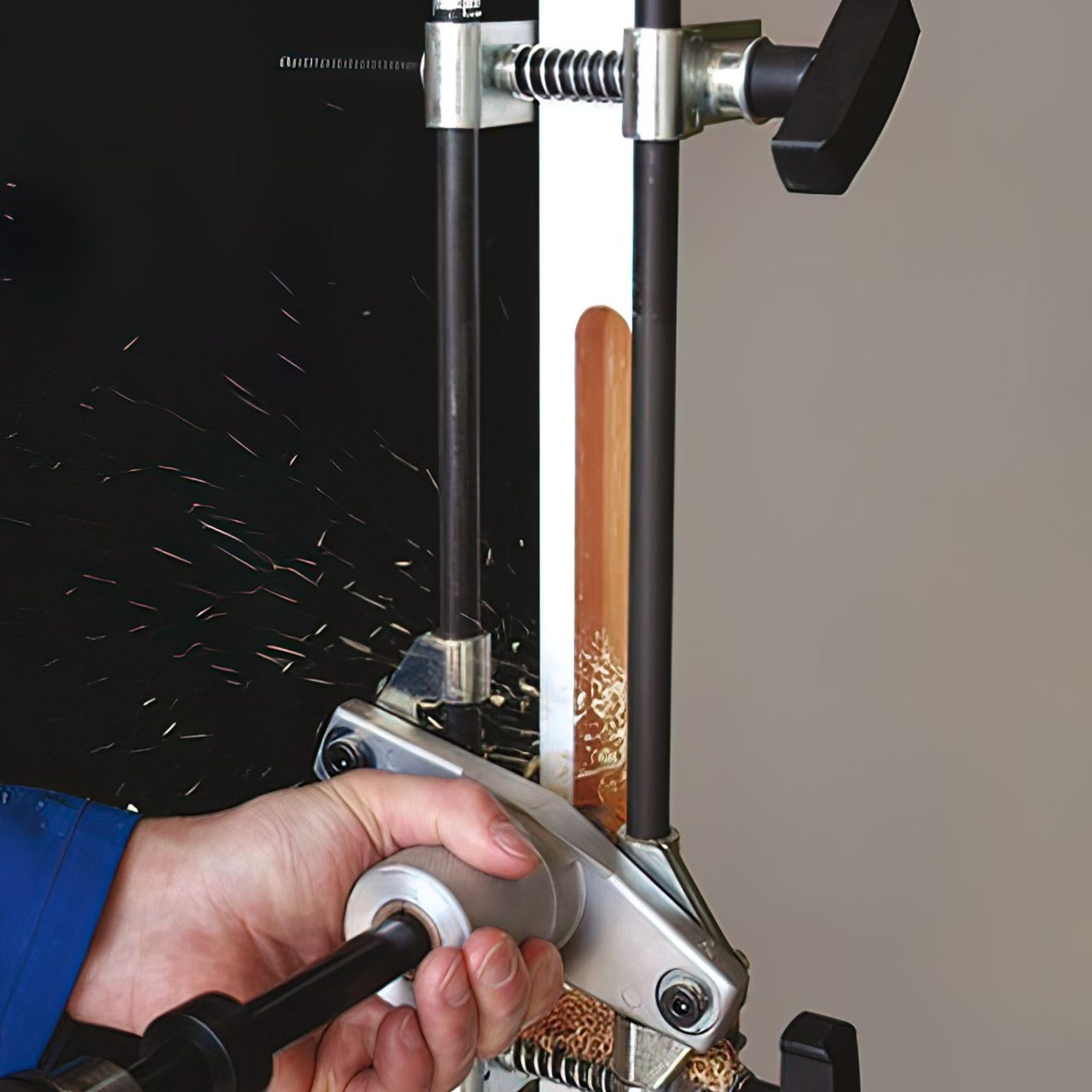

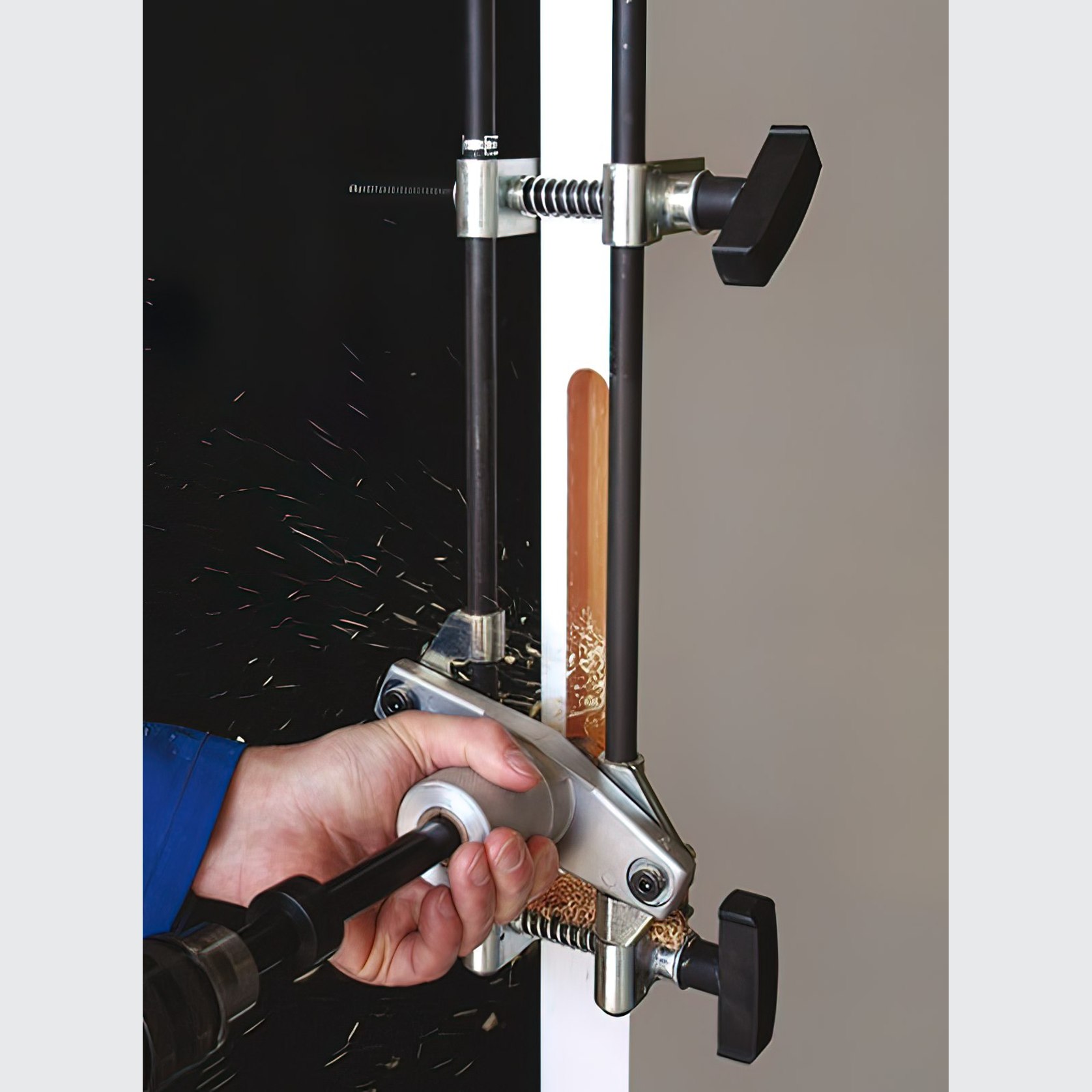

Hafele Mortice Jigis a tool that guides the machining tool designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates.

Specs

• Max. door thickness (standard housing): 55 mm
• Max. door thickness (special housing): 80 mm
• Max. vertical movement (average 45 mm thick door): 240 mm
• Door and frame with offset morticer max. 95 mm
• Material: Steel jig rods. Aluminium housing and clamps

Features

• Suitable for tubular latches, rack bolts and concealed door closers when used in conjunction with the plunging cutters
• Use with a drill with 2,000-3,000 rpm with hammer action off and a 1/2" chuck
• Screw-on design precision, carbide tipped mortice wood cutters
• Cuts lock forend as well as lock body
• Self-centring action
• Cuts a mortice for the body and for the face plate
• Achieves an accurate depth of cut to hardwood and softwood doors
• Vertical guides, height and depth stops mean you cannot over run the cut area

Benefits

• Saves time and money
• Increases accuracy and speed of mortice cutting
• Can be used on wooden or (with special cutters) aluminium doors
• The self-centring jig cuts marking-up time.
• Only requires a power drill to work
• Dependable and reliable
• All parts are replaceable

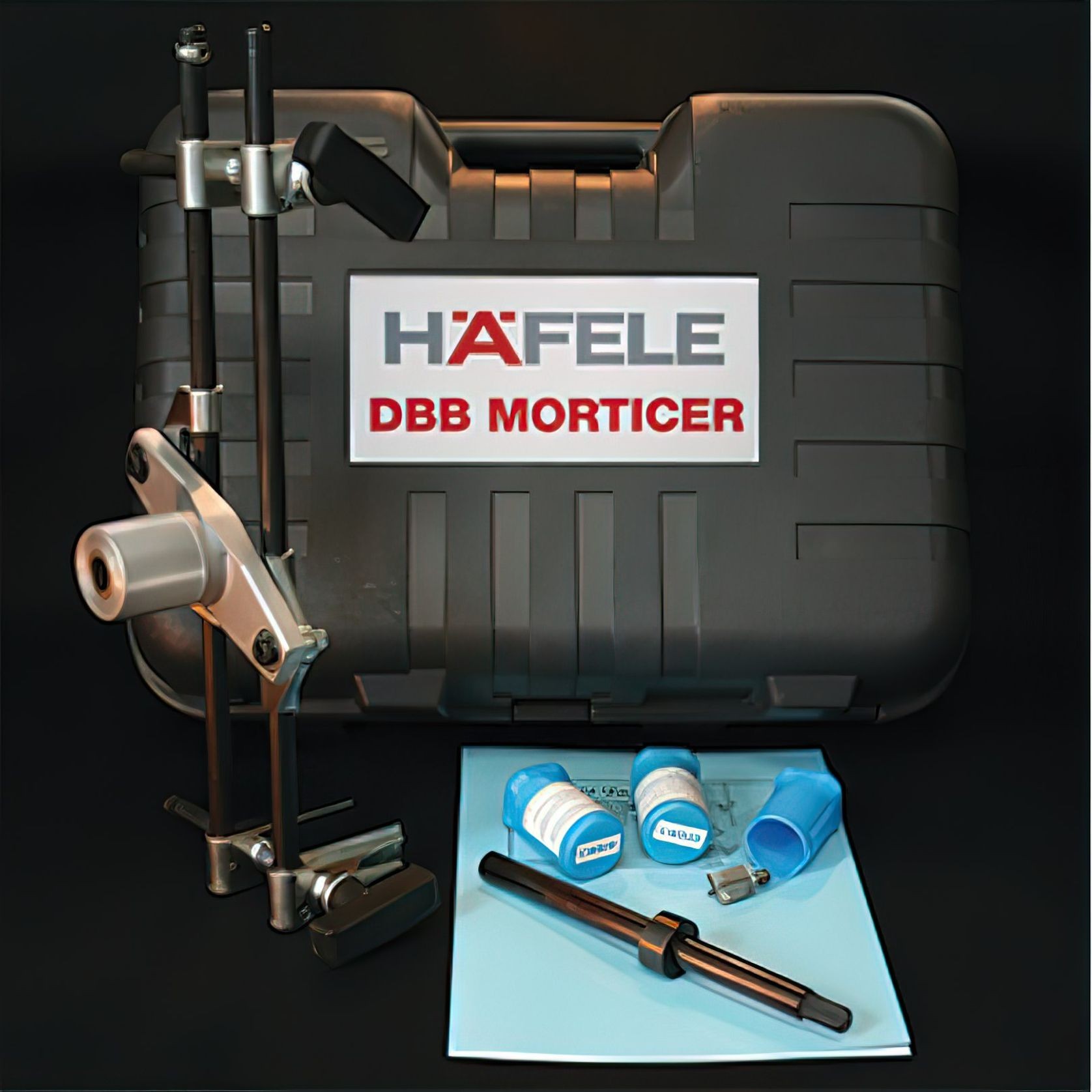

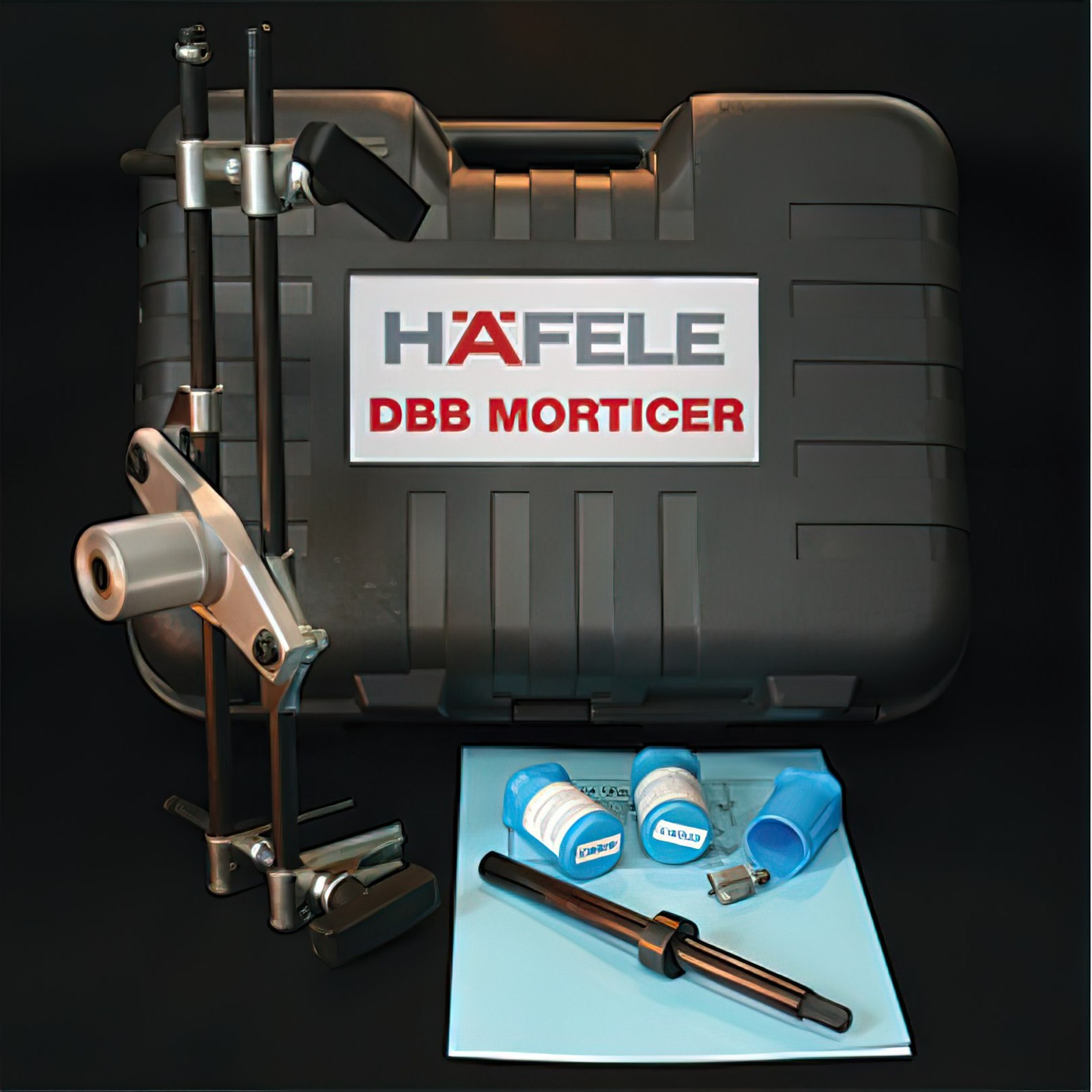

Includes

• 1 x Mortice Jig
• 1 x Standard screw on shaft, 220 mm length (for locks up to 100 mm deep)
• 1 x 19mm diameter carbide tipped cutter
• 1 x 22.2mm diameter carbide tipped cutter
• 1 x 25.4mm diameter carbdie tipped cutter
• 1 Allen key
• Instruction booklet
