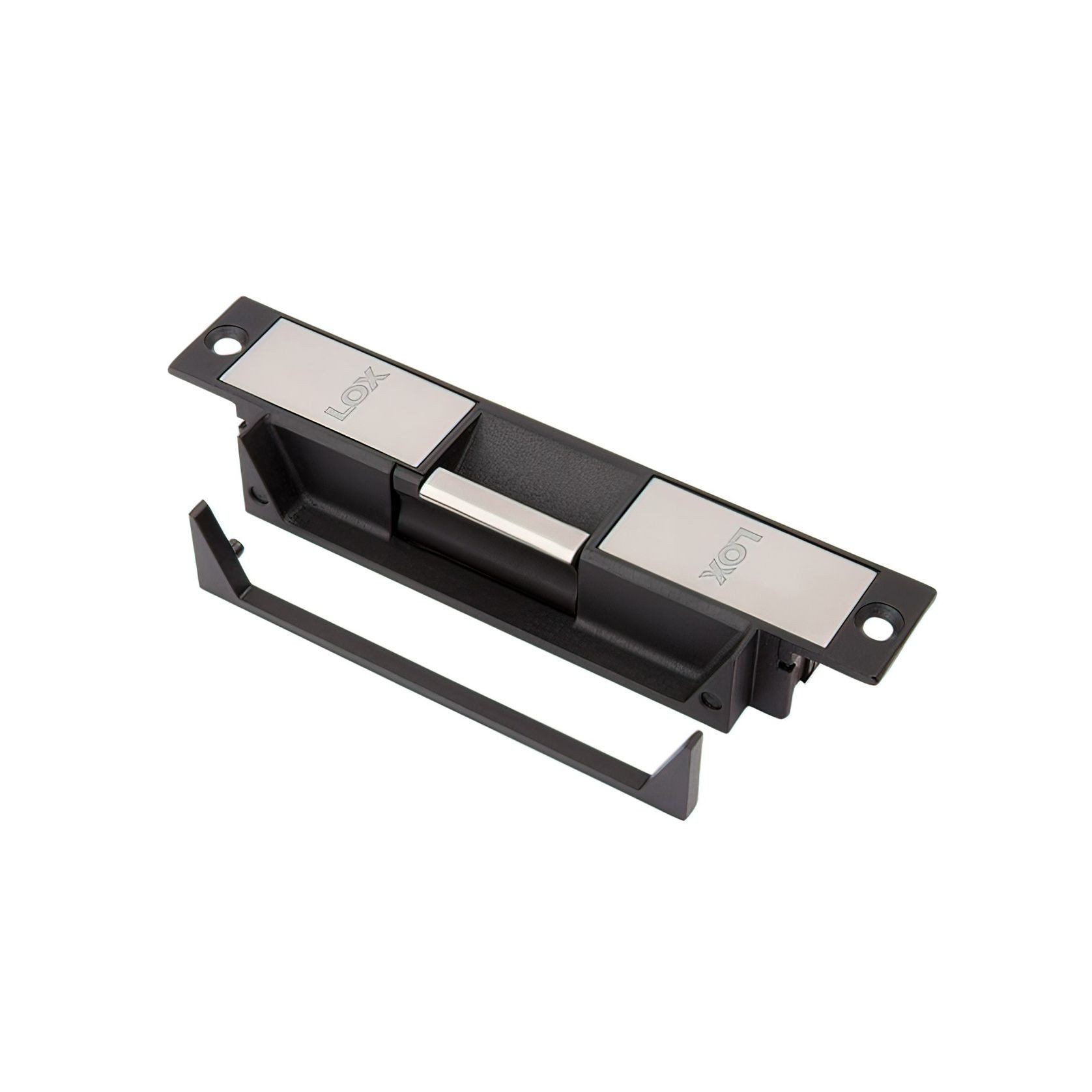

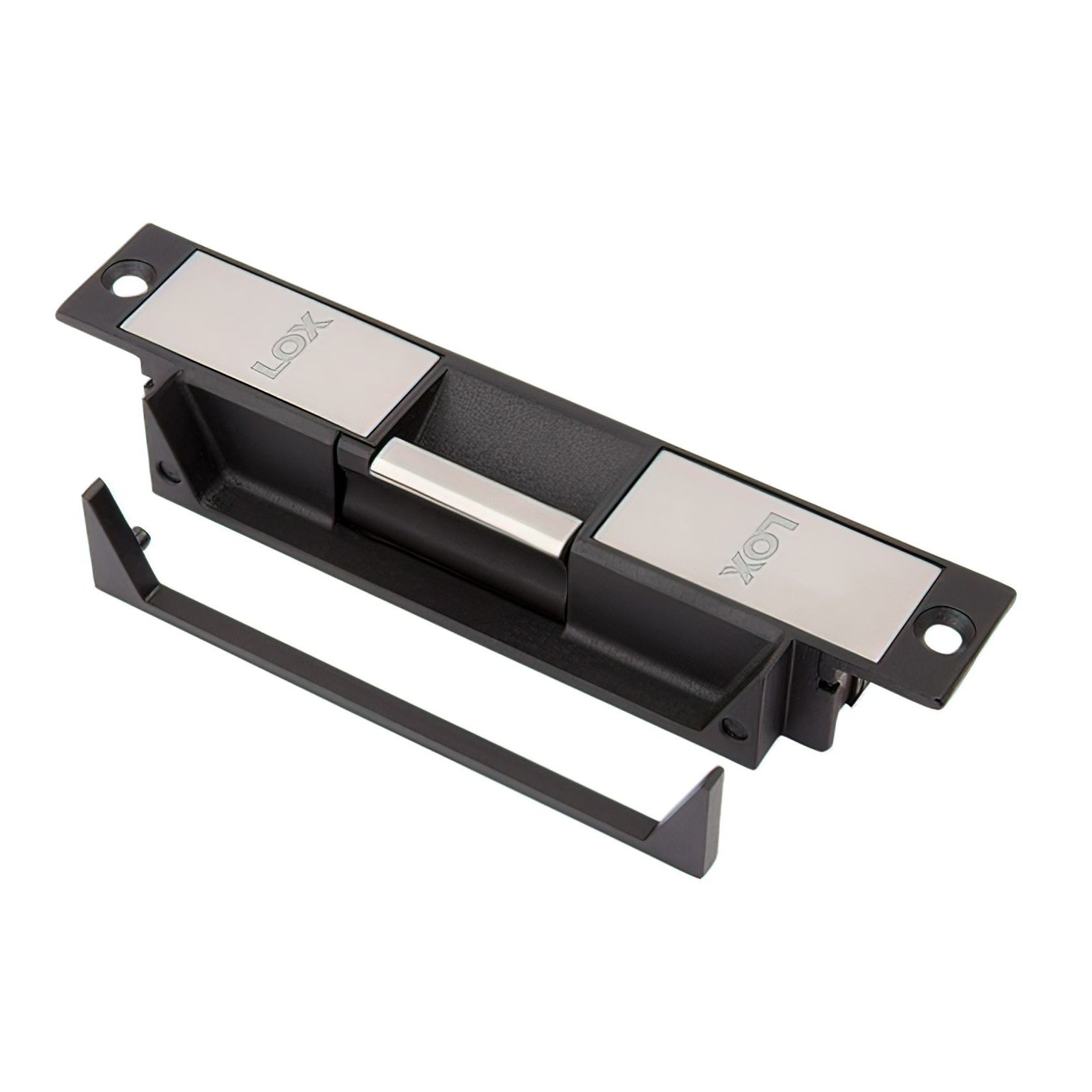

LOX High Security Electric Strike Non-Monitored Multi Voltage 10-30VDC ES20
Wetherill Park, Australia
- 998.7K profile views
- 53 saves
LOX High Security Electric Strike is designed for use with all access control systems. Retrofit compatible with FSH and Padde Australian Footprint strikes. It comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed. Fail safe/fail secure is changeable on site. LOX High Security is successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).
Product Details
- Product
- LOX High Security Electric Strike Non-Monitored Multi Voltage 10-30VDC ES20
- Category
- Door and Window Hinges
- Sold by
- Keeler Hardware
Keeler Hardware is specified by
Ian Moore ArchitectsArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
R ARCHITECTUREArchitects
JOST ArchitectsArchitects
Ha ArchitectureArchitects
Habitat Studio ArchitectsArchitects
Bones StudioArchitects
Dieppe DesignArchitects
J Mammone ArchitectureArchitects
De Moyer ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ironbark ArchitectureArchitects
Invilla ArchitectureArchitects
Scale ArchitectureArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
Hive ArchitectureArchitects
David Baillie ArchitectArchitects
Anderson ArchitectureArchitects
mcmahon and nerlichArchitects
Schemes & SpacesInterior Designers
Rise Architectural BuildersBuilders
STUDIO GAXAInterior Designers
X + OInterior DesignersDasch AssociatesInterior Designers
Susie Miles DesignInterior Designers
TrueBuild HomesDesign & Build
New SpacesBuilders
Ilm InteriorsJoiners
APC BuildBuilders
Kate NixonInterior Designers
Jumble & StackInterior Designers
LOX High Security Electric Strike is designed for use with all access control systems.
Retrofit compatible with FSH and Padde Australian Footprint strikes. It comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15mm lip. A 5mm lip extension is included with the strike if needed. Fail safe/fail secure is changeable on site. LOX High Security is successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).
- Specs
- Voltage: 10 - 30VDC, 250mA at 12VDC, 125mA AT 24VDC
- Current: 12vdc @ 250mA, 24vdc @ 125mA,
- Holding Strength: up to 1000kg Tested to 1.5 Million Cycles
- LSS Monitoring: Status sensor of the internal locking mechanism
- DSS Monitoring: Door latch sensor, door latch engaged within strike keeper
- ATS Monitoring: Door strike removed or repositioned sensor
- Temperature: Range - 20 degress celcius to 60 degrees celcius
- Material: Stainless Steel
- Features
- Non Monitored
- Fire rated up to 4 hours
- Power to lock/power to open field selectable
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template
- Includes tab mounting kit
- Pre-drilled for extension lips
- Supplied with silencer rubber buffer
- ES20 is suitable for 18mm latch with a 3mm door gap
