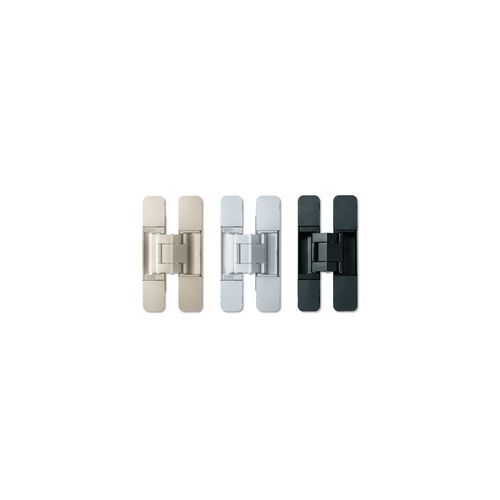

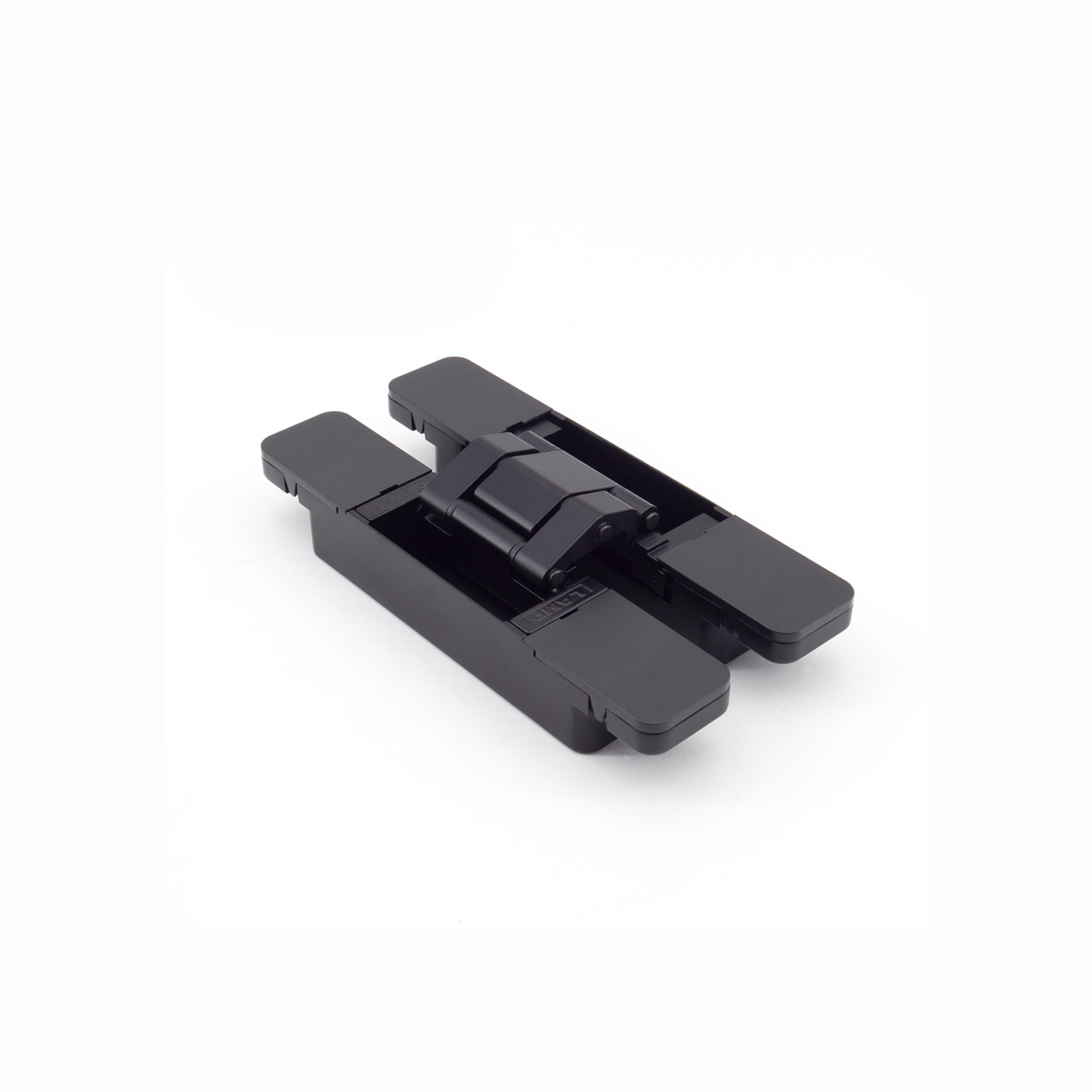

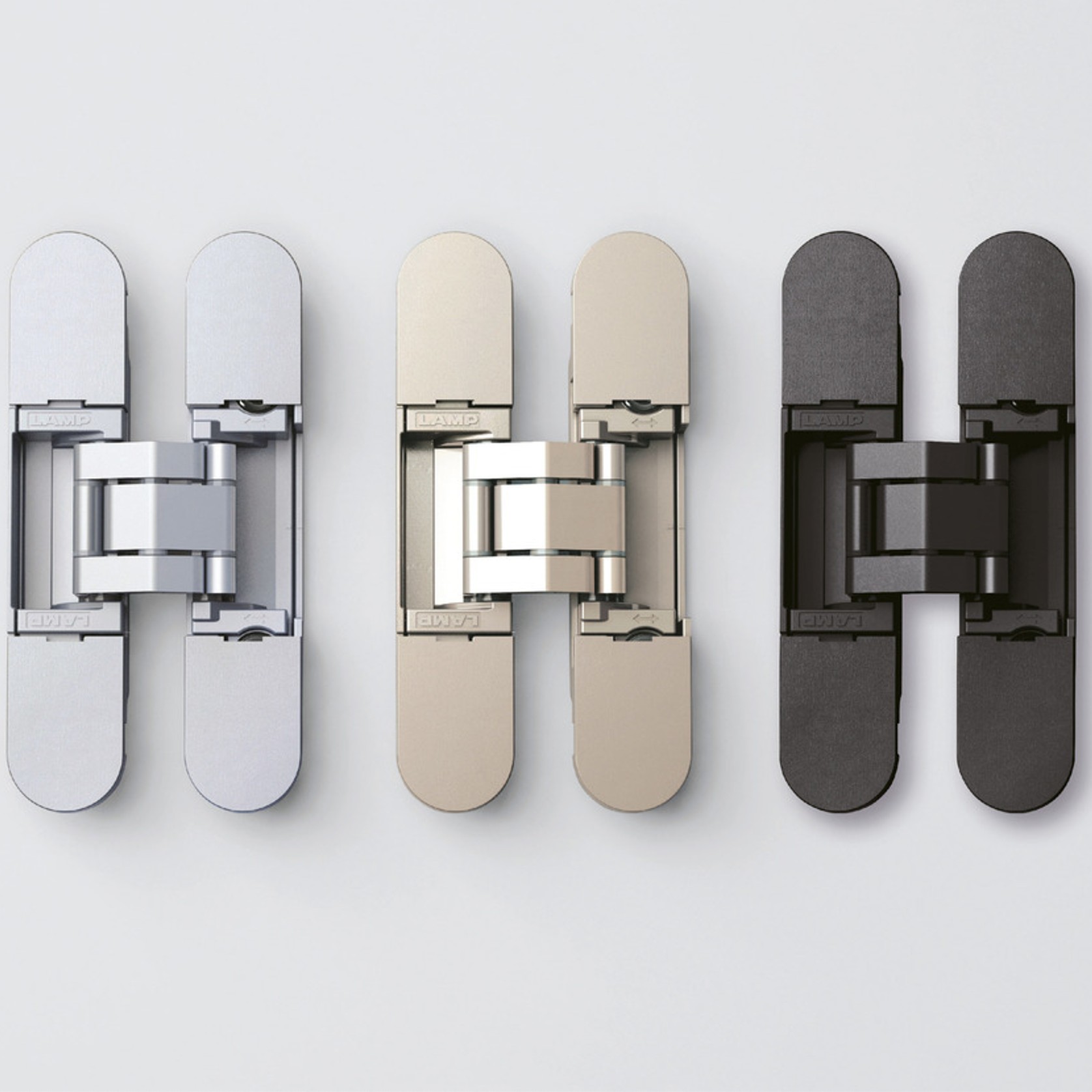

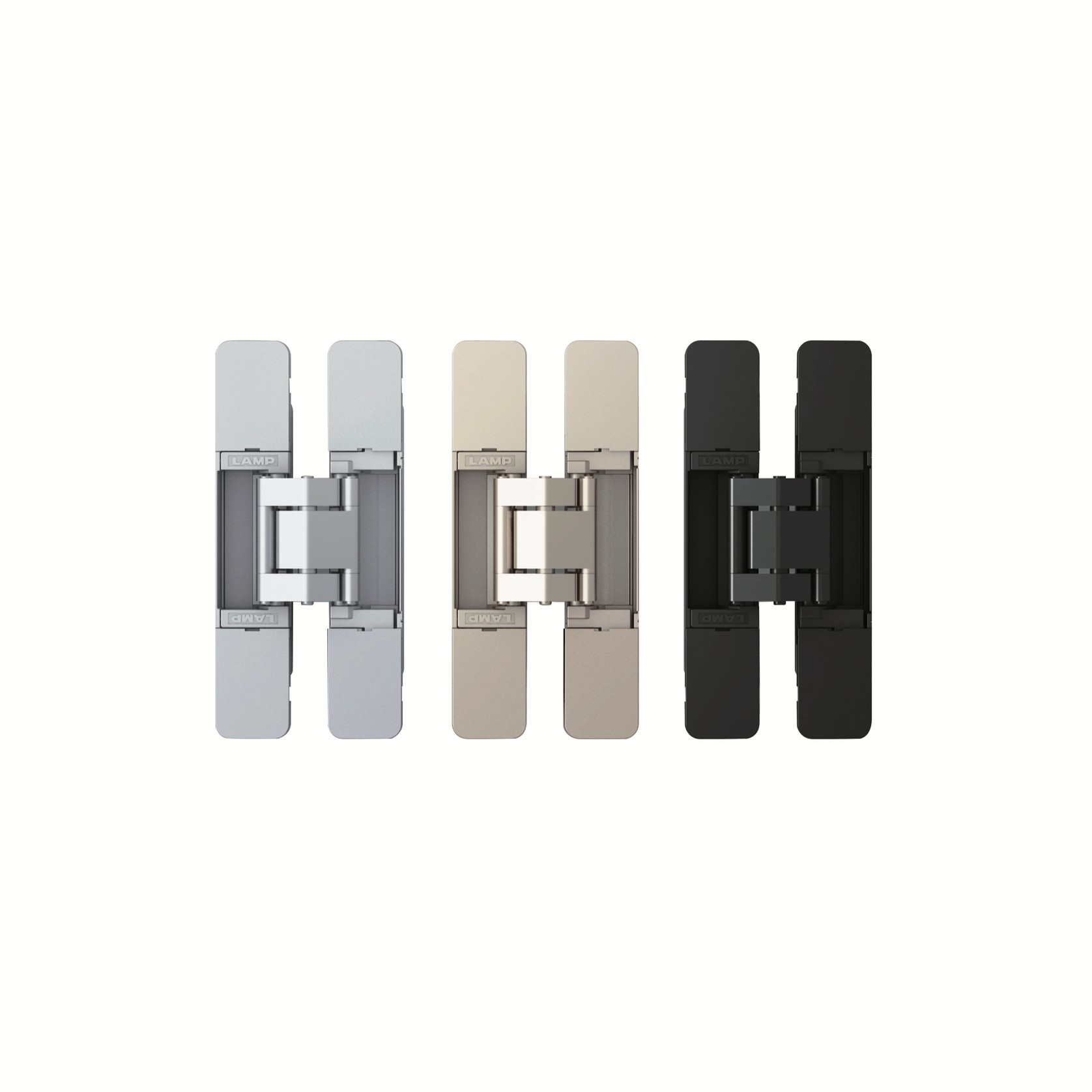

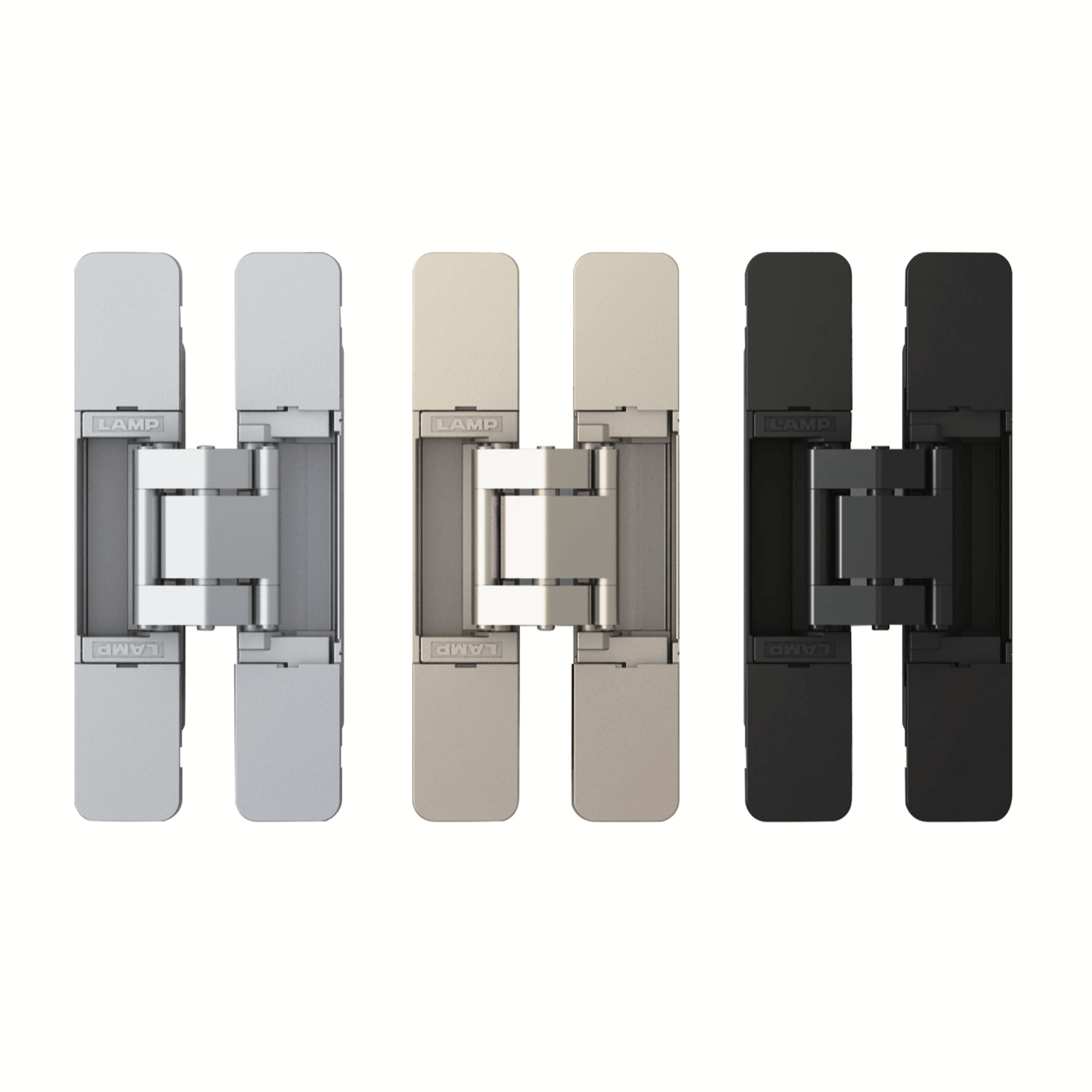

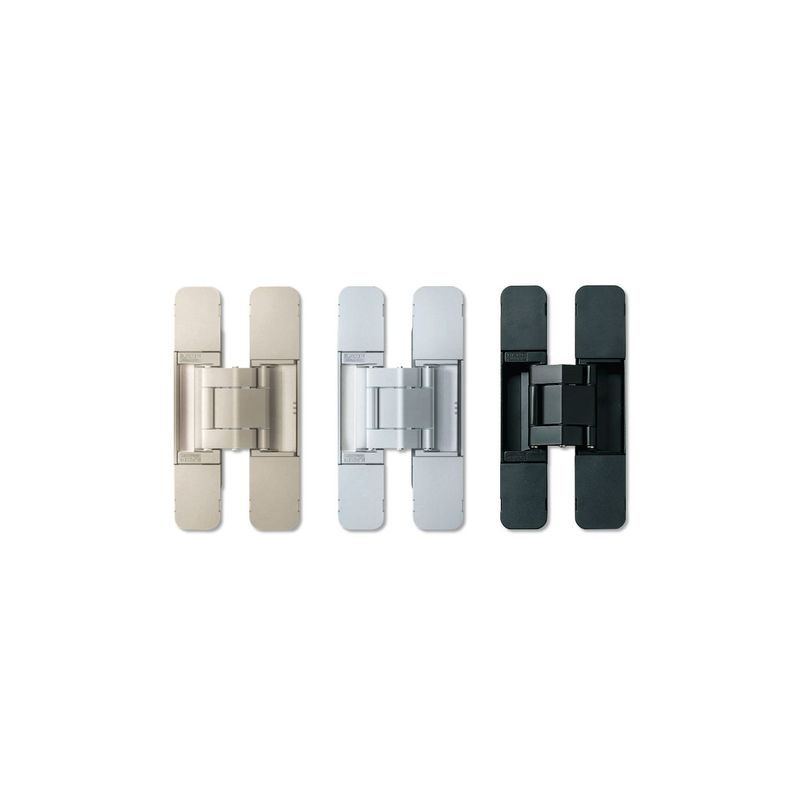

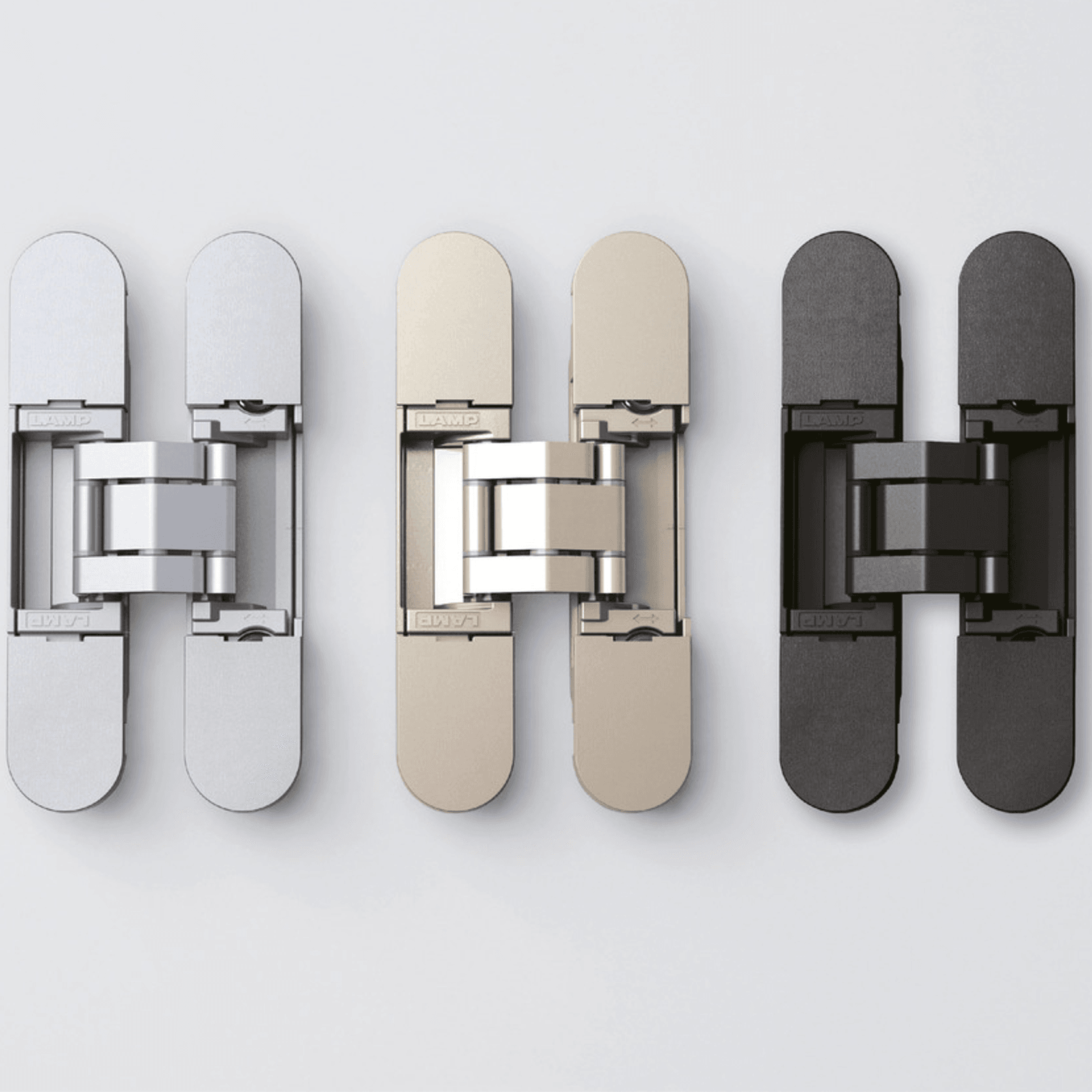

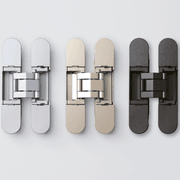

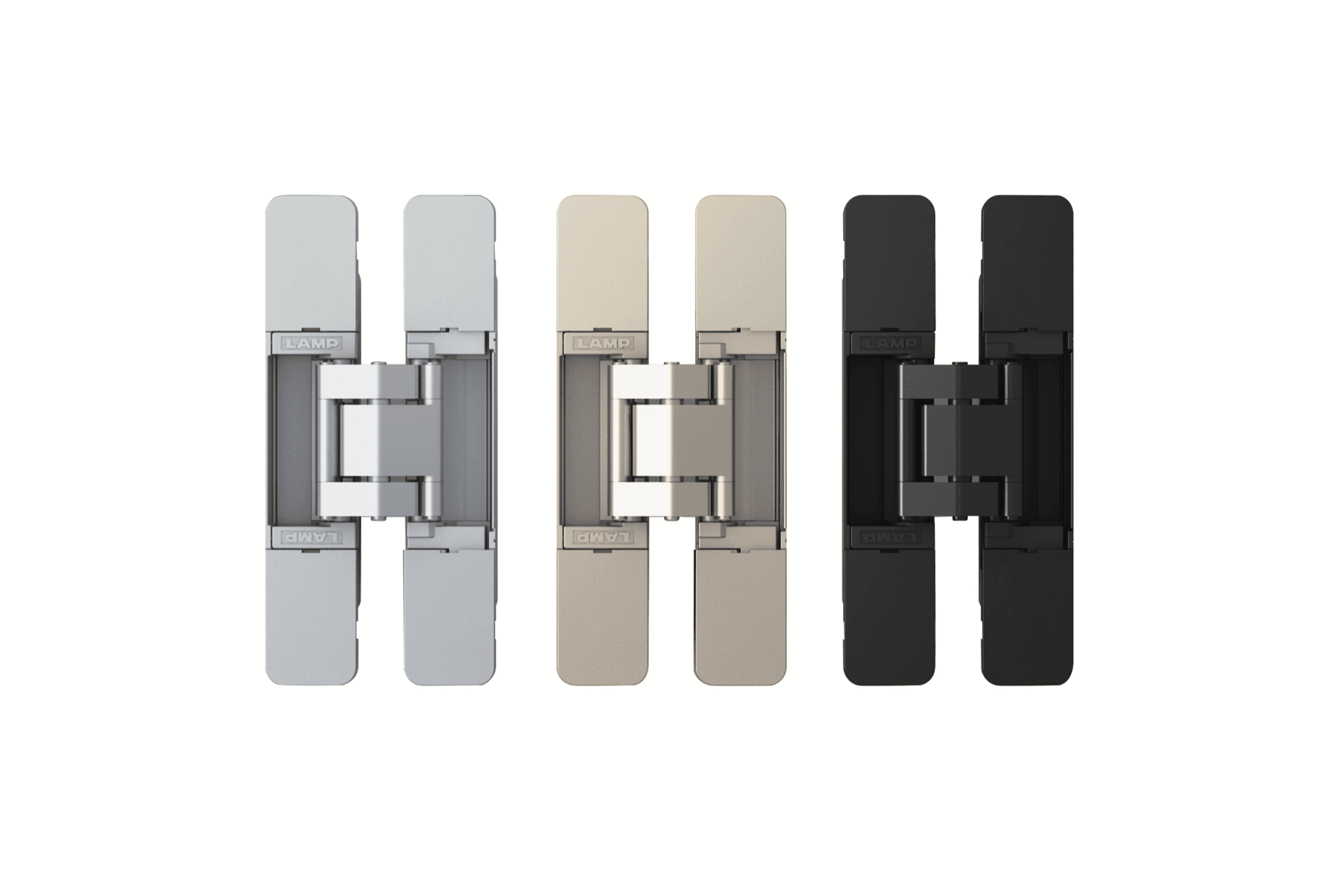

Sugatsune HES3D-90 concealed hinges

Website

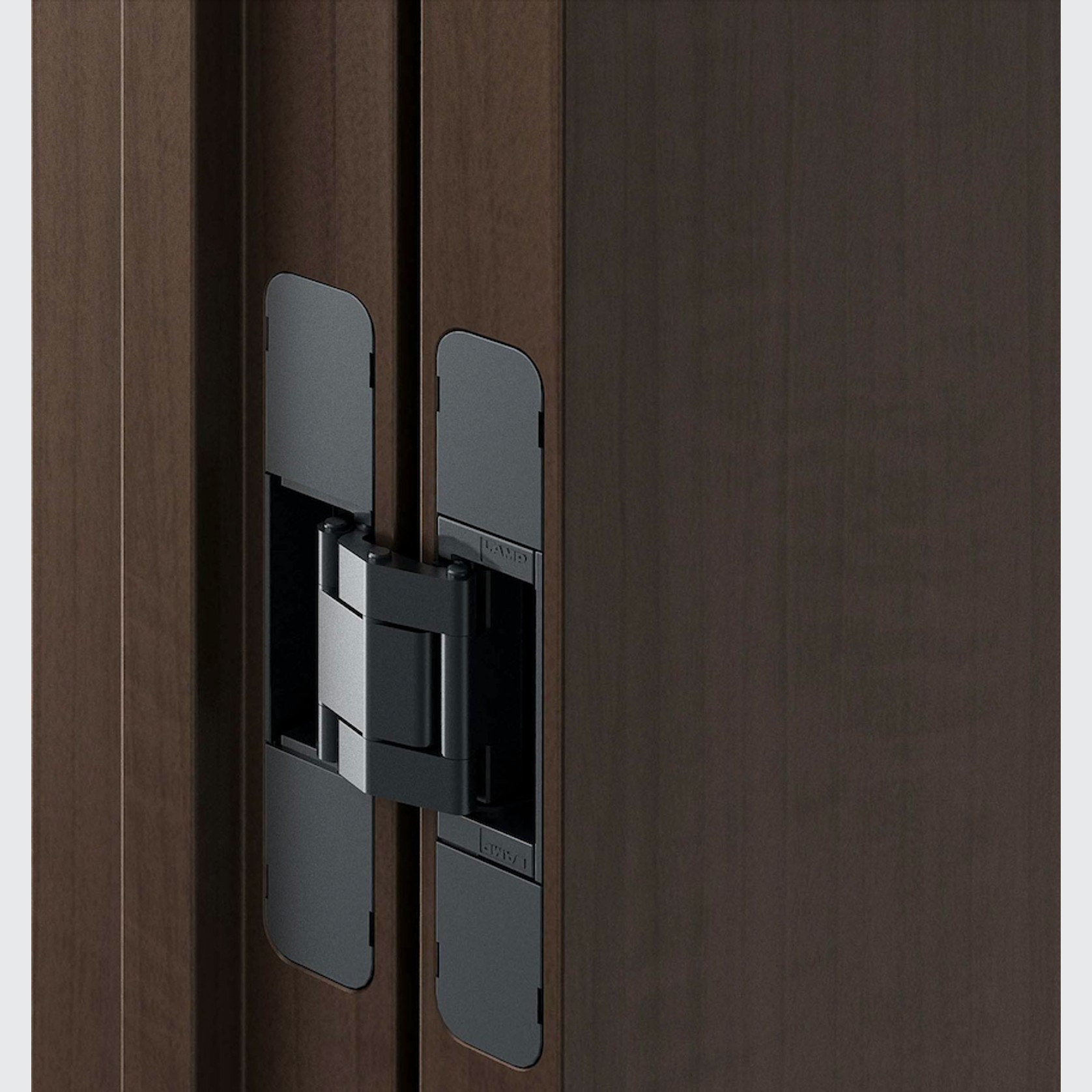

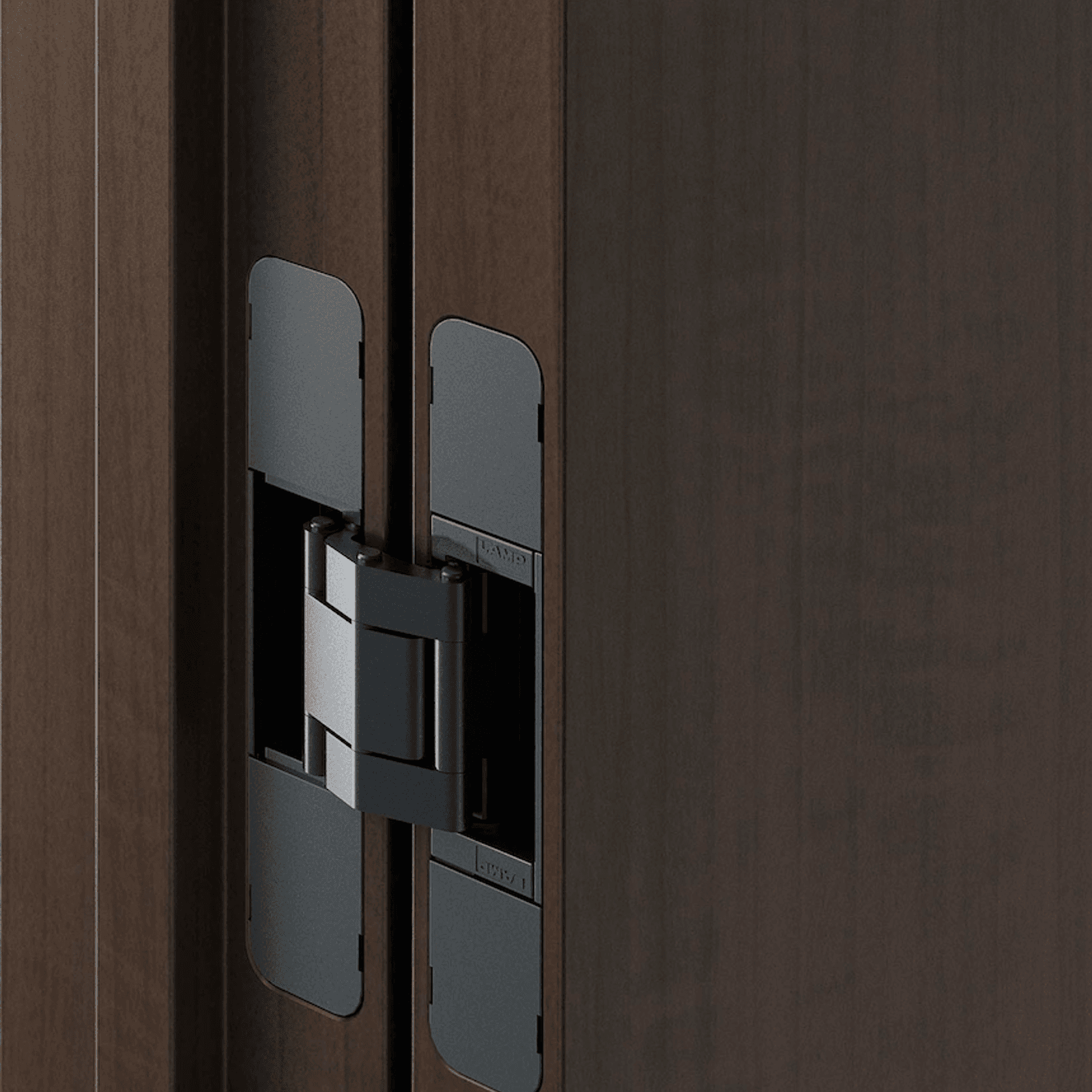

Install small concealed hinges on the inside of your cabinets such as media console and cabinets for sleek and modern style. HES3D-90 hinges, also called compact invisible hinges, consist of 2 piece assembly: one that connects to the door and one inside the cabinet wall. In addition, the hinges allow for holding glass door like gravity or clamp hinge when installed with new Sugatsune HES3D-G90BKT glass door bracket.

  • HES3D-90 concealed hinge allows vertical, horizontal, and depth adjustment after hinge is installed.
  • Covers hide all screw heads for clean appearance.
  • Compact concealed door hinge compatible with the minimum door thickness of 15/16 inch (23 mm).
  • For large interior door or Flush-to-the-wall doors, please choose HES3D-E190 concealed hinge.
  • Door weight: Max. 12 kg (26 lbs)/2 pcs, 16 kg (35 lbs)/3 pcs
  • Max. door size: H 1500 mm × W 600 mm (59-1/16" × 23-5/8")
  • Includes steel countersunk wood screws.
