HB1810 Flush Bolt (Flat Throw)

Halliday + Baillie
Visit Website

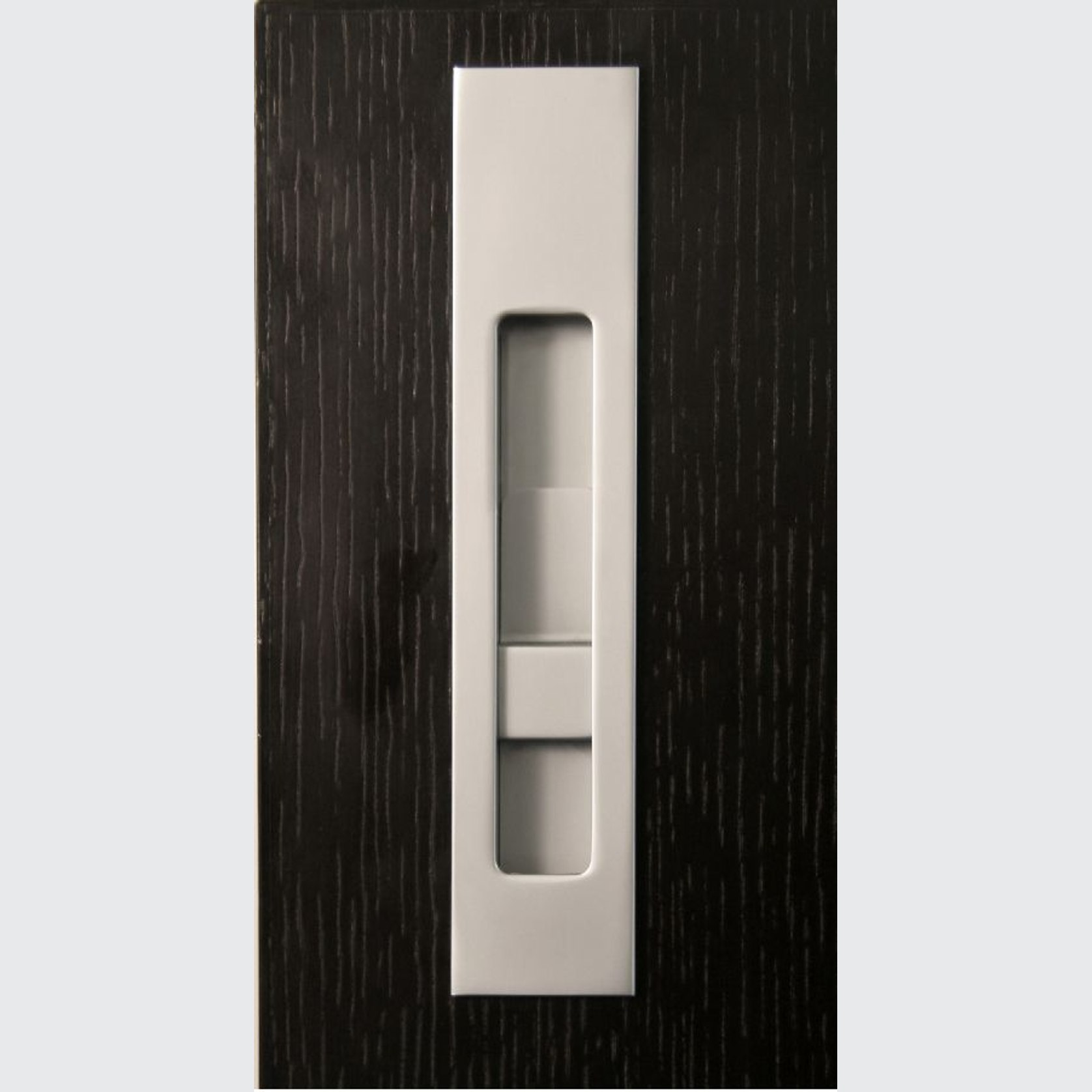

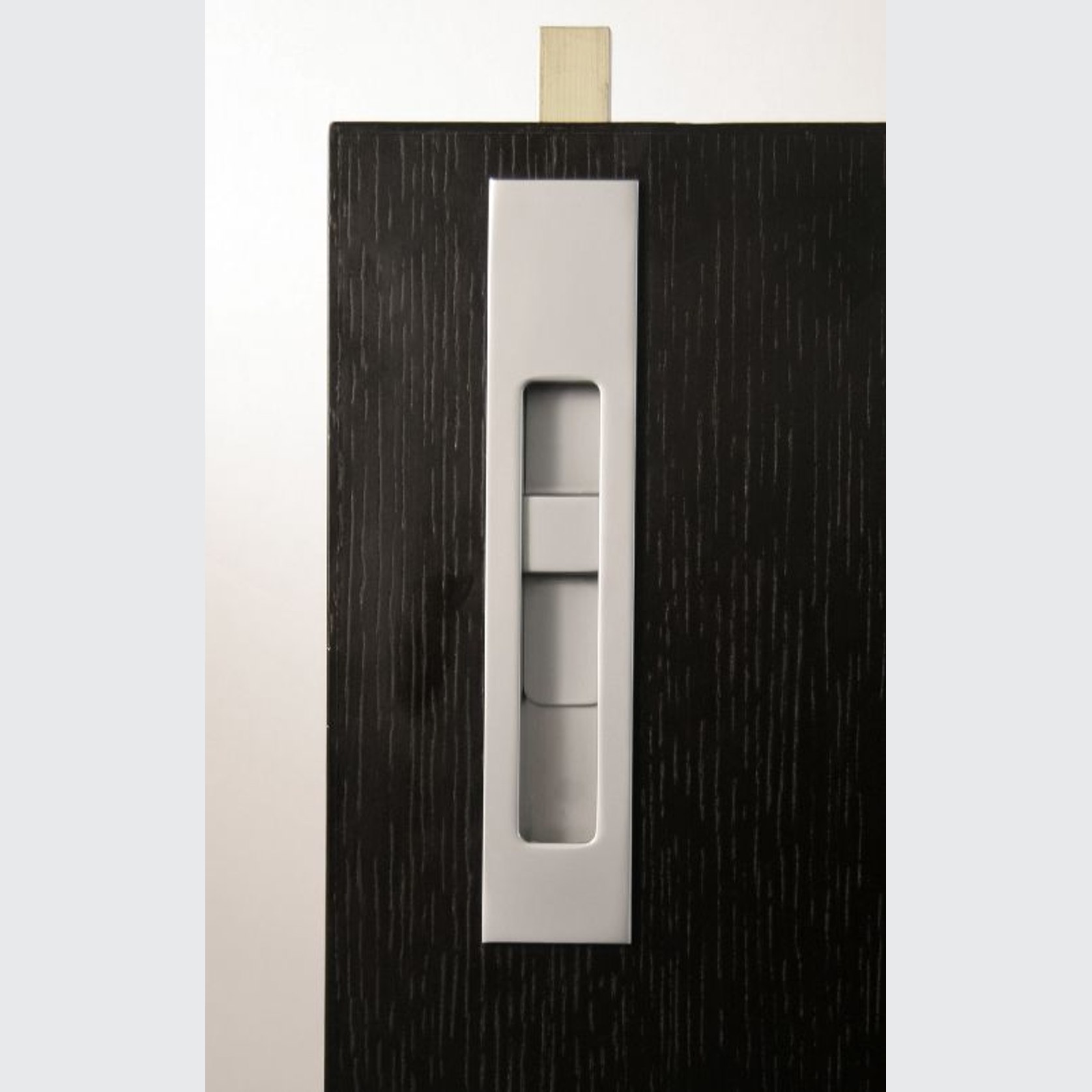

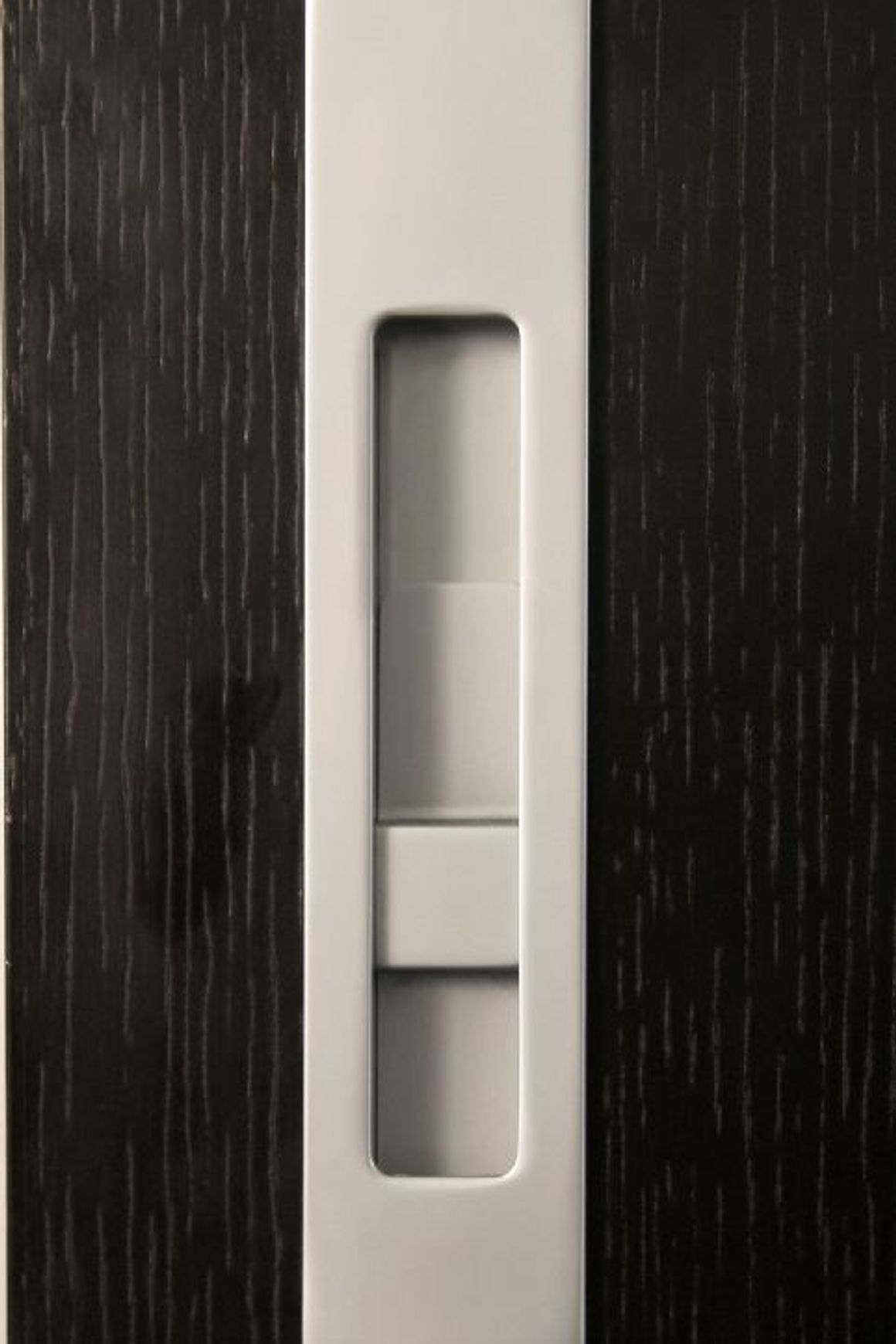

HB1810 Flush Bolt (Flat Throw) gallery detail image
HB1810 Flush Bolt (Flat Throw) gallery detail image
HB1810 Flush Bolt (Flat Throw) gallery detail image
HB1810 Flush Bolt (Flat Throw) gallery detail image

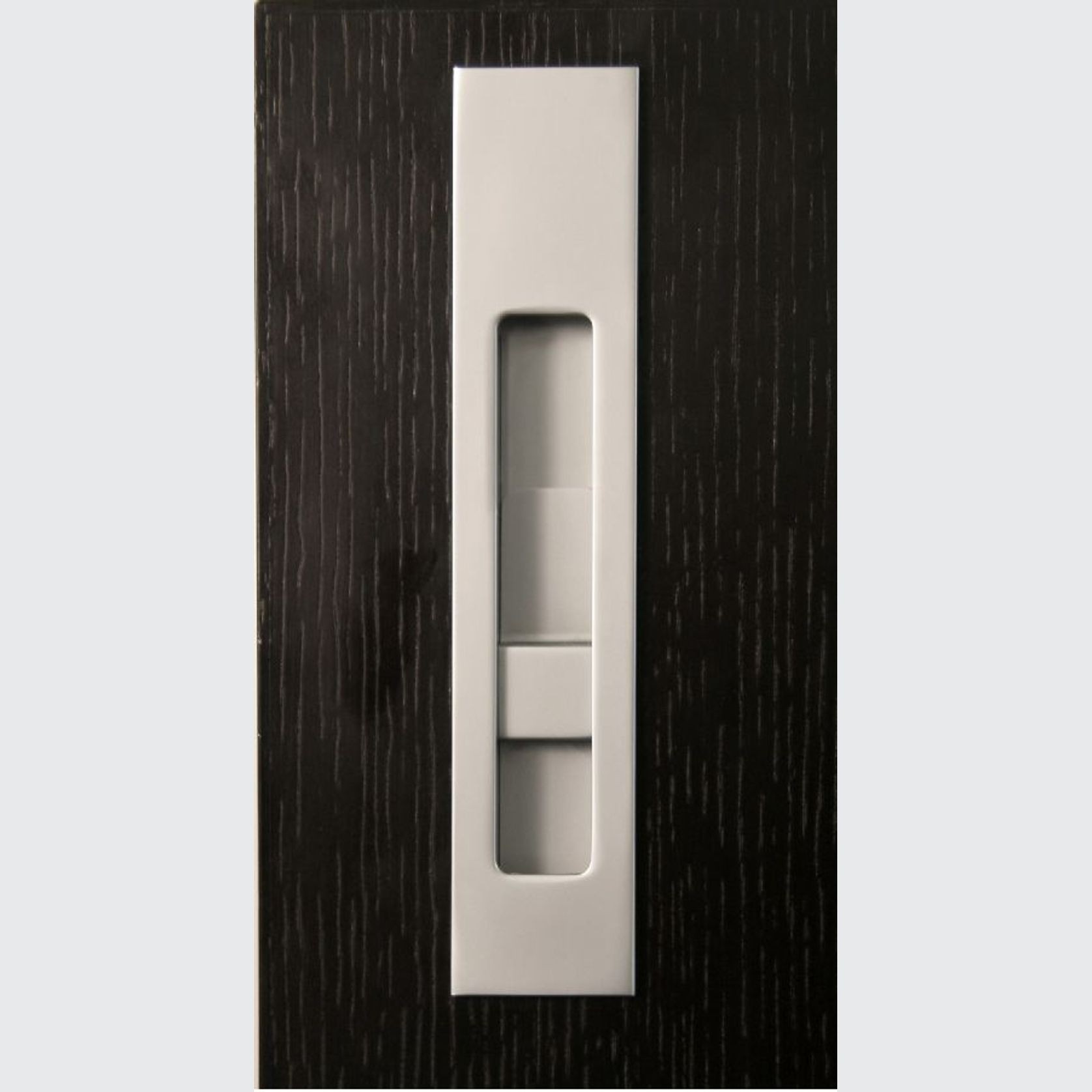

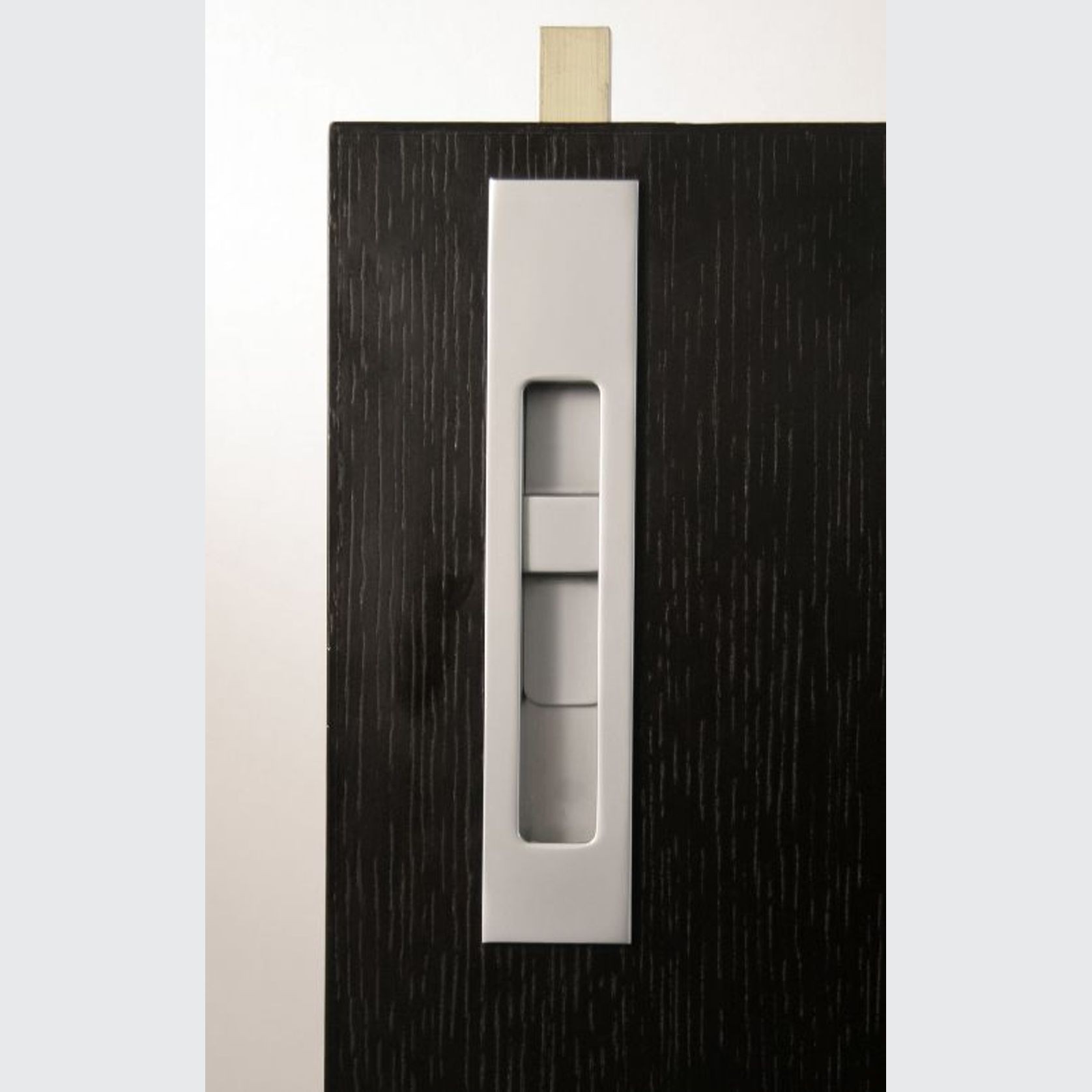

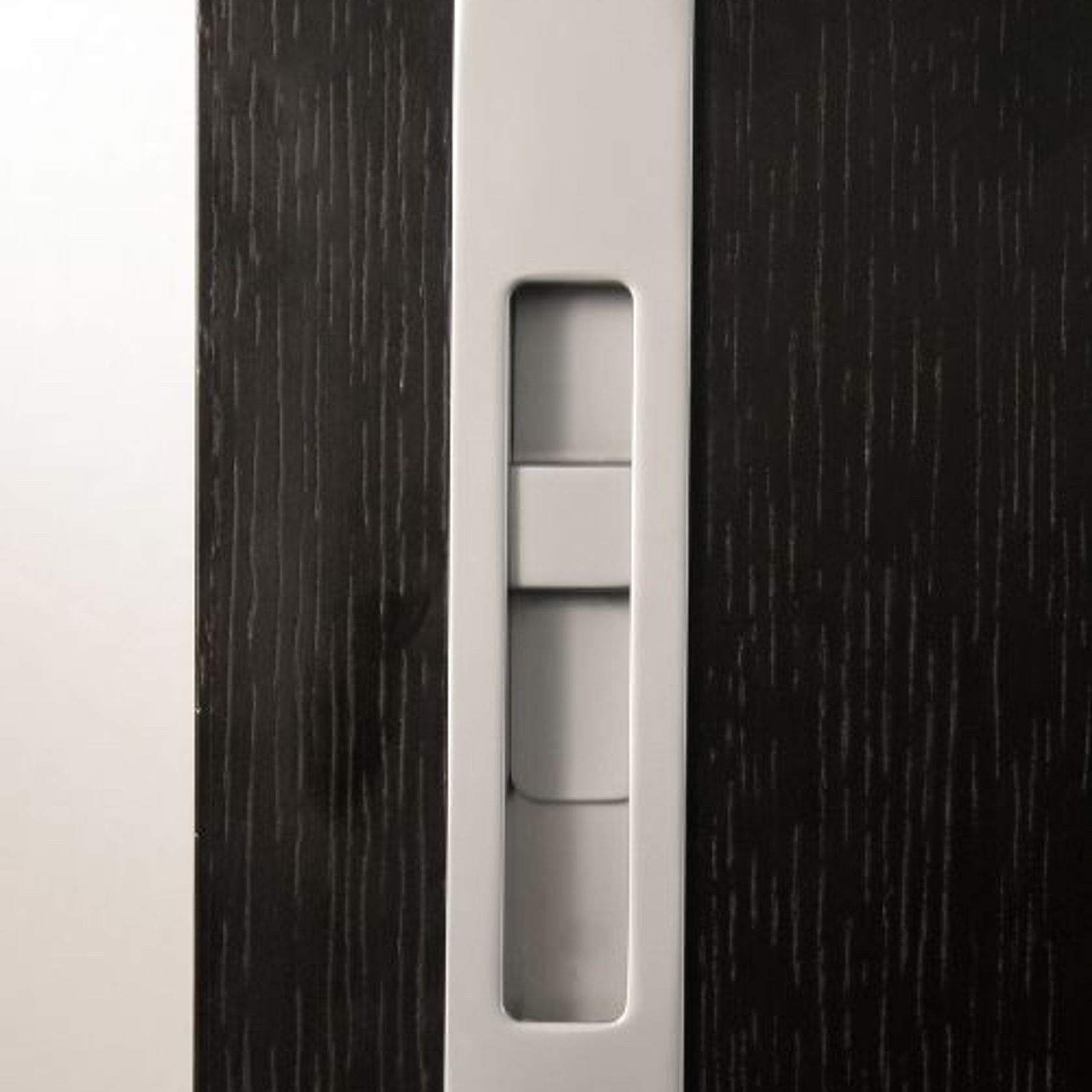

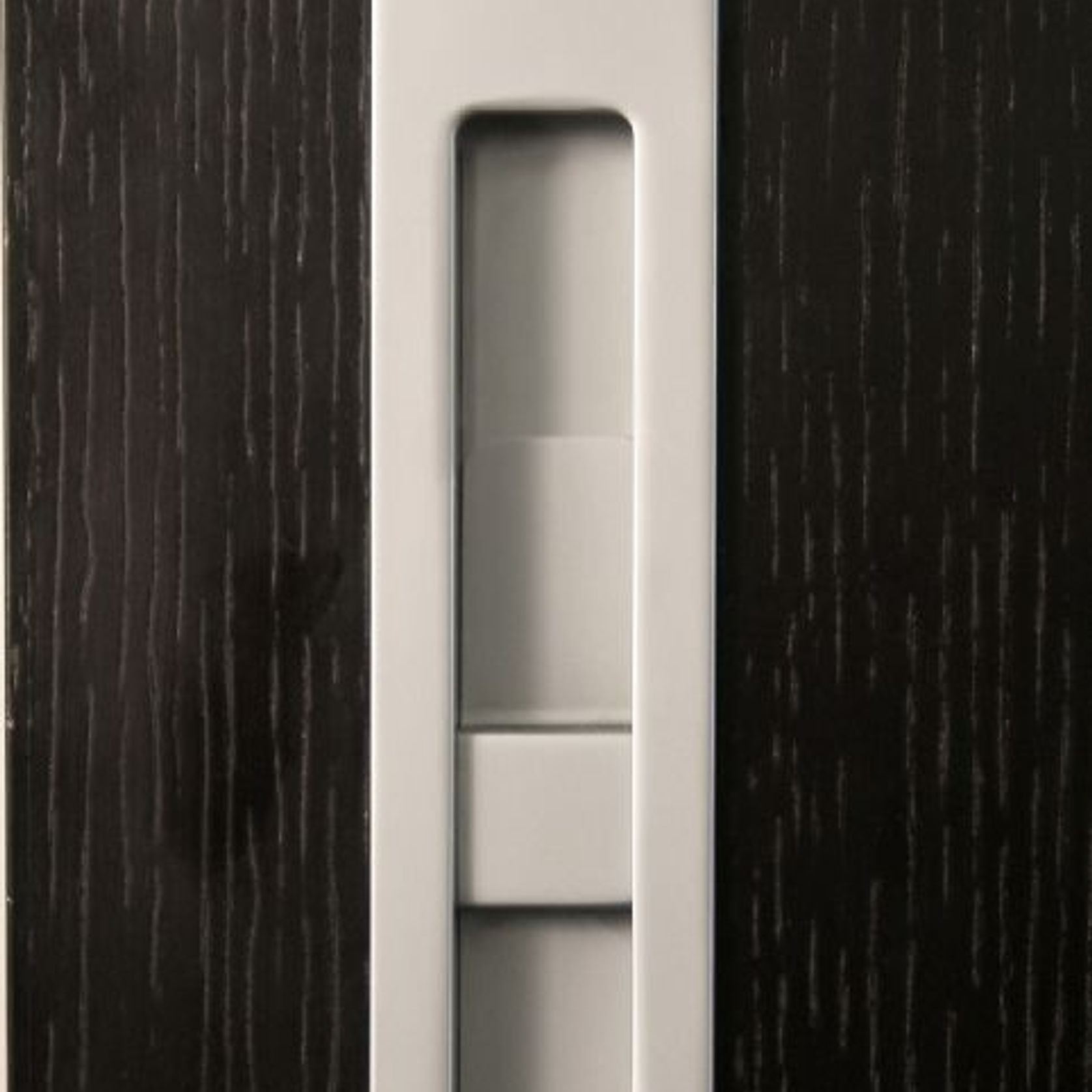

The HB1810 provides a sleek, flush-mounted locking solution for sliding or hinged doors, and can be installed on timber, aluminium, and steel door types.

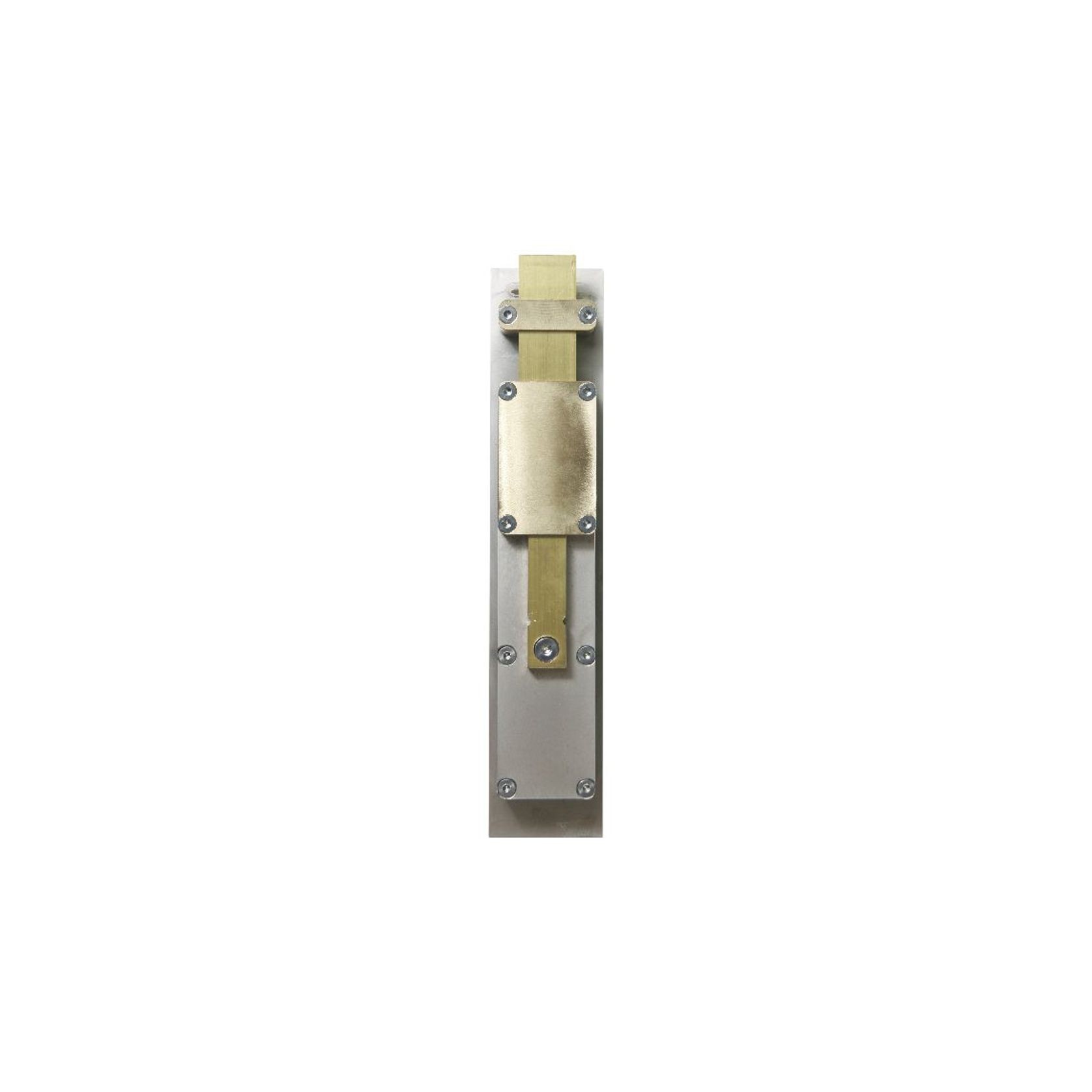

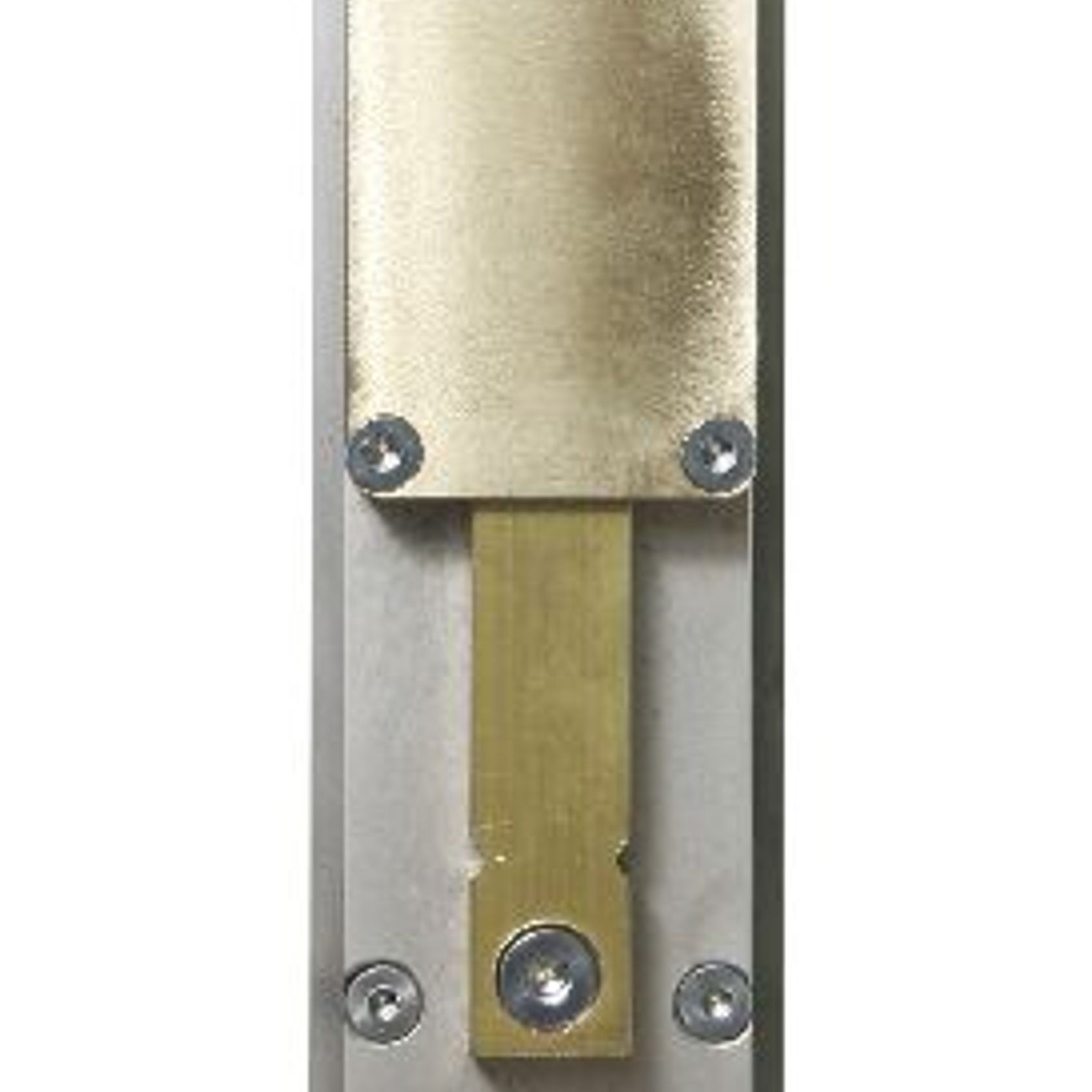

Crafted from solid brass, the HB1810 bolt is precision-milled and features an integrated tension adjustment mechanism for smooth, reliable operation.

Also available is the HB1820 flush bolt with a rounded throw bolt.

Details
  • Category
    Door Bolts, Sliding Door Gear
  • Range
    Sliding Snib Lock Sets
  • Brand
    Halliday + Baillie
  • Designer
    Halliday + Baillie
Scope of use
  • Designed for sliding doors, particularly aluminium joinery, where a slim, flush-mounted locking bolt is required.
    • Suitable for timber, aluminium, or steel doors (timber installations require the HB1850 fixing kit).
    • Ideal for situations where a discreet, minimal-profile locking solution is needed without adding a surface-mounted latch or handle.
    • Can be used on top or bottom rails to secure one leaf of a sliding or hinge door in a fixed position.
Features

(For use on timber doors, an HB1850 Timber Fixing Kit is required and can be purchased separately.)

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Glue, epoxy, silicone products etc are not required or recommended for installation, and may void warrantee.

Specs / Details

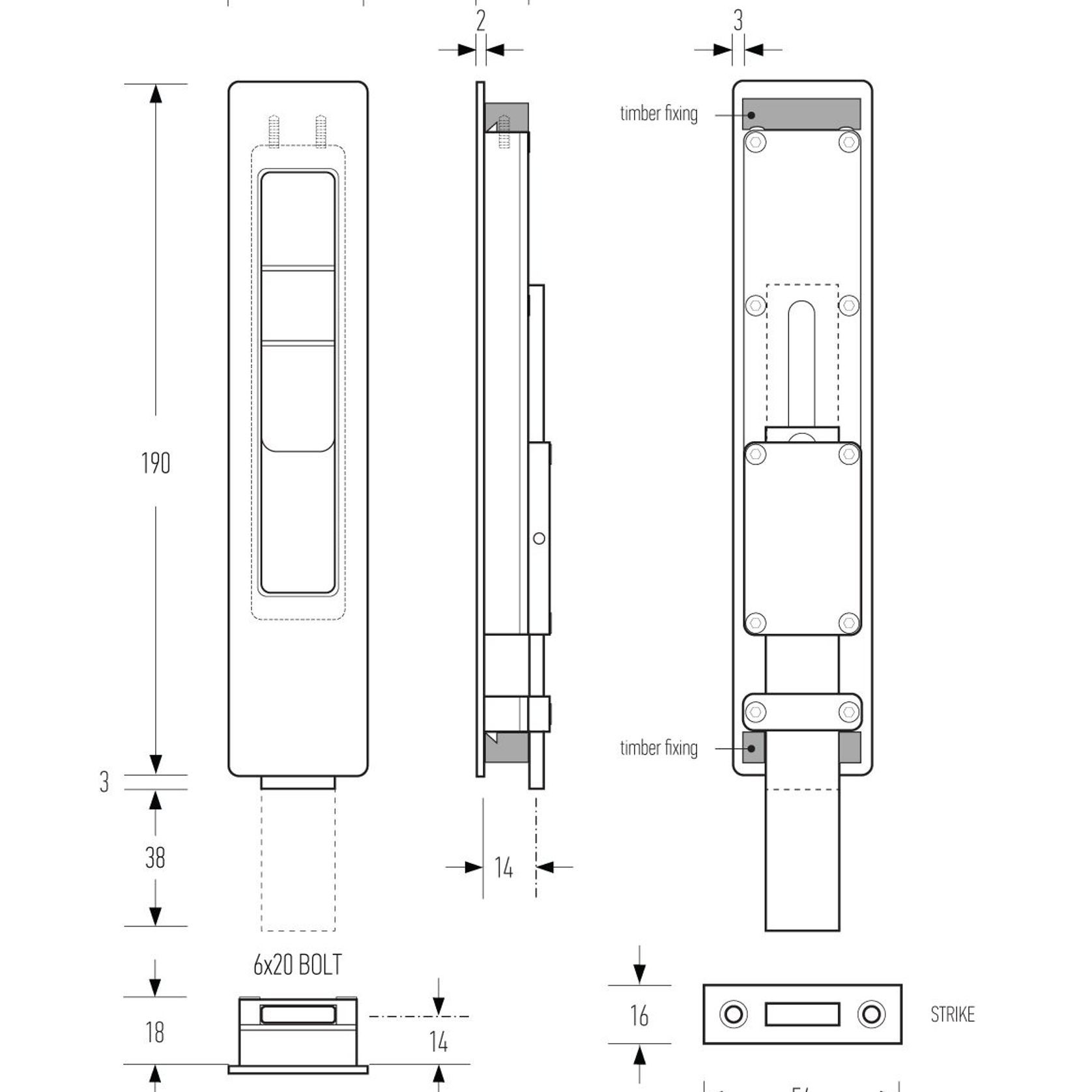

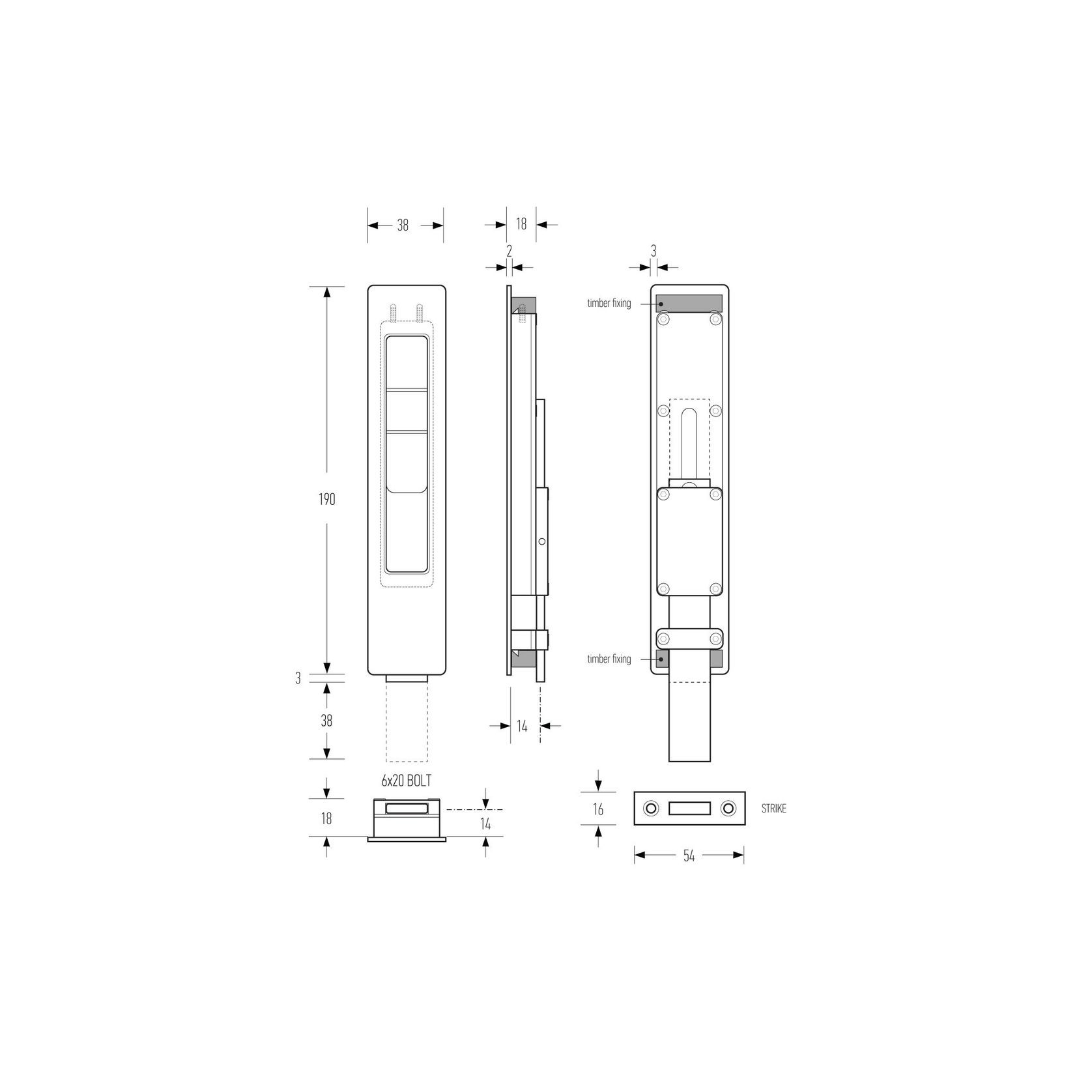

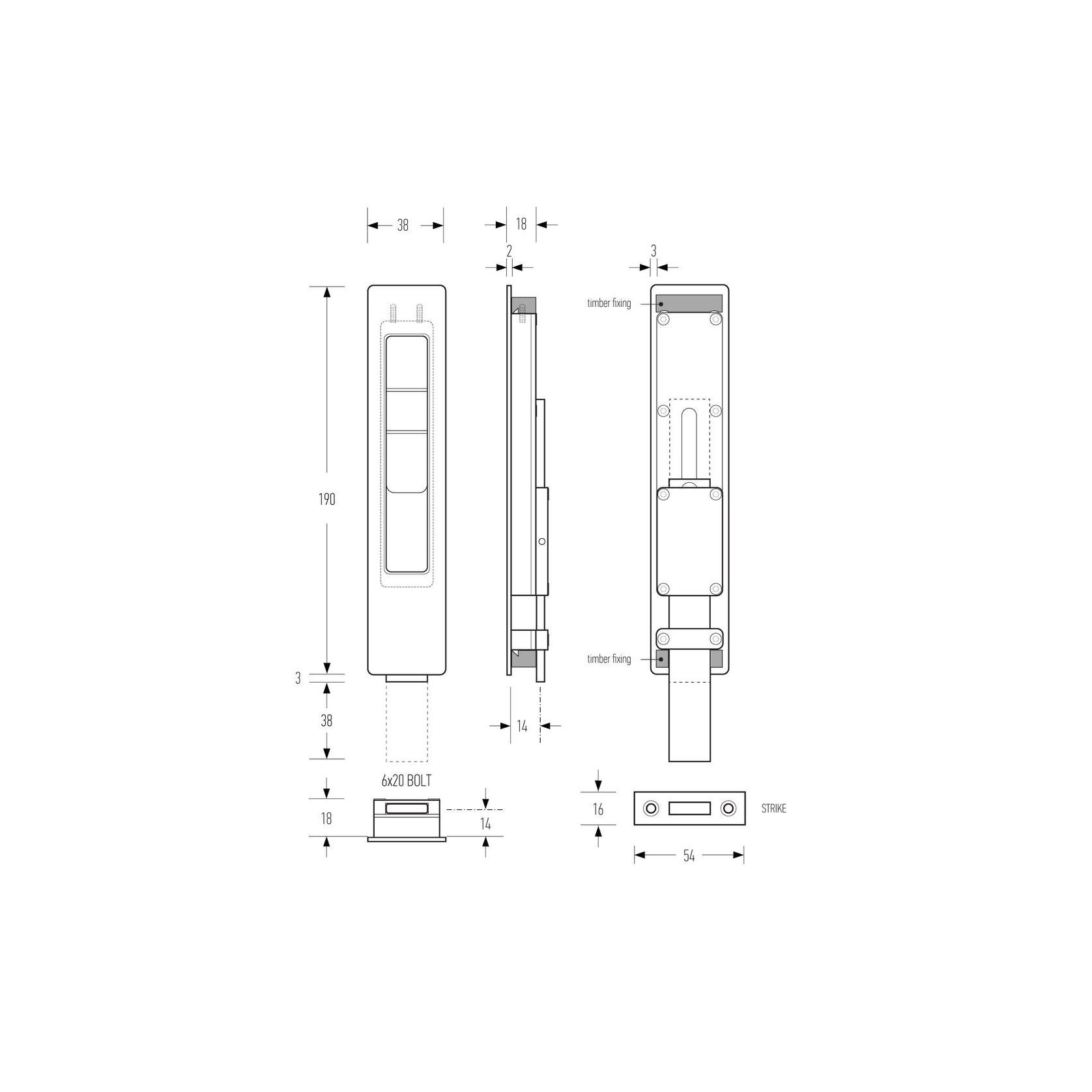

Minimum door thickness : 38mm for timber doors, 35mm for aluminium doors. Material : Milled solid brass and stainless steel Dimensions : 220 x 38 x 28

Please note that these bolts are not designed to be used as both handle and bolt and we recommend using the bolt with an additional flush pull (please see the HB660, HB665, or HB668 as matching width options).
