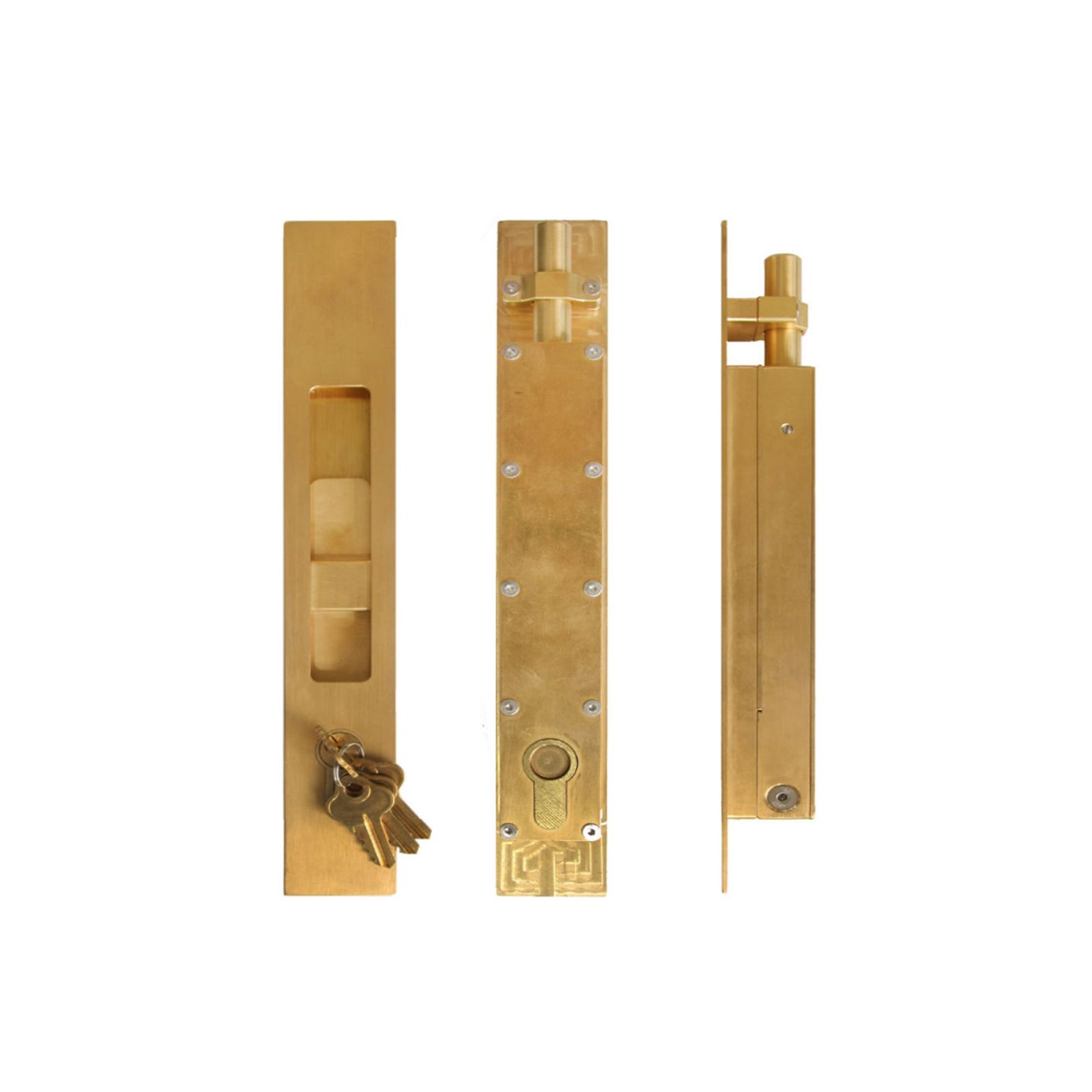

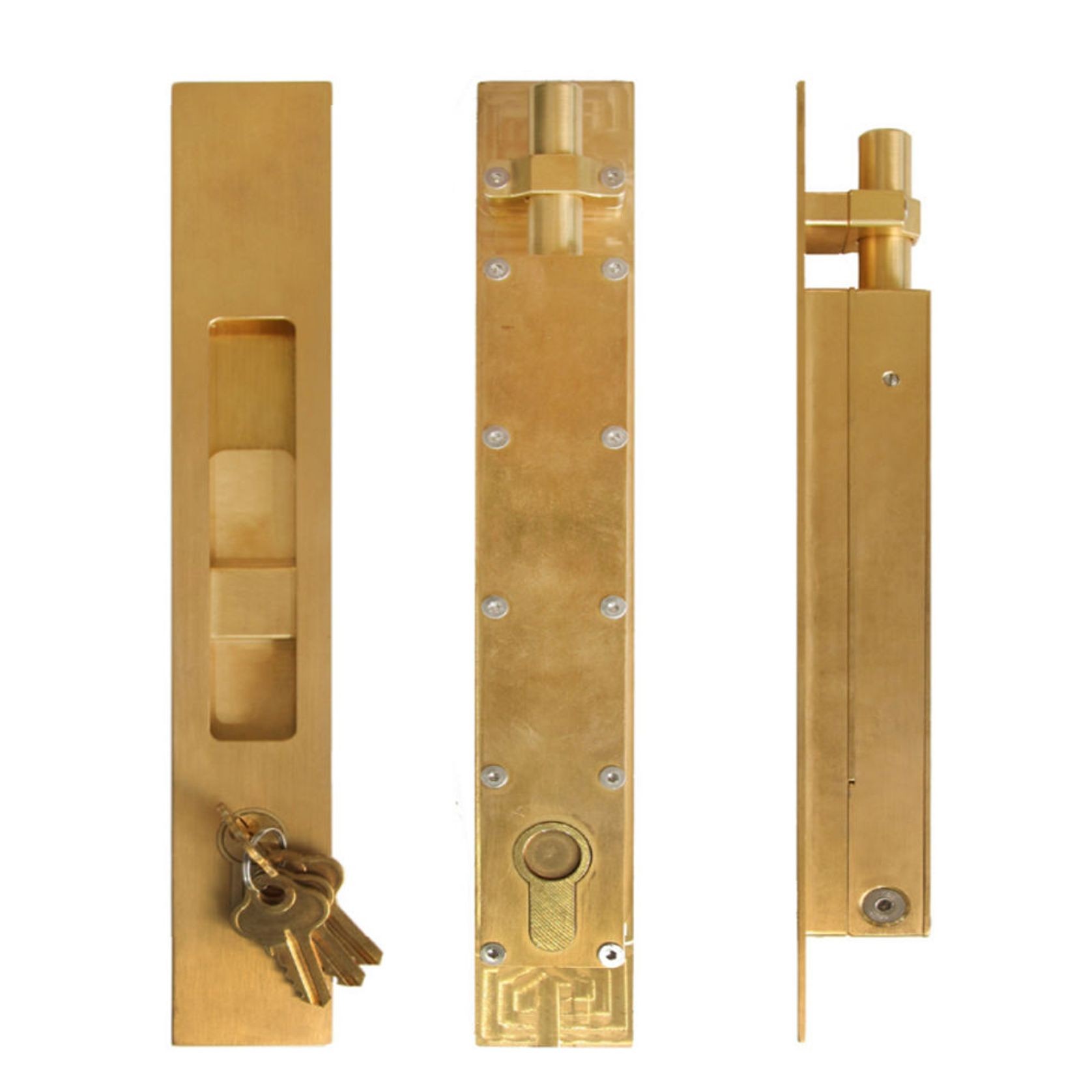

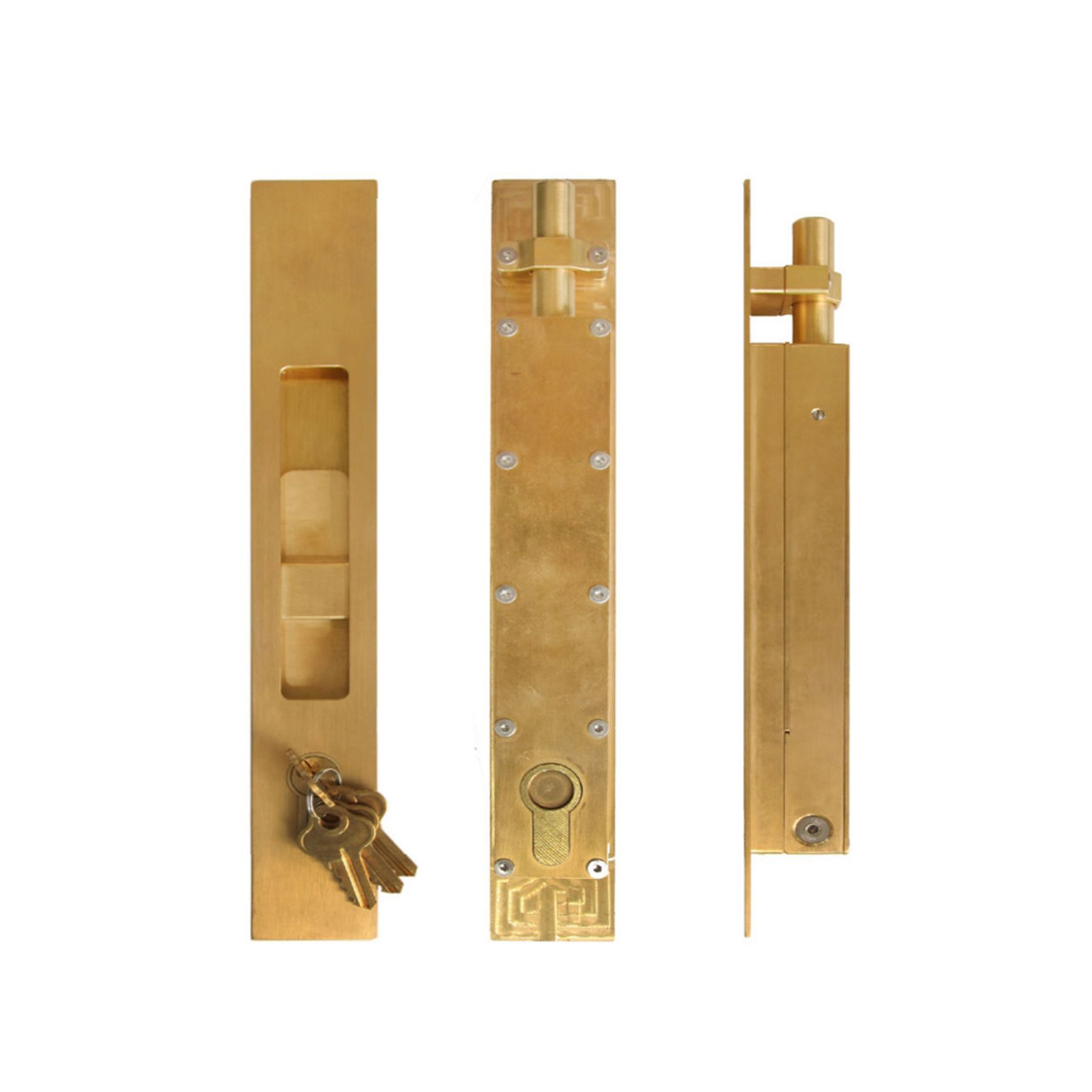

HB1830 Key Locking Flush Bolt (Round Throw)

Halliday + Baillie

The HB 1830 is a larger key locking version of the HB 1810 & 1820 Flush Bolts. This bolt is able to be key locked with a standard euro cylinder providing additional security for sliding or hinged doors, and can be installed on timber, aluminium, and steel door types.

To accommodate a standard euro cylinder the body of the HB 1830 is significantly larger than its HB 1810 & 1820 counterparts. The bolt weighs approximately 1.3kgs and is ideally suited to large scale doors of at least 42mm thickness. Bolts are milled from solid brass, and incorporate a tension adjusting mechanism with ball bearing detents for smooth operation.

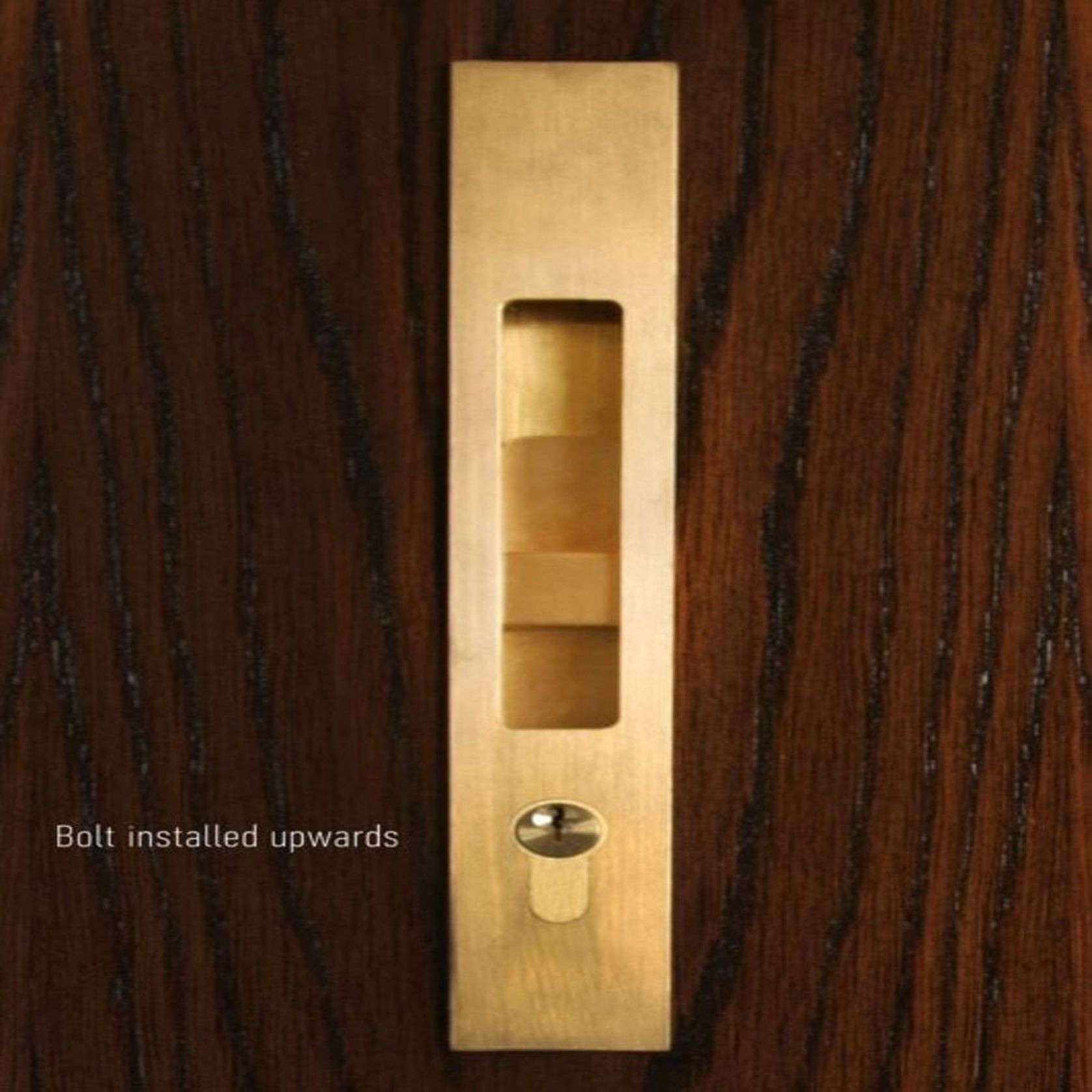

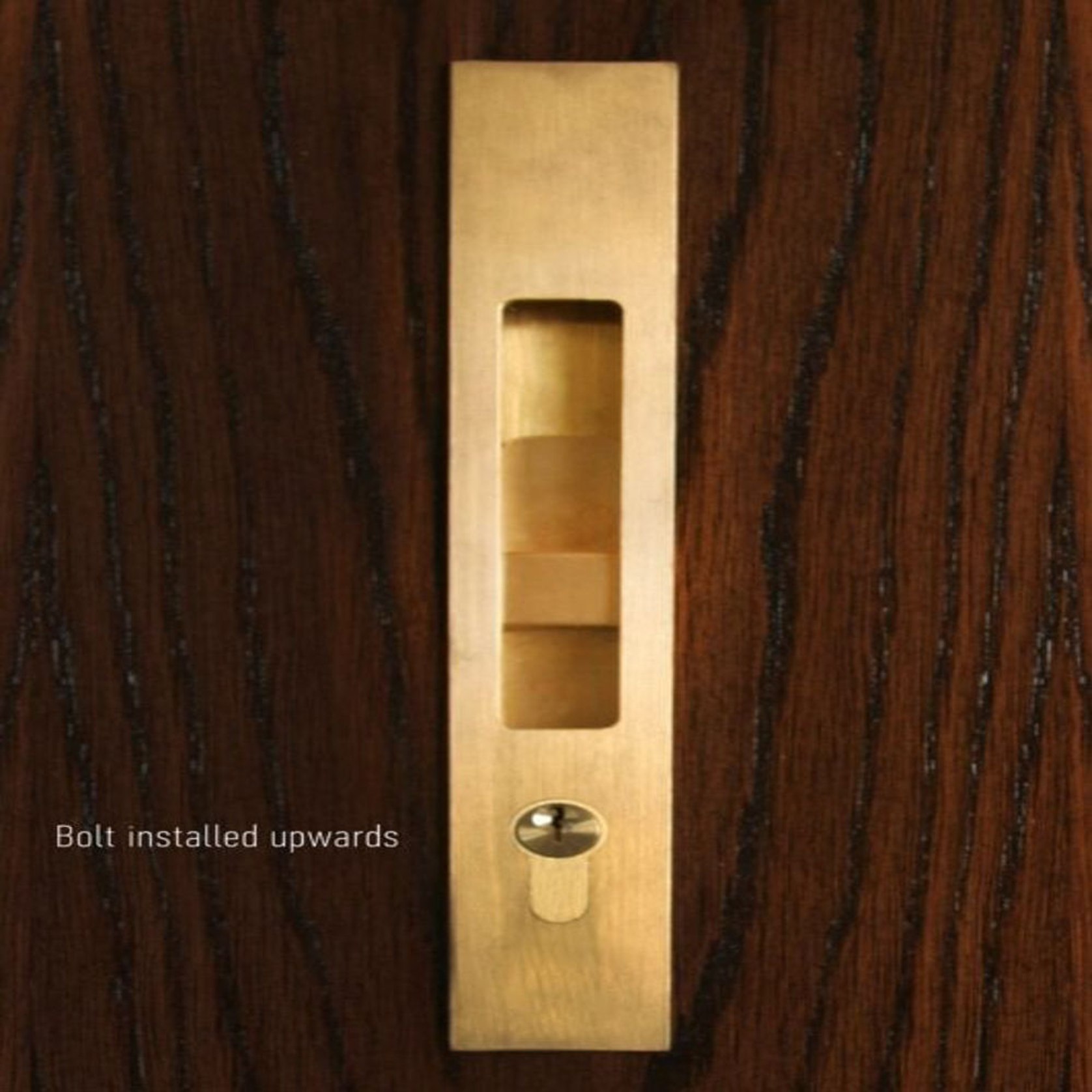

Bolts can be mounted to the top or bottom of doors depending on door detail. The cylinder position however will not change and therefore if the bolt is mounted to the top of the door the cylinder will appear ‘upside down’.

Details
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Scope of use

The HB1830 is designed for applications where a secure, key-operated flush bolt is required for large or heavy doors. Suitable for:

  • Timber, aluminium, and steel doors where a concealed locking solution is preferred
  • Sliding, pivot, and hinged doors needing additional security through a keyed flush bolt
  • Large-scale doors requiring a robust bolt body (minimum door thickness: 45 mm timber, 35 mm aluminium)
  • Architectural and high-spec residential or commercial projects where aesthetic integration and performance are important
  • Situations requiring a round-throw bolt for alignment with receivers in head, jamb, or sill
  • Installations needing a Euro cylinder key system, allowing the bolt to be key-operated from one side
Features

Please note that these bolts are not designed to be used as both handle and bolt and we recommend using with an additional flush pull (please see the HB660, HB665, or HB668 for matching width options).

Ships with fixing kits, strike plate and includes a standard 3pin Euro cylinder that sits flush with the face of the bolt (21mm from centre of cam to edge). Available in round bolt end only. Extension kits available separately.

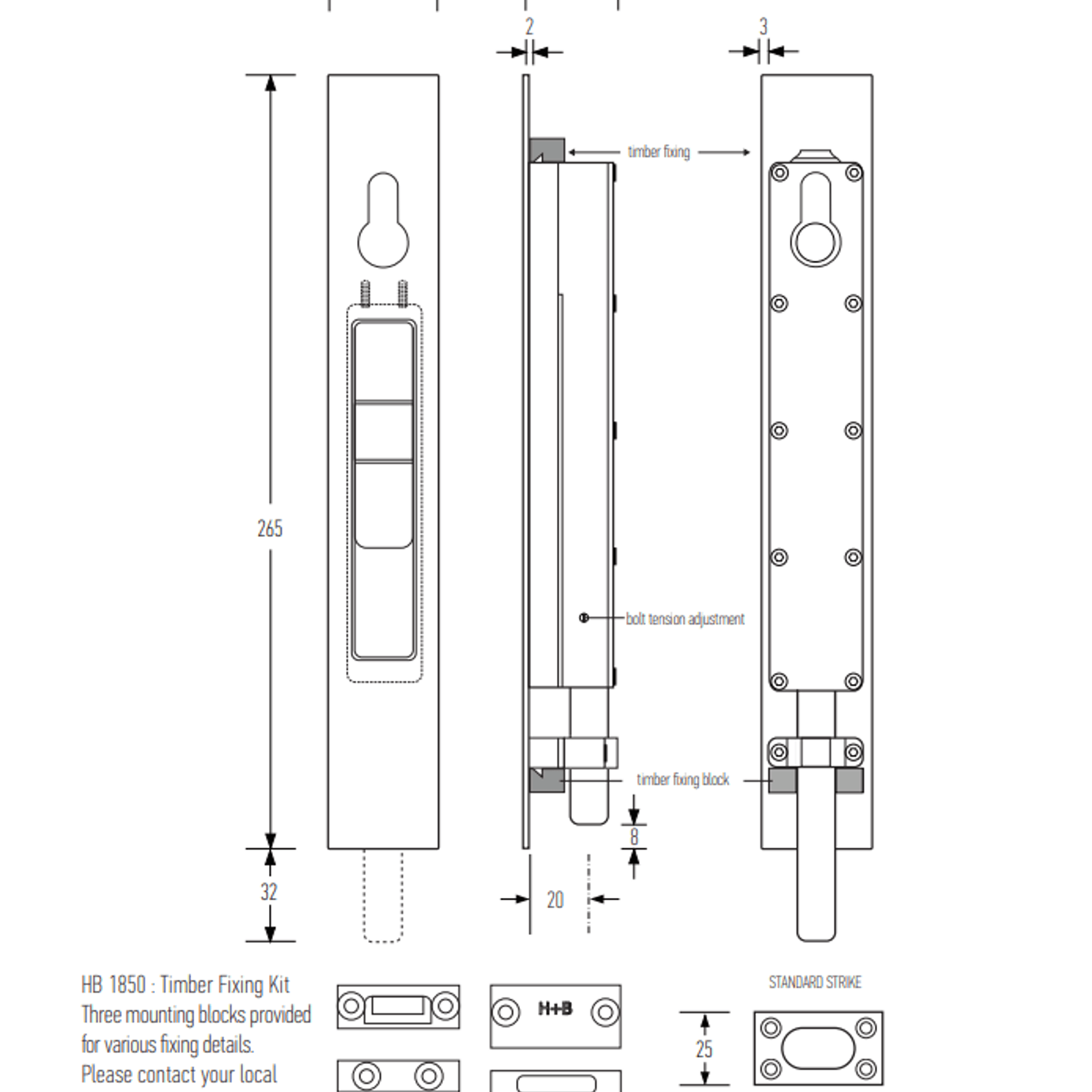

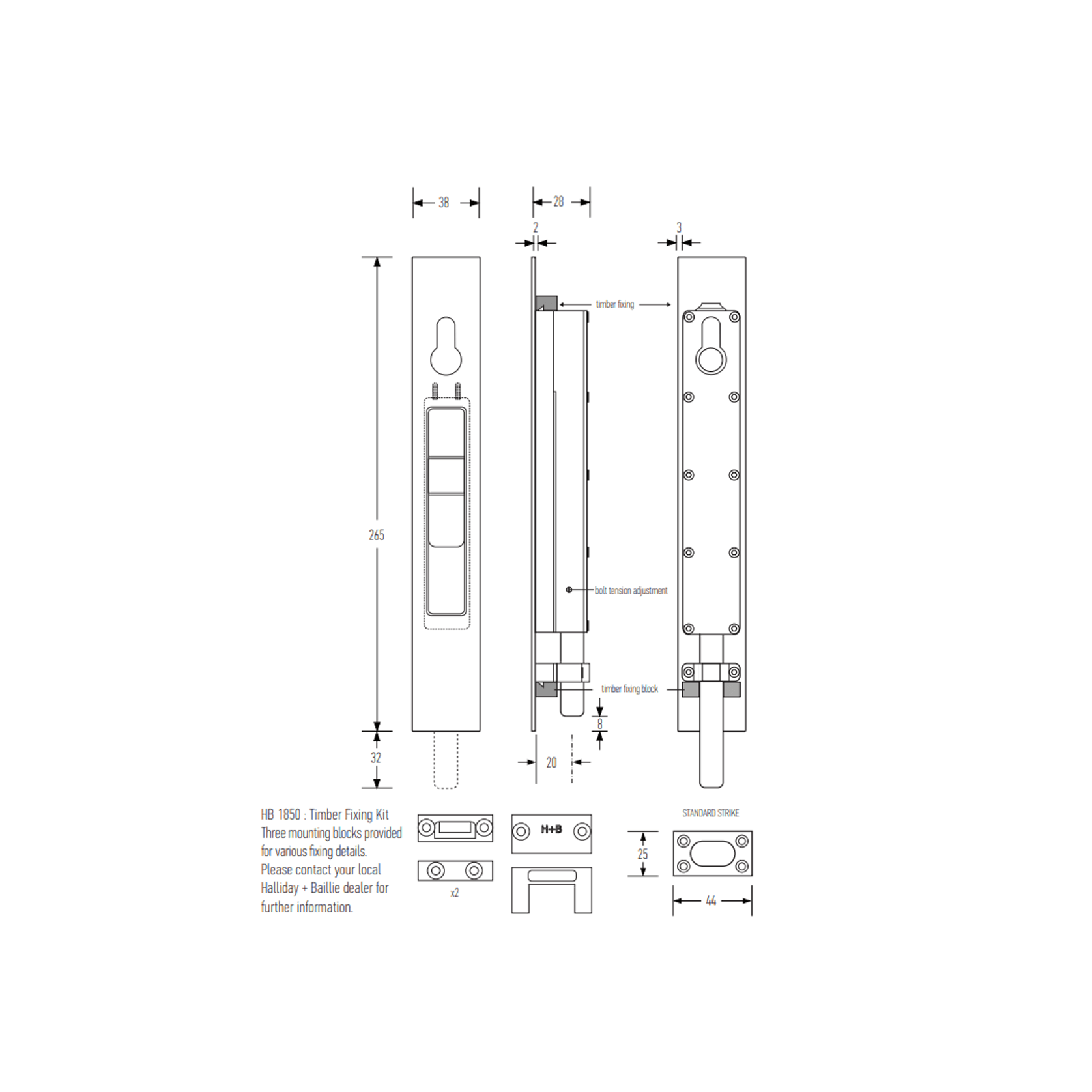

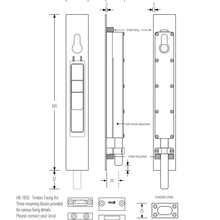

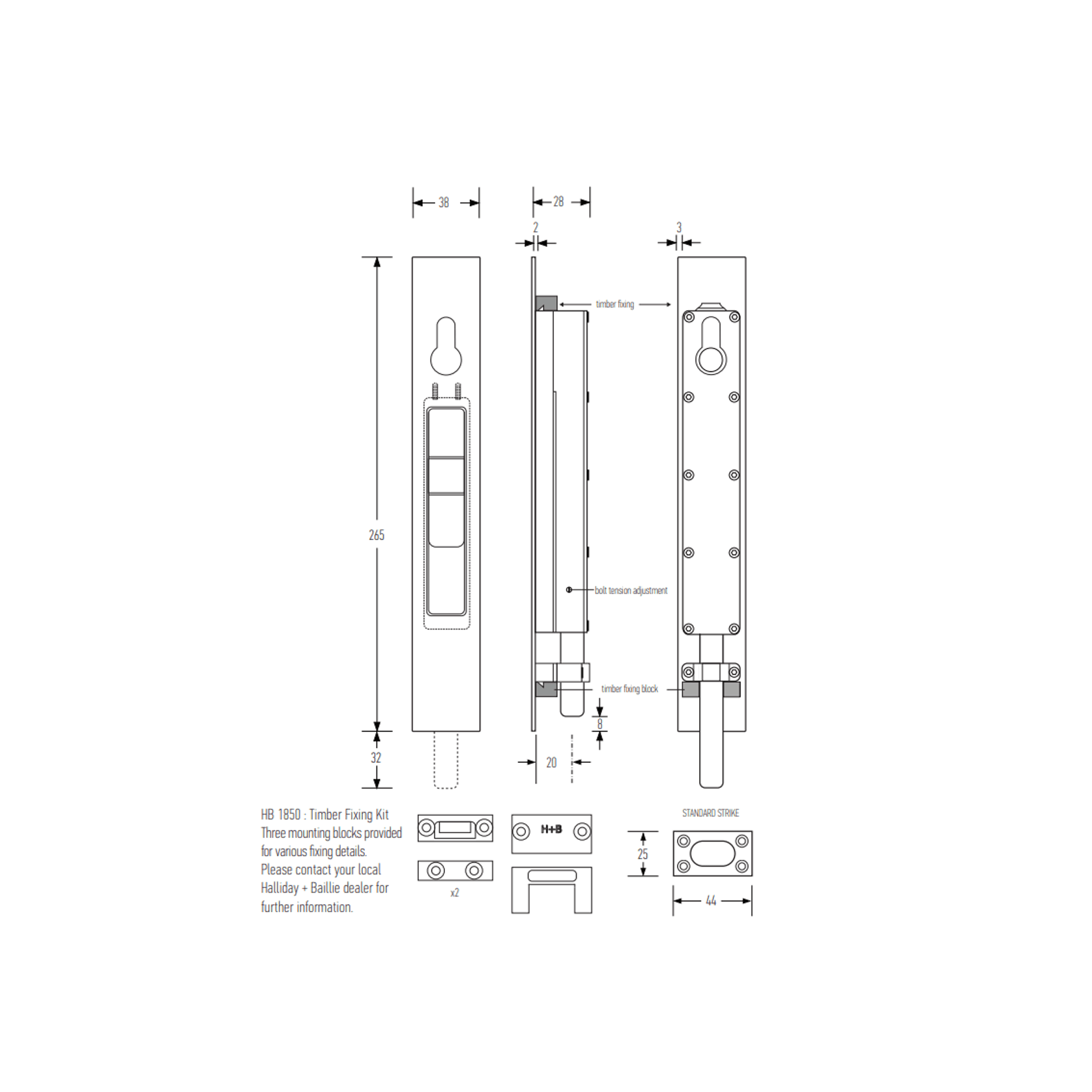

Note : please check dimension drawing for suitability with your track system.

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Glue, epoxy, silicone products etc are not required or recommended for installation, and may void warrantee.

Specs / Details

Minimum door thickness : 45mm for timber doors and 35mm for aluminium doors

Material : Milled solid brass and stainless steel Dimensions : 265 x 38 x 28

Available in all standard Halliday + Baillie finishes. See finishes sheet for further details.
