High-speed roll-up door EFA-SRT® MS Performance

By EFAFLEX
Visit Website

The EFA-SRT® MS Performance is ideal for areas with custom requirements, as it can be flexibly adapted to individual needs. The newly developed door frames made of extruded aluminum profiles allow for the attachment of supplied components and fence connections in nearly any position. It’s possible to integrate up to four optional end switches into the door frames. Thanks to the optimized construction, our trained personnel can quickly assemble the gate on-site, either freestanding or on the wall.

This very low-maintenance gate features, among other things, a hinged cover and detachable cable covers, which expedite and simplify servicing. The EFA-SRT® MS Performance can handle up to 1 million load cycles per year, depending on the variant. The drive is rotatable in 45-degree increments. Additionally, transparent door frame covers allow for the integration of LED strips, enabling the implementation of a traffic light function.

Details
  • Category
    Commercial Doors
  • Range
    MS Series
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-SRT® MS Performance at a glance:

  • Functional safety performance level »d«
  • Up to 1.00.000 cycles per year
  • Transparent, easy-to-open door frames
  • Flexible attachment of components (e.g., fence connections/sensors, etc.)
  • Hinged cover for easy maintenance
  • Rotatable drive in 45-degree increments
  • Self-assembly possible
  • Maximum speed up to 2.0 m / s
  • Door curtain made from flexible PVC
  • Life cycle 12 years
  • Standard sizes of up to w=3,500 mm, h=3,500 mm
Features

Well-thought-out design
The newly developed door frames made of extruded aluminum profiles in the EFA-SRT® MS Performance allow for the flexible attachment of components such as fences or sensors. Integrated cable channels also enable safe and organized cable separation. Maintenance is made easy thanks to a hinged cover.

Highest number of cycles
With its typical EFAFLEX optimized construction, the EFA-SRT® MS Performance effortlessly manages to carry out over a million load cycles per year, a feat unmatched by any other door on the market.

Transparent door frames

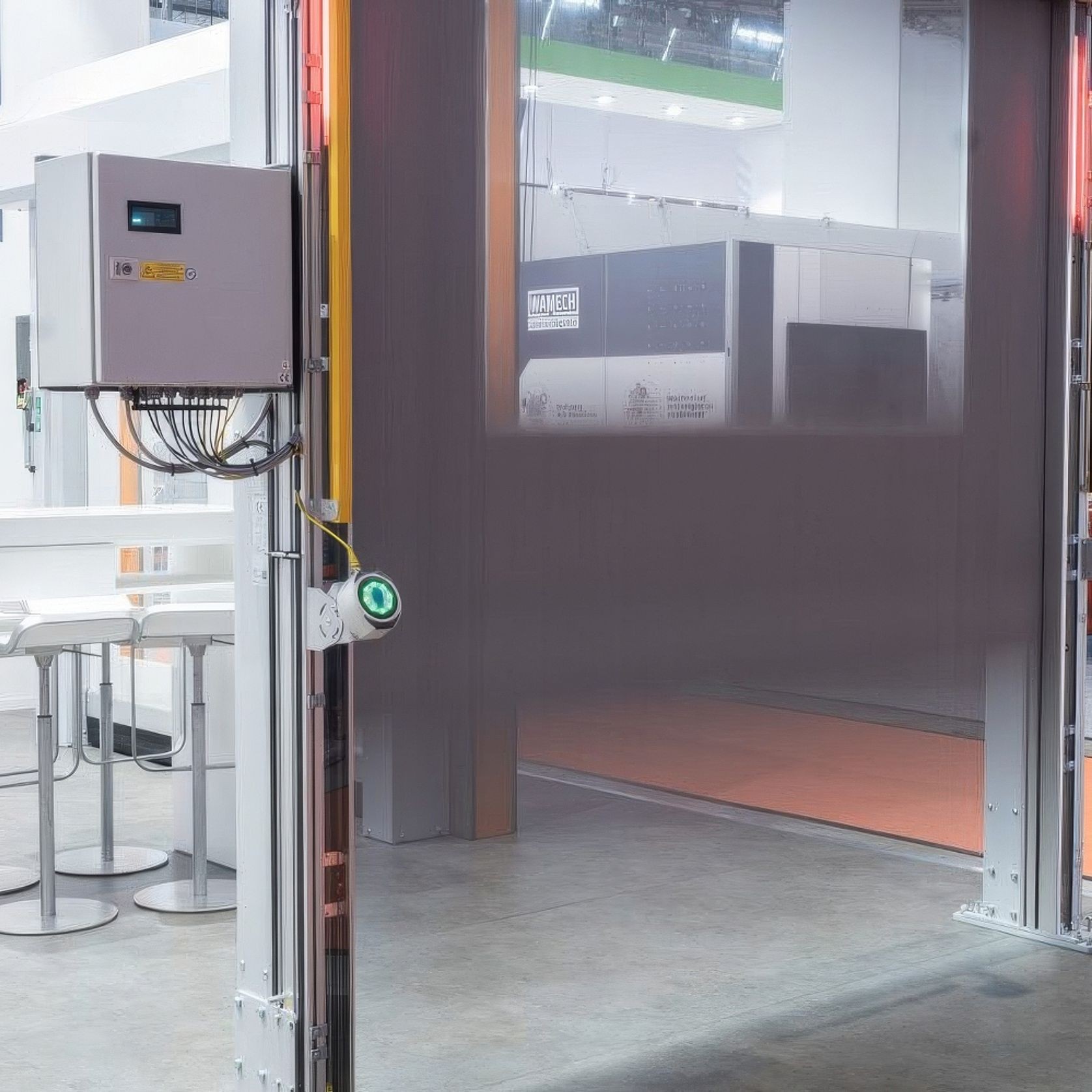

The high-speed rolling door EFA-SRT® MS Performance features transparent door frame covers, allowing for direct visual inspections, integration of LED strips, and the setup of traffic light functions.

Solutions for every installation location
No matter what your on-site conditions may be, the EFA-SRT® MS Performance by EFAFLEX can be installed either on the wall or in two freestanding variants (standard or flush at the front). Depending on the installation variant, the door motor can be rotated in 45-degree increments.

State-of-the-art safety technology
The high-speed rolling door EFA-SRT® MS Performance features a safety light curtain at the closing plane. When the light curtain detects a person or obstacle in the closing plane, the gate’s movement is immediately halted, even before any contact occurs. This enhances safety for both humans and machinery. Furthermore, our machine protection doors can be supplemented with the Head-Safe option. In this case, the operator side is equipped with an additional safety light curtain in front of the closing plane, preventing the gate from closing as soon as an obstacle is detected.
