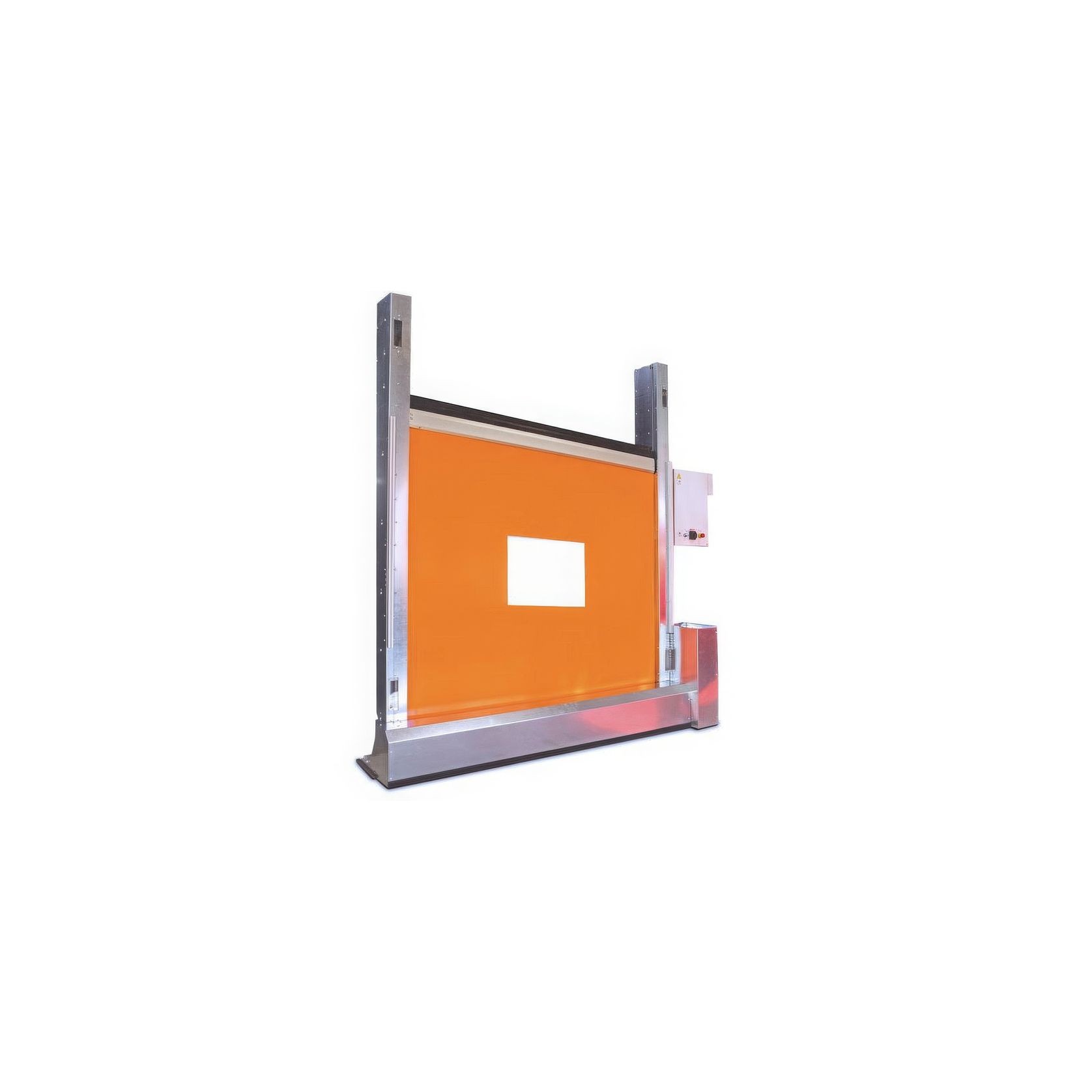

The upside-down high-speed door. The EFA-SRT® MS USD is the first EFAFLEX machine safety door that closes from the bottom up. This reliable, space-saving and low-maintenance upside-down high-speed door was developed specifically for heavy-duty industrial applications. A particularly powerful pulling device which pulls the end-shield upwards is installed in the door cases.

Details
  • Category
    Commercial Doors
  • Range
    MS Series
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-SRT® MS USD at a glance:

  • Use as a movable separating safety guard
  • Door leaf made of flexible, transparent PVC
  • Functional safety performance level »d«
  • Maximum opening speed up to 1.8 m/s
  • EFA-ProfiNetSafe® control unit concept, specially tailored to the requirements of the automotive industry
  • Up to 250,000 operating cycles per year
  • Maximum of 7 cycles per minute
  • Life cycle 12 years
Features

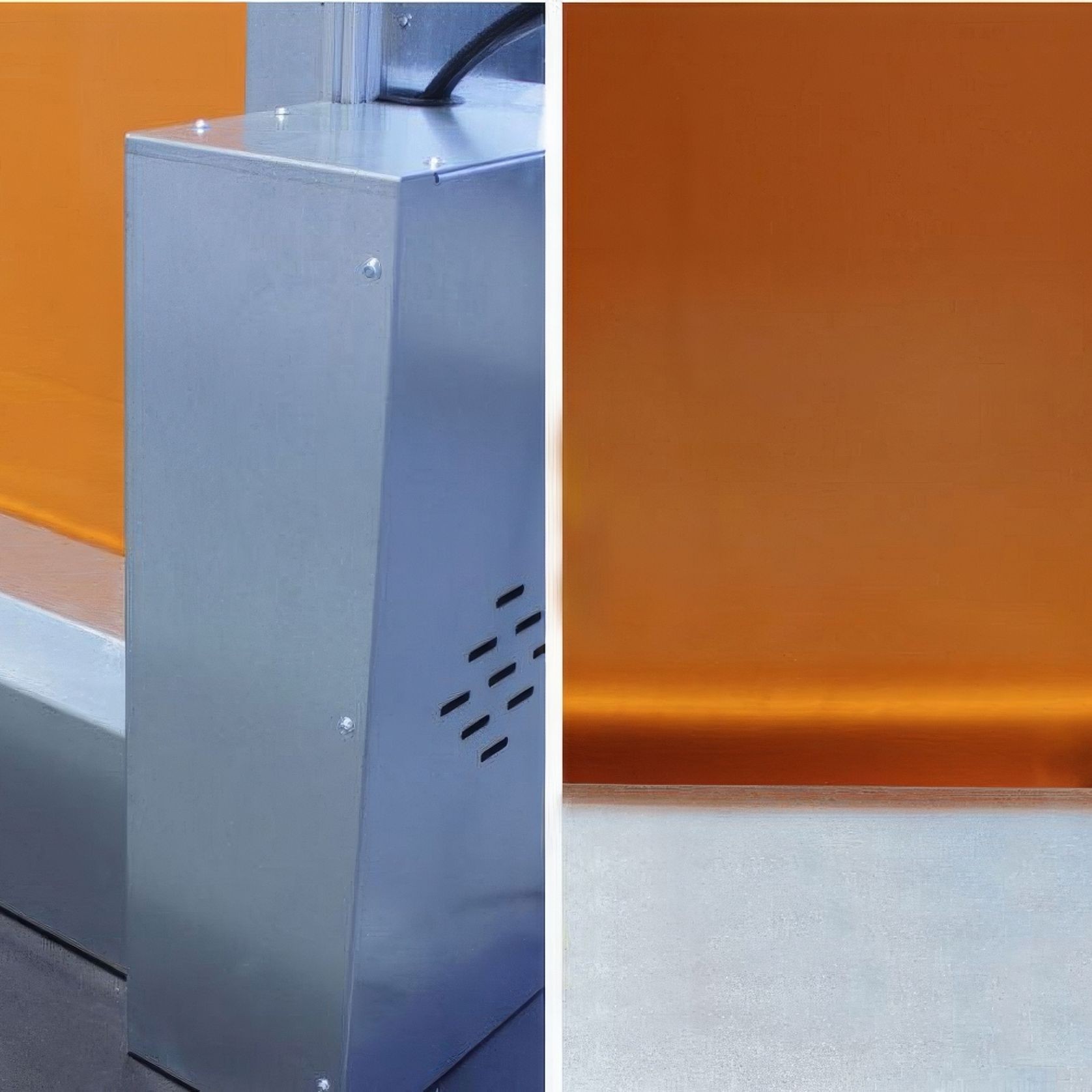

Best stability Due to the floor supports integrated into the side door cases, this roll-up door has a self-supporting design and can be installed as a stand-alone system. Due to its application, it is not intended for wall installation. Securing buttons on the outer edge of the door curtain secure it within the guide rails.

Individual manufacturing options The door dimensions can be configured with widths ranging from 600 to 6,000 mm and heights ranging from 1,000 to 4,500 mm. The flexible door curtain is available in several designs and colours.

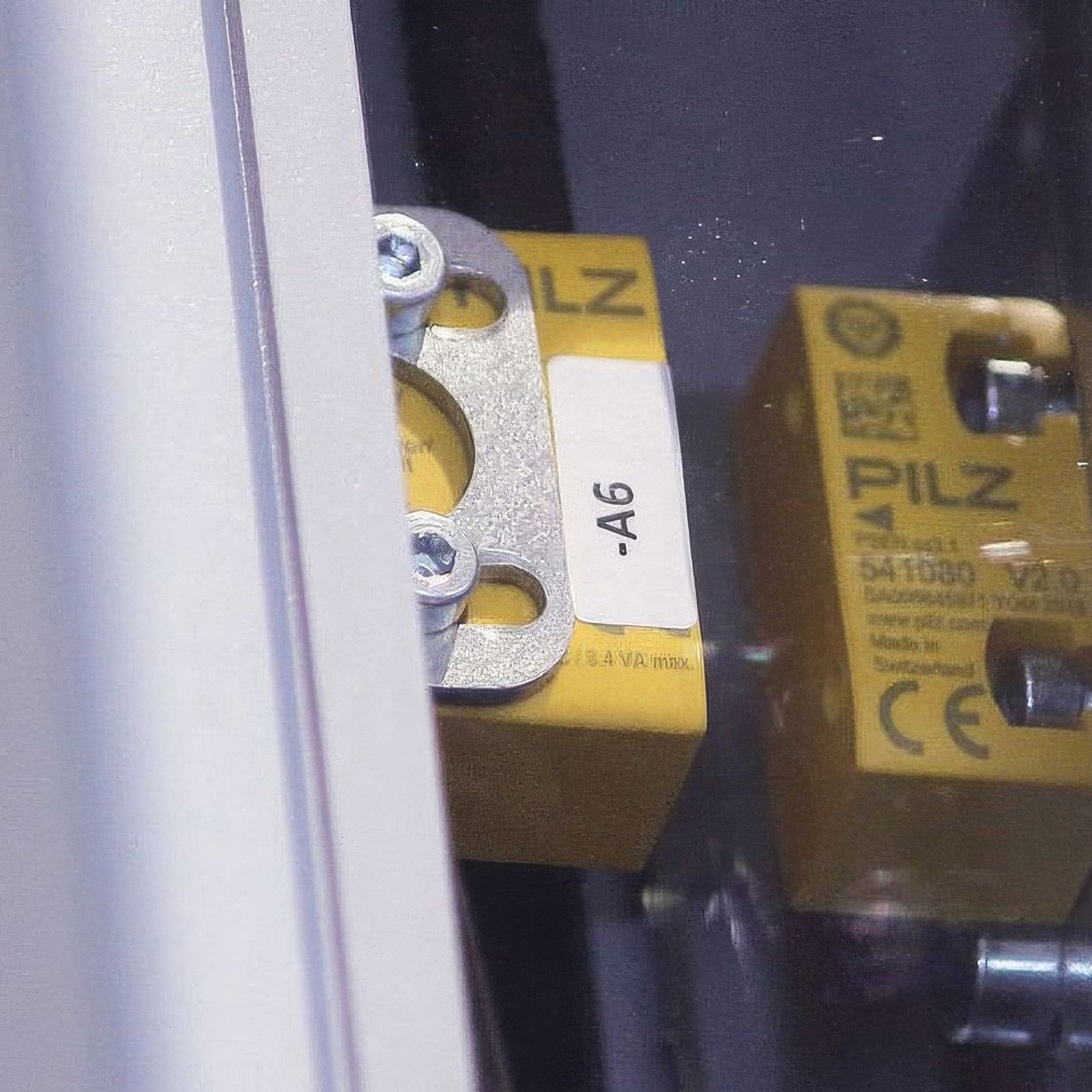

High-end safety technology The EFA-SRT® MS USD has an interlocking device in accordance with DIN EN ISO 14120 and thus serves as a single-acting, power-operated, movable guard and as a personnel restraint device. In combination with the machine’s control system, the door guarantees the highest level of safety for people working with plant or machinery in the industrial and commercial sector. A safe limit switch serves as an electric locking mechanism between the door and the machinery or equipment. To ensure protection against reaching into the door mechanism, both the winding shaft and the drive are completely covered with sheet metal profiles.
