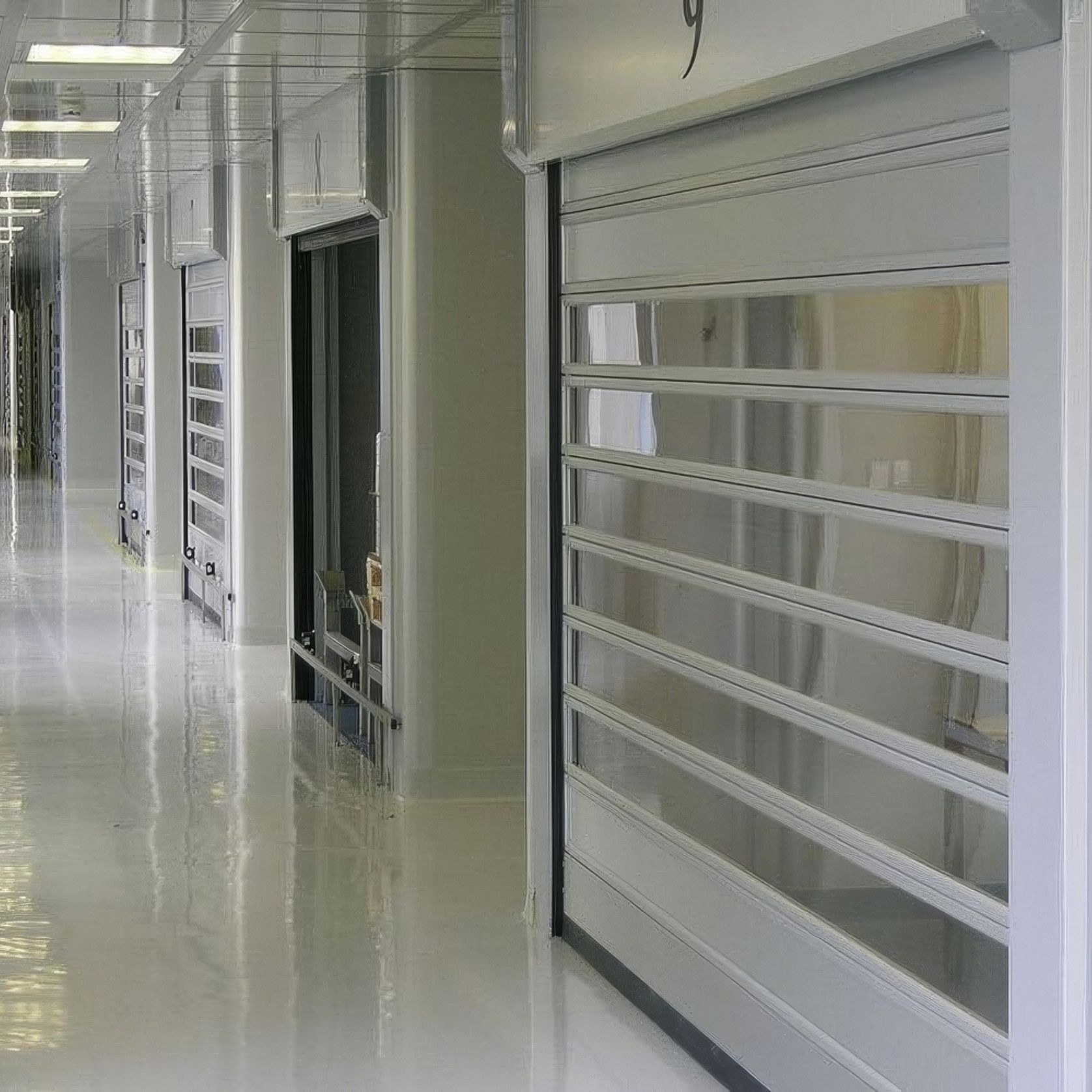

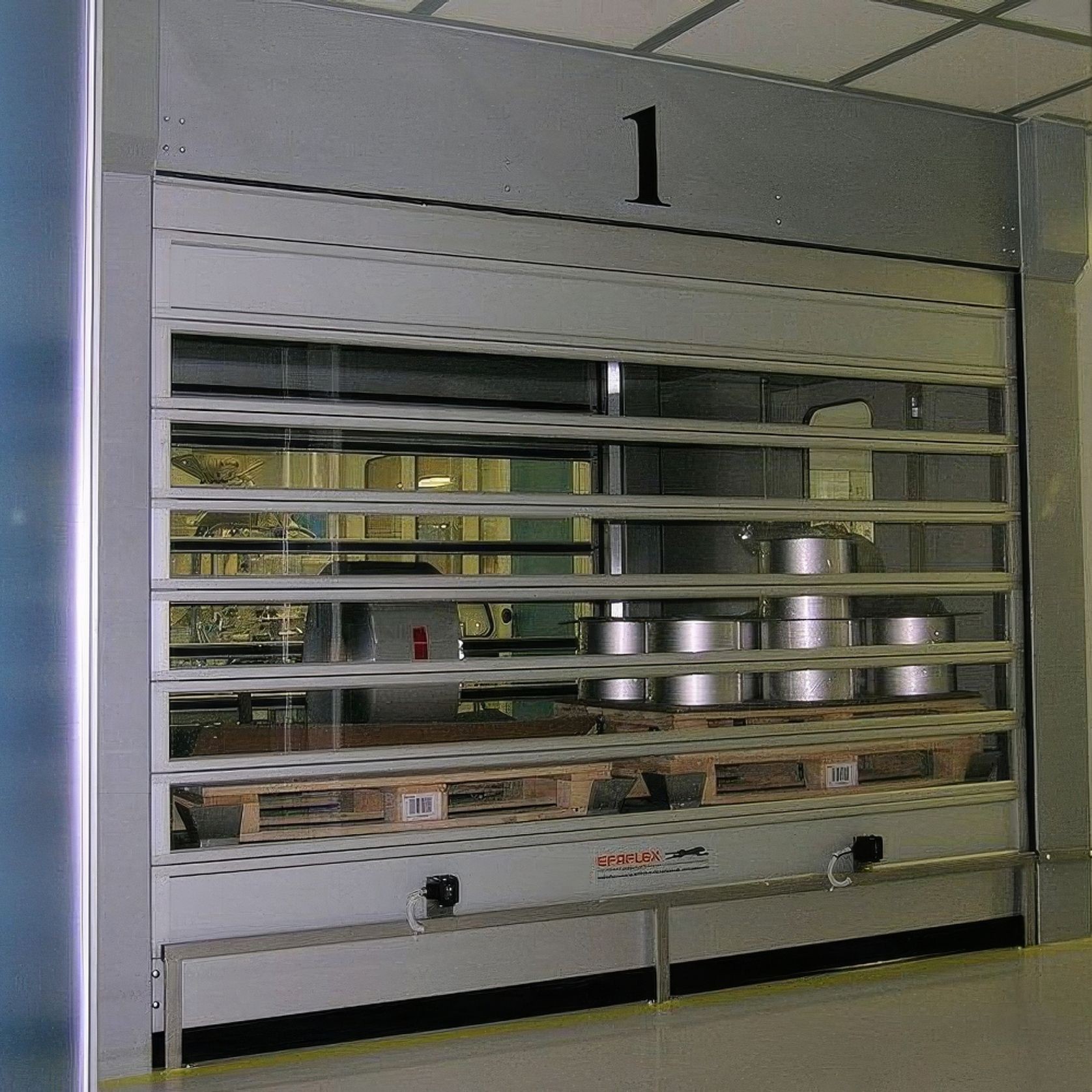

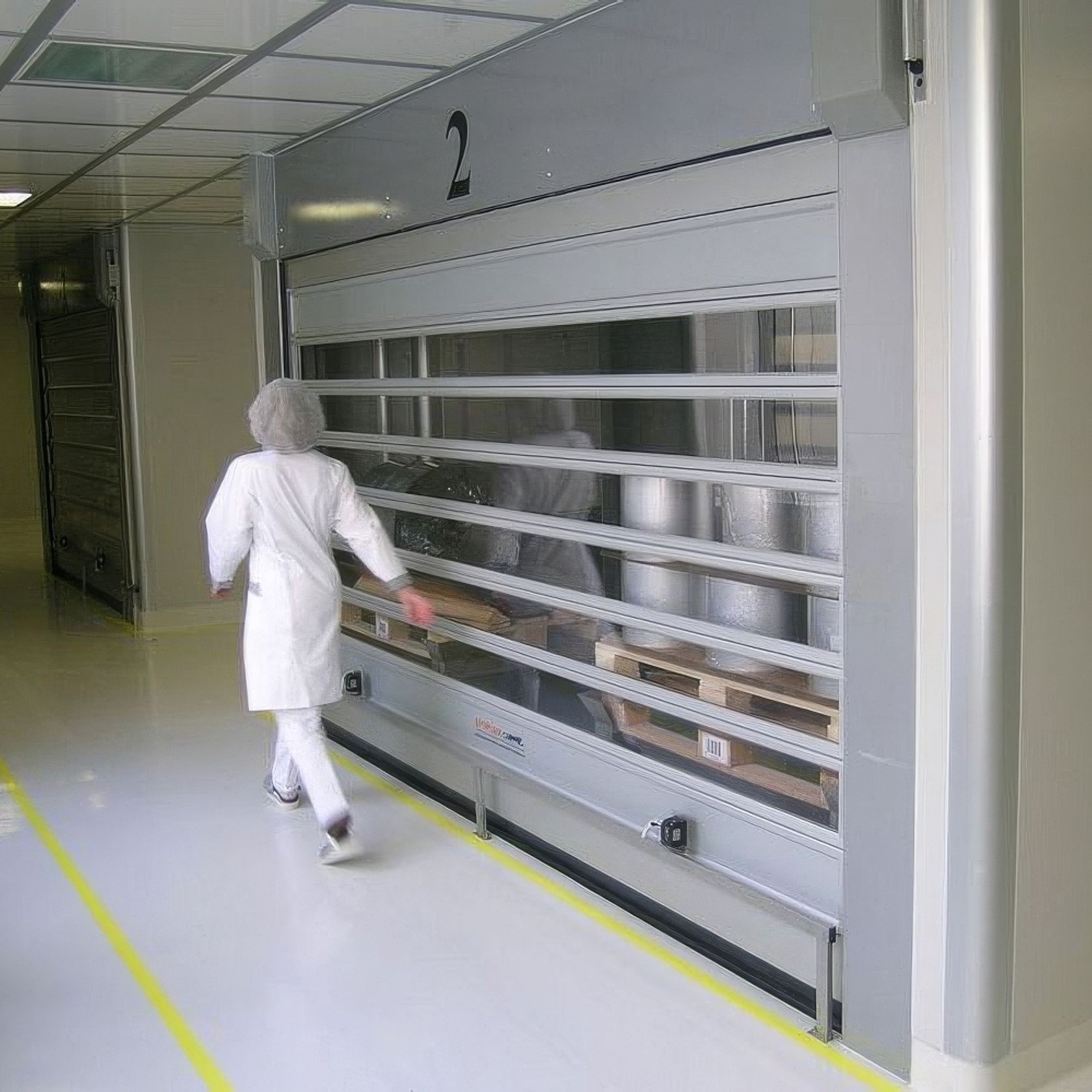

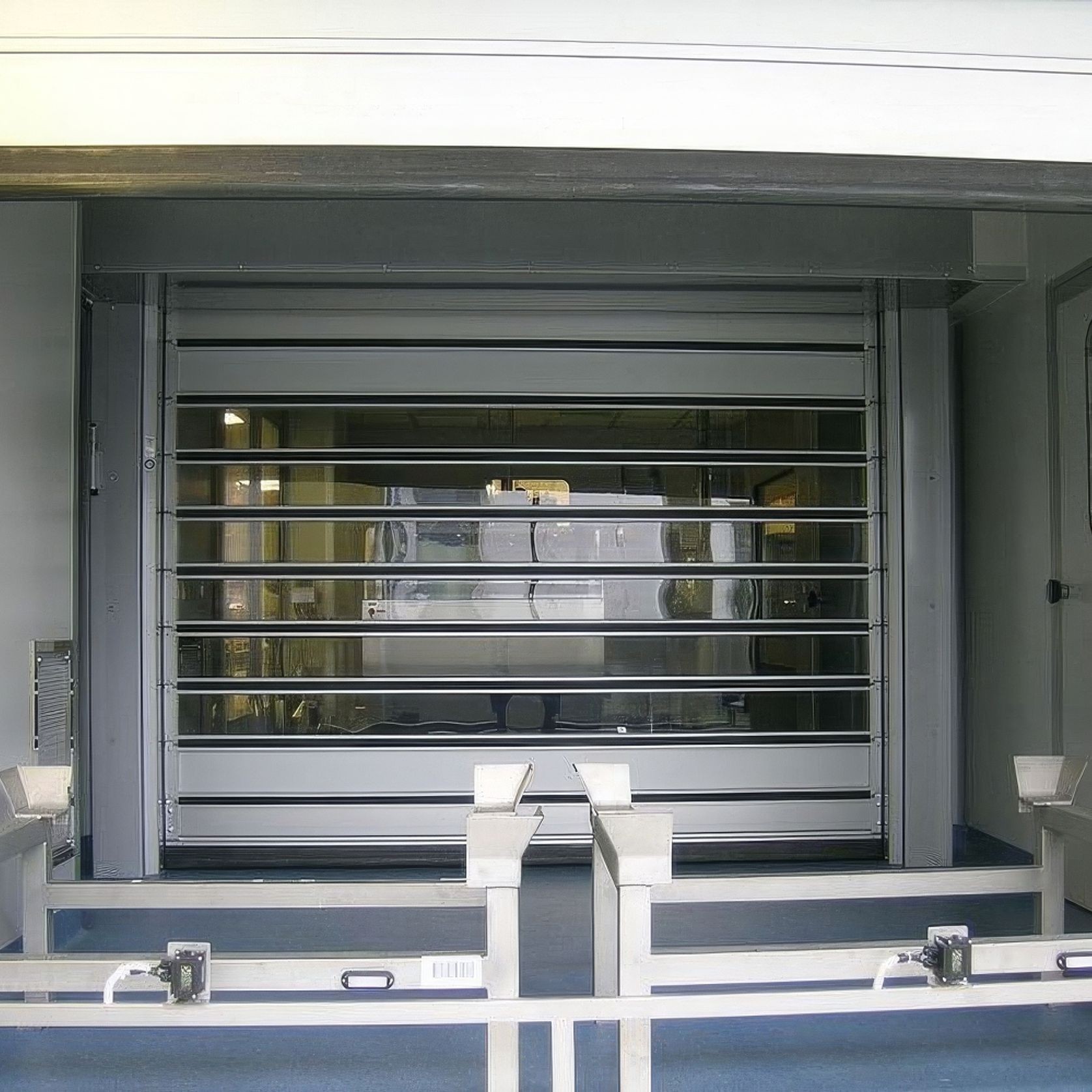

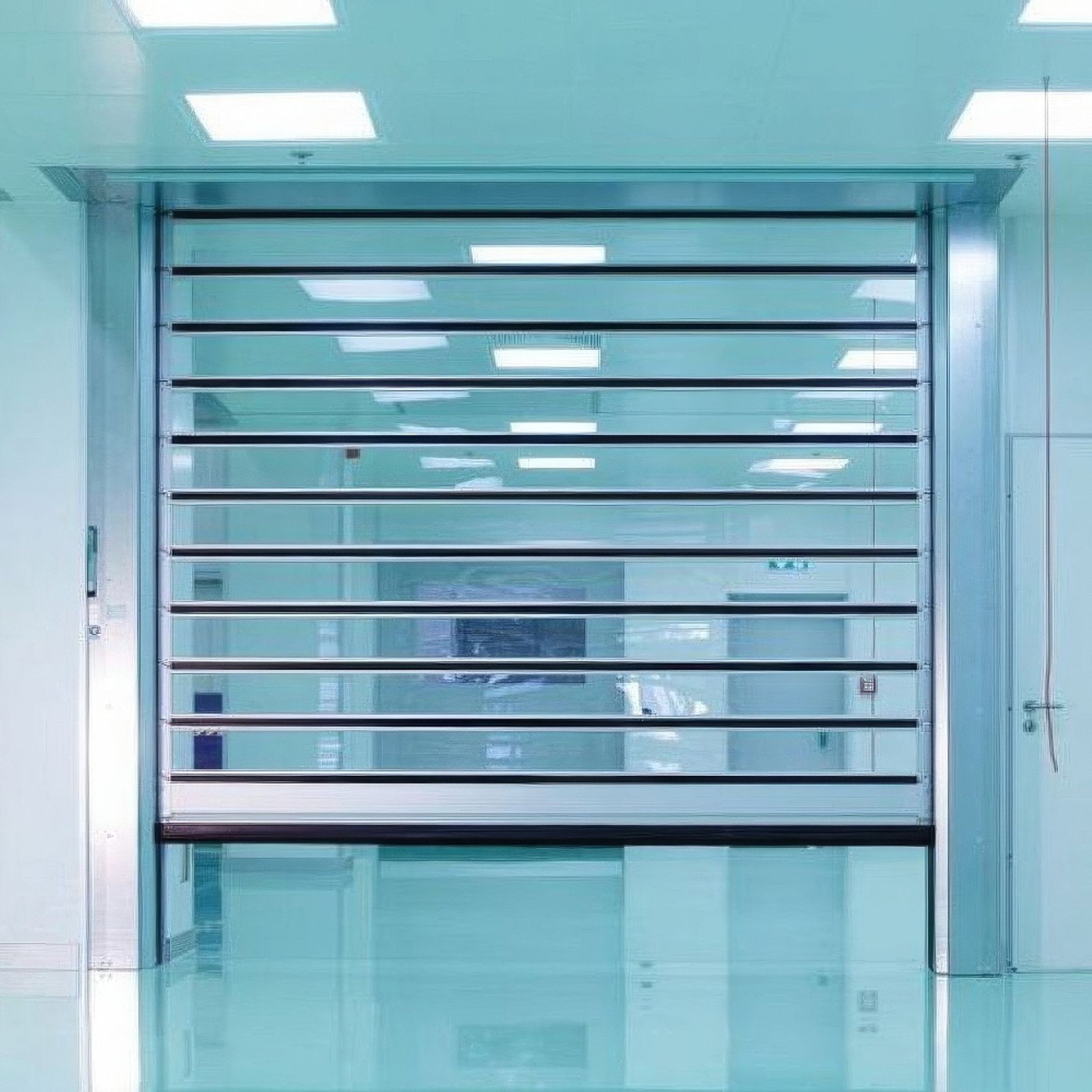

The turbo door for full visibility. If speed is of the essence for you, the EFA-STT® CR transparent cleanroom door is the best solution. Thanks to the spiral, this high-speed door opens and closes reliably at a speed of up to 2.5 m/s. It is particularly useful when the exchange of pressure and atmosphere is to be minimised, for example during inertisation for dry fire prevention.

Details
  • Category
    Commercial Doors
  • Brand
    EFAFLEX
  • Designer
    EFAFLEX
General
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications

EFA-STT® CR at a glance:

  • The door leaf consists at 70% of crystal clear acrylic glass
  • Almost airtight
  • Also for material locks
  • Opening up to 2.5 m/s
  • Closing up to 0.75 m/s
  • Up to 200,000 operating cycles p.a.
  • Standard sizes up to w=4,000 mm, h=5,000 mm
Features

Perfect sealing
Compared with a normal EFA-STT® door, the clean room version achieves its tightness by means of a so-called labyrinth seal.

The solid door leaf made of single-skinned transparent laths is kept apart during rolling up. This means the EFA-STT® door from the CR Series remains transparent for years even in sizes of 4 x 5 metres.

Natural incidence of light
The transparent laths of the EFA-STT® CR provide sufficient light and brightness within material locks. In addition, this ensures an unobstructed view with open lines of sight between rooms.

High-end safety technology
As the world’s leading manufacturer of high-speed doors, it is our aspiration to also be pioneers in the field of safety: All EFAFLEX products meet the highest standards and protect both people and the goods as well as the door itself.

It is not only our industrial doors that impress with their state-of-the-art safety technology, but also the associated systems: EFA-SCAN®, for example, is the world’s first laser scanner for use on doors, which is a reliable pulse generator and safety system in one.
