Screed Electric Floor Heating
by Comfort Heat
New South Wales, Australia
- 159.9K profile views
- 47 saves
In-screed floor heating is a popular option for modern homes. It is versatile, ideal for residential installations, and highly adaptable. A popular room to heat is bathrooms, where traditional heating systems are not appropriate.

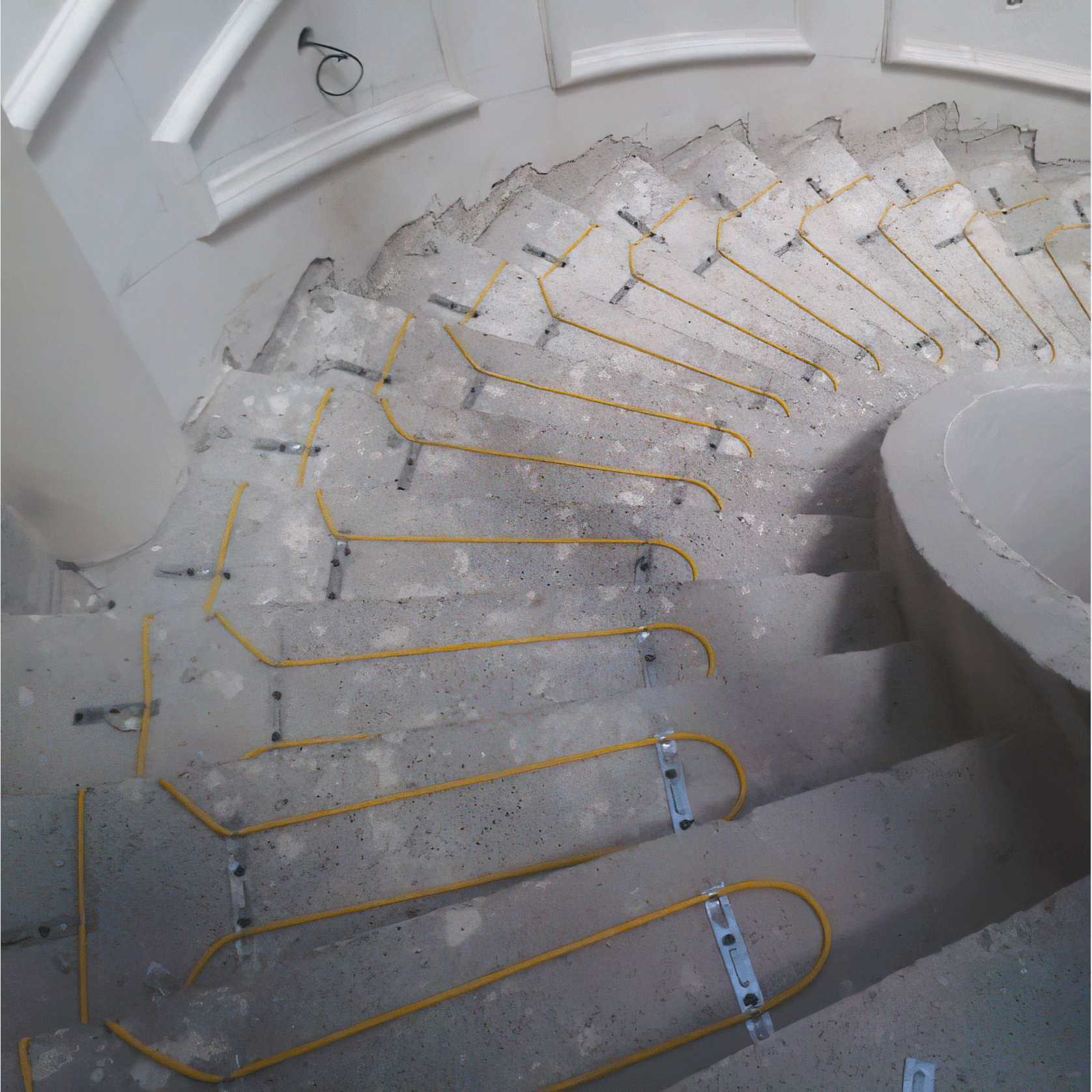

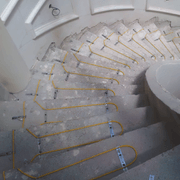

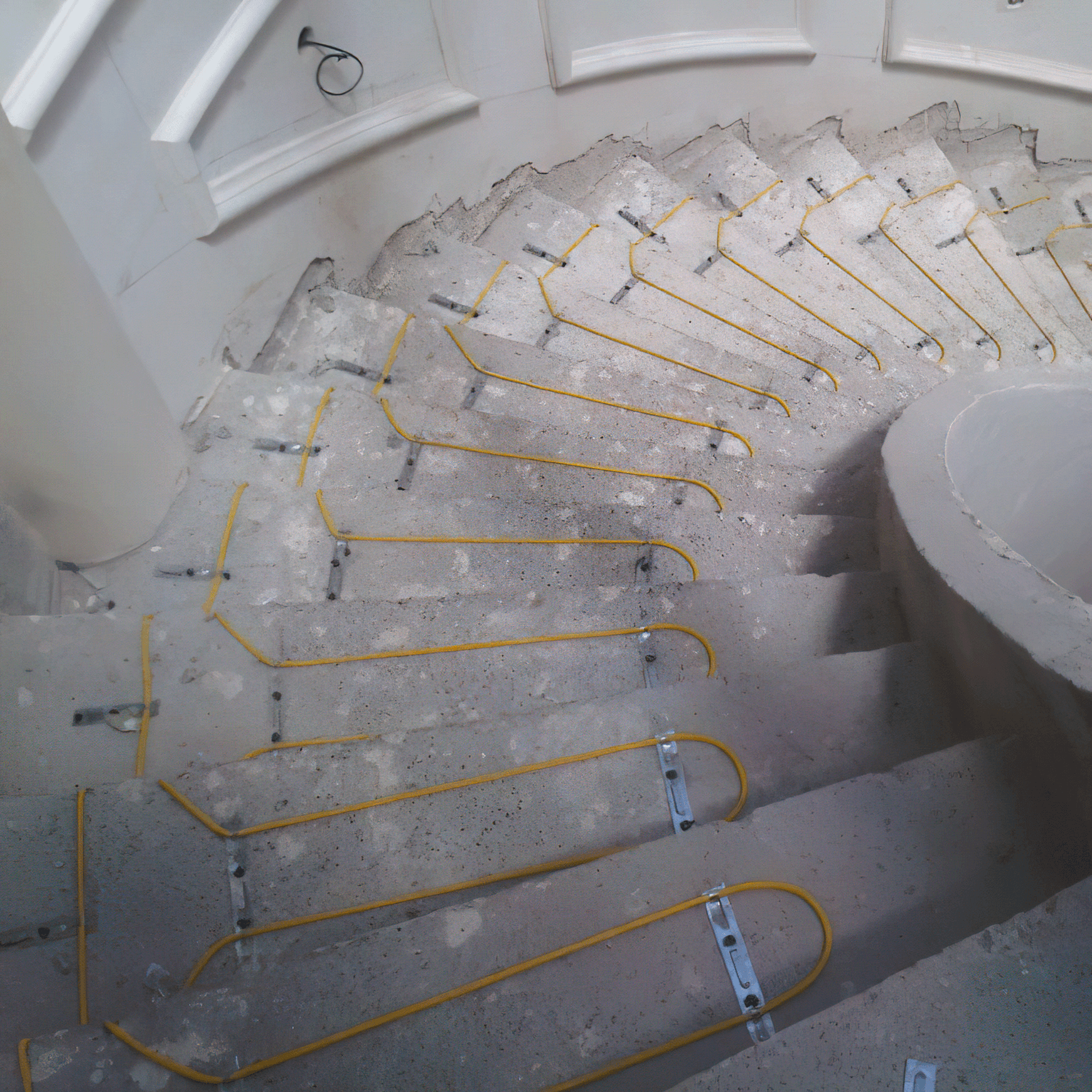

The twin cable technology is very flexible, allowing for a variety of installations including stairs, round rooms, and small areas. All in-screed heating systems require a sand and cement bed of at least 20mm to be laid on top and have a fast response time, reaching set temperature in only 1-2 hours, depending on screed thickness.
Product Details
- Product
- Screed Electric Floor Heating
- Category
- Underfloor Heating
- Sold by
- Comfort Heat
- Range
- Electric Heating
- Type of use
- Commercial and Residential
- Installation
- Minor installation required
- Assembly
- Minor assembly required
- Warranty
- 10 years
Product specified by
In-screed floor heating is a popular option for modern homes.
It is versatile, ideal for residential installations, and highly adaptable. A popular room to heat is bathrooms, where traditional heating systems are not appropriate.
The twin cable technology is very flexible, allowing for a variety of installations including stairs, round rooms, and small areas. All in-screed heating systems require a sand and cement bed of at least 20mm to be laid on top and have a fast response time, reaching set temperature in only 1-2 hours, depending on screed thickness.
- Specs
Cable Type: Twin conductor heating cable with earth screen
Construction: Multi-stranded heating wire with double insulation, earth screen, and sheath
Insulation: 4000 V
Rated Voltage: 230 Volt AC; Rated output 175W/m²
Cold Tail Length: 3.5 meter with splice connection
Cable Diameter: 5.3mm
Cable Standard: IEC800 Class II
Warranty: 10 years
- Features
Cable Technology - The screed cable is a twin conducting cable allowing for easy installation. There is no need to return the cable end to the start, which makes a vast difference when installing in small areas like bathrooms.
Heat Output - The in-screed cable has a heat output of 175W /m² at 100mm spacing or 225W /m² at 75mm spacing. The cable is available in factory terminated lengths ranging from 10m up to 150m. Comfort Heat staff will help select the correct cable length and spacing for your heated area.
Special Requirements - Comfort Heat must be informed of any expansion joints in the slab. The cable must not be installed over any expansion joints. For large areas, multiple cables will be installed.
- Scope of use
Suitable for indoor use and outdoor use with additional waterproofing.
- Installation

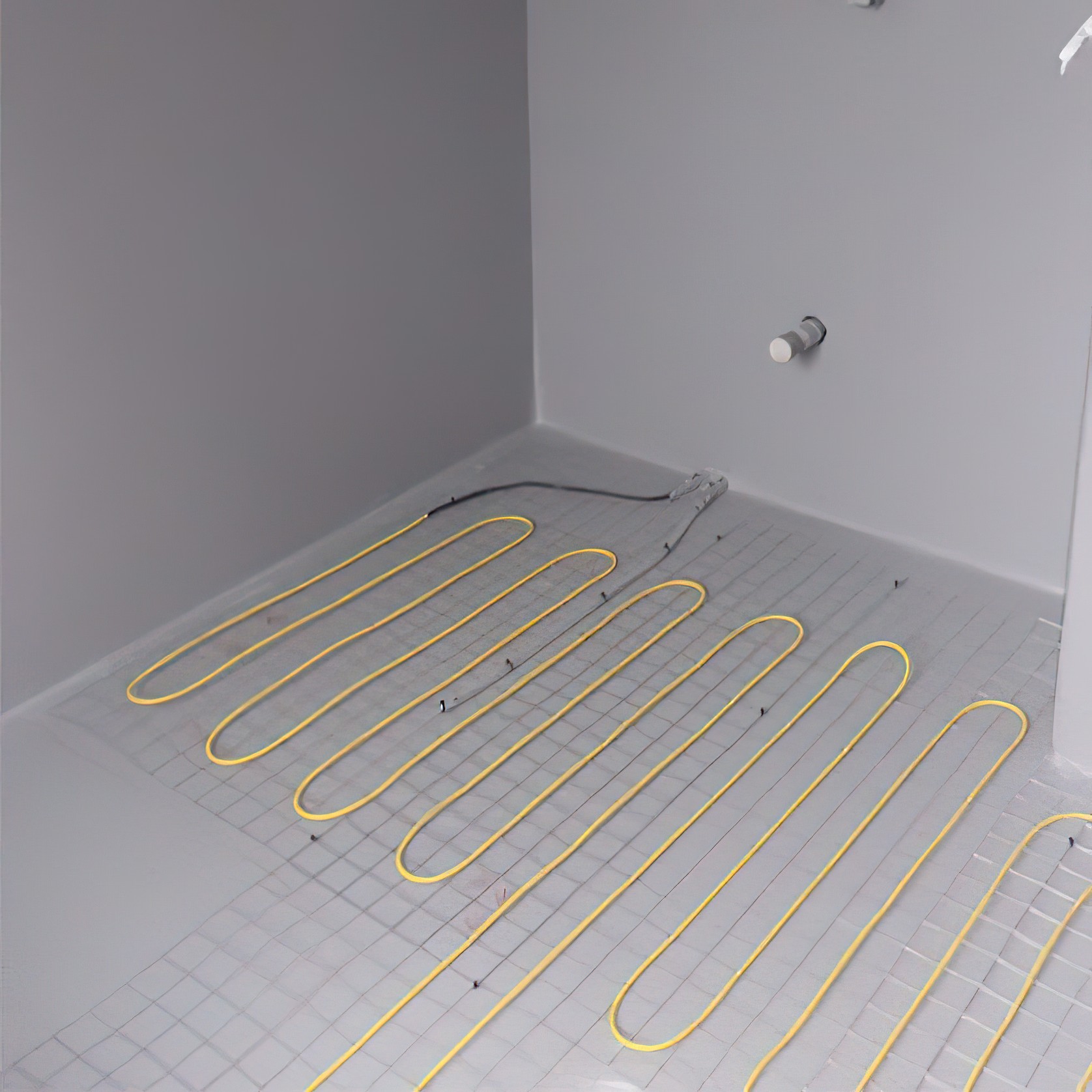

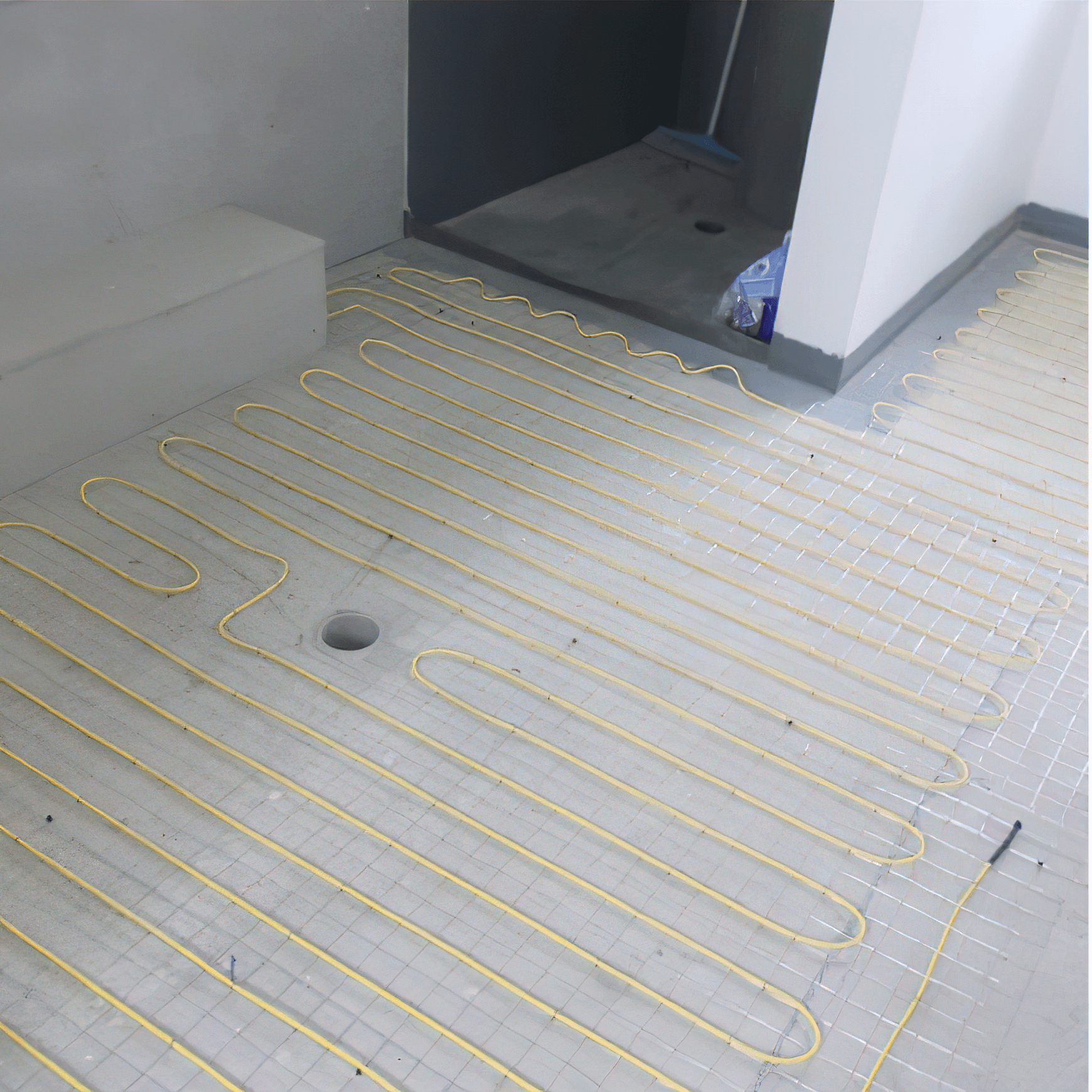

The screed cable is installed before the cement screed, beneath any type of floor covering (generally tile). It is required that you cover the cable with a minimum of 20mm bed of screed. The cable can also be installed on a polished concrete floor.
Two options when installing cable;

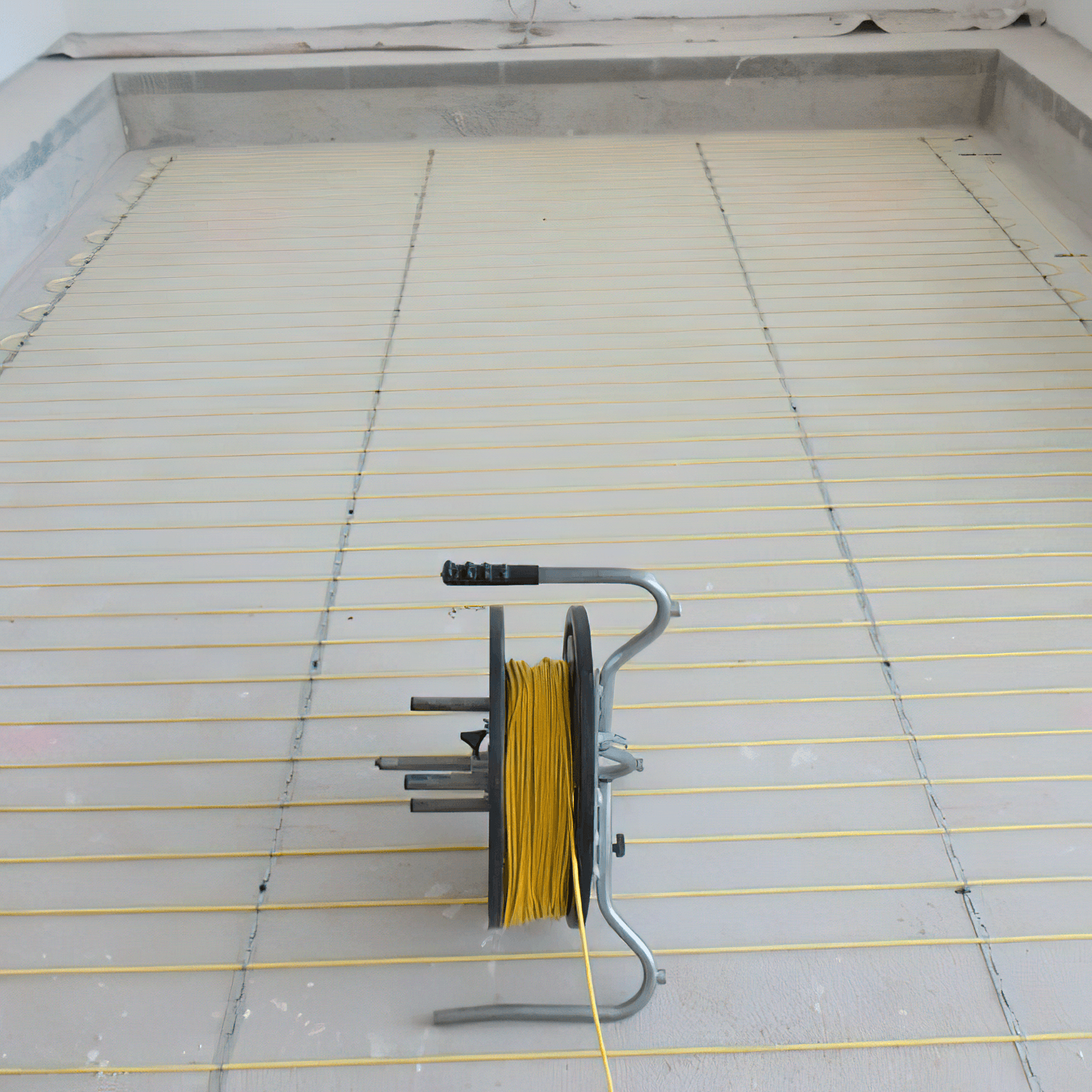

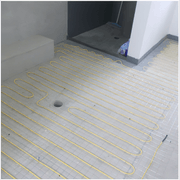

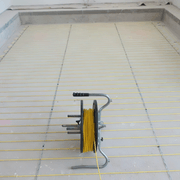

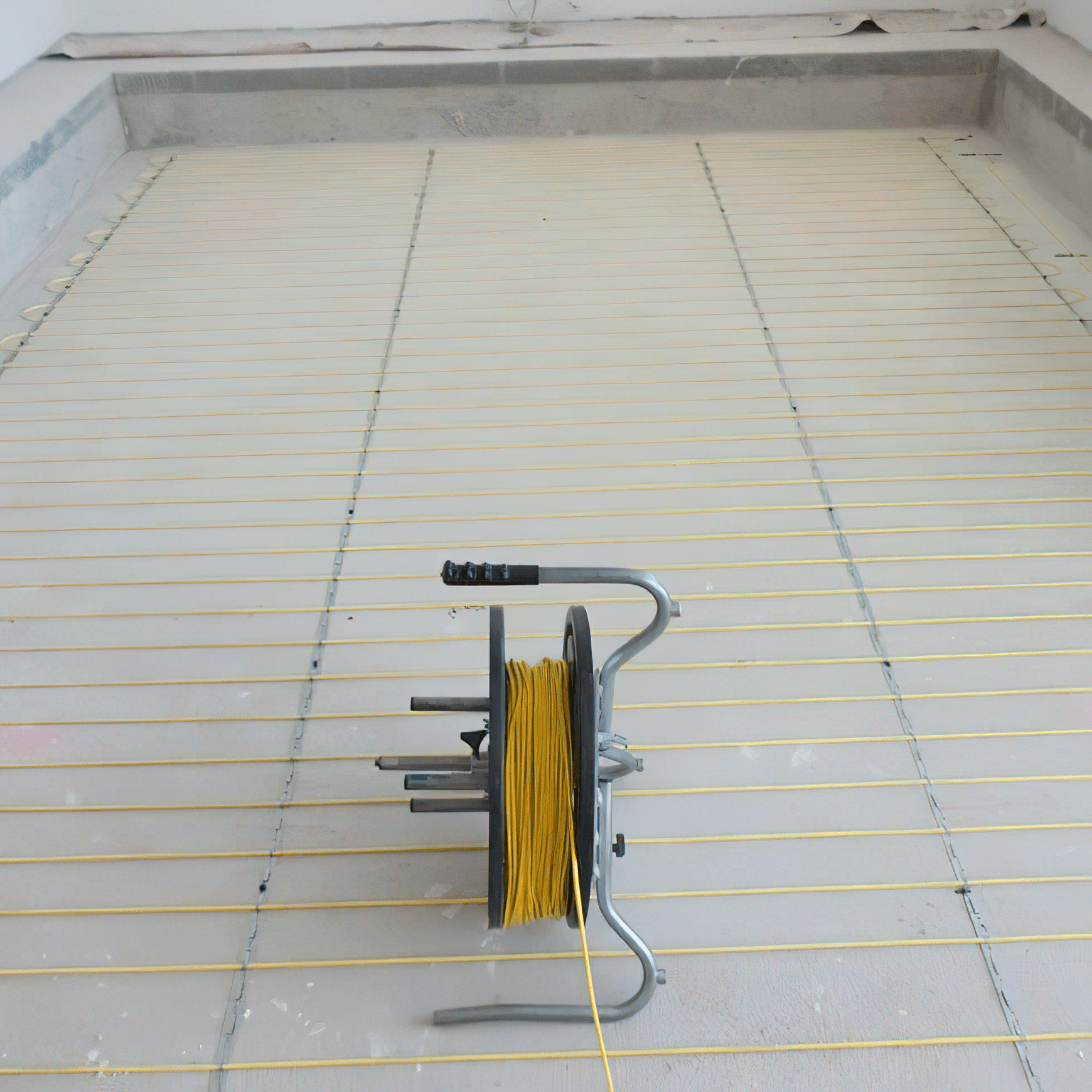

- Metal retaining strips are typically used in large areas with no waterproofing

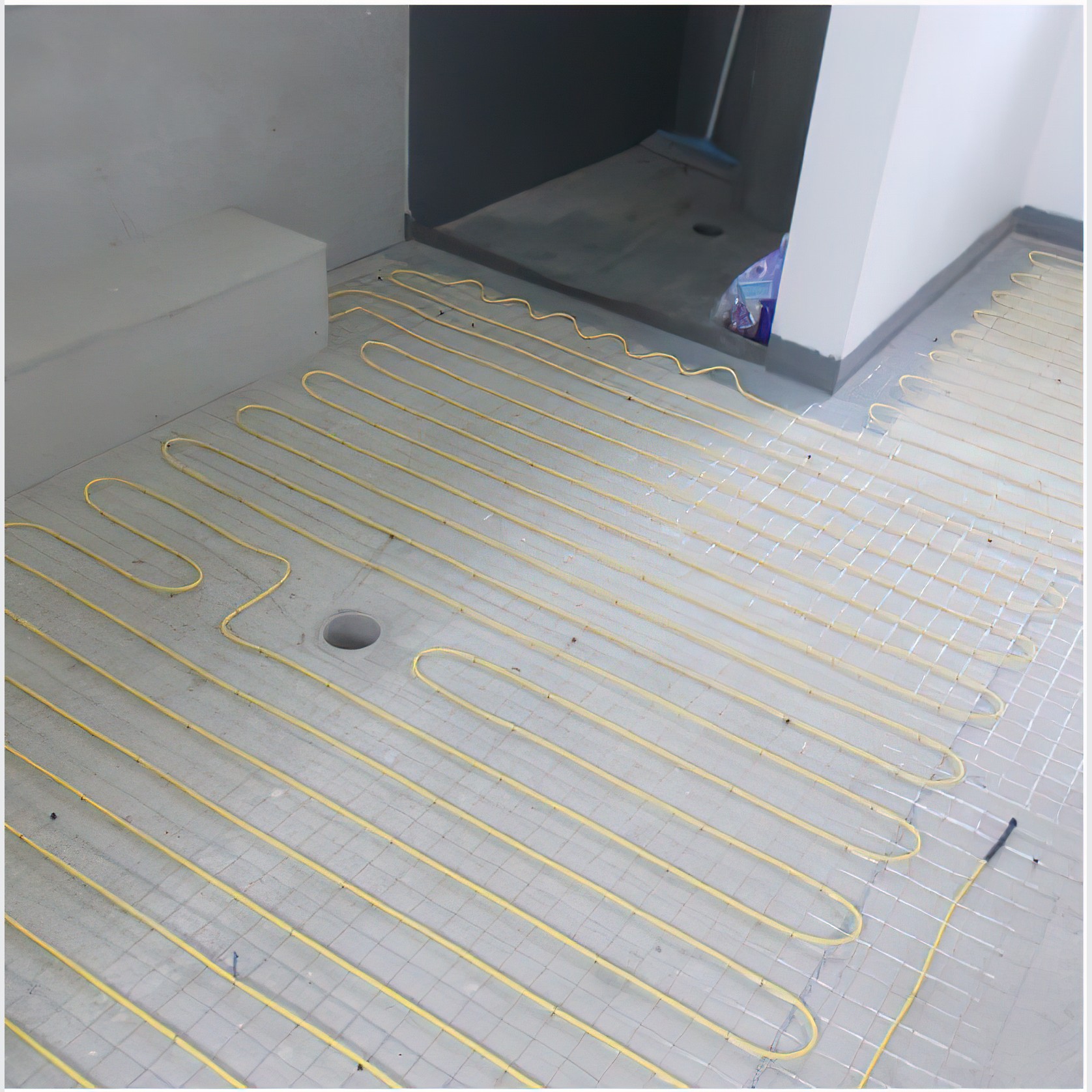

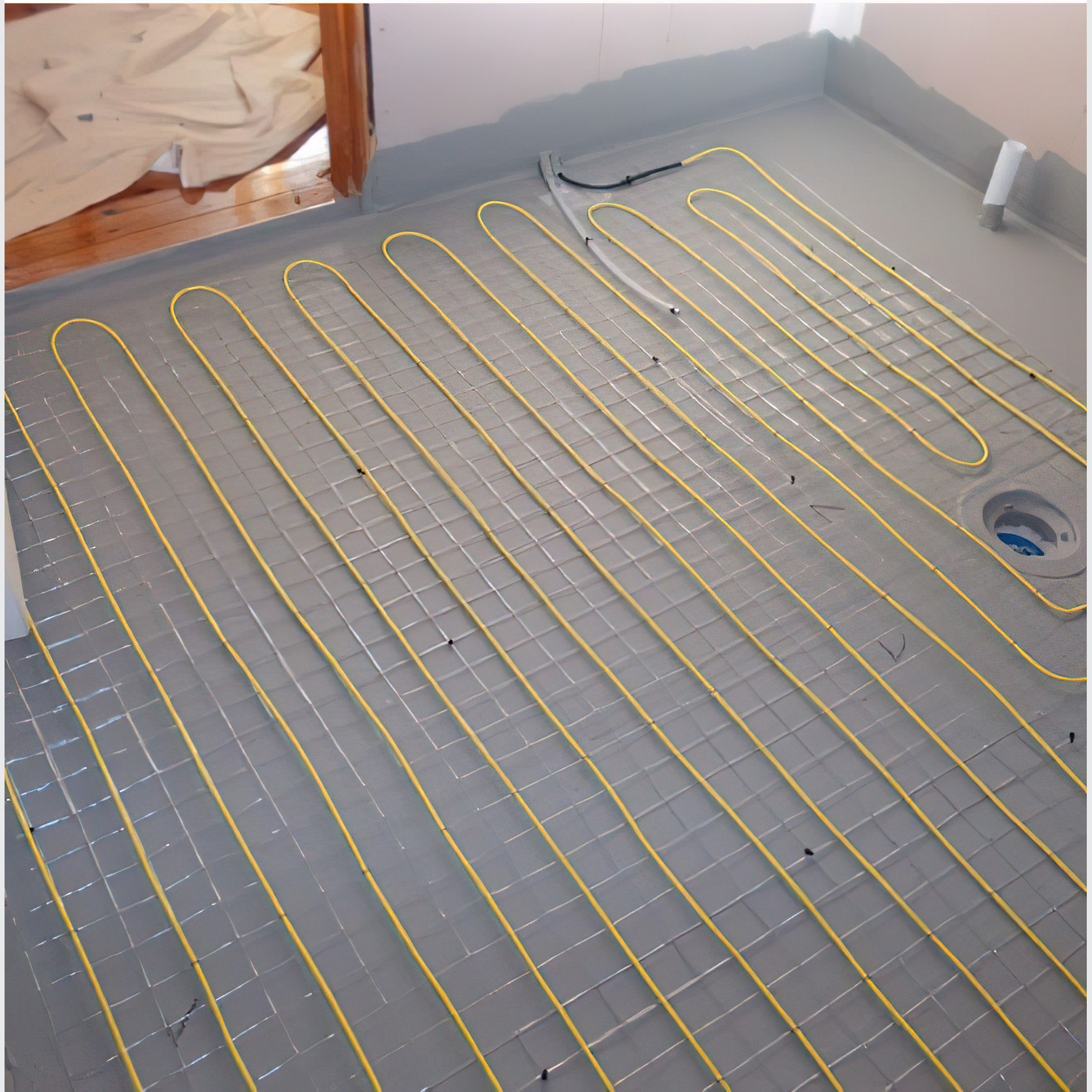

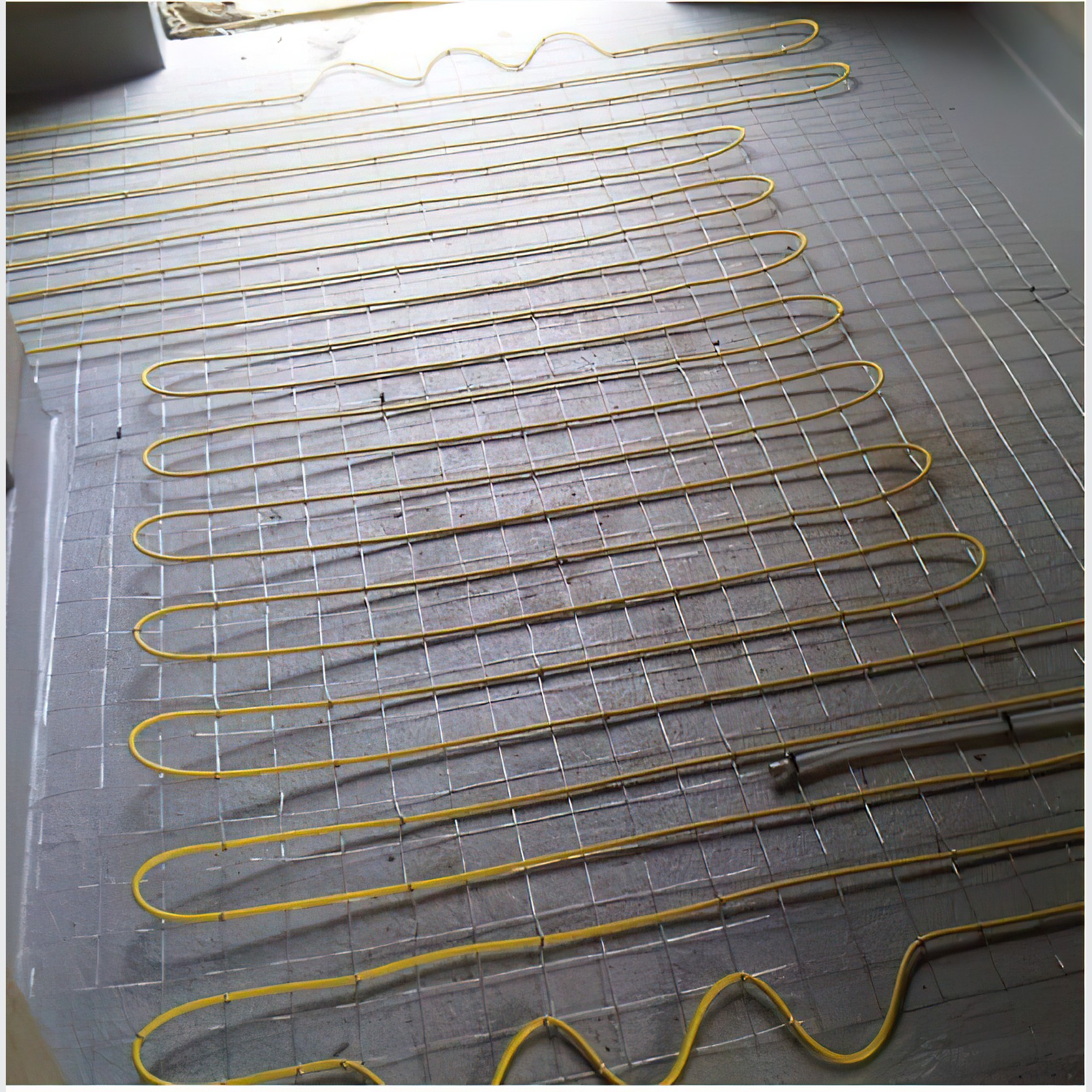

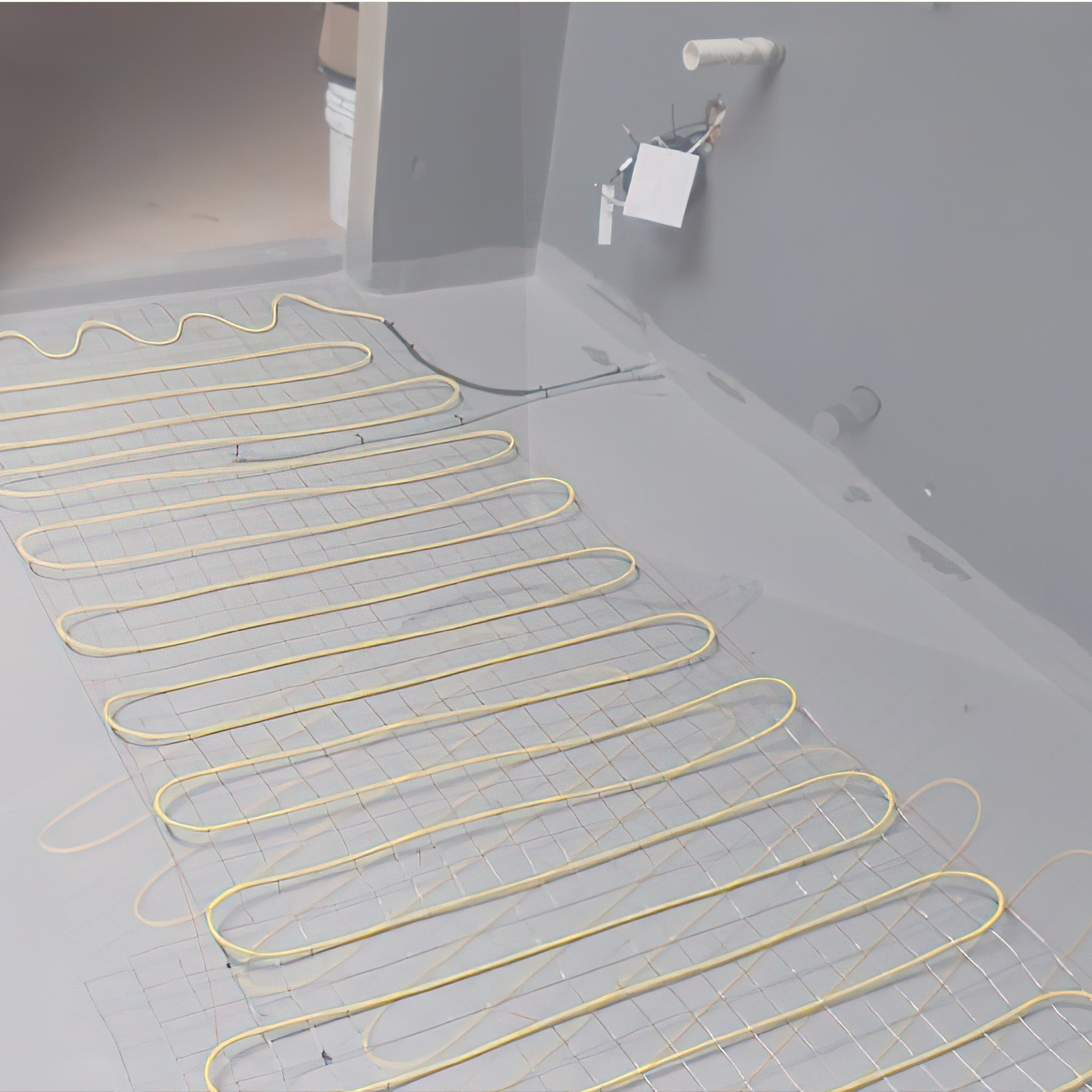

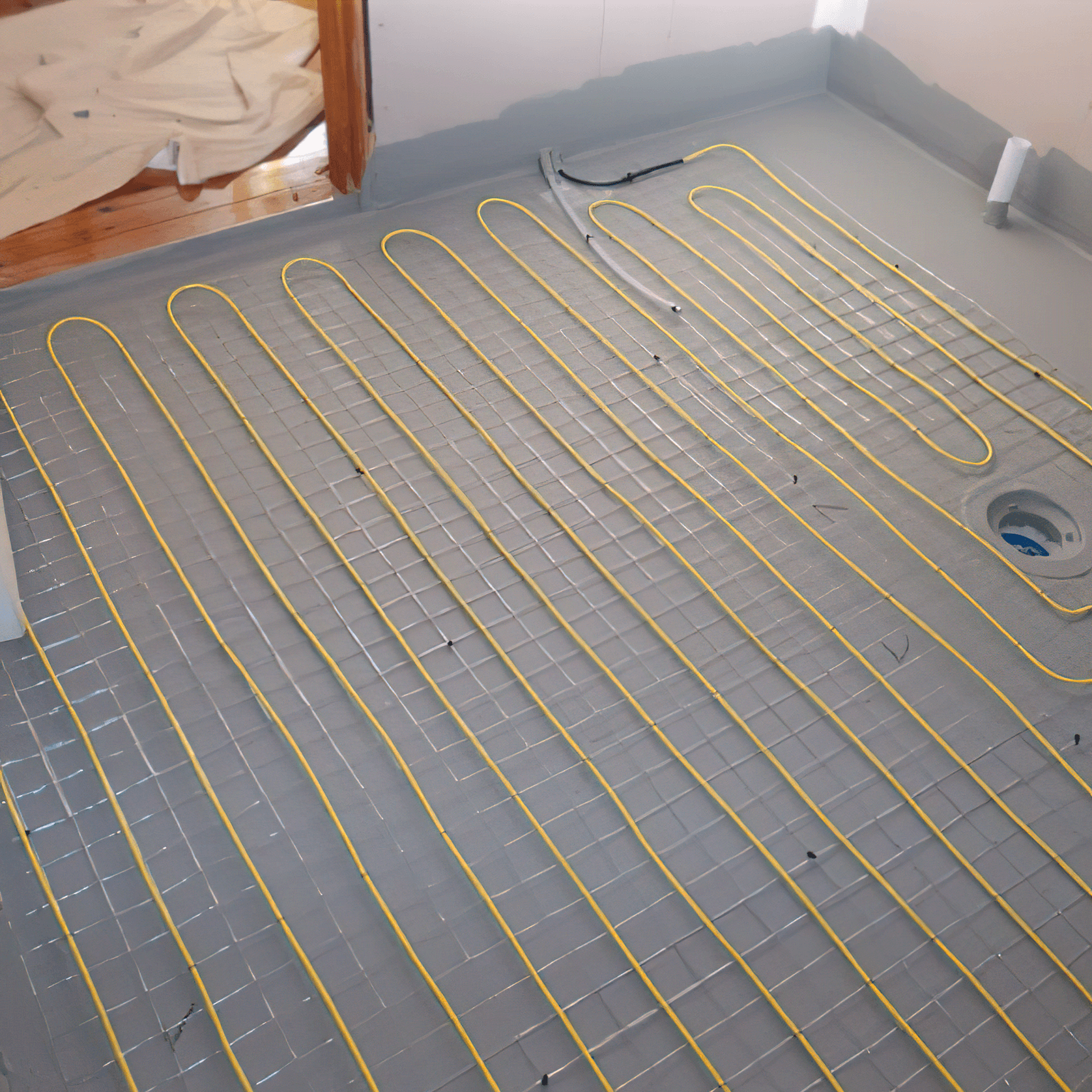

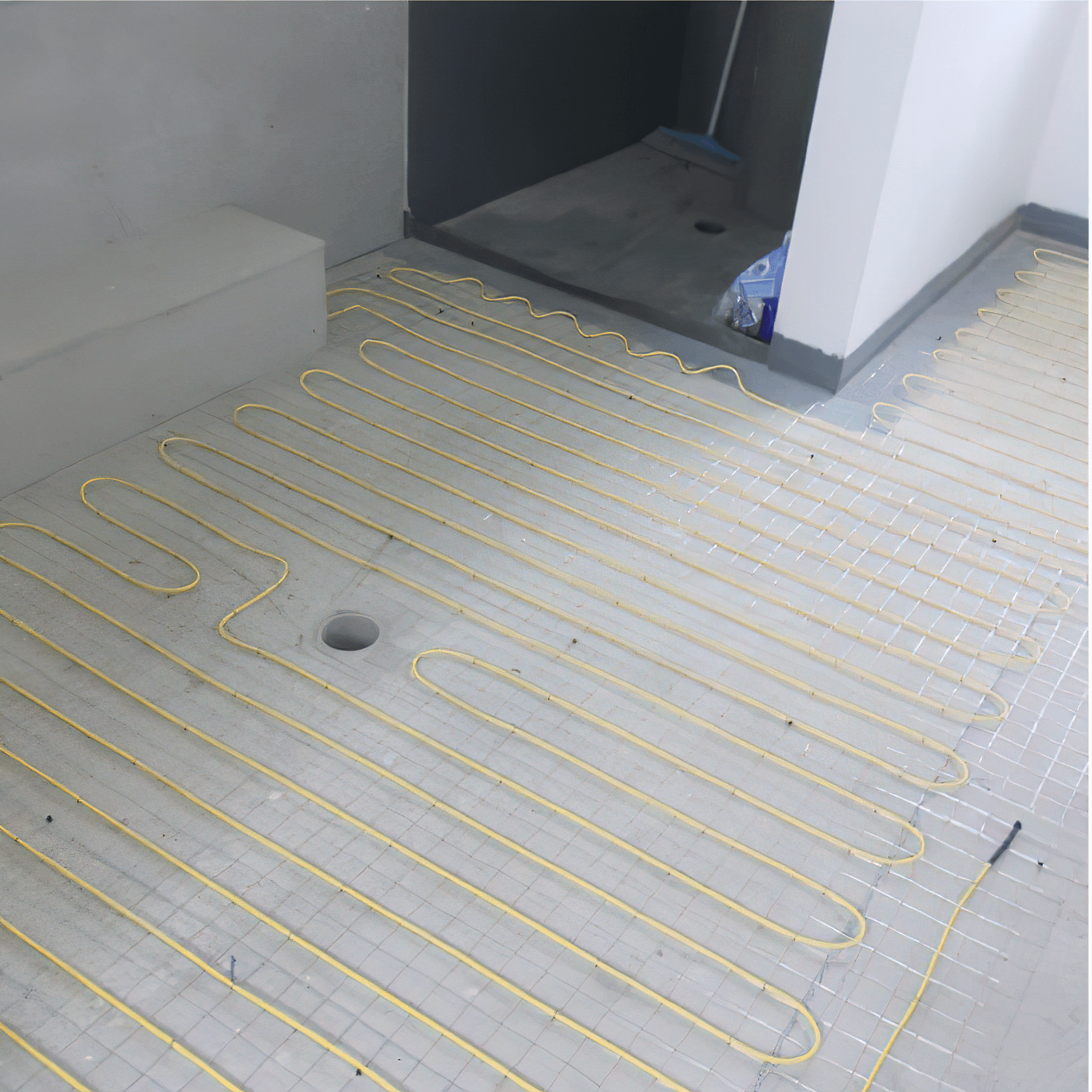

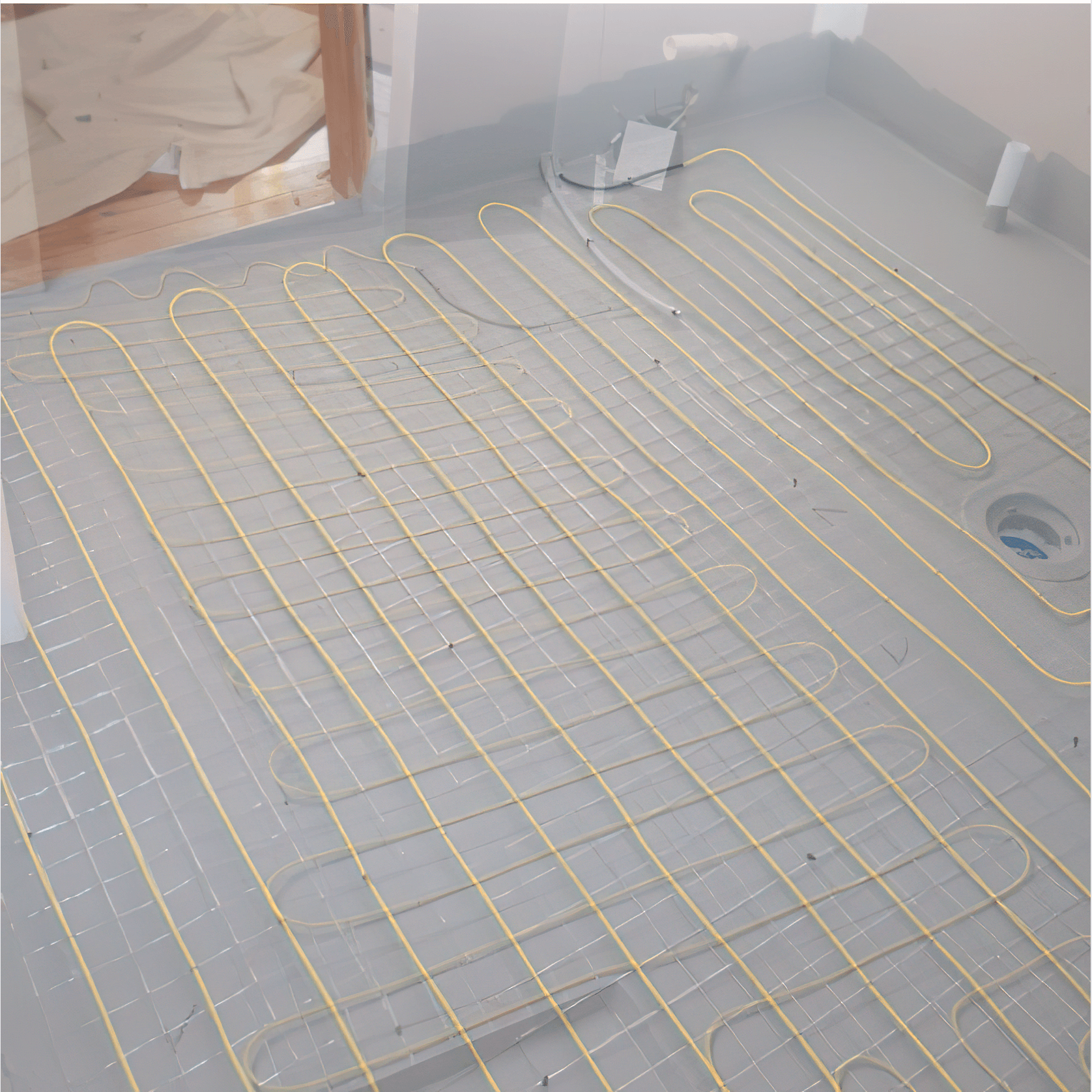

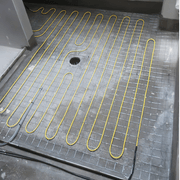

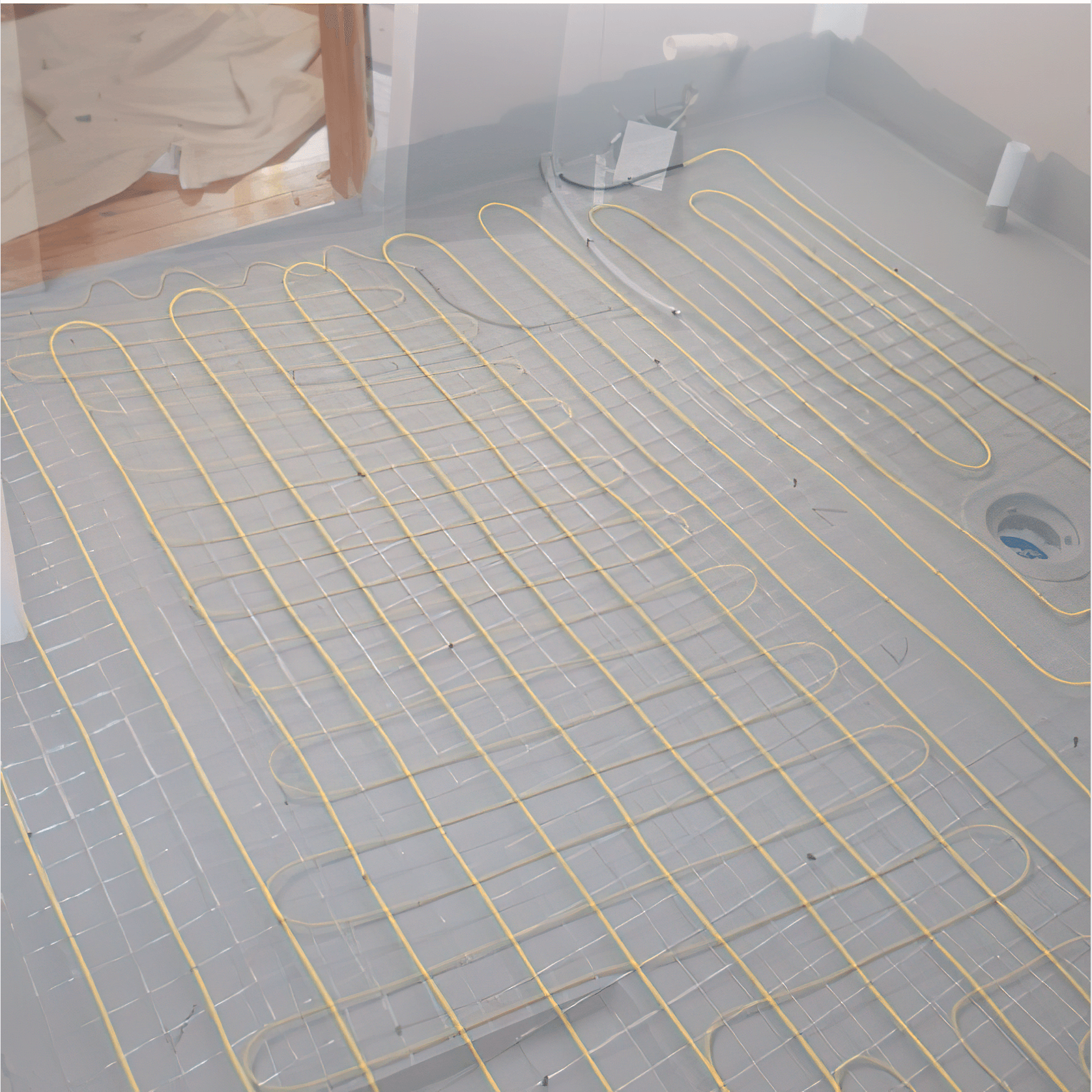

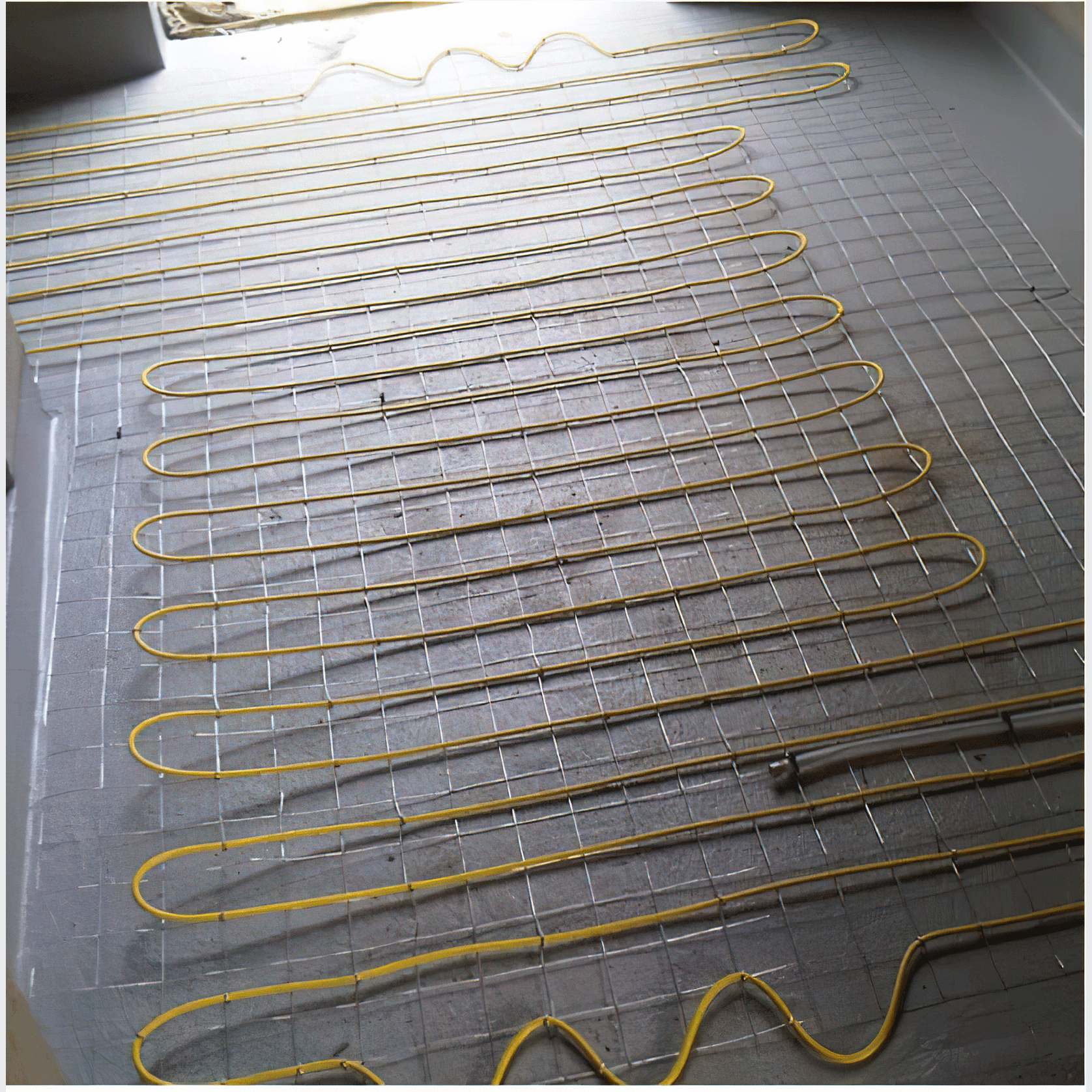

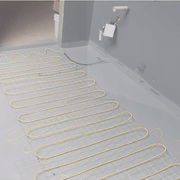

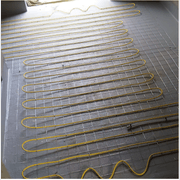

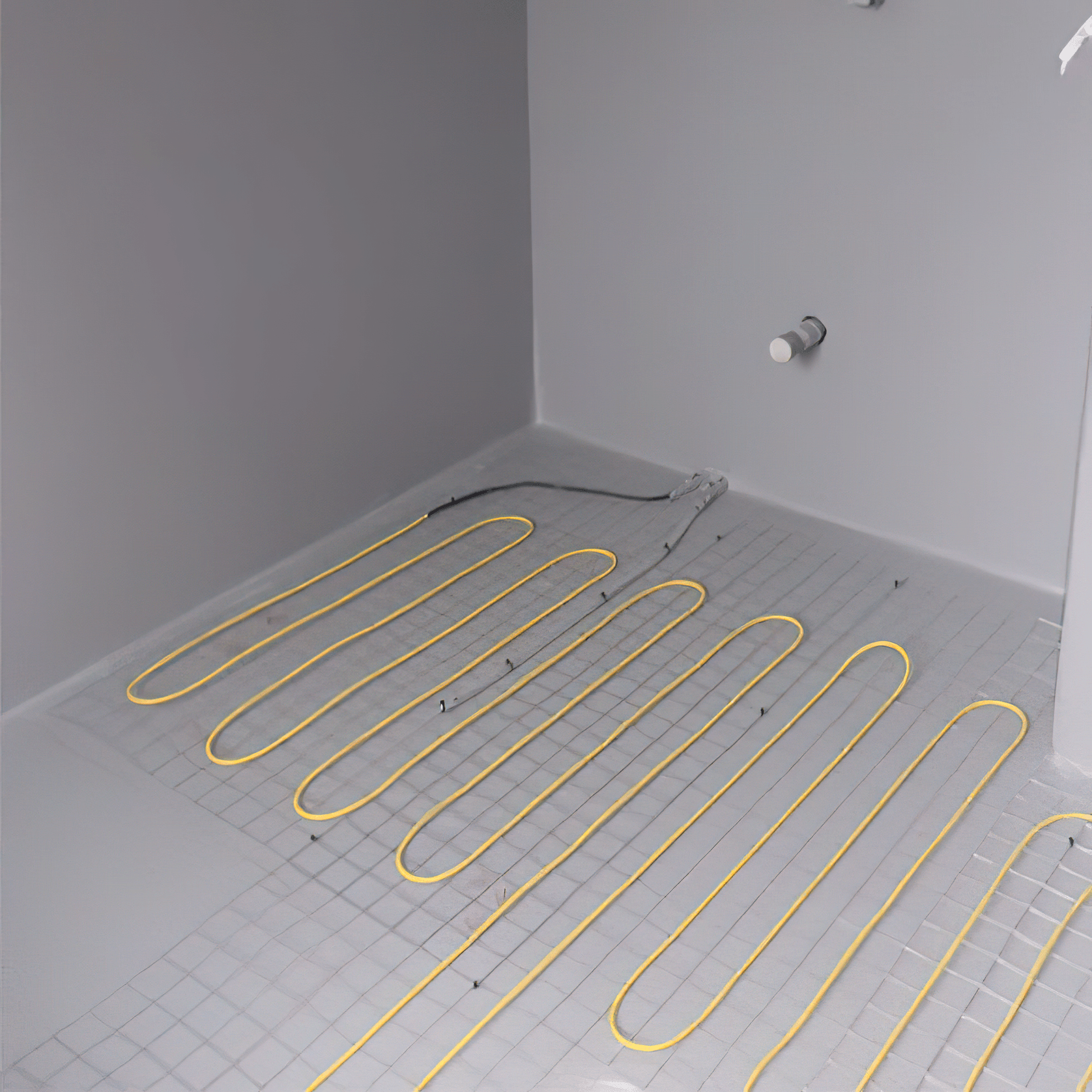

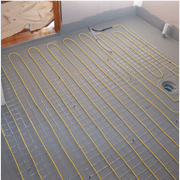

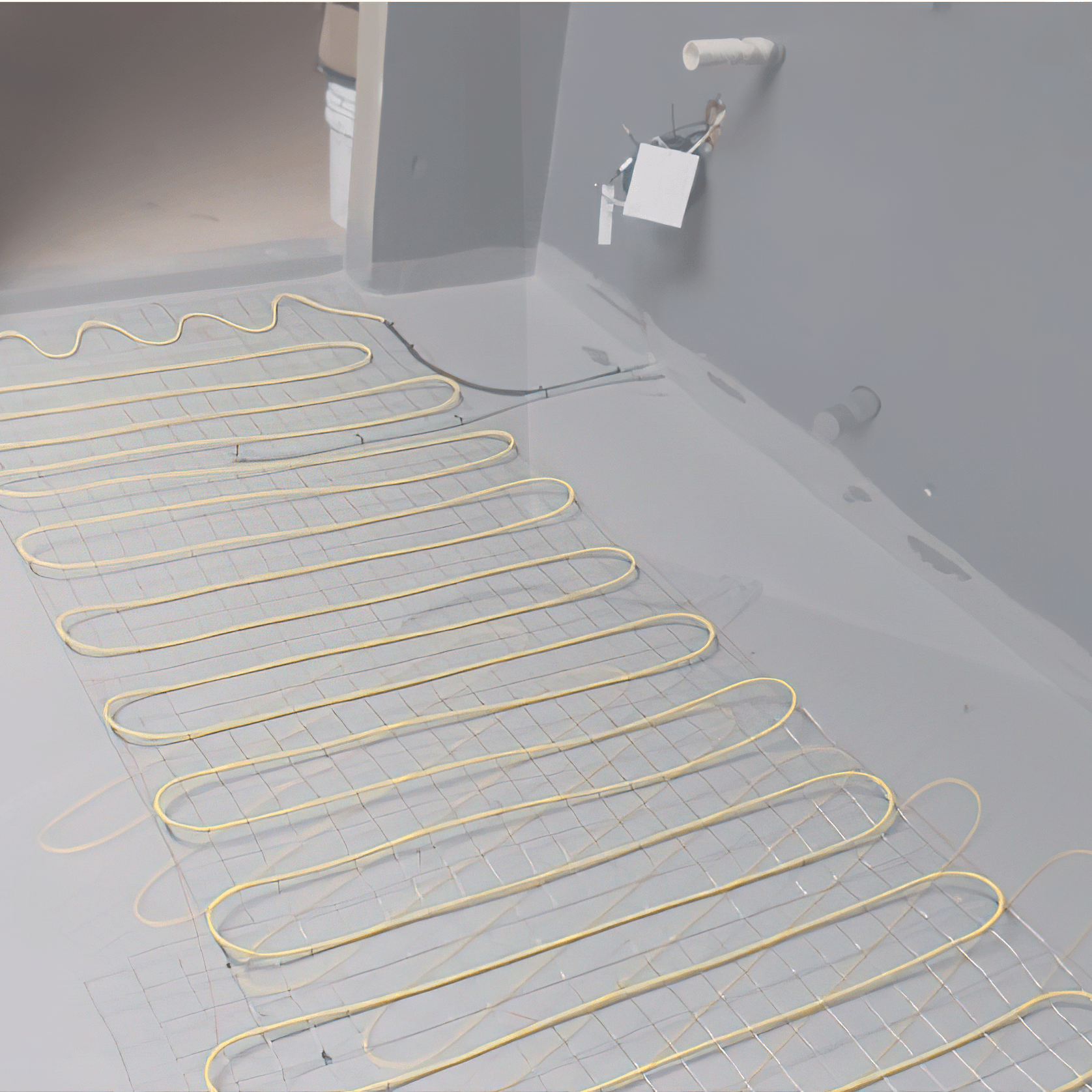

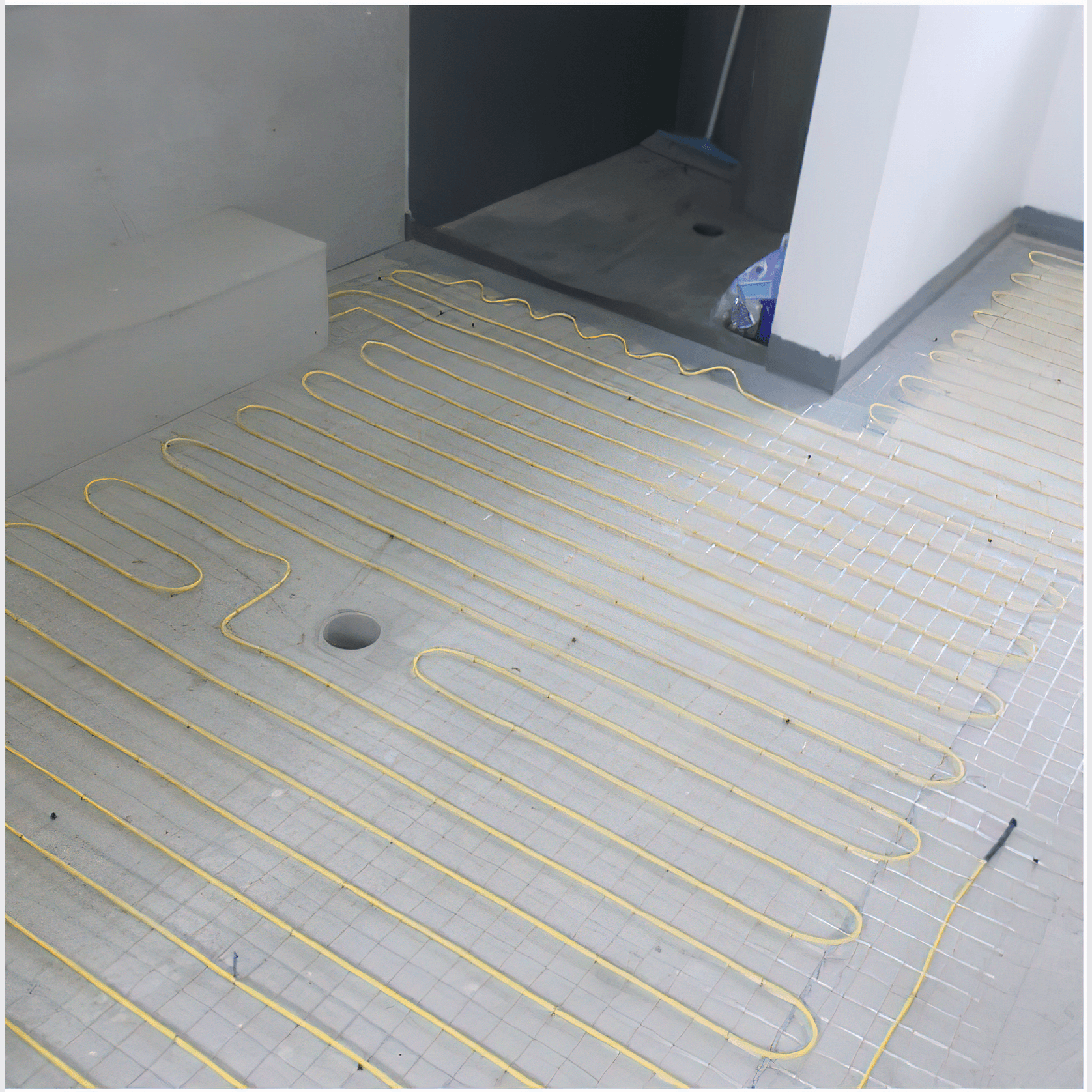

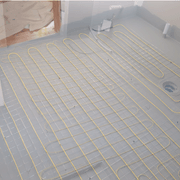

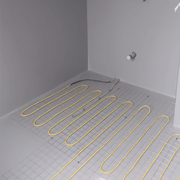

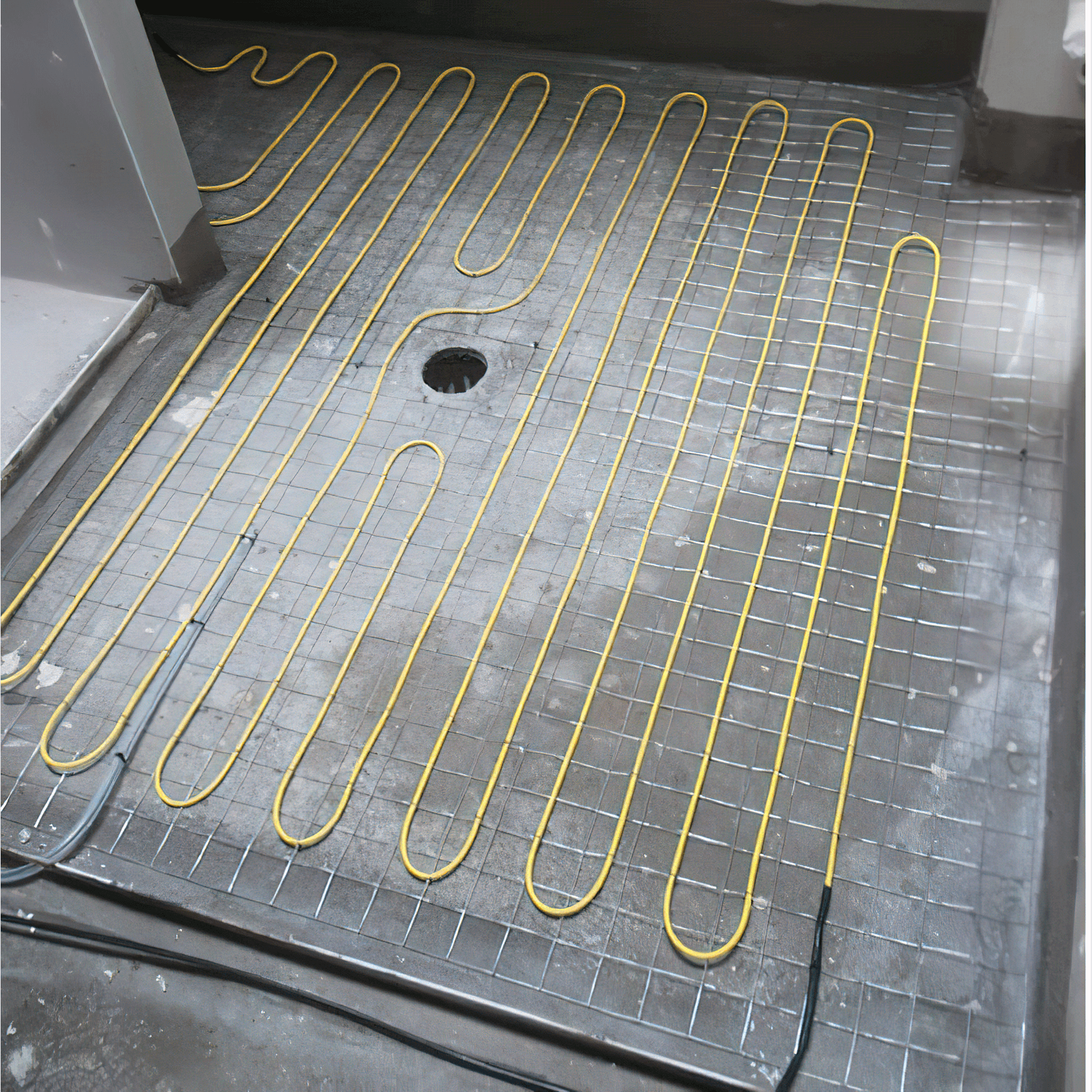

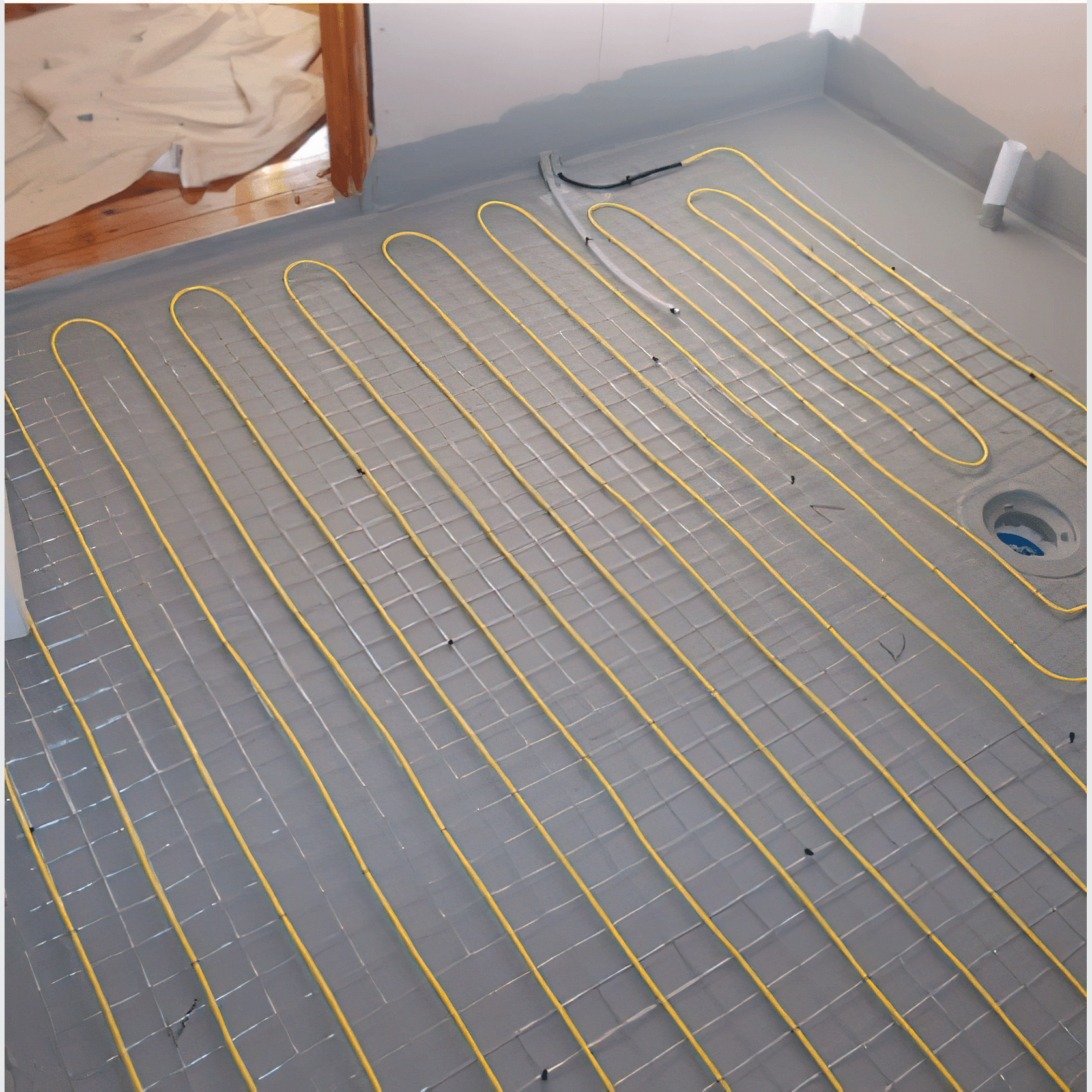

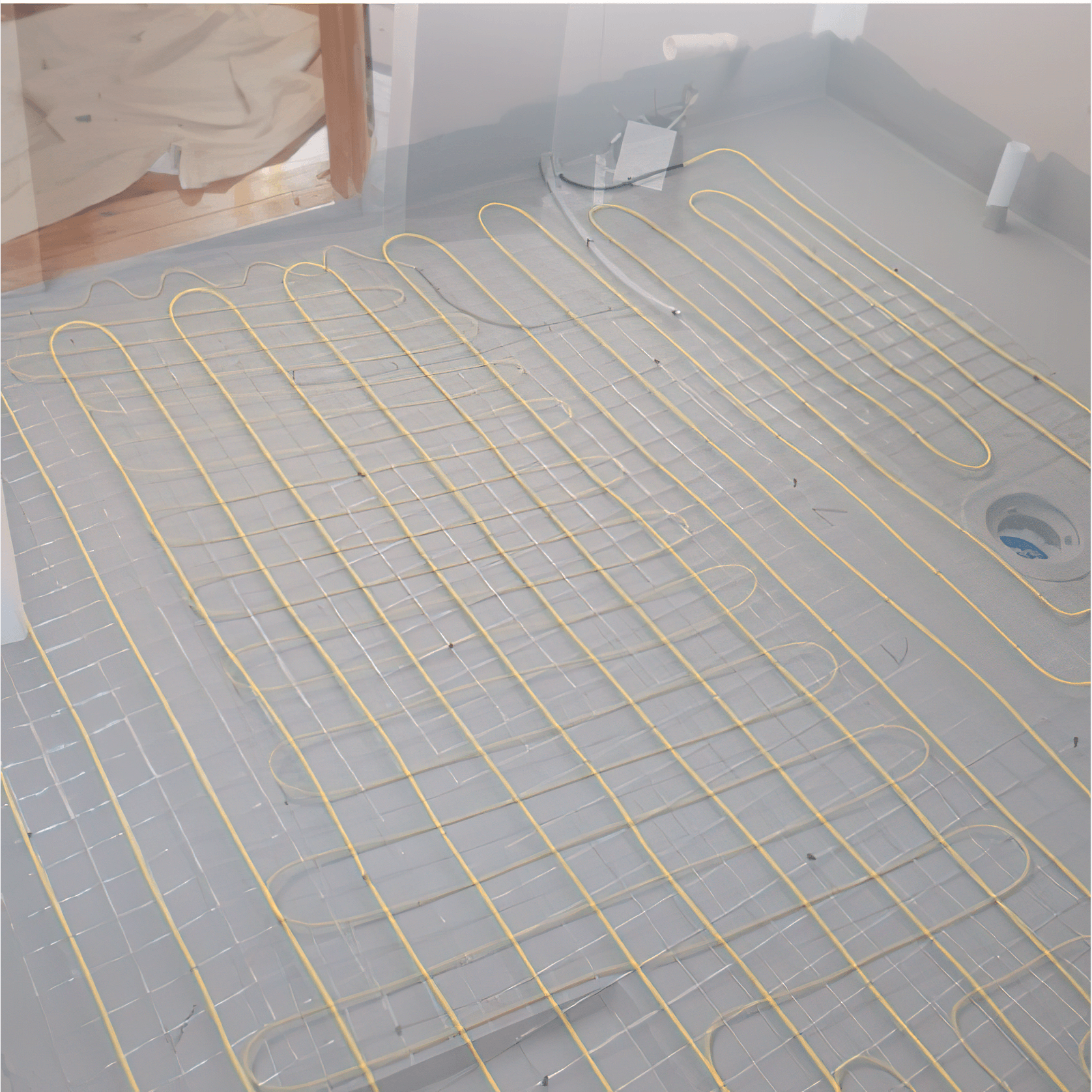

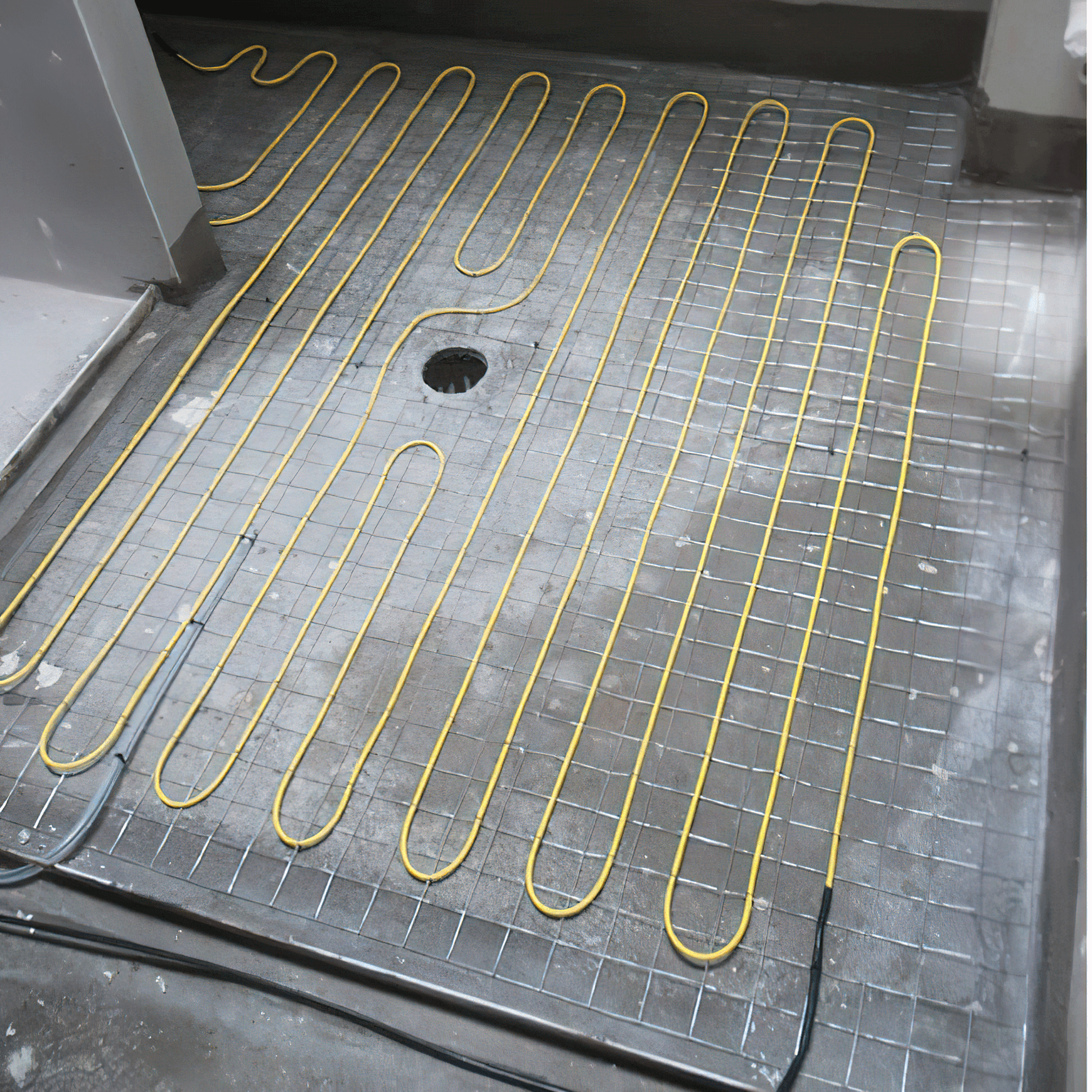

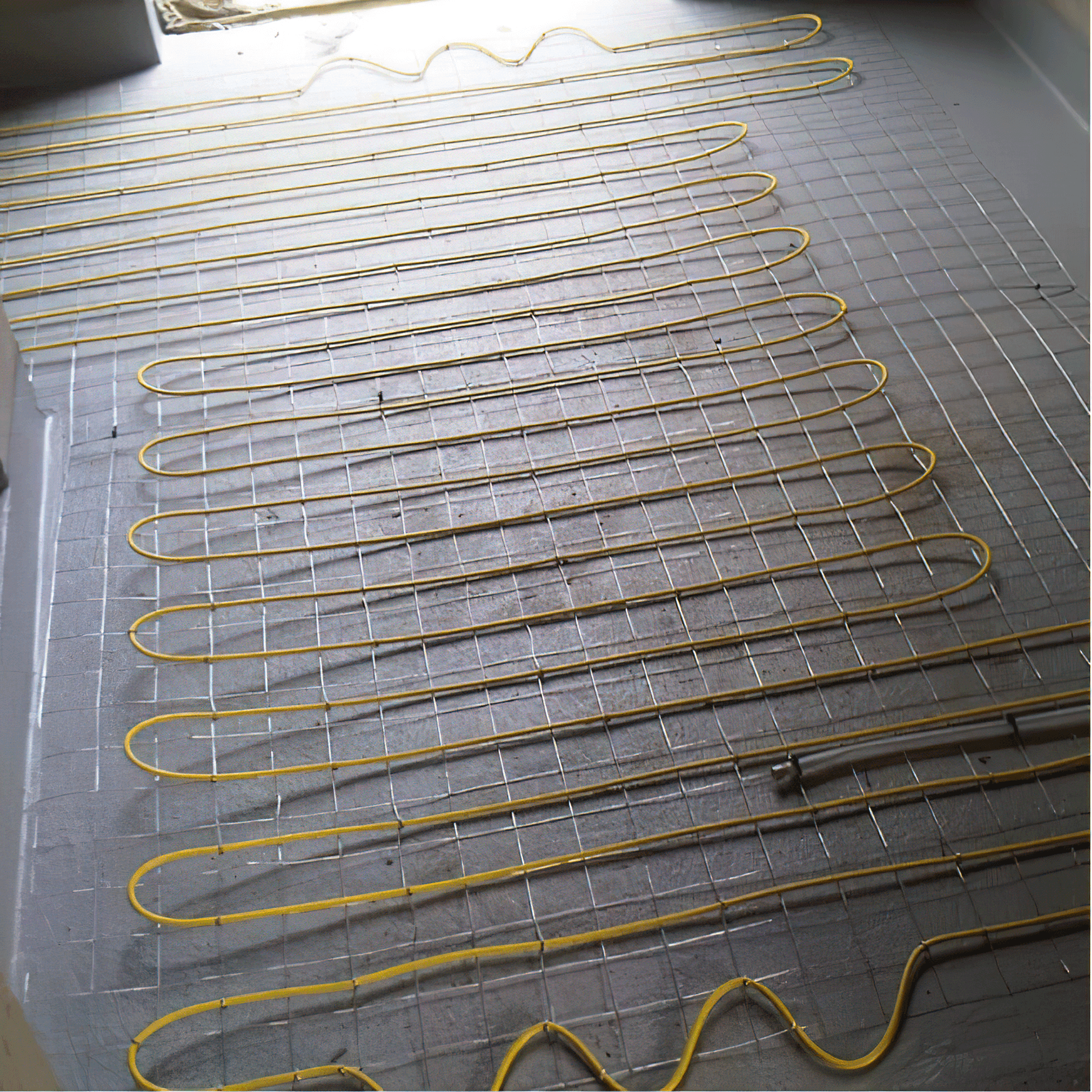

- Clipped to wire mesh that floats on the floor (does not affect waterproofing)
Cable is always installed with 100mm clearance from all walls and fixtures.
