Under carpet heating mats have been specifically developed to provide invisible heating under the carpet floors. The 500mm wide foil mats are ideal for large or small areas and are taped onto the underlay. Heating very close to the floor surface has a fast response time and should reach temperature in the first 15-30 minutes.
Product Details
- Product
- Carpet Electric Floor Heating
- Category
- Underfloor Heating
- Sold by
- Comfort Heat
- Range
- Electric Heating
- Type of use
- Commercial and Residential
- Installation
- Minor installation required
- Assembly
- Minor assembly required
- Warranty
- 5 years
Under carpet heating mats have been specifically developed to provide invisible heating under the carpet floors.

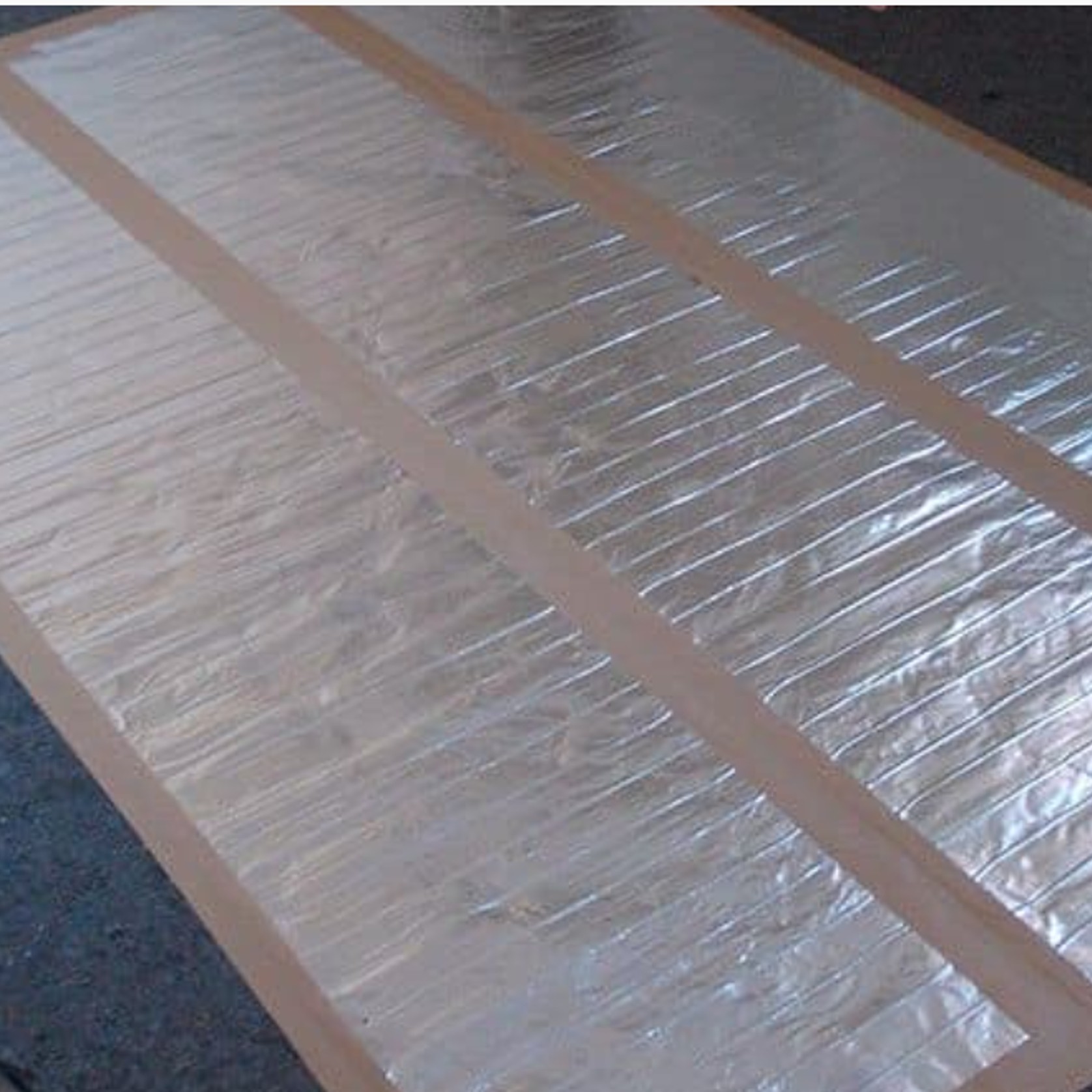

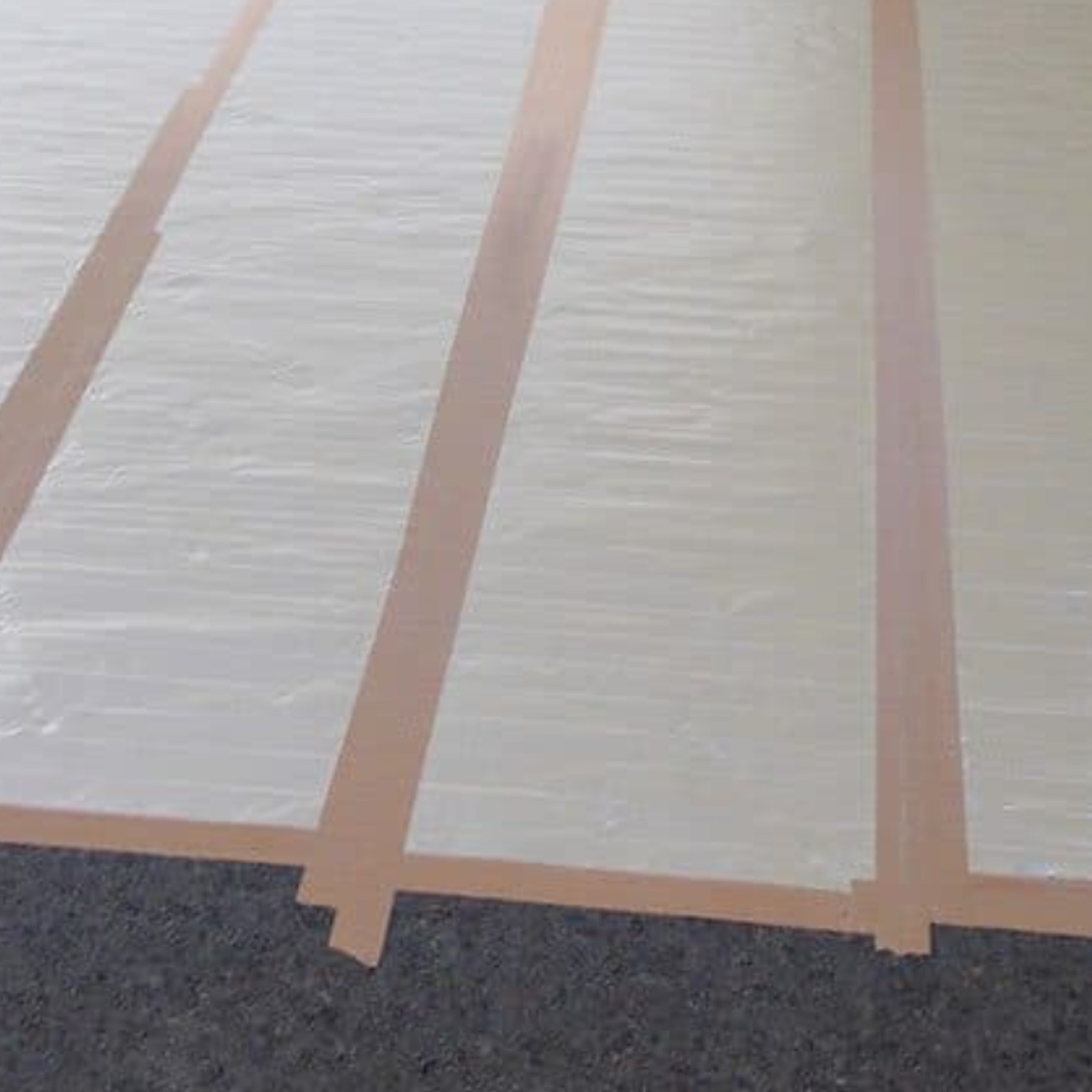

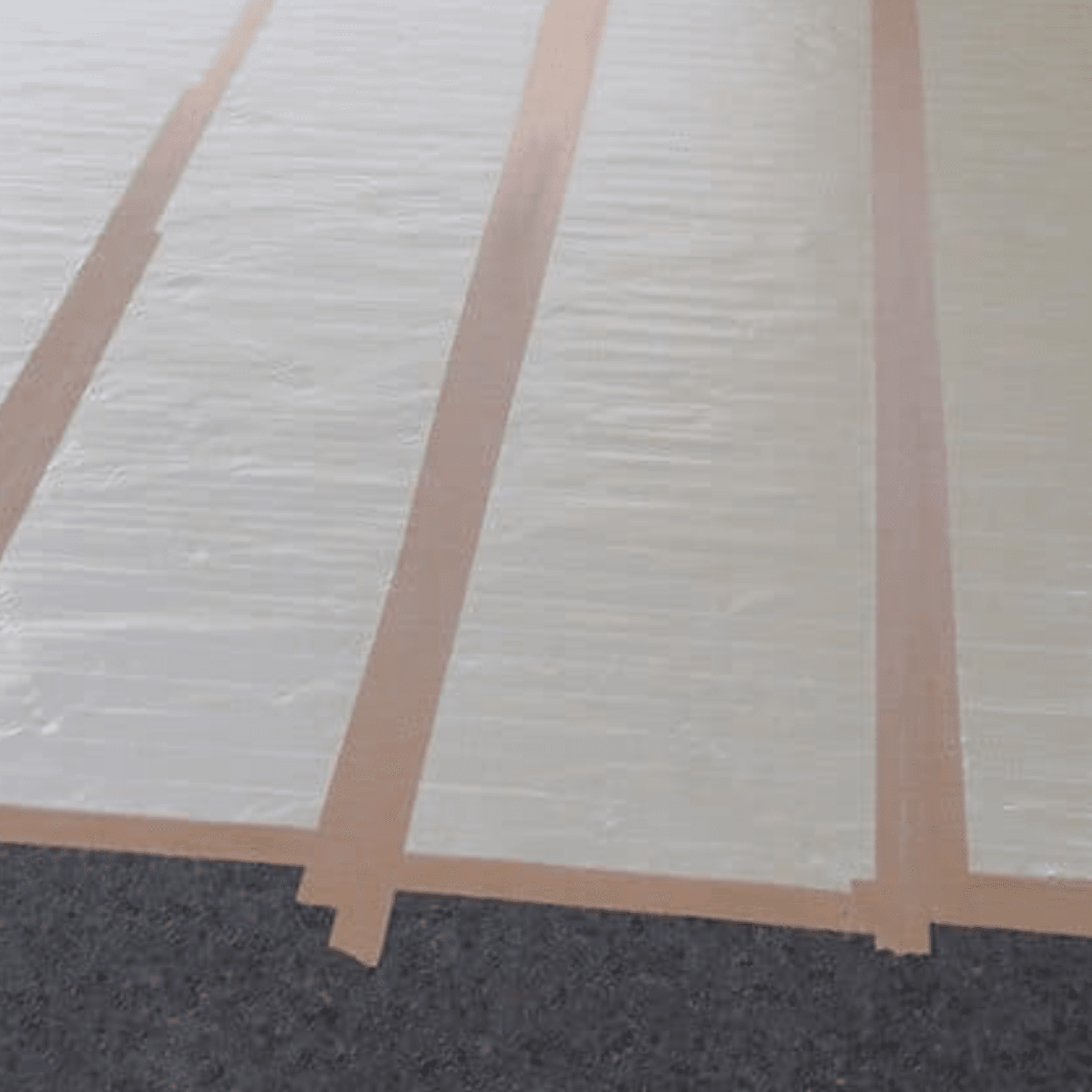

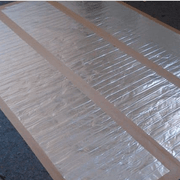

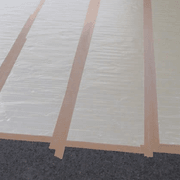

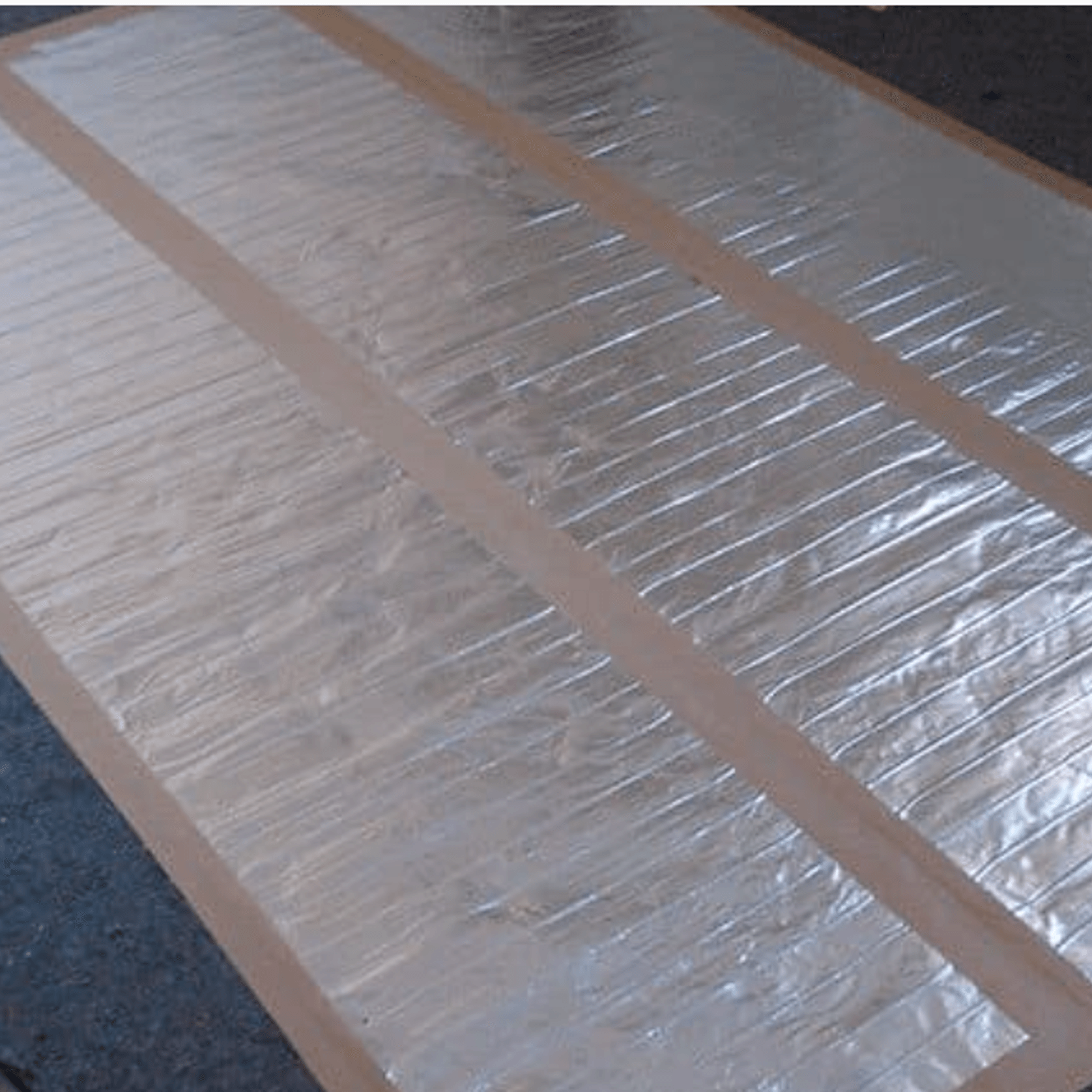

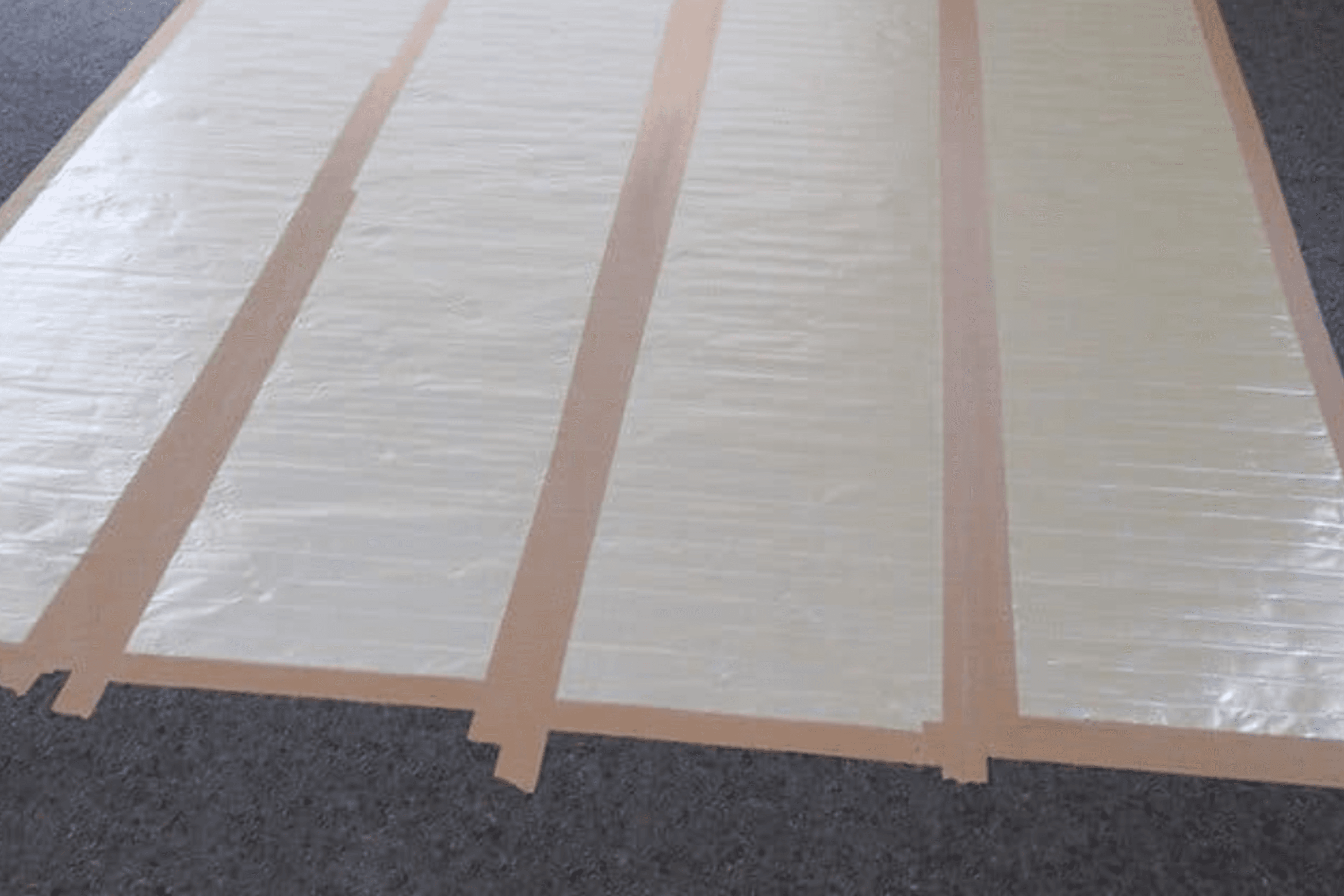

The 500mm wide foil mats are ideal for large or small areas and are taped onto the underlay. Heating very close to the floor surface has a fast response time and should reach temperature in the first 15-30 minutes.
- Specs
TECHNICAL DATA
Cable Type: Twin-conductor heating cable with earth screen
Construction: Multi-stranded heating wire with double insulation, earth screen, and sheath
Insulation: 4000 V
Rated Voltage: 230 Volt AC; Rated output 140W/m²
Cold Tail Length: 3 metres with splice connection
Cable Diameter: 1.2mm
Cable Standard: IEC800 Class II
Warranty: 5 years
- Features

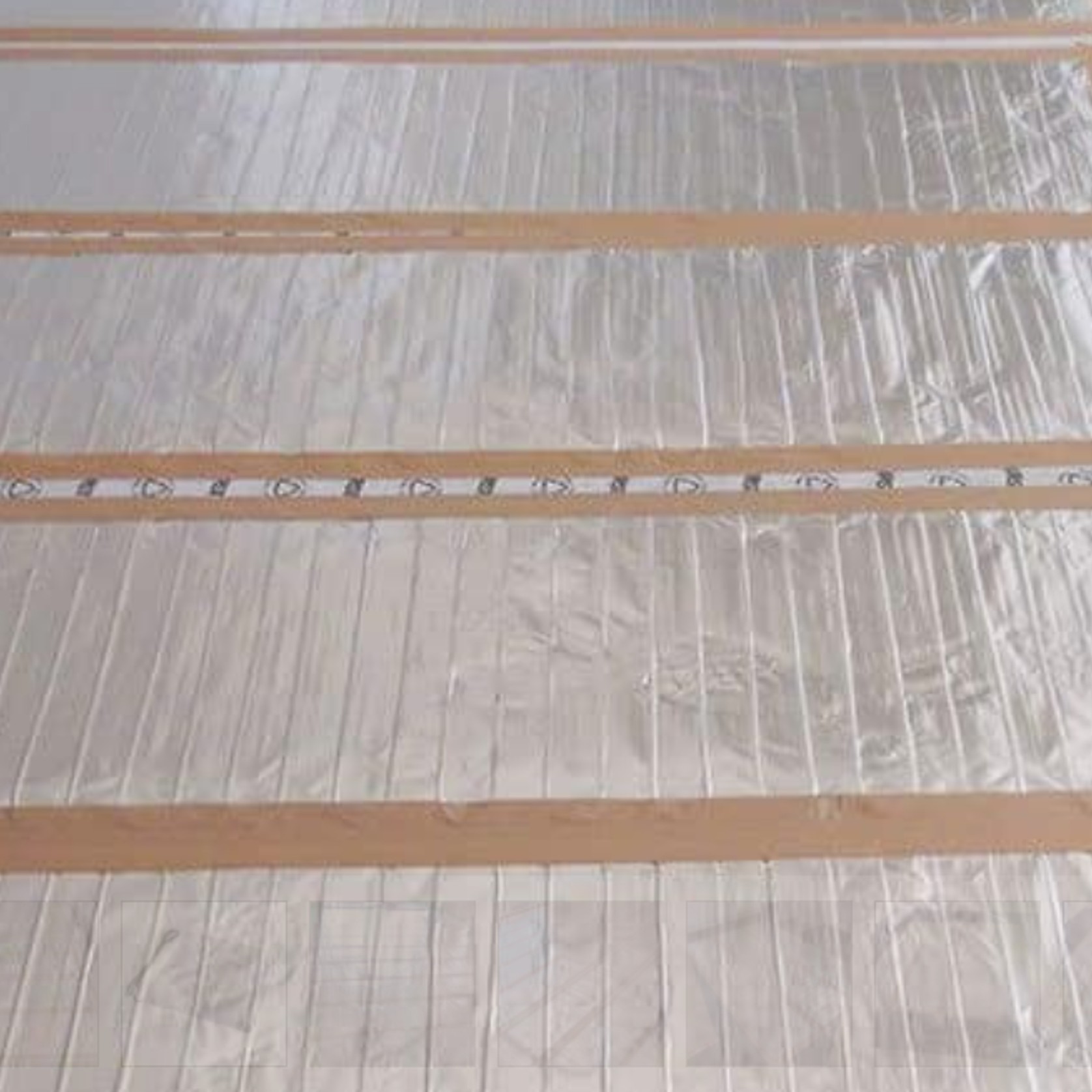

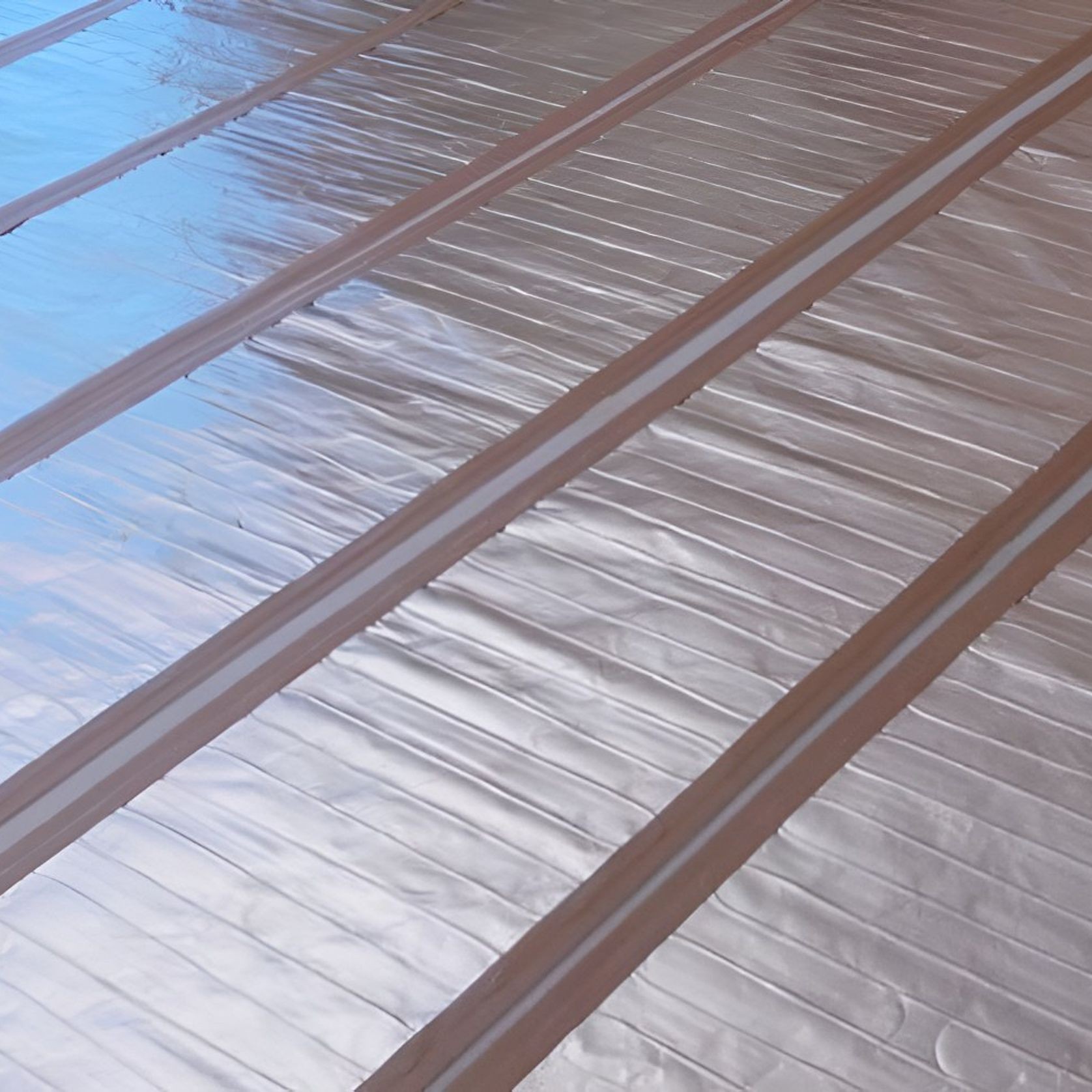

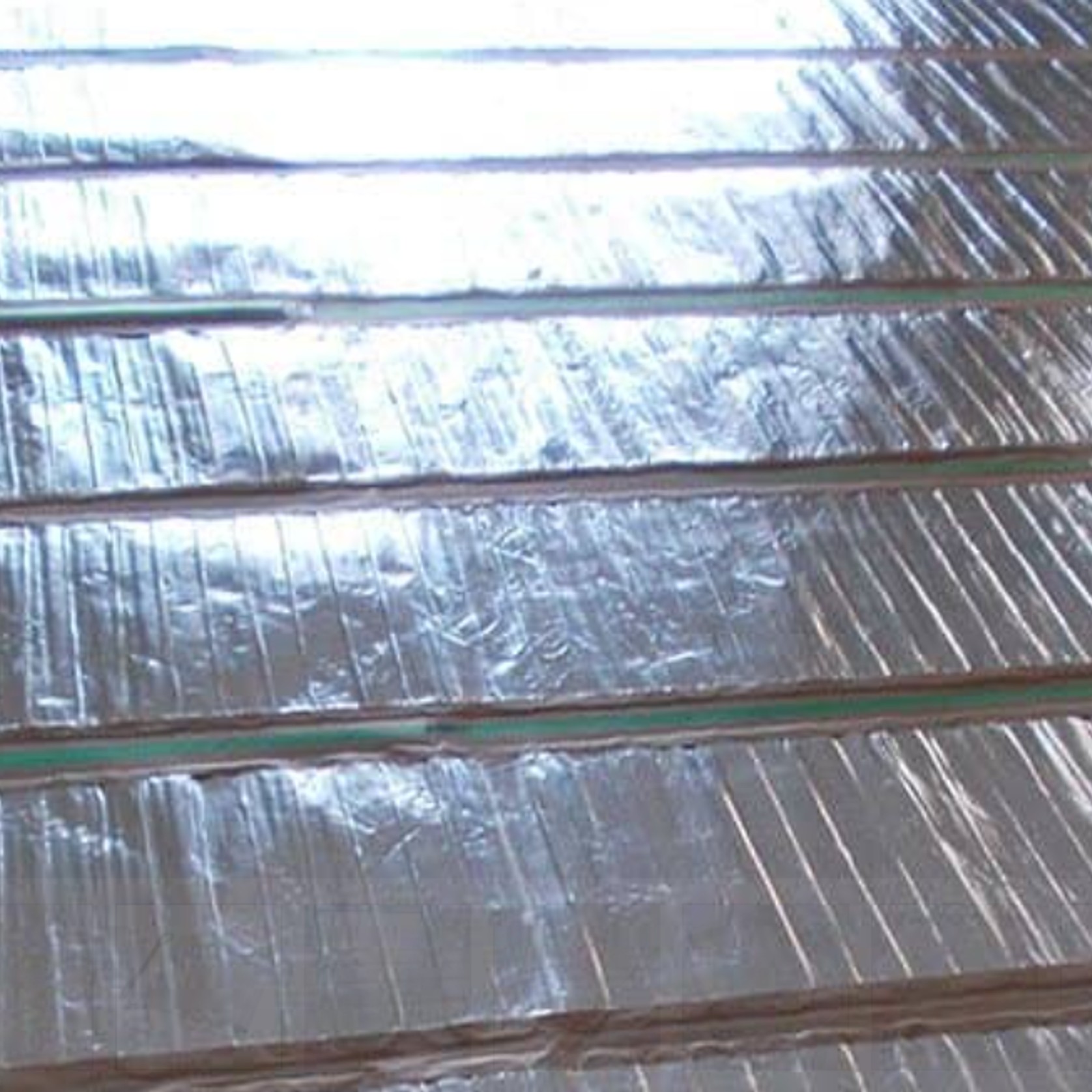

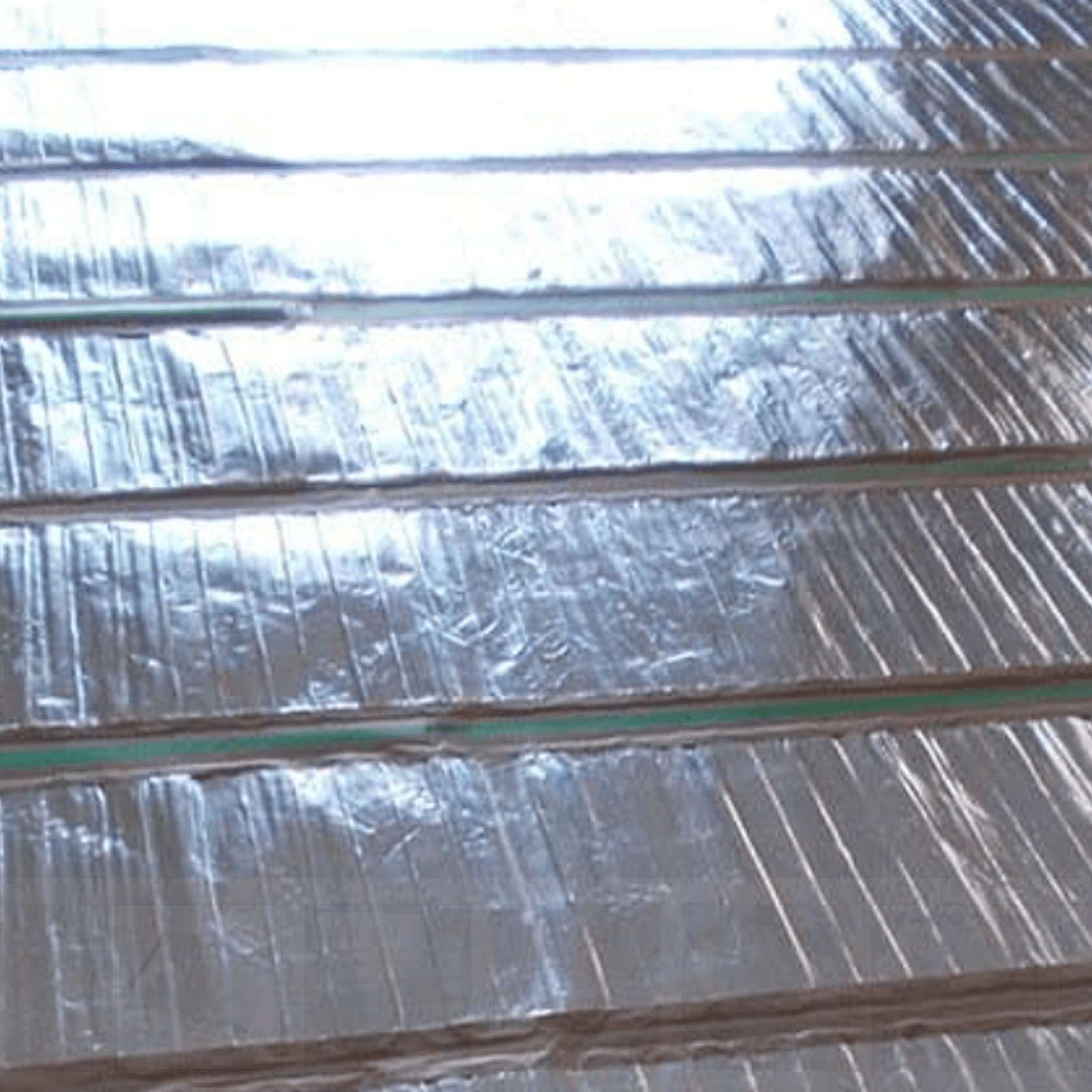

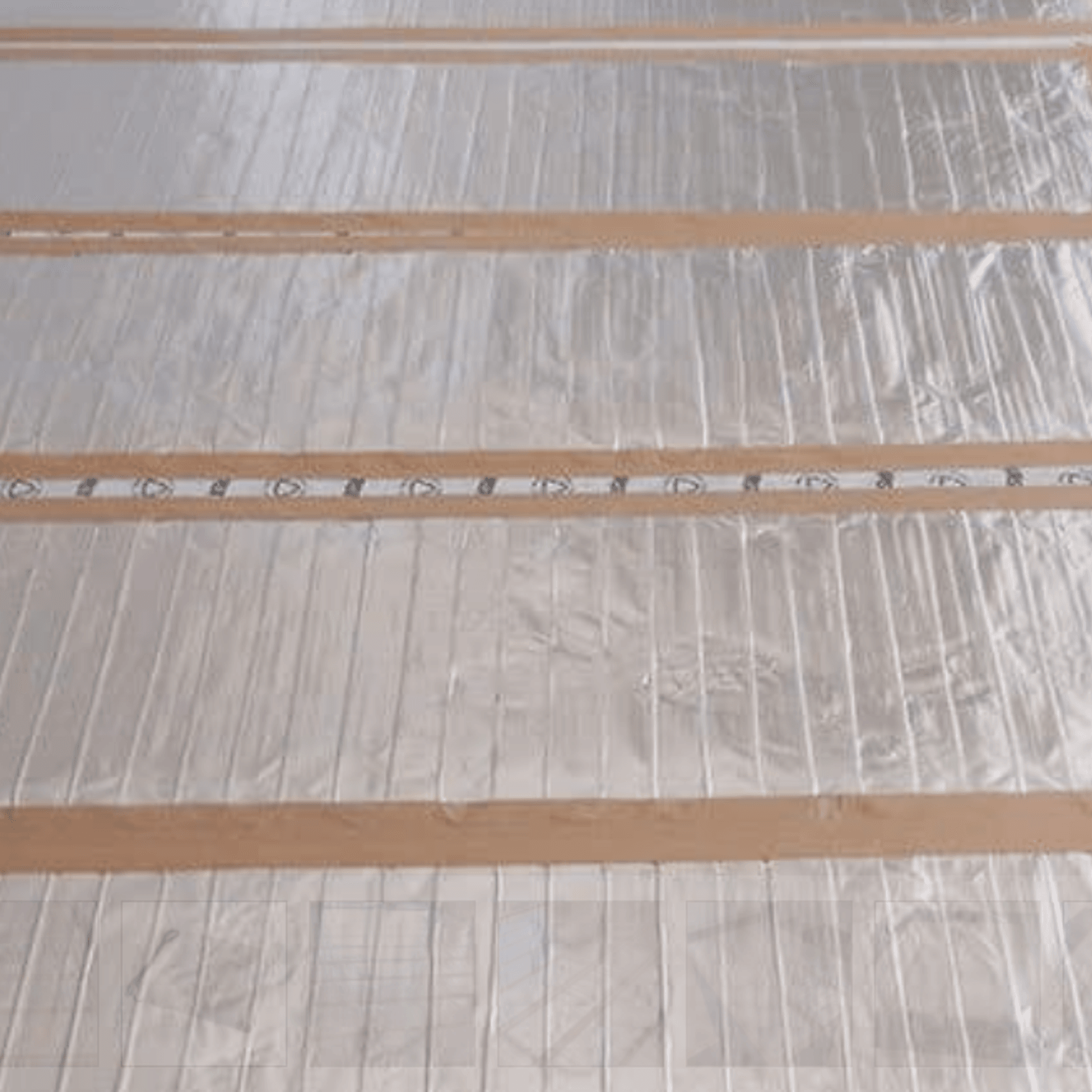

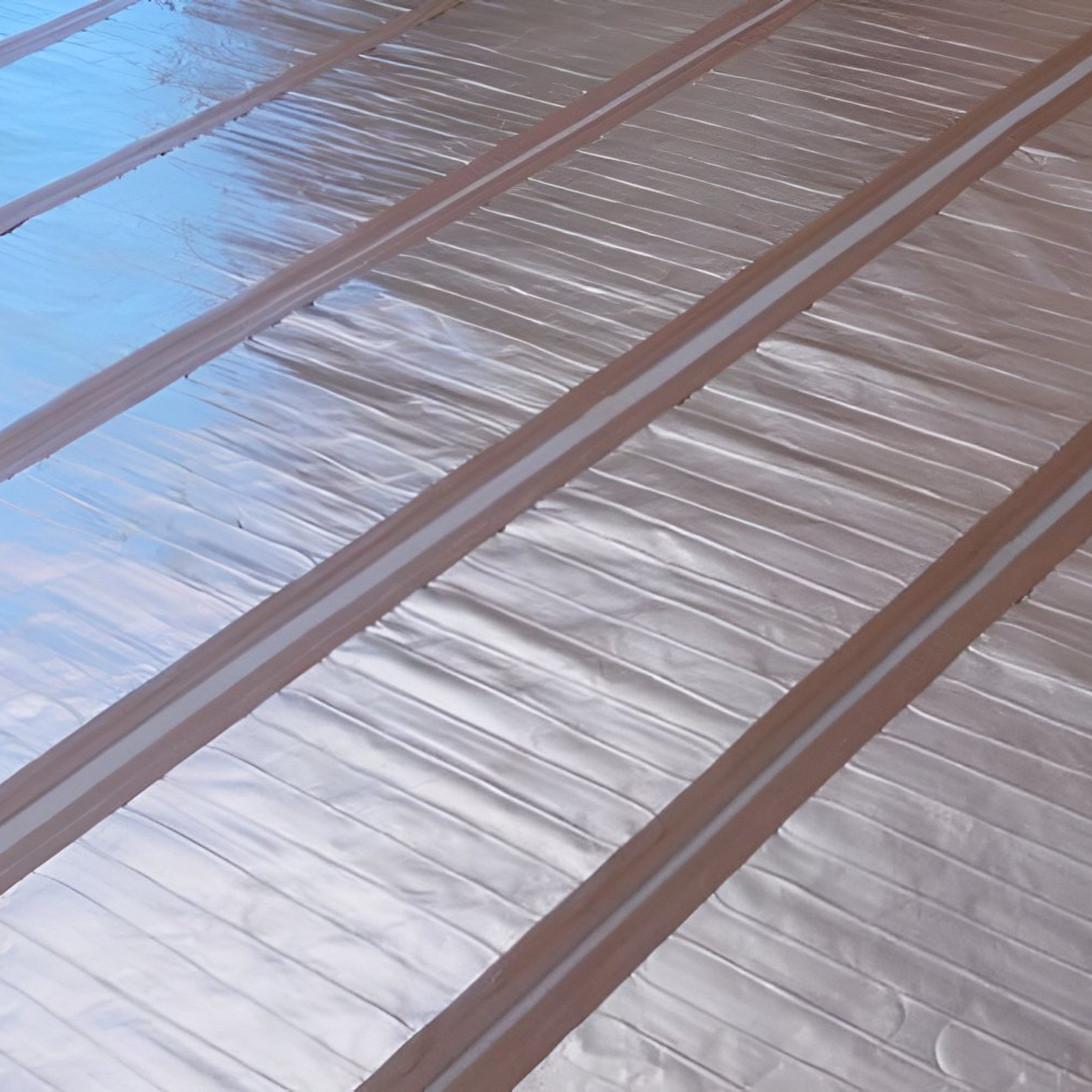

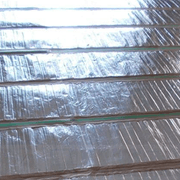

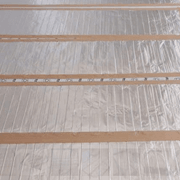

Cable Technology - The foil mat consists of a twin conducting heating element sandwiched between two layers of reinforced aluminum foil, providing an even distribution of heat.
Heat Output - The heating mat has a heat output of 140W /m² and is available in 500mm wide pre-fabricated mats in a variety of pre-determined lengths. Comfort Heat staff will help select the correct mat length for your heated area.
- Scope of use
Suitable for indoor use.
- Installation
The under timber heating mats are taped down on top of the underlay before the timber is installed. Unlike under tile or in-slab heating cables, under timber mats can be installed up to 300mm off walls and fixtures within a floor area. Comfort Heat staff can design the best installation to achieve a comfortable operation.
