Thin Electric Underfloor Heating

Cable Type: Twin conductor heating cable with earth screen

Construction: Multi-stranded heating wire with double insulation, earth screen and sheath

Insulation: 4000 V

Rated Voltage: 230 Volt AC

Rated output: 150W/m²

Cold Tail Length: 3 meters with splice connection

Cable Diameter: 3.5mm

Cable Standard: IEC800 Class II

Cable Warranty: 10 years

Suitable for indoor use and outdoor use with additional waterproofing.

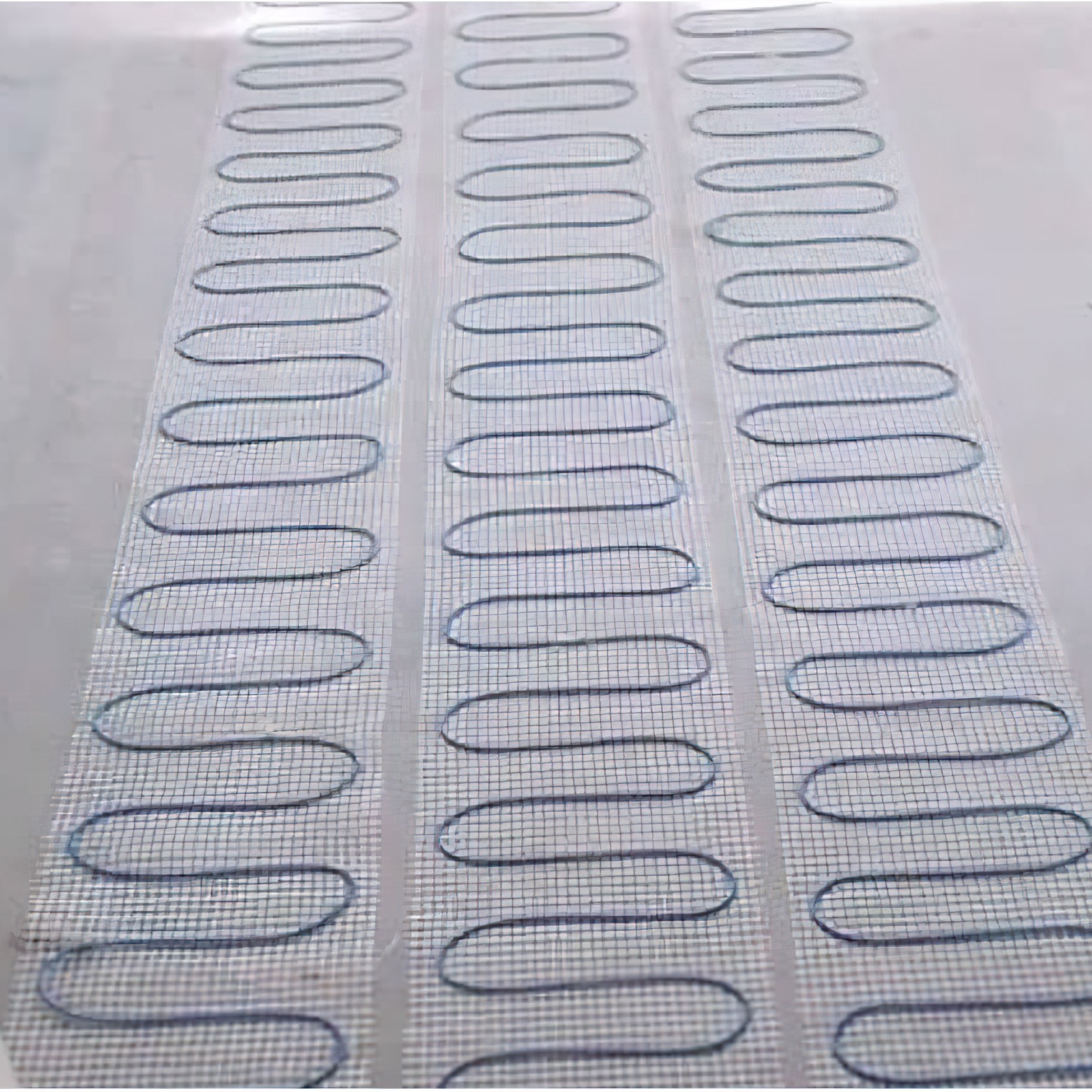

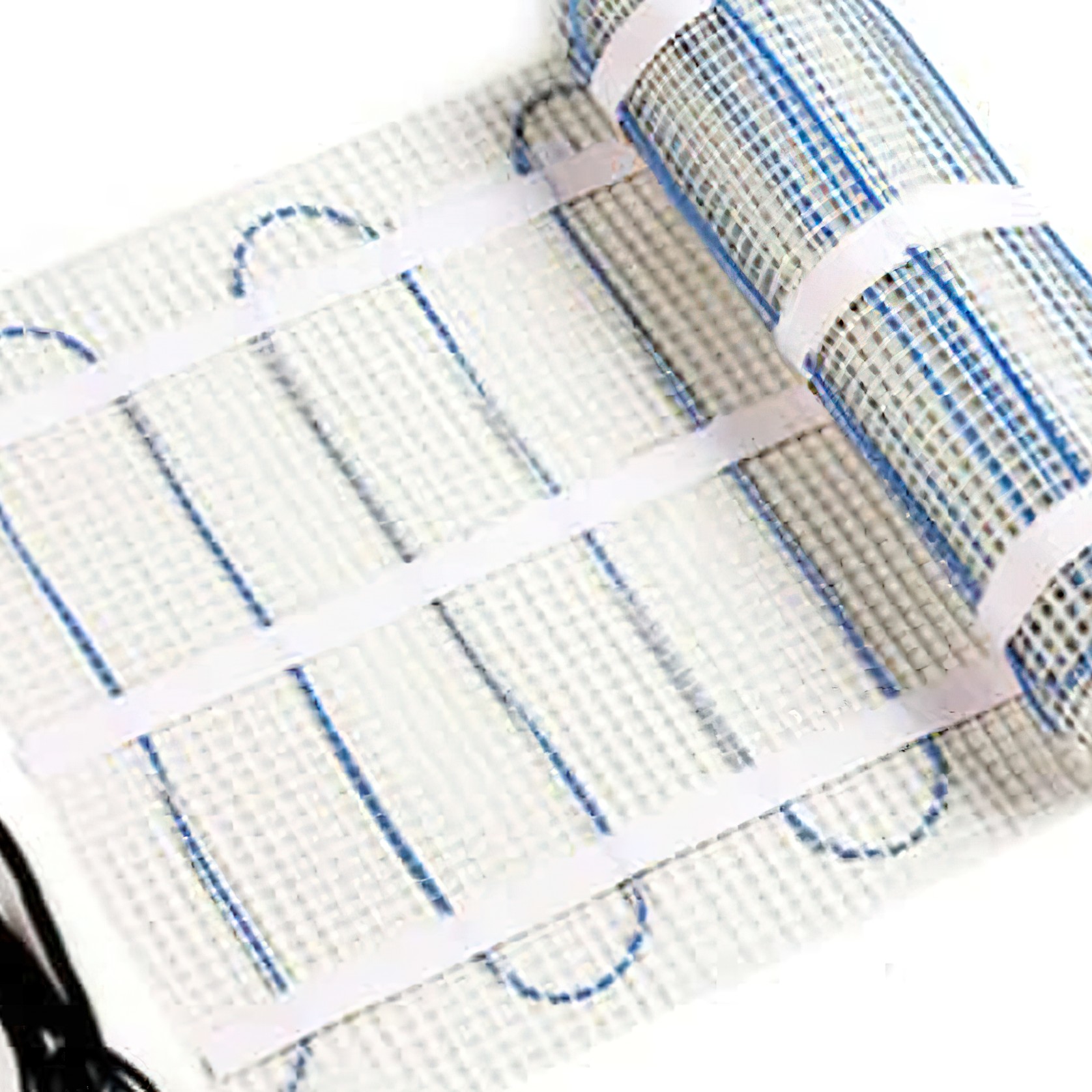

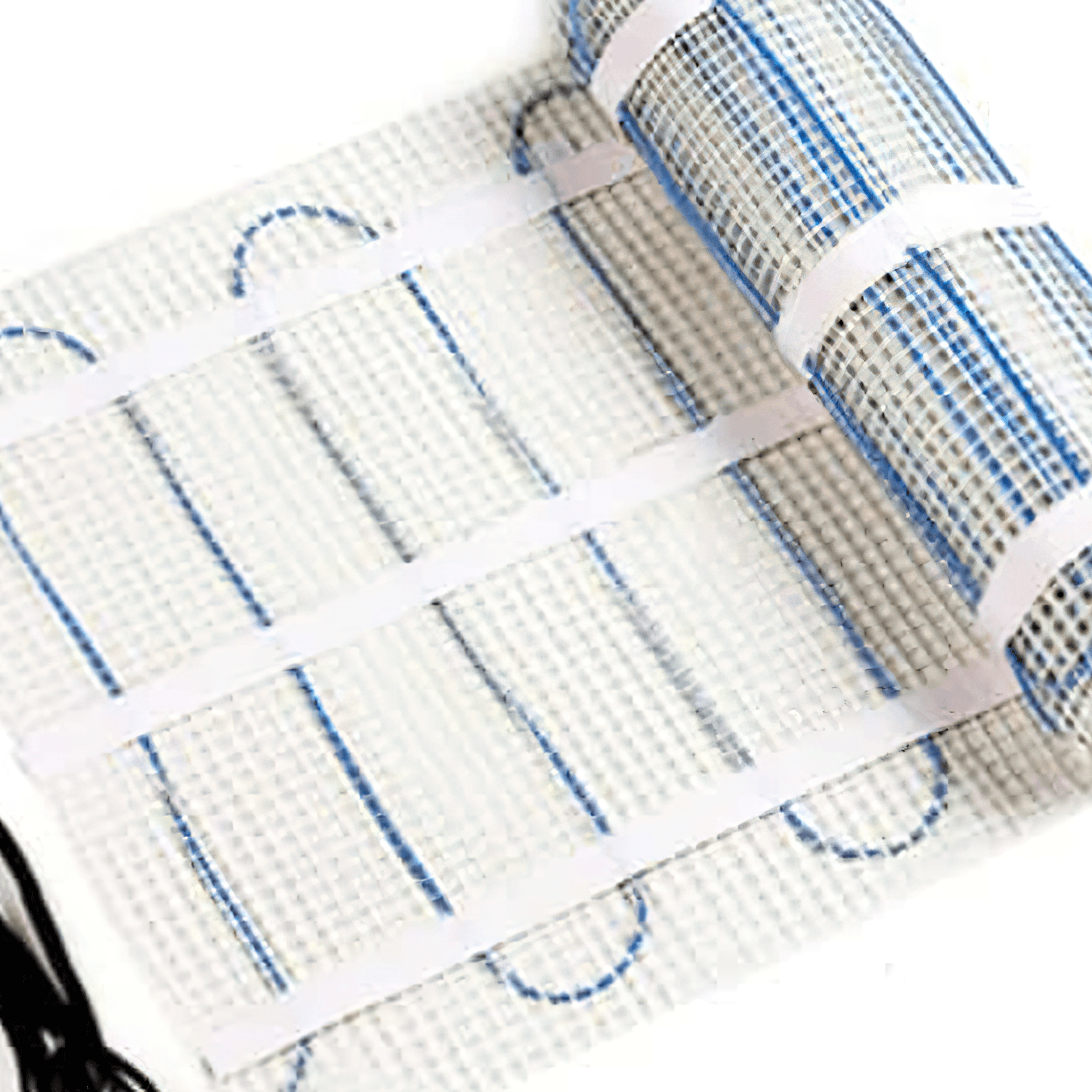

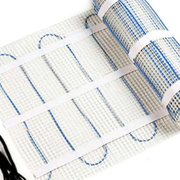

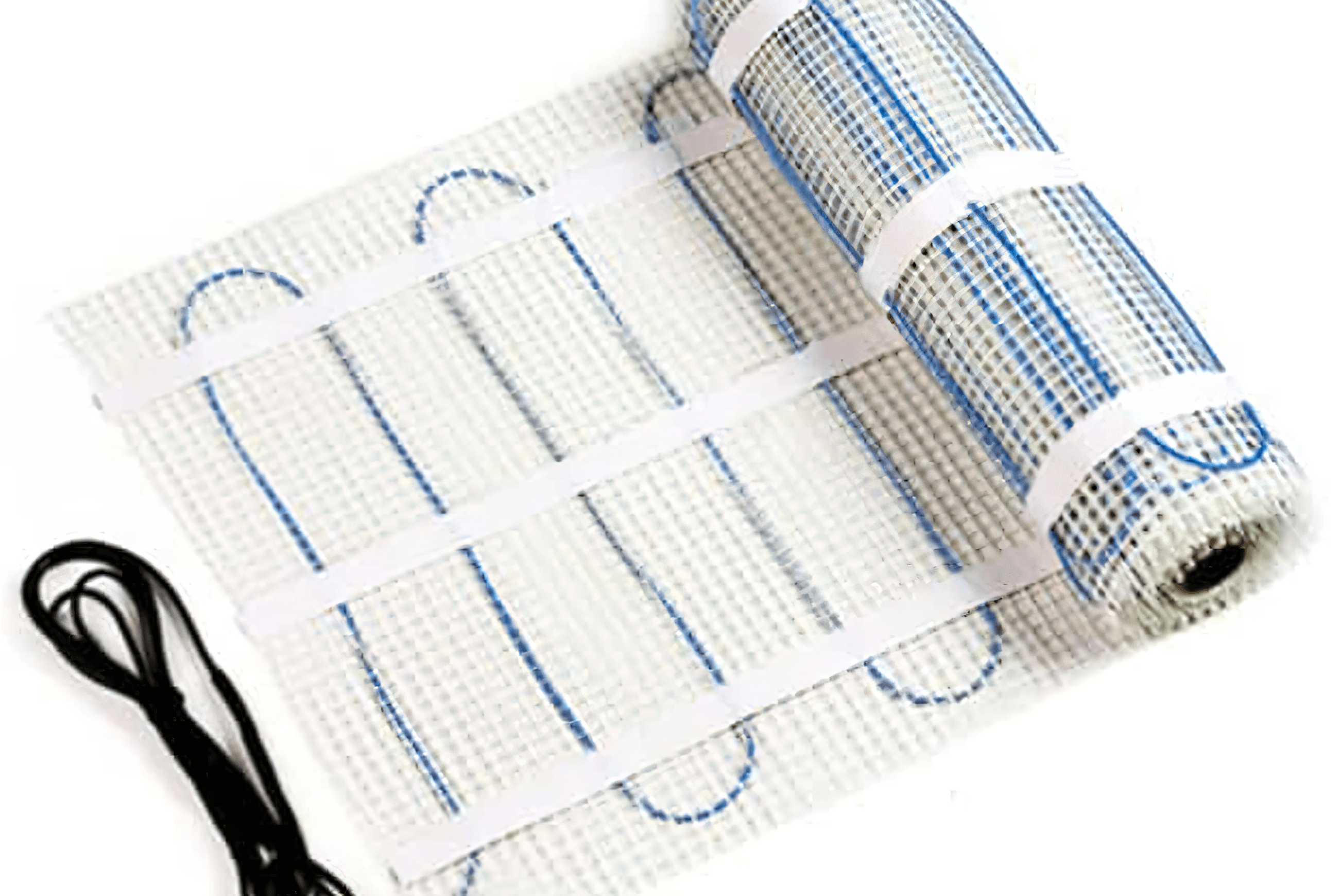

Cable Technology - The ultra-thin heating mat is a flexible double insulated twin cable system, woven into a textile mat. The multi-stranded heating cable gives superior strength.

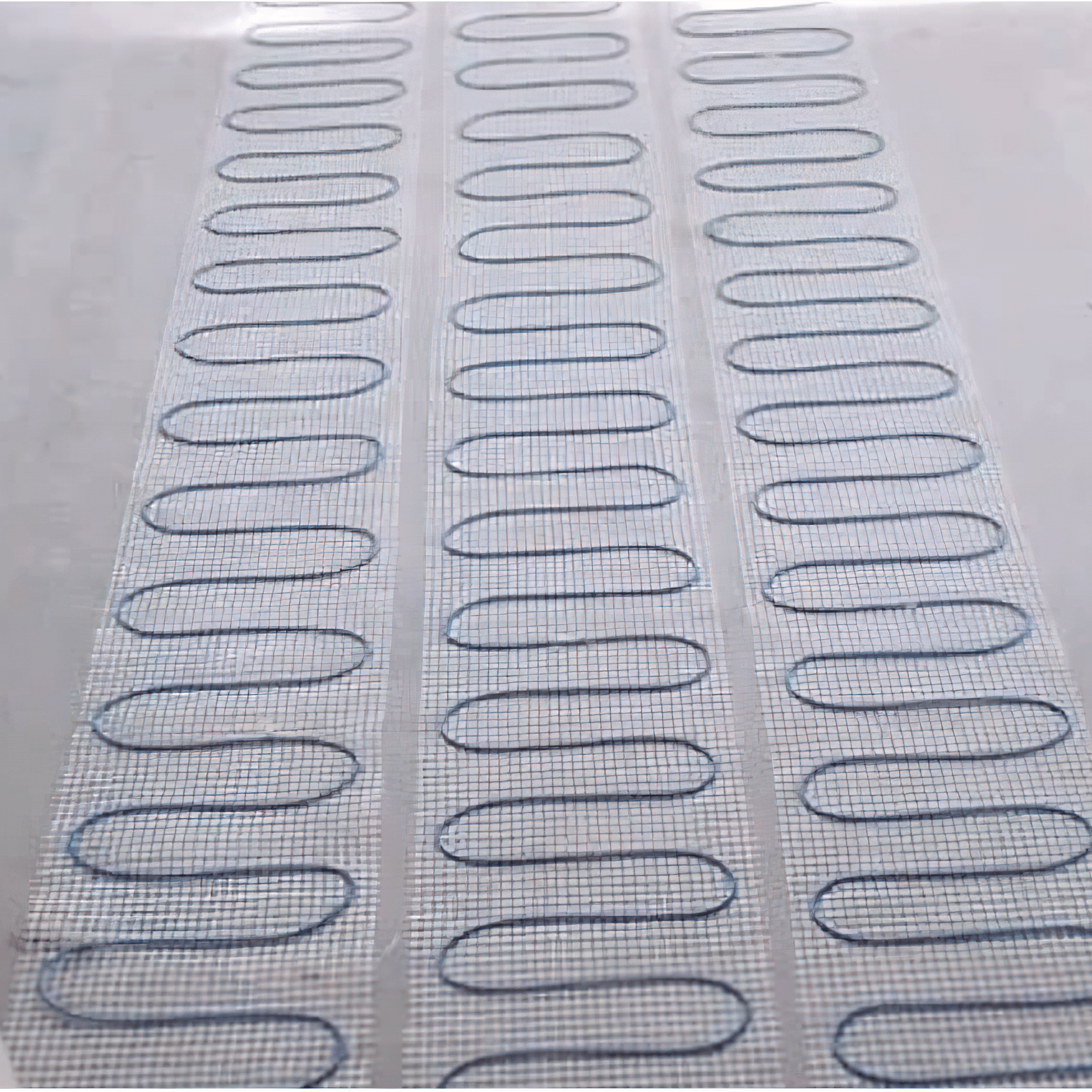

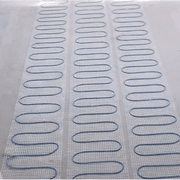

Heat Output - The ultra-thin mat has a heat output of 150W /m² and is available in 300mm and 500mm wide fabricated mats. Comfort Heat staff will help select the correct mat length for your heated area.

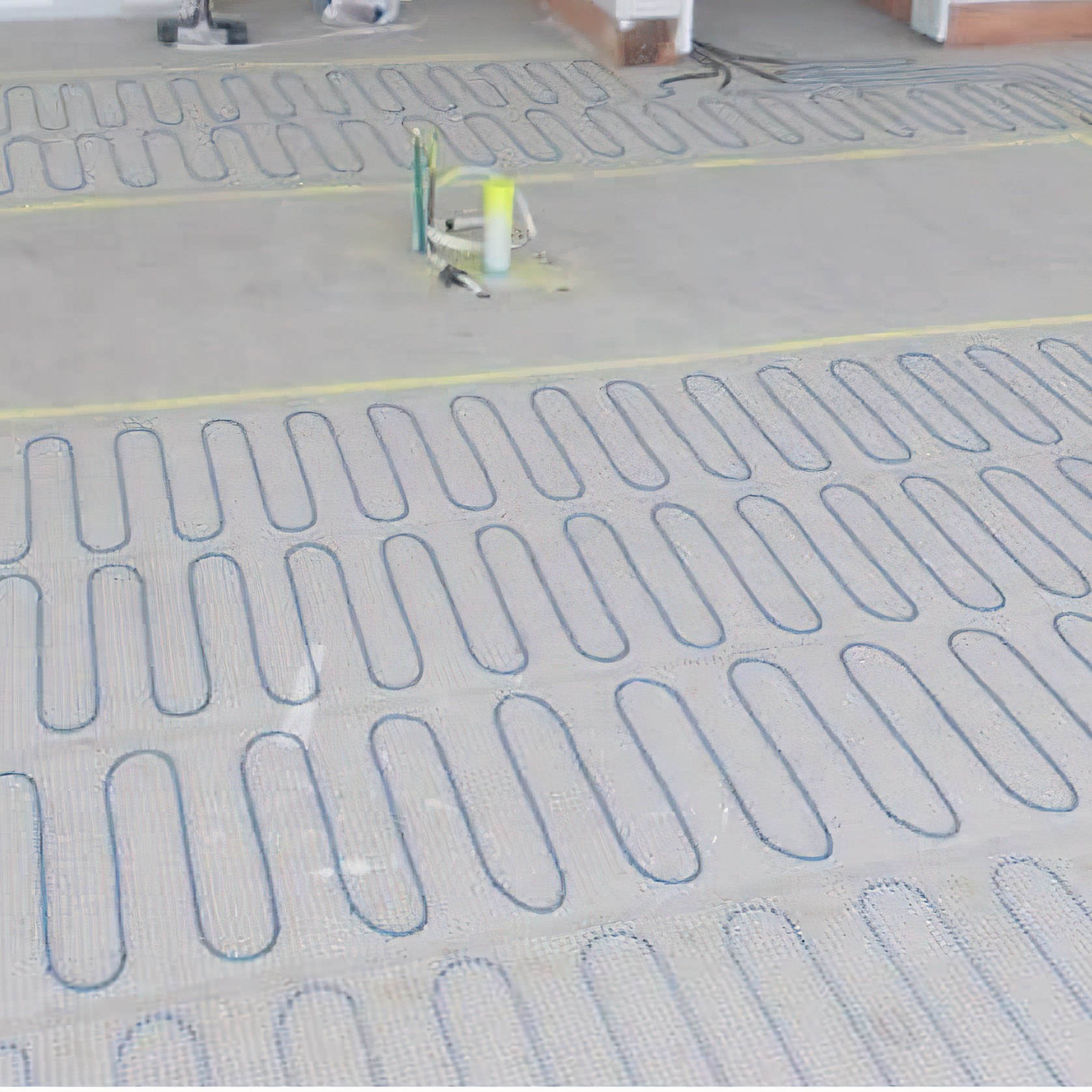

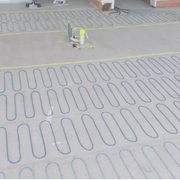

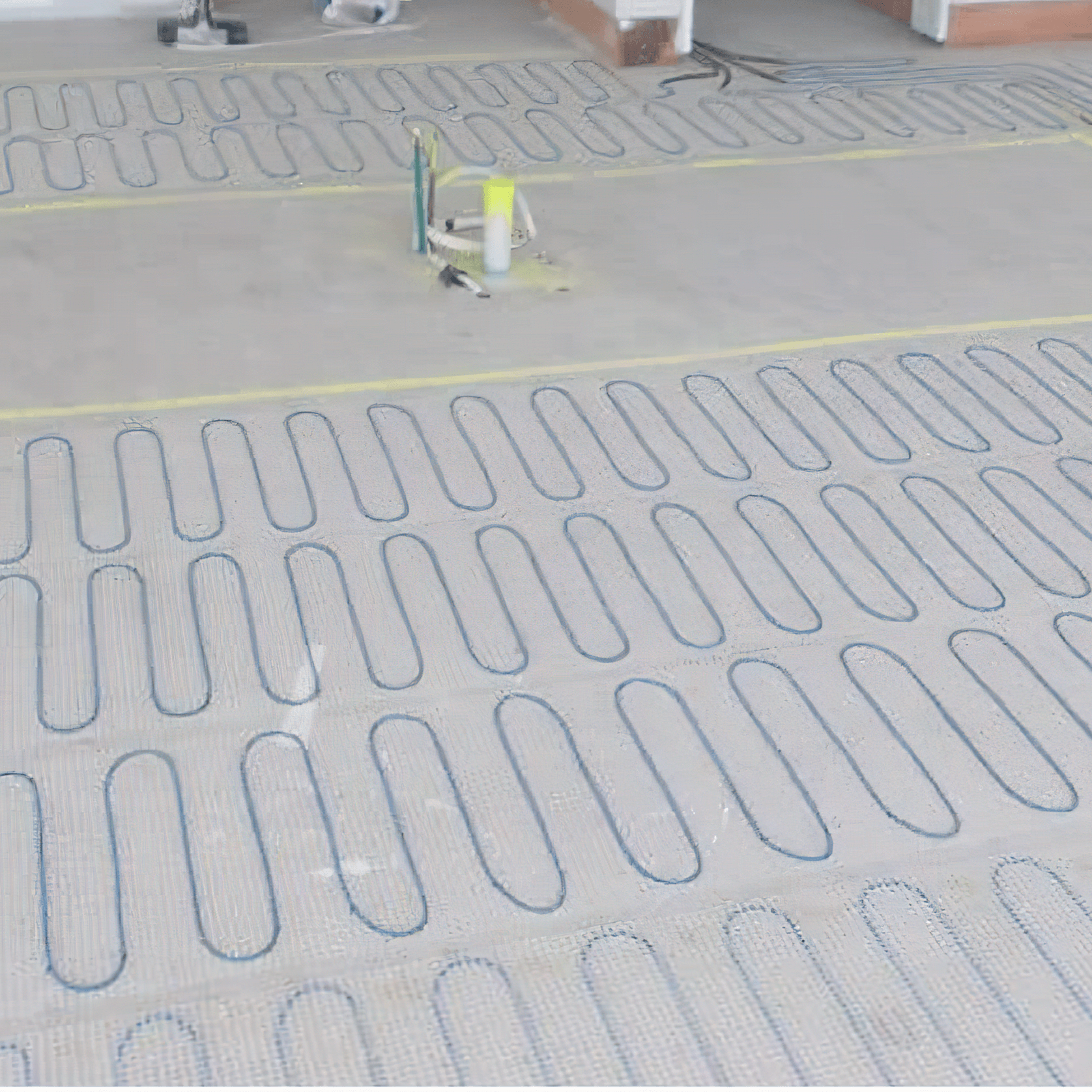

Special Requirements - Due to the thin cable technology, the Comfort Heat ‘Sensor Tube’ (Ref: Sensor Tube Page.) must be chased onto the floor. Comfort Heat must be informed of any expansion joints in the slab. The mat must not be installed over any expansion joints. For large areas, multiple mats will be installed.

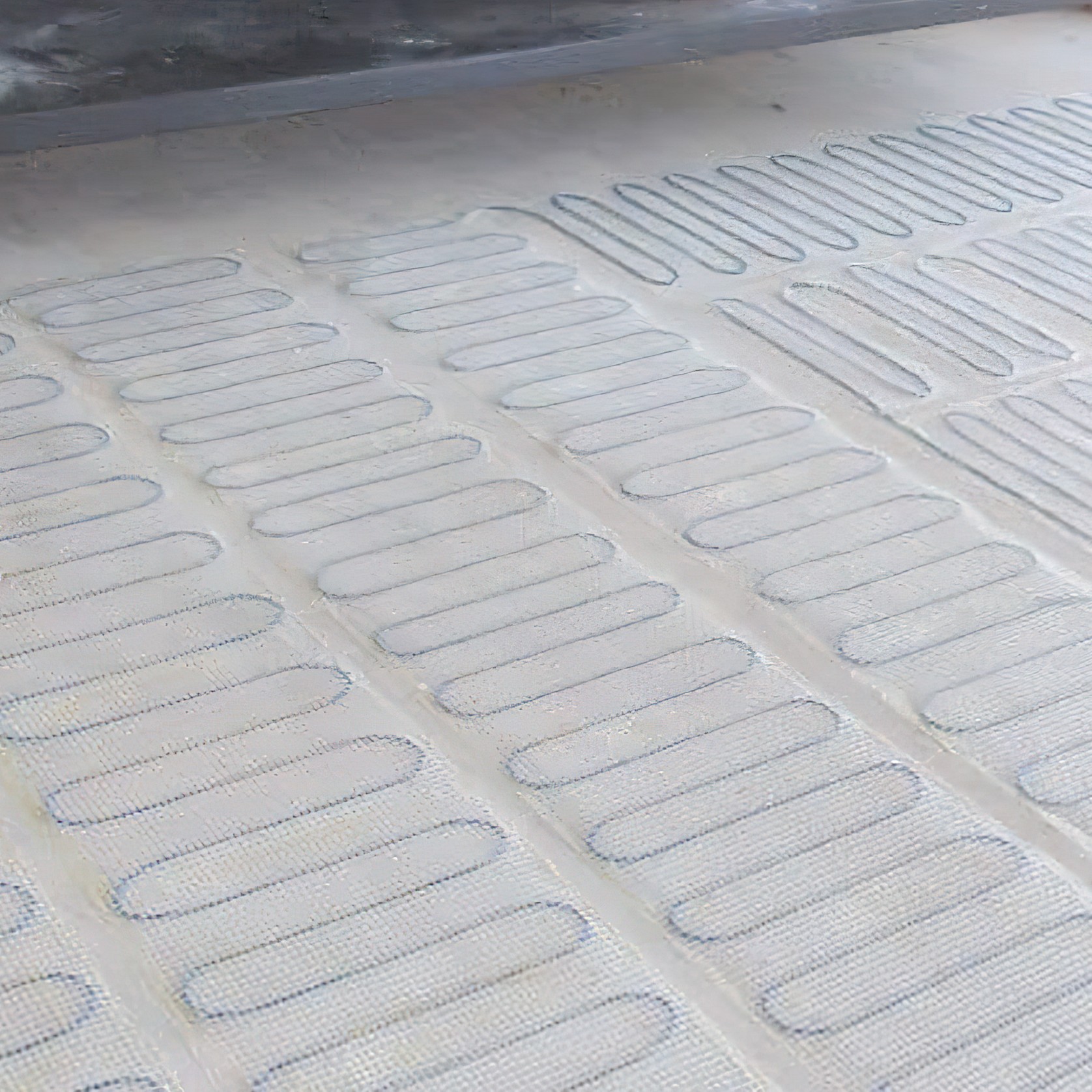

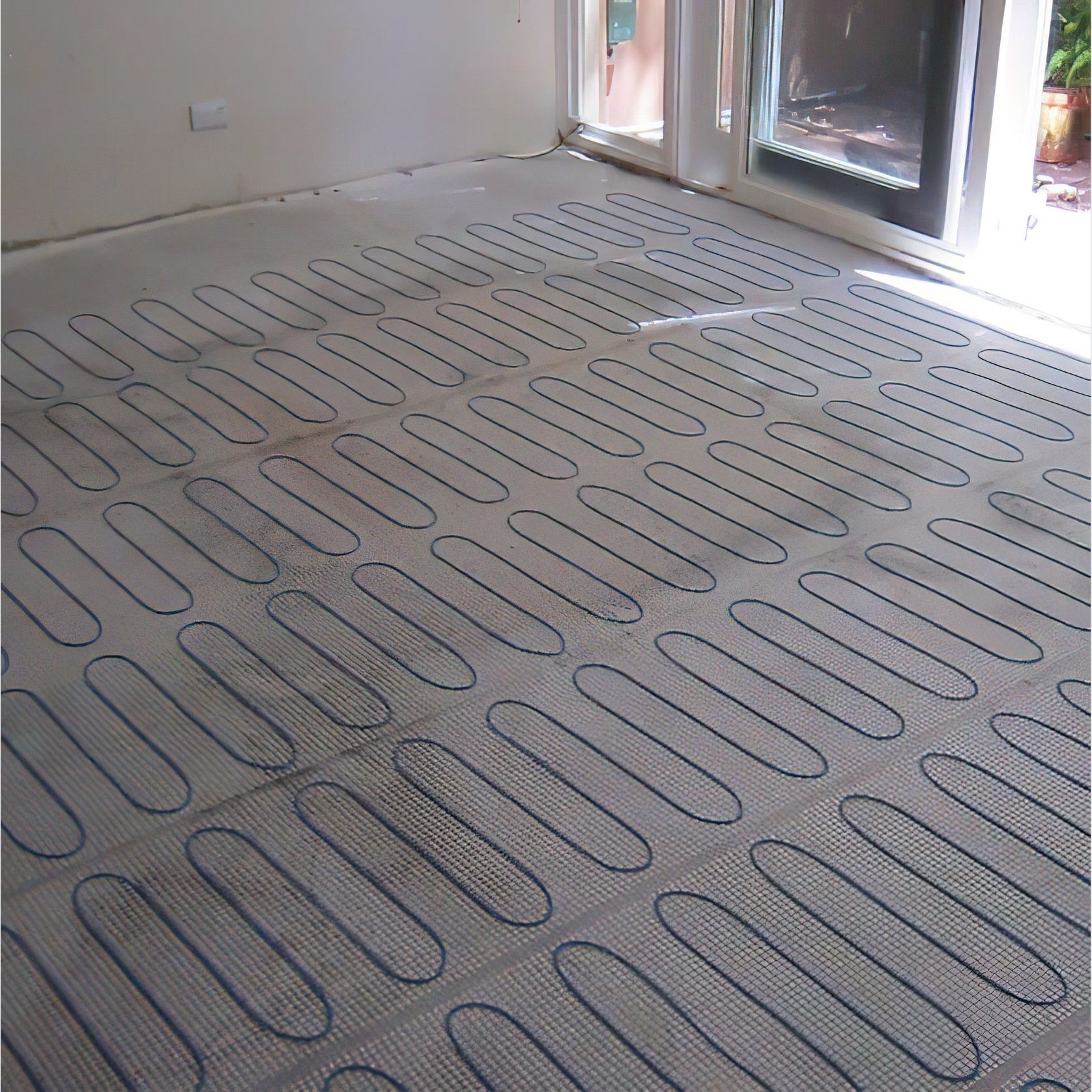

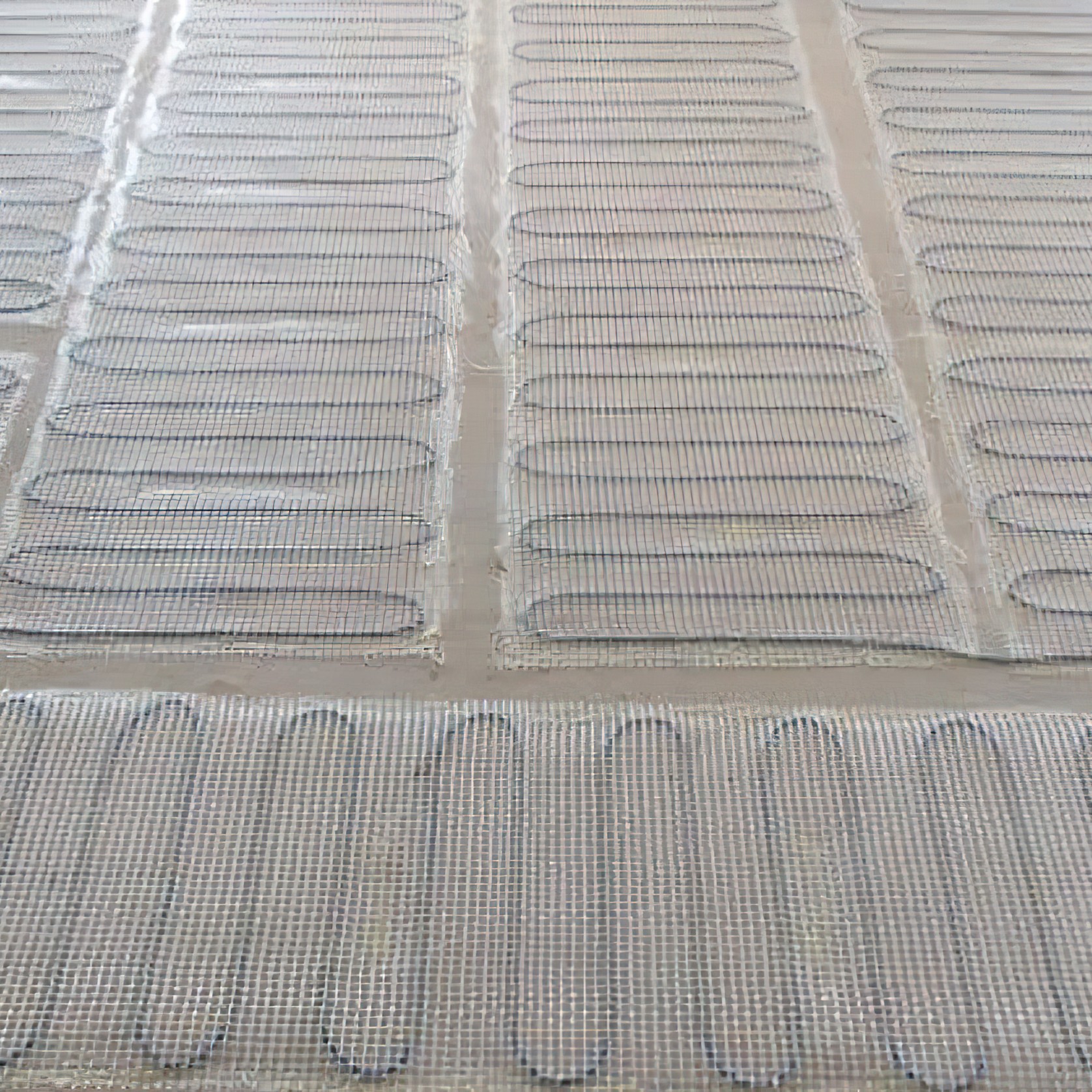

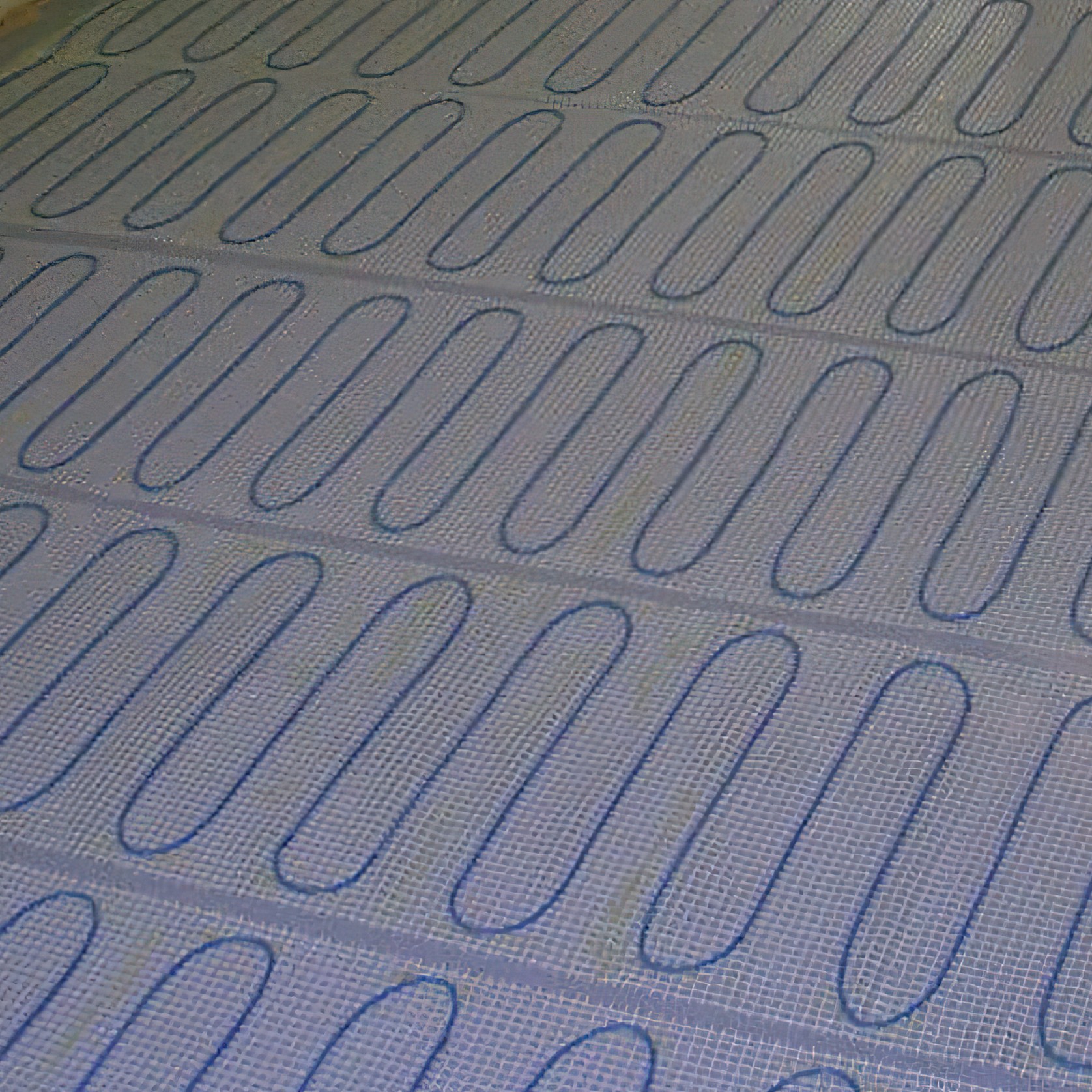

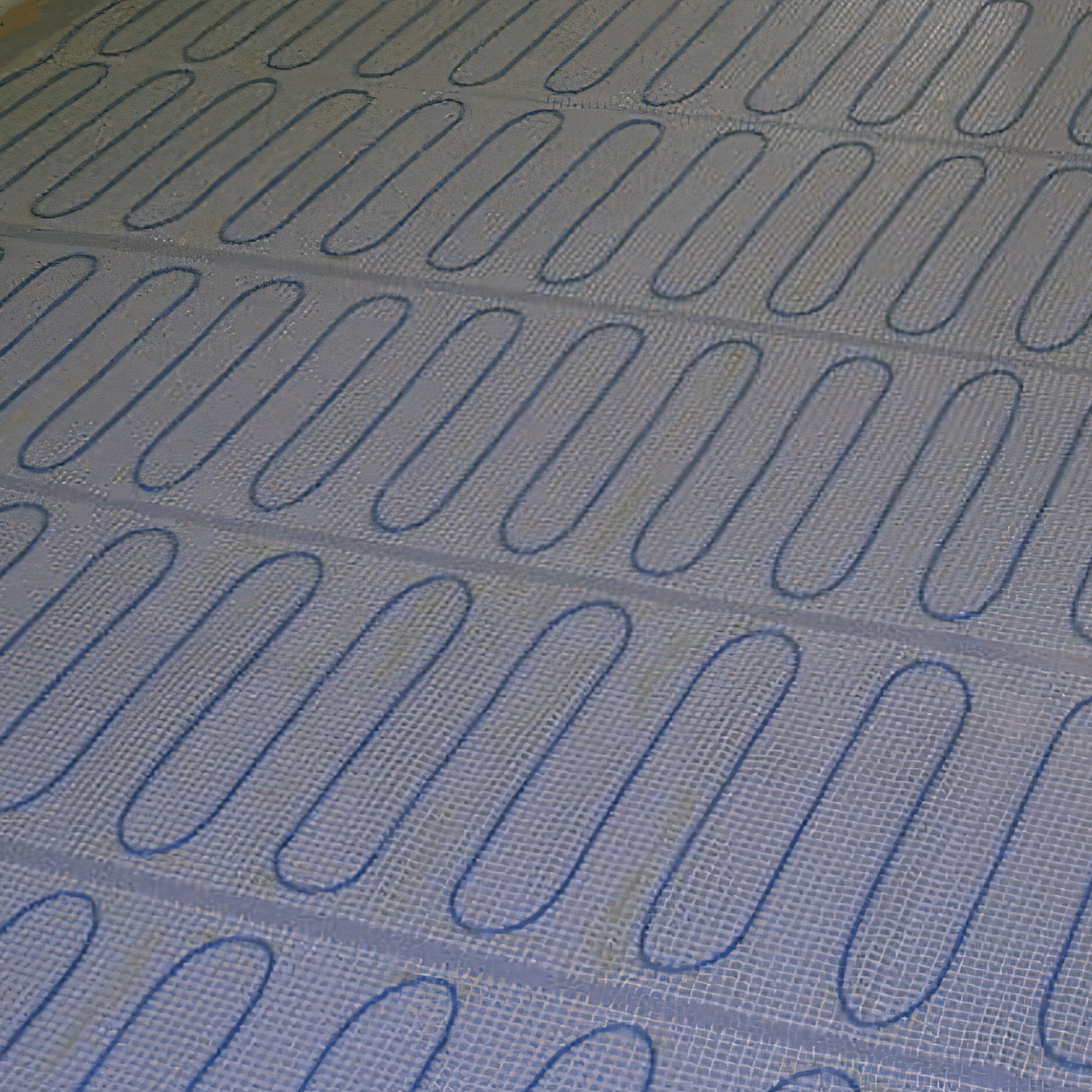

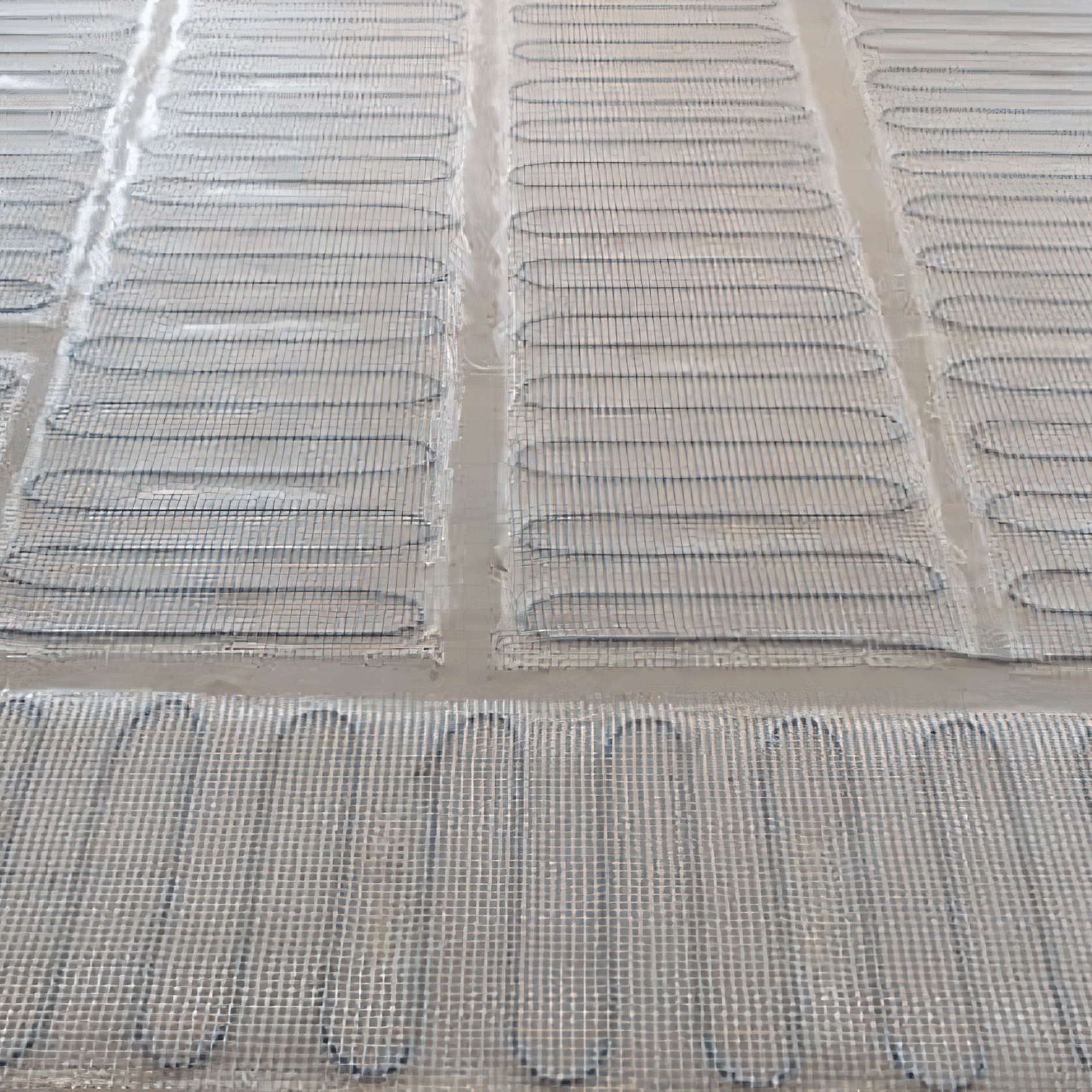

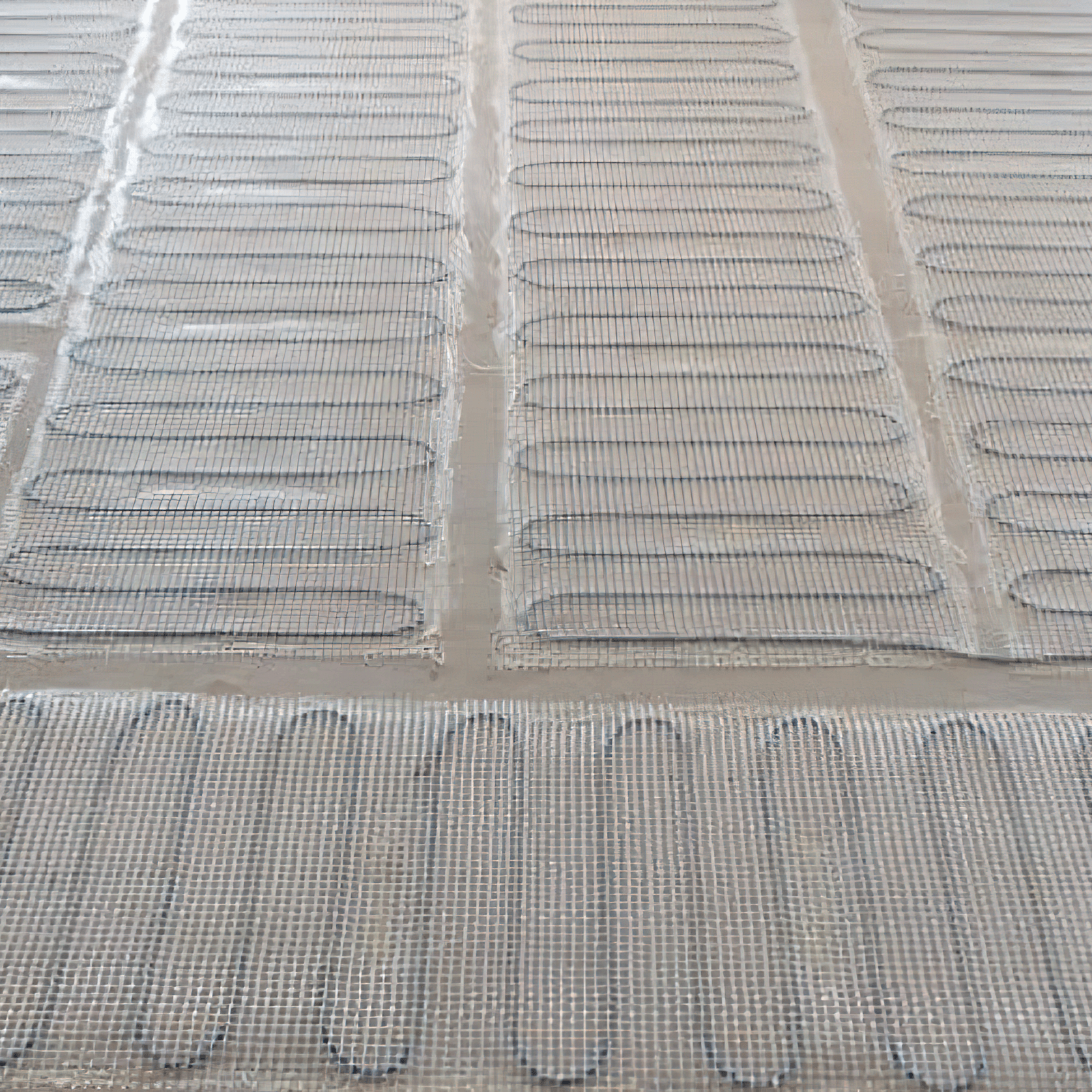

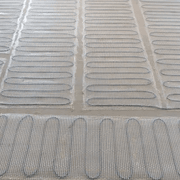

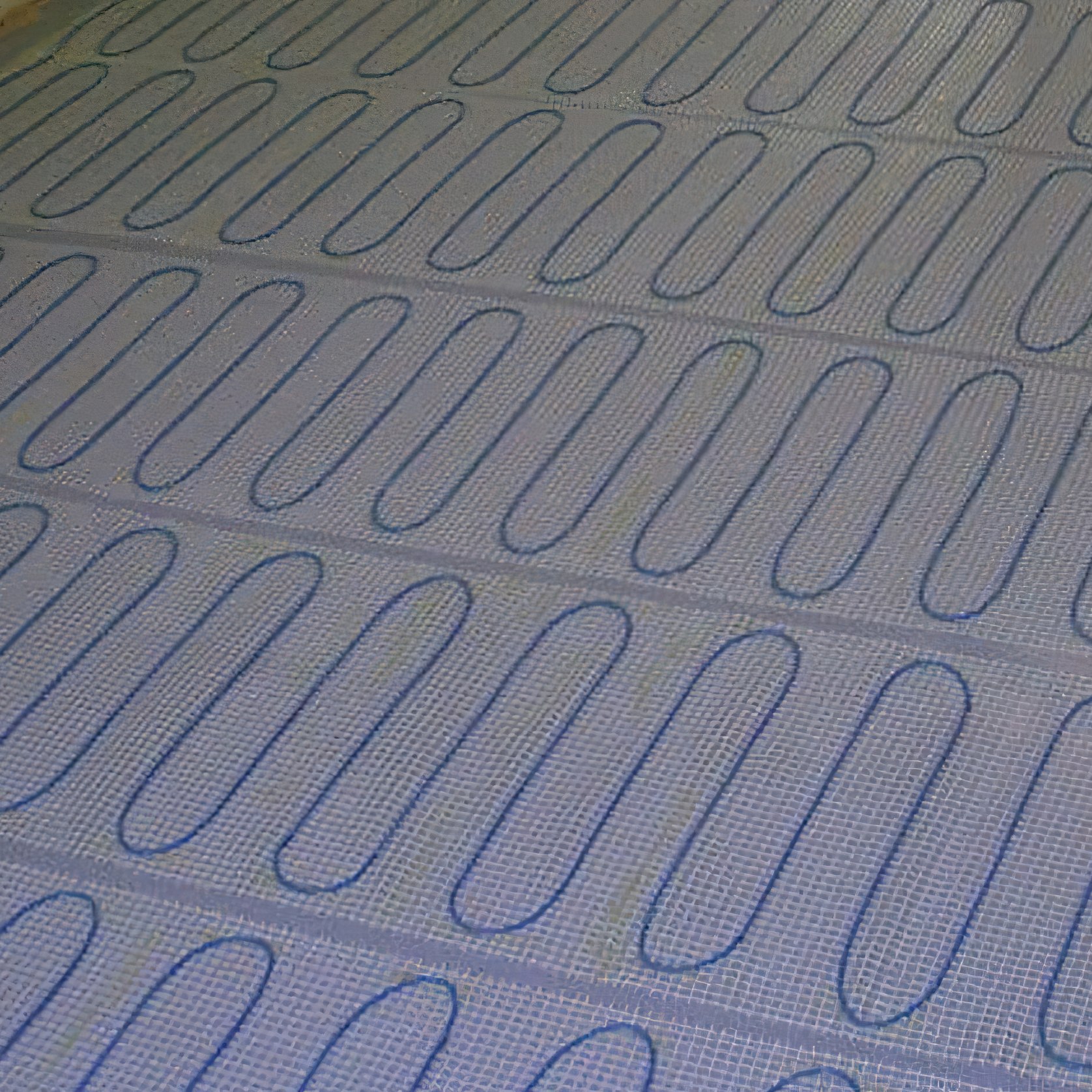

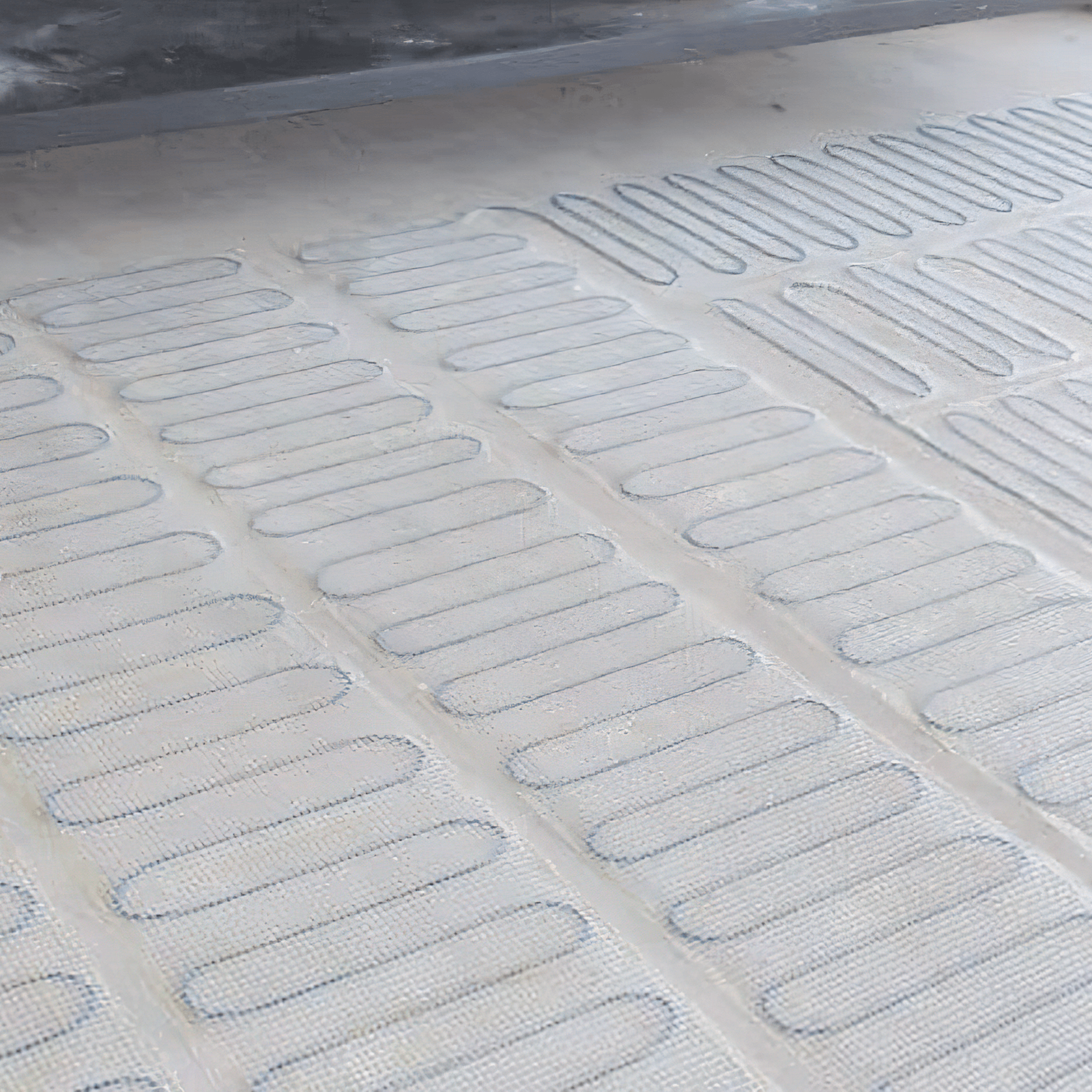

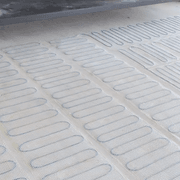

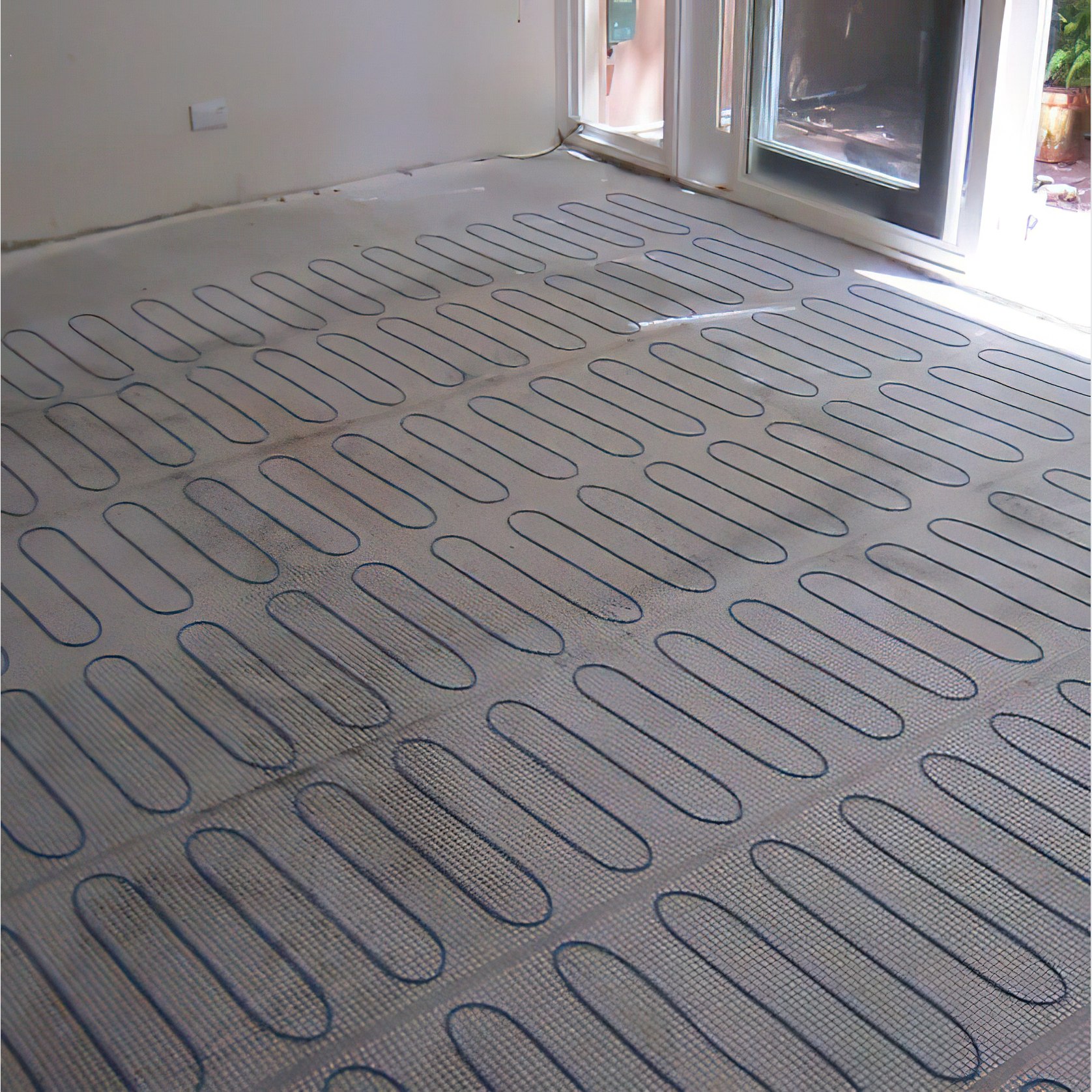

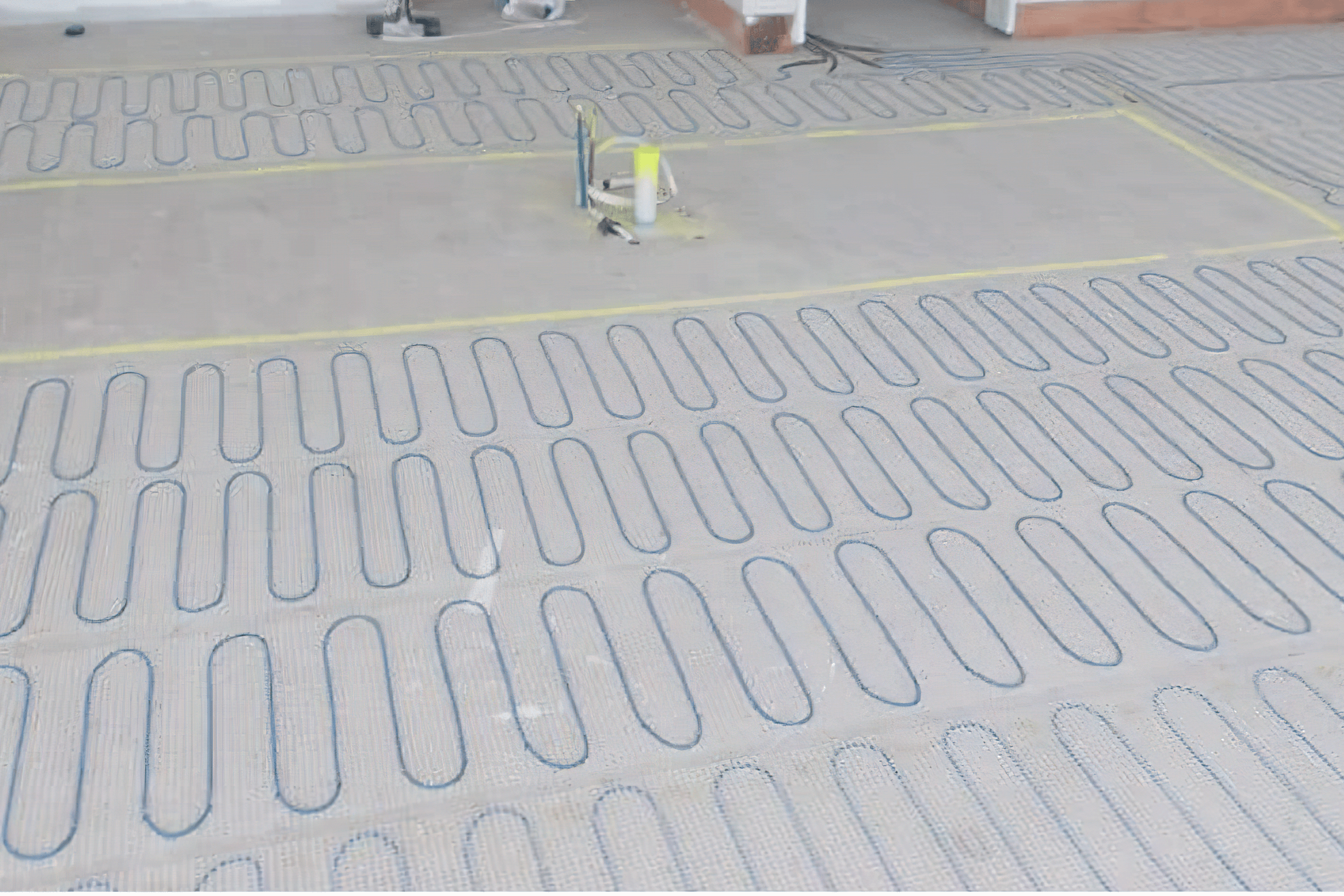

The thin mats are installed directly beneath the floor covering in the tile adhesive, adding no height to your floor levels. Mats are attached to the floor with either hot glue, nylon anchors, or tape. Tile adhesive can be laid directly on top or a thin Ardit can be laid over the mat, providing a flat, even surface to tile.
