Indigo-50-REC

Colab Lighting
Visit Website

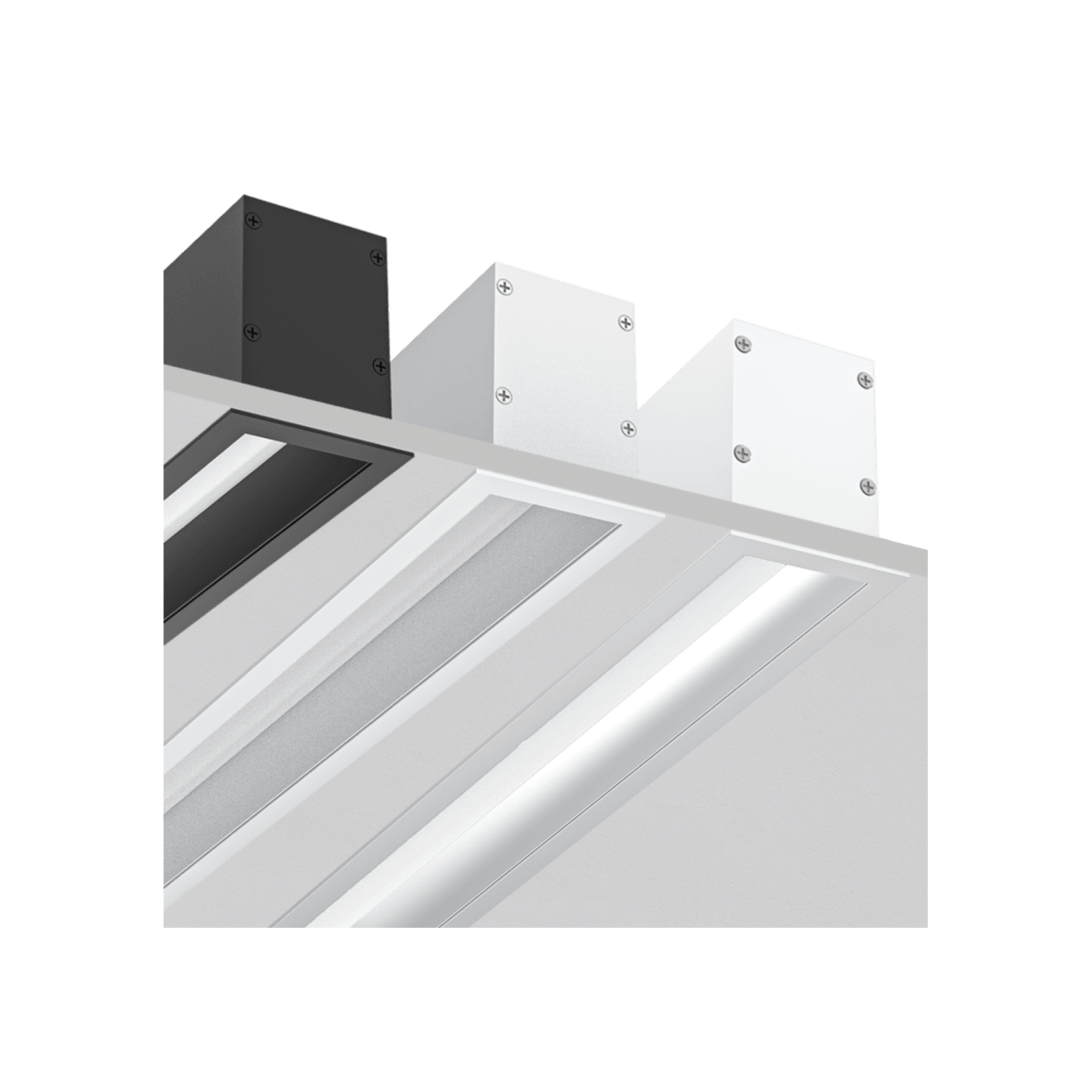

Indigo-50-REC gallery detail image

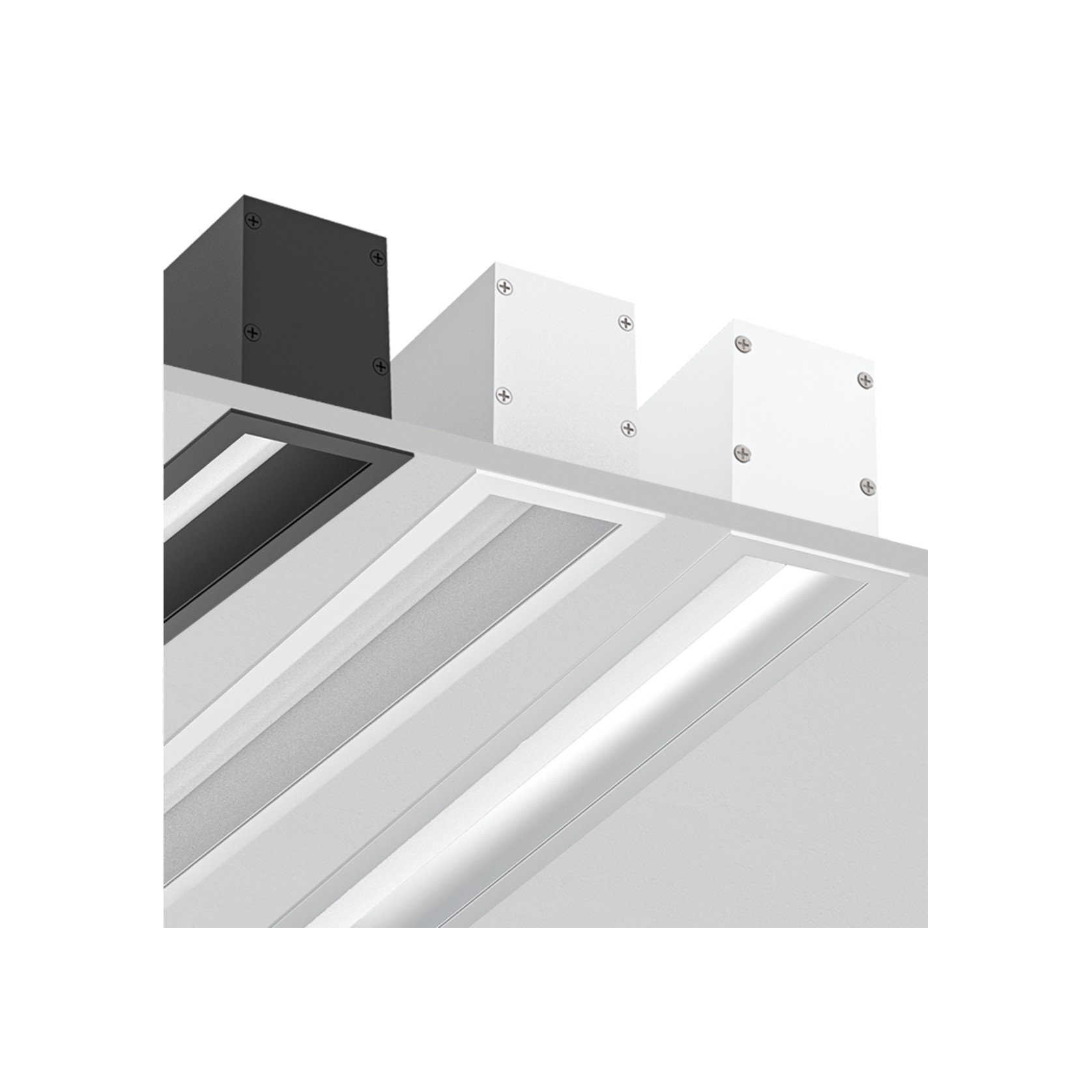

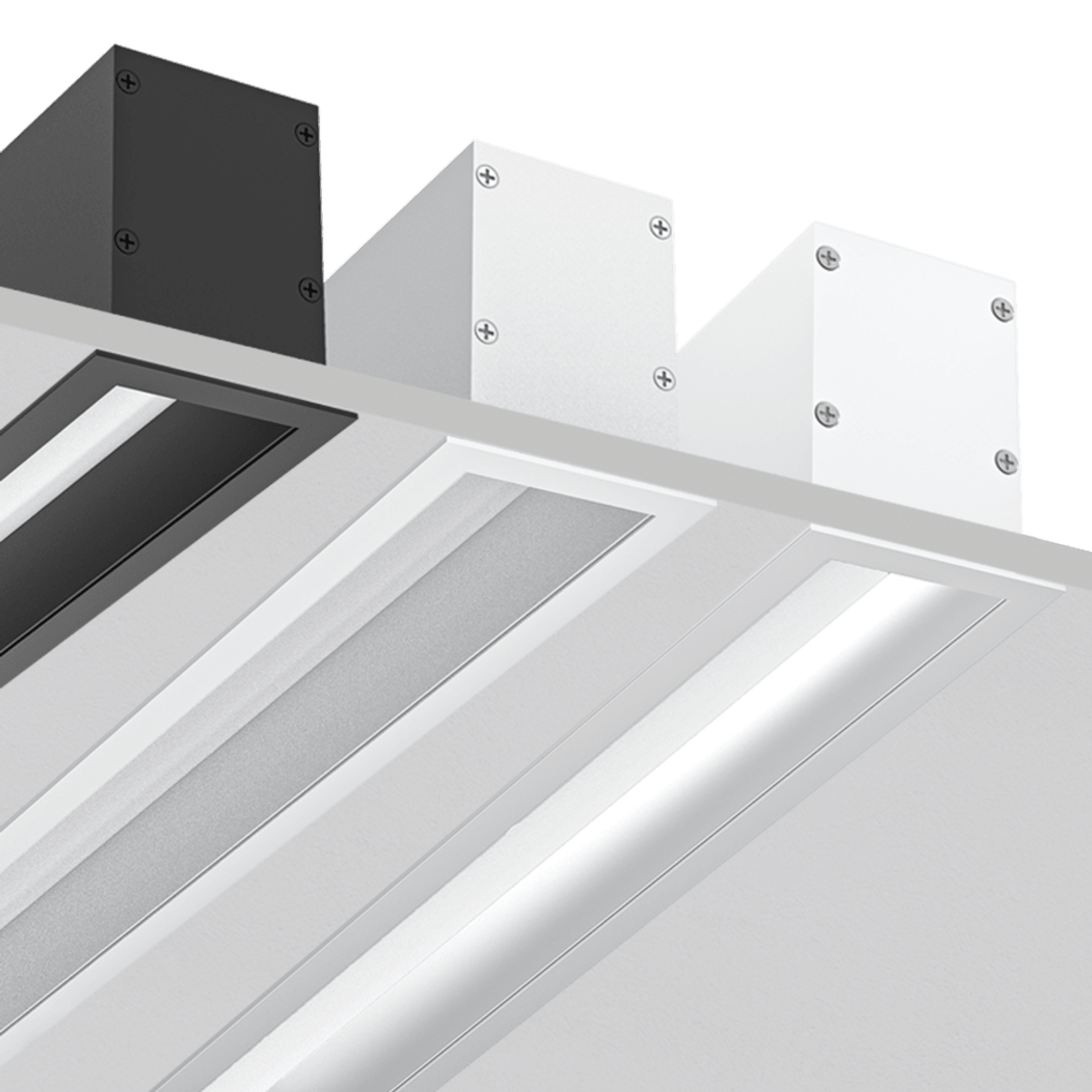

Recessed Mounted Linear LED Profile

The Indigo-50 LED linear lighting system is a versatile set of linear profiles that can be easily configured to suit a range of applications. The system enhances the possibility for engineers, designers and contractors to create different lighting scenarios and environments in a single luminaire design.

Australian manufactured, Indigo-50 is available in either opal diffused cover or high transmittance asymmetrical lens for wall washing purposes and linear illumination of vertical surfaces.

The product can be recessed mounted and integrates Vossloh Schwabe LEDs and controls with optional DALI-2 or Bluetooth dimming. The Indigo-50 REC is covered by a 5 year warranty.

Details
  • Category
    Linear Lighting
  • Range
    Linear Systems
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • 11W (System 13W)
  • 19W (System 22W)
  • 28W (System 32W)

Luminous Flux/m:

  • 1495-1592 Lm
  • 2425-2597 Lm
  • 3332-3551 Lm

Luminaire Efficacy:

  • 134.92 Lm/W
  • 131.16 Lm/W
  • 122.45 Lm/W

CCT:

  • 3000K
  • 4000K
  • 5000K

CRI: >85

Distribution:

  • 160°
  • Asymmetric

Colour Deviation: 3-SDCM

Mounting: Recessed

Size: Width 72mm x Height 80mm x Custom Length

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casmabi)

Longevity: >72,000Hrs L80 B10

Finish Options:

  • White
  • Black
  • Silver
  • Custom

Warranty: 5 Years

Accessories / Options

Accessories / Options:

  • Opal PC
    Opal Polycarbonate
  • Asymmetrical Lens
