Integral Wireless Access Control

By ASSA ABLOY
Website
Satin Nickle

A cost effective, simple to use, simple to set up, offline, Data-on-Card, Access Control System designed for commercial and accommodation facilities. With no wiring required, this wire free system saves considerable installation time and money, making it ideal for both new and existing applications. Integral uses RFID cards/fobs for access, that can be easily programmed to allow or restrict access to certain areas or rooms – eliminating the risks and associated costs with managing, losing, or having keys stolen. Any data collected provides an audit trail of who and when each lock is used.

Simple to retrofit and install - the escutcheon uses the current Australian mortice lock footprint (3772NOHDSS). Users can easily expand the system as required, with up to 9999 doors and unlimited users.

Details
  • Category
    Automation & AI Solutions, Security Doors, Entry Automation
  • Range
    Assa Abloy - Commercial
  • Brand
    ASSA ABLOY
  • Designer
    ASSA ABLOY
  • Year
    2023
General
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
Specifications

System Capacity

SYSTEM COMPONENT         LIMITATION

Integral Server                        1

Integral Client*                       15

Door Locks / Readers            9999

Elevator Floors                       27

Users / Cards                         Unlimited

Anti-Static Interference        >15000V

Working Humidity                 20%-98%

Working Temperature         -20°C - +70°

RFID Card Type                    ISO 14443A MIFARE®

Frequency                             13.56MHz

Induction Distance             Approx. 30mm

Power                                    4 x AA Alkaline Batteries

Scope of use

Integral is available in two simple to use management options:

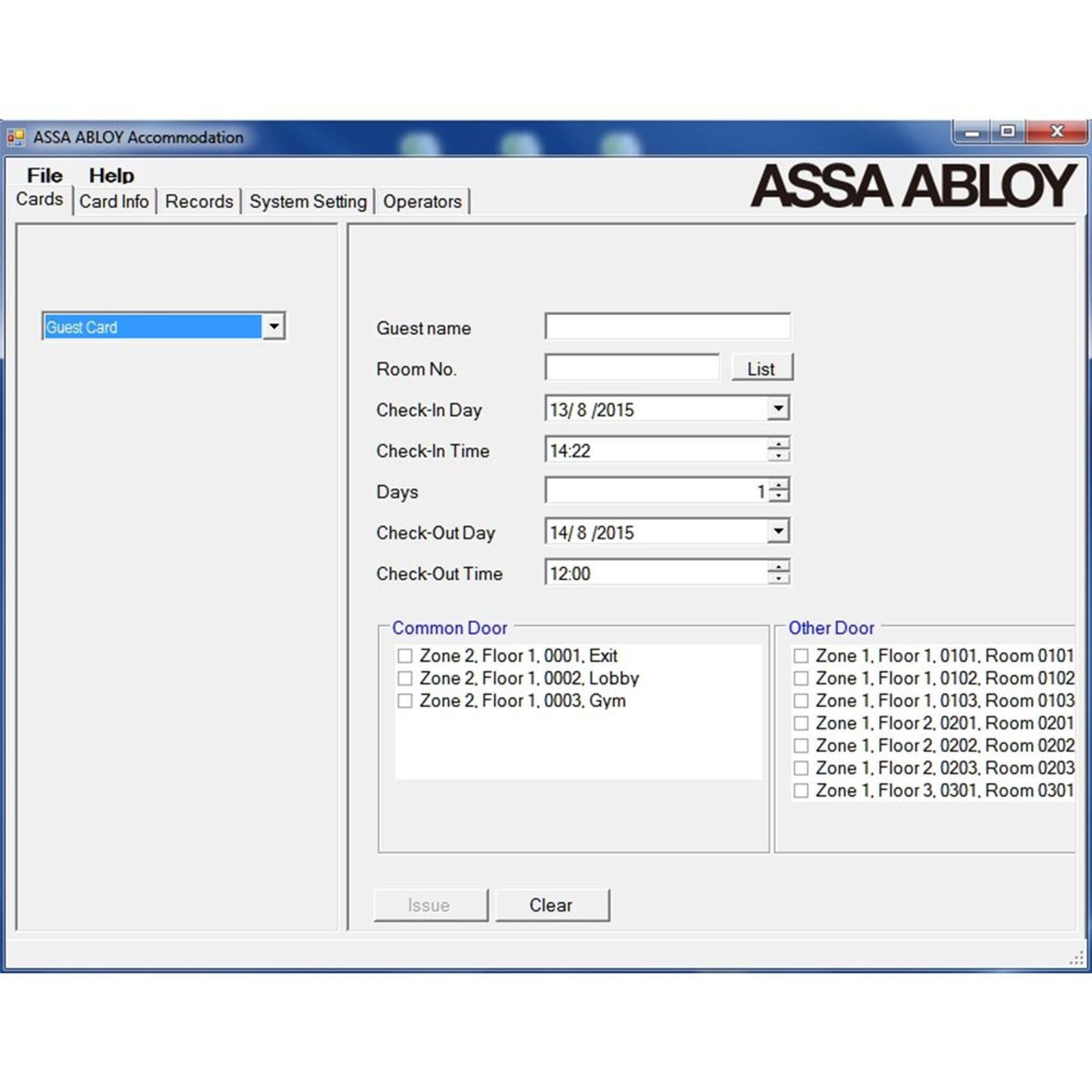

  • “Accommodation” allows you to manage the users and doors much the same as a typical Hotel system where the doors are predefined, and users are given access according to the length of their stay.
  • “Commercial” management software operates much the same but allows scheduling and calendar events, suited to a typical commercial building application. • Simple solution requiring no IP networking knowledge.
Performance

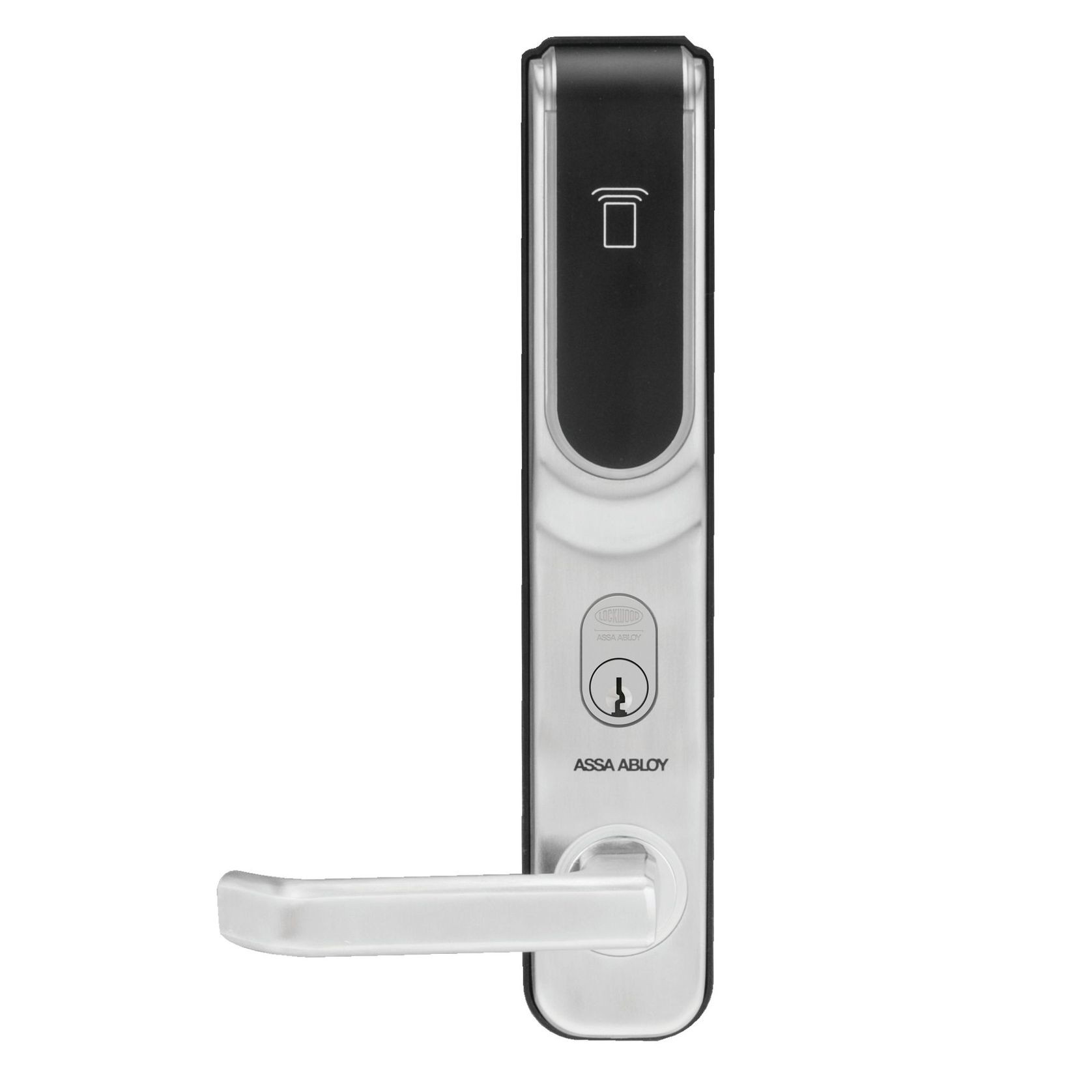

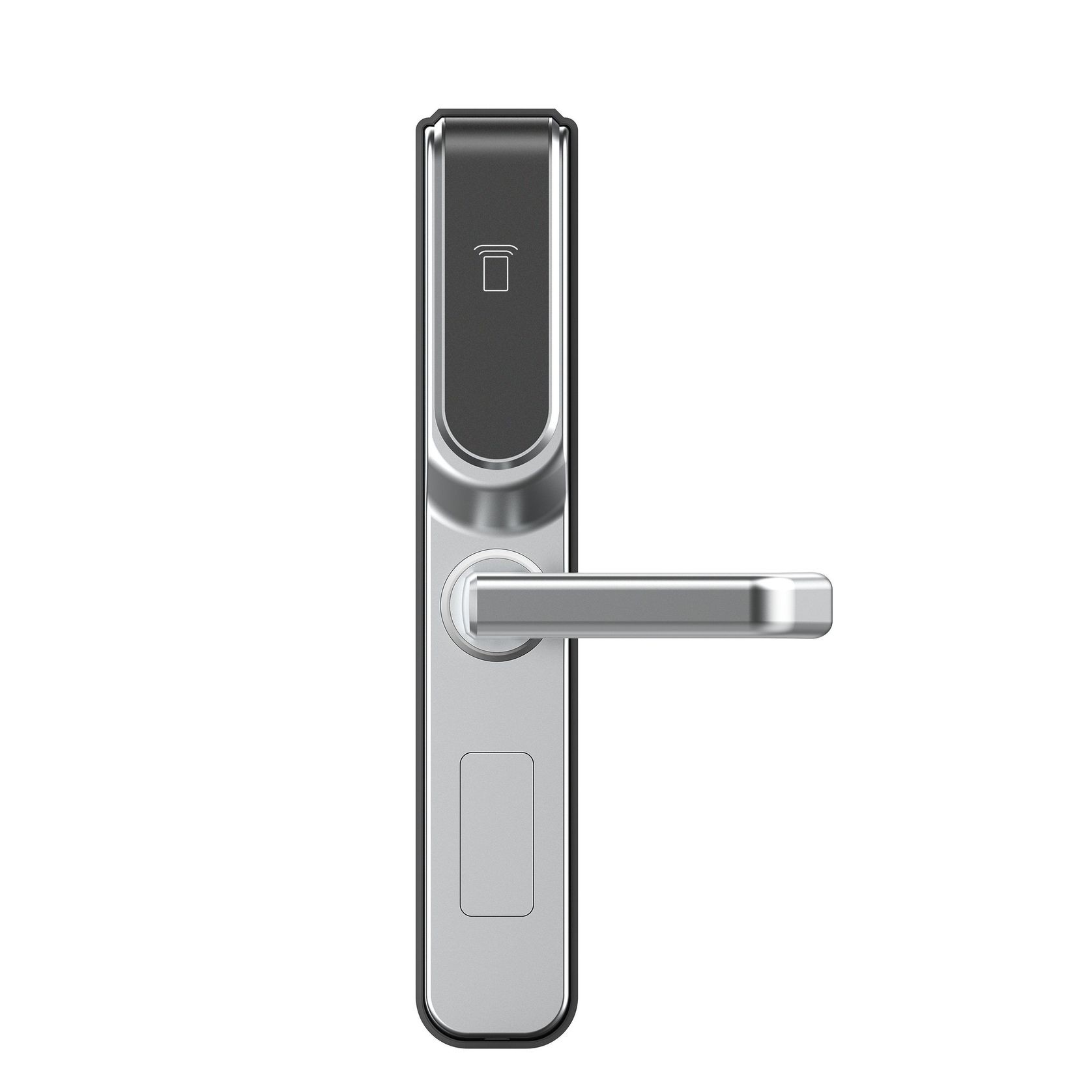

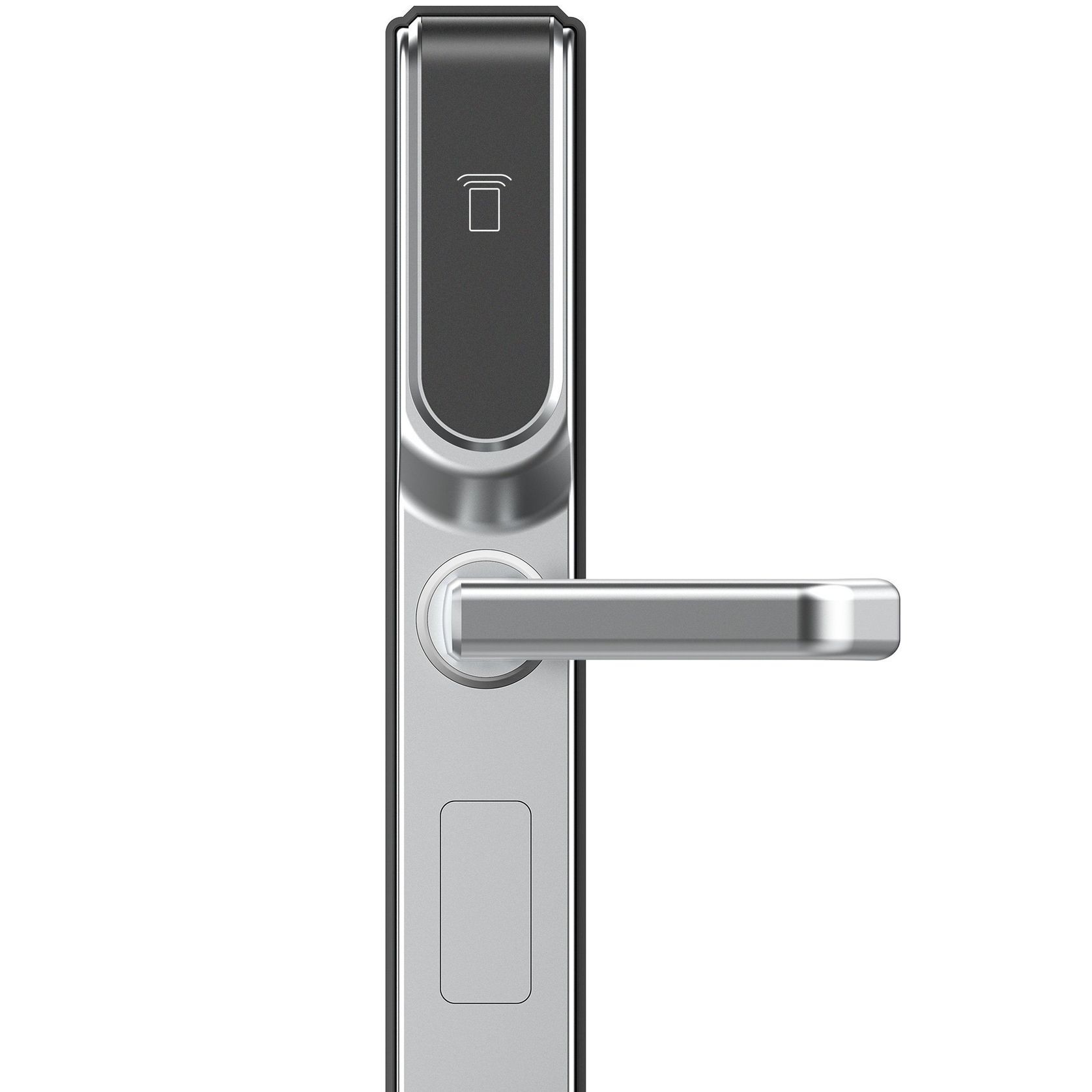

  • Stand-alone Electronic Wireless Access Control lockset with RFID Proximity reader
  • Powered by 4xAA batteries that provide up to 60,000 operations
  • 992 event audit trail • Stainless Steel Escutcheon
  • Uses Australian Mortice lock (3772NOHDSS). 530 tubular latch option is also available
  • Panic release function – the latch is automatically retracted by the inside handle for easy egress in emergency situations
  • 3-point steel latch construction with an anti-friction mechanism • High-quality card reader that reads with optimal accuracy
  • Door Opening Time - Open the door after pressing the handle, automatically locks within 5 seconds
  • Electronic Privacy - Denies access when privacy is required • Passage mode - Gives the ability to leave the door in the unlocked state
  • Available with or without key override
  • Fire Rated
  • Under Voltage Indication: Early warning is given for low batteries - units will continue to operate for approximately 50 times until such time the batteries can be changed.
