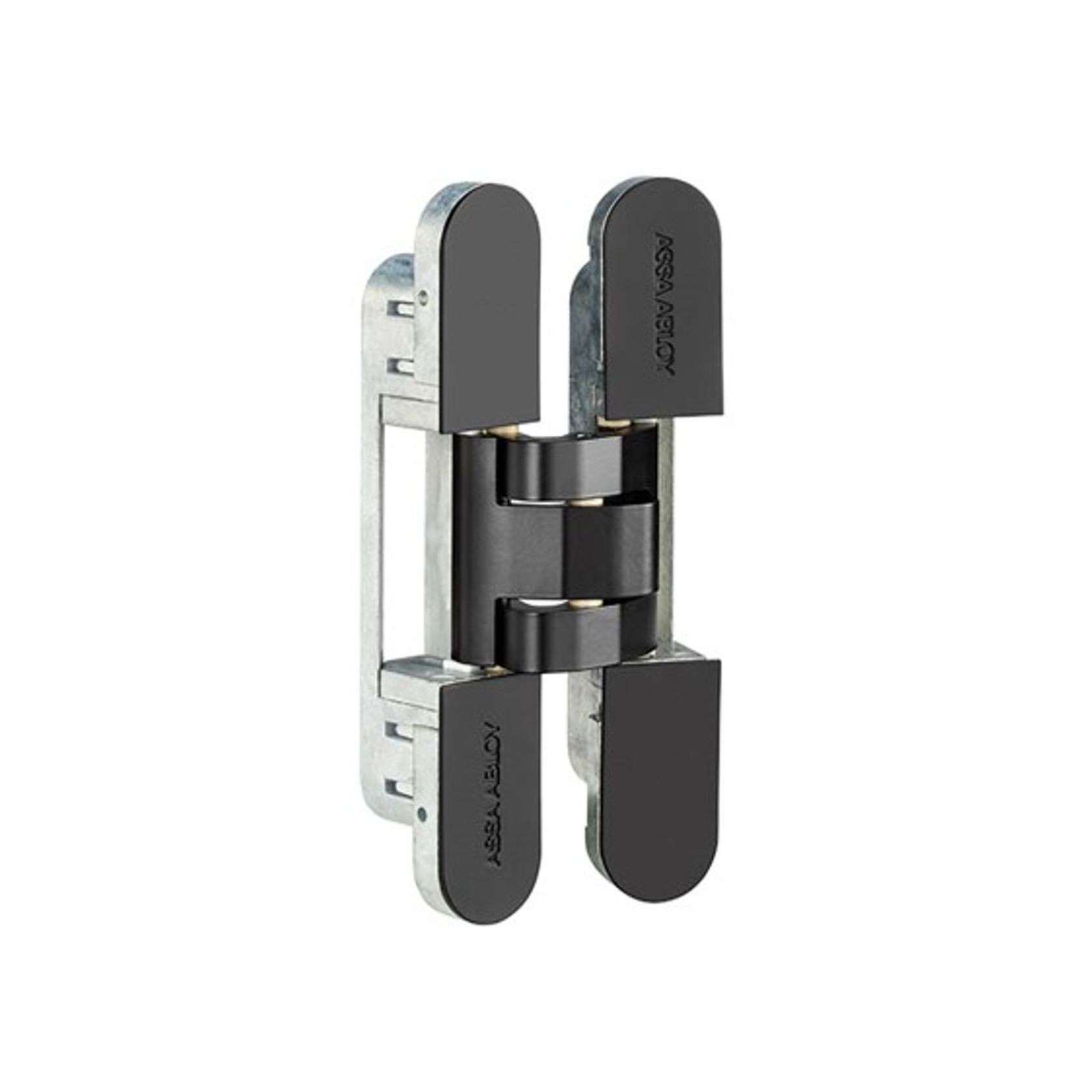

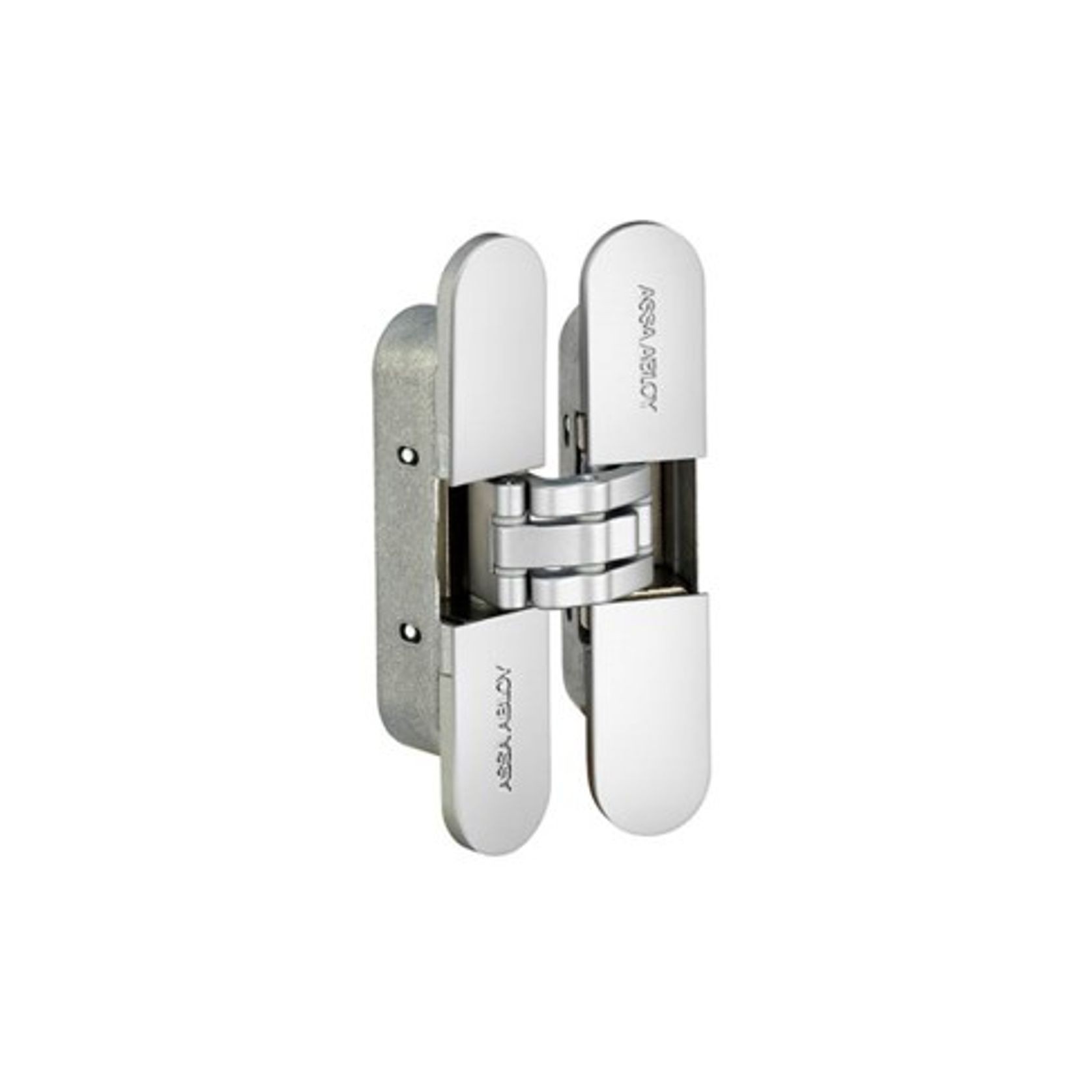

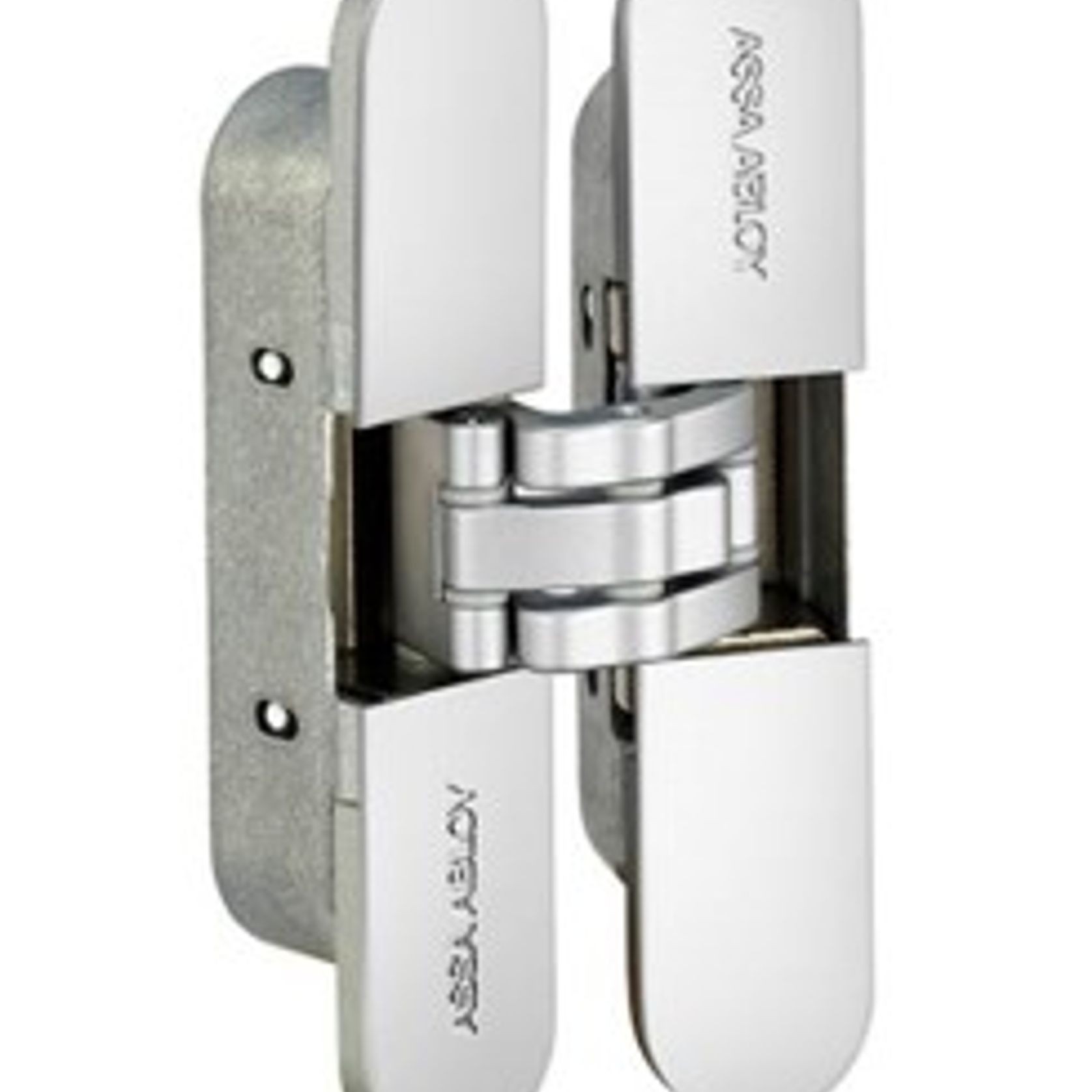

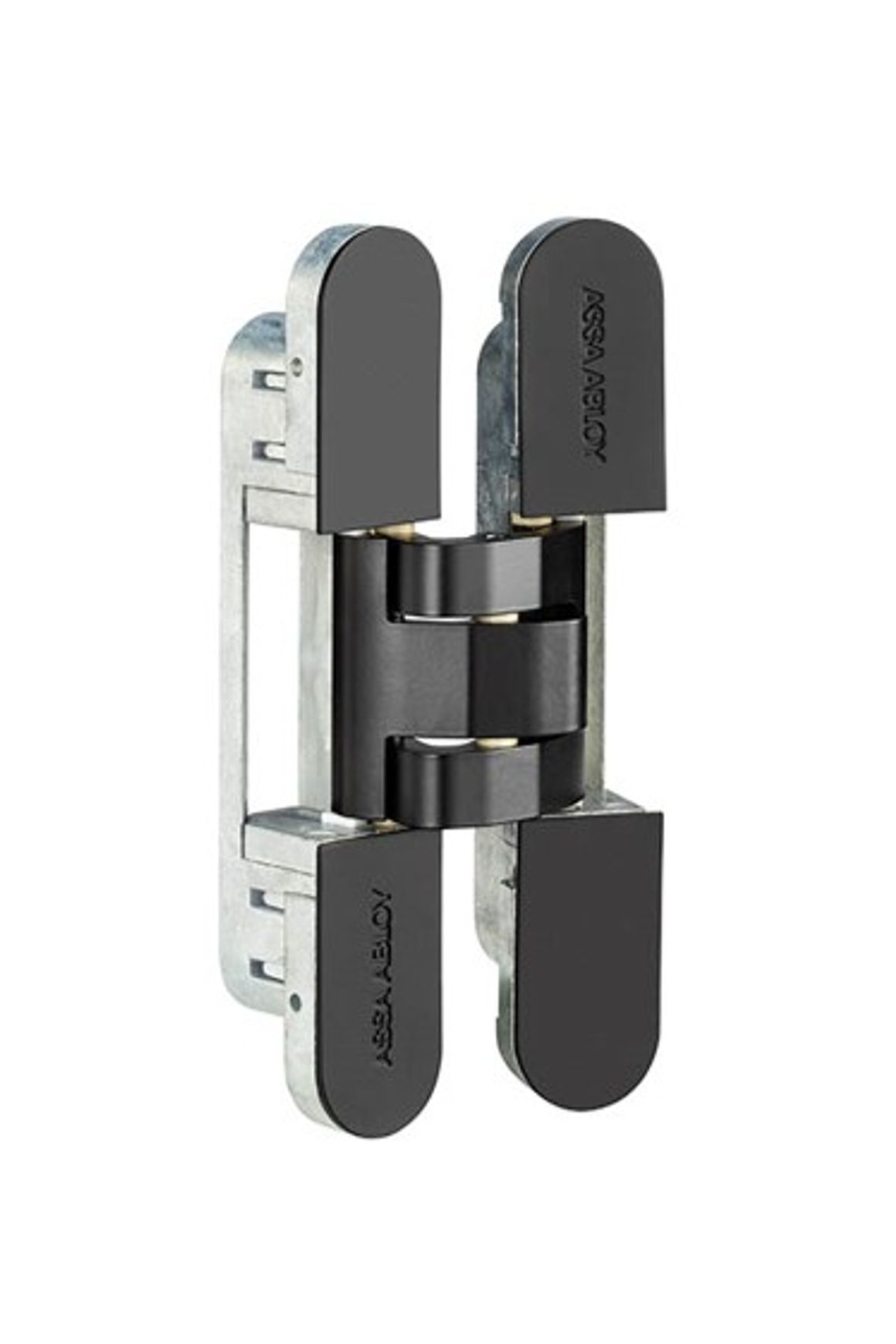

Beautifully disguised. ASSA ABLOY concealed hinges virtually disappear from view when an opening is closed, while providing aesthetic continuity when a door is open.

  • Category
    Door and Window Hinges, Cabinet Hinges, Hinged Doors
  • Range
    Assa Abloy - Commercial
  • Brand
  • Designer

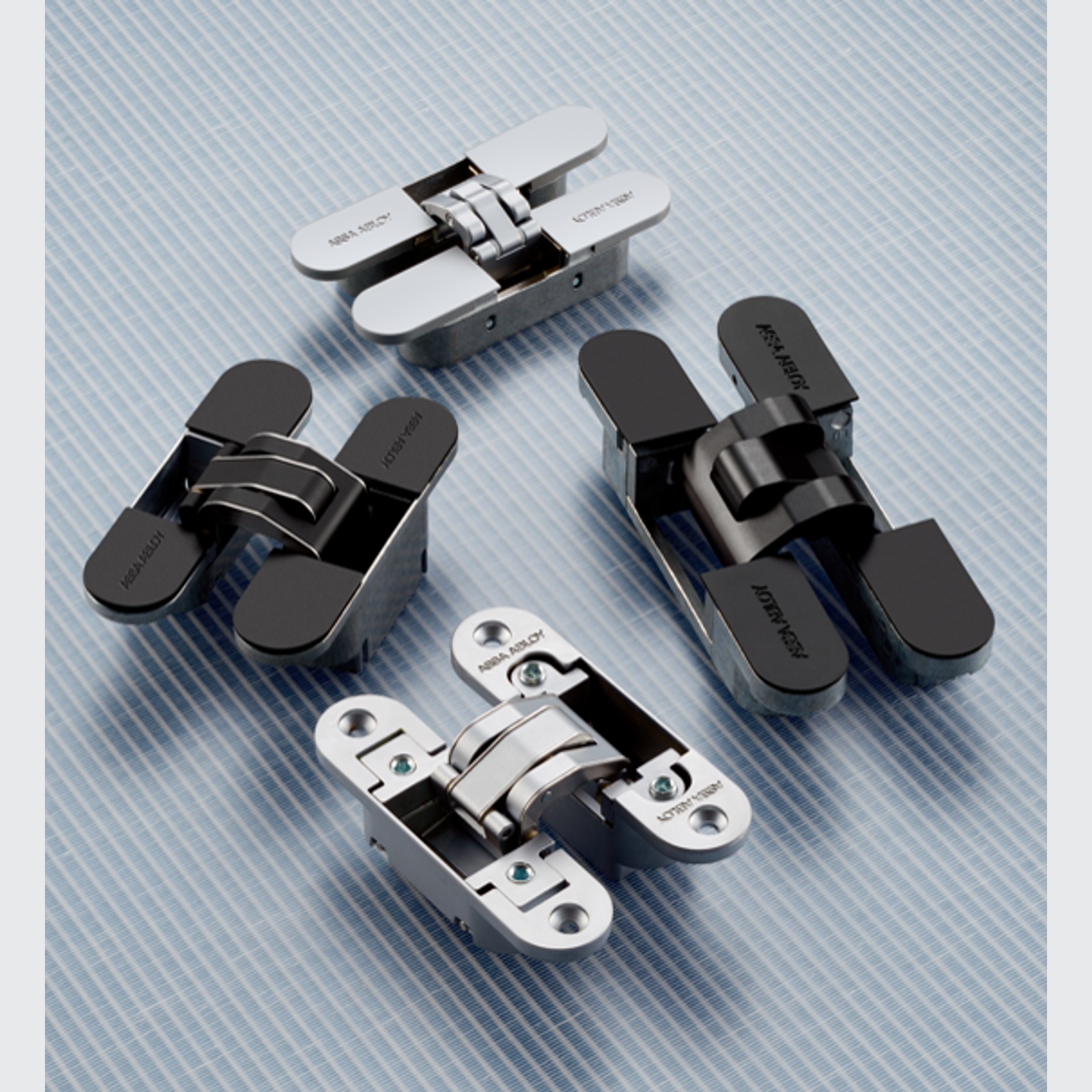

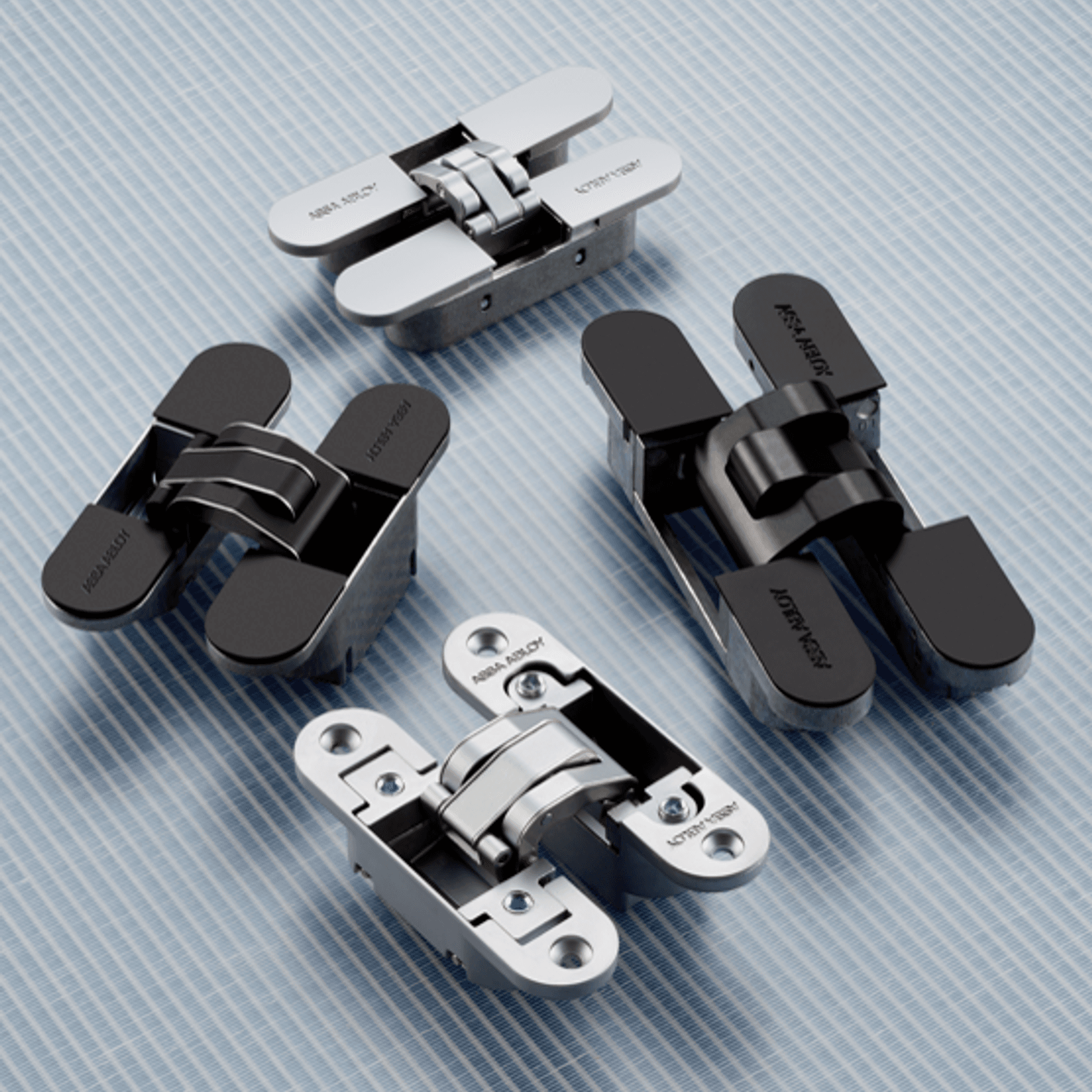

  • MK40A Series
  • MK80 Series
  • MK80A Series
  • MK100 Series


  • Adjustable (3-way) for easy installation and ownership
  • 3 sizes to cover full range of common door weights
  • The snap-on covers conceal screws for a clean aesthetic.
  • One model without covers


  • For wood or hollow metal doors and frames
  • Non-handed
  • Opening angle: 180 degrees
  • Base material: Zinc alloy
  • Satin chrome and matte black finishes standard
  • Other colours such as champagne and matte white on request
Scope of use

With a minimal, clean look, the ASSA ABLOY Concealed Hinges are preferred by architects and designers for high-end high rise, multi-family and hotels.

  • Covers included
  • Base material zinc alloy
  • Overall hinge length 160 mm (6.30inch)
  • Hinge width 28 mm (1.10inch)
  • Non-handed
  • Opening angle 180 degrees
  • 3-Dimensional adjustability height +/- 2.5 mm; side +/- 2.5 mm and depth +/- 1 mm
  • For wood or hollow metal doors with wood or metal frames
  • Door thickness minimum: 1-3/8inch
