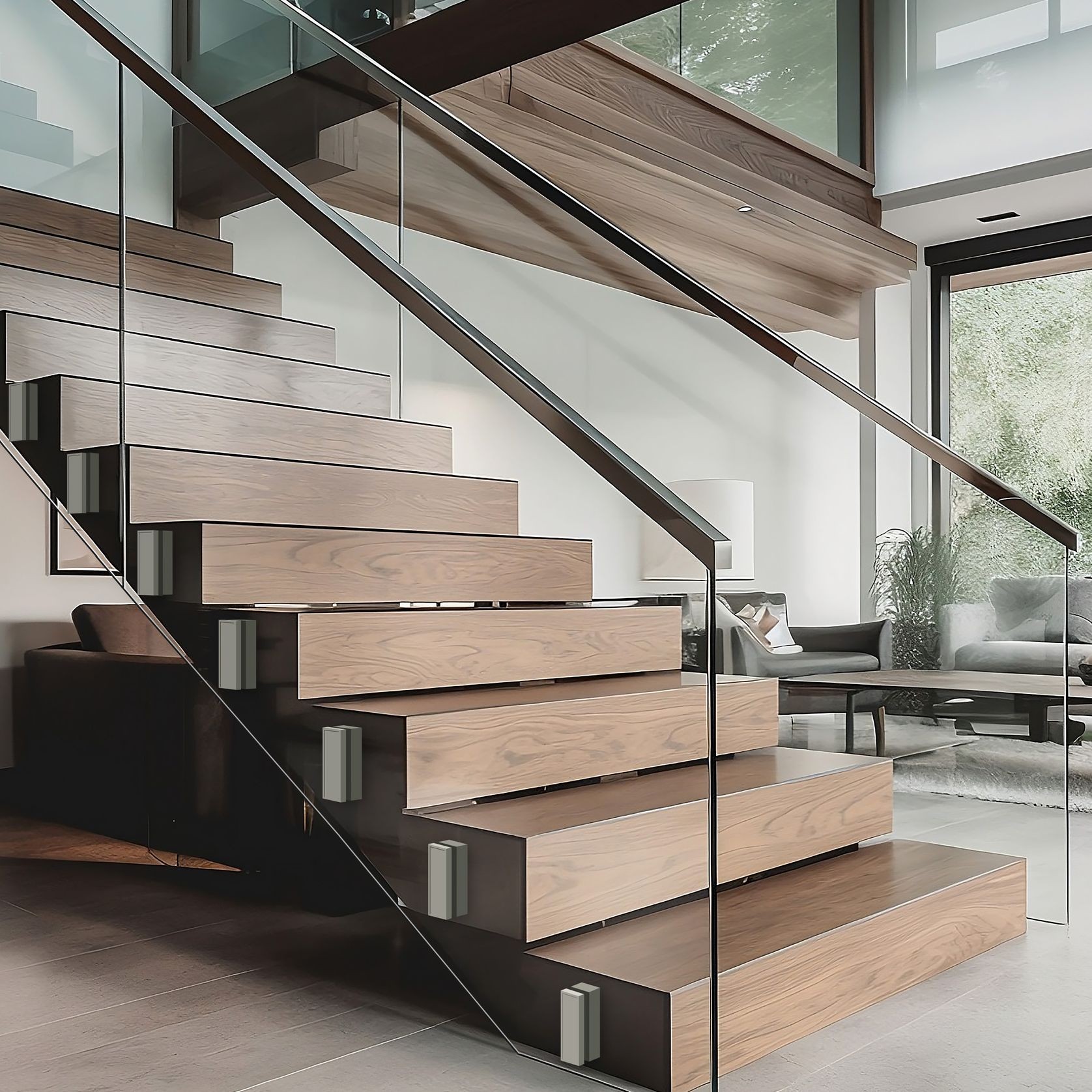

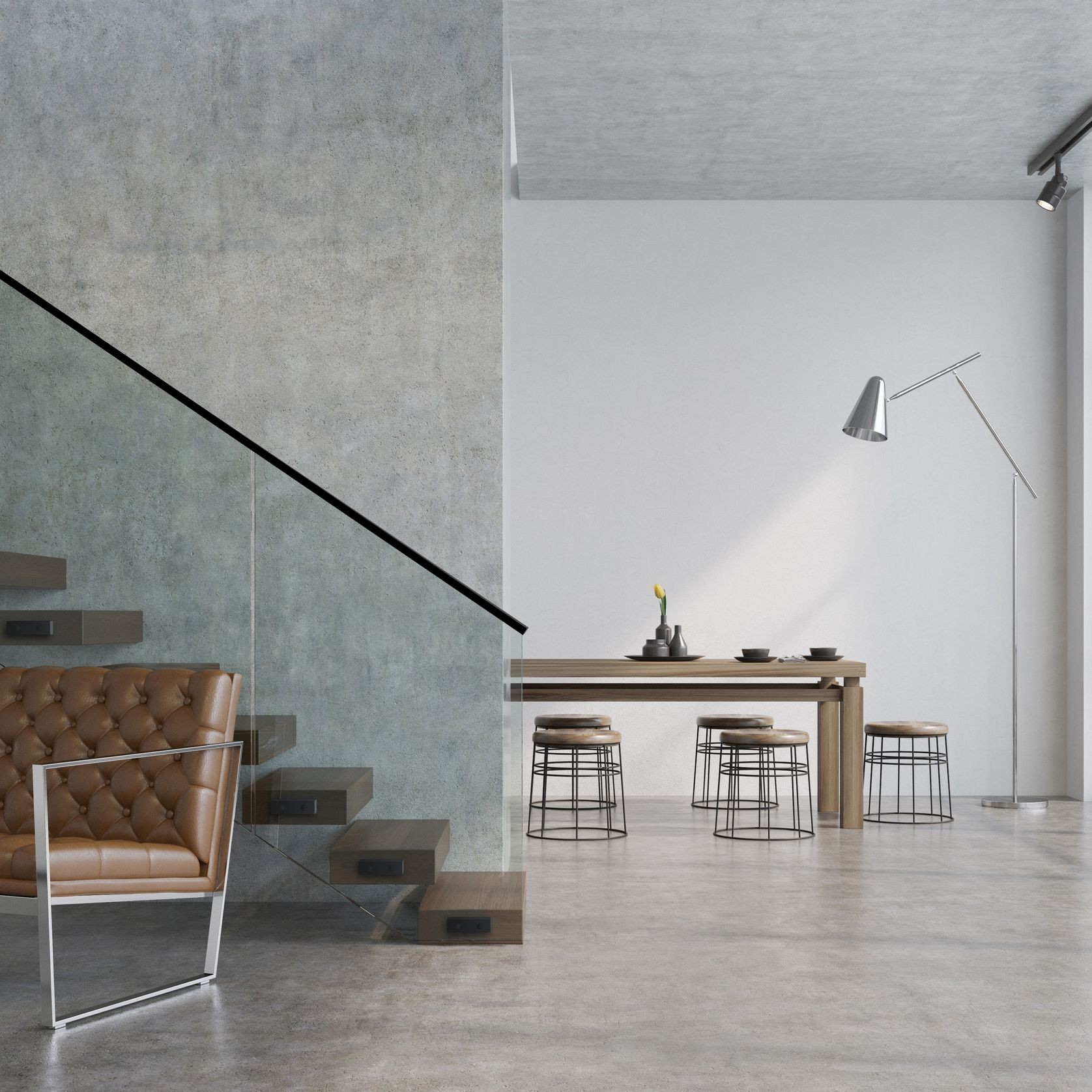

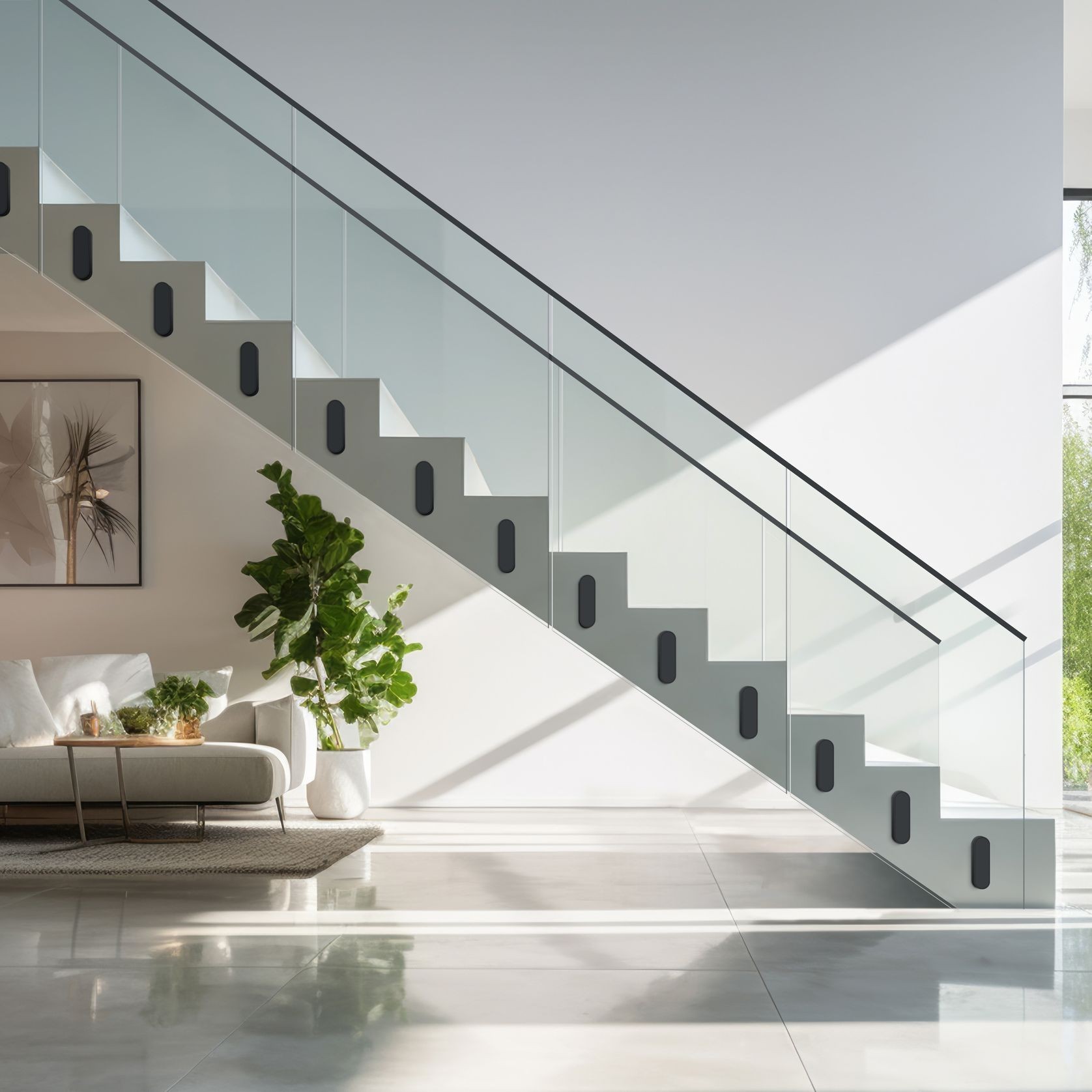

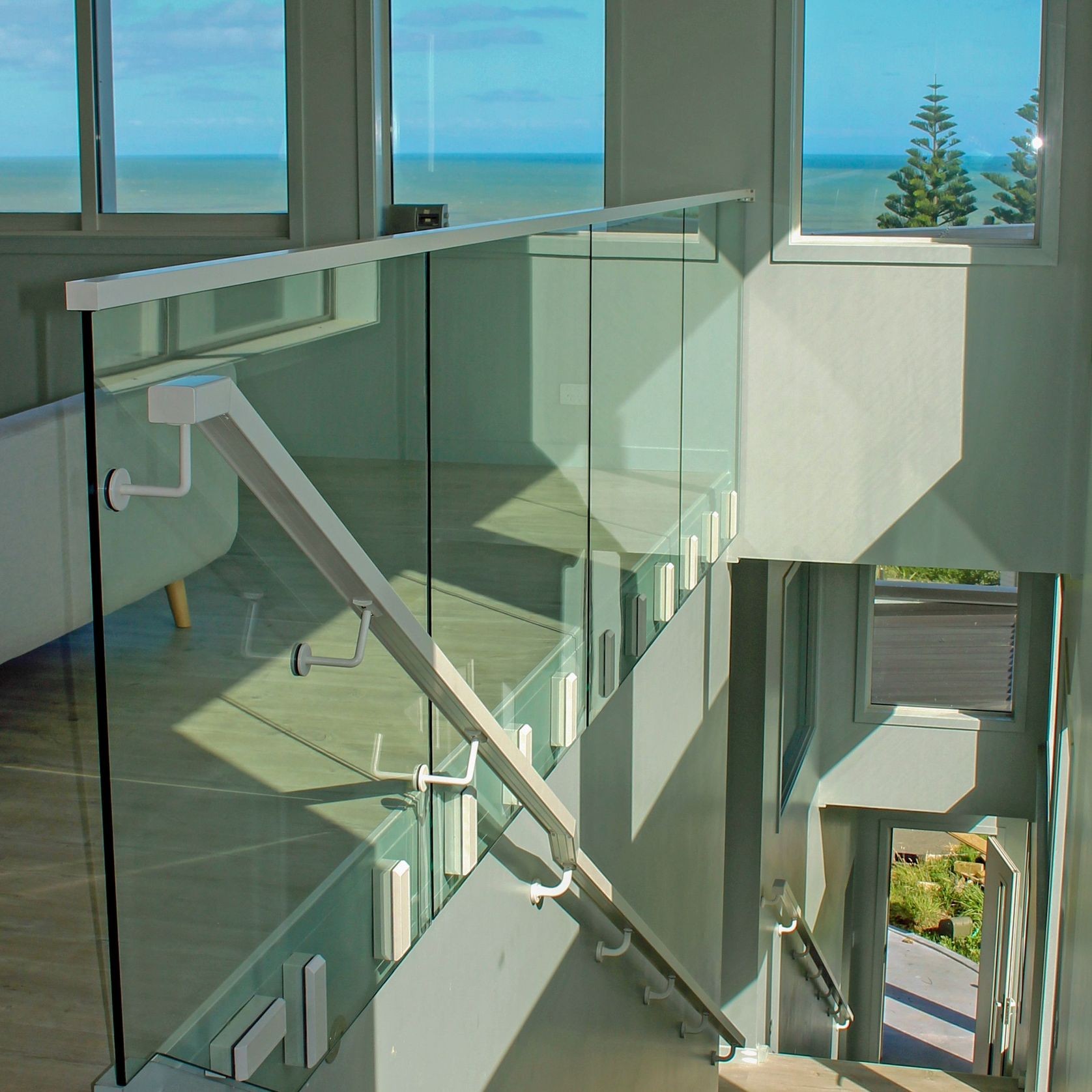

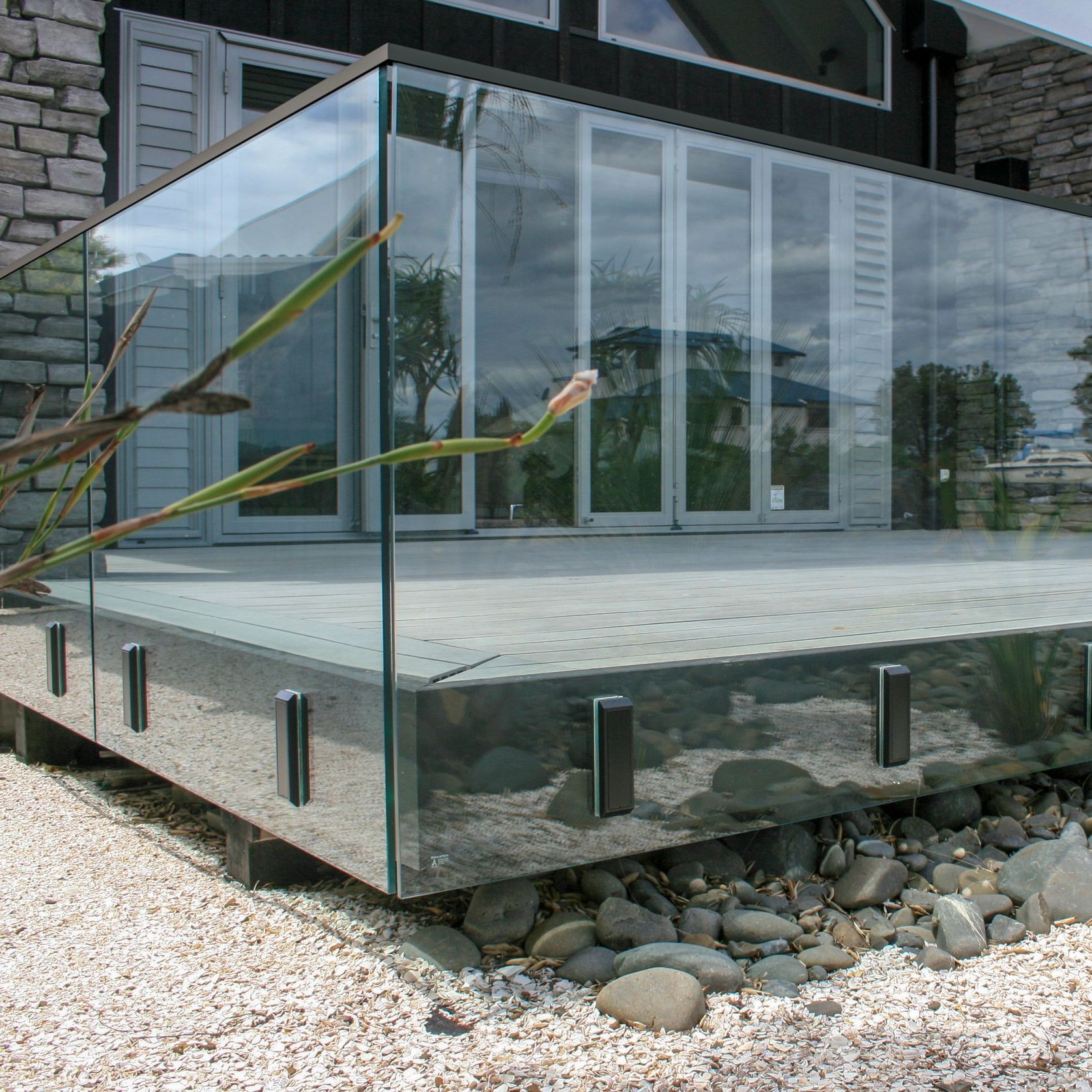

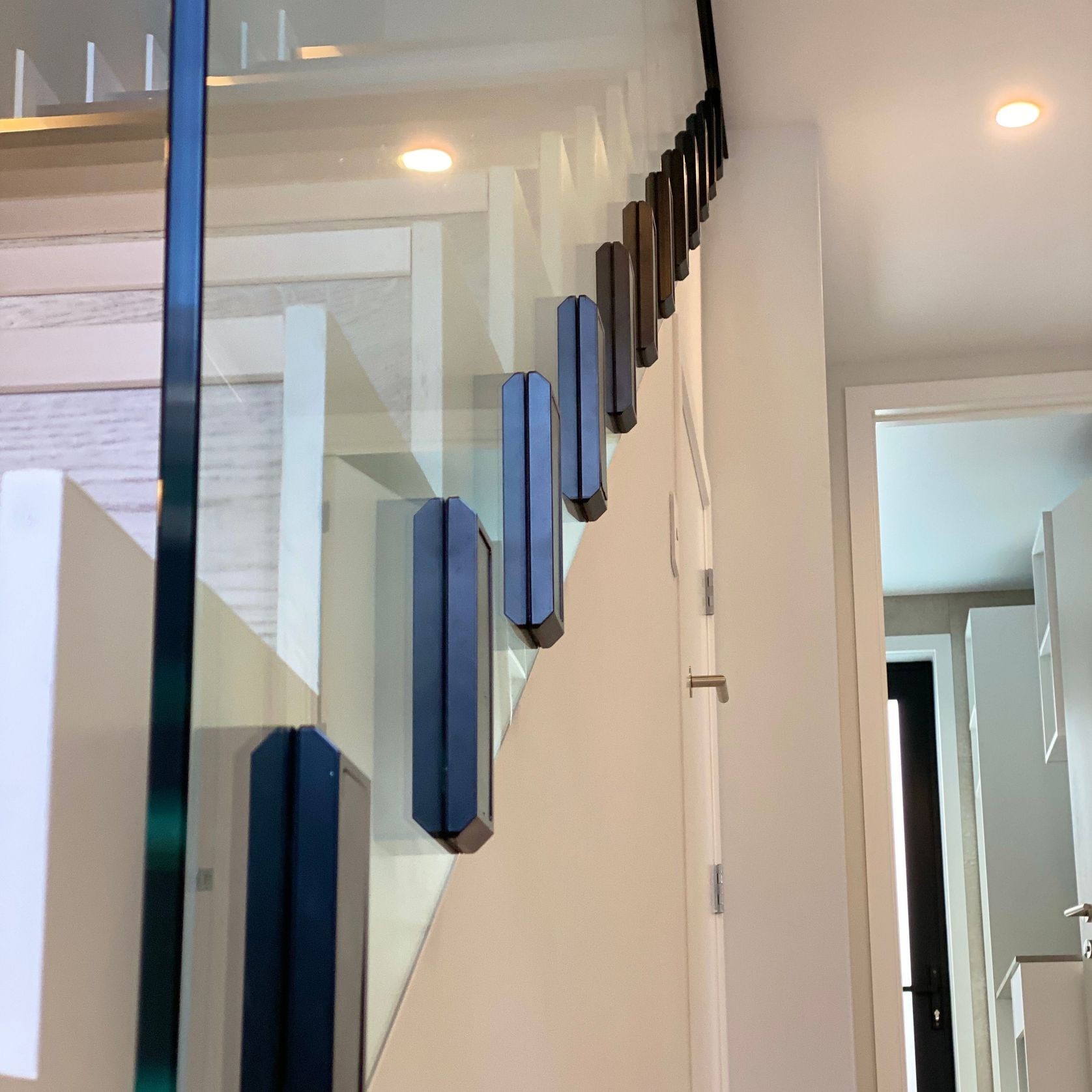

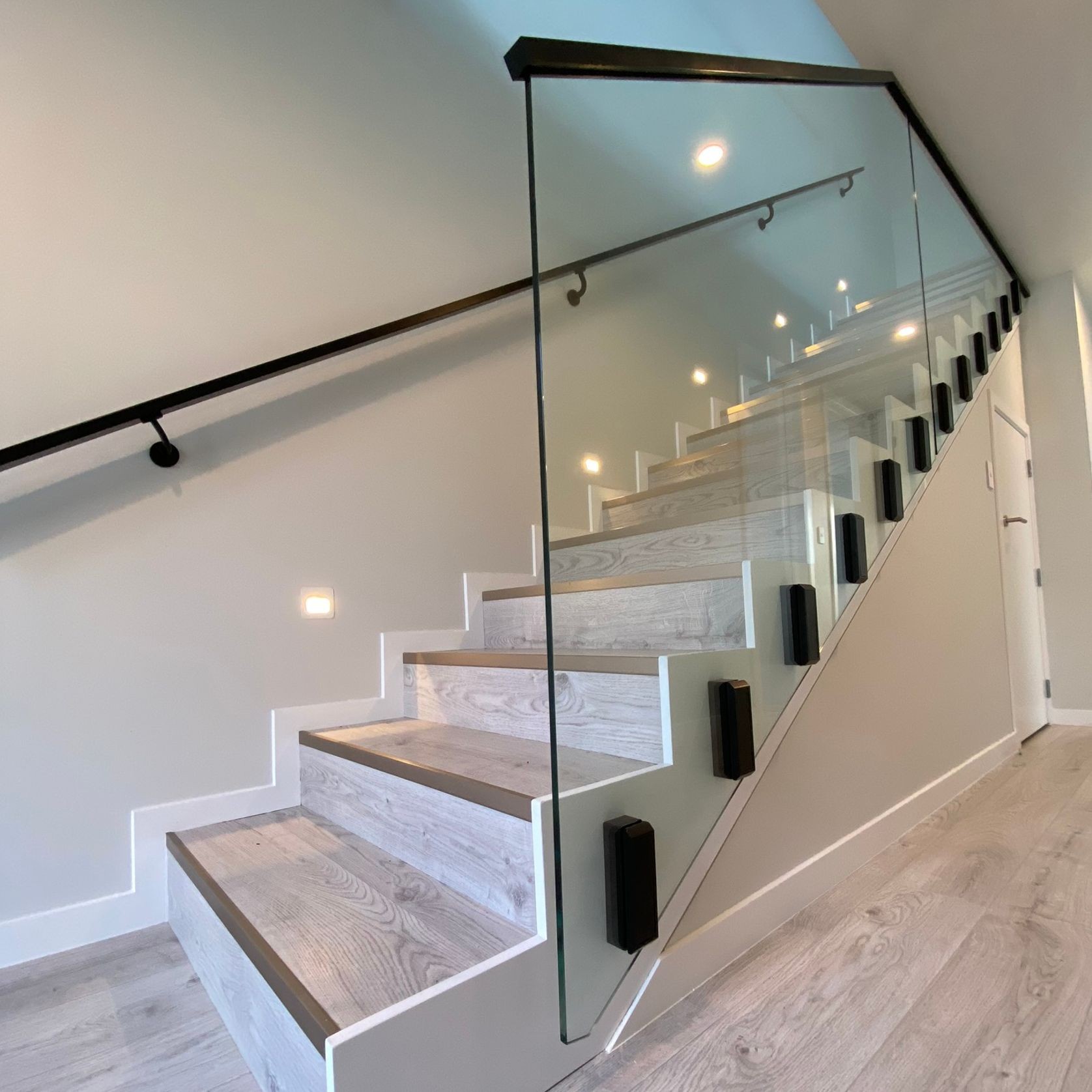

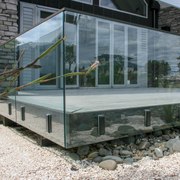

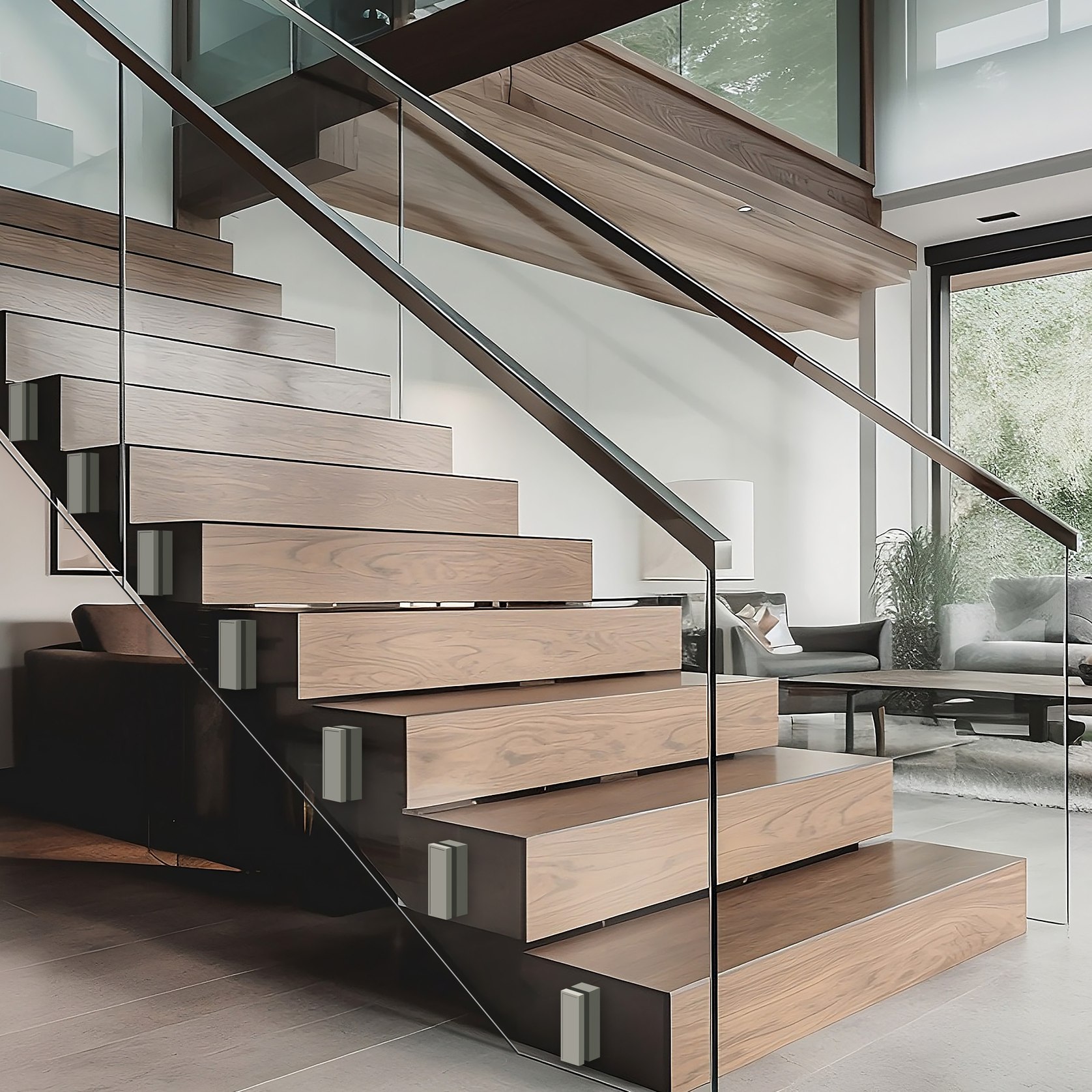

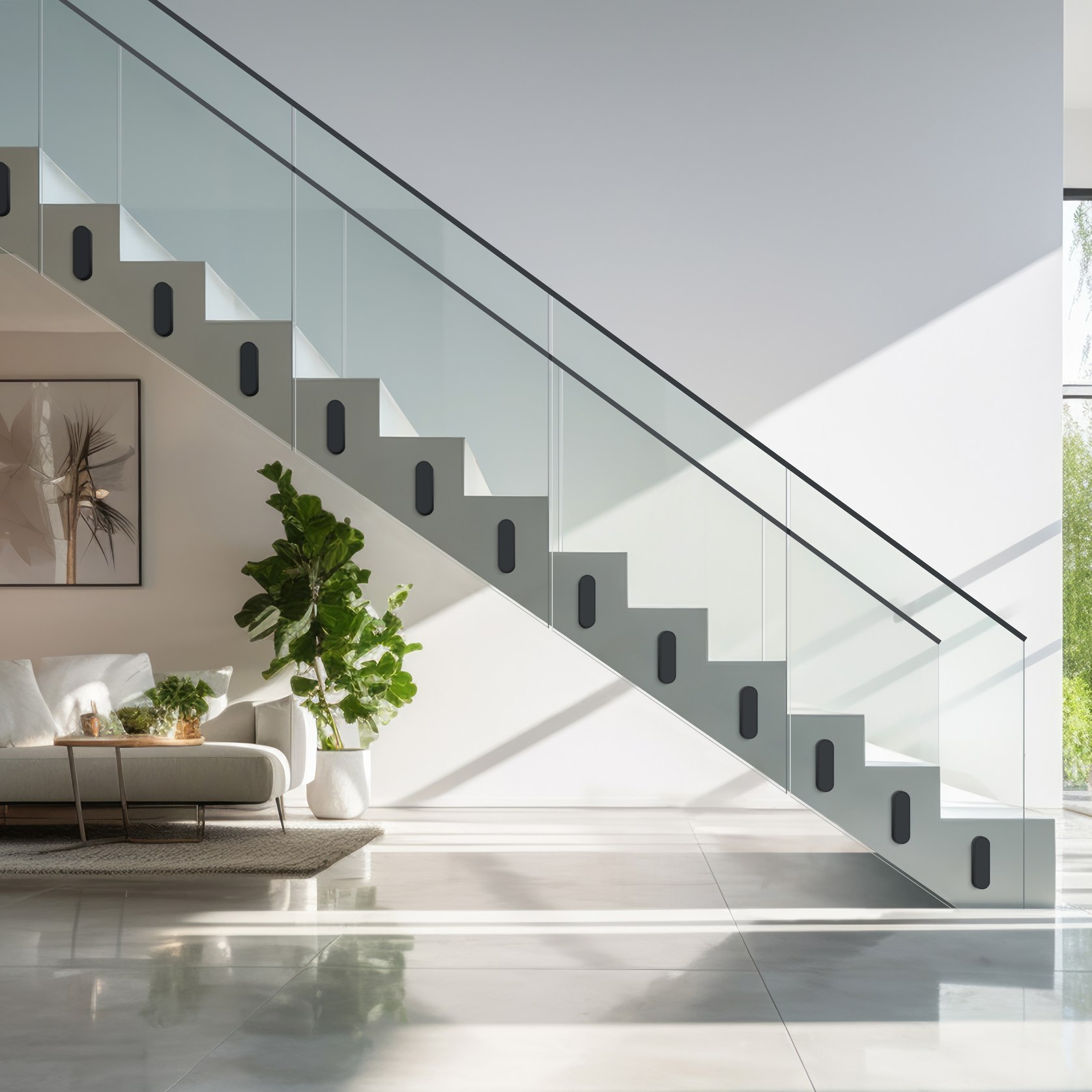

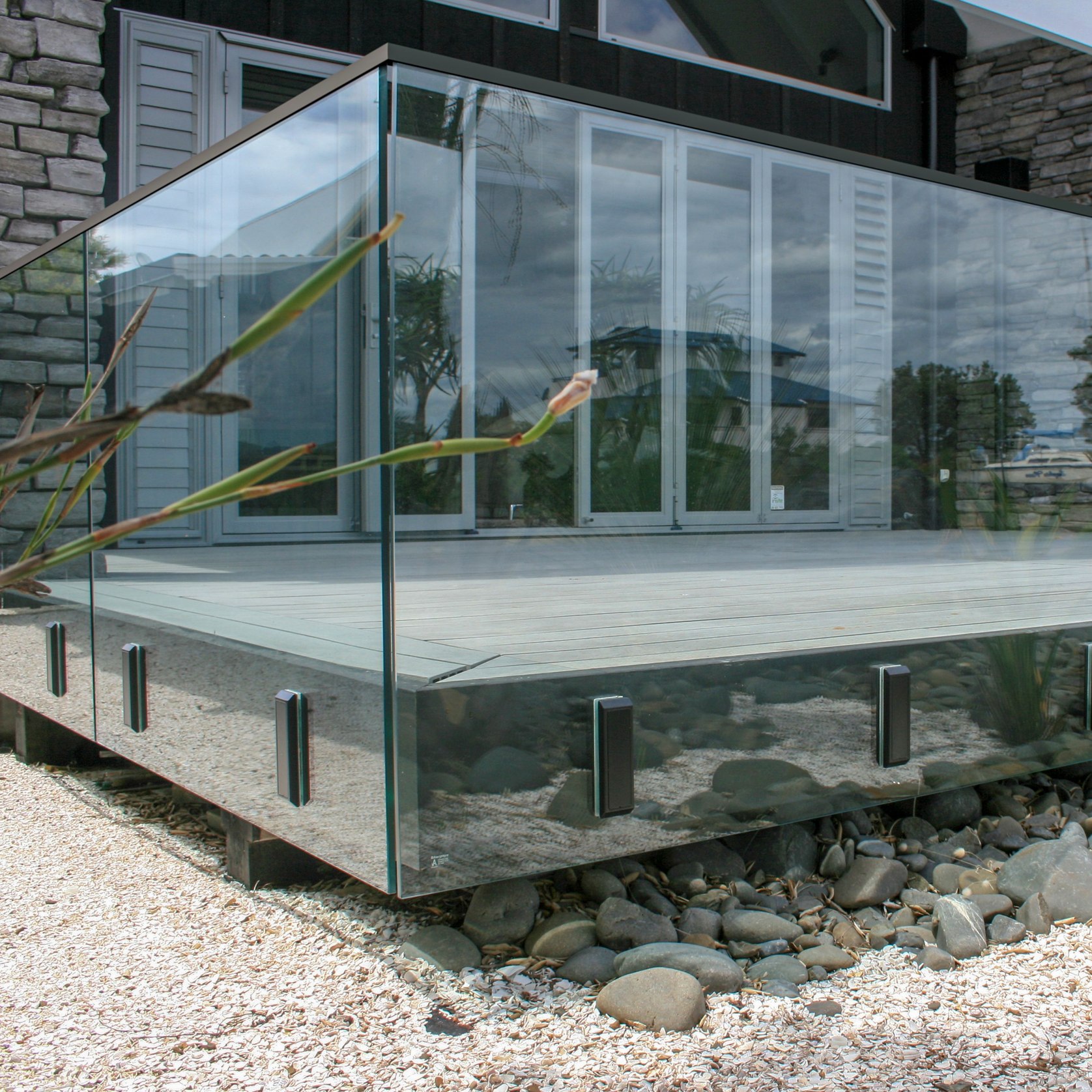

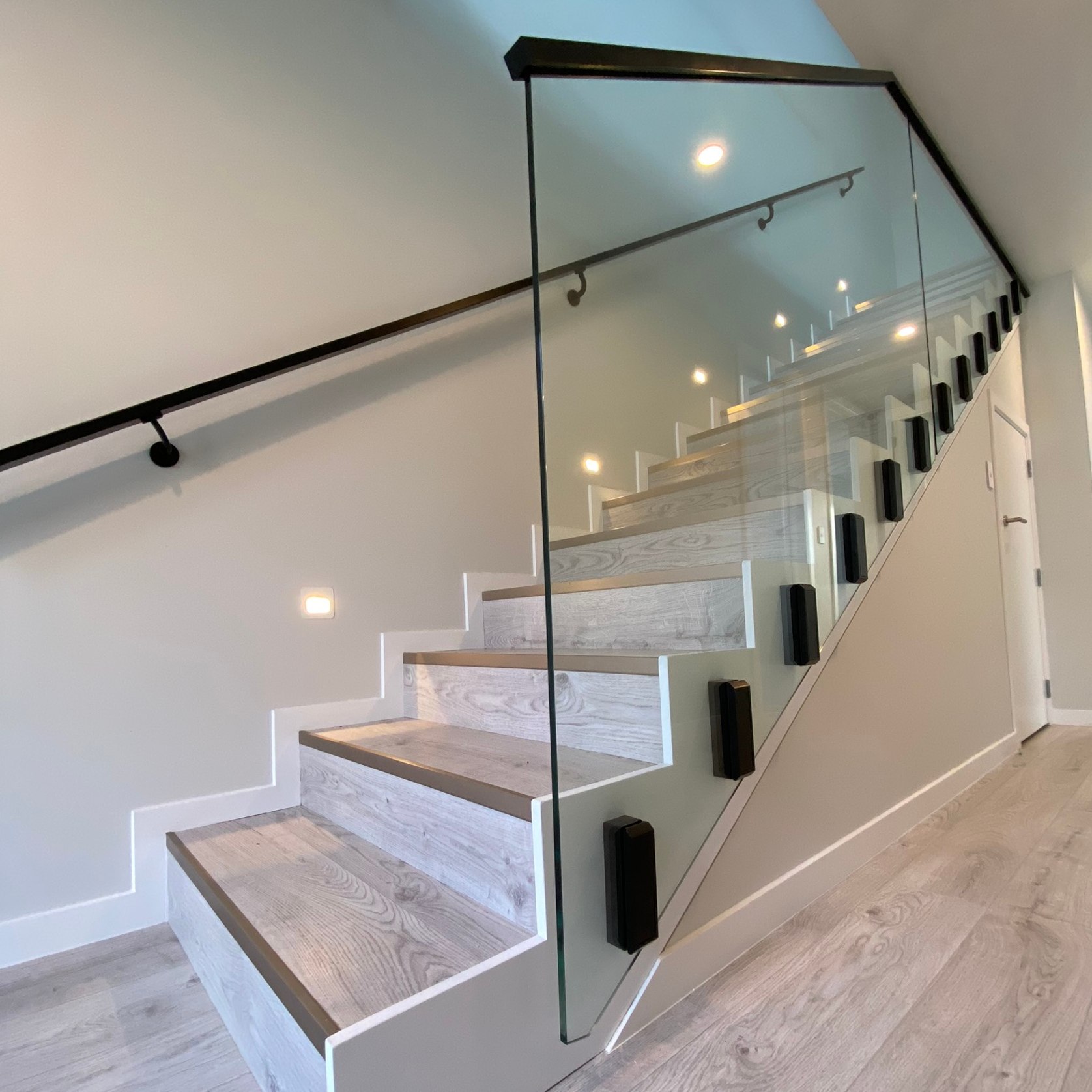

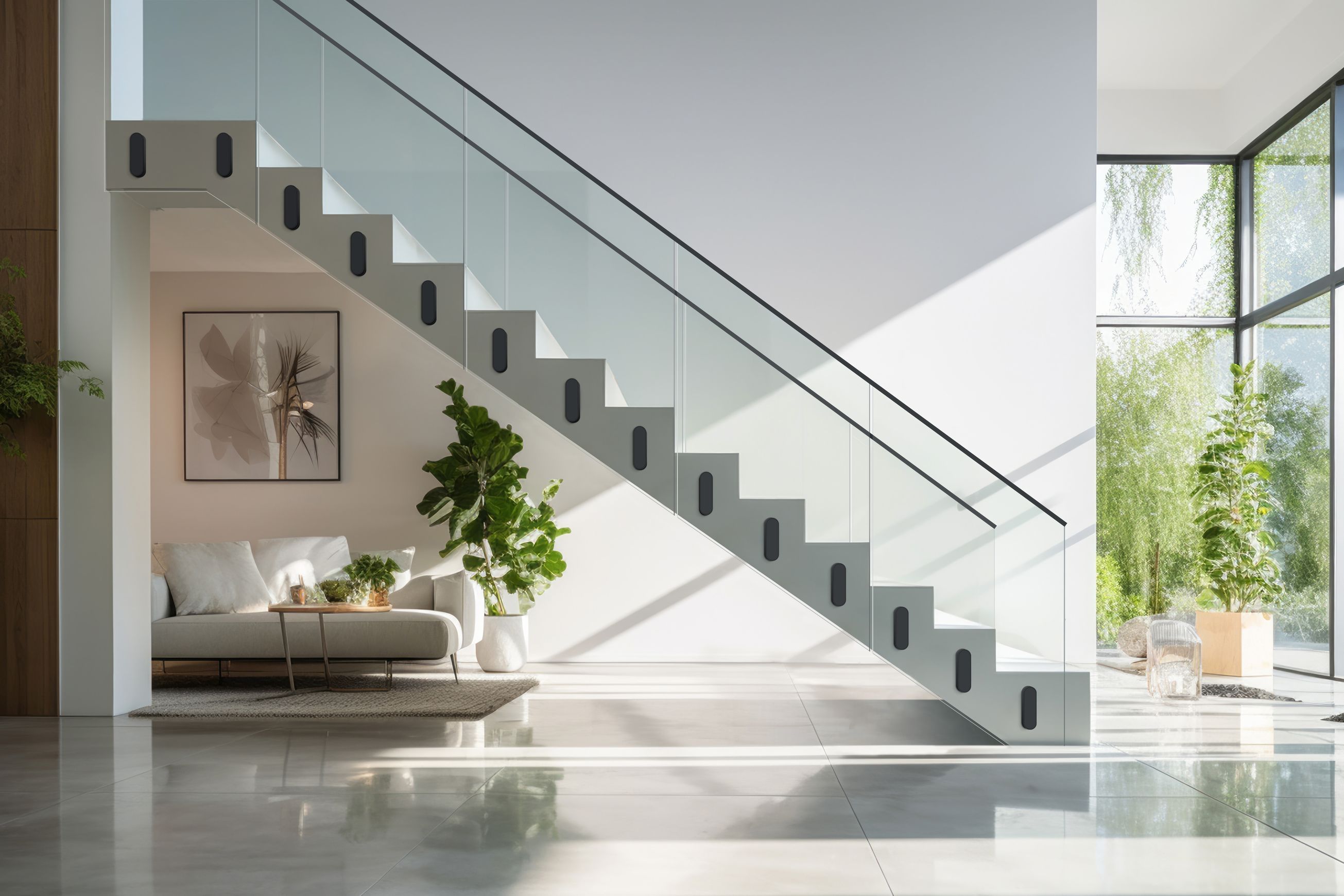

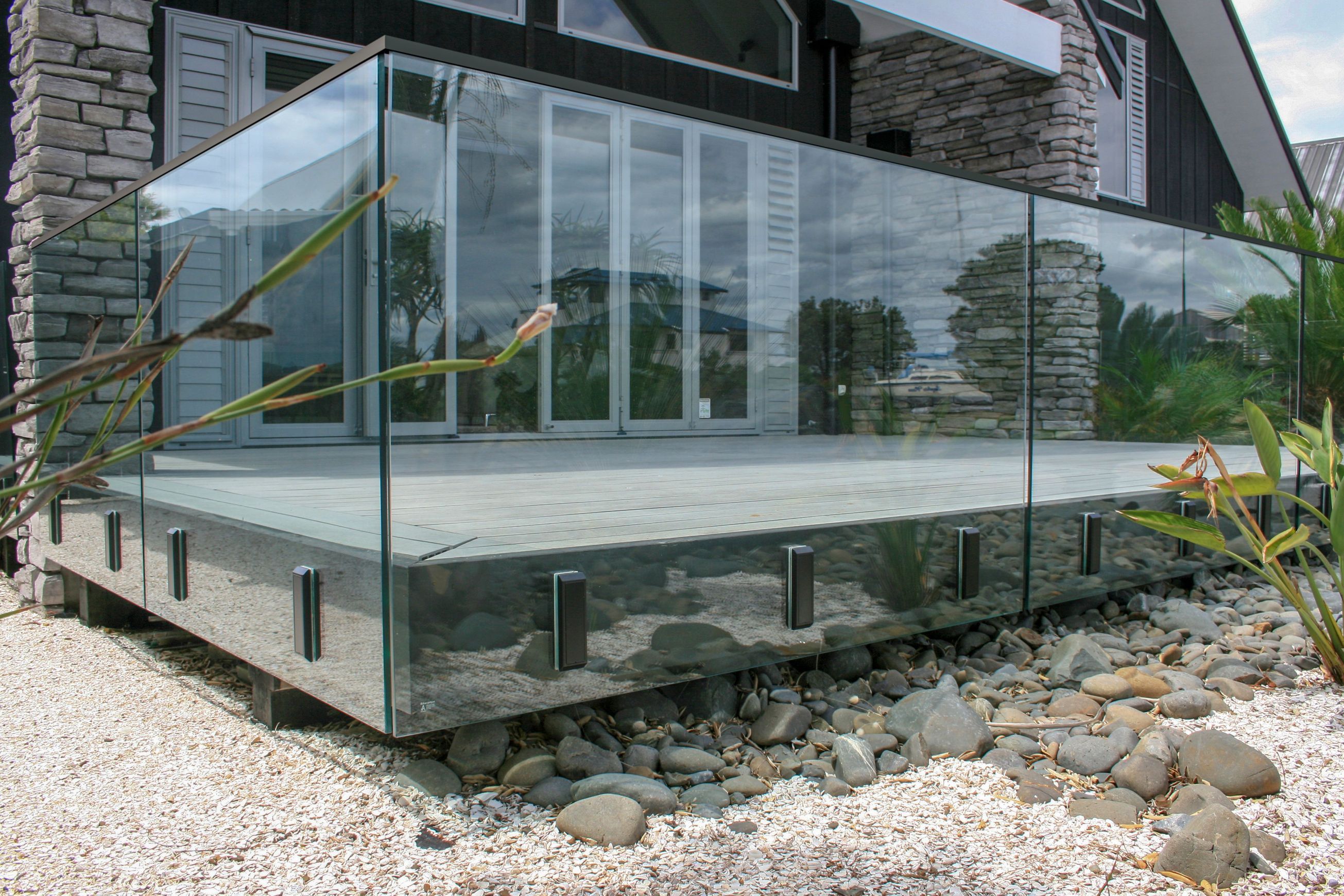

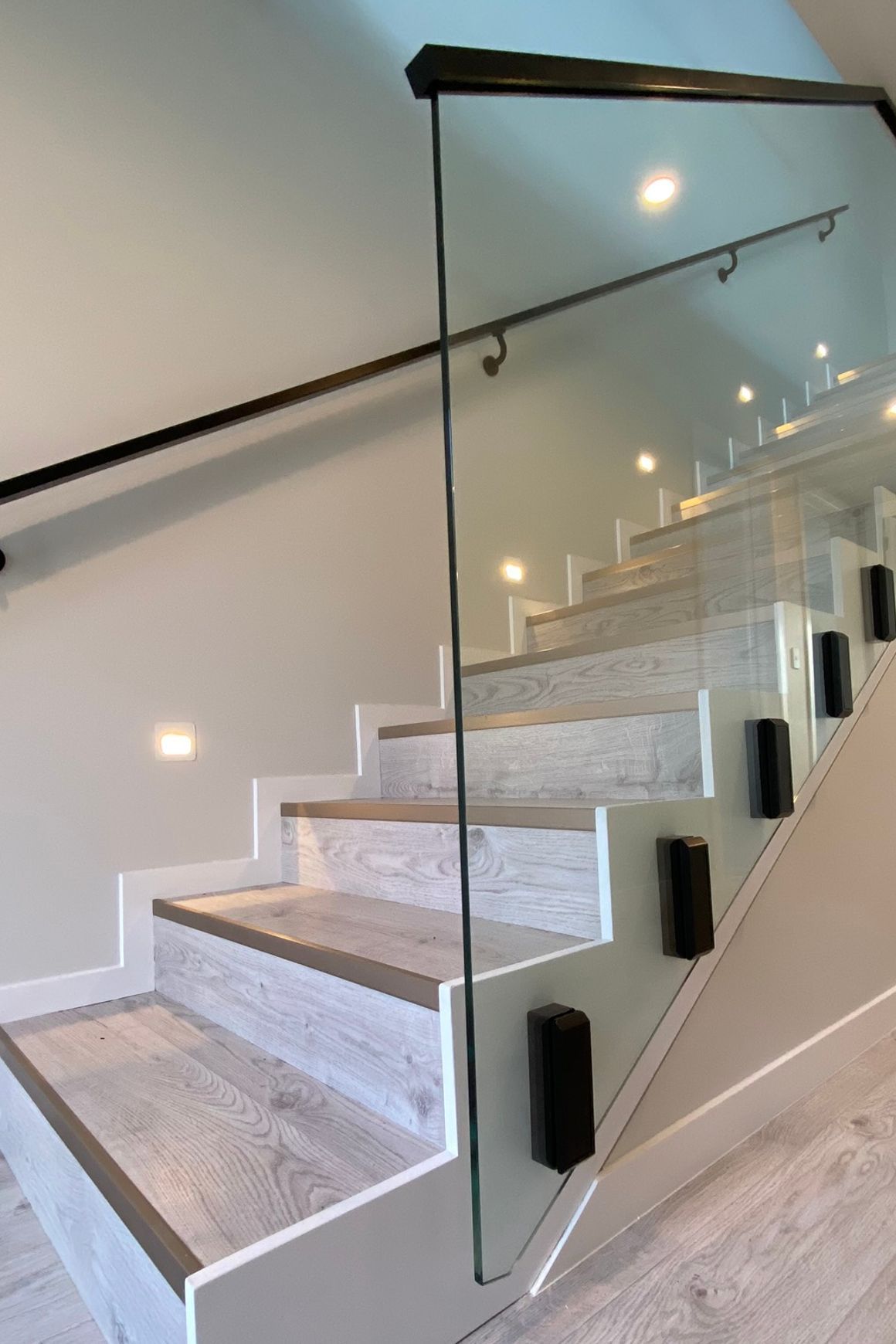

Edgetec® Balustrade JH Clamp™ is an option for hidden fixing (clamp fittings like screws are not visible), with aluminium disc anchors that can be powder coated in a wide range of colours. JH Clamp™ is an architectural grade aluminium clamp, available in 3 different shapes, that fixes glass panels to the external edge of balconies and stairs and internal stairs and landings. A 38mm x 30mm interlinking top rail is fitted to the top of the panels and colour powder coated to match the clamps to complete.
JH Clamp™ has a 30mm thick body, in three different shapes, which sets the glass out from the deck, assisting with water drainage and cleaning, but fixing centres are up to 50% wider than our traditional Edgetec® Double Disc Anchors - providing a comparatively less visual and far more linear fixing detail.
Custom coloured from over 40 standard Dulux powder coat finishes, the JH Clamp™ is minimally intrusive with all ‘through the glass‘ fixings hidden behind matching cover plates. For the ultimate hidden fixing option, the JH Clamp™ has an optional wooden deck detail that can conceal the clamp completely to blur the line between where a deck ends and a balustrade begins.
Product Details
- Product
- Edgetec® JH Clamp™ Glass Balustrade
- Category
- Glass Fencing
- Sold by
- Juralco
- Range
- Edgetec®
- Brand
- Juralco Edgetec® JH Clamp™
- Warranty
- 5 years
Product specified by
Edgetec® Balustrade JH Clamp™ is an option for hidden fixing (clamp fittings like screws are not visible), with aluminium disc anchors that can be powder coated in a wide range of colours.
JH Clamp™ is an architectural grade aluminium clamp, available in 3 different shapes, that fixes glass panels to the external edge of balconies and stairs and internal stairs and landings. A 38mm x 30mm interlinking top rail is fitted to the top of the panels and colour powder coated to match the clamps to complete.
JH Clamp™ has a 30mm thick body, in three different shapes, which sets the glass out from the deck, assisting with water drainage and cleaning, but fixing centres are up to 50% wider than our traditional Edgetec® Double Disc Anchors - providing a comparatively less visual and far more linear fixing detail.
Custom coloured from over 40 standard Dulux powder coat finishes, the JH Clamp™ is minimally intrusive with all ‘through the glass‘ fixings hidden behind matching cover plates. For the ultimate hidden fixing option, the JH Clamp™ has an optional wooden deck detail that can conceal the clamp completely to blur the line between where a deck ends and a balustrade begins.
- Specs
Specifications
- Rectangular clamps fixing glass panels in place, through holes in the glass
- Face fix installation only (fitted to the front of deck face)

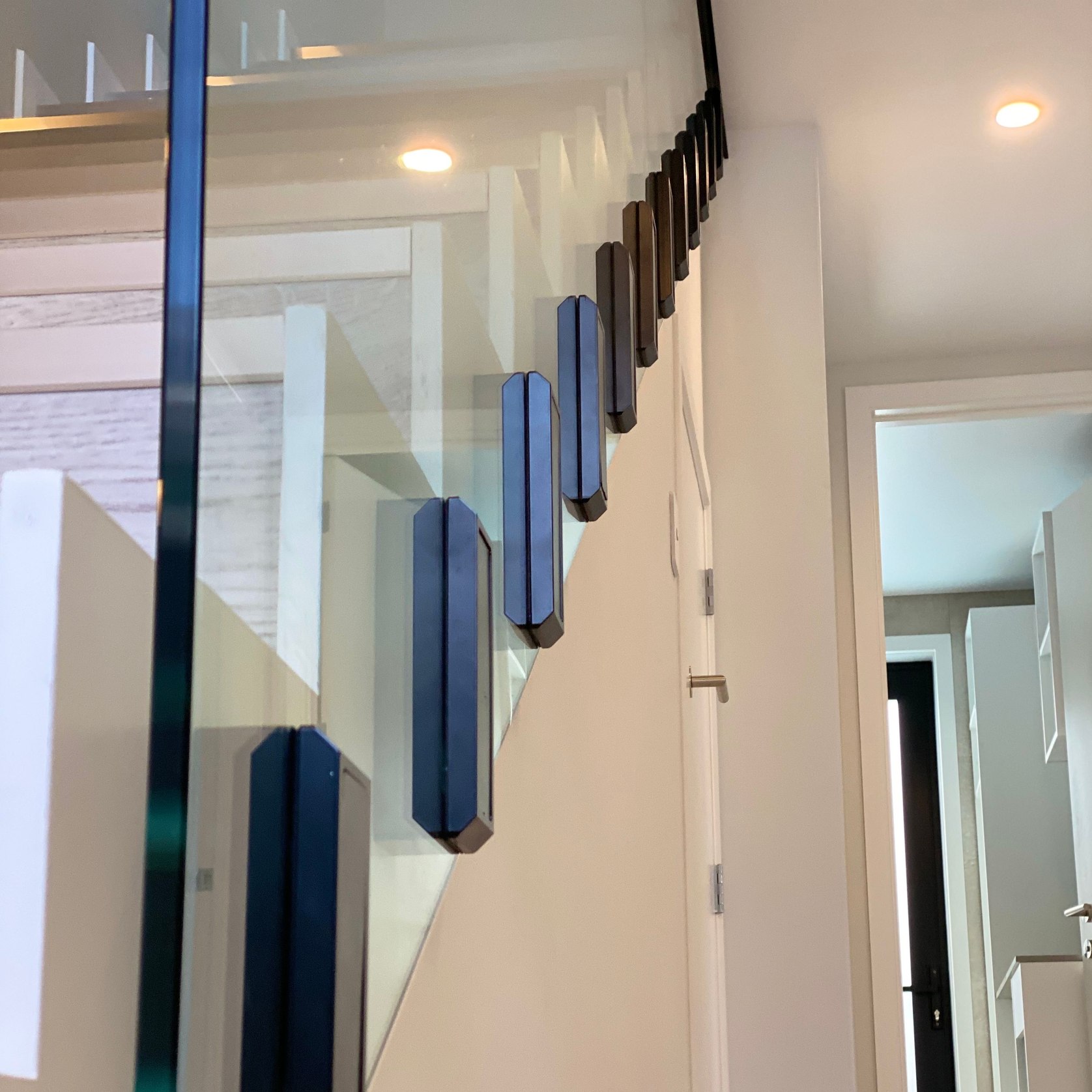

- 3 different clamp face shapes available
- Option for hidden fixing (clamp fittings like screws are not visible)
- Available with 12mm or 15mm thick glass (requires top rail)
- A traditional 50mm diameter disc anchor, fixing panels in place through holes in the glass
- Face fix installation only (fitted to the front of deck face)
- Aluminium disc anchors can be powder coated in a wide range of colours
- Stainless steel disc anchors also available in polished or satin finish
- Available with 12mm or 15mm toughened glass (requires top rail)
- Available in 15.2mm or 17.2mm laminated glass (no top rail required)
- Also available in 13.52mm or 17.52mm SentryGlas® (no top rail required)
- Scope of use
- Occupancy Types A, A Other, C3 Residential & C3 Commercial
- Suitable for Pool Fencing (fully compliant)
- Interlink inking top rail - round or rectangular
- Available with 12mm or 15mm toughened glass (requires top rail)
- Available in 15.2mm or 17.2mm laminated glass (no top rail required)
- Also available in 13.52mm or 17.52mm SentryGlas® (no top rail required)
- Benefits
- Enjoy Clear Views
- 12mm/15mm Toughened Glass
- Designed and Assembled in New Zealand
- Available in a wide range of Dulux® Powder Coat Colours
- Complies with NZS1170, NZS4223.3.2016 & FOSP Act 1987
- Suitable for Occupancy Types A, A Other, B, E, C3 Residential & C3 Commercial
- Matching Interlinking Top Rail (not required for pool fencing)
- Matching Hydraulic Pool Gate & Panel Clip Hardware
- 5 Year Warranty
- 3 clamp face shapes offers more design choices
- Features
- Enjoy Clear Views
- 12mm/15mm Toughened Glass
- 3 clamp face shapes
- Designed and Assembled in New Zealand
- Available in a wide range of Dulux® Powder Coat Colours
- Complies with NZS1170, NZS4223.3.2016 & FOSP Act 1987
- Suitable for Occupancy Types A, A Other, B, E, C3 Residential & C3 Commercial
- 3 choices of Clamp shape offer more aesthetic choices
- Matching Interlinking Top Rail (not required for pool fencing)
- Matching Hydraulic Pool Gate & Panel Clip Hardware
- 5 Year Warranty
- Performance
- 5-year manufacturers warranty
- 15 or 25 Year Dulux Powder Coating surface finish warranty
